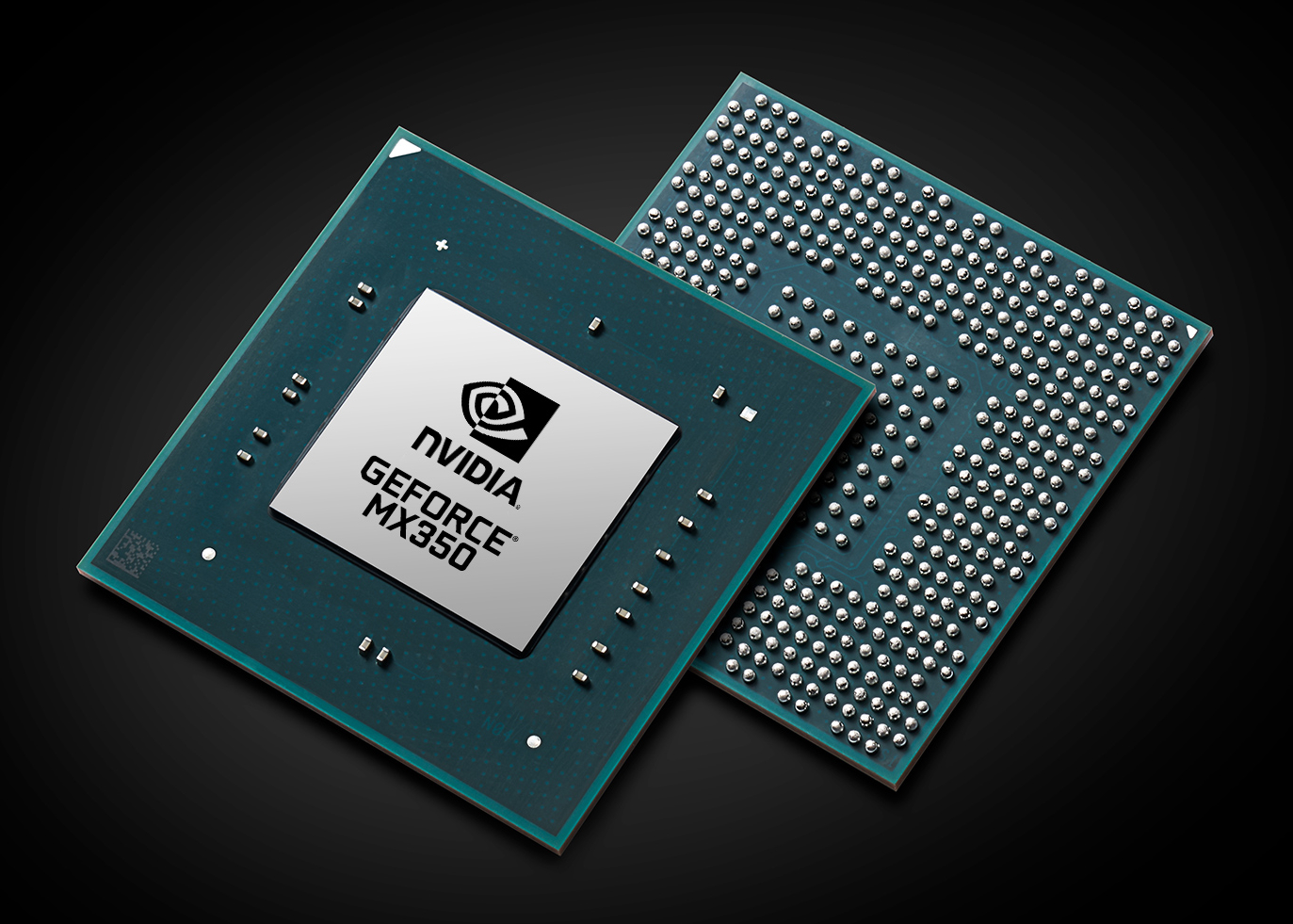

Az Nvidia GeForce MX350 egy laptopoknak szánt dedikált, belépőszintű mobil videokártya. 2020 februárjában adták ki, és ugyanazon a 640 shaderrel rendelkező GP107 Pascal chipen alapszik, mint a laptopoknak szánt Nvidia GeForce GTX 1050. A memória busz 64 bitre (GDDR5) van felezve.
Az első benchmarkok viszont lassabb teljesítményt mutatnak, mint a GTX 1050, és egyenrangút a GTX 960M-mel. Az Nvidia a termékoldalon azt állítja, hogy az MX350 teljesítménye 2.5x-öse az Intel Iris Plus Graphics G7-nek egy i7-1065G7-ben (kontra 2x az MX330-nál). Így 2019 nagyobb igényű játékai, mint a The Division 2, Metro Exodus vagy Rage 2, csak az elfogadható legalacsonyabb részletességi beállításokon fognak futni. Kevésbé igényes játékok, mint a Fifa 20, valószínűleg gond nélkül fognak futni magas beállításokon és akár 1080p-n is. Ez viszont mindig attól is függ, hogy milyen a processzor és a fő memória. Lásd lentebb a részletes játék benchmarkokat.
A GP107-670-A1 chip egy 14 nm-es FinFET eljárással van gyártva a Samsung által, és egy sor új funkciót kínál, mint a DisplayPort 1.4 (kész), HDMI 2.0b, HDR, Simultaneous Multi-Projection (SMP) támogatás, és jobb H.265-ös videó dekódolás és kódolás (PlayReady 3.0). A fejlesztések és az új Pascal asztali GPU-k teljes listája megtalálható a különálló Pascal architektúrás cikkünkben.
Tesztjeinkben az energiafogyasztás alacsonyabb volt, mint az átlagos GTX 1050 (még a Max-Q is), és hasonló a régebbi MX videokártyákhoz (mint ahogy a 25 wattos TGP sugallja). Így tehát a GPU a vékony és könnyű laptopokhoz alkalmas.
GeForce MX300 SzériaGeForce MX450 | 896 @ 1.4 - 1.58 GHz | 64 Bit @ 10000 MHz | GeForce MX350 | 640 @ 1.35 - 1.47 GHz | 64 Bit @ 7000 MHz | GeForce MX330 | 384 @ 1.53 - 1.59 GHz | 64 Bit @ 7000 MHz |
|
Kódnév | N17S-G5 / GP107-670-A1 |
Architektúra | Pascal |
Pipeline-ok | 640 - egységes |
TMUs | 40 |
ROPs | 16 |
Mag sebesség | 1354 - 1468 (Boost) MHz |
Memória sebesség | 7000 effective = 1752 MHz |
Memória Busz Szélesség | 64 Bit |
Memória Típus | GDDR5 |
Shader Memória | nem |
Memory Bandwidth | 56.1 GB/s |
API | DirectX 12_1, OpenGL 4.6 |
Energiafogyasztás | 25 Watt |
Tranzisztorok száma | 3.3 Billion |
Die Size | 132 mm² |
technológia | 14 nm |
PCIe | 3.0 |
Displays | HDMI 2.0b, DisplayPort 1.4 |
Jellegzetességek | Vulkan 1.1, OpenGL 4.6, OpenCL 1.2, GPU Boost 3.0, Multi Monitor, Optimus, PCIe 3.0, GameWorks |
Megjelenés ideje | 20.02.2020 |
Gyártó honlapja | www.nvidia.com |
Performance Rating - 3DMark 11 + Fire Strike + Time Spy
AMD Radeon HD 8180
...
NVIDIA GeForce GTX 680M
NVIDIA Quadro P600
NVIDIA GeForce GT 755M SLI
NVIDIA Quadro M2000M
NVIDIA T500 Laptop GPU
NVIDIA GeForce GTX 960M
NVIDIA Quadro P620
AMD Radeon HD 7970M
NVIDIA Quadro P1000
NVIDIA Quadro K5100M
AMD Radeon 660M
AMD Radeon HD 8970M
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Time Spy Score
min: 1219 átlagos: 1465 medyan: 1491 (4%) max: 1752 Points
GPU TDP ? | TDP 25 W |
---|
100% | 92% |
Intel UHD Graphics 605
...
AMD Radeon Pro 455
NVIDIA Quadro P600
AMD Radeon Pro 460
unknown
AMD Radeon Pro 560
NVIDIA Quadro P1000
NVIDIA Quadro P620
AMD Radeon 660M
NVIDIA GeForce GTX 1050 Max-Q
AMD Radeon Pro 560X
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Time Spy Graphics
min: 1123 átlagos: 1322 medyan: 1335.5 (3%) max: 1595 Points
GPU TDP ? | TDP 25 W |
---|
100% | 93% |
Intel UHD Graphics 605
...
AMD Radeon Pro 555
AMD Radeon Pro 455
NVIDIA GeForce GTX 960M
NVIDIA Quadro P600
unknown
AMD Radeon Pro 560
NVIDIA Quadro P620
NVIDIA Quadro P1000
AMD Radeon 660M
AMD Radeon Pro 560X
NVIDIA GeForce GTX 1050 Max-Q
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Unlimited Graphics
min: 77510 átlagos: 229394 medyan: 285166 (29%) max: 306423 Points
GPU TDP ? | TDP 75 W |
---|
100% | 30% |
NVIDIA Quadro K5100M
...
AMD Radeon Pro 450
AMD Radeon RX Vega 7
AMD Radeon RX 5500M
NVIDIA GeForce MX150
AMD Radeon Pro 555
NVIDIA GeForce GTX 960M
AMD Radeon Pro 455
NVIDIA Quadro P600
NVIDIA GeForce GTX 965M SLI
AMD Radeon Pro 560X
NVIDIA GeForce GTX 970M SLI
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Extreme Graphics
min: 67621 átlagos: 77658 medyan: 79699 (9%) max: 85655 Points
Intel HD Graphics (Bay Trail)
...
AMD Radeon RX Vega 9
AMD Radeon RX Vega 10
Intel Iris Plus Graphics 655
NVIDIA GeForce GTX 965M SLI
NVIDIA GeForce GTX 950M
NVIDIA Quadro P2000
AMD Radeon RX Vega 11
NVIDIA GeForce GTX 960M
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
NVIDIA GeForce GTX 765M
...
max:
NVIDIA GeForce RTX 5080
3DMark - 3DMark Cloud Gate Score
min: 11700 átlagos: 15613 medyan: 16226 (15%) max: 18419 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
83% | 100% | 83% |
Intel Graphics Media Accelerator (GMA) 4500MHD
...
NVIDIA GeForce GTX 770M
AMD FirePro M6100
NVIDIA Quadro P2000 Max-Q
AMD Radeon Pro 560
NVIDIA GeForce GTX 960M
NVIDIA GeForce GTX 680M
AMD Radeon Pro 555
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
AMD Radeon Pro 455
NVIDIA Quadro M1000M
NVIDIA T500 Laptop GPU
AMD Radeon R9 M395
AMD Radeon HD 7970M
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Cloud Gate Graphics
min: 23194 átlagos: 24858 medyan: 24744 (6%) max: 26239 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
93% | 100% | 100% |
Intel Graphics Media Accelerator (GMA) 4500MHD
...
AMD Radeon RX Vega 7
NVIDIA Quadro M1000M
AMD Radeon Pro 455
NVIDIA GeForce GT 750M SLI
NVIDIA GeForce GTX 770M
NVIDIA T500 Laptop GPU
AMD FirePro M6100
AMD Radeon Pro 460
unknown
NVIDIA GeForce GTX 680M
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Fire Strike Standard Score
min: 3615 átlagos: 3975 medyan: 3985 (6%) max: 4196 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
98% | 100% | 99% |
AMD Radeon HD 6480G
...
AMD Radeon Pro 560
NVIDIA GeForce GT 755M SLI
NVIDIA GeForce GTX 680M
NVIDIA Quadro P600
NVIDIA Quadro M2000M
NVIDIA GeForce GTX 960M
NVIDIA T500 Laptop GPU
AMD Radeon RX 480 (Laptop)
unknown
AMD Radeon Pro 460
AMD Radeon 660M
AMD Radeon HD 8970M
AMD Radeon HD 7970M
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Fire Strike Standard Graphics
min: 3999 átlagos: 4390 medyan: 4371 (4%) max: 4656 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
96% | 99% | 100% |
AMD Radeon HD 8180
...
AMD Radeon Pro 560
NVIDIA GeForce GTX 680M
NVIDIA Quadro P600
NVIDIA GeForce GT 755M SLI
NVIDIA Quadro M2000M
NVIDIA GeForce GTX 960M
NVIDIA T500 Laptop GPU
AMD Radeon 660M
AMD Radeon Pro 460
NVIDIA Quadro P620
AMD Radeon HD 7970M
NVIDIA Quadro P1000
NVIDIA Quadro K5100M
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Ice Storm Graphics
min: 80101 átlagos: 88743 medyan: 87118 (10%) max: 97898 Points
Intel Graphics Media Accelerator (GMA) 4500MHD
...
NVIDIA Quadro M3000M
NVIDIA GeForce GT 640M
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
NVIDIA GeForce 945M
NVIDIA Quadro RTX 3000 Max-Q
AMD Radeon R9 M385X
AMD Radeon RX Vega 6 (Ryzen 2000/3000)
Intel Iris Graphics 550
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
NVIDIA GeForce GT 755M
NVIDIA Quadro P3200
AMD FirePro W4170M
AMD Radeon RX Vega 10
NVIDIA Quadro RTX 5000 Max-Q
AMD Radeon RX Vega 9
...
max:
NVIDIA GeForce RTX 5090
3DMark - 3DMark Wild Life Unlimited
min: 9538 átlagos: 9739 medyan: 9837 (5%) max: 9841 Points
Intel UHD Graphics 605
...
AMD Radeon RX Vega 8 (Ryzen 2000/3000)
AMD Radeon RX Vega 10
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
AMD Radeon RX Vega 7
Intel UHD Graphics Xe G4 48EUs
AMD Radeon RX 560X (Laptop)
Intel Iris Xe MAX Graphics
AMD Radeon 680M
Apple M1 7-Core GPU
Apple M1 8-Core GPU
...
Apple M1 Max 32-Core GPU
max:
3DMark - 3DMark Night Raid
min: 13630 átlagos: 13846 medyan: 13845.5 (13%) max: 14061 Points
Intel UHD Graphics 600
...
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
AMD Radeon RX Vega 11
AMD Radeon 610M
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
AMD Radeon RX Vega 7
Intel Iris Xe MAX Graphics
...
max:
3DMark - 3DMark Night Raid Graphics Score
min: 17617 átlagos: 17916 medyan: 17916 (7%) max: 18215 Points
Intel UHD Graphics 600
...
Intel UHD Graphics Xe G4 48EUs
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD Radeon RX Vega 6 (Ryzen 4000/5000)
AMD Radeon RX Vega 7
Intel Iris Xe MAX Graphics
...
max:
3DMark 11 - 3DM11 Performance Score
min: 5099 átlagos: 6325 medyan: 6376 (8%) max: 6781 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
97% | 100% | 93% |
AMD Radeon HD 6250
...
AMD Radeon Pro 560
AMD FirePro M6100
AMD Radeon Pro 455
AMD Radeon HD 8970M
AMD Radeon HD 7970M
NVIDIA GeForce GTX 580M SLI
NVIDIA GeForce GTX 775M
NVIDIA GeForce GTX 680M
NVIDIA GeForce GTX 675M SLI
NVIDIA Quadro P1000
NVIDIA GeForce GTX 670MX SLI
NVIDIA Quadro P620
AMD Radeon HD 6990M Crossfire
AMD Radeon 660M
...
max:
NVIDIA GeForce RTX 5090
3DMark 11 - 3DM11 Performance GPU
min: 5191 átlagos: 6142 medyan: 6166 (5%) max: 6540 Points
GPU TDP ? | TDP 25 W | TDP 75 W |
---|
98% | 100% | 98% |
AMD Radeon HD 6250
...
NVIDIA GeForce GT 755M SLI
AMD Radeon HD 7970M
NVIDIA Quadro P620
NVIDIA GeForce GTX 580M SLI
NVIDIA Quadro P1000
NVIDIA GeForce GTX 775M
NVIDIA GeForce GTX 680M
AMD Radeon 660M
NVIDIA GeForce GTX 675M SLI
AMD Radeon HD 6990M Crossfire
NVIDIA GeForce GTX 680MX
AMD Radeon Pro 460
AMD Radeon R9 M290X
...
max:
NVIDIA GeForce RTX 5090
3DMark 06 3DMark 06 - Standard 1280x1024 +3DMark 06
Modell | CPU | GPU | RAM | Érték |
---|
3DMark 06 - Standard 1280x1024 |
HP Envy 13-ba0001ng (3DMark 06 - Standard 1280x1024) | i7-10510U 4900 W / W | GeForce MX350 747 / 1752 MHz 2 GB | 16 GB | 23907 |
Intel Graphics Media Accelerator (GMA) 500
...
NVIDIA GeForce GTX 675MX
NVIDIA GeForce GTX 580M SLI
AMD Radeon HD 6990M Crossfire
NVIDIA GeForce GTX 485M SLI
NVIDIA GeForce GTX 960M
NVIDIA GeForce GTX 670MX SLI
NVIDIA Quadro K5000M
NVIDIA GeForce GTX 780M
AMD Radeon Pro 450
NVIDIA Quadro M1000M
AMD Radeon RX 560X (Laptop)
NVIDIA Quadro K5100M
AMD FirePro M6100
...
max:
Unigine Valley 1.0 - Unigine Valley 1.0 DX
Intel UHD Graphics 600
...
AMD Radeon Pro 560
AMD Radeon Pro 460
Intel Iris Xe MAX Graphics
NVIDIA Quadro M1000M
NVIDIA Quadro M2000M
NVIDIA Quadro P600
NVIDIA Quadro P1000
NVIDIA GeForce GTX 965M
...
max:
Blender - Blender 3.3 Classroom CUDA *
Modell | CPU | GPU | RAM | Érték |
---|
Lenovo V17 G2 ITL-82NX00EUGE  | i7-1165G7 48 W / 33 W | GeForce MX350 25 W 1468 / 1752 MHz 2 GB | 16 GB | 392 |
SPECviewperf 12
specvp12 sw-03 +SPECviewperf 12 - specvp12 sw-03
Intel HD Graphics 4600
...
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
Intel Iris Graphics 540
AMD Radeon HD 8750M
AMD Radeon R7 M260X
Intel Iris Plus Graphics 655
AMD Radeon Pro WX 3100
Intel UHD Graphics 630
NVIDIA Quadro K2100M
NVIDIA GeForce GTX 965M
AMD FirePro W4190M
NVIDIA Quadro K1100M
NVIDIA GeForce GTX 980M SLI
AMD FirePro W5130M
NVIDIA GeForce GTX 980M
NVIDIA Quadro K620M
...
max:
specvp12 snx-02 +SPECviewperf 12 - specvp12 snx-02
Intel Iris Xe MAX Graphics
...
AMD Radeon R5 M255
NVIDIA GeForce GTX 965M
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
NVIDIA GeForce GTX 980M SLI
NVIDIA GeForce GTX 980M
NVIDIA GeForce GTX 970M SLI
AMD Radeon HD 8570M
AMD Radeon HD 8750M
NVIDIA GeForce GTX 1050 Ti Mobile
AMD Radeon HD 8550G
AMD Radeon R7 M275DX
...
max:
specvp12 showcase-01 +SPECviewperf 12 - specvp12 showcase-01
AMD FirePro M4100
...
NVIDIA Quadro M600M
AMD Radeon Pro WX 3200
NVIDIA Quadro K3100M
AMD Radeon HD 8570M
AMD Radeon RX Vega 7
NVIDIA GeForce GTX 950M
AMD Radeon Pro 555
NVIDIA Quadro P600
AMD Radeon Pro 455
NVIDIA Quadro M1000M
NVIDIA Quadro M2000M
Intel Iris Xe MAX Graphics
AMD Radeon 660M
...
max:
specvp12 mediacal-01 +SPECviewperf 12 - specvp12 mediacal-01
AMD FirePro M4100
...
NVIDIA Quadro P520
NVIDIA GeForce GTX 970M
Intel Iris Xe MAX Graphics
NVIDIA GeForce GTX 950M
NVIDIA Quadro M1000M
AMD Radeon RX Vega 10
NVIDIA Quadro P600
NVIDIA Quadro P620
NVIDIA Quadro P1000
NVIDIA Quadro M2000M
AMD FirePro M6100
NVIDIA GeForce GTX 965M
AMD Radeon RX Vega M GL / 870
NVIDIA GeForce GTX 980M SLI
...
max:
specvp12 maya-04 +SPECviewperf 12 - specvp12 maya-04
NVIDIA GeForce 940M
...
NVIDIA GeForce GTX 950M
AMD FirePro W4170M
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD Radeon 610M
AMD Radeon R9 M370X
AMD FirePro M5100
NVIDIA Quadro K3100M
NVIDIA GeForce MX150
AMD Radeon Pro 455
AMD Radeon Pro 555
NVIDIA Quadro M1000M
AMD Radeon R9 M390
...
max:
specvp12 energy-01 +SPECviewperf 12 - specvp12 energy-01
AMD Radeon R7 M260X
...
NVIDIA Quadro M600M
NVIDIA GeForce MX150
Intel Iris Xe MAX Graphics
AMD FirePro M6100
NVIDIA Quadro P520
NVIDIA GeForce GTX 950M
NVIDIA GeForce GTX 965M
AMD Radeon RX Vega 10
AMD Radeon Pro WX 3200
...
AMD Radeon 660M
max:
specvp12 creo-01 +SPECviewperf 12 - specvp12 creo-01
Intel HD Graphics 4600
...
Intel Iris Graphics 6100
AMD Radeon R7 M275DX
AMD Radeon HD 8750M
AMD FirePro M4100
Intel UHD Graphics 630
AMD Radeon R7 M260X
Intel Iris Plus Graphics 655
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD Radeon R5 M255
NVIDIA Quadro K1100M
AMD Radeon RX Vega 10
NVIDIA Quadro K620M
AMD FirePro W4190M
...
max:
specvp12 catia-04 +SPECviewperf 12 - specvp12 catia-04
AMD Radeon R5 M255
...
NVIDIA GeForce MX150
AMD Radeon R7 M260X
AMD FirePro W4190M
NVIDIA Quadro K620M
Intel Iris Plus Graphics 655
AMD FirePro W4170M
NVIDIA Quadro K2100M
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD FirePro W5130M
AMD FirePro M5100
NVIDIA GeForce GTX 970M
AMD Radeon R9 M370X
NVIDIA GeForce GTX 965M
...
max:
specvp12 3dsmax-05 +SPECviewperf 12 - specvp12 3dsmax-05
AMD FirePro W4190M
...
NVIDIA Quadro P520
AMD Radeon Pro 455
AMD Radeon Pro 555
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
AMD Radeon 610M
AMD Radeon Pro WX 3200
AMD Radeon Pro WX 3100
NVIDIA Quadro M2000M
AMD Radeon RX Vega 7
...
max:
NVIDIA GeForce RTX 5080
SPECviewperf 13 specvp13 sw-04 +SPECviewperf 13 - specvp13 sw-04
Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
...
Intel UHD Graphics 24EUs (Alder Lake-N)
Intel Iris Xe MAX Graphics
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
Intel Iris Plus Graphics 655
NVIDIA GeForce MX150
Intel UHD Graphics 630
AMD Radeon Pro WX 3200
Intel UHD Graphics Xe 32EUs (Tiger Lake-H)
NVIDIA GeForce GTX 1650 Max-Q
...
max:
specvp13 snx-03 +SPECviewperf 13 - specvp13 snx-03
Intel Iris Xe MAX Graphics
...
NVIDIA GeForce MX150
Intel UHD Graphics Xe 16EUs (Tiger Lake-H)
NVIDIA GeForce GTX 1650 Max-Q
NVIDIA GeForce RTX 2070 Max-Q
...
max:
specvp13 showcase-02 +SPECviewperf 13 - specvp13 showcase-02
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA GeForce MX150
AMD Radeon RX Vega 7
AMD Radeon Pro WX 3200
NVIDIA T500 Laptop GPU
NVIDIA Quadro P600
Intel Iris Xe MAX Graphics
AMD Radeon 660M
NVIDIA Quadro P620
NVIDIA Quadro P1000
...
max:
specvp13 medical-02 +SPECviewperf 13 - specvp13 medical-02
...
NVIDIA GeForce MX150
NVIDIA Quadro P600
AMD Radeon Pro WX 3200
NVIDIA Quadro P1000
AMD Radeon Pro Vega 16
AMD Radeon RX Vega 7
Intel Iris Xe MAX Graphics
NVIDIA Quadro P520
NVIDIA Quadro P2000 Max-Q
AMD Radeon Pro Vega 20
NVIDIA Quadro P2000
NVIDIA Quadro P620
...
max:
specvp13 maya-05 +SPECviewperf 13 - specvp13 maya-05
Intel UHD Graphics 24EUs (Alder Lake-N)
...
NVIDIA Quadro P520
AMD Radeon 610M
Intel Iris Xe MAX Graphics
AMD Radeon RX Vega 7
NVIDIA T500 Laptop GPU
NVIDIA GeForce MX150
NVIDIA Quadro P600
AMD Radeon 660M
NVIDIA Quadro P620
NVIDIA Quadro P1000
...
max:
specvp13 energy-02 +SPECviewperf 13 - specvp13 energy-02
