GMK NucBox K9 mini PC felülvizsgálat: Core Ultra 5 125H Arc 7 grafikával

Miután néhány hónappal ezelőtt áttekintettük a GMK NucBox K6-ot, most készen állunk arra, hogy a NucBox K9-et az újabb AI-képes Meteor Lake-H processzorral kiegészítve kezeljük. A CPU AMD-ről Intelre történő cseréjétől eltekintve azonban a két modell váza azonos marad, ezért javasoljuk, hogy tekintse meg a NucBox NucBox Nukleáris számítógépről szóló értékelésünket NucBox K6 a rendszer fizikai jellemzőinek megismeréséhez.

Tesztkészülékünk Core Ultra 5 125H CPU-val, 1 TB SSD-vel és 32 GB RAM-mal van felszerelve, körülbelül 860 dollárért, vagy 570 dollárért, ha akciós. A felhasználók konfigurálhatják úgy is, hogy egyáltalán nincs RAM vagy SSD a csupasz beállításhoz, de a Core Ultra 5 CPU minden opcióban fix.

Az alternatívák között szerepelnek más teljesítményű mini PC-k, mint például a Beelink SER8, Bosgame M1, vagy Geekom AX8 Pro.

További GMKtec vélemények:

Értékelés	Version	Dátum	Model	Súly	Magasság	Felbontás
58.7 %	v8	09/2024	GMK NucBox K9 Ultra 5 125H, Arc 7-Core	528 g	47 mm	x
83.6 %	v7 ^(old)		GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
63.6 %	v8	07/2024	GMK NucBox M6 R5 6600H, Radeon 660M	526 g	48 mm	x
74.9 %	v8	07/2024	Beelink SER8 R7 8845HS, Radeon 780M	776 g	50 mm	x
			Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
84.5 %	v7 ^(old)	05/2024	BOSGAME M1 R7 7840HS, Radeon 780M	766 g	51 mm	x

Megjegyzés: Nemrégiben frissítettük a minősítési rendszerünket, és a 8-as verzió eredményei nem hasonlíthatók össze a 7-es verzió eredményeivel. További információk elérhetők itt .

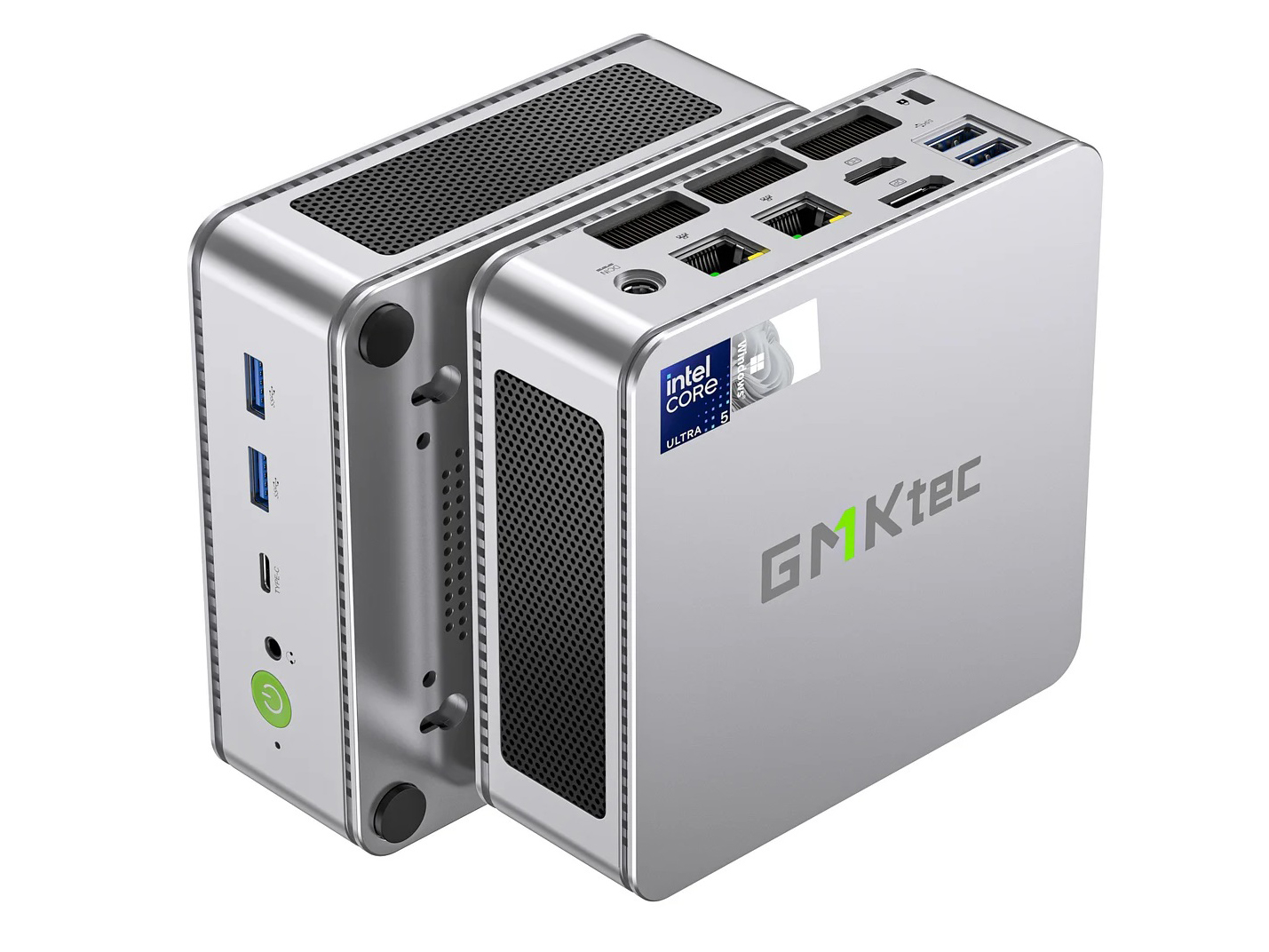

Eset - A színváltás

A műanyag és fém váz megegyezik az AMD-üzemű NucBox K6 készülékkel, bár matt szürke/ezüst színben.

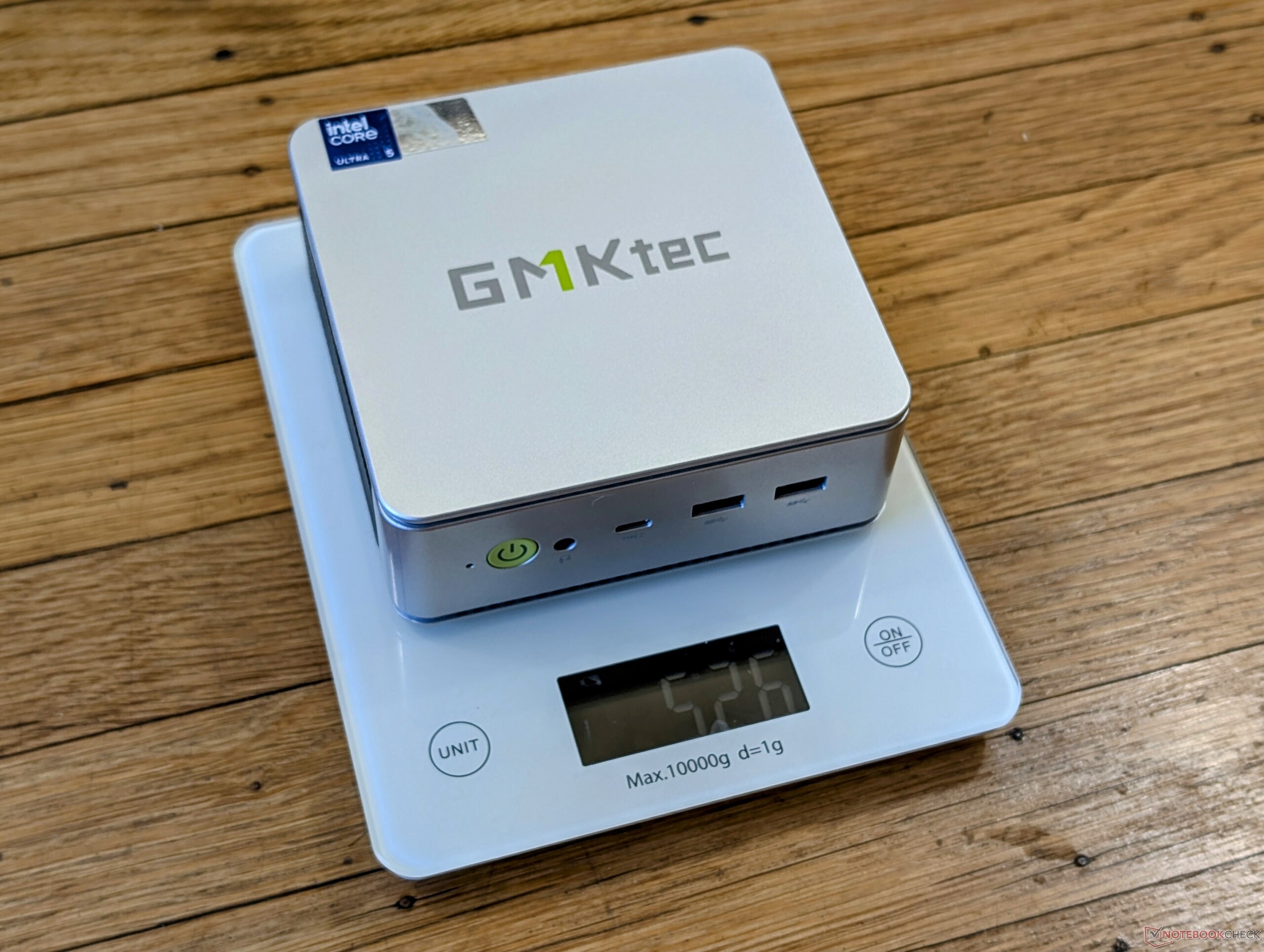

Méret összehasonlítás

Csatlakoztathatóság - Gyorsabb USB-portok

Míg a portok lehetőségei és elhelyezése nem változtak a NucBox K6-hoz képest, az USB-portok továbbfejlesztésre kerültek. Az összes USB-A port mostantól USB4 a 2.0 vagy 3.2 helyett. Eközben az USB-C port hivatalosan is támogatja a Thunderbolt 4-et.

Harmadik féltől származó USB-C hálózati adapterek táplálhatják a rendszert a hordozható hálózati adapter helyett, ha az elegendő energiát tud biztosítani. A teljesítmény és a kompatibilitás azonban nem garantált minden USB-C adapterrel.

Kommunikáció

A Wi-Fi 6 és a Bluetooth 5.2 csatlakoztathatósághoz a MediaTek RZ616 helyett egy Intel AX201 kerül alapfelszereltségbe. A Wi-Fi 6E és a Wi-Fi 7 a költségek megtakarítása érdekében nem szerepel a csomagban.

Networking
iperf3 transmit AXE11000
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1531 (1372^min - 1639^max) MBit/s +86%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +81%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s +79%
GMK NucBox K9 Intel Wi-Fi 6 AX201	823 (607^min - 901^max) MBit/s
Beelink SER8 Intel Wi-Fi 6 AX200	812 (641^min - 888^max) MBit/s -1%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -23%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +94%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1449 (1247^min - 1560^max) MBit/s +90%
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +81%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s +60%
Beelink SER8 Intel Wi-Fi 6 AX200	784 (679^min - 845^max) MBit/s +3%
GMK NucBox K9 Intel Wi-Fi 6 AX201	764 (635^min - 829^max) MBit/s
iperf3 transmit AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	394 (359^min - 432^max) MBit/s
iperf3 receive AXE11000 6GHz
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	684 (650^min - 718^max) MBit/s

GMK NucBox K9; iperf3 transmit AXE11000; iperf 3.1.3: Ø824 (607-901)

GMK NucBox K9; iperf3 receive AXE11000; iperf 3.1.3: Ø763 (635-829)

Karbantartás

A bővíthető alkatrészek megegyeznek a NucBox K6-éval.

Fenntarthatóság

A gyártó "Fenntarthatóan gyártott" rendszert hirdet, anélkül, hogy részletesen kifejtené, hogy ez mit jelent. Maga a csomagolás többnyire kartonpapír, némi műanyag csomagolással.

Tartozékok és garancia

A kiskereskedelmi doboz a szokásos papírmunka és a hálózati adapter mellett tartalmaz egy VESA rögzítőkonzolt és egy HDMI-kábelt is. Az Egyesült Államokban történő vásárlás esetén egy év gyártói garancia érvényes.

Teljesítmény - Meteor Lake Standard

Vizsgálati feltételek

Az alábbi összehasonlító tesztek futtatása előtt a Windows-t teljesítmény üzemmódba állítottuk.

Processzor

A CPU teljesítménye ott van, ahol azt várjuk, hogy az adatbázisunkban lévő más PC-khez képest azonos Core Ultra 5 125H processzorral. A Meteor Lake CPU fej-fej mellett halad a legutóbbi generációs Core i9-13900H ami papíron remekül hangzik, amíg nem jut eszébe, hogy az AMD-vel hajtott NucBox K6 a régebbi Ryzen 7 7840HS még gyorsabb, mint bármelyik Intel megoldás. Így a Core Ultra 7 opció hiánya furcsa, tekintve, hogy a NucBox K9 az újabb doboz.

Bár integrált mesterséges intelligenciát tartalmaz, nem kompatibilis a Co-Pilot+ programmal.

Cinebench R15 Multi Loop

GMK NucBox K9 Intel Core Ultra 5 125H: Ø1902 (1827.4-1965.8)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox M6 AMD Ryzen 5 6600H: Ø1720 (1708.16-1737.02)

Beelink SER8 AMD Ryzen 7 8845HS: Ø2607 (2586.82-2626.57)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	91.5 pt
Minisforum G7 PT AMD Ryzen 9 7945HX	91.4 pt
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	90 pt
Beelink SER8 AMD Ryzen 7 8845HS	70.5 pt
GMK NucBox K6 AMD Ryzen 7 7840HS	69.6 pt
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	69.6 pt
Geekom AE7 AMD Ryzen 9 7940HS	69.6 pt
Geekom AX8 Pro AMD Ryzen 9 8945H	69.1 pt
Acemagic F2A Intel Core Ultra 7 155H	67.6 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	65.9 pt
Geekom XT13 Pro Intel Core i9-13900H	61.8 pt
GMK NucBox K9 ^-1! Intel Core Ultra 5 125H	61.2 pt
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	60.2 pt
Asus NUC 14 Pro Intel Core Ultra 5 125H	58.1 pt
Átlagos Intel Core Ultra 5 125H	55.8 pt
GMK NucBox M6 AMD Ryzen 5 6600H	54.7 pt
Beelink SEi12 Core i5-1235U ^-2! Intel Core i5-1235U	50.7 pt
Newsmay AC8F-POE Intel Processor N100	19.4 pt

Cinebench R23 / Multi Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31070 Points +139%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	30989 Points +139%
Minisforum G7 PT AMD Ryzen 9 7945HX	30799 Points +137%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	19249 Points +48%
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +42%
Beelink SER8 AMD Ryzen 7 8845HS	16661 (16363.9^min - 16661^max) Points +28%
Geekom AE7 AMD Ryzen 9 7940HS	16099 Points +24%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	15516 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points +16%
Asus NUC 14 Pro Intel Core Ultra 5 125H	14516 Points +12%
GMK NucBox K9 Intel Core Ultra 5 125H	12989 (12625.3^min - 12989.4^max) Points
Átlagos Intel Core Ultra 5 125H (9194 - 14564, n=6)	12308 Points -5%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	11790 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points -37%
Newsmay AC8F-POE Intel Processor N100	1946 Points -85%

Cinebench R23 / Single Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2212 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2167 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	1957 Points +13%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points +10%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +6%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1825 Points +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	1808 Points +4%
Geekom AE7 AMD Ryzen 9 7940HS	1788 Points +3%
Beelink SER8 AMD Ryzen 7 8845HS	1783 Points +3%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	1735 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	1721 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points -1%
Átlagos Intel Core Ultra 5 125H (1549 - 1735, n=6)	1668 Points -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points -14%
Newsmay AC8F-POE Intel Processor N100	843 Points -51%

Cinebench R20 / CPU (Multi Core)
Minisforum G7 PT AMD Ryzen 9 7945HX	12210 Points +147%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	11814 Points +139%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	11291 Points +128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	7513 Points +52%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +45%
Beelink SER8 AMD Ryzen 7 8845HS	6431 Points +30%
Geekom AE7 AMD Ryzen 9 7940HS	6321 Points +28%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points +26%
Geekom AX8 Pro AMD Ryzen 9 8945H	6153 Points +24%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points +17%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5617 Points +14%
GMK NucBox K9 Intel Core Ultra 5 125H	4948 Points
Geekom XT13 Pro Intel Core i9-13900H	4935 Points 0%
Átlagos Intel Core Ultra 5 125H (3673 - 5618, n=6)	4766 Points -4%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	4319 Points -13%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points -17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points -37%
Newsmay AC8F-POE Intel Processor N100	748 Points -85%

Cinebench R20 / CPU (Single Core)
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	846 Points +27%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	840 Points +27%
Minisforum G7 PT AMD Ryzen 9 7945HX	754 Points +14%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	706 Points +6%
Geekom AX8 Pro AMD Ryzen 9 8945H	703 Points +6%
Geekom AE7 AMD Ryzen 9 7940HS	700 Points +5%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	699 Points +5%
Beelink SER8 AMD Ryzen 7 8845HS	698 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points +4%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +2%
GMK NucBox K9 Intel Core Ultra 5 125H	664 Points
Geekom XT13 Pro Intel Core i9-13900H	649 Points -2%
Átlagos Intel Core Ultra 5 125H (622 - 664, n=6)	643 Points -3%
Asus NUC 14 Pro Intel Core Ultra 5 125H	622 Points -6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points -7%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points -12%
Newsmay AC8F-POE Intel Processor N100	326 Points -51%

Cinebench R15 / CPU Multi 64Bit
Minisforum G7 PT AMD Ryzen 9 7945HX	4998 Points +154%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	4793 Points +144%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	4611 Points +135%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2948 Points +50%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +39%
Beelink SER8 AMD Ryzen 7 8845HS	2627 (2586.82^min - 2626.57^max) Points +34%
Geekom AE7 AMD Ryzen 9 7940HS	2544 Points +29%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points +29%
Geekom AX8 Pro AMD Ryzen 9 8945H	2521 Points +28%
Geekom XT13 Pro Intel Core i9-13900H	2448 Points +25%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points +24%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2141 Points +9%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2022 Points +3%
Átlagos Intel Core Ultra 5 125H (1700 - 2245, n=6)	1983 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1966 (1827.4^min - 1965.8^max) Points
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points -12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points -28%
Newsmay AC8F-POE Intel Processor N100	298 Points -85%

Cinebench R15 / CPU Single 64Bit
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	315 Points +25%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	313 Points +25%
Minisforum G7 PT AMD Ryzen 9 7945HX	309 Points +23%
Geekom AX8 Pro AMD Ryzen 9 8945H	284 Points +13%
Beelink SER8 AMD Ryzen 7 8845HS	283 Points +13%
Geekom AE7 AMD Ryzen 9 7940HS	281 Points +12%
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points +12%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points +9%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	263 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	252 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H	251 Points
Asus NUC 14 Pro Intel Core Ultra 5 125H	248 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	245 Points -2%
Átlagos Intel Core Ultra 5 125H (235 - 251, n=6)	244 Points -3%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points -3%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points -8%
Newsmay AC8F-POE Intel Processor N100	138 Points -45%

Blender / v2.79 BMW27 CPU
Newsmay AC8F-POE Intel Processor N100	1522 Seconds * -514%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * -57%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds * -18%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	288 Seconds * -16%
Átlagos Intel Core Ultra 5 125H (228 - 364, n=6)	285 Seconds * -15%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -5%
GMK NucBox K9 Intel Core Ultra 5 125H	248 Seconds *
Asus NUC 14 Pro Intel Core Ultra 5 125H	228 Seconds * +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds * +10%
Geekom AX8 Pro AMD Ryzen 9 8945H	206 Seconds * +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * +20%
Geekom AE7 AMD Ryzen 9 7940HS	197 Seconds * +21%
Beelink SER8 AMD Ryzen 7 8845HS	191 Seconds * +23%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +28%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	165 Seconds * +33%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	131 Seconds * +47%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	109 Seconds * +56%
Minisforum G7 PT AMD Ryzen 9 7945HX	99 Seconds * +60%

7-Zip 18.03 / 7z b 4
Minisforum G7 PT AMD Ryzen 9 7945HX	131378 MIPS
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	117224 MIPS
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	101652 MIPS
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	72894 MIPS
Geekom AE7 AMD Ryzen 9 7940HS	71631 MIPS
Beelink SER8 AMD Ryzen 7 8845HS	70937 MIPS
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom AX8 Pro AMD Ryzen 9 8945H	66557 MIPS
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	45820 MIPS
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS
Newsmay AC8F-POE Intel Processor N100	8725 MIPS
Asus NUC 14 Pro Intel Core Ultra 5 125H	0 MIPS
Átlagos Intel Core Ultra 5 125H (0 - 0, n=2)	0 MIPS

7-Zip 18.03 / 7z b 4 -mmt1
Minisforum G7 PT AMD Ryzen 9 7945HX	7609 MIPS +52%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	7276 MIPS +45%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	7040 MIPS +41%
Beelink SER8 AMD Ryzen 7 8845HS	6714 MIPS +34%
Geekom AX8 Pro AMD Ryzen 9 8945H	6691 MIPS +34%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +33%
Geekom AE7 AMD Ryzen 9 7940HS	6661 MIPS +33%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS +24%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	5980 MIPS +20%
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS +16%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS +14%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS +10%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	5333 MIPS +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +4%
Asus NUC 14 Pro Intel Core Ultra 5 125H	5136 MIPS +3%
GMK NucBox K9 Intel Core Ultra 5 125H	5004 MIPS
Átlagos Intel Core Ultra 5 125H (4663 - 5136, n=6)	4948 MIPS -1%
Newsmay AC8F-POE Intel Processor N100	3583 MIPS -28%

Geekbench 6.2 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	18504 Points +67%
Minisforum G7 PT AMD Ryzen 9 7945HX	16765 Points +51%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	15962 Points +44%
Geekom AE7 AMD Ryzen 9 7940HS	13369 Points +21%
Beelink SER8 AMD Ryzen 7 8845HS	13362 Points +21%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13232 Points +19%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +19%
Geekom AX8 Pro AMD Ryzen 9 8945H	13162 Points +19%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +12%
Asus NUC 14 Pro Intel Core Ultra 5 125H	11749 Points +6%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points +4%
Átlagos Intel Core Ultra 5 125H (11087 - 11749, n=6)	11404 Points +3%
GMK NucBox K9 Intel Core Ultra 5 125H	11087 Points
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10644 Points -4%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points -17%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9225 Points -17%
Newsmay AC8F-POE Intel Processor N100	2780 Points -75%

Geekbench 6.2 / Single-Core
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	3022 Points +32%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2942 Points +28%
Minisforum G7 PT AMD Ryzen 9 7945HX	2880 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2694 Points +17%
Geekom AE7 AMD Ryzen 9 7940HS	2693 Points +17%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points +17%
Geekom AX8 Pro AMD Ryzen 9 8945H	2651 Points +15%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2583 Points +12%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	2546 Points +11%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	2485 Points +8%
Geekom XT13 Pro Intel Core i9-13900H	2415 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +5%
Asus NUC 14 Pro Intel Core Ultra 5 125H	2316 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	2297 Points
Átlagos Intel Core Ultra 5 125H (2199 - 2316, n=6)	2277 Points -1%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points -11%
Newsmay AC8F-POE Intel Processor N100	1209 Points -47%

Geekbench 5.5 / Multi-Core
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	19971 Points +99%
Minisforum G7 PT AMD Ryzen 9 7945HX	19836 Points +98%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	17395 Points +74%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	13339 Points +33%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +26%
Geekom AE7 AMD Ryzen 9 7940HS	12228 Points +22%
Beelink SER8 AMD Ryzen 7 8845HS	12196 Points +22%
Geekom AX8 Pro AMD Ryzen 9 8945H	11980 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points +15%
Asus NUC 14 Pro Intel Core Ultra 5 125H	10856 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points +5%
Átlagos Intel Core Ultra 5 125H (9696 - 10856, n=6)	10408 Points +4%
GMK NucBox K9 Intel Core Ultra 5 125H	10025 Points
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	9122 Points -9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points -18%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points -22%
Newsmay AC8F-POE Intel Processor N100	2332 Points -77%

Geekbench 5.5 / Single-Core
Minisforum G7 PT AMD Ryzen 9 7945HX	2147 Points +29%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	2140 Points +28%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	2092 Points +25%
Beelink SER8 AMD Ryzen 7 8845HS	2004 Points +20%
Geekom AX8 Pro AMD Ryzen 9 8945H	1994 Points +20%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points +19%
Geekom AE7 AMD Ryzen 9 7940HS	1986 Points +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points +14%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	1858 Points +11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	1838 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +5%
Geekom XT13 Pro Intel Core i9-13900H	1708 Points +2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	1685 Points +1%
GMK NucBox K9 Intel Core Ultra 5 125H	1668 Points
Átlagos Intel Core Ultra 5 125H (1593 - 1699, n=6)	1660 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points -2%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points -9%
Newsmay AC8F-POE Intel Processor N100	975 Points -42%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum G7 PT AMD Ryzen 9 7945HX	34.6 fps +151%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	32.3 fps +134%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	31.6 fps +129%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	21.8 fps +58%
Beelink SER8 AMD Ryzen 7 8845HS	21.1 fps +53%
Geekom AE7 AMD Ryzen 9 7940HS	20.9 fps +51%
Geekom AX8 Pro AMD Ryzen 9 8945H	20.6 fps +49%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps +49%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +42%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps +19%
Asus NUC 14 Pro Intel Core Ultra 5 125H	15.7 fps +14%
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps +7%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps +1%
GMK NucBox K9 Intel Core Ultra 5 125H	13.8 fps
Átlagos Intel Core Ultra 5 125H (9.7 - 16.7, n=6)	13.4 fps -3%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	12.7 fps -8%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -32%
Newsmay AC8F-POE Intel Processor N100	2.12 fps -85%

LibreOffice / 20 Documents To PDF
Newsmay AC8F-POE Intel Processor N100	100.2 s * -128%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	56.2 s * -28%
Asus NUC 14 Pro Intel Core Ultra 5 125H	55.7 s * -27%
Geekom AE7 AMD Ryzen 9 7940HS	53.7 s * -22%
Átlagos Intel Core Ultra 5 125H (42.7 - 70.9, n=6)	53.4 s * -21%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s * -19%
Geekom AX8 Pro AMD Ryzen 9 8945H	49.8 s * -13%
Minisforum G7 PT AMD Ryzen 9 7945HX	49.7 s * -13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * -11%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	48.4 s * -10%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * -6%
Beelink SER8 AMD Ryzen 7 8845HS	46.1 s * -5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s * -5%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	44.7 s * -2%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * -0%
GMK NucBox K9 Intel Core Ultra 5 125H	44 s *
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	38.2 s * +13%

R Benchmark 2.5 / Overall mean
Newsmay AC8F-POE Intel Processor N100	0.975 sec * -99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * -5%
Átlagos Intel Core Ultra 5 125H (0.4898 - 0.53, n=6)	0.506 sec * -3%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec * -2%
Asus NUC 14 Pro Intel Core Ultra 5 125H	0.4982 sec * -2%
GMK NucBox K9 Intel Core Ultra 5 125H	0.4898 sec *
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * +4%
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +5%
Geekom AX8 Pro AMD Ryzen 9 8945H	0.4576 sec * +7%
Asus ROG NUC 14-90AS0051 Intel Core Ultra 9 185H	0.4489 sec * +8%
HP Pro Mini 400 G9-937U0EA Intel Core i5-14500T	0.4457 sec * +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec * +11%
Geekom AE7 AMD Ryzen 9 7940HS	0.4346 sec * +11%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * +11%
Beelink SER8 AMD Ryzen 7 8845HS	0.4336 sec * +11%
Minisforum G7 PT AMD Ryzen 9 7945HX	0.406 sec * +17%
Lenovo ThinkStation P3 Tiny-30H0006AGE Intel Core i9-14900	0.3803 sec * +22%
HP Z2 Mini G9-996Q4ET Intel Core i7-14700K	0.3788 sec * +23%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.2: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... a kisebb jobb

Performance Rating
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	98.4 pt
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	97.4 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	60.5 pt
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	59.7 pt
Átlagos Intel Core Ultra 5 125H	56.3 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	38.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	26305 KRay/s +145%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s +142%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +136%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	12274 KRay/s +14%
Átlagos Intel Core Ultra 5 125H (8430 - 13639, n=6)	10907 KRay/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	10755 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s -37%

AIDA64 / FPU Julia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	111508 Points +91%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points +90%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +85%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	76931 Points +32%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	58422 Points
Átlagos Intel Core Ultra 5 125H (43652 - 70880, n=6)	57140 Points -2%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points -41%

AIDA64 / CPU SHA3
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	4933 MB/s +69%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s +66%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +63%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	2922 MB/s
Átlagos Intel Core Ultra 5 125H (2047 - 3404, n=6)	2752 MB/s -6%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	2650 MB/s -9%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s -36%

AIDA64 / CPU Queen
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points +50%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	115546 Points +47%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +42%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	82119 Points +4%
Átlagos Intel Core Ultra 5 125H (77892 - 79986, n=6)	78805 Points 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	78797 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points -24%

AIDA64 / FPU SinJulia
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	15420 Points +98%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +89%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	9739 Points +25%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	7780 Points
Átlagos Intel Core Ultra 5 125H (6588 - 7851, n=6)	7398 Points -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -40%

AIDA64 / FPU Mandel
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	59522 Points +113%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points +111%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +106%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	42406 Points +52%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	27972 Points
Átlagos Intel Core Ultra 5 125H (21210 - 35321, n=6)	27928 Points 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points -41%

AIDA64 / CPU AES
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	172642 MB/s +59%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s +54%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +51%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	108402 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	104138 MB/s -4%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s -38%
Átlagos Intel Core Ultra 5 125H (45524 - 108402, n=6)	64990 MB/s -40%

AIDA64 / CPU ZLib
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	1073 MB/s +27%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s +25%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +22%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	844 MB/s
Átlagos Intel Core Ultra 5 125H (594 - 994, n=6)	806 MB/s -5%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	660 MB/s -22%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s -25%

AIDA64 / FP64 Ray-Trace
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	14041 KRay/s +148%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s +146%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +141%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	6588 KRay/s +16%
Átlagos Intel Core Ultra 5 125H (4345 - 7221, n=6)	5677 KRay/s 0%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	5657 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s -38%

AIDA64 / CPU PhotoWorxx
Átlagos Intel Core Ultra 5 125H (45724 - 49844, n=6)	47064 MPixel/s +2%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	46296 MPixel/s
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s -10%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s -12%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	40489 MPixel/s -13%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	29621 MPixel/s -36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s -36%

Stressz teszt

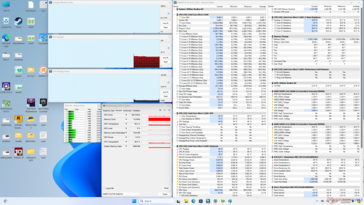

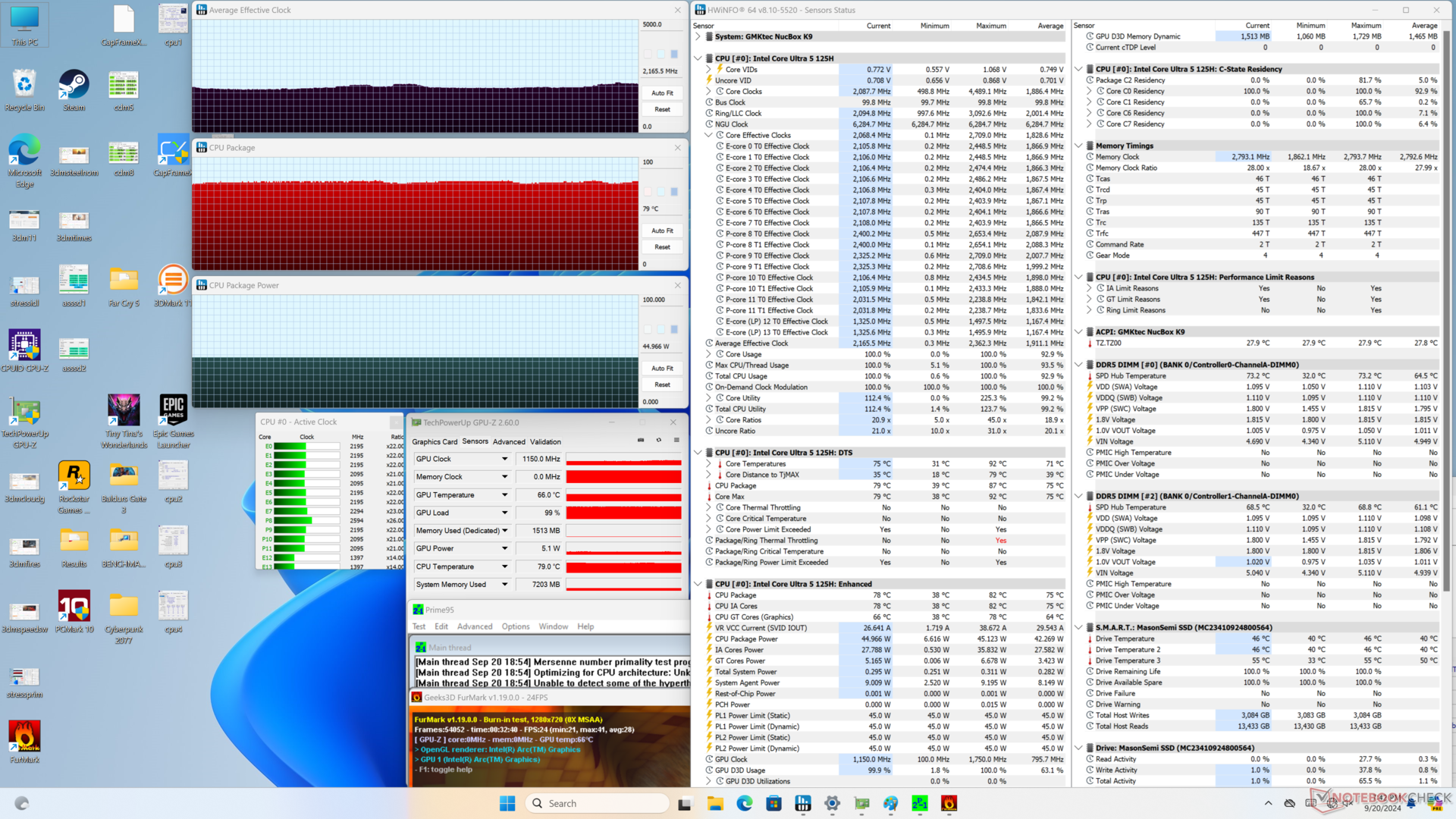

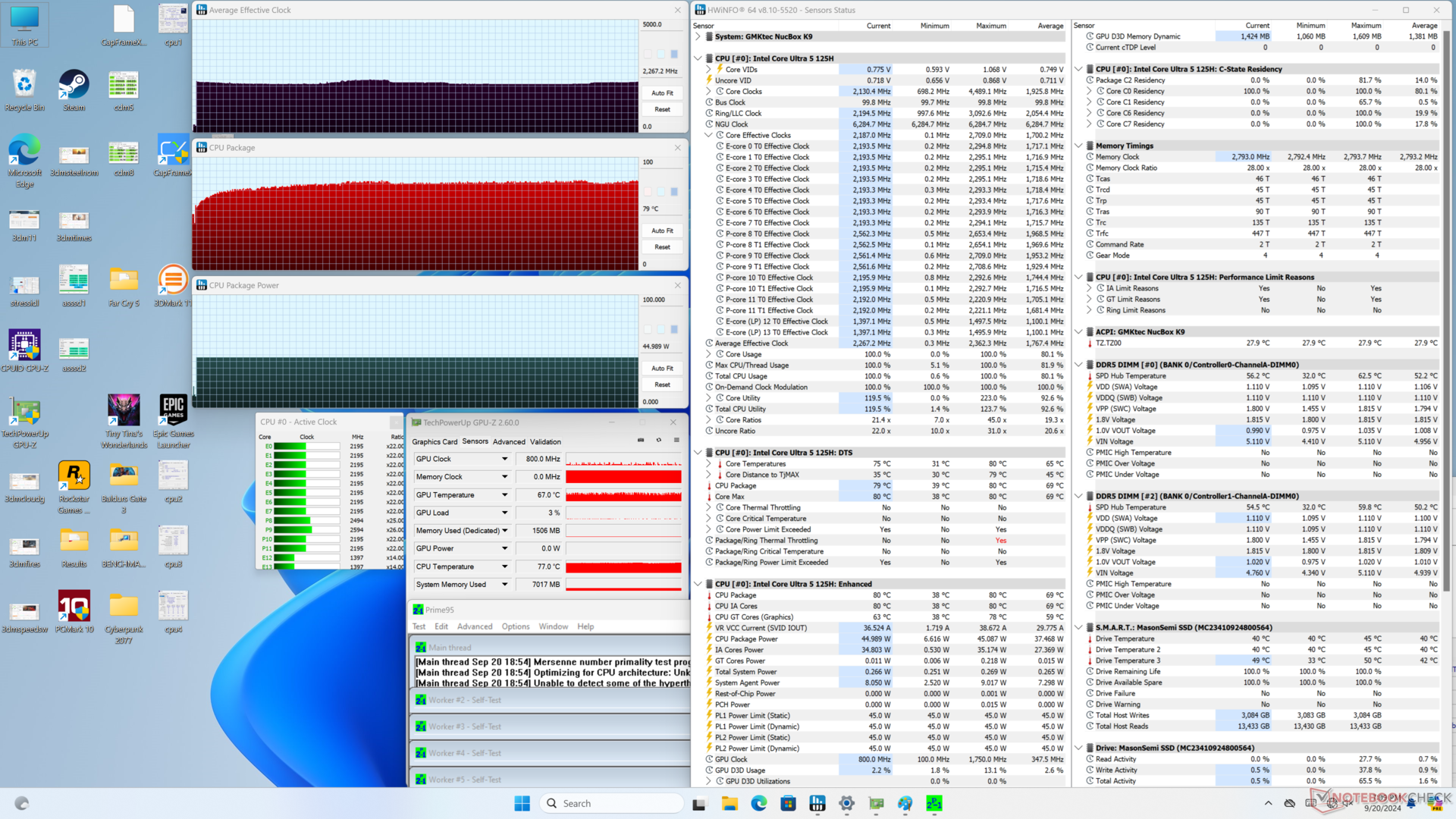

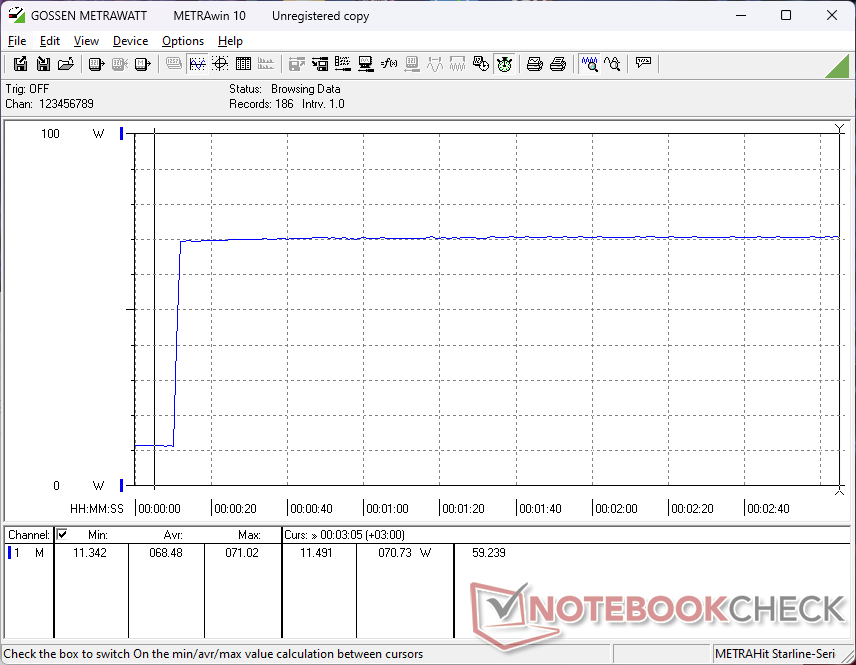

A Prime95 stressz indításakor a CPU 2,3 GHz-re és 45 W-ra gyorsult, majd ezeket az értékeket a stresszteszt teljes időtartama alatt megtartotta. A maghőmérséklet 80 C-on állt meg, ami valamivel hűvösebb, mint amit a gyorsabb AMD-üzemű NucBox K6-on mértünk.

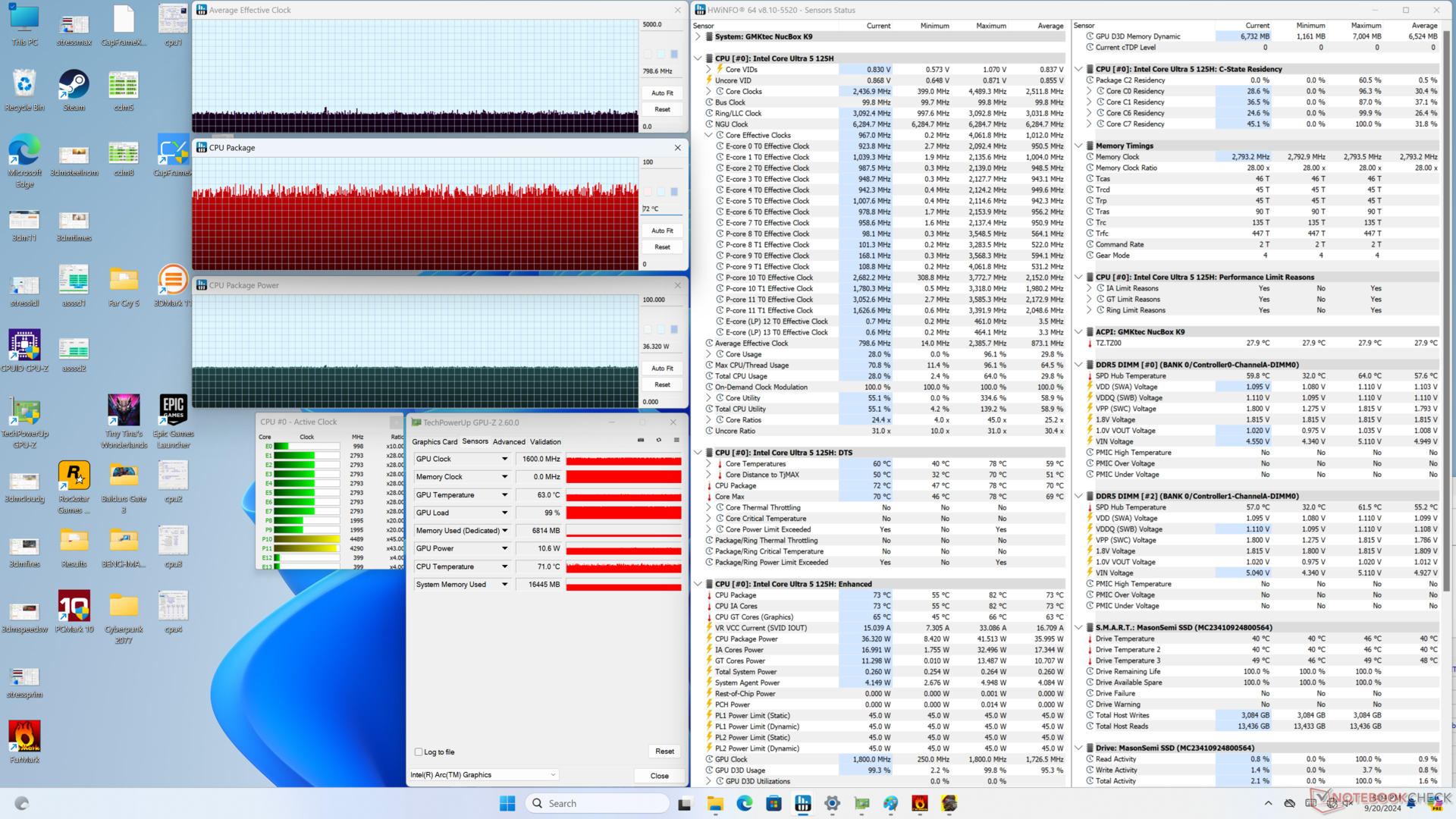

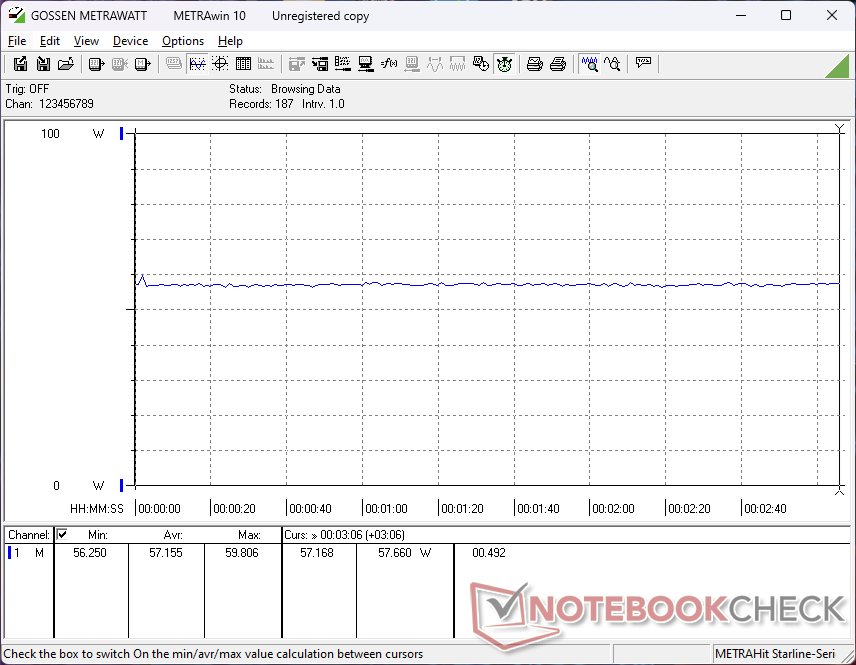

Amikor a Cyberpunk 2077-et futtattuk a játékterhelés reprezentálására, a maghőmérséklet 72 C-on stabilizálódott, ami hasonló a NucBox K6-hoz, annak ellenére, hogy a NucBox K9 lassabban futtatja a játékokat, amint azt a játékteljesítményre vonatkozó alábbi szakaszunk is mutatja.

Rendszer teljesítménye

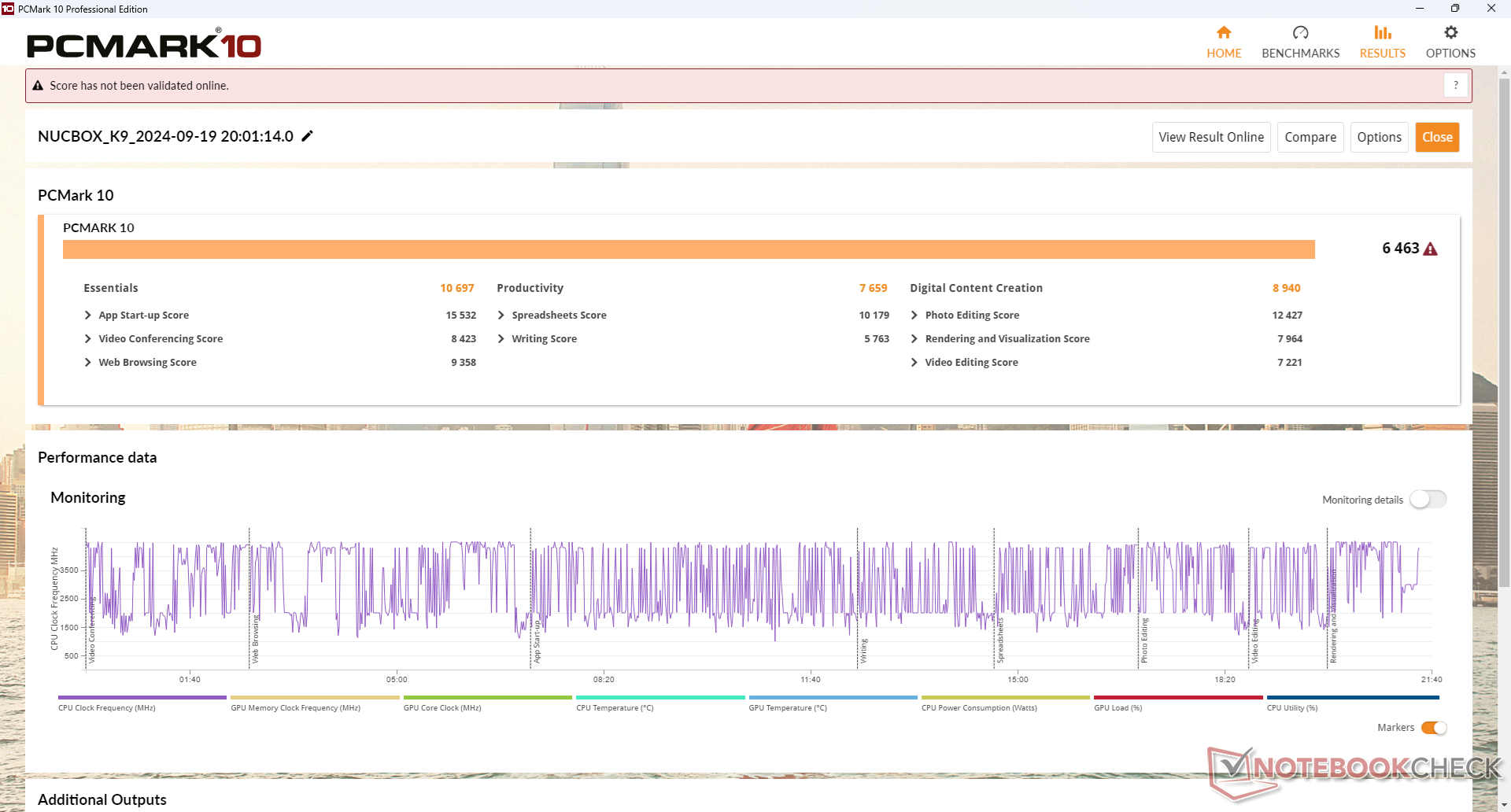

A PCMark 10 pontszámok általában alacsonyabbak, mint a NucBox K6 esetében, különösen a termékenységi altesztben, ahol a többmagos teljesítmény előnyben részesül

PCMark 10 / Score
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	7641 Points +18%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +16%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points +11%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	6463 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (6194 - 6463, n=6)	6320 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6220 Points -4%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points -14%

PCMark 10 / Essentials
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	11570 Points +8%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +5%
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +5%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	10697 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	10360 Points -3%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (9427 - 10697, n=6)	10178 Points -5%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +38%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10457 Points +37%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points +18%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	9059 Points +18%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (7042 - 8000, n=6)	7691 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	7659 Points
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -4%

PCMark 10 / Digital Content Creation
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	10009 Points +12%
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points +11%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +9%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	8940 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (8198 - 9506, n=6)	8775 Points -2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6959 Points -22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points -35%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +16%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1875 Points +15%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +15%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1633 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1522 - 1633, n=5)	1574 Points -4%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1521 Points -7%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +14%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +14%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1802 Points +13%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +5%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1594 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1517 Points -5%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1432 - 1594, n=5)	1510 Points -5%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +17%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	2009 Points +17%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +16%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1683 - 1765, n=5)	1729 Points +1%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1714 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1567 Points -9%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points -10%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +23%
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1718 Points +13%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +12%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	1520 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1407 Points -7%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (1171 - 1520, n=5)	1350 Points -11%

WebXPRT 3 / Overall
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	334 Points +27%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +25%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points +22%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	288 Points +10%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	262 Points
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (245 - 263, n=6)	255 Points -3%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	244 Points -7%

WebXPRT 4 / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +15%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	266 Points +15%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points +12%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (227 - 240, n=5)	233 Points +1%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	231 Points 0%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	231 Points
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	193.4 Points -16%

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	604 ms * -7%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	586 ms * -4%
Átlagos Intel Core Ultra 5 125H, Intel Arc 7-Core iGPU (560 - 595, n=6)	575 ms * -2%
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	566 ms *
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +6%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * +7%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	501 ms * +11%

* ... a kisebb jobb

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Átlagos Intel Core Ultra 5 125H (67482 - 87473, n=6)	77947 MB/s +16%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +3%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	68283 MB/s +1%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	67482 MB/s
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	50886 MB/s -25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s -36%

AIDA64 / Memory Read
Átlagos Intel Core Ultra 5 125H (70520 - 76803, n=6)	74300 MB/s +5%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	70520 MB/s
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	61976 MB/s -12%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s -12%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s -12%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	51684 MB/s -27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s -34%

AIDA64 / Memory Write
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s +22%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +21%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	85464 MB/s +20%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	71218 MB/s
Átlagos Intel Core Ultra 5 125H (63162 - 72443, n=6)	70040 MB/s -2%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	55160 MB/s -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s -35%

AIDA64 / Memory Latency
Átlagos Intel Core Ultra 5 125H (127.3 - 184.8, n=6)	145.5 ns * -4%
GMK NucBox K9 Intel Core Ultra 5 125H, Arc 7-Core	140.2 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +35%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * +36%
Beelink SER8 AMD Ryzen 7 8845HS, Radeon 780M	88.9 ns * +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +37%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	85.8 ns * +39%

* ... a kisebb jobb

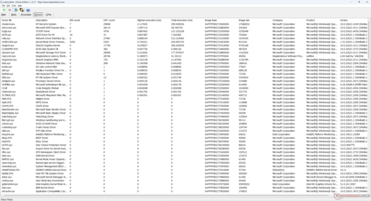

DPC késleltetés

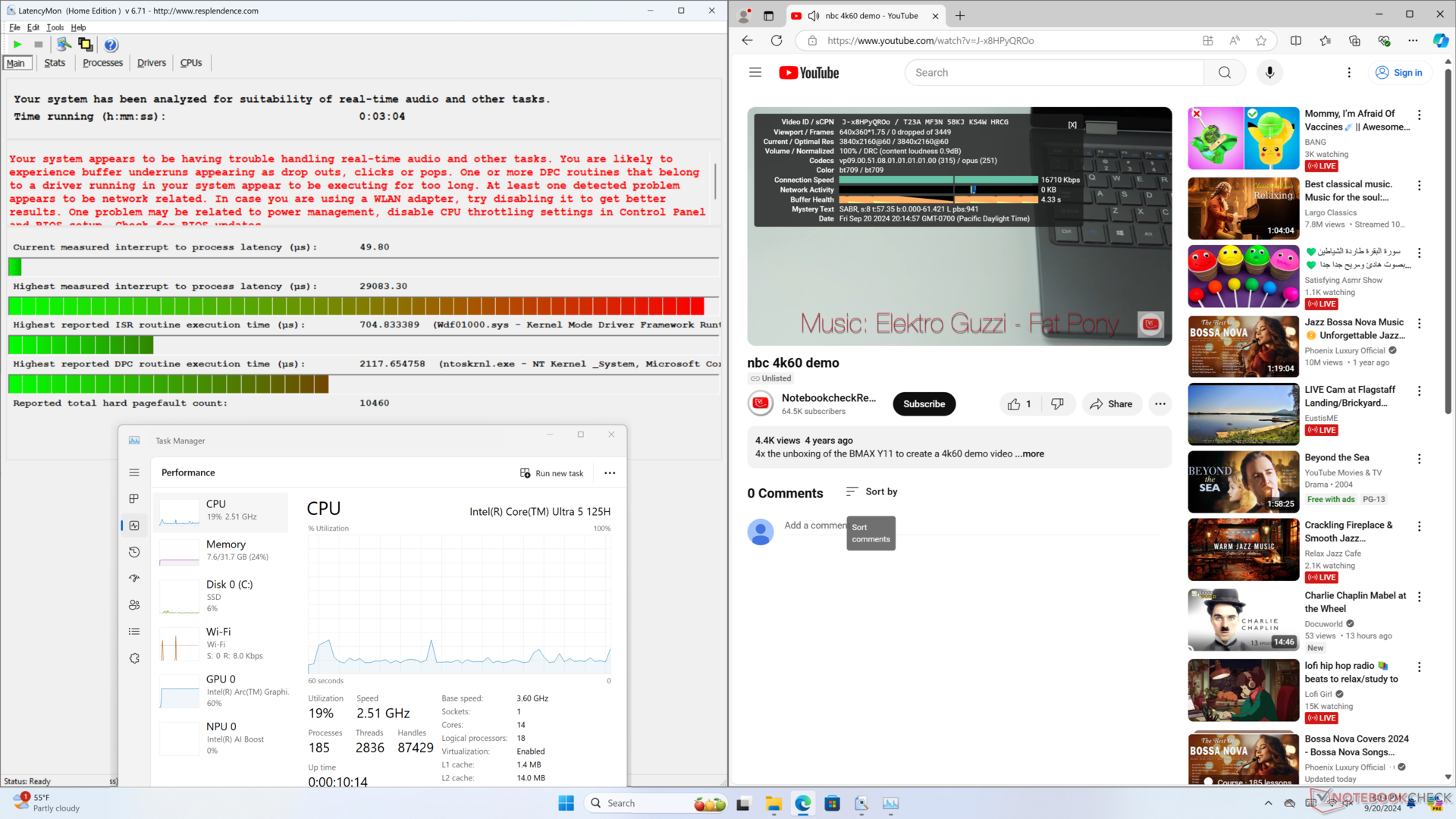

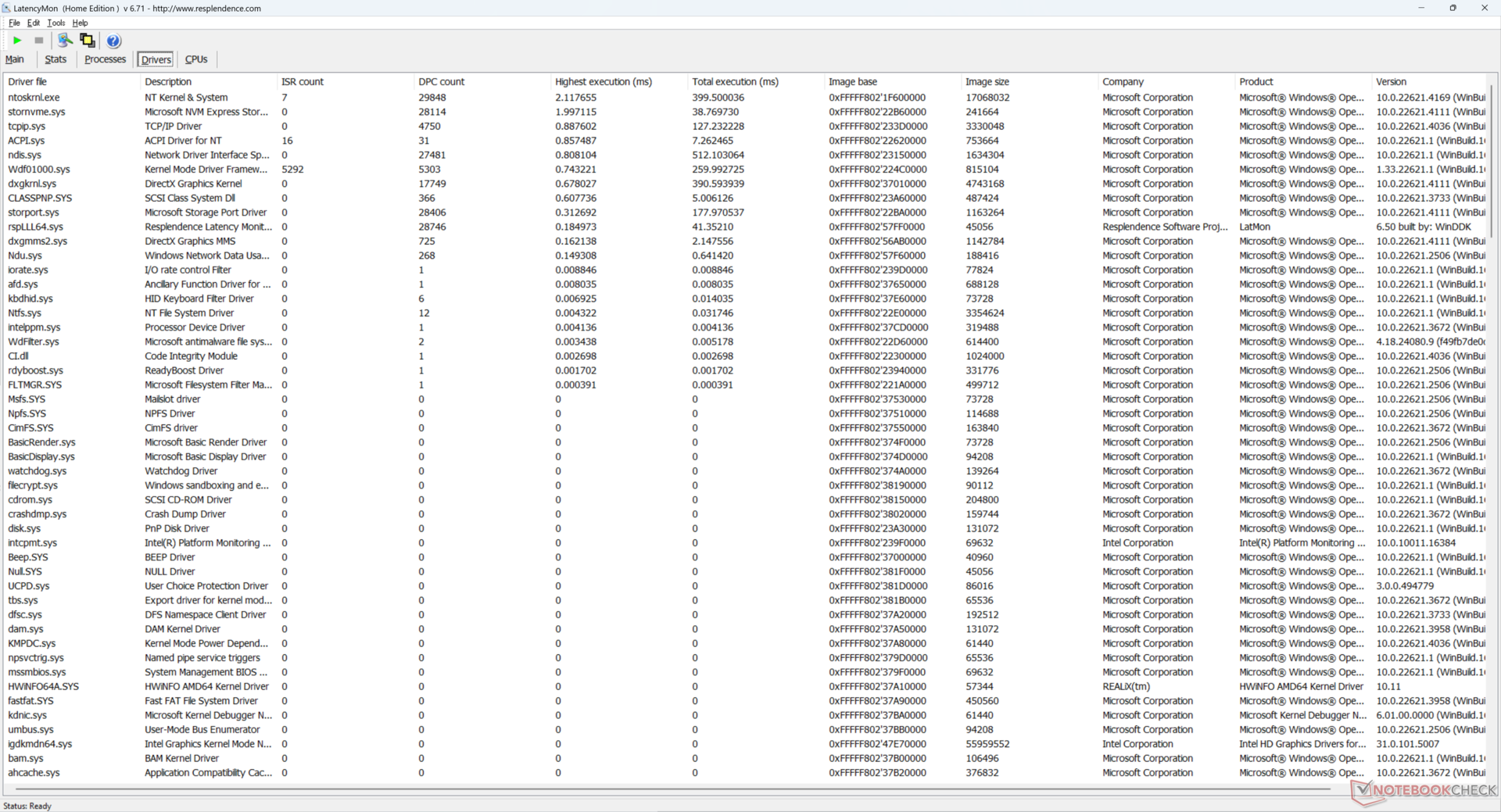

A LatencyMon az ntoskrnl.exe programmal kapcsolatos DPC-problémákat tár fel a honlapunk több lapjának megnyitásakor. a 4K videólejátszás 60 FPS mellett egyébként tökéletes, és nem rögzítettek kiesett képkockákat.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K9 Arc 7-Core, Ultra 5 125H, MasonSemi 1TB MC7000	29083.3 μs *
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	15043.9 μs * +48%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * +64%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * +96%
Beelink SER8 Radeon 780M, R7 8845HS, Crucial P3 Plus CT1000P3PSSD8	1071.2 μs * +96%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +97%

* ... a kisebb jobb

Tárolóeszközök

A GMK ugyanazt az 1 TB-os MasonSemi MC7000 PCIe4 x4 NVMe SSD-t használja a NucBox K6 és K9 modellekhez. A teljesítmény gyors és a kevésbé ismert márkanév ellenére a csúcskategóriás PC-kben gyakran megtalálható Samsung PM9A1 sorozathoz hasonlítható. A DiskSpd hurokban történő futtatása során nem figyelhetünk meg említésre méltó teljesítménycsökkenést.

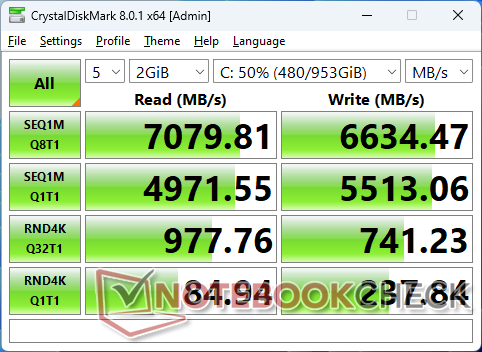

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7068 MB/s

CDM 5/6 Write Seq Q32T1: 6625 MB/s

CDM 5/6 Read 4K Q32T1: 972.6 MB/s

CDM 5/6 Write 4K Q32T1: 755.4 MB/s

CDM 5 Read Seq: 4954 MB/s

CDM 5 Write Seq: 5591 MB/s

CDM 5/6 Read 4K: 86.48 MB/s

CDM 5/6 Write 4K: 230.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	86.2 pt
GMK NucBox K9 MasonSemi 1TB MC7000	83.6 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	64.2 pt
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	62.4 pt
BOSGAME M1	56.8 pt
GMK NucBox M6 AirDisk APF 10-512G	38.8 pt

DiskSpd
seq read
GMK NucBox K9 MasonSemi 1TB MC7000	3783 (3597.81^min - 3782.84^max) MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s -2%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3106 (3062.47^min - 3106.43^max) MB/s -18%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s -33%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s -34%
GMK NucBox M6 AirDisk APF 10-512G	2113 (2099.24^min - 2112.85^max) MB/s -44%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5556 (1352.45^min - 5556.19^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4604 (4532.99^min - 4603.88^max) MB/s -17%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s -43%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	1852 (1762.49^min - 1851.99^max) MB/s -67%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	7066 (6607.49^min - 7066.35^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	5195 (4594.02^min - 5195.39^max) MB/s -26%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s -42%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s -49%
GMK NucBox M6 AirDisk APF 10-512G	2536 (2272.68^min - 2536.26^max) MB/s -64%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	6647 (1260.59^min - 6647.13^max) MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4725 (4657.36^min - 4724.88^max) MB/s -29%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s -52%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s -57%
GMK NucBox M6 AirDisk APF 10-512G	1842 (1840.35^min - 1842.35^max) MB/s -72%
4k q1 t1 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	79.7 (77.93^min - 79.74^max) MB/s 0%
GMK NucBox K9 MasonSemi 1TB MC7000	79.5 (78.92^min - 79.5^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s 0%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s -11%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s -19%
GMK NucBox M6 AirDisk APF 10-512G	54.8 (52.56^min - 54.76^max) MB/s -31%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +91%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	289 (283.17^min - 289.07^max) MB/s +41%
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +27%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +17%
GMK NucBox M6 AirDisk APF 10-512G	228 (215.43^min - 228.32^max) MB/s +11%
GMK NucBox K9 MasonSemi 1TB MC7000	205 (173.87^min - 205.2^max) MB/s
4k q32 t16 read
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3139 (3067^min - 3138.94^max) MB/s +40%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +10%
GMK NucBox K9 MasonSemi 1TB MC7000	2243 (1941.91^min - 2243.48^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s -13%
GMK NucBox M6 AirDisk APF 10-512G	968 (965.06^min - 967.94^max) MB/s -57%
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s -65%
4k q32 t16 write
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	4288 (4275.2^min - 4287.55^max) MB/s +33%
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +23%
GMK NucBox K9 MasonSemi 1TB MC7000	3232 (3002.64^min - 3232.41^max) MB/s
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s -4%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s -31%
GMK NucBox M6 AirDisk APF 10-512G	795 (753.98^min - 794.81^max) MB/s -75%

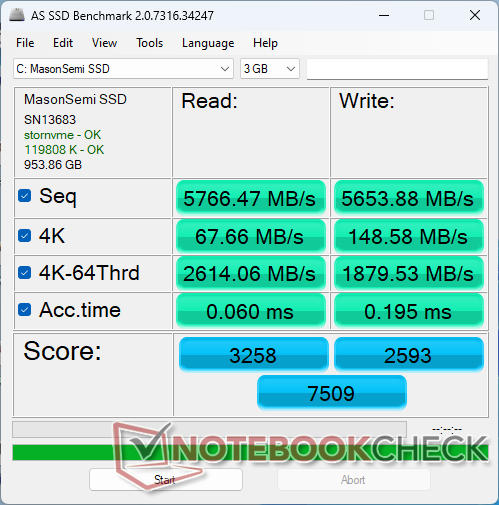

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +5%
GMK NucBox K9 MasonSemi 1TB MC7000	7509 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points -38%
BOSGAME M1	4263 Points -43%
GMK NucBox M6 AirDisk APF 10-512G	2956 Points -61%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	2646 Points -65%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points 0%
GMK NucBox K9 MasonSemi 1TB MC7000	3258 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points -50%
GMK NucBox M6 AirDisk APF 10-512G	1170 Points -64%
BOSGAME M1	1146 Points -65%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1108 Points -66%
Score Write
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +16%
GMK NucBox K9 MasonSemi 1TB MC7000	2593 Points
BOSGAME M1	2547 Points -2%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points -12%
GMK NucBox M6 AirDisk APF 10-512G	1205 Points -54%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1057 Points -59%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +1%
GMK NucBox K9 MasonSemi 1TB MC7000	5766.47 MB/s
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	3913.46 MB/s -32%
BOSGAME M1	3438.69 MB/s -40%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s -44%
GMK NucBox M6 AirDisk APF 10-512G	2261.02 MB/s -61%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +2%
GMK NucBox K9 MasonSemi 1TB MC7000	5653.88 MB/s
BOSGAME M1	2877.44 MB/s -49%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	1944.73 MB/s -66%
GMK NucBox M6 AirDisk APF 10-512G	1730.13 MB/s -69%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -92%
4K Read
GMK NucBox K9 MasonSemi 1TB MC7000	67.66 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s -3%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s -12%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	51.6 MB/s -24%
BOSGAME M1	48.27 MB/s -29%
GMK NucBox M6 AirDisk APF 10-512G	47.34 MB/s -30%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +89%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	219.02 MB/s +47%
GMK NucBox M6 AirDisk APF 10-512G	200.73 MB/s +35%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s +28%
GMK NucBox K9 MasonSemi 1TB MC7000	148.58 MB/s
BOSGAME M1	114.69 MB/s -23%
4K-64 Read
GMK NucBox K9 MasonSemi 1TB MC7000	2614.06 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s 0%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s -52%
GMK NucBox M6 AirDisk APF 10-512G	896.13 MB/s -66%
BOSGAME M1	754.28 MB/s -71%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	664.76 MB/s -75%
4K-64 Write
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +19%
BOSGAME M1	2144.62 MB/s +14%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +4%
GMK NucBox K9 MasonSemi 1TB MC7000	1879.53 MB/s
GMK NucBox M6 AirDisk APF 10-512G	831.16 MB/s -56%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	643.31 MB/s -66%
Access Time Read
BOSGAME M1	0.088 ms * -47%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -32%
GMK NucBox M6 AirDisk APF 10-512G	0.077 ms * -28%
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * -28%
GMK NucBox K9 MasonSemi 1TB MC7000	0.06 ms *
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +18%
Access Time Write
GMK NucBox M6 AirDisk APF 10-512G	0.351 ms * -80%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * -1%
GMK NucBox K9 MasonSemi 1TB MC7000	0.195 ms *
Beelink SER8 Crucial P3 Plus CT1000P3PSSD8	0.075 ms * +62%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +64%
BOSGAME M1	0.058 ms * +70%

* ... a kisebb jobb

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K9 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7053 (6435.53-7074.85)

GMK NucBox K6 MasonSemi 1TB MC7000; diskspd 2.0.17 f: Ø7035 (6458.68-7055.24)

GPU teljesítmény

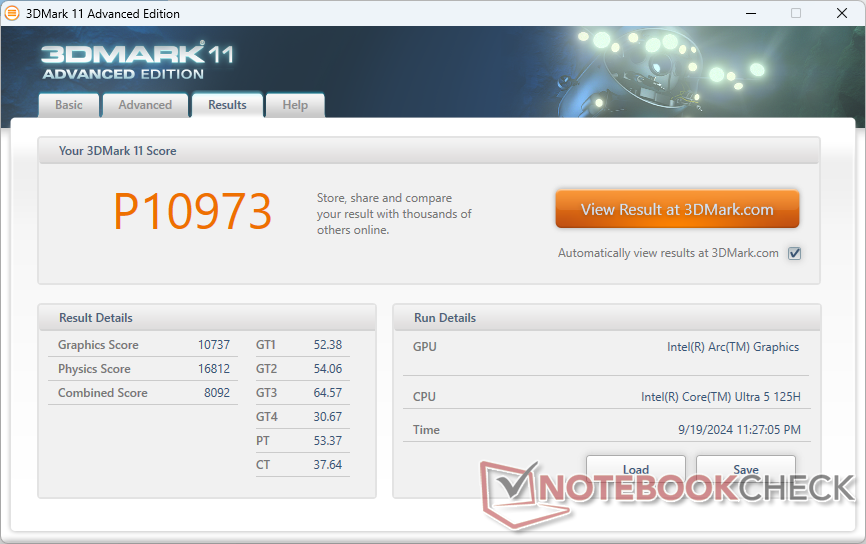

A grafikus teljesítmény valamivel lassabb, mint az adatbázisunkban szereplő átlagos PC-ké, ugyanolyan integrált Arc 7 GPU-val körülbelül 5 százalékkal. A magasabb kategóriás Core Ultra 7-H és Core Ultra 9-H processzorok integrált Arc 8 GPU-ja körülbelül 15 százalékkal gyorsabb, mint a mi Arc 7-es megoldásunk, de sajnos a NucBox K9-hez nem állnak rendelkezésre ilyen SKU-k. Ennek ellenére az általános teljesítmény összességében összehasonlítható a konkurens utolsó generációs Radeon 780M a 3DMark benchmarkok szerint.

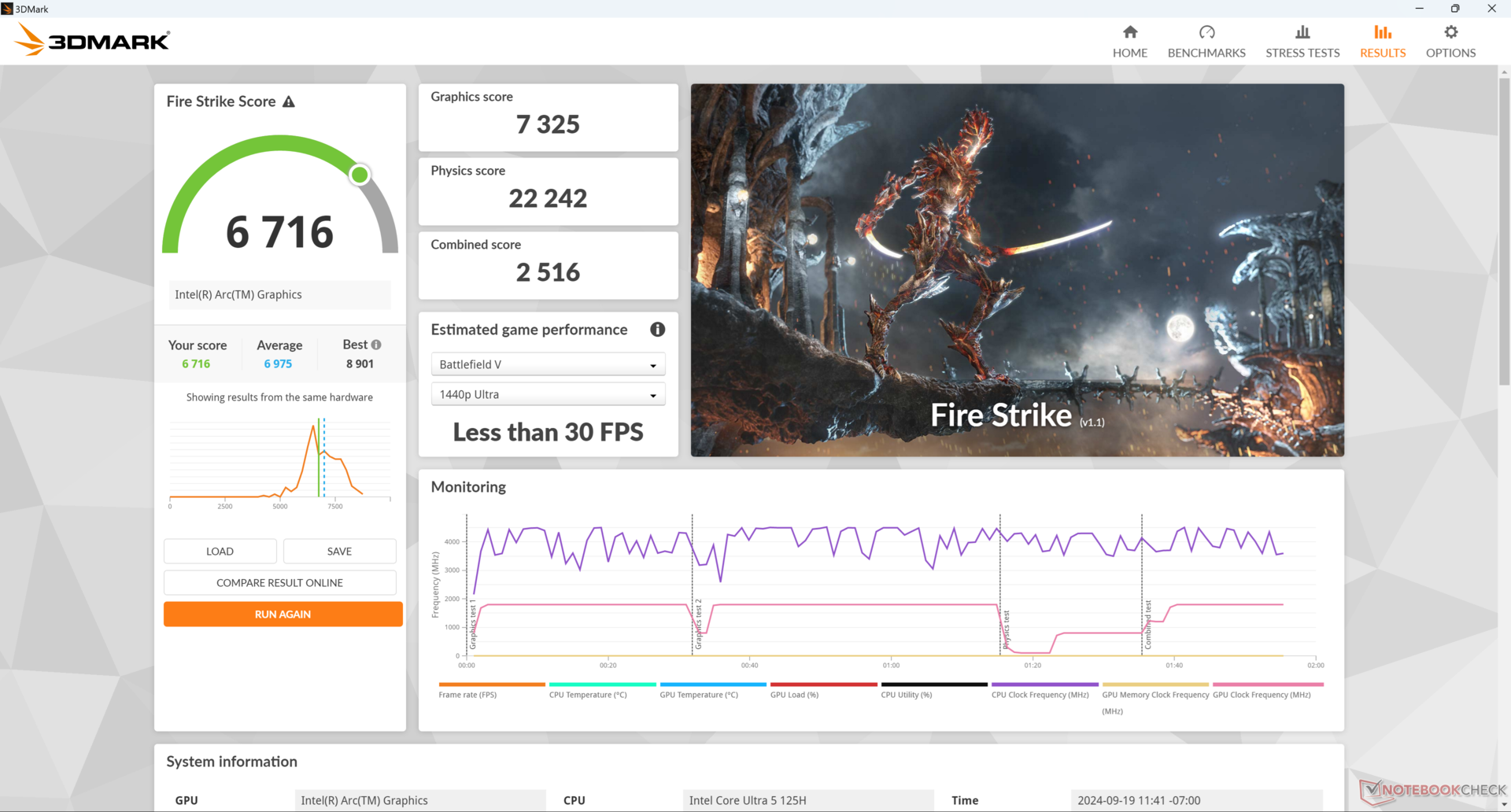

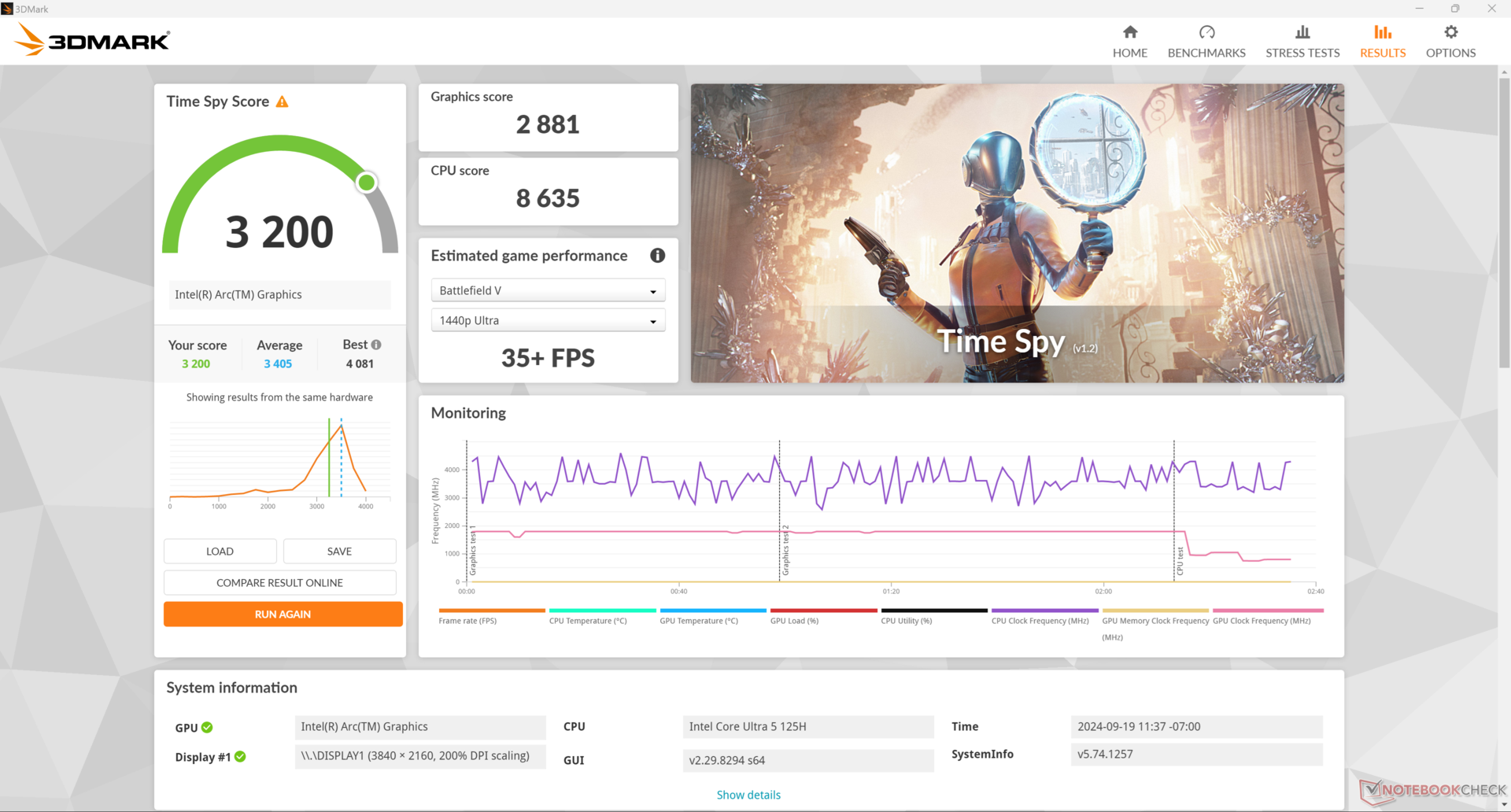

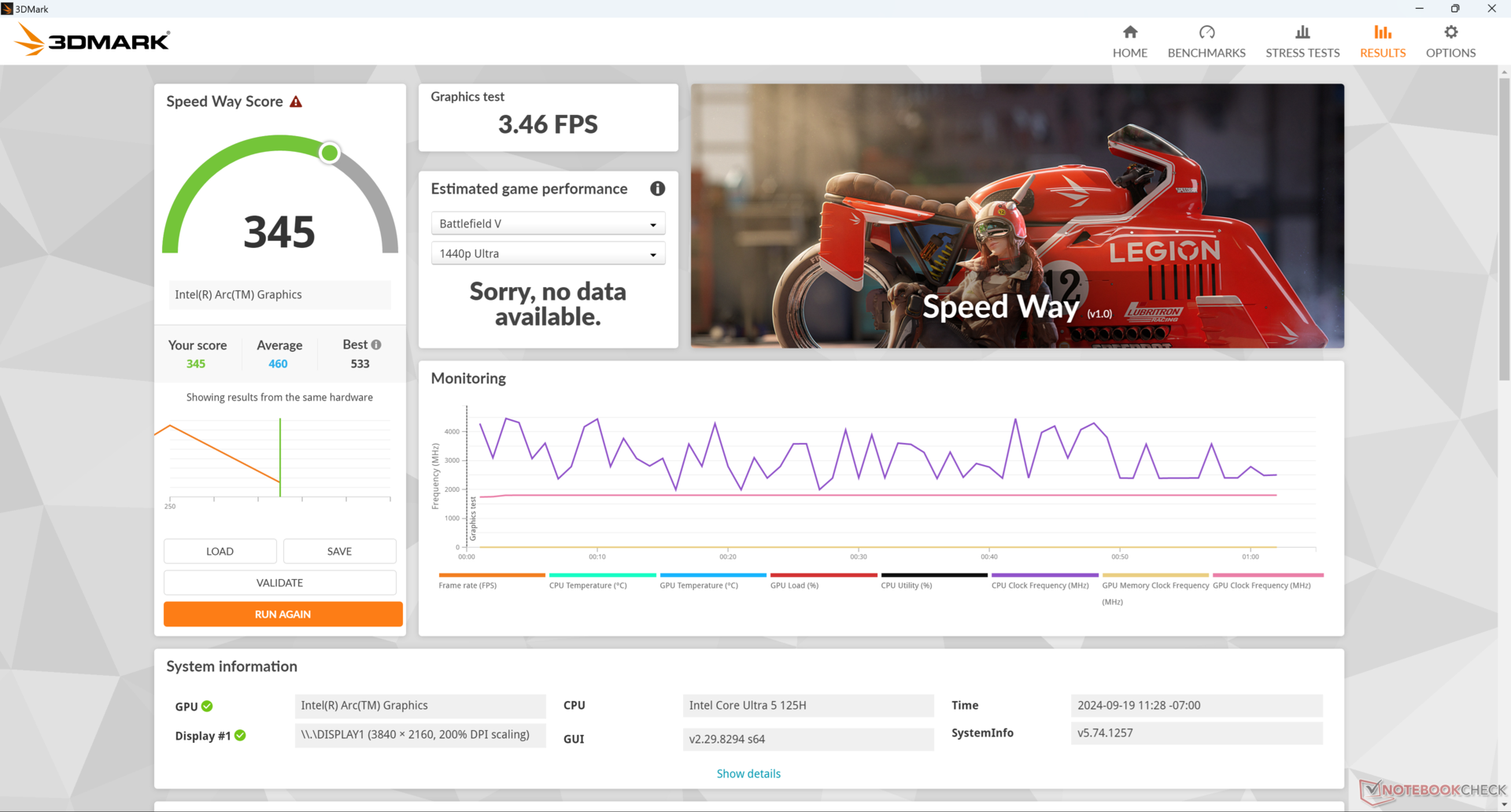

3DMark Performance Rating |

Cinebench R15 CPU Multi 64 Bit összehasonlítva
Lenovo B50-30 (min) N2815, HD Graphics (Bay Trail)	49
...
Asus ZenBook S 16 OLED UM5606WA Ryzen AI 9 365, Radeon 880M	1950
Lenovo ThinkPad X1 Extreme G4-20Y50040GE i9-11950H, GeForce RTX 3080 Laptop GPU	1954
Prime Computer Primestation Pulsar R7 PRO 5750G, Vega 8	1956
GMK NucBox K9 Ultra 5 125H, Arc 7-Core	1966
Dell G15 5515 R7 5800H, GeForce RTX 3050 Ti Laptop GPU	1968
Lenovo IdeaPad 5 Pro 16ACH R7 5800H, GeForce GTX 1650 Mobile	1972
Alienware Area-51m i9-9900K RTX 2080 i9-9900K, GeForce RTX 2080 Mobile	1979
...
(max) TR Pro 3995WX, Radeon Pro W6800	9706

	Átlagos CPU órajel (GHz)	GPU órajel (MHz)	Átlagos CPU hőmérséklet (°C)
Rendszer üresjáratban	--	--	40
Prime95 Stressz	2,3	--	79
Prime95 + FurMark Stressz	2.2	1150	79
Cyberpunk 2077 Stressz	0,9	1600	72

GMK NucBox K9 mini PC felülvizsgálat: Core Ultra 5 125H Arc 7 grafikával

Lehetséges versenytársak összehasonlítása

Eset - A színváltás

Méret összehasonlítás

Csatlakoztathatóság - Gyorsabb USB-portok

Kommunikáció

Karbantartás

Fenntarthatóság

Tartozékok és garancia

Teljesítmény - Meteor Lake Standard

Vizsgálati feltételek

Processzor

Cinebench R15 Multi Loop

Stressz teszt

Rendszer teljesítménye

DPC késleltetés

Tárolóeszközök

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU teljesítmény
