Asus Zenfone 3 Max ZC520TL Smartphone rövid értékelés

Florian Wimmer (fordította Tamás Somogyi), 01/10/2017
Android ARM Smartphone Touchscreen

Hosszú élettartam, korlátozott teljesítmény. Az Asus Zenfone 3 Max hosszú üzemidejével próbálja lenyűgözni az élettartam-mániásokat. A tesztelés során viszont más területeken kötött kompromisszumkra derült fény.

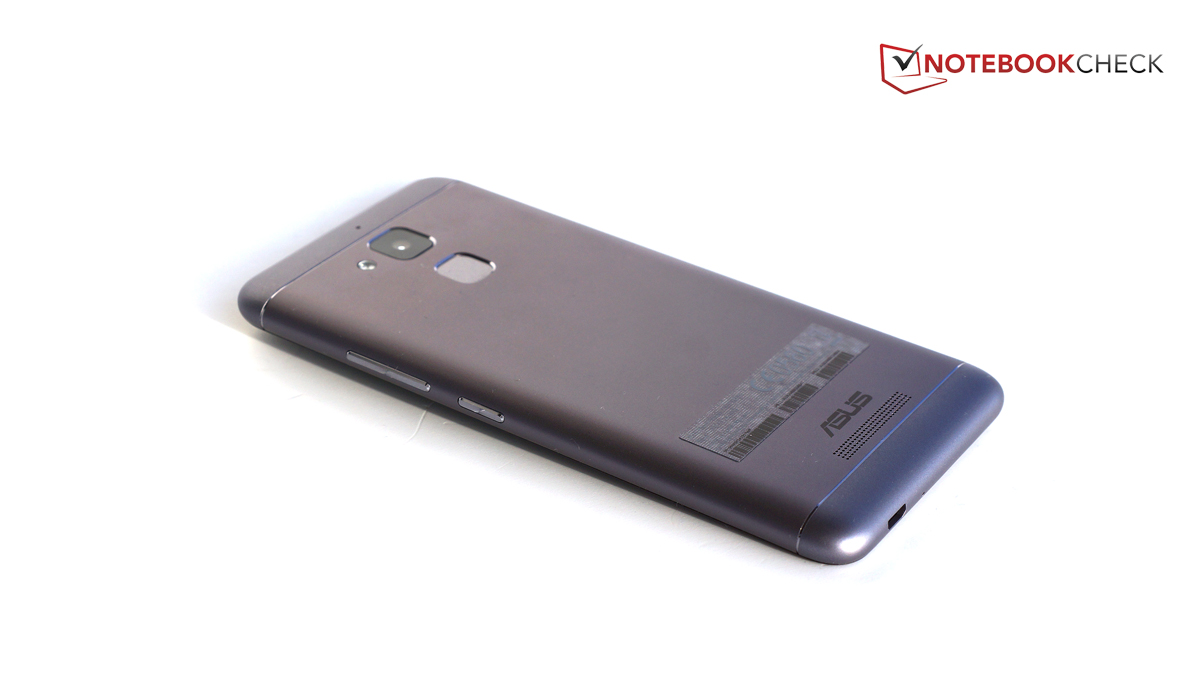

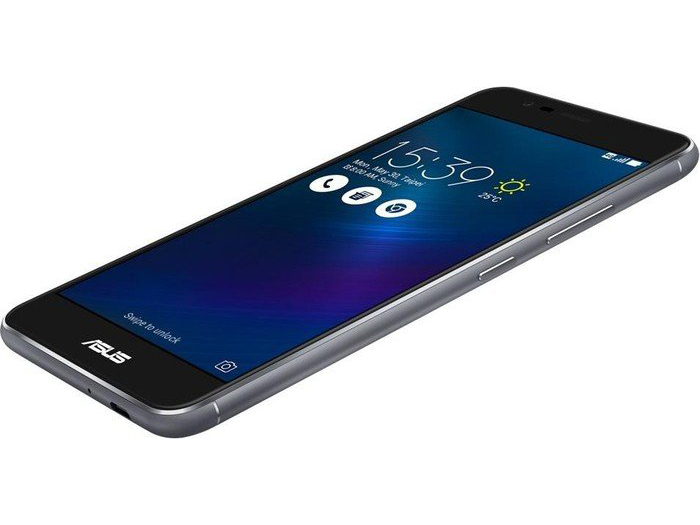

Asus Zenfone 3 Max ZC520TL (Zenfone Széria)
Processzor
Mediatek MT6737 1.25 GHz
Grafikus adapter
ARM Mali-T720 MP2
Memória
3072 MB
Kijelző
5.2 hüvelyk 16:9, 1280x720 pixel 282 PPI, kapacitív érintőkijelző, IPS, fényes: igen
Háttértár
32 GB eMMC Flash, 32 GB
, 23 GB ingyenes
Csatlakozók
1 USB 2.0, Kártyaolvasó: microSD max. 32 GB, 1 Ujjlenyomat olvasó, Brightness Sensor, Szenzorok: gyorsulásmérő, közelségérzékelő, iránytű, USB OTG
Hálózat
802.11 b/g/n (b/g/n), Bluetooth 4.0, GSM (850/​900/​1800/​1900), UMTS (850/​900/​1900/​2100), LTE (B1/​B2/​B3/​B5/​B7/​B8/​B20); sávszélesség (letöltés/​feltöltés): 150Mbps/​50Mbps (LTE); SAR: 0.59 W/kg (fej), 0.86 W/kg (test), Dual SIM, LTE, GPS
Méret
magasság x szélesség x mélység (mm-ben) 8.55 x 149.5 x 73.7
Akkumulátor
15.6 Wh, 4100 mAh Lítium-Ion, Akkumulátor üzemidő (gyártói adat): 30 h
Operációs rendszer
Android 6.0 Marshmallow
Camera
Primary Camera: 13 MPix AF, LED vaku, videó: 1080p/​30fps
Secondary Camera: 5 MPix
További jellegzetességek
Hangszórók: hátsó állású hangszóró, Billentyűzet: virtuális billentyűzet, SIM tű, töltő, USB kábel, USB-OTG adapter, ZenCircle, Photocollage, ZenSync, Mobile Manager, 12 Hónap Garancia, FM rádió, fanless
Súly
148 g, Tápegység: 48 g
Ár
219 Euró



» Top 10 Multimedia Notebooks
» A Top 10 játékos noteszgép
» A Top 10 belépő szintű üzleti noteszgép
» A Top 10 üzleti noteszgép
» Top 10 Workstation Notebooks
» A Top 10 subnotebook
» Top 10 Ultrabooks
» Top 10 Convertibles
» A Top 10 táblagép
» A Top 10 okostelefon
» A Top 10 noteszgép 500 EUR (~160.000 HUF) alatt

Size Comparison

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus Zenfone 3 Max ZC520TL
Mali-T720 MP2, MT6737, 32 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
47.4 MBit/s ∼100%
LG X Power K220
Mali-T720 MP2, MT6735, 16 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
47.1 MBit/s ∼99% -1%
iperf3 Client (transmit) TCP 1 m 4M x10
LG X Power K220
Mali-T720 MP2, MT6735, 16 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
53.5 MBit/s ∼100% +8%
Asus Zenfone 3 Max ZC520TL
Mali-T720 MP2, MT6737, 32 GB eMMC Flash (Linksys EA8500, 2.4 GHz)
49.7 MBit/s ∼93%

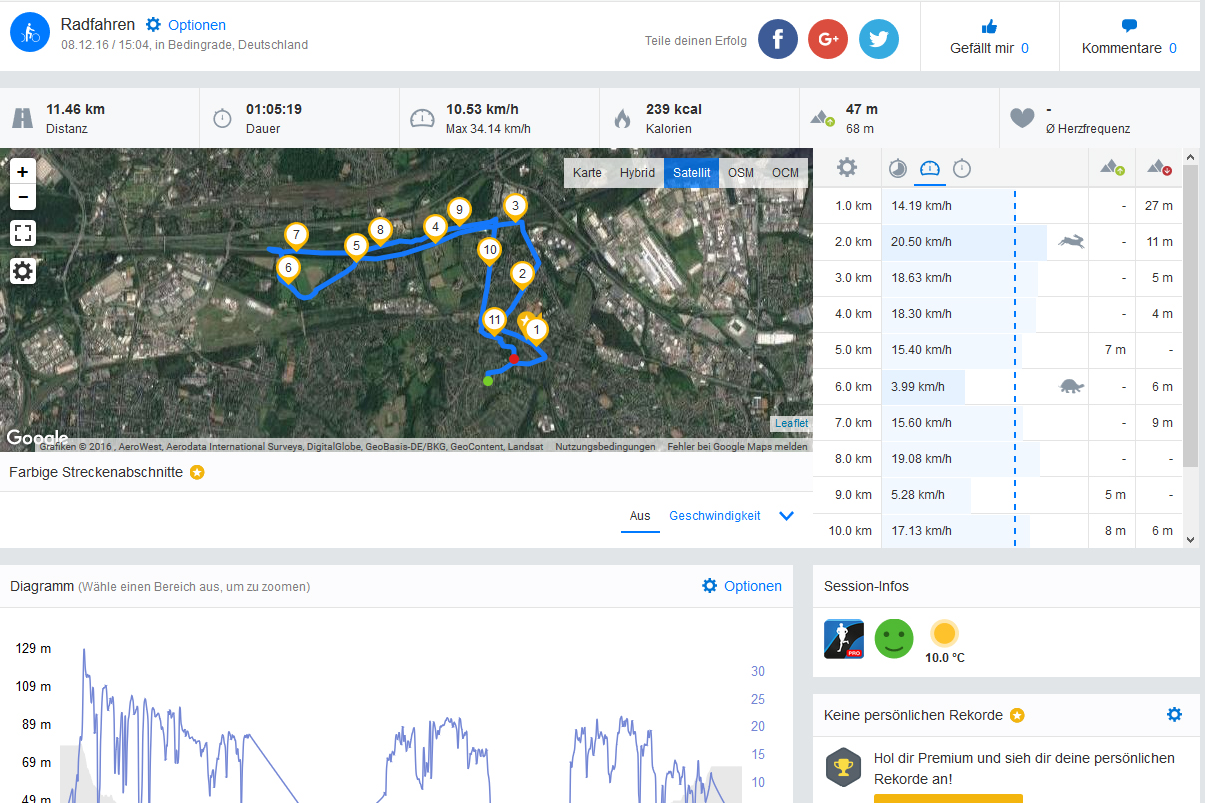

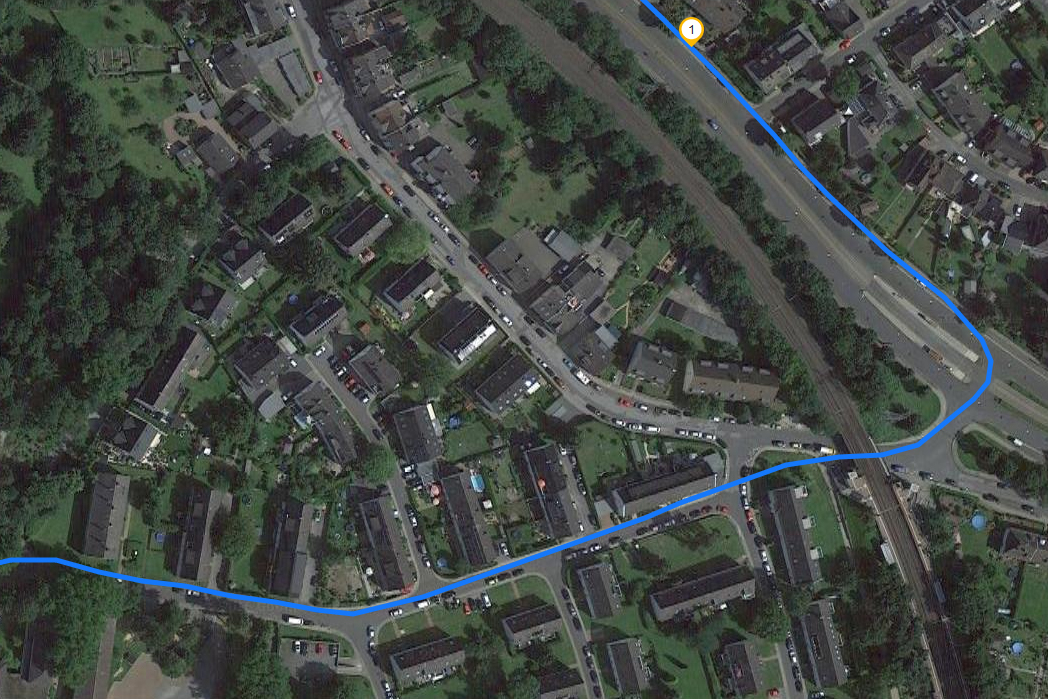

GPS Asus Zenfone 3 Max – Overview
GPS Asus Zenfone 3 Max – Overview
GPS Asus Zenfone 3 Max – Crossing
GPS Asus Zenfone 3 Max – Crossing

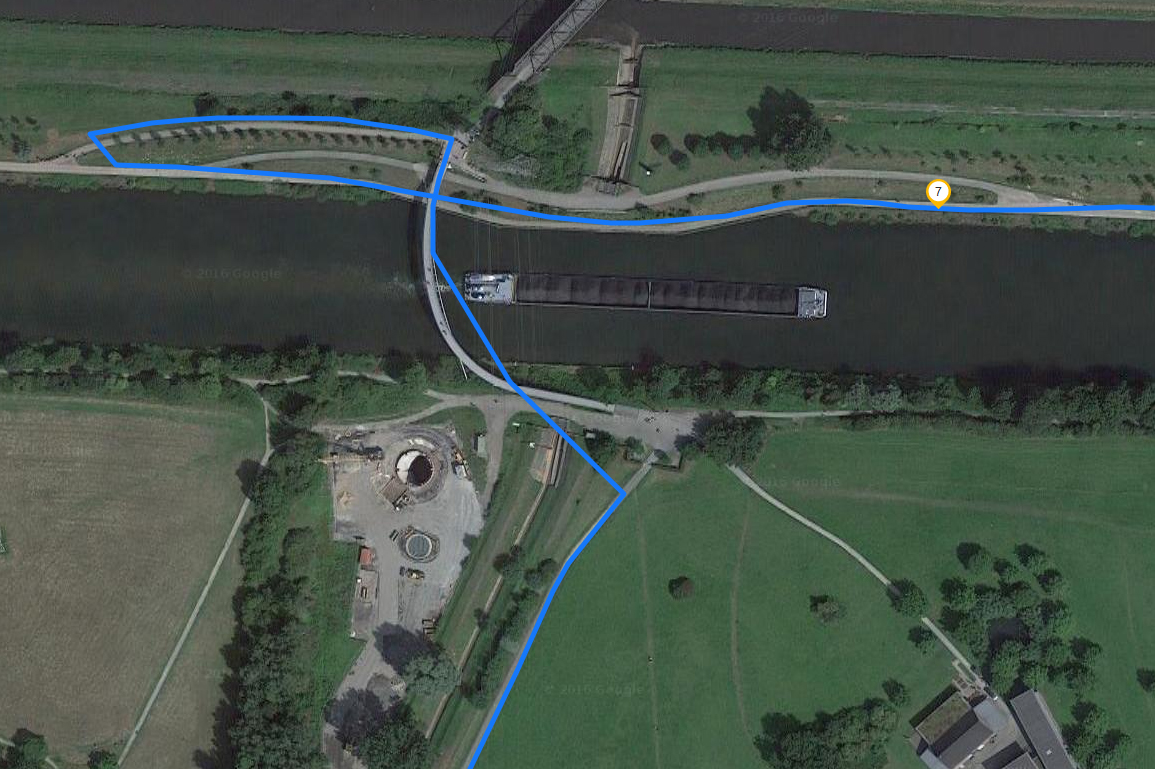

GPS Asus Zenfone 3 Max – Bridge
GPS Asus Zenfone 3 Max – Bridge

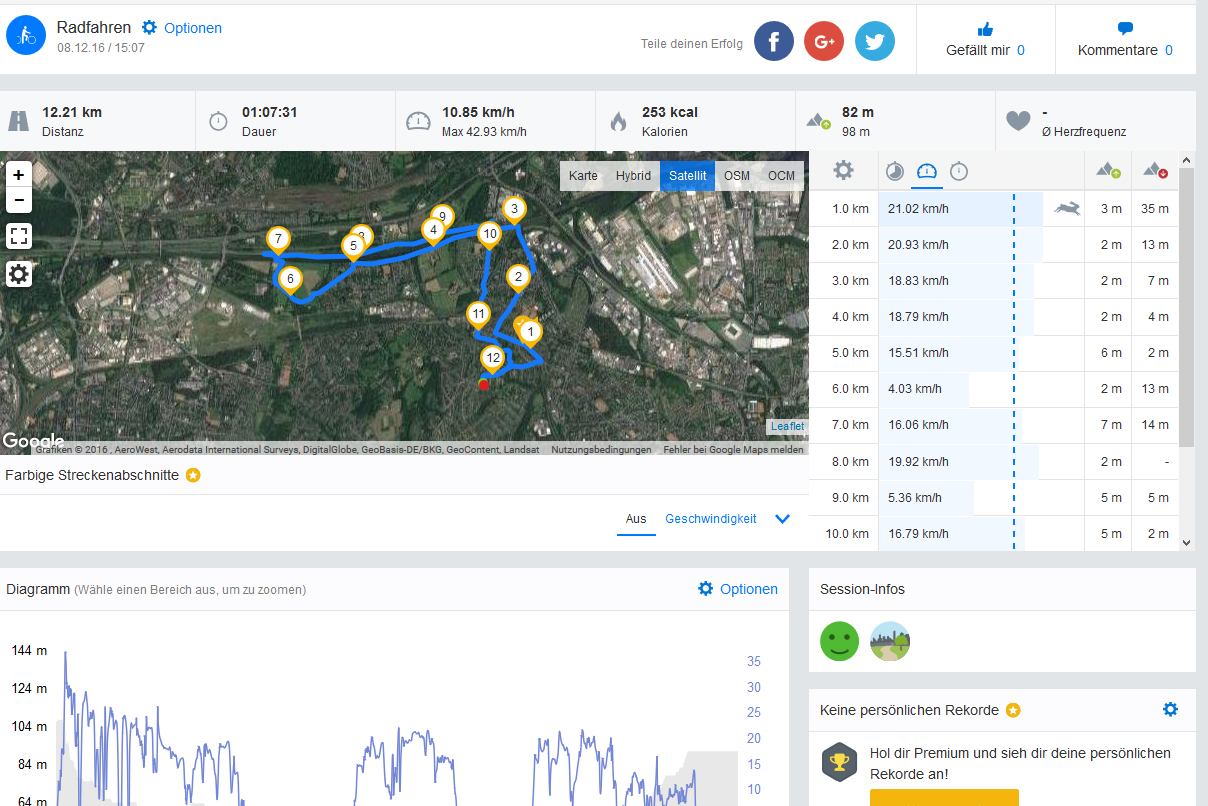

GPS Garmin Edge 500 – Overview
GPS Garmin Edge 500 – Overview
GPS Garmin Edge 500 – Crossing
GPS Garmin Edge 500 – Crossing

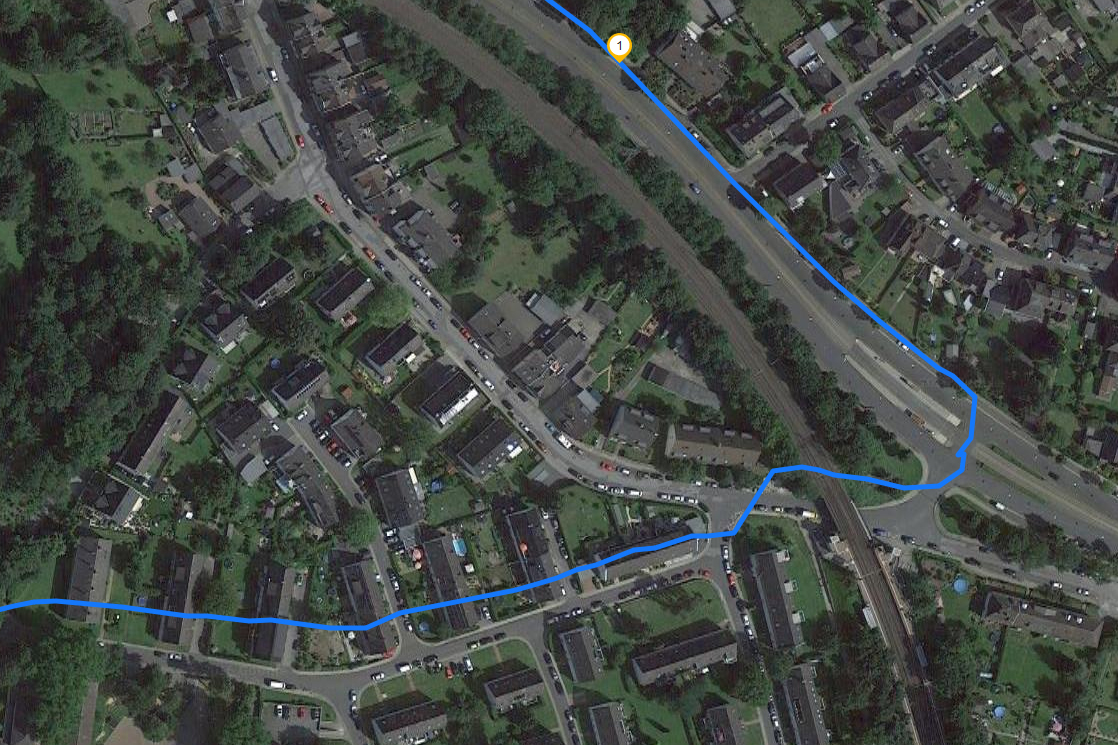

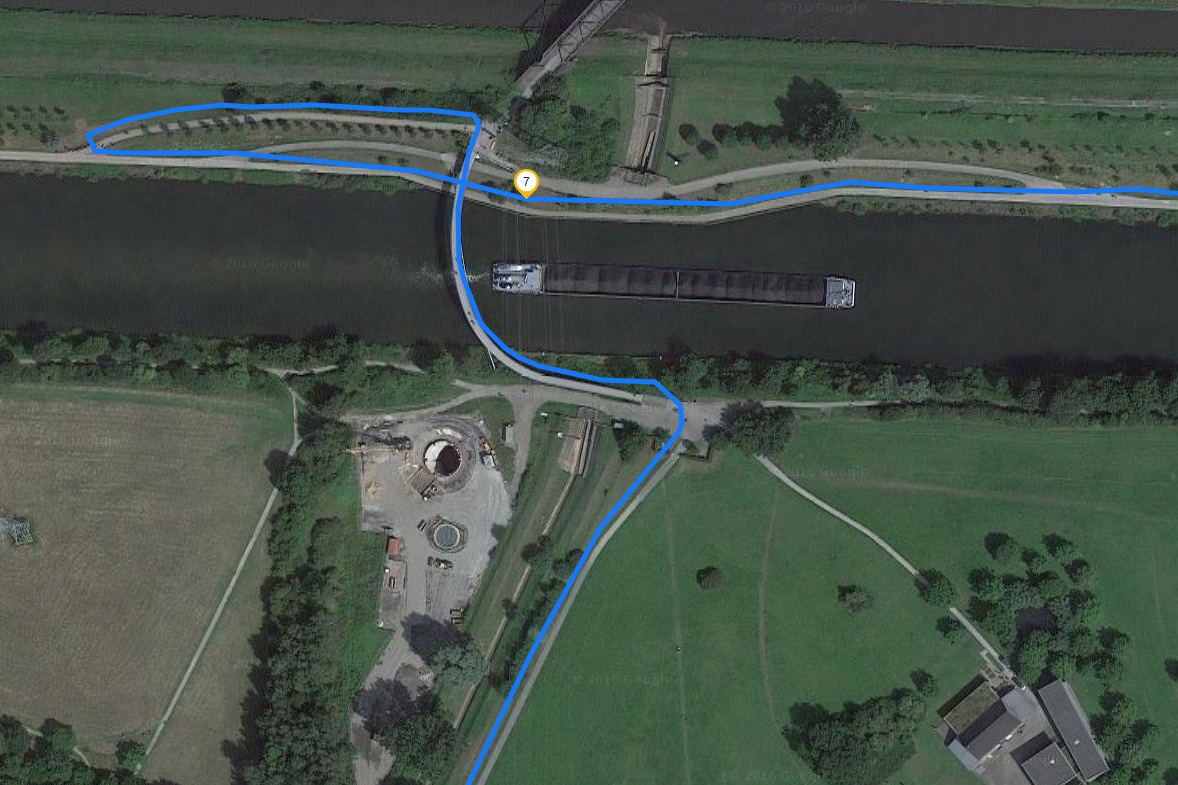

GPS Garmin Edge 500 – Bridge
GPS Garmin Edge 500 – Bridge

Image Comparison

Choose a scene and navigate within the first image. One click changes the zoom step. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
431
cd/m²
500
cd/m²
476
cd/m²
434
cd/m²
507
cd/m²
476
cd/m²
464
cd/m²
502
cd/m²
479
cd/m²
Fényerő megoszlás
X-Rite i1Pro 2
Maximum: 507 cd/m² Átlag: 474.3 cd/m² Minimum: 12.77 cd/m²
Fényerő megoszlás: 85 %
Centrumban: 507 cd/m²
Kontraszt: 957:1 (Fekete: 0.53 cd/m²)
ΔE Color 4.7 | - Ø
ΔE Greyscale 4.8 | - Ø
Gamma: 2.25
Asus Zenfone 3 Max ZC520TL
IPS, 1280x720, 5.2
Asus ZenFone Max ZC550KL
IPS, 1280x720, 5.5
Honor 5C
IPS, 1920x1080, 5.2
Huawei Y6 II Compact
IPS, 1280x720, 5
Samsung Galaxy J5 2016
AMOLED, 1280x720, 5.2
LG X Power K220
IPS, 1280x720, 5.3
Screen
-1%
-9%
-24%
3%
4%
Brightness
474
566
19%
498
5%
487
3%
291
-39%
352
-26%
Brightness Distribution
85
84
-1%
93
9%
92
8%
96
13%
85
0%
Black Level *
0.53
0.57
-8%
0.49
8%
0.9
-70%
0.2
62%
Contrast
957
1028
7%
1051
10%
546
-43%
1905
99%
Colorchecker DeltaE2000 *
4.7
4.2
11%
6.2
-32%
6.6
-40%
4.7
-0%
7.3
-55%
Greyscale DeltaE2000 *
4.8
6.3
-31%
7.4
-54%
4.9
-2%
3
37%
7.4
-54%
Gamma
2.25 107%
2.39 100%
2.28 105%
2.12 113%
2.03 118%
2.26 106%
CCT
6441 101%
6614 98%
8664 75%
7090 92%
6291 103%
8417 77%

* ... smaller is better

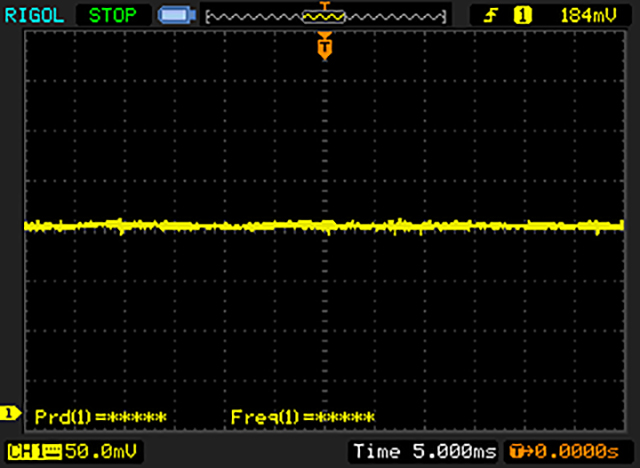

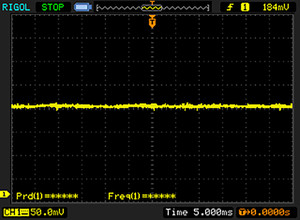

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 59 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 655 (minimum: 43 - maximum: 28740) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

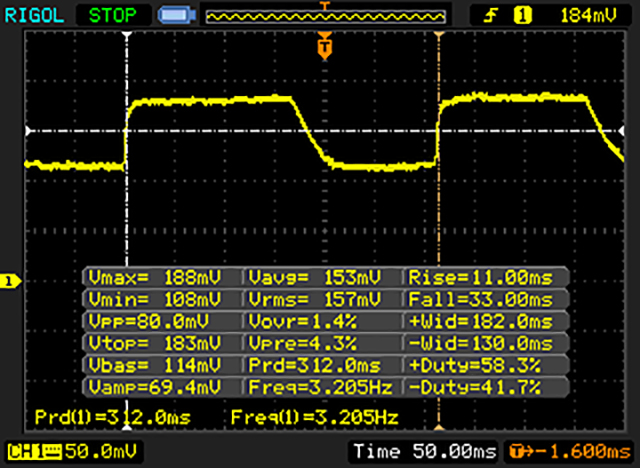

       Response Time Black to White
44 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 95 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (27.4 ms).

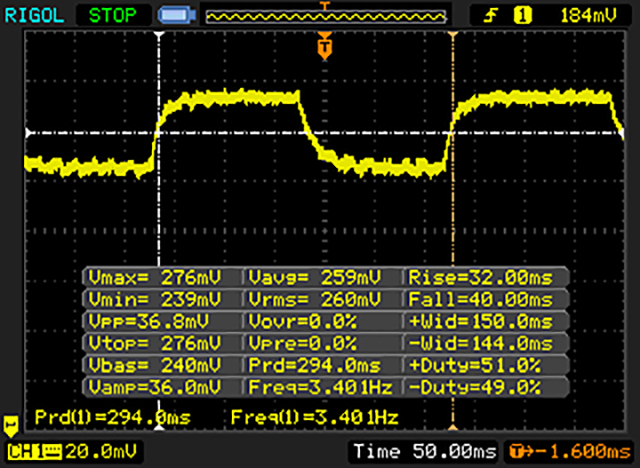

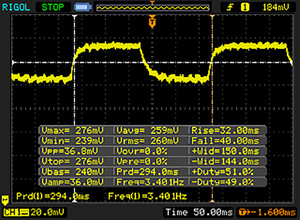

       Response Time 50% Grey to 80% Grey
72 ms ... rise ↗ and fall ↘ combined↗ 32 ms rise
↘ 40 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 96 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (44.5 ms).
AnTuTu Benchmark v6 - Total Score (sort by value)
Asus Zenfone 3 Max ZC520TL
30365 Points ∼16%
Asus ZenFone Max ZC550KL
26169 Points ∼14% -14%
Honor 5C
53143 Points ∼29% +75%
Huawei Y6 II Compact
33786 Points ∼18% +11%
Samsung Galaxy J5 2016
27232 Points ∼15% -10%
LG X Power K220
30432 Points ∼17% 0%
Geekbench 4
64 Bit Multi-Core Score (sort by value)
Asus Zenfone 3 Max ZC520TL
1362 Points ∼6%
Huawei Y6 II Compact
1581 Points ∼7% +16%
LG X Power K220
1506 Points ∼7% +11%
64 Bit Single-Core Score (sort by value)
Asus Zenfone 3 Max ZC520TL
569 Points ∼11%
Huawei Y6 II Compact
549 Points ∼11% -4%
LG X Power K220
560 Points ∼11% -2%
3DMark
Sling Shot OpenGL ES 3.1 Physics (sort by value)
Asus Zenfone 3 Max ZC520TL
699 Points ∼27%
Honor 5C
1418 Points ∼56% +103%
Huawei Y6 II Compact
873 Points ∼34% +25%
LG X Power K220
854 Points ∼33% +22%
Sling Shot OpenGL ES 3.1 Graphics (sort by value)
Asus Zenfone 3 Max ZC520TL
83 Points ∼2%
Honor 5C
317 Points ∼6% +282%
Huawei Y6 II Compact
100 Points ∼2% +20%
LG X Power K220
102 Points ∼2% +23%
Sling Shot OpenGL ES 3.1 (sort by value)
Asus Zenfone 3 Max ZC520TL
103 Points ∼3%
Honor 5C
383 Points ∼10% +272%
Huawei Y6 II Compact
124 Points ∼3% +20%
LG X Power K220
127 Points ∼3% +23%
Sling Shot OpenGL ES 3.0 Physics (sort by value)
Asus Zenfone 3 Max ZC520TL
741 Points ∼29%
Asus ZenFone Max ZC550KL
719 Points ∼28% -3%
Honor 5C
1418 Points ∼55% +91%
Huawei Y6 II Compact
826 Points ∼32% +11%
Samsung Galaxy J5 2016
709 Points ∼27% -4%
LG X Power K220
860 Points ∼33% +16%
Sling Shot OpenGL ES 3.0 Graphics (sort by value)
Asus Zenfone 3 Max ZC520TL
128 Points ∼2%
Asus ZenFone Max ZC550KL
42 Points ∼1% -67%
Honor 5C
480 Points ∼6% +275%
Huawei Y6 II Compact
167 Points ∼2% +30%
Samsung Galaxy J5 2016
42 Points ∼1% -67%
LG X Power K220
165 Points ∼2% +29%
Sling Shot OpenGL ES 3.0 (sort by value)
Asus Zenfone 3 Max ZC520TL
157 Points ∼3%
Asus ZenFone Max ZC550KL
53 Points ∼1% -66%
Honor 5C
563 Points ∼12% +259%
Huawei Y6 II Compact
203 Points ∼4% +29%
Samsung Galaxy J5 2016
53 Points ∼1% -66%
LG X Power K220
201 Points ∼4% +28%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Asus Zenfone 3 Max ZC520TL
7298 Points ∼11%
Asus ZenFone Max ZC550KL
9043 Points ∼13% +24%
Honor 5C
13588 Points ∼20% +86%
Huawei Y6 II Compact
9393 Points ∼14% +29%
Samsung Galaxy J5 2016
9022 Points ∼13% +24%
LG X Power K220
10103 Points ∼15% +38%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Asus Zenfone 3 Max ZC520TL
3369 Points ∼1%
Asus ZenFone Max ZC550KL
3767 Points ∼1% +12%
Honor 5C
11319 Points ∼3% +236%
Huawei Y6 II Compact
4296 Points ∼1% +28%
Samsung Galaxy J5 2016
3838 Points ∼1% +14%
LG X Power K220
4330 Points ∼1% +29%
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Asus Zenfone 3 Max ZC520TL
3827 Points ∼2%
Asus ZenFone Max ZC550KL
4328 Points ∼2% +13%
Honor 5C
11755 Points ∼6% +207%
Huawei Y6 II Compact
4885 Points ∼3% +28%
Samsung Galaxy J5 2016
4400 Points ∼2% +15%
LG X Power K220
4960 Points ∼3% +30%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sort by value)
Asus Zenfone 3 Max ZC520TL
5.9 fps ∼1%
Asus ZenFone Max ZC550KL
5.2 fps ∼0% -12%
Honor 5C
19 fps ∼2% +222%
Huawei Y6 II Compact
8.4 fps ∼1% +42%
Samsung Galaxy J5 2016
5.2 fps ∼0% -12%
LG X Power K220
8.4 fps ∼1% +42%
T-Rex HD Onscreen C24Z16 (sort by value)
Asus Zenfone 3 Max ZC520TL
10 fps ∼2%
Honor 5C
20 fps ∼4% +100%
Huawei Y6 II Compact
15 fps ∼3% +50%
Samsung Galaxy J5 2016
9.7 fps ∼2% -3%
LG X Power K220
15 fps ∼3% +50%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sort by value)
Asus Zenfone 3 Max ZC520TL
2.2 fps ∼0%
Asus ZenFone Max ZC550KL
3.8 fps ∼1% +73%
Honor 5C
7.9 fps ∼1% +259%
Huawei Y6 II Compact
2.8 fps ∼1% +27%
Samsung Galaxy J5 2016
1.8 fps ∼0% -18%
LG X Power K220
3.1 fps ∼1% +41%
on screen Manhattan Onscreen OGL (sort by value)
Asus Zenfone 3 Max ZC520TL
4.7 fps ∼2%
Asus ZenFone Max ZC550KL
1.8 fps ∼1% -62%
Honor 5C
8.4 fps ∼4% +79%
Huawei Y6 II Compact
6.1 fps ∼3% +30%
Samsung Galaxy J5 2016
3.8 fps ∼2% -19%
LG X Power K220
6.6 fps ∼3% +40%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen (sort by value)
Asus Zenfone 3 Max ZC520TL
1.4 fps ∼0%
Honor 5C
4.5 fps ∼2% +221%
Huawei Y6 II Compact
1.7 fps ∼1% +21%
Samsung Galaxy J5 2016
fps ∼0% -100%
LG X Power K220
2 fps ∼1% +43%
on screen Manhattan ES 3.1 Onscreen (sort by value)
Asus Zenfone 3 Max ZC520TL
3.4 fps ∼2%
Honor 5C
4.9 fps ∼3% +44%
Huawei Y6 II Compact
4.1 fps ∼2% +21%
Samsung Galaxy J5 2016
fps ∼0% -100%
LG X Power K220
4.1 fps ∼2% +21%
PCMark for Android - Work performance score (sort by value)
Asus Zenfone 3 Max ZC520TL
2517 Points ∼31%
Asus ZenFone Max ZC550KL
3691 Points ∼45% +47%
Honor 5C
5120 Points ∼63% +103%
Huawei Y6 II Compact
3400 Points ∼42% +35%
Samsung Galaxy J5 2016
4126 Points ∼51% +64%
LG X Power K220
3759 Points ∼46% +49%
BaseMark OS II
Web (sort by value)
Asus Zenfone 3 Max ZC520TL
703 Points ∼46%
Asus ZenFone Max ZC550KL
544 Points ∼35% -23%
Honor 5C
707 Points ∼46% +1%
Huawei Y6 II Compact
10 Points ∼1% -99%
Samsung Galaxy J5 2016
551 Points ∼36% -22%
LG X Power K220
10 Points ∼1% -99%
Graphics (sort by value)
Asus Zenfone 3 Max ZC520TL
210 Points ∼2%
Asus ZenFone Max ZC550KL
317 Points ∼4% +51%
Honor 5C
814 Points ∼9% +288%
Huawei Y6 II Compact
283 Points ∼3% +35%
Samsung Galaxy J5 2016
312 Points ∼4% +49%
LG X Power K220
290 Points ∼3% +38%
Memory (sort by value)
Asus Zenfone 3 Max ZC520TL
780 Points ∼20%
Asus ZenFone Max ZC550KL
797 Points ∼21% +2%
Honor 5C
1504 Points ∼39% +93%
Huawei Y6 II Compact
571 Points ∼15% -27%
Samsung Galaxy J5 2016
643 Points ∼17% -18%
LG X Power K220
521 Points ∼14% -33%
System (sort by value)
Asus Zenfone 3 Max ZC520TL
1041 Points ∼16%
Asus ZenFone Max ZC550KL
1088 Points ∼17% +5%
Honor 5C
2600 Points ∼40% +150%
Huawei Y6 II Compact
1093 Points ∼17% +5%
Samsung Galaxy J5 2016
1060 Points ∼16% +2%
LG X Power K220
1092 Points ∼17% +5%
Overall (sort by value)
Asus Zenfone 3 Max ZC520TL
588 Points ∼18%
Asus ZenFone Max ZC550KL
622 Points ∼19% +6%
Honor 5C
1225 Points ∼37% +108%
Huawei Y6 II Compact
203 Points ∼6% -65%
Samsung Galaxy J5 2016
585 Points ∼18% -1%
LG X Power K220
200 Points ∼6% -66%

Legend


Asus Zenfone 3 Max ZC520TL Mediatek MT6737, ARM Mali-T720 MP2, 32 GB eMMC Flash

Asus ZenFone Max ZC550KL Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 16 GB eMMC Flash

Honor 5C HiSilicon Kirin 650, ARM Mali-T830 MP2, 16 GB eMMC Flash

Huawei Y6 II Compact Mediatek MT6735, ARM Mali-T720 MP2, 16 GB eMMC Flash

Samsung Galaxy J5 2016 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 16 GB eMMC Flash

LG X Power K220 Mediatek MT6735, ARM Mali-T720 MP2, 16 GB eMMC Flash
Octane V2 - Total Score (sort by value)
Asus Zenfone 3 Max ZC520TL (Chrome 55)
2534 Points ∼6%
Asus ZenFone Max ZC550KL (Chrome Version 50)
2685 Points ∼6% +6%
Honor 5C (Chrome 51)
4188 Points ∼9% +65%
Huawei Y6 II Compact (Chrome 50)
2805 Points ∼6% +11%
Samsung Galaxy J5 2016 (Chrome 50)
2730 Points ∼6% +8%
LG X Power K220 (Chrome 52)
2657 Points ∼6% +5%
Mozilla Kraken 1.1 - Total Score (sort by value)
Asus Zenfone 3 Max ZC520TL (Chrome 55)
14983 ms * ∼25%
Asus ZenFone Max ZC550KL (Chrome Version 50)
13524.7 ms * ∼23% +10%
Honor 5C (Chrome 51)
9111.2 ms * ∼15% +39%
Huawei Y6 II Compact (Chrome 50)
13234 ms * ∼22% +12%
Samsung Galaxy J5 2016 (Chrome 50)
13046 ms * ∼22% +13%
LG X Power K220 (Chrome 52)
13196 ms * ∼22% +12%
WebXPRT 2015 - Overall Score (sort by value)
Asus Zenfone 3 Max ZC520TL (Chrome 55)
35 Points ∼6%
Honor 5C (Chrome 51)
73 Points ∼13% +109%
Huawei Y6 II Compact (Chrome 50)
50 Points ∼9% +43%
Samsung Galaxy J5 2016
47 Points ∼8% +34%
JetStream 1.1 - 1.1 Total Score (sort by value)
Asus Zenfone 3 Max ZC520TL (Chrome 55)
16.471 Points ∼5%
Asus ZenFone Max ZC550KL (Chrome Version 50)
17.533 Points ∼5% +6%
Honor 5C (Chrome 51)
27.934 Points ∼9% +70%
Huawei Y6 II Compact (Chrome 50)
18.304 Points ∼6% +11%
Samsung Galaxy J5 2016 (Chrome 50)
16.8 Points ∼5% +2%
LG X Power K220 (Chrome 52)
18.133 Points ∼6% +10%

* ... smaller is better

Asus Zenfone 3 Max ZC520TLAsus ZenFone Max ZC550KLHonor 5CHuawei Y6 II CompactSamsung Galaxy J5 2016LG X Power K220
AndroBench 3-5
-41%
54%
7%
25%
-20%
Sequential Write 256KB SDCard
29.59 (Toshiba Exceria Pro M401)
18.93 (Toshiba Exceria Pro M401)
-36%
24.21 (Toshiba Exceria Pro M401)
-18%
17.12 (Toshiba Exceria Pro M401)
-42%
46.61 (Toshiba Exceria Pro M401)
58%
18.17 (Toshiba Exceria Pro M401)
-39%
Sequential Read 256KB SDCard
47.67 (Toshiba Exceria Pro M401)
38.43 (Toshiba Exceria Pro M401)
-19%
51.93 (Toshiba Exceria Pro M401)
9%
31.57 (Toshiba Exceria Pro M401)
-34%
79.83 (Toshiba Exceria Pro M401)
67%
32.08 (Toshiba Exceria Pro M401)
-33%
Random Write 4KB
9.1
3.6
-60%
15.7
73%
15.5
70%
11.6
27%
7.32
-20%
Random Read 4KB
20.9
9.1
-56%
61.7
195%
23
10%
21
0%
18.78
-10%
Sequential Write 256KB
65.15
31.1
-52%
75.5
16%
75
15%
72
11%
43.74
-33%
Sequential Read 256KB
174.2
130.6
-25%
263
51%
211
21%
147
-16%
196.81
13%
Asphalt 8: Airborne
 BeállításokÉrték
 high15 fps
 very low28 fps
Dead Trigger 2
 BeállításokÉrték
 high27 fps
Max. terhelés
 36.8 °C37 °C40.4 °C
 36.9 °C36.1 °C40.3 °C
 36.1 °C35.8 °C39.2 °C
Maximum: 40.4 °C
Átlag: 37.6 °C
33.5 °C34.2 °C35.3 °C
34 °C34 °C35.5 °C
33.9 °C33.7 °C33.6 °C
Maximum: 35.5 °C
Átlag: 34.2 °C
Tápegység (max.)  29.9 °C | Szobahőmérséklet 21.4 °C | Voltcraft IR-260
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.6412525.4413125.335.44032.930.55033.633.36331.627.78028.429.61002727.512520.824.21602229.220021.326.725020.834.731521.242.940019.44950019.555.363017.760.880017.967.4100017.874.8125017.379.1160017.479200016.777.3250017.276.2315018.274.1400017.973.5500017.676.6630017.775.4800017.8781000017.9791250018.166.51600018.258.6SPL3088N1.368.5median 17.9Asus Zenfone 3 Max ZC520TLmedian 67.4Delta1.316.631.653.425.432.925.33032.937.233.640.631.640.428.432.42729.220.823.82222.521.327.720.834.621.240.619.448.919.55517.760.417.969.217.874.917.380.117.477.116.773.717.27518.275.517.974.217.674.917.778.717.882.717.97718.166.818.264.83088.51.371.5median 17.9LG X Power K220median 69.21.315.537.727.732.437.722.330.631.322.326.529.131.726.52931.4262932.337.239.432.32927.736.22924.627.628.624.623.223.425.423.228.321.821.328.330.823.223.330.834.52422.534.537.222.922.437.242.126.921.342.147.428.218.447.456.236.117.556.262.641.517.562.670.848.617.270.875.853.716.875.872.450.217.372.470.548.117.470.568.146.716.668.167.245.117.367.268.547.217.668.570.949.417.670.974.953.217.774.976.554.417.476.576.354.717.776.365.242.617.965.251.330.718.151.346.826.118.146.884.162.229.884.156.714.71.356.7median 65.2Samsung Galaxy J5 2016median 42.6median 17.7median 65.213.911.21.613.9hearing rangehide median Pink Noise
Asus Zenfone 3 Max ZC520TL audio analysis

(+) | speakers can play relatively loud (88.04 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 36.6% lower than median
(±) | linearity of bass is average (9.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.7% higher than median
(±) | linearity of mids is average (9.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.7% higher than median
(+) | highs are linear (3.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (32.3% difference to median)
Compared to same class
» 83% of all tested devices in this class were better, 8% similar, 9% worse
» The best had a delta of 15%, average was 26%, worst was 44%
Compared to all devices tested
» 92% of all tested devices were better, 4% similar, 4% worse
» The best had a delta of 3%, average was 22%, worst was 48%

LG X Power K220 audio analysis

(+) | speakers can play relatively loud (88.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 39.4% lower than median
(±) | linearity of bass is average (9.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 9% lower than median
(±) | linearity of mids is average (11.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.7% higher than median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (31.3% difference to median)
Compared to same class
» 77% of all tested devices in this class were better, 8% similar, 14% worse
» The best had a delta of 15%, average was 26%, worst was 44%
Compared to all devices tested
» 89% of all tested devices were better, 4% similar, 7% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Samsung Galaxy J5 2016 audio analysis

(+) | speakers can play relatively loud (84.09 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 32.6% lower than median
(±) | linearity of bass is average (7.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.6% higher than median
(±) | linearity of mids is average (10.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.1% higher than median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (30.3% difference to median)
Compared to same class
» 71% of all tested devices in this class were better, 11% similar, 18% worse
» The best had a delta of 15%, average was 26%, worst was 44%
Compared to all devices tested
» 86% of all tested devices were better, 5% similar, 9% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.06 / 0.39 Watt
Üresjáratdarkmidlight 0.74 / 2.04 / 2.22 Watt
Terhelés midlight 5.57 / 6.59 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Asus Zenfone 3 Max ZC520TL
4100 mAh
Asus ZenFone Max ZC550KL
5000 mAh
Honor 5C
3000 mAh
Huawei Y6 II Compact
2200 mAh
Samsung Galaxy J5 2016
3100 mAh
LG X Power K220
4100 mAh
Power Consumption
-9%
8%
28%
38%
28%
Idle Minimum *
0.74
1.15
-55%
0.89
-20%
0.57
23%
0.61
18%
0.64
14%
Idle Average *
2.04
2.09
-2%
2.07
-1%
1.53
25%
1.41
31%
1.3
36%
Idle Maximum *
2.22
2.17
2%
2.15
3%
1.6
28%
1.51
32%
1.34
40%
Load Average *
5.57
5.38
3%
3.46
38%
2.82
49%
2.56
54%
4.18
25%
Load Maximum *
6.59
6.08
8%
5.18
21%
5.69
14%
3.1
53%
4.87
26%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
24h 22min
WiFi böngészés v1.3
13h 34min
Big Buck Bunny H.264 1080p
14h 05min
Terhelés (maximális fényerő)
5h 01min
Asus Zenfone 3 Max ZC520TL
4100 mAh
Asus ZenFone Max ZC550KL
5000 mAh
Honor 5C
3000 mAh
Huawei Y6 II Compact
2200 mAh
Samsung Galaxy J5 2016
3100 mAh
LG X Power K220
4100 mAh
Battery Runtime
18%
-34%
-22%
0%
21%
Reader / Idle
1462
997
-32%
1175
-20%
1599
9%
Load
301
156
-48%
222
-26%
402
34%
365
21%
WiFi
WiFi v1.3
814
959
18%
584
-28%
623
-23%
643
-21%
987
21%
H.264
845
602
-29%
682
-19%
658
-22%

Pro

+ stabil, vékony fém ház
+ jó memória-konfiguráció
+ USB-OTG
+ dual-SIM
+ viszonylag gyors GPS
+ alig melegszik
+ nagyon jó üzemidő
+ alacsony fogyasztás
+ elég világos kijelző, kékes elszíneződés nélkül

Kontra

- csak 12 hónap garancia
- elavult biztonsági patchek
- néhány kényelmetlen szoftver
- recsegő hangszóró
- fémes mikrofonhang
- időnként leeső teljesítmény

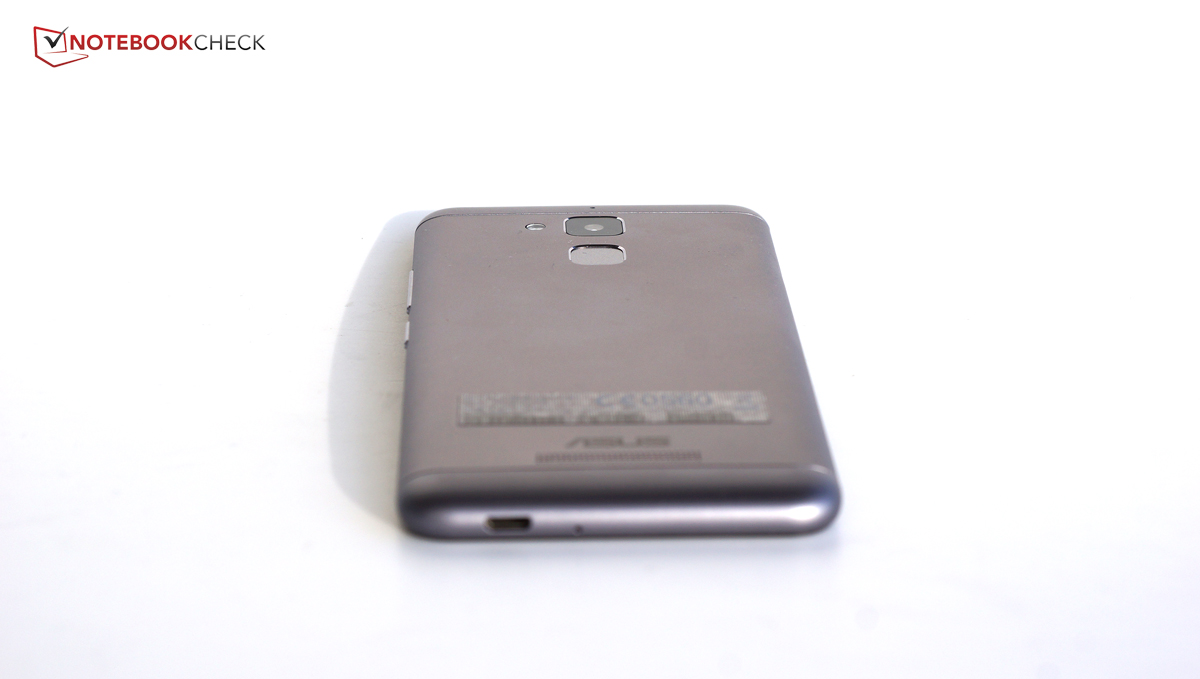

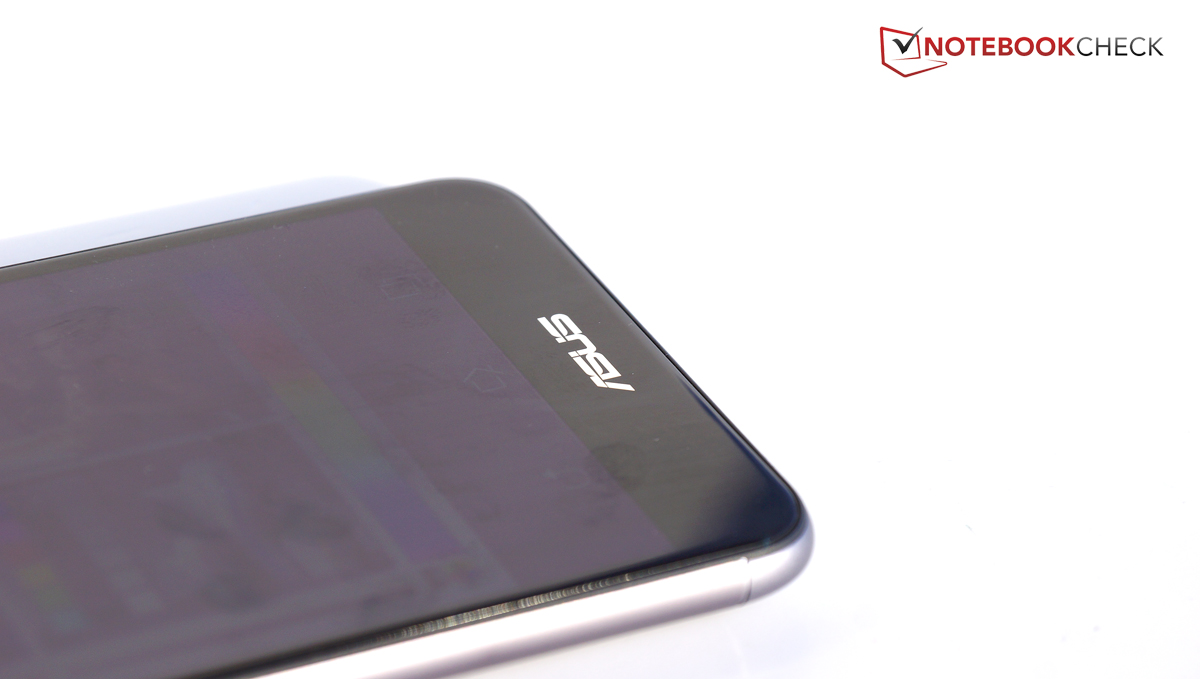

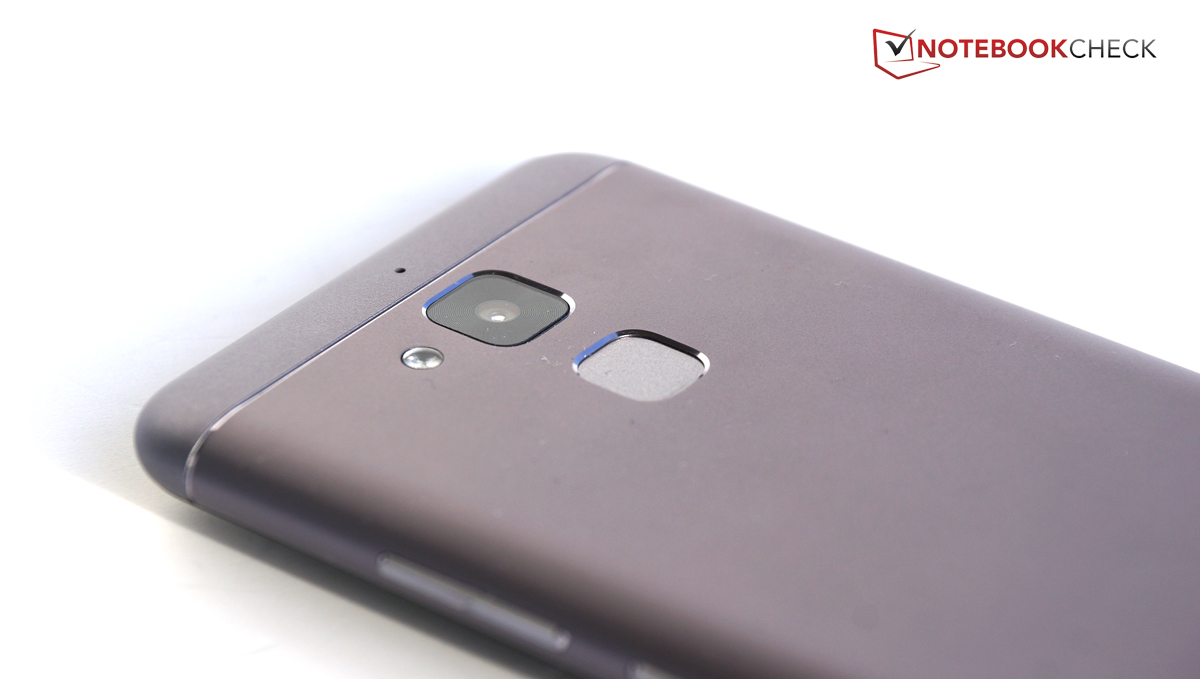

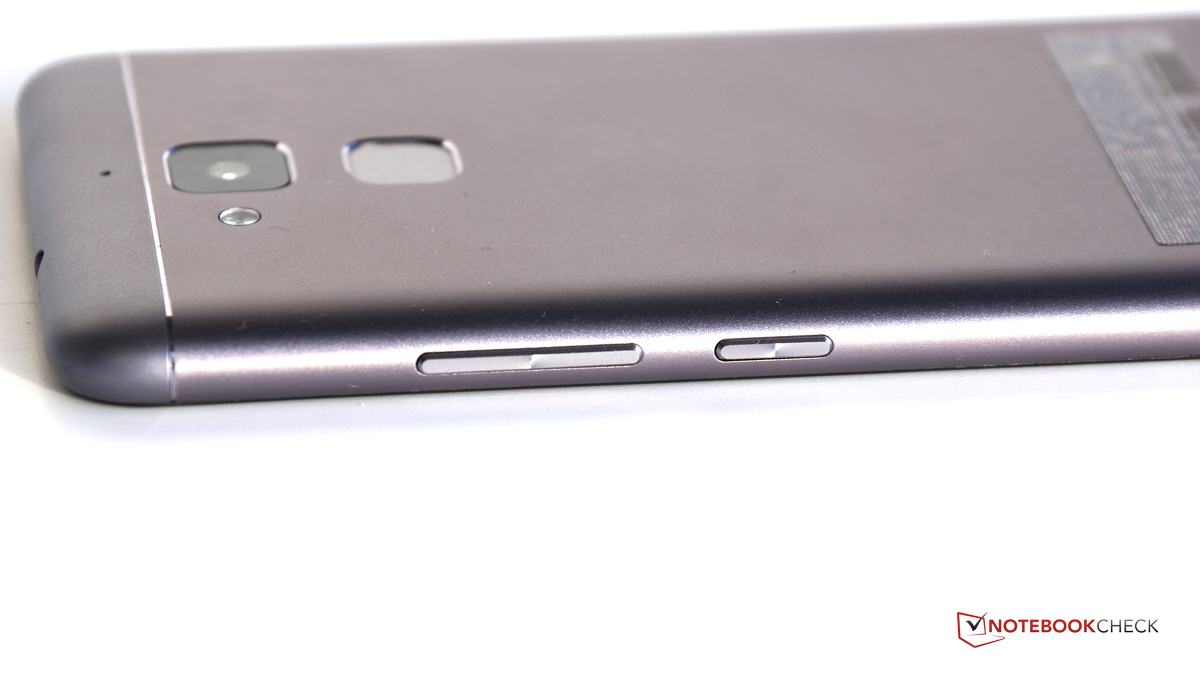

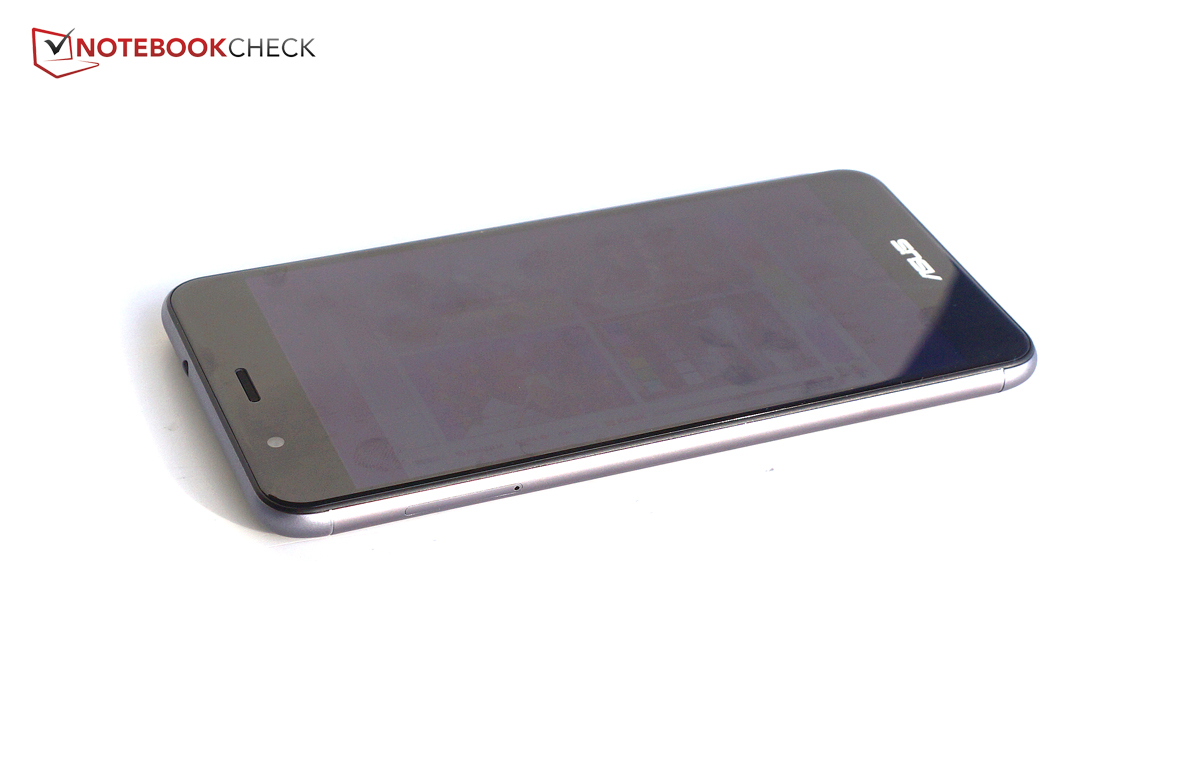

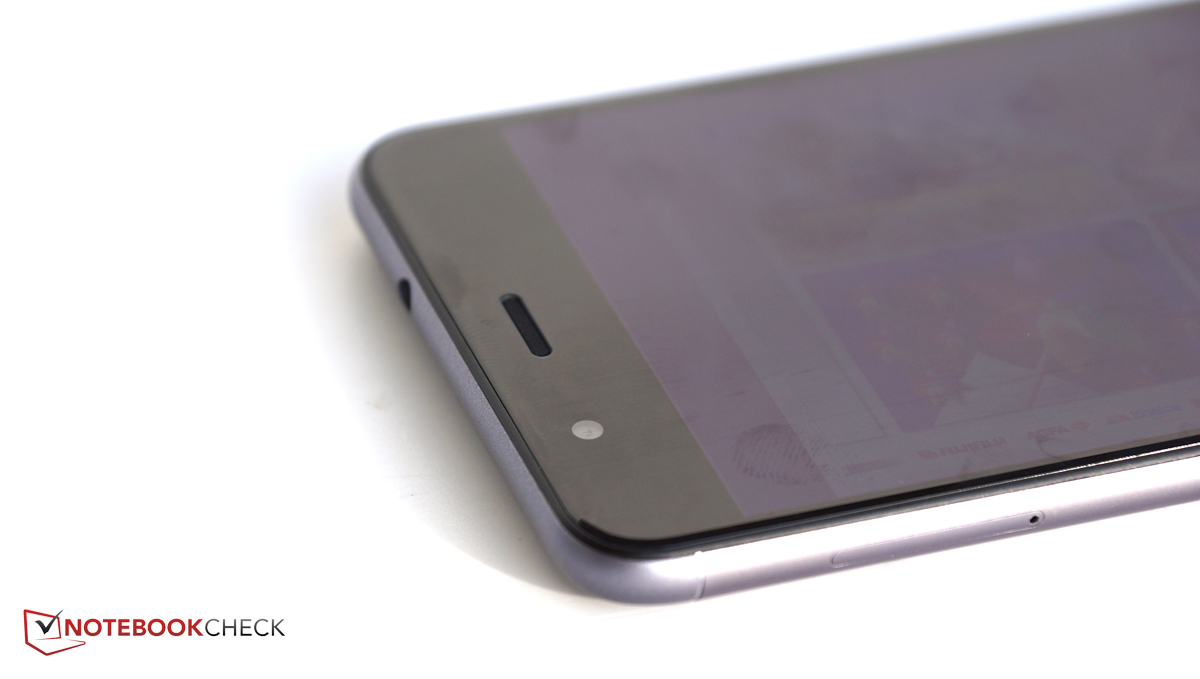

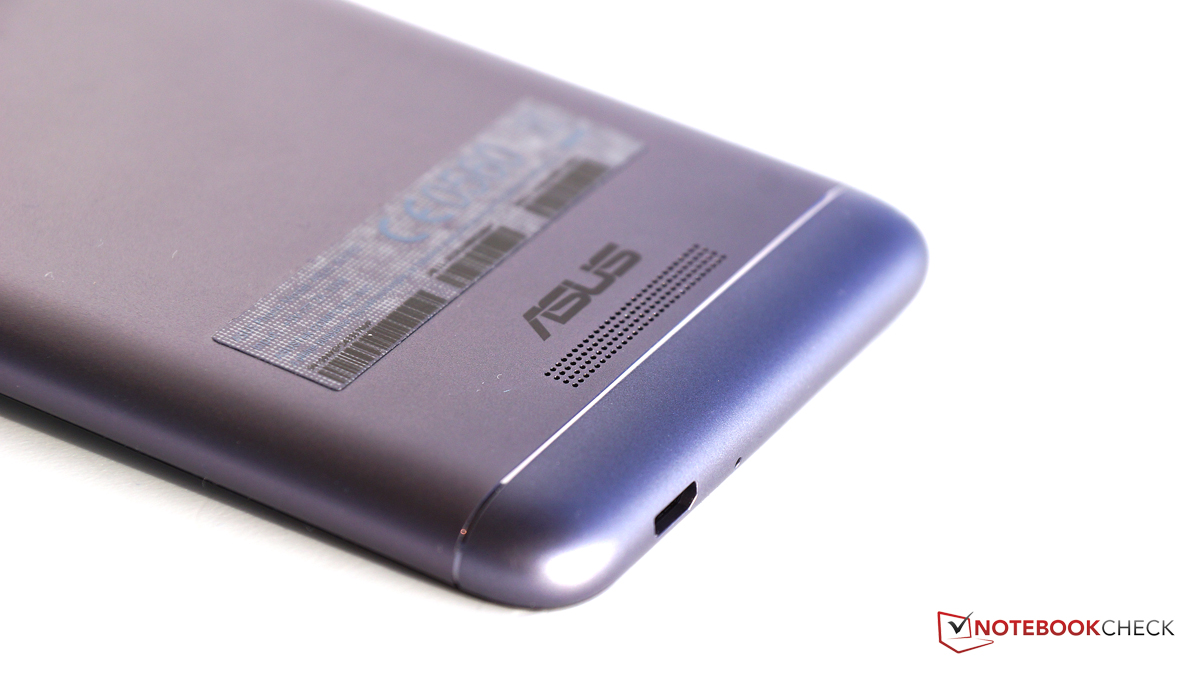

In review: Asus Zenfone 3 Max. Review sample courtesy of Asus Germany.
In review: Asus Zenfone 3 Max. Review sample courtesy of Asus Germany.

Az Asus Zenfone 3 Max betartja legfontosabb ígéretét: akkumulátor üzemideje exrtém hosszú. Akármilyen jó is ez, azt kell mondanunk, hogy az LG X Power még ezt is túlszárnyalja. Tetszett az értékelt példány háza, amely árkategóriájában nagyon jó minőségűnek számít, bár nem emelkedik ki az okostelefonok tömegéből. További pozitívumai a jó kijelző, alacsony alapjárati fogyasztás, és a jó hőmenedzsment.

A teljesítmény már annyira nem volt lenyűgöző. Az eszköz minden téren kicsivel lassabb vetélytársainál. Talán az Asus ZenUI felület miatt lehet így? Az eszköz 3D-s játékokra csak korlátozottan alkalmas, és összetettebb weblapok is gondot okozhatnak neki.

A Zenfone 3 Max jó memóriakonfigurációt nyújt árához képest, két SIM-kártyát tud kezelni, valamint könnyű és vékony. Ez a telefon mindazoknak jó vétel lehet, akik számára az akku üzemideje elsődleges szempont.

Közvetlen elődjével, a Zenfone Max-szal összehasonlítva a tesztpéldányunk sok dologban jobban teljesít, de vesztett készenléti idejéből. Az Asus Zenfone 3 Max sikeres fejlesztés, de önmagában elsődlegesen az üzemidő-mániásoknak ajánlható. Mindenki másnak kompromisszumos megoldást jelent kamera, hangszóró, és hívásminőség terén. Bár, ez ebben az árfekvésben nem szokatlan.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Asus Zenfone 3 Max ZC520TL - 01/02/2017 v6
Florian Wimmer

Váz
87%
Billentyűzet
64 / 75 → 85%
Érintőpad
91%
Csatlakoztathatóság
36 / 60 → 61%
Súly
93%
Akkumulátor
96%
Kijelző
84%
Játékok alatti teljesítmény
6 / 63 → 10%
Alkalmazások alatti teljesítmény
29 / 70 → 41%
Hőmérséklet
90%
Zaj
100%
Audio
48 / 91 → 53%
Camera
65%
Átlag
68%
81%
Smartphone - Súlyozott átlag

Pricecompare

> Magyarország - Kezdőlap > Tesztek / áttekintők > Asus Zenfone 3 Max ZC520TL Smartphone rövid értékelés
Florian Wimmer, 2017-01-10 (Update: 2017-01-10)
