HP Pavilion 17z (A12-9720P, Radeon R7 M340) Laptop rövid értékelés

Allen Ngo (fordította Tamás Somogyi), 07/18/2017
AMD Windows Notebook

Szuper lassú, szuper olcsó. Amennyiben az első benyomás a döntő, úgy az AMD nagy bajban van. A legújabb Bristol Ridge notebook elég jó GPU-t kombinált egy messze átlag alatti CPU-val, egy nagyon kiegyensúlyozatlan rendszert létrehozva.

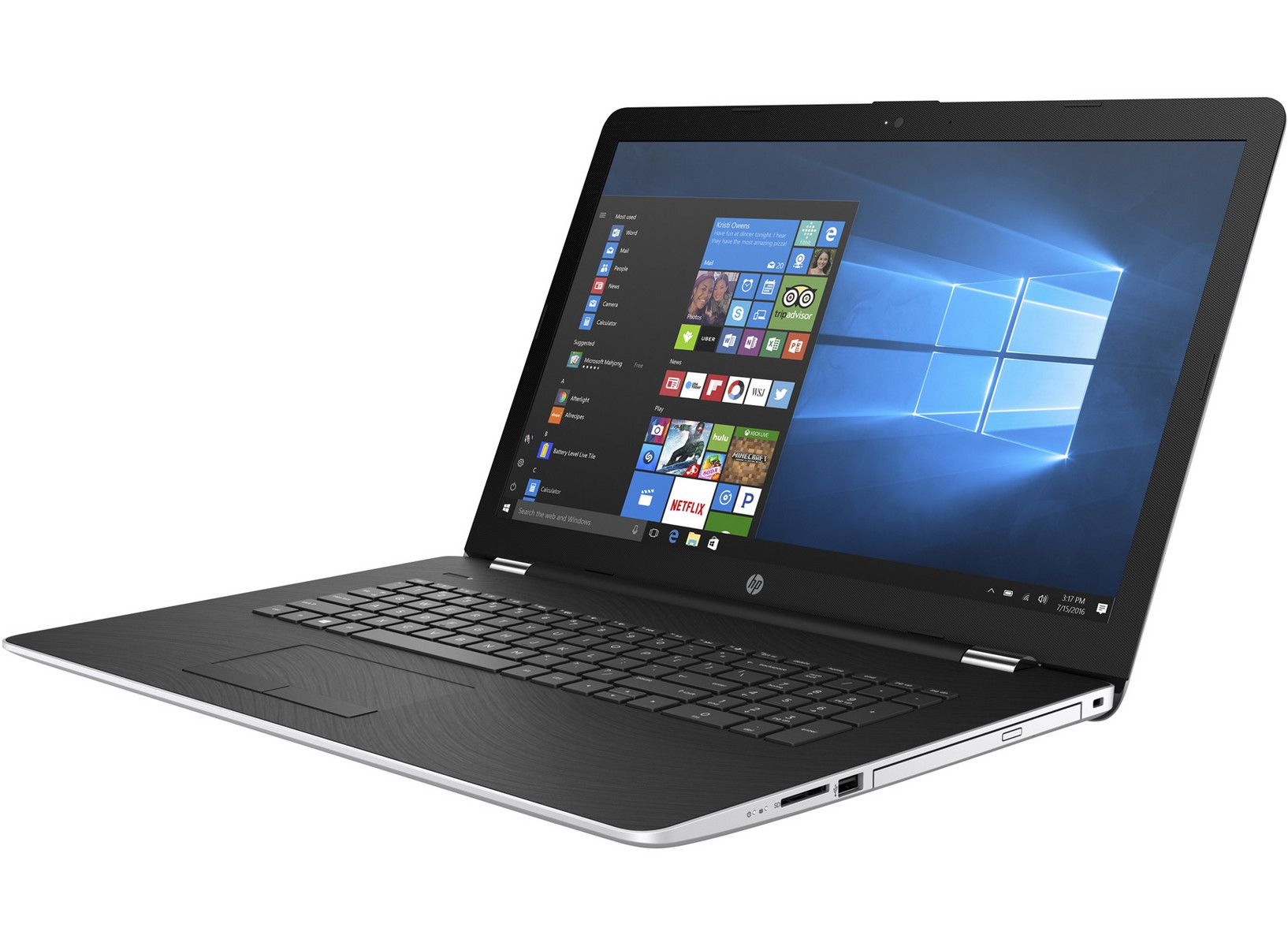

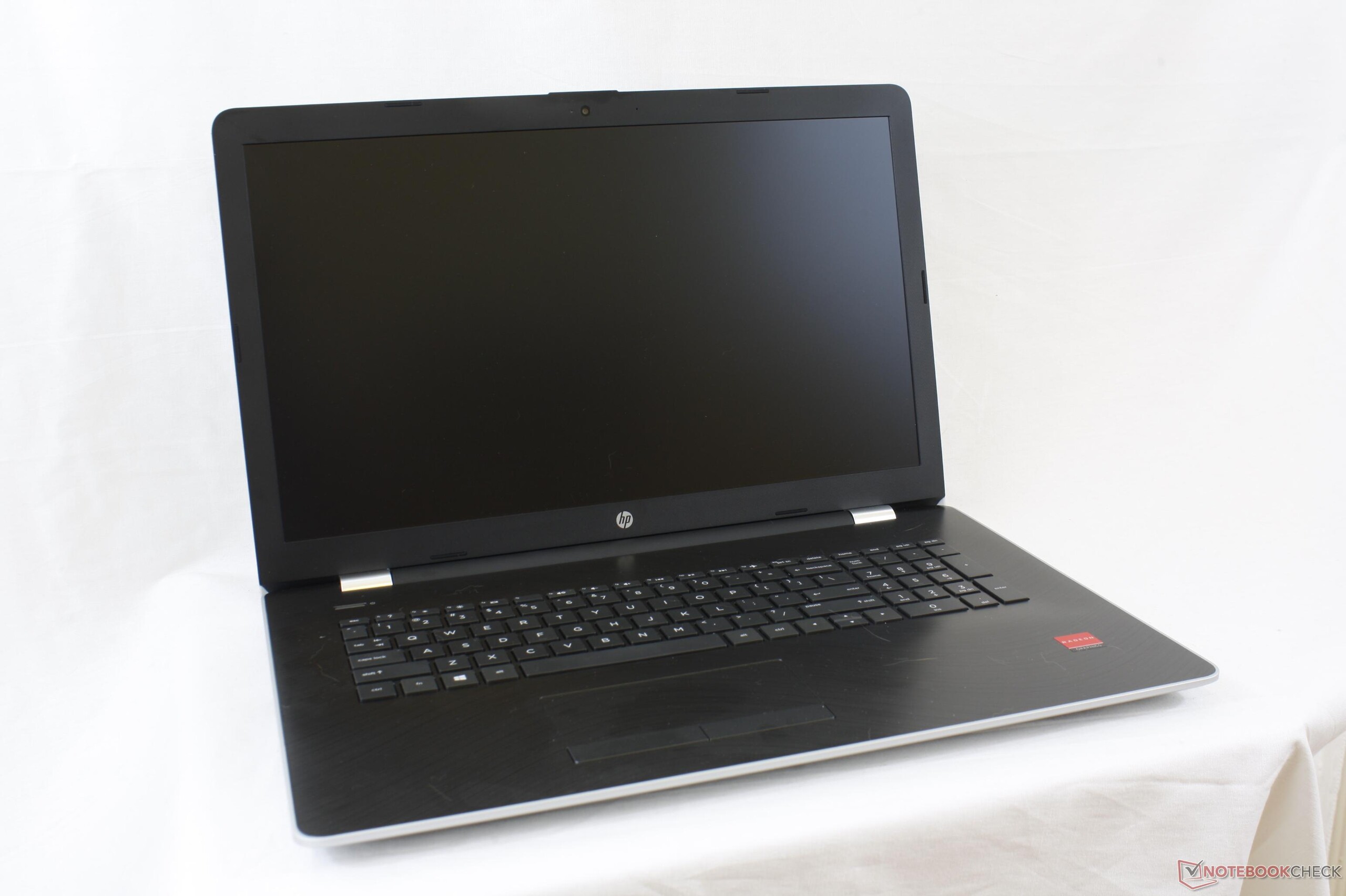

HP Pavilion 17z 1EX13AV

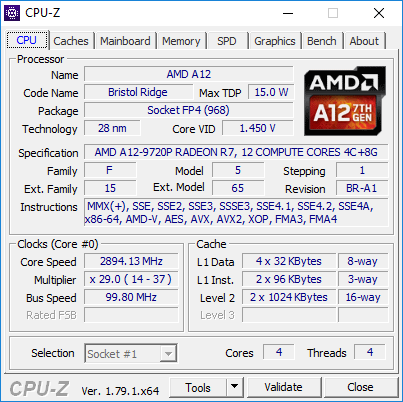

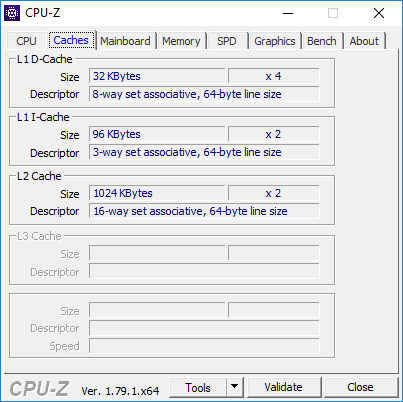

Processzor
AMD A12-9720P

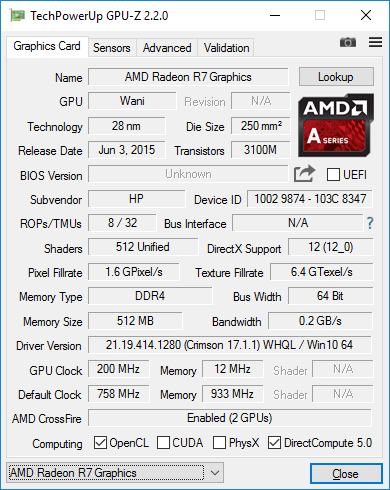

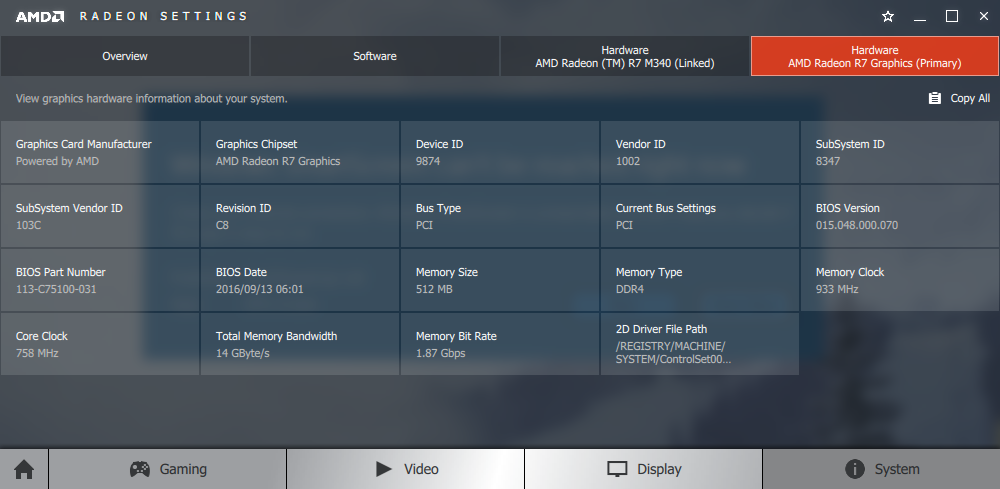

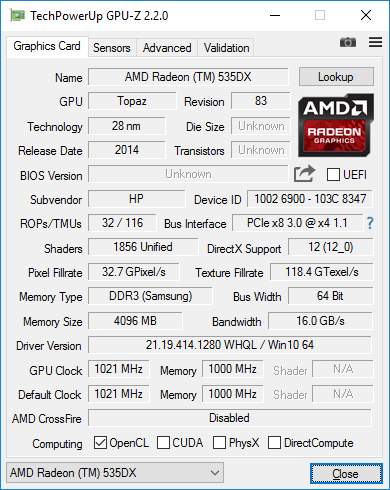

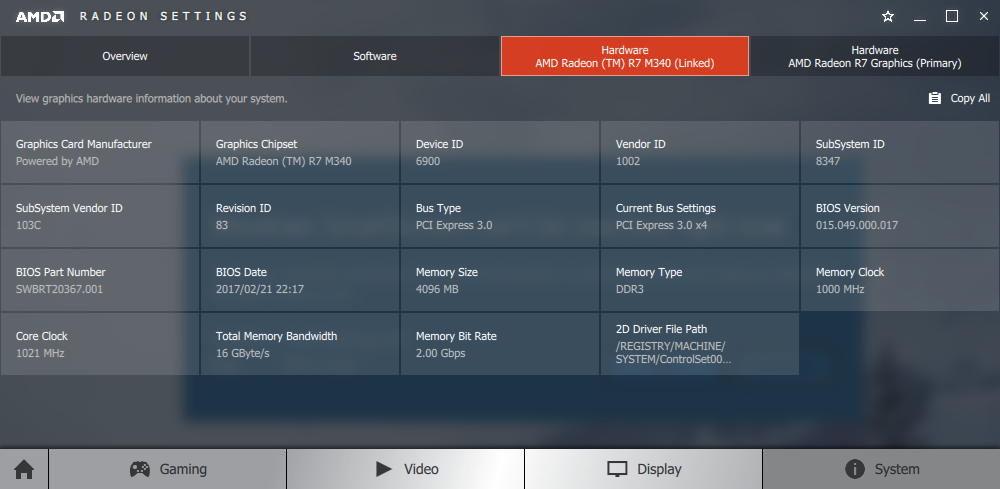

Grafikus adapter
AMD Radeon R7 M340 - 4096 MB, Mag: 1021 MHz, Memória: 1000 MHz, DDR3, 17.10.1731-170424a2-313745

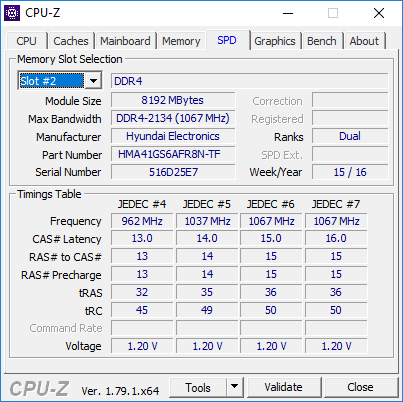

Memória
8192 MB
, DDR4-2134 SDRAM, PC4-17000, 13-13-13-31, Dual-Channel
Kijelző
17.3 hüvelyk 16:9, 1920x1080 pixel 127 PPI, ID: AUO109D, Name: AU Optronics B173HW01 V0, IPS, fényes: nem
Alaplap
AMD CZ FCH
Háttértár
WDC Scorpio Blue WD10JPVX-60JC3T1, 1000 GB
, 5400 rpm
Hangkártya
AMD Kabini - High Definition Audio Controller
Csatlakozók
1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington zár, Audió csatlakozók: 3.5 mm kombinált, Kártyaolvasó: SD olvasó
Hálózat
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Realtek RTL8188E Wireless LAN 802.11n PCI-E NIC (b/g/n)
Optikai meghajtó
Slimtype DVD A DA8AESH
Méret
magasság x szélesség x mélység (mm-ben) 24.6 x 415 x 278
Akkumulátor
41.6 Wh, 2850 mAh Lítium-Ion, removeable
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: 720p
További jellegzetességek
Billentyűzet: chiclet, Billentyűzet háttérvilágítás: nem, McAfee Anti-Virus, CyberLink Power Media Player, AMD Radeon Settings, 12 Hónap Garancia
Súly
2.676 kg, Tápegység: 345 g
Hivatkozások

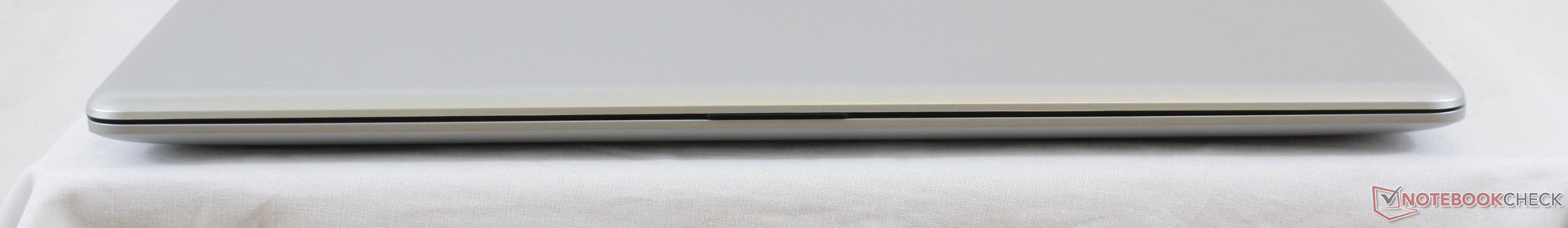

Front: No connectivity
Front: No connectivity

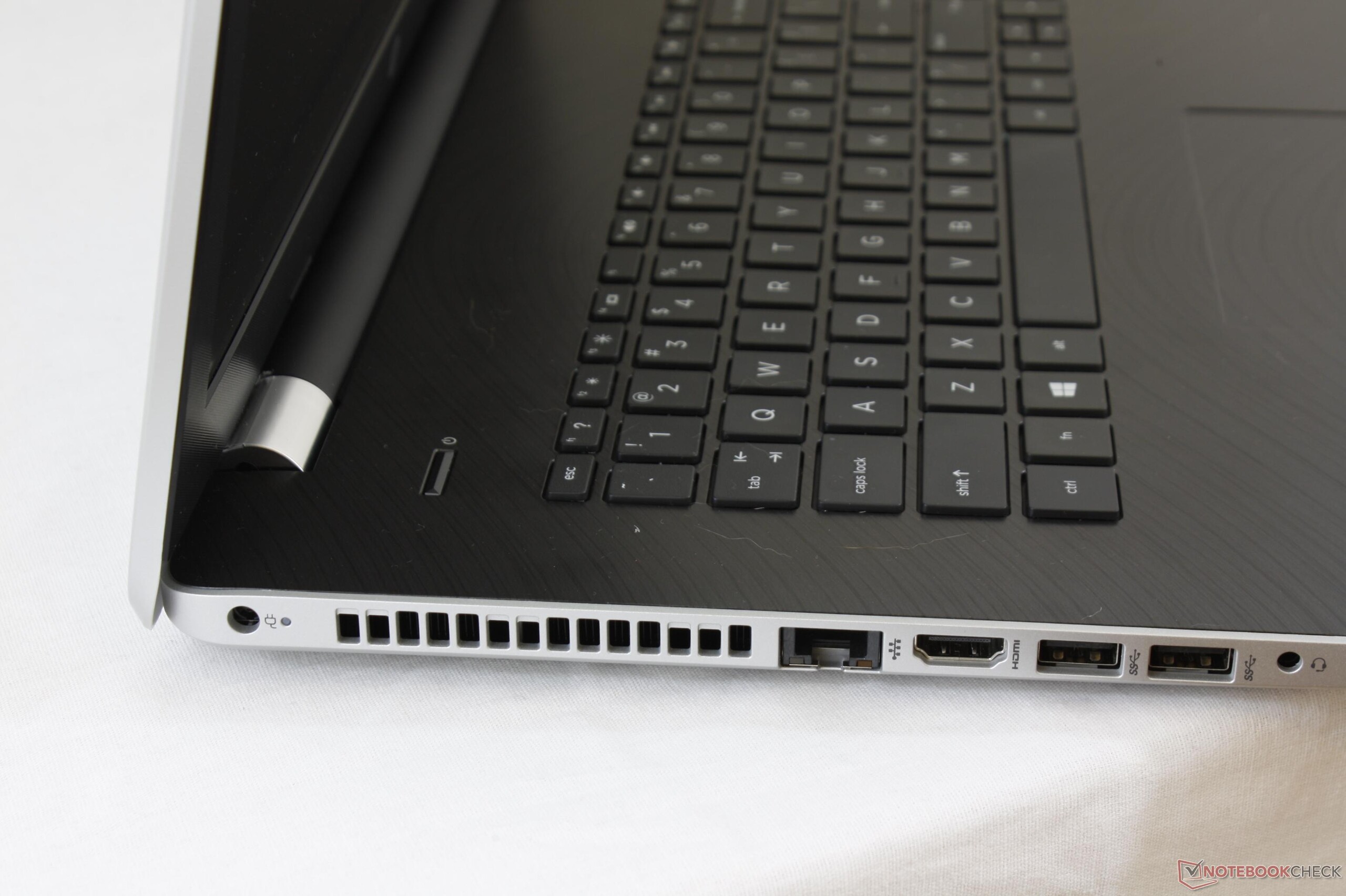

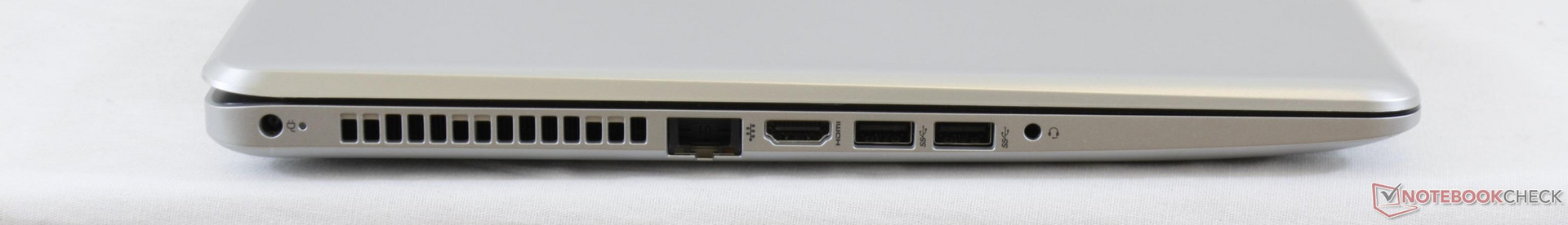

Left: AC adapter, Gigabit Ethernet, HDMI, 2x USB 3.0, 3.5 mm earphones
Left: AC adapter, Gigabit Ethernet, HDMI, 2x USB 3.0, 3.5 mm earphones

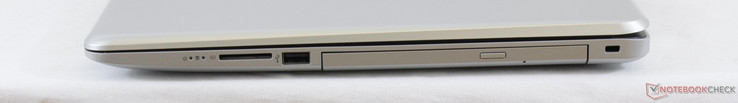

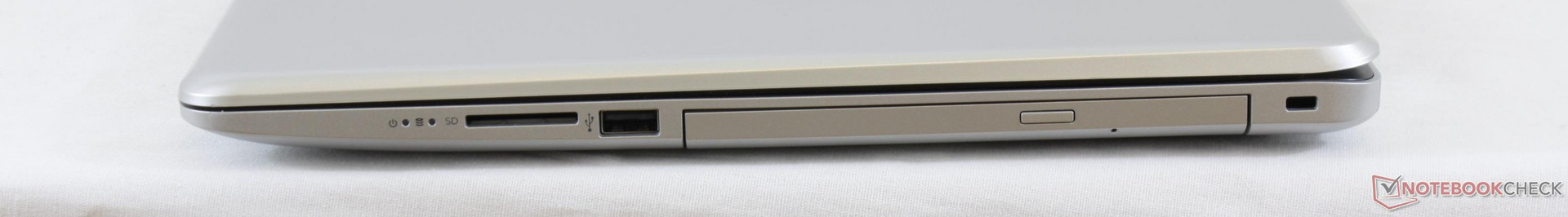

Right: SD reader, USB 2.0, Optical drive, Kensington Lock
Right: SD reader, USB 2.0, Optical drive, Kensington Lock

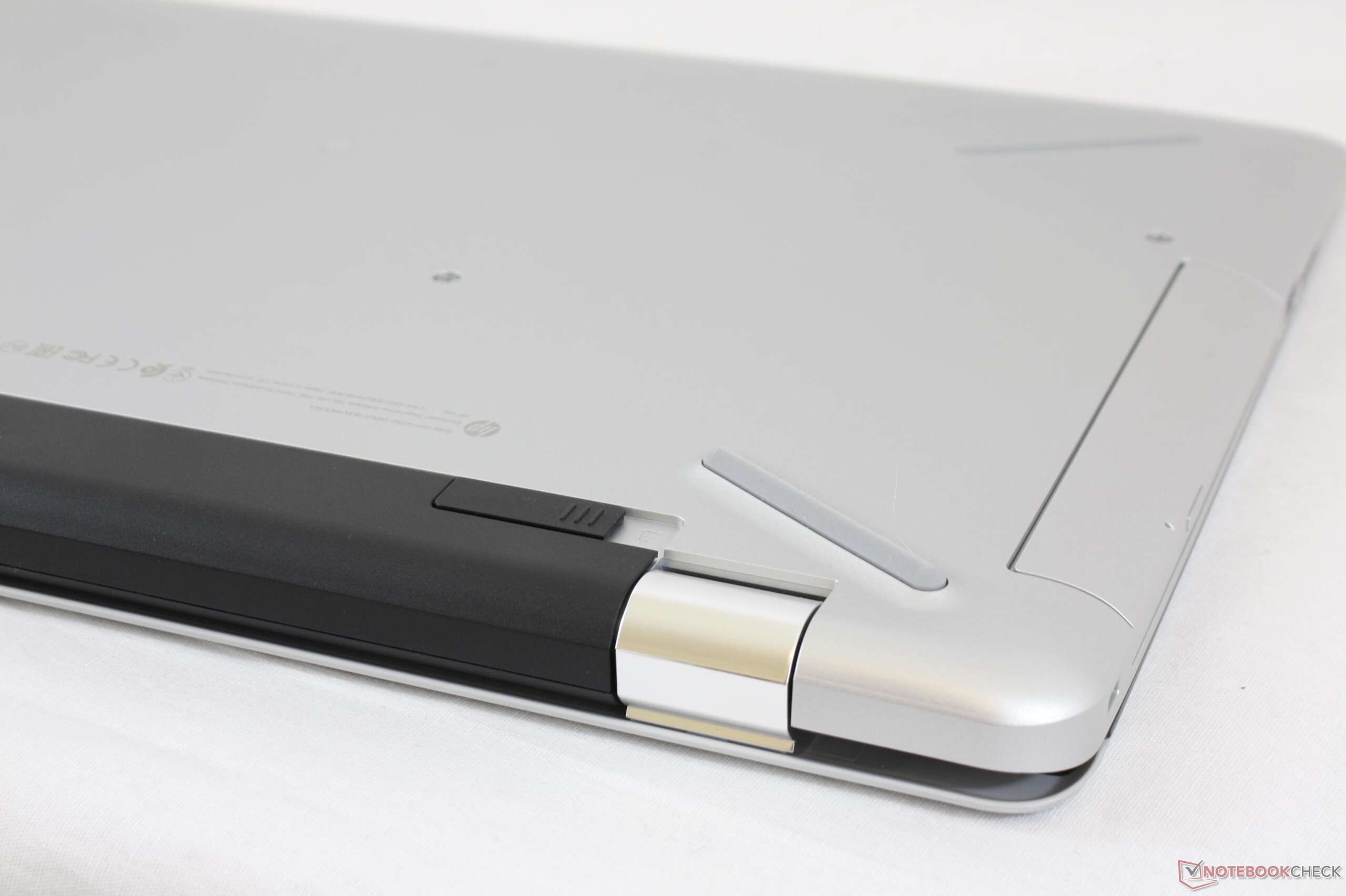

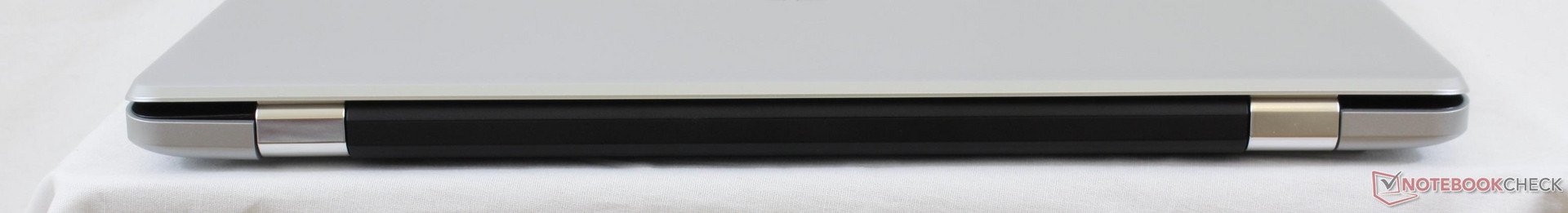

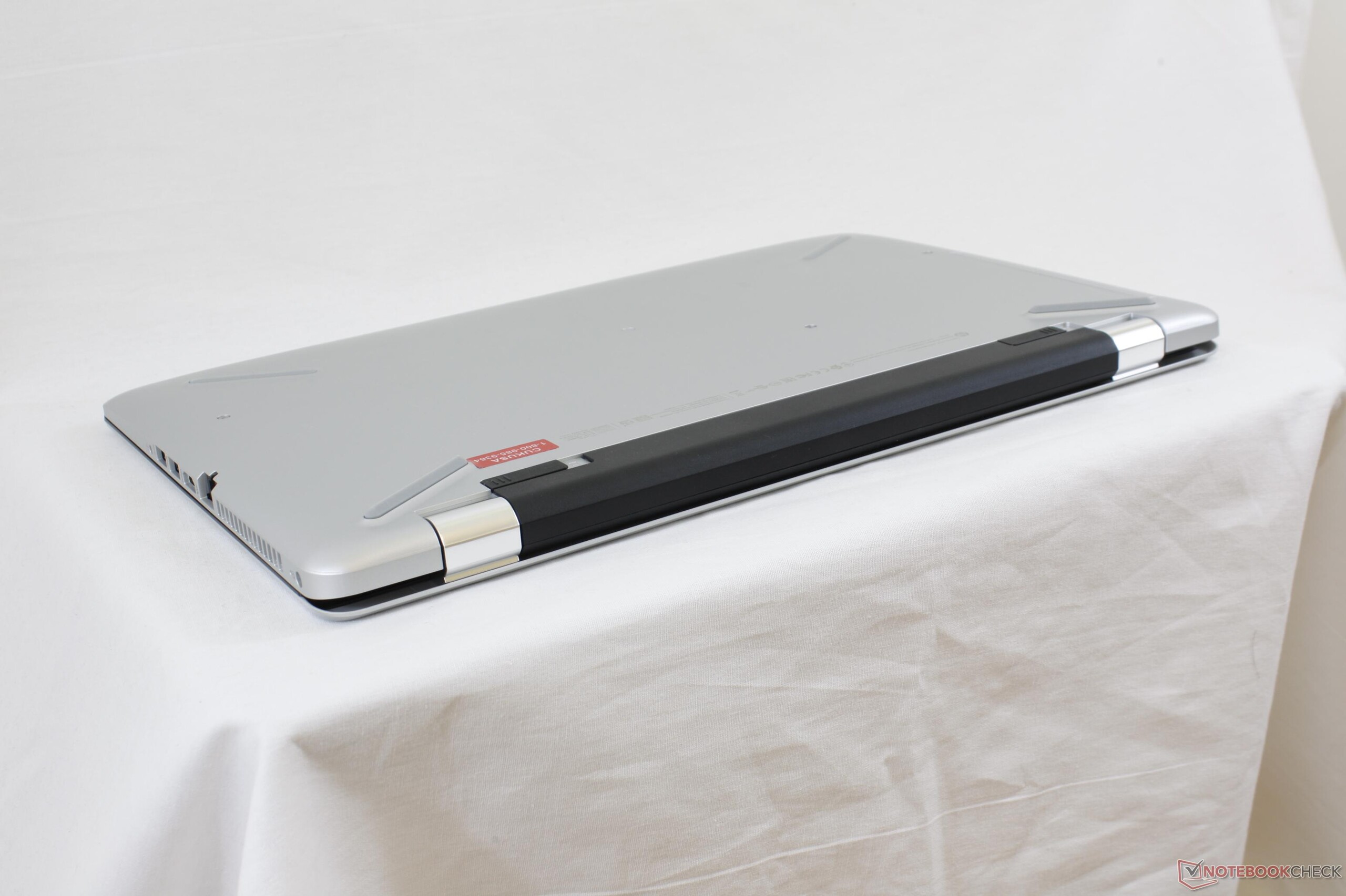

Rear: Removable battery
Rear: Removable battery
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo Ideapad 110-17IKB 80VK0001GE
Intel Dual Band Wireless-AC 3165
351 MBit/s ∼100% +685%
HP Pavilion 17z 1EX13AV
Realtek RTL8188E Wireless LAN 802.11n PCI-E NIC
44.7 MBit/s ∼13%
HP Pavilion 17-x110ng
Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC
44 MBit/s ∼13% -2%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo Ideapad 110-17IKB 80VK0001GE
Intel Dual Band Wireless-AC 3165
313 MBit/s ∼100% +566%
HP Pavilion 17-x110ng
Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC
51 MBit/s ∼16% +9%
HP Pavilion 17z 1EX13AV
Realtek RTL8188E Wireless LAN 802.11n PCI-E NIC
47 MBit/s ∼15%
313.7
cd/m²
342
cd/m²
325.1
cd/m²
315.3
cd/m²
333.5
cd/m²
313.3
cd/m²
326.1
cd/m²
324.9
cd/m²
311.9
cd/m²
Fényerő megoszlás
X-Rite i1Pro Basic 2
Maximum: 342 cd/m² Átlag: 322.9 cd/m² Minimum: 14.56 cd/m²
Fényerő megoszlás: 91 %
Centrumban: 333.5 cd/m²
Kontraszt: 1042:1 (Fekete: 0.32 cd/m²)
ΔE Color 4 | - Ø
ΔE Greyscale 4.5 | - Ø
88.1% sRGB (Argyll) 57.5% AdobeRGB 1998 (Argyll)
Gamma: 2.19
HP Pavilion 17z 1EX13AV
ID: AUO109D, Name: AU Optronics B173HW01 V0, IPS, 17.3, 1920x1080
HP Pavilion 17-x110ng
Chi Mei CMN1738, IPS, WLED, 17.3, 1920x1080
Lenovo Ideapad 110-17IKB 80VK0001GE
AU Optronics B173RTN02.2, TN LED, 17.3, 1600x900
Asus F756UX-T7013T
Chi Mei CMN1735 / N173HGE-E11, TN LED, 17.3, 1920x1080
Dell Inspiron 17 5759-5118
AU Optronics B173HTN, TN LED, 17.3, 1920x1080
MSI GL72 7RDX-602
Chi Mei CMN1735 N173HGE-E11, TN LED, 17.3, 1920x1080
Response Times
-7%
-3%
9%
-51%
16%
Response Time Grey 50% / Grey 80% *
40.8 (22, 18.8)
41 (16, 25)
-0%
50 (19, 31)
-23%
42 (20, 22)
-3%
86 (44, 42)
-111%
29 (14, 15)
29%
Response Time Black / White *
26.4 (14, 12.4)
30 (8, 22)
-14%
22 (6, 16)
17%
21 (6, 15)
20%
24 (7, 17)
9%
26 (21, 5)
2%
PWM Frequency
200 (90)
50 (70)
1000 (90)
200 (90)
961
Screen
-26%
-57%
-10%
-47%
-49%
Brightness
323
285
-12%
210
-35%
255
-21%
292
-10%
274
-15%
Brightness Distribution
91
88
-3%
83
-9%
83
-9%
84
-8%
80
-12%
Black Level *
0.32
0.61
-91%
0.37
-16%
0.17
47%
0.37
-16%
0.25
22%
Contrast
1042
472
-55%
624
-40%
1576
51%
822
-21%
1196
15%
Colorchecker DeltaE2000 *
4
4.56
-14%
9.83
-146%
7.18
-80%
10.62
-166%
12.92
-223%
Greyscale DeltaE2000 *
4.5
4.95
-10%
12.46
-177%
7.97
-77%
11.78
-162%
13.16
-192%
Gamma
2.19 110%
2.48 97%
2.43 99%
2.34 103%
2.39 100%
2.36 102%
CCT
6386 102%
7669 85%
13115 50%
8541 76%
12997 50%
15046 43%
Color Space (Percent of AdobeRGB 1998)
57.5
48
-17%
59
3%
59
3%
60
4%
Color Space (Percent of sRGB)
88.1
93
6%
73
-17%
94
7%
90
2%
94
7%
Total Average (Program / Settings)
-17% / -21%
-30% / -46%
-1% / -6%
-49% / -48%
-17% / -36%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

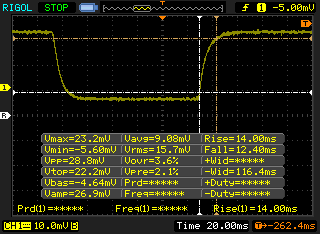

       Response Time Black to White
26.4 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 49 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.6 ms).

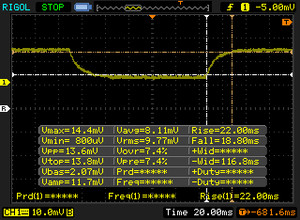

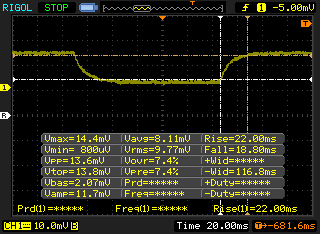

       Response Time 50% Grey to 80% Grey
40.8 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 46 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (42.5 ms).

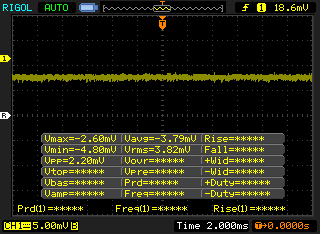

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

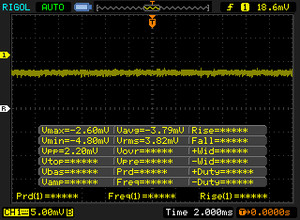

Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8568 (minimum: 43 - maximum: 142900) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
130 Points ∼65% +88%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
117 Points ∼59% +70%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
115 Points ∼58% +67%
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
87 Points ∼44% +26%
HP 15-ba077ng
AMD A12-9700P
80 Points ∼40% +16%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
75 Points ∼38% +9%
HP EliteBook 755 G4
AMD PRO A12-9800B
75 Points ∼38% +9%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
69 Points ∼35%
Asus X555LD-XX283H
Intel Core i3-4010U
65 Points ∼33% -6%
Asus X555DA-BB11
AMD A10-8700P
64 Points ∼32% -7%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD A8-7410
50 Points ∼25% -28%
CPU Multi 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
331 Points ∼15% +45%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
294 Points ∼14% +28%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
234 Points ∼11% +2%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
229 Points ∼11%
HP 15-ba077ng
AMD A12-9700P
222 Points ∼10% -3%
HP EliteBook 755 G4
AMD PRO A12-9800B
222 Points ∼10% -3%
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
219 Points ∼10% -4%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
215 Points ∼10% -6%
Asus X555DA-BB11
AMD A10-8700P
180 Points ∼8% -21%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD A8-7410
166 Points ∼8% -28%
Asus X555LD-XX283H
Intel Core i3-4010U
163 Points ∼8% -29%
Cinebench R11.5
CPU Single 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
1.48 Points ∼65% +57%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
1.33 Points ∼59% +41%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
1.32 Points ∼58% +40%
HP 15-ba077ng
AMD A12-9700P
0.94 Points ∼41% 0%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
0.94 Points ∼41%
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
0.92 Points ∼41% -2%
HP EliteBook 755 G4
AMD PRO A12-9800B
0.9 Points ∼40% -4%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
0.87 Points ∼38% -7%
Asus X555DA-BB11
AMD A10-8700P
0.83 Points ∼37% -12%
Asus X555LD-XX283H
Intel Core i3-4010U
0.69 Points ∼30% -27%
CPU Multi 64Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
3.69 Points ∼2% +37%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
3.24 Points ∼1% +20%
HP EliteBook 755 G4
AMD PRO A12-9800B
2.7 Points ∼1% 0%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2.7 Points ∼1%
HP 15-ba077ng
AMD A12-9700P
2.62 Points ∼1% -3%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
2.59 Points ∼1% -4%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
2.57 Points ∼1% -5%
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
2.4 Points ∼1% -11%
Asus X555DA-BB11
AMD A10-8700P
2.3 Points ∼1% -15%
Asus X555LD-XX283H
Intel Core i3-4010U
1.76 Points ∼1% -35%
Cinebench R10
Rendering Single 32Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
5001 Points ∼56% +89%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
4396 Points ∼50% +67%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
2640 Points ∼30%
HP 15-ba077ng
AMD A12-9700P
2596 Points ∼29% -2%
HP EliteBook 755 G4
AMD PRO A12-9800B
2564 Points ∼29% -3%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
2520 Points ∼28% -5%
Asus X555LD-XX283H
Intel Core i3-4010U
2345 Points ∼26% -11%
Asus X555DA-BB11
AMD A10-8700P
2192 Points ∼25% -17%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD A8-7410
1917 Points ∼22% -27%
Rendering Multiple CPUs 32Bit
HP Pavilion 17-x110ng
Intel Core i5-7200U
11318 Points ∼23% +57%
Acer TravelMate P249-M-5452
Intel Core i5-6200U
10003 Points ∼20% +39%
HP EliteBook 755 G4
AMD PRO A12-9800B
7257 Points ∼15% +1%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
7200 Points ∼14%
HP 15-ba077ng
AMD A12-9700P
7188 Points ∼14% 0%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD A8-7410
6169 Points ∼12% -14%
HP Pavilion 15-aw004ng W8Y60EA
AMD A10-9600P
6077 Points ∼12% -16%
Asus X555LD-XX283H
Intel Core i3-4010U
5194 Points ∼10% -28%
Asus X555DA-BB11
AMD A10-8700P
4808 Points ∼10% -33%
wPrime 2.0x - 1024m
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
761.49 s * ∼9% -83%
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
729.8 s * ∼9% -76%
Asus X555DA-BB11
AMD A10-8700P
507.427 s * ∼6% -22%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
415.484 s * ∼5%
Super Pi Mod 1.5 XS 32M - ---
HP Pavilion 14t-ab000 K9E07AV
Intel Core i3-5010U
1235.5 Seconds * ∼5% -43%
Asus X555DA-BB11
AMD A10-8700P
977.893 Seconds * ∼4% -13%
HP Pavilion 17z 1EX13AV
AMD A12-9720P
863.551 Seconds * ∼4%
Lenovo ThinkPad X1 Tablet Gen 2
Intel Core i5-7Y54
669 Seconds * ∼3% +23%

* ... smaller is better

Cinebench R10 Shading 32Bit
4932
Cinebench R10 Rendering Multiple CPUs 32Bit
7200
Cinebench R10 Rendering Single 32Bit
2640
Cinebench R11.5 CPU Multi 64Bit
2.7 Points
Cinebench R11.5 OpenGL 64Bit
25.28 fps
Cinebench R11.5 CPU Single 64Bit
0.94 Points
Cinebench R15 CPU Single 64Bit
69 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
32.6 fps
Cinebench R15 CPU Multi 64Bit
229 Points
Segítség
PCMark 8 - Home Score Accelerated v2
Asus ASUSPRO B9440UA-GV0101T
HD Graphics 620, 7500U, Micron SSD 1100 SED 512GB, M.2 (MTFDDAV512TBN)
3689 Points ∼62% +33%
Lenovo Ideapad 110-17IKB 80VK0001GE
Radeon R5 M430, 7200U, WDC Scorpio Blue WD10JPCX-24UE4T0
3434 Points ∼57% +23%
Dell Inspiron 17 5759-5118
Radeon R5 M335, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
3232 Points ∼54% +16%
HP Pavilion 17-x110ng
Radeon R7 M440, 7200U, SanDisk Z400s SD8SNAT-256G
3102 Points ∼52% +11%
HP Pavilion 17z 1EX13AV
Radeon R7 M340, A12-9720P, WDC Scorpio Blue WD10JPVX-60JC3T1
2783 Points ∼47%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
2670 Points ∼45% -4%
HP EliteBook 725 G4
Radeon R7 (Bristol Ridge), PRO A12-9800B, Samsung PM961 MZVLW256HEHP
2665 Points ∼45% -4%
Lenovo Yoga 3 Pro 13 80HE004LGE
HD Graphics 5300, 5Y70, Samsung SSD PM851 MZNTE512HMJH
2307 Points ∼39% -17%
PCMark 8 Home Score Accelerated v2
2783 pontok
PCMark 8 Creative Score Accelerated v2
3219 pontok
PCMark 8 Work Score Accelerated v2
3518 pontok
Segítség
HP Pavilion 17z 1EX13AV
WDC Scorpio Blue WD10JPVX-60JC3T1
HP Pavilion 17-x110ng
SanDisk Z400s SD8SNAT-256G
Lenovo Ideapad 110-17IKB 80VK0001GE
WDC Scorpio Blue WD10JPCX-24UE4T0
Asus F756UX-T7013T
HGST Travelstar 5K1000 HTS541010A9E680
Dell Inspiron 17 5759-5118
Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
CrystalDiskMark 3.0
8314%
45%
22%
-9%
Write 4k QD32
1.076
272.7
25244%
1.234
15%
0.968
-10%
0.642
-40%
Read 4k QD32
1.021
145.4
14141%
1.079
6%
0.812
-20%
0.59
-42%
Write 4k
0.3997
86.03
21424%
1.201
200%
0.947
137%
0.638
60%
Read 4k
0.31
11.24
3526%
0.45
45%
0.413
33%
0.288
-7%
Write 512
47.07
300.3
538%
52.92
12%
39.12
-17%
32.7
-31%
Read 512
28.47
290.2
919%
39.19
38%
33.33
17%
26.59
-7%
Write Seq
90.25
325.1
260%
109
21%
105
16%
84.69
-6%
Read Seq
89.96
500.1
456%
110.3
23%
105.8
18%
91.85
2%
WDC Scorpio Blue WD10JPVX-60JC3T1
Minimum átviteli sebesség: 39.2 MB/s
Maximum átviteli sebesség: 122.7 MB/s
Átlagos átviteli sebesség: 86.4 MB/s
Hozzáférési idő: 19.3 ms
Burst Rate: 60.6 MB/s
CPU kihasználtság: 3.6 %
3DMark 11
1280x720 Performance Combined
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, 7200U
4113 Points ∼23% +208%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
2784 Points ∼16% +108%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, 7267U
2517 (min: 2509) Points ∼14% +88%
Samsung Notebook 9 NP900X5N-X01US
NVIDIA GeForce 940MX, 7500U
1770 Points ∼10% +32%
Lenovo Flex 2 Pro-15
NVIDIA GeForce 840M, 4510U
1757 Points ∼10% +31%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, 7200U
1630 Points ∼9% +22%
Acer TravelMate P249-M-5452
Intel HD Graphics 520, 6200U
1401 Points ∼8% +5%
Lenovo IdeaPad 305-15IBD
AMD Radeon R5 M330, 5200U
1392 Points ∼8% +4%
HP Pavilion 17z 1EX13AV
AMD Radeon R7 M340, A12-9720P
1337 Points ∼8%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), PRO A12-9800B
1039 Points ∼6% -22%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD Radeon R5 (Beema/Carrizo-L), A8-7410
850 Points ∼5% -36%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
790 Points ∼4% -41%
Toshiba Portege Z20t-B-10C
Intel HD Graphics 5300, 5Y71
677 Points ∼4% -49%
1280x720 Performance GPU
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, 7200U
4251 Points ∼8% +18%
HP Pavilion 17z 1EX13AV
AMD Radeon R7 M340, A12-9720P
3597 Points ∼7%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
3220 Points ∼6% -10%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, 7267U
2761.5 (min: 2743) Points ∼5% -23%
Lenovo Flex 2 Pro-15
NVIDIA GeForce 840M, 4510U
2323 Points ∼5% -35%
Samsung Notebook 9 NP900X5N-X01US
NVIDIA GeForce 940MX, 7500U
2230 Points ∼4% -38%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), PRO A12-9800B
1820 Points ∼4% -49%
Lenovo IdeaPad 305-15IBD
AMD Radeon R5 M330, 5200U
1689 Points ∼3% -53%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, 7200U
1589 Points ∼3% -56%
Acer TravelMate P249-M-5452
Intel HD Graphics 520, 6200U
1343 Points ∼3% -63%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
1096 Points ∼2% -70%
Lenovo Ideapad 110-15ACL 80TJ00H0GE
AMD Radeon R5 (Beema/Carrizo-L), A8-7410
899 Points ∼2% -75%
Toshiba Portege Z20t-B-10C
Intel HD Graphics 5300, 5Y71
693 Points ∼1% -81%
3DMark
1920x1080 Fire Strike Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, 7200U
3574 Points ∼9% +86%
HP Pavilion 17z 1EX13AV
AMD Radeon R7 M340, A12-9720P
1926 Points ∼5%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
1903 Points ∼5% -1%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, 7267U
1698 Points ∼4% -12%
Samsung Notebook 9 NP900X5N-X01US
NVIDIA GeForce 940MX, 7500U
1593 Points ∼4% -17%
Lenovo Flex 2 Pro-15
NVIDIA GeForce 840M, 4510U
1586 Points ∼4% -18%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, 7200U
1106 Points ∼3% -43%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), PRO A12-9800B
962 Points ∼2% -50%
Lenovo IdeaPad 305-15IBD
AMD Radeon R5 M330, 5200U
922 Points ∼2% -52%
Acer TravelMate P249-M-5452
Intel HD Graphics 520, 6200U
786 Points ∼2% -59%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
642 Points ∼2% -67%
Toshiba Portege Z20t-B-10C
Intel HD Graphics 5300, 5Y71
511 Points ∼1% -73%
1280x720 Cloud Gate Standard Graphics
Acer Aspire E5-575G-549D
NVIDIA GeForce GTX 950M, 7200U
22439 Points ∼14% +122%
Intel Skull Canyon NUC6i7KYK
Intel Iris Pro Graphics 580, 6770HQ
14594 Points ∼9% +44%
Apple MacBook Pro 13 2017 Touchbar i5
Intel Iris Plus Graphics 650, 7267U
13153 Points ∼8% +30%
HP Pavilion 17z 1EX13AV
AMD Radeon R7 M340, A12-9720P
10116 Points ∼6%
Lenovo ThinkPad L570 20J80020PB
Intel HD Graphics 620, 7200U
9153 Points ∼6% -10%
Lenovo Flex 2 Pro-15
NVIDIA GeForce 840M, 4510U
8611 Points ∼5% -15%
Samsung Notebook 9 NP900X5N-X01US
NVIDIA GeForce 940MX, 7500U
8385 Points ∼5% -17%
Acer TravelMate P249-M-5452
Intel HD Graphics 520, 6200U
6924 Points ∼4% -32%
HP EliteBook 755 G4
AMD Radeon R7 (Bristol Ridge), PRO A12-9800B
5278 Points ∼3% -48%
Lenovo IdeaPad 305-15IBD
AMD Radeon R5 M330, 5200U
4830 Points ∼3% -52%
Toshiba Portege Z20t-B-10C
Intel HD Graphics 5300, 5Y71
4441 Points ∼3% -56%
HP 15-bw077ax
AMD Radeon R5 (Stoney Ridge), A9-9420
3661 Points ∼2% -64%
3DMark 11 Performance
2961 pontok
3DMark Ice Storm Standard Score
41857 pontok
3DMark Cloud Gate Standard Score
5704 pontok
3DMark Fire Strike Score
1407 pontok
Segítség
BioShock Infinite - 1366x768 High Preset
Acer Aspire E5-575G-549D
GeForce GTX 950M, 7200U, Toshiba MQ01ABD100
86.7 fps ∼100% +154%
Acer Aspire V17 Nitro VN7-791G-50MV
GeForce 840M, 4210H, Western Digital Scorpio Blue WD5000LPVX
43.8 fps ∼51% +28%
Samsung Notebook 9 NP900X5N-X01US
GeForce 940MX, 7500U, Samsung PM961 MZVLW256HEHP
39.3 fps ∼45% +15%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
35.7 fps ∼41% +5%
HP Pavilion 17z 1EX13AV
Radeon R7 M340, A12-9720P, WDC Scorpio Blue WD10JPVX-60JC3T1
34.1 fps ∼39%
Lenovo ThinkPad X1 Tablet Gen 2
HD Graphics 615, 7Y54, Samsung PM961 MZVLW256HEHP
19 fps ∼22% -44%
Dell Latitude 5280
HD Graphics 620, 7200U, Toshiba MQ01ACF050
18 fps ∼21% -47%
Toshiba Satellite Pro R50-C-16V
HD Graphics 520, 6006U, TOSHIBA MQ01ABD075
16 fps ∼18% -53%
Rise of the Tomb Raider - 1024x768 Lowest Preset
Acer Aspire E5-575G-549D
GeForce GTX 950M, 7200U, Toshiba MQ01ABD100
45.2 fps ∼100% +60%
Samsung Notebook 9 NP900X5N-X01US
GeForce 940MX, 7500U, Samsung PM961 MZVLW256HEHP
37.4 fps ∼83% +33%
HP Pavilion 17z 1EX13AV
Radeon R7 M340, A12-9720P, WDC Scorpio Blue WD10JPVX-60JC3T1
28.2 fps ∼62%
Microsoft Surface Pro (2017) i7
Iris Plus Graphics 640, 7660U, Samsung PM971 KUS040202M
23.5 (min: 21) fps ∼52% -17%
Asus X302UV-FN016T
GeForce 920MX, 6200U, Hynix HFS128G3MND
23.2 fps ∼51% -18%
Dell Latitude 5280
HD Graphics 620, 7200U, Toshiba MQ01ACF050
14 fps ∼31% -50%
alacsony közepes magas ultra
StarCraft II: Heart of the Swarm (2013) 6135.521.5fps
BioShock Infinite (2013) 74.543.534.111.8fps
Metro: Last Light (2013) 32.62618.9fps
Thief (2014) 20.3fps
The Witcher 3 (2015) 19fps
Batman: Arkham Knight (2015) 19fps
Metal Gear Solid V (2015) 574014fps
Dota 2 Reborn (2015) 46382118fps
Fallout 4 (2015) 25.6fps
Rise of the Tomb Raider (2016) 28.215fps
Doom (2016) 20.2fps
Overwatch (2016) 54.844.9fps
Prey (2017) 38.414.7fps

Zajszint

Üresjárat
30.4 / 30.5 / 30.5 dB(A)
Terhelés
41.5 / 48.2 dB(A)



30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   BK Precision 732A (15 cm távolságról)   environment noise: 28 dB(A)
HP Pavilion 17z 1EX13AV
Radeon R7 M340, A12-9720P, WDC Scorpio Blue WD10JPVX-60JC3T1
HP Pavilion 17-x110ng
Radeon R7 M440, 7200U, SanDisk Z400s SD8SNAT-256G
Lenovo Ideapad 110-17IKB 80VK0001GE
Radeon R5 M430, 7200U, WDC Scorpio Blue WD10JPCX-24UE4T0
Asus F756UX-T7013T
GeForce GTX 950M, 6200U, HGST Travelstar 5K1000 HTS541010A9E680
Dell Inspiron 17 5759-5118
Radeon R5 M335, 6200U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB
MSI GL72 7RDX-602
GeForce GTX 1050 (Notebook), 7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
Noise
3%
1%
-5%
-6%
-3%
off / environment *
28
29
-4%
30.5
-9%
31.2
-11%
30.8
-10%
Idle Minimum *
30.4
31
-2%
32.5
-7%
32.4
-7%
33.9
-12%
32.4
-7%
Idle Average *
30.5
31
-2%
32.5
-7%
32.6
-7%
33.9
-11%
32.4
-6%
Idle Maximum *
30.5
31
-2%
32.5
-7%
32.6
-7%
33.9
-11%
32.8
-8%
Load Average *
41.5
33.8
19%
34.6
17%
42
-1%
43.8
-6%
40.9
1%
Witcher 3 ultra *
41.8
Load Maximum *
48.2
44.8
7%
38.3
21%
45.2
6%
44.2
8%
43.6
10%

* ... smaller is better

Max. terhelés
 31.2 °C40.8 °C25.4 °C
 32.2 °C38 °C25.8 °C
 25 °C32.6 °C29.2 °C
Maximum: 40.8 °C
Átlag: 31.1 °C
28 °C36.2 °C41.4 °C
28.2 °C34.2 °C41.6 °C
29 °C31.4 °C30 °C
Maximum: 41.6 °C
Átlag: 33.3 °C
Tápegység (max.)  51 °C | Szobahőmérséklet 22 °C | Fluke 62 Mini IR Thermometer
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.7402535.337.83134.237.84032.8355034.534.16332.633.48030.832.210030.73112529.929.816028.931.720028.239.625028.65331527.355.240026.248.650025.949.163025.956.780025.859.4100025.551.2125024.857.9160024.551.520002451.225002454.8315023.553.4400023.447.3500023.754.4630023.564.1800023.562.31000023.555.51250023.551.71600023.658SPL36.669.2N2.824.6median 24.8HP Pavilion 17z 1EX13AVmedian 53Delta2.44.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
HP Pavilion 17z 1EX13AV audio analysis

(-) | not very loud speakers (64.09 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.7% lower than median
(-) | bass is not linear (16.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(-) | mids are not linear (17.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(-) | highs are not linear (18.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23% difference to median)
Compared to same class
» 79% of all tested devices in this class were better, 4% similar, 17% worse
» The best had a delta of 3%, average was 17%, worst was 35%
Compared to all devices tested
» 57% of all tested devices were better, 8% similar, 35% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 9%, average was 20%, worst was 47%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.2 / 0.56 Watt
Üresjáratdarkmidlight 7.8 / 11.7 / 15.7 Watt
Terhelés midlight 57.4 / 62.3 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
HP Pavilion 17z 1EX13AV
A12-9720P, Radeon R7 M340, WDC Scorpio Blue WD10JPVX-60JC3T1, IPS, 1920x1080, 17.3
HP Pavilion 17-x110ng
7200U, Radeon R7 M440, SanDisk Z400s SD8SNAT-256G, IPS, WLED, 1920x1080, 17.3
Lenovo Ideapad 110-17IKB 80VK0001GE
7200U, Radeon R5 M430, WDC Scorpio Blue WD10JPCX-24UE4T0, TN LED, 1600x900, 17.3
Asus F756UX-T7013T
6200U, GeForce GTX 950M, HGST Travelstar 5K1000 HTS541010A9E680, TN LED, 1920x1080, 17.3
Dell Inspiron 17 5759-5118
6200U, Radeon R5 M335, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB, TN LED, 1920x1080, 17.3
MSI GL72 7RDX-602
7700HQ, GeForce GTX 1050 (Notebook), HGST Travelstar 7K1000 HTS721010A9E630, TN LED, 1920x1080, 17.3
Power Consumption
8%
26%
5%
19%
-49%
Idle Minimum *
7.8
7.7
1%
6.9
12%
5.8
26%
6.2
21%
9.6
-23%
Idle Average *
11.7
14
-20%
9.6
18%
11.2
4%
11.6
1%
15
-28%
Idle Maximum *
15.7
15.1
4%
11.7
25%
11.9
24%
12.3
22%
16.5
-5%
Load Average *
57.4
33
43%
29
49%
54
6%
36
37%
104
-81%
Load Maximum *
62.3
54.6
12%
45.4
27%
84
-35%
55
12%
129
-107%
Witcher 3 ultra *
53.3

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
6h 50min
WiFi böngészés v1.3
3h 53min
Terhelés (maximális fényerő)
1h 10min
HP Pavilion 17z 1EX13AV
A12-9720P, Radeon R7 M340, 41.6 Wh
HP Pavilion 17-x110ng
7200U, Radeon R7 M440, 41 Wh
Lenovo Ideapad 110-17IKB 80VK0001GE
7200U, Radeon R5 M430, 32 Wh
Asus F756UX-T7013T
6200U, GeForce GTX 950M, 38 Wh
Dell Inspiron 17 5759-5118
6200U, Radeon R5 M335, 40 Wh
MSI GL72 7RDX-602
7700HQ, GeForce GTX 1050 (Notebook), 43.2 Wh
Battery Runtime
35%
5%
7%
24%
-25%
Reader / Idle
410
527
29%
491
20%
578
41%
327
-20%
WiFi v1.3
233
346
48%
245
5%
217
-7%
301
29%
203
-13%
Load
70
90
29%
75
7%
71
1%
40
-43%

Pro

+ jó kontraszt és színek az árhoz képest
+ kivehető telep
+ elég jó hangszórók
+ olcsó

Kontra

- a gaming teljesítmény kerékkötője a CPU
- lassú rendszer
- közepes háttérfény szivárgás
- nagyon gyenge CPU teljesítmény
- kicsi trackpad
- átlag alatti üzemidő
- hajlékony fedél; nyekergő ház
- a rendszerventilátor mindig aktív
- nincs billentyűzet háttérfény
- nehézkes szervizelhetőség
- szemcsés matt panel
In review: HP Pavilion 17z 1DK09AV. Test model provided by CUKUSA.com
In review: HP Pavilion 17z 1DK09AV. Test model provided by CUKUSA.com

Az A12-9720P APU jól megmutatja, hogy mennyivel volt lemaradva az AMD CPU-k terén a Ryzen és a Zen architektúra megjelenése előtt. Általában, ha egy processzor erősebben melegszik, és a gép hangosabb, azt várjuk hogy gyorsabb is. Ez nem így van az A12-9720P esetében, mivel forróbb, zajosabb, és lassabb rendszer lesz belőle, mint a két generációval ezelőtti Core i3-5010U-ból. A programok lassan indulnak, és lassan települnek, még egy HDD-alapú rendszerhez képest is.

A GPU-t megnézve viszont arra jutottunk, hogy a Radeon R7 M340 éppenséggel nem is rossz, hiszen nyers erőben majdnem utoléri a GTX 950M-et. A fő probléma, hogy egy nagyon lassú CPU-val van összeláncolva, amely a valós játékteljesítményt jelentősen lassabbra rontja, mint amit a GTX 950M-es notebook tudnak. Ez a szűk keresztmetszete a Pavilion 17z teljesítményének, és megakadályozza, hogy olcsó-középkategóriás gaming gépként tekintsünk rá, és gyakorlatilag feleslegessé teszi az R7 M340-et. Ez a GPU így ugyanis csak a fogyasztást és melegedést növeli, az üzemidőt csökkenti, és eközben messze nem lehet kiaknázni teljes teljesítményét. Egyszerűbben: a Ryzen-es notebookoknak már régen meg kellett volna jelennie.

Az AMD-vel kapcsolatos panaszainkat leszámítva a Pavilion 17z elég jó hardverrel van felszerelve, ha nem is lenyűgözővel, de ez az árból is következik. A színek és kontraszt az árhoz képest kiválóak, de nagyjából minden más átlag alatti a gépben, ide értve a szemcsés panelt és a ház minőségét is.

Azt kapjuk, amit kifizettünk. Az AMD-alapú Pavilion 17z valóban olcsóbb Intel-es párjainál, de a teljesítmény és üzemidő sokkal rosszabb hozzájuk képest.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

HP Pavilion 17z 1EX13AV - 07/14/2017 v6
Allen Ngo

Váz
70 / 98 → 71%
Billentyűzet
80%
Érintőpad
77%
Csatlakoztathatóság
43 / 81 → 53%
Súly
59 / 67 → 82%
Akkumulátor
74%
Kijelző
85%
Játékok alatti teljesítmény
61 / 85 → 71%
Alkalmazások alatti teljesítmény
65 / 92 → 71%
Hőmérséklet
90%
Zaj
82 / 95 → 87%
Audio
59%
Camera
42 / 85 → 50%
Átlag
68%
76%
Multimedia - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > HP Pavilion 17z (A12-9720P, Radeon R7 M340) Laptop rövid értékelés
Allen Ngo, 2017-07-18 (Update: 2017-07-18)
