Lenovo Yoga 510-14AST (A9-9410, HD) Convertible rövid értékelés

Sascha Mölck, Stefanie Voigt (fordította Tamás Somogyi), 03/28/2017
AMD Bristol Ridge / Stoney Ridge Convertible / 2-in-1 Touchscreen Windows

Kiábrándító kijelző. A Lenovo 14 inches átalakíthatója körülbelül 500 euróba kerül. Ezért a pénzért egy Stoney Ridge APU-t, egy SSD-t, és 4 GB RAM-ot kapunk. Az egyébként jó benyomást a Lenovo csúnyán lerontja egy rossz betekintésű TN panellel.

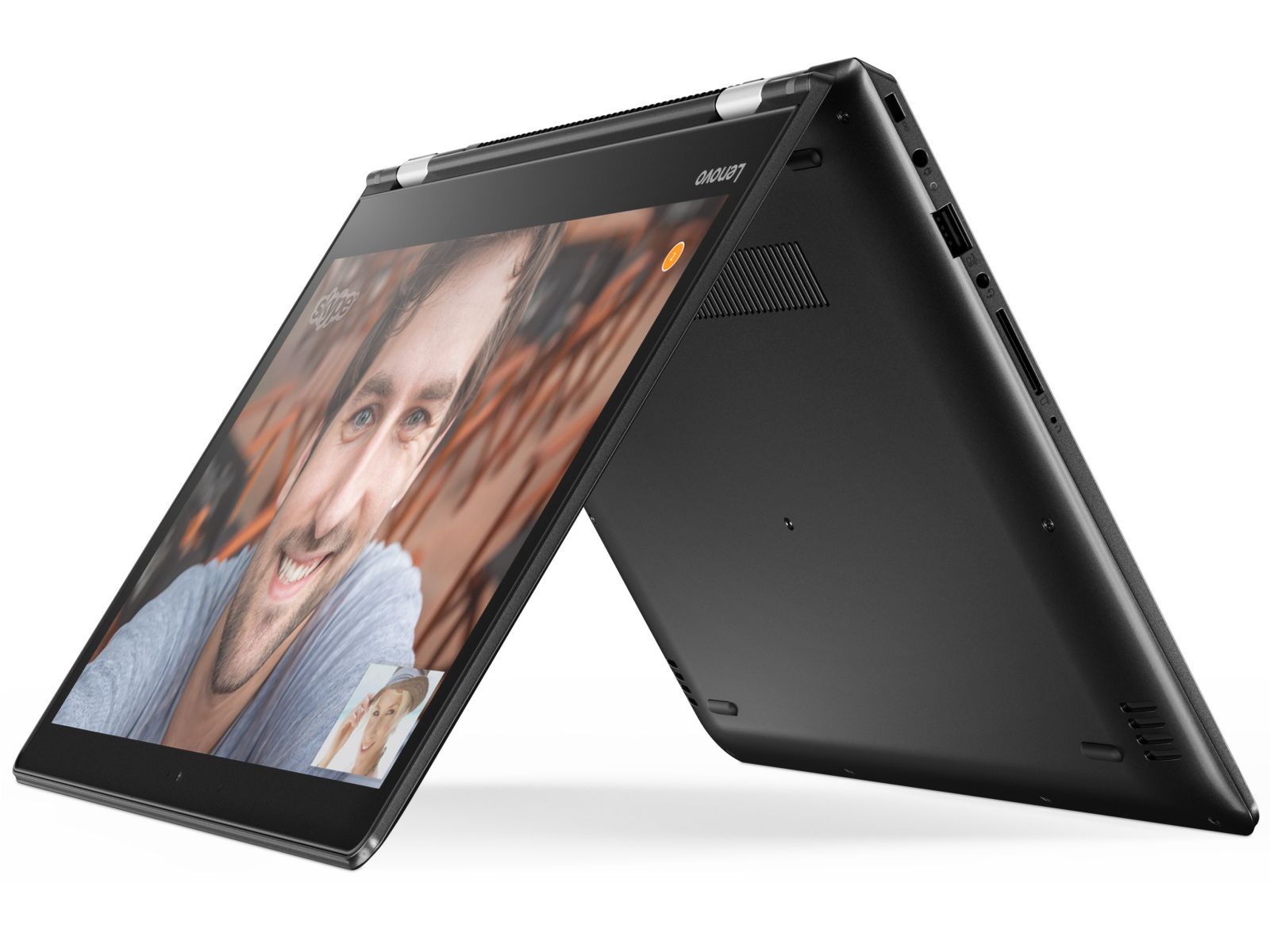

Lenovo Yoga 510-14AST (Yoga 510 Széria)
Processzor
Grafikus adapter
AMD Radeon R5 (Stoney Ridge), Mag: 200-800 MHz, single-channel, Crimson 17.2.1
Memória
4096 MB
, DDR4-2132, single-channel, egy hely (foglalt)
Kijelző
14 hüvelyk 16:9, 1366 x 768 pixel 112 PPI, 10 pontos kapacitív érintőkijelző, Active Stylus támogatás, AU Optronics B140XTN02.E, TN LED, fényes: igen
Alaplap
AMD CZ FCH
Hangkártya
Realtek ALC236 @ AMD K15.7 - High Definition Audio Controller

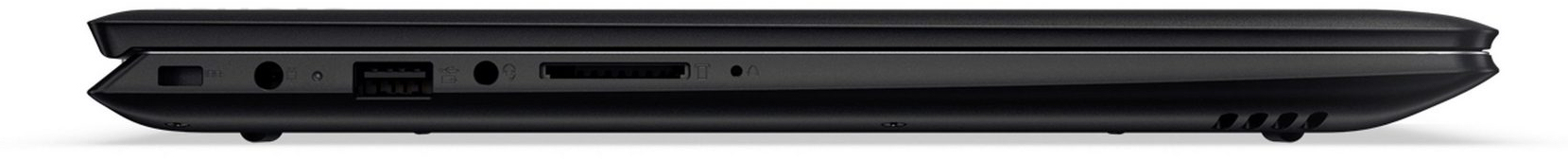

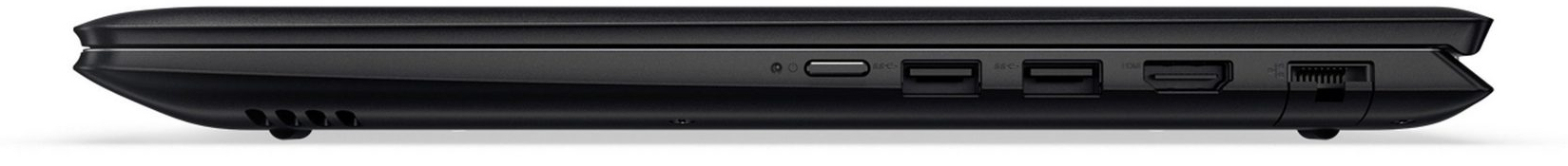

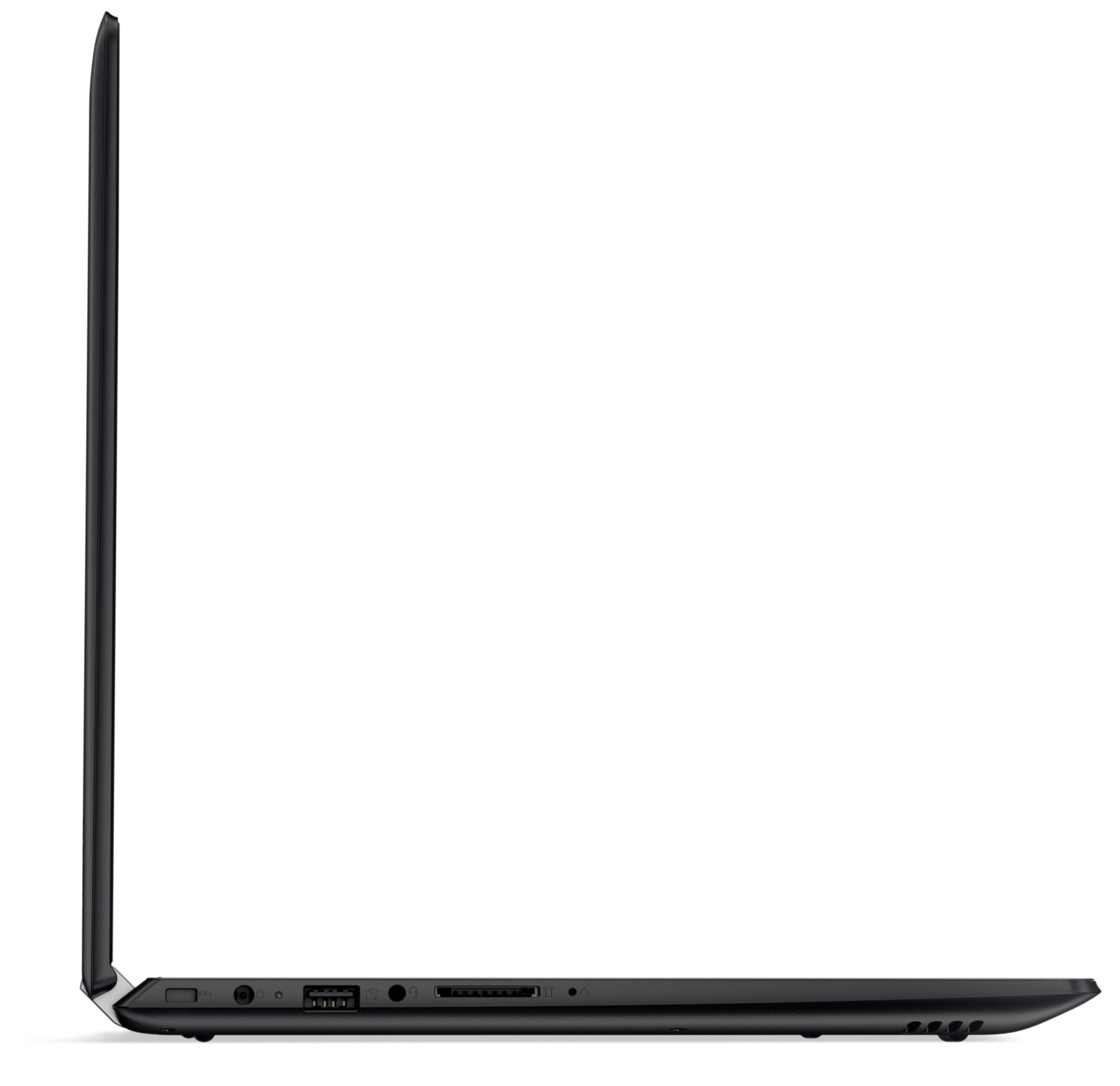

Csatlakozók
1 USB 2.0, 2 USB 3.0, 1 HDMI, 1 Kensington zár, Audió csatlakozók: kombinált ki- és bemenet, Kártyaolvasó: SD, Brightness Sensor, Szenzorok: mozgásérzékelő
Hálózat
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
Méret
magasság x szélesség x mélység (mm-ben) 20.9 x 336.4 x 232
Akkumulátor
35 Wh, 4510 mAh Lítium-Ion, 8.7 V
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: HD
További jellegzetességek
Hangszórók: sztereo, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: nem, Lenovo Photo Master, McAfee LiveSafe (próba), MS Office 365 (próba), 24 Hónap Garancia
Súly
1.75 kg, Tápegység: 176 g
Ár
499 Euro
Hivatkozások
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

336.4 mm 232 mm 20.9 mm 1.8 kg336 mm 232 mm 20.9 mm 1.7 kg328 mm 229 mm 20 mm 1.7 kg326.4 mm 222 mm 19.8 mm 1.7 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Pavilion x360 13-u102ng

68.1 MB/s ∼100% +6%
Lenovo Yoga 510-14AST

64.1 MB/s ∼94%
Lenovo Yoga 510-14IKB

59.7 MB/s ∼88% -7%
maximum AS SSD Seq Read Test (1GB)
HP Pavilion x360 13-u102ng

87.5 MB/s ∼100% +1%
Lenovo Yoga 510-14AST

86.7 MB/s ∼99%
Lenovo Yoga 510-14IKB

85.3 MB/s ∼97% -2%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Acer Spin 5 SP513-51
Qualcomm Atheros QCA9377 Wireless Network Adapter
347 MBit/s ∼100% +85%
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
188 MBit/s ∼54%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer Spin 5 SP513-51
Qualcomm Atheros QCA9377 Wireless Network Adapter
349 MBit/s ∼100% +5%
Lenovo Yoga 510-14AST
Qualcomm Atheros QCA9377 Wireless Network Adapter
332 MBit/s ∼95%
219
cd/m²
222
cd/m²
222
cd/m²
217
cd/m²
242
cd/m²
229
cd/m²
214
cd/m²
226
cd/m²
225
cd/m²
Fényerő megoszlás
AU Optronics B140XTN02.E
X-Rite i1Pro 2
Maximum: 242 cd/m² Átlag: 224 cd/m² Minimum: 24.2 cd/m²
Fényerő megoszlás: 88 %
Centrumban: 242 cd/m²
Kontraszt: 390:1 (Fekete: 0.62 cd/m²)
ΔE Color 13.03 | 0.6-29.43 Ø6
ΔE Greyscale 14.6 | 0.64-98 Ø6.3
52% sRGB (Argyll 3D) 33% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.22
Lenovo Yoga 510-14AST
TN LED, 1366x768, 14
Lenovo Yoga 510-14IKB
IPS, 1920x1080, 14
HP Pavilion x360 13-u102ng
IPS, 1920x1080, 13.3
Acer Spin 5 SP513-51
IPS LED, 1920x1080, 13.3
Response Times
-5%
30%
14%
Response Time Grey 50% / Grey 80% *
70 (32, 38)
53 (20, 33)
24%
38 (14, 24)
46%
56 (18, 38)
20%
Response Time Black / White *
29 (23, 6)
39 (12, 27)
-34%
25 (6, 19)
14%
27 (8, 19)
7%
PWM Frequency
350 (60)
Screen
37%
39%
49%
Brightness middle
242
243
0%
277
14%
245
1%
Brightness
224
248
11%
263
17%
233
4%
Brightness Distribution
88
91
3%
88
0%
87
-1%
Black Level *
0.62
0.32
48%
0.31
50%
0.21
66%
Contrast
390
759
95%
894
129%
1167
199%
Colorchecker DeltaE2000 *
13.03
5.44
58%
5.57
57%
4.2
68%
Colorchecker DeltaE2000 max. *
18.79
9.73
48%
13.6
28%
8.75
53%
Greyscale DeltaE2000 *
14.6
4.74
68%
4.56
69%
3.94
73%
Gamma
2.22 99%
2.38 92%
2.28 96%
2.66 83%
CCT
18869 34%
7799 83%
6648 98%
6096 107%
Color Space (Percent of AdobeRGB 1998)
33
39.6
20%
38
15%
38
15%
Color Space (Percent of sRGB)
52
62.5
20%
59
13%
59
13%
Total Average (Program / Settings)
16% / 30%
35% / 38%
32% / 43%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9418 (minimum: 43 - maximum: 142900) Hz was measured.

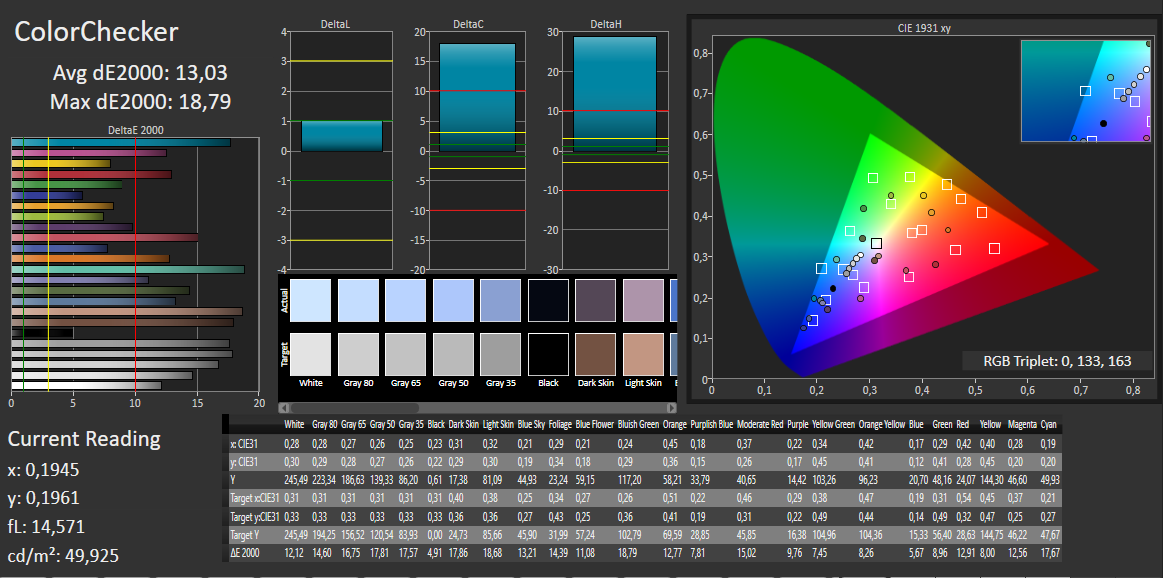

CalMAN - ColorChecker
CalMAN - ColorChecker

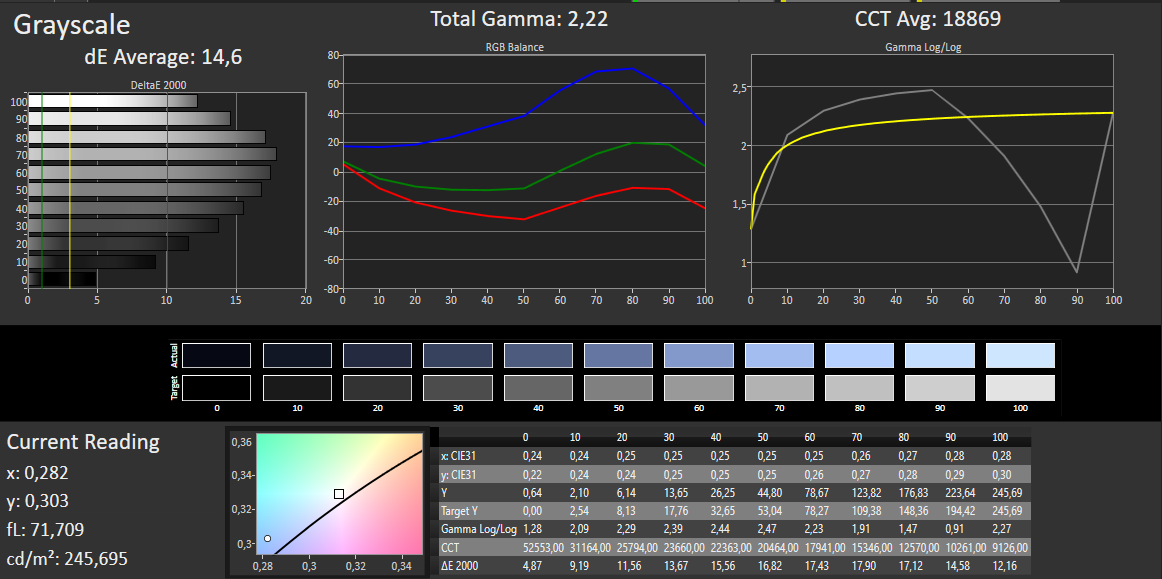

CalMAN - Grayscale
CalMAN - Grayscale

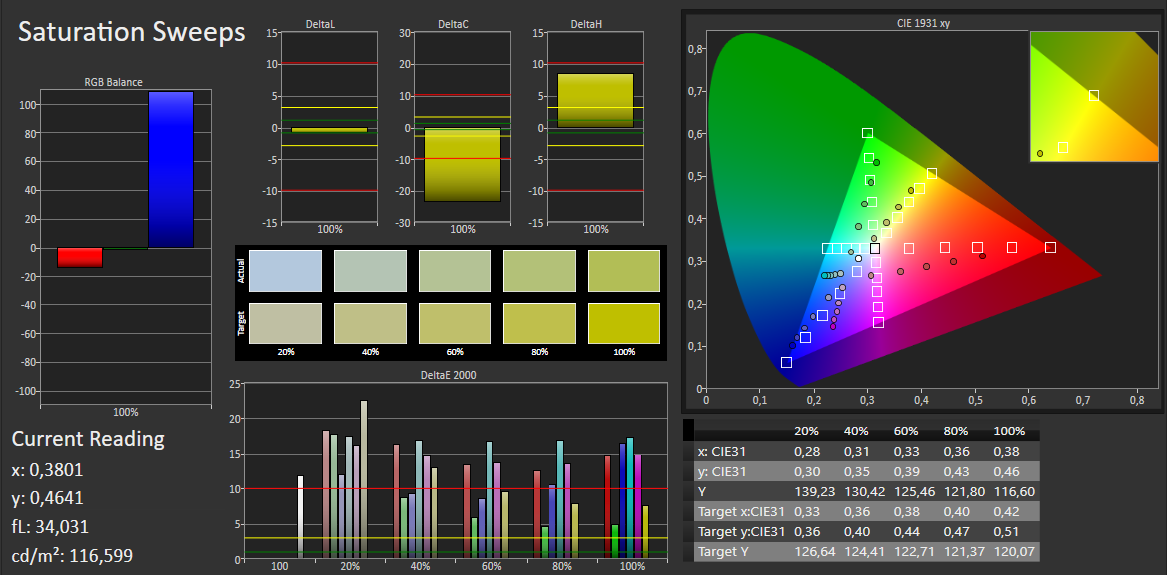

CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
29 ms ... rise ↗ and fall ↘ combined↗ 23 ms rise
↘ 6 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 68 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (25 ms).
       Response Time 50% Grey to 80% Grey
70 ms ... rise ↗ and fall ↘ combined↗ 32 ms rise
↘ 38 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 98 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.8 ms).

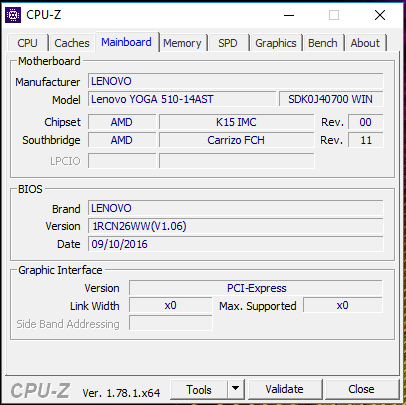

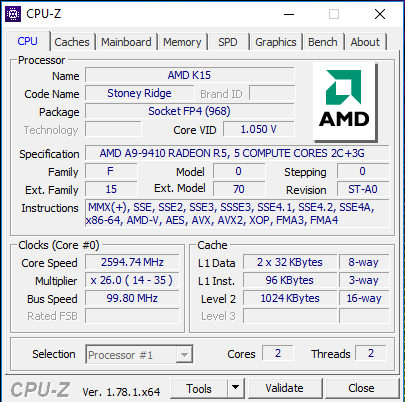

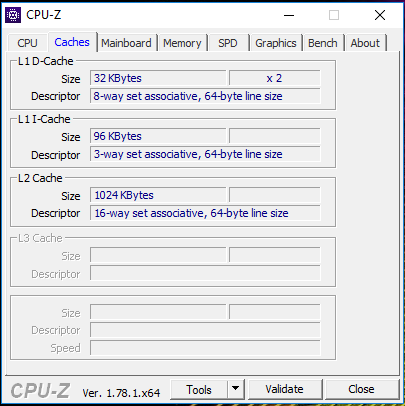

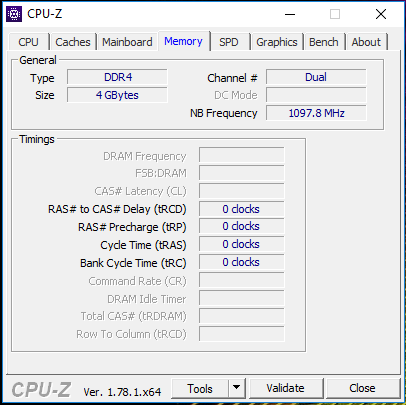

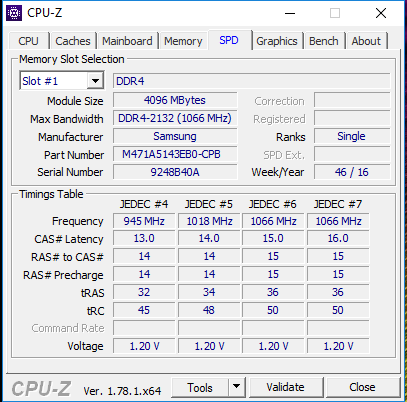

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

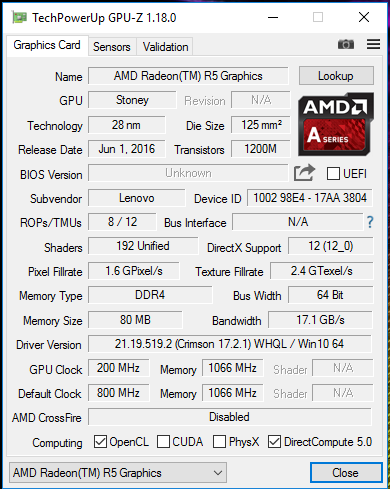

GPU-Z

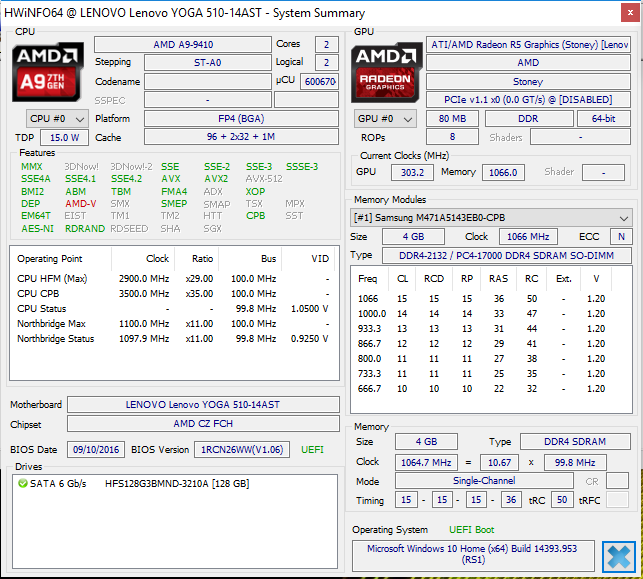

HWInfo

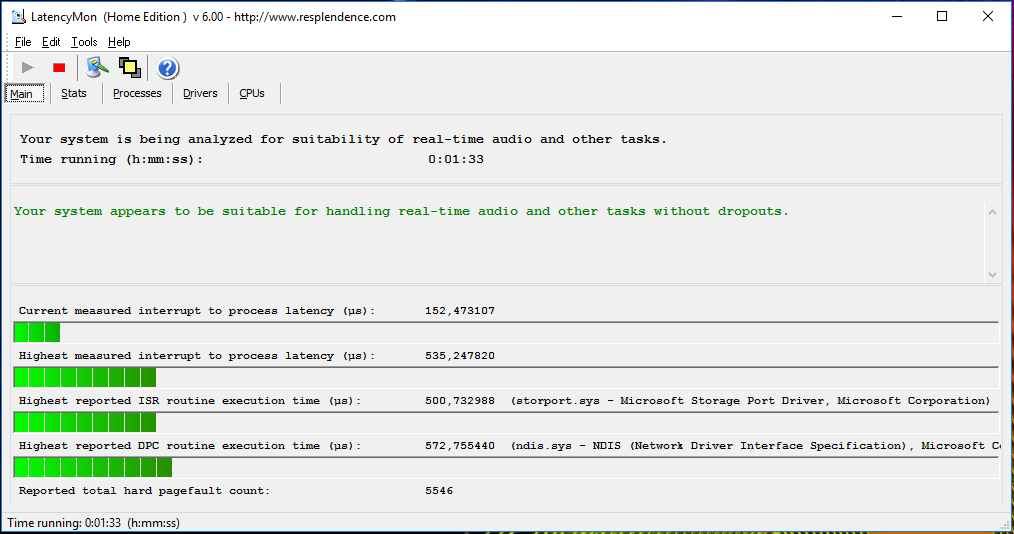

LatencyMon
0102030405060708090100110120130140Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Shading 32Bit
3497
Cinebench R10 Rendering Multiple CPUs 32Bit
4619
Cinebench R10 Rendering Single 32Bit
2694
Cinebench R11.5 OpenGL 64Bit
16.56 fps
Cinebench R11.5 CPU Multi 64Bit
1.59 Points
Cinebench R11.5 CPU Single 64Bit
0.82 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
22.71 fps
Cinebench R15 CPU Multi 64Bit
130 Points
Cinebench R15 CPU Single 64Bit
63 Points
Segítség
Cinebench R15
CPU Single 64Bit
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
130 Points ∼60% +106%
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
126 Points ∼58% +100%
Acer Spin 5 SP513-51
Intel Core i3-6100U
96 Points ∼44% +52%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
92 Points ∼42% +46%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
85 Points ∼39% +35%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
74 Points ∼34% +17%
Lenovo M30-70
Intel Core i3-4010U
68 Points ∼31% +8%
Lenovo Yoga 510-14AST
AMD A9-9410
63 Points ∼29%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
53 Points ∼24% -16%
HP 250 G5 Y1V08UT
Intel Celeron N3060
37 Points ∼17% -41%
CPU Multi 64Bit
Lenovo Yoga 510-14IKB
Intel Core i5-7200U
332 Points ∼8% +155%
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
328 Points ∼7% +152%
Acer Spin 5 SP513-51
Intel Core i3-6100U
240 Points ∼5% +85%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
216 Points ∼5% +66%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
208 Points ∼5% +60%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
187 Points ∼4% +44%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
173 Points ∼4% +33%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
173 Points ∼4% +33%
Lenovo M30-70
Intel Core i3-4010U
170 Points ∼4% +31%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
165 Points ∼4% +27%
Lenovo Yoga 510-14AST
AMD A9-9410
130 Points ∼3%
HP 250 G5 Y1V08UT
Intel Celeron N3060
68 Points ∼2% -48%
Cinebench R11.5
CPU Single 64Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
1.38 Points ∼57% +68%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
1.04 Points ∼43% +27%
Lenovo Yoga 510-14AST
AMD A9-9410
0.82 Points ∼34%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
0.77 Points ∼32% -6%
Lenovo M30-70
Intel Core i3-4010U
0.73 Points ∼30% -11%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
0.66 Points ∼27% -20%
HP 250 G5 Y1V08UT
Intel Celeron N3060
0.41 Points ∼17% -50%
CPU Multi 64Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
3.67 Points ∼8% +131%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
2.4 Points ∼5% +51%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
2.09 Points ∼5% +31%
Medion Akoya S4217T MD98599
Intel Core i3-4010U
1.85 Points ∼4% +16%
Lenovo M30-70
Intel Core i3-4010U
1.8 Points ∼4% +13%
Lenovo Yoga 510-14AST
AMD A9-9410
1.59 Points ∼4%
HP 250 G5 Y1V08UT
Intel Celeron N3060
0.86 Points ∼2% -46%
Cinebench R10
Rendering Single 32Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
4986 Points ∼46% +85%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
3477 Points ∼32% +29%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
2777 Points ∼26% +3%
Lenovo Yoga 510-14AST
AMD A9-9410
2694 Points ∼25%
Lenovo M30-70
Intel Core i3-4010U
2447 Points ∼23% -9%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1677 Points ∼15% -38%
HP 250 G5 Y1V08UT
Intel Celeron N3060
1216 Points ∼11% -55%
Rendering Multiple CPUs 32Bit
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
11347 Points ∼17% +146%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
7321 Points ∼11% +58%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
6309 Points ∼10% +37%
Lenovo M30-70
Intel Core i3-4010U
5584 Points ∼9% +21%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
5284 Points ∼8% +14%
Lenovo Yoga 510-14AST
AMD A9-9410
4619 Points ∼7%
HP 250 G5 Y1V08UT
Intel Celeron N3060
2256 Points ∼3% -51%
Geekbench 3
32 Bit Multi-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
6431 Points ∼8% +95%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
4686 Points ∼6% +42%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4425 Points ∼5% +34%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
3755 Points ∼5% +14%
Lenovo Yoga 510-14AST
AMD A9-9410
3299 Points ∼4%
32 Bit Single-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
2852 Points ∼59% +34%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
2459 Points ∼50% +15%
Lenovo Yoga 510-14AST
AMD A9-9410
2134 Points ∼44%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
1788 Points ∼37% -16%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1362 Points ∼28% -36%
Geekbench 4.0
64 Bit Multi-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
6725 Points ∼22% +111%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4162 Points ∼14% +31%
Lenovo Yoga 510-14AST
AMD A9-9410
3182 Points ∼11%
64 Bit Single-Core Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
3576 Points ∼60% +68%
Lenovo Yoga 510-14AST
AMD A9-9410
2133 Points ∼36%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1555 Points ∼26% -27%
JetStream 1.1 - Total Score
HP Pavilion x360 13-u102ng
Intel Core i5-7200U
211.38 Points ∼60% +62%
HP Pavilion x2 12-b000ng
Intel Core m3-6Y30
133.47 Points ∼38% +2%
Lenovo Yoga 510-14AST
AMD A9-9410
130.35 Points ∼37%
Lenovo B50-70 MCC2GGE
Intel Core i3-4030U
123.22 Points ∼35% -5%
Asus Zenbook UX360CA-FC060T
Intel Core m3-6Y30
111.11 Points ∼32% -15%
Acer Spin 5 SP513-51
Intel Core i3-6100U
90.86 Points ∼26% -30%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
89.082 Points ∼25% -32%
HP 250 G5 Y1V08UT
Intel Celeron N3060
58.54 Points ∼17% -55%
PCMark 7 Score
3814 pontok
PCMark 8 Home Score Accelerated v2
2670 pontok
PCMark 8 Creative Score Accelerated v2
2898 pontok
PCMark 8 Work Score Accelerated v2
3728 pontok
Segítség
PCMark 8
Work Score Accelerated v2
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
4121 Points ∼63% +11%
HP Pavilion x360 13-u102ng
HD Graphics 620, 7200U, HGST Travelstar 5K1000 HTS541010A7E630
4050 Points ∼62% +9%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
3728 Points ∼57%
Home Score Accelerated v2
Lenovo Yoga 510-14IKB
Radeon R5 M430, 7200U, Samsung MZYTY256HDHP
3550 Points ∼58% +33%
HP Pavilion x360 13-u102ng
HD Graphics 620, 7200U, HGST Travelstar 5K1000 HTS541010A7E630
3274 Points ∼54% +23%
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
3224 Points ∼53% +21%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
2670 Points ∼44%
Sequential Read: 434.6 MB/s
Sequential Write: 207.7 MB/s
512K Read: 356.3 MB/s
512K Write: 195.6 MB/s
4K Read: 26.71 MB/s
4K Write: 56.75 MB/s
4K QD32 Read: 176.3 MB/s
4K QD32 Write: 163.3 MB/s
Lenovo Yoga 510-14AST

Lenovo Yoga 510-14IKB
Samsung MZYTY256HDHP
HP Pavilion x360 13-u102ng
HGST Travelstar 5K1000 HTS541010A7E630
CrystalDiskMark 3.0
61%
-87%
Write 4k QD32
163.3
246.3
51%
1.09
-99%
Read 4k QD32
176.3
368.7
109%
0.968
-99%
Write 4k
56.75
106.7
88%
1.037
-98%
Read 4k
26.71
35.66
34%
0.215
-99%
Write 512
195.6
274.5
40%
45.05
-77%
Read 512
356.3
408
15%
20.67
-94%
Write Seq
207.7
476.5
129%
91
-56%
Read Seq
434.6
517.5
19%
104.8
-76%
3DMark 06 Standard
5141 pontok
3DMark Vantage P Result
3346 pontok
3DMark 11 Performance
1199 pontok
3DMark Ice Storm Standard Score
36896 pontok
3DMark Cloud Gate Standard Score
3010 pontok
3DMark Fire Strike Score
712 pontok
3DMark Fire Strike Extreme Score
344 pontok
3DMark Time Spy Score
274 pontok
Segítség
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
1643 Points ∼3% +38%
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
1390 Points ∼3% +17%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
1213 Points ∼2% +2%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
1190 Points ∼2%
3DMark
1920x1080 Fire Strike Graphics
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
989 Points ∼2% +28%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
772 Points ∼2%
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
762 Points ∼2% -1%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
752 Points ∼2% -3%
1280x720 Cloud Gate Standard Graphics
HP Pavilion x360 13-u102ng
Intel HD Graphics 620, Intel Core i5-7200U
6799 Points ∼4% +43%
Acer Spin 5 SP513-51
Intel HD Graphics 520, Intel Core i3-6100U
6249 Points ∼3% +31%
Lenovo Yoga 510-14IKB
AMD Radeon R5 M430, Intel Core i5-7200U
5249 Points ∼3% +10%
Lenovo Yoga 510-14AST
AMD Radeon R5 (Stoney Ridge), AMD A9-9410
4755 Points ∼3%
alacsony közepes magas ultra
World of Warcraft (2005) 82.643.7fps
Deus Ex Human Revolution (2011) 62.429fps
The Elder Scrolls V: Skyrim (2011) 32.722.215.4fps
Diablo III (2012) 59.641.833.6fps
Counter-Strike: GO (2012) 39.228.525fps
Dead Space 3 (2013) 63.93126.6fps
Tomb Raider (2013) 51.925.718.2fps
BioShock Infinite (2013) 43.526.922.2fps
X-Plane 10.25 (2013) 31.717.79.6fps
GRID: Autosport (2014) 65.129.7fps
Risen 3: Titan Lords (2014) 20.912.9fps
Sims 4 (2014) 111.934.3fps
Middle-earth: Shadow of Mordor (2014) 22.313.8fps
F1 2014 (2014) 3930fps
Dragon Age: Inquisition (2014) 19.314.8fps
Dirt Rally (2015) 59.722fps
Metal Gear Solid V (2015) 34.124.9fps
Dota 2 Reborn (2015) 33.123.2fps
World of Warships (2015) 37.728.8fps
Rainbow Six Siege (2015) 26.921.6fps
Rise of the Tomb Raider (2016) 16.110.4fps
The Division (2016) 18.211.3fps
Civilization VI (2016) 29.412.1fps
Farming Simulator 17 (2016) 53.436.1fps
Resident Evil 7 (2017) 28.613.2fps
For Honor (2017) 19.97.3fps
Ghost Recon Wildlands (2017) 10.95.2fps
BioShock Infinite - 1280x720 Very Low Preset
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
43.5 fps ∼100%
Acer Spin 5 SP513-51
HD Graphics 520, 6100U, Hynix HFS128G39TND
42.77 fps ∼98% -2%
Lenovo Yoga 510-14IKB
Radeon R5 M430, 7200U, Samsung MZYTY256HDHP
42.3 fps ∼97% -3%
HP Pavilion x360 13-u102ng
HD Graphics 620, 7200U, HGST Travelstar 5K1000 HTS541010A7E630
38.6 fps ∼89% -11%
Acer Aspire ES1-332-P91H
HD Graphics 505, N4200, WDC Slim WD10SPCX-21KHST0
22.2 fps ∼51% -49%
Tomb Raider - 1024x768 Low Preset
HP Pavilion x360 13-u102ng
HD Graphics 620, 7200U, HGST Travelstar 5K1000 HTS541010A7E630
62.1 fps ∼100% +20%
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
51.9 fps ∼84%
Acer Aspire ES1-332-P91H
HD Graphics 505, N4200, WDC Slim WD10SPCX-21KHST0
31.2 fps ∼50% -40%
GRID: Autosport - 1024x768 Ultra Low Preset
Lenovo Yoga 510-14AST
Radeon R5 (Stoney Ridge), A9-9410
65.1 fps ∼100%
Acer Aspire ES1-332-P91H
HD Graphics 505, N4200, WDC Slim WD10SPCX-21KHST0
51.5 fps ∼79% -21%

Zajszint

Üresjárat
30.4 / 30.4 / 30.4 dB(A)
Terhelés
31.3 / 33.3 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 30.4 dB(A)
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Noise
-5%
-5%
-2%
off / environment *
30.4
29
5%
30.5
-0%
30.5
-0%
Idle Minimum *
30.4
29
5%
31.3
-3%
30.5
-0%
Idle Average *
30.4
29
5%
31.3
-3%
30.5
-0%
Idle Maximum *
30.4
29
5%
31.6
-4%
30.6
-1%
Load Average *
31.3
37.3
-19%
34.2
-9%
31
1%
Load Maximum *
33.3
43.1
-29%
37.3
-12%
36.8
-11%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.834.832.432253331.231.732.13136.436.135.335.24030.129.929.830.3502829.329.127.96327.228.328.228.18026.22725.727.610025.425.725.625.512524.724.32524.216023.523.423.423.820023.123.522.822.725021.921.52222.431521.721.12121.840021.120.42021.950020.319.419.520.863019.21919.119.180019.918.118.319.8100021.218.217.821.5125020.317.717.620.116001917.417.718.8200018.617.717.518.4250018.817.817.918.7315018.218.21818.1400018.218.117.918.2500018.318.218.118.1630018.318.418.418.3800018.518.418.518.31000018.418.618.518.41250018.318.418.318.21600018.318.318.418.3SPL31.330.530.431.3N1.61.41.41.6median 19.2median 18.4median 18.4median 19.1Delta1.71.821.7hearing rangehide median Fan NoiseLenovo Yoga 510-14AST
Max. terhelés
 25.4 °C34.5 °C32.3 °C
 24.4 °C30.8 °C29.4 °C
 23.4 °C23 °C26 °C
Maximum: 34.5 °C
Átlag: 27.7 °C
28.7 °C39 °C32.3 °C
25.7 °C33.8 °C25 °C
24.1 °C22.8 °C23 °C
Maximum: 39 °C
Átlag: 28.3 °C
Tápegység (max.)  31.1 °C | Szobahőmérséklet 21.8 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 27.7 °C / 82 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34.5 °C / 94 F, compared to the average of 35.4 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.1 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.3 °C / 79.3 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (+2.7 °C / 4.9 F).
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Heat
-6%
10%
-0%
Maximum Upper Side *
34.5
40.1
-16%
34.6
-0%
38.3
-11%
Maximum Bottom *
39
46.1
-18%
36.4
7%
42.5
-9%
Idle Upper Side *
30.8
28.5
7%
26.6
14%
28.7
7%
Idle Bottom *
33.4
31.6
5%
27.7
17%
29.4
12%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.934.831.92531.731.231.73134.936.134.94029.729.929.75029.529.329.56328.228.328.28026.92726.910026.525.726.512527.524.327.516029.623.429.620033.223.533.22504321.54331554.721.154.740062.120.462.150057.419.457.463056.41956.48006518.165100065.118.265.1125061.617.761.6160060.517.460.5200059.517.759.525006017.860315060.618.260.6400060.118.160.1500061.518.261.5630053.118.453.1800060.218.460.21000065.418.665.4125006518.465160006018.360SPL73.530.573.5N32.51.432.5median 60median 18.4median 60Delta7.51.87.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseLenovo Yoga 510-14ASTApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo Yoga 510-14AST audio analysis

(-) | not very loud speakers (65 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.3% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(±) | linearity of mids is average (8.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(±) | linearity of highs is average (8.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.4% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 10% similar, 52% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 38% of all tested devices were better, 7% similar, 55% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.25 / 0.28 Watt
Üresjáratdarkmidlight 3.9 / 7.4 / 9.4 Watt
Terhelés midlight 19.2 / 22.5 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge)
Lenovo Yoga 510-14IKB
7200U, Radeon R5 M430
HP Pavilion x360 13-u102ng
7200U, HD Graphics 620
Acer Spin 5 SP513-51
6100U, HD Graphics 520
Power Consumption
-40%
-17%
-1%
Idle Minimum *
3.9
3.9
-0%
4.7
-21%
4.1
-5%
Idle Average *
7.4
7.1
4%
7.2
3%
6.8
8%
Idle Maximum *
9.4
7.7
18%
7.9
16%
7.9
16%
Load Average *
19.2
33.4
-74%
30
-56%
20.4
-6%
Load Maximum *
22.5
55.9
-148%
29
-29%
26.8
-19%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
14h 07min
NBC WiFi Websurfing Battery Test 1.3 (Edge 38)
5h 25min
Big Buck Bunny H.264 1080p
5h 06min
Terhelés (maximális fényerő)
1h 52min
Lenovo Yoga 510-14AST
A9-9410, Radeon R5 (Stoney Ridge), 35 Wh
Lenovo Yoga 510-14IKB
7200U, Radeon R5 M430, 35 Wh
HP Pavilion x360 13-u102ng
7200U, HD Graphics 620, 41 Wh
Acer Spin 5 SP513-51
6100U, HD Graphics 520, 45 Wh
Battery Runtime
-4%
-13%
16%
Reader / Idle
847
722
-15%
560
-34%
749
-12%
H.264
306
320
5%
WiFi v1.3
325
373
15%
322
-1%
463
42%
Load
112
100
-11%
86
-23%
133
19%

Pro

+ jól összerakott
+ csendes
+ alig melegszik
+ jó billentyűzet
+ SSD
+ AC WiFi

Kontra

- gyér betekintésű TN panel
- sötét, kontrasztszegény kijelző
- rövid üzemidő
- nincs USB-C

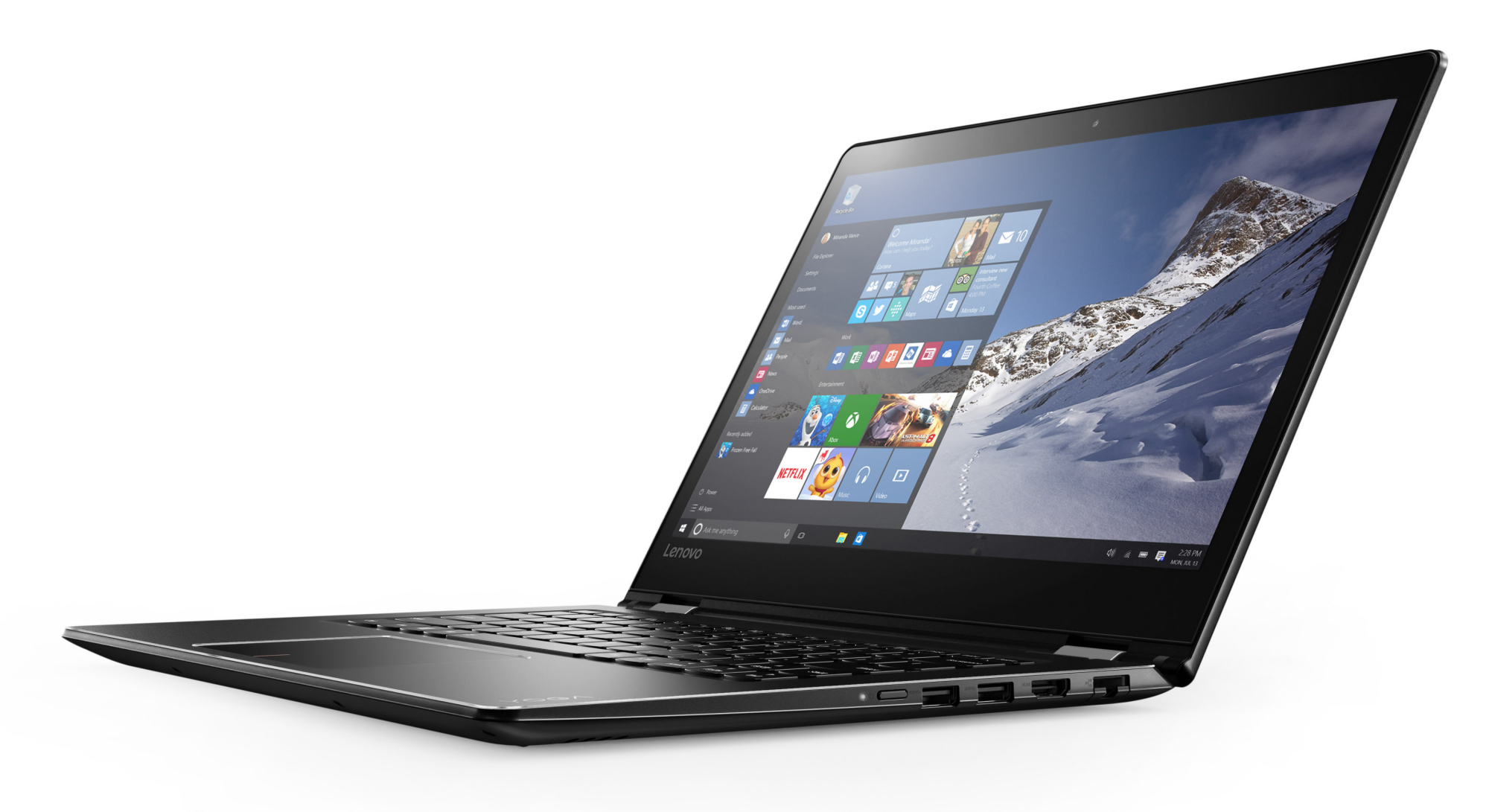

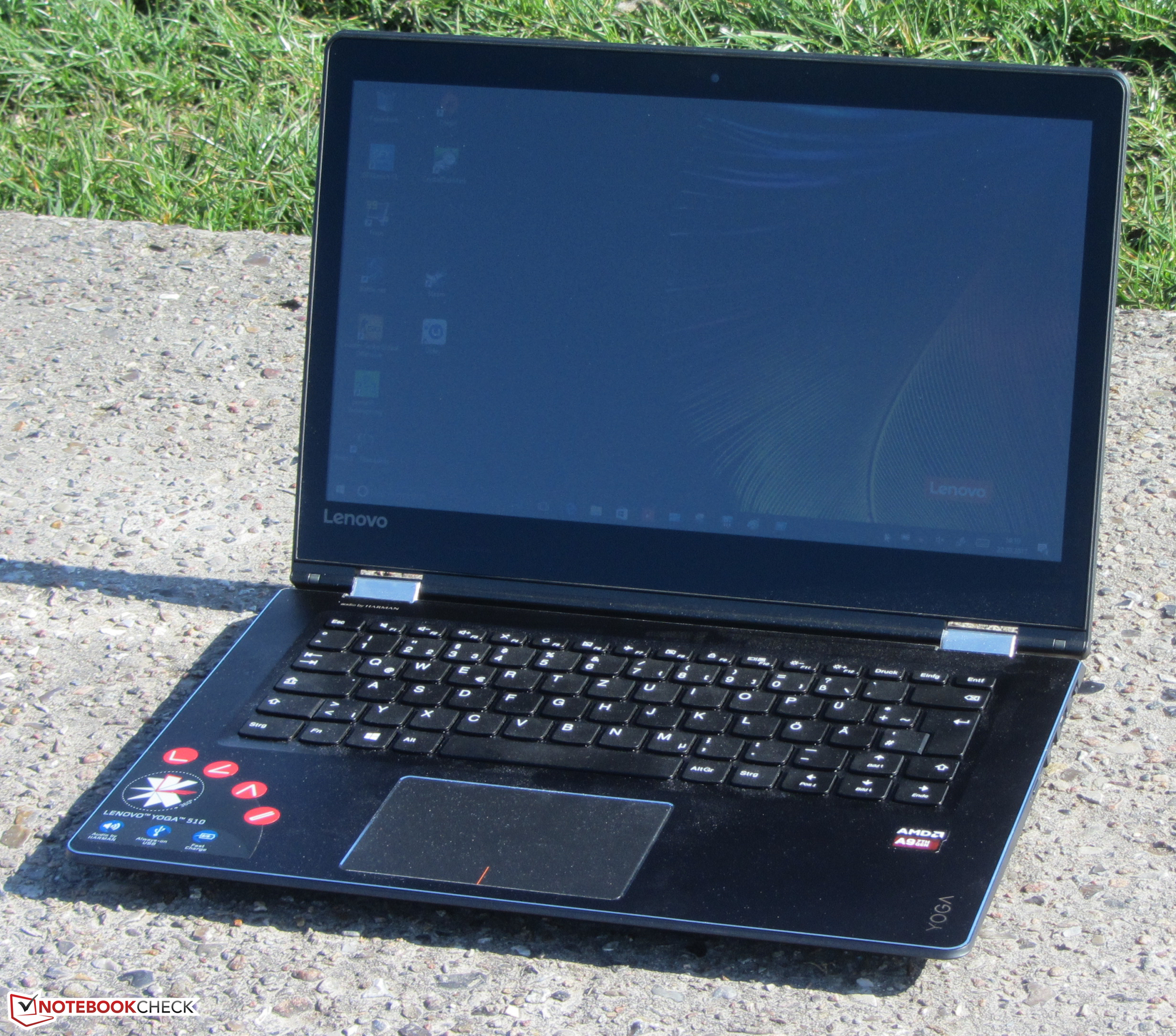

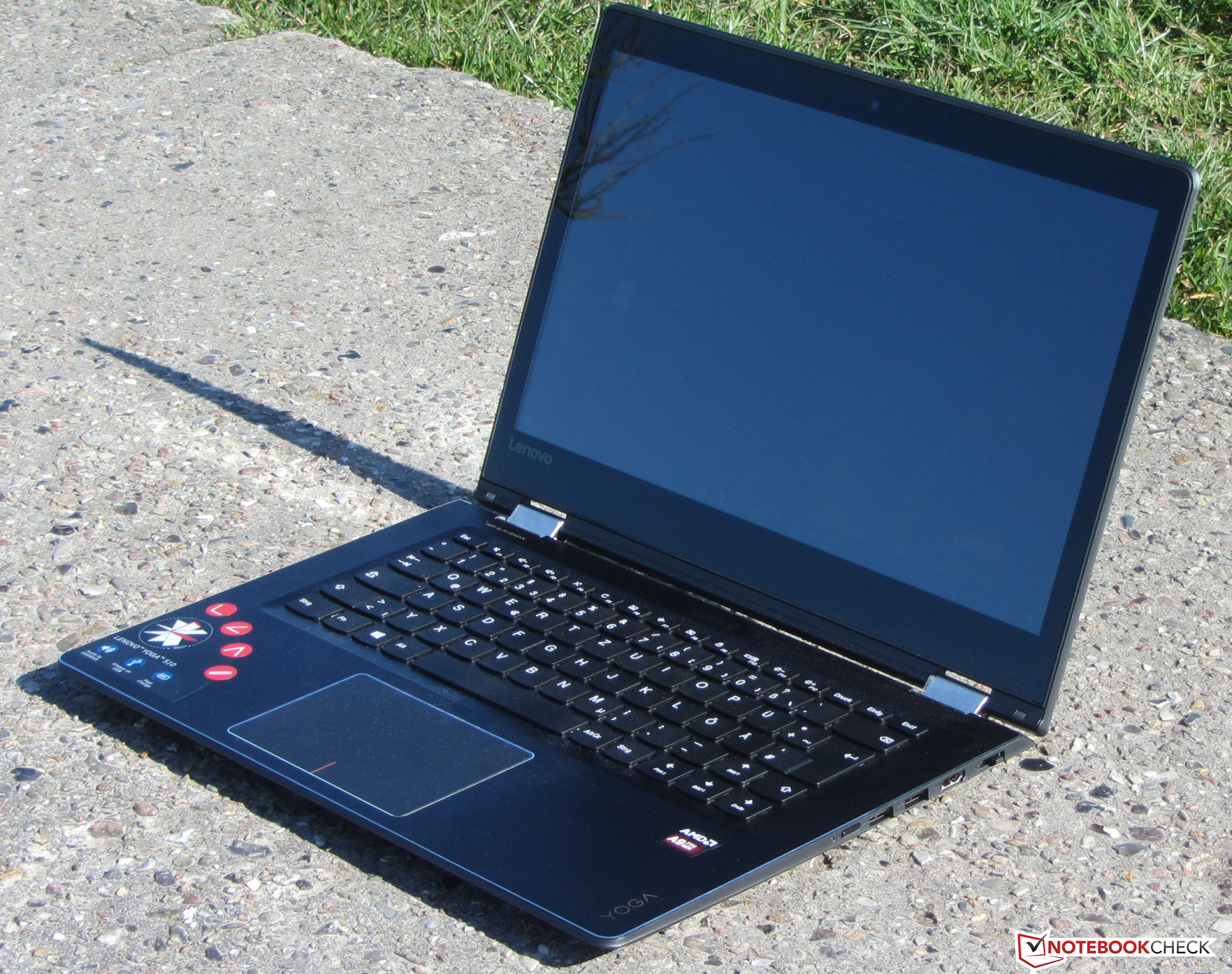

In review: Lenovo Yoga 510-14AST 80S90018GE. Test model courtesy of Notebooksbilliger.de
In review: Lenovo Yoga 510-14AST 80S90018GE. Test model courtesy of Notebooksbilliger.de

A Lenovo Yoga 510-14AST a megfizethetőbb változata az általunk tesztelt Yoga 510-15IKB-nek. 500 eurós árával a Yoga 510-14AST jó 400 euróval olcsóbb a testvér modellnél. Az új Stoney Bridge APU valóban jó benyomást keltett: a CPU elég erős a tervezett felhasználásához (iroda, Internet), és a GPU képes versenyezni az  Intel HD Graphics 520 chipjével, és egy-két játékot simán futtatni.

A Yoga terheléstől függetlenül halk marad, és alig melegszik fel. Az SSD gyors működést biztosít a rendszernek. Azok, akiknek 128 GB kevés lenne, ki tudják cserélni az SSD-t egy nagyobbra. Ehhez a laptop alját kell megbontani. A beépített billentyűzet alapvetően jó, és gyakoribb gépelésre is alkalmas. A telep üzemideje viszont rövid.

A kijelző kiábrándító. A Lenovo felelős munkatársai valamiért úgy gondolják, hogy egy gyenge betekintésű TN panel jó választás egy átalakítható gépben.

Ezen felül még sötét és kontrasztszegény is, és gyárilag a színei sem jók. Ezzel a kijelzővel a Lenovo komolyan lerontja a készülék iránti szimpátiát. Ez azért különösen szomorú, mert ezt leszámítva egy jól átgondolt, eladható gépet tettek le az asztalra. Másik kijelző választására jelenleg nincs lehetőség. Érthetetlen módon a tesztünk idején az összes elérhető 14AST konfigurációban ugyanez a rémes kijelző volt.

Azok, akiknek a betekintési szög számít, kénytelenek az Intel-es Yoga modellt választani. A Yoga 510-14IKB 80VB0081GE 50 euróval kerül többe, és egy sokkal erősebb Core i3-7100U processzorral, valamint egy stabil betekintésű Full HD IPS kijelzővel van felszerelve. Emiatt semmi okunk az AMD-s modellt választani.


Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Lenovo Yoga 510-14AST - 03/23/2017 v6(old)
Sascha Mölck

Váz
81 / 98 → 82%
Billentyűzet
79%
Érintőpad
94%
Csatlakoztathatóság
48 / 80 → 59%
Súly
66 / 35-78 → 72%
Akkumulátor
82%
Kijelző
71%
Játékok alatti teljesítmény
54 / 68 → 79%
Alkalmazások alatti teljesítmény
65 / 87 → 75%
Hőmérséklet
94%
Zaj
94%
Audio
44 / 91 → 48%
Camera
27 / 85 → 32%
Átlag
69%
78%
Convertible - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Lenovo Yoga 510-14AST (A9-9410, HD) Convertible rövid értékelés
Sascha Mölck, 2017-03-28 (Update: 2017-03-28)
