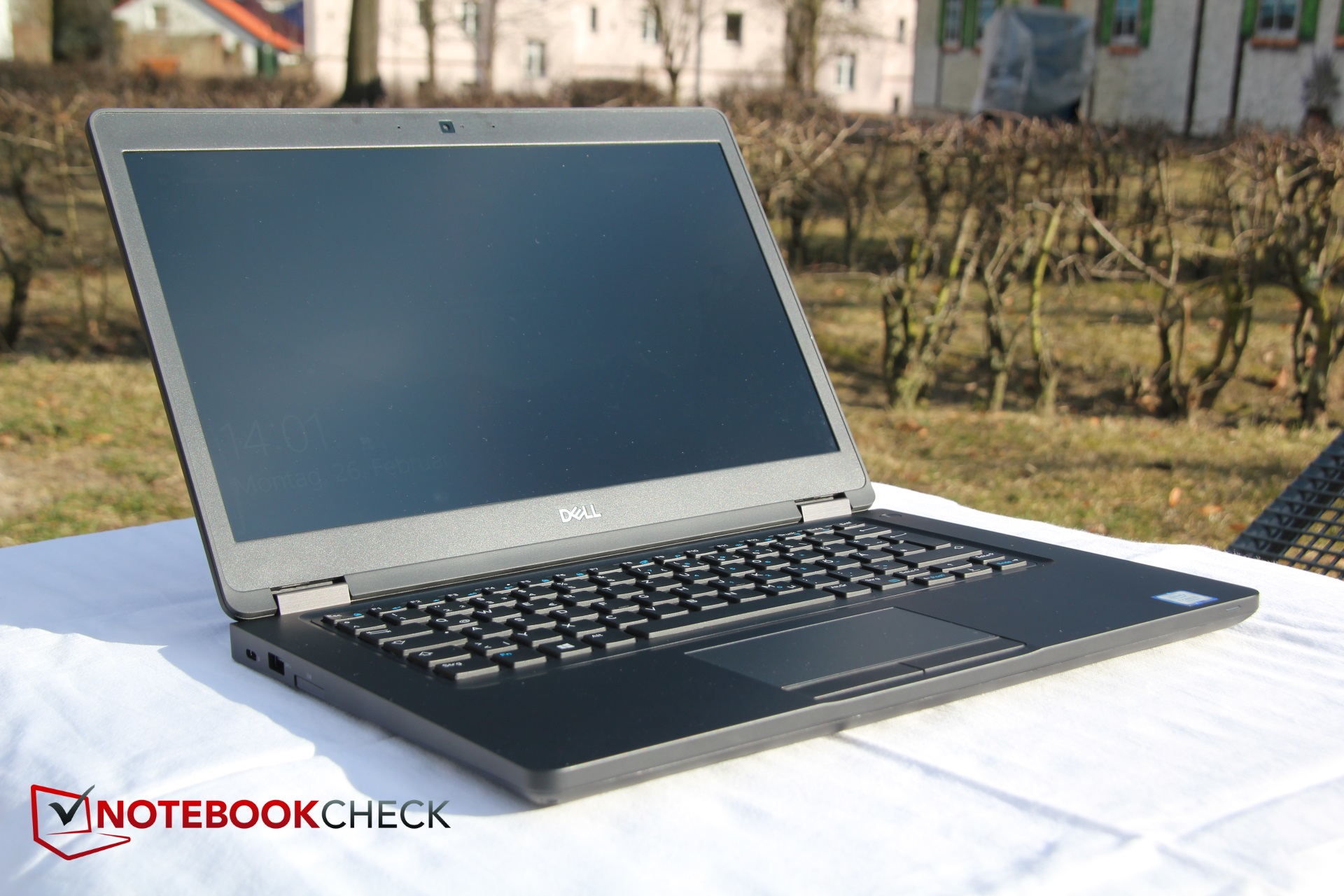

Dell Latitude 5490 (i5-8350U, FHD) Laptop rövid értékelés

Christian Hintze (fordította Tamás Somogyi), 03/16/2018
Business Security Kaby Lake

Lehetőségekben nehézsúlyú. A Dell Latitude 5490-et úgy reklámozzák, mint a széf notebook megfelelőjét. A 14 hüvelykes munkaeszköz viszonylag magas árát igazolja a biztonsági funkciók nagy választéka, amelyeknek köszönhetően a biztonságra fókuszáló cégeknek is megfelelhet. Ugyanakkor, nem csak ezeket a funkciókat teszteltük, hanem össze is hasonlítottuk a kategóriája többi esélyesével.

Dell Latitude 5490-TD70X (Latitude 5490 Széria)

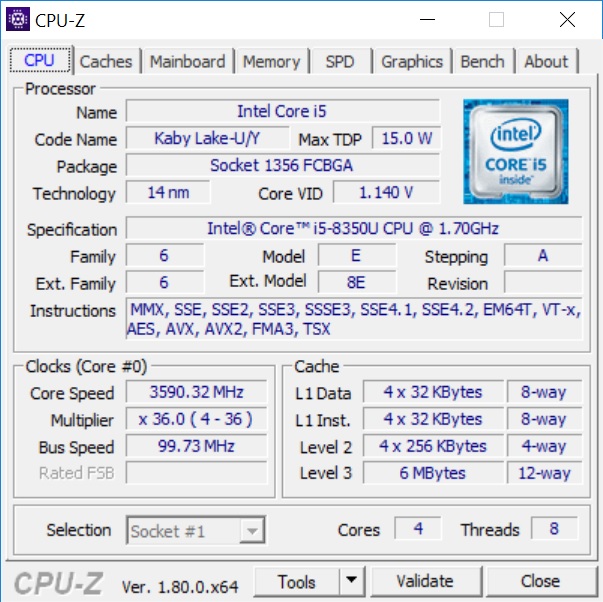

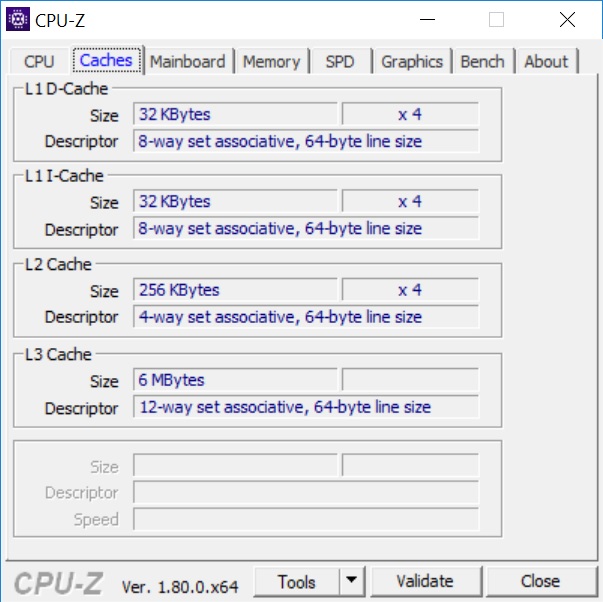

Processzor
Intel Core i5-8350U, Kaby Lake-R

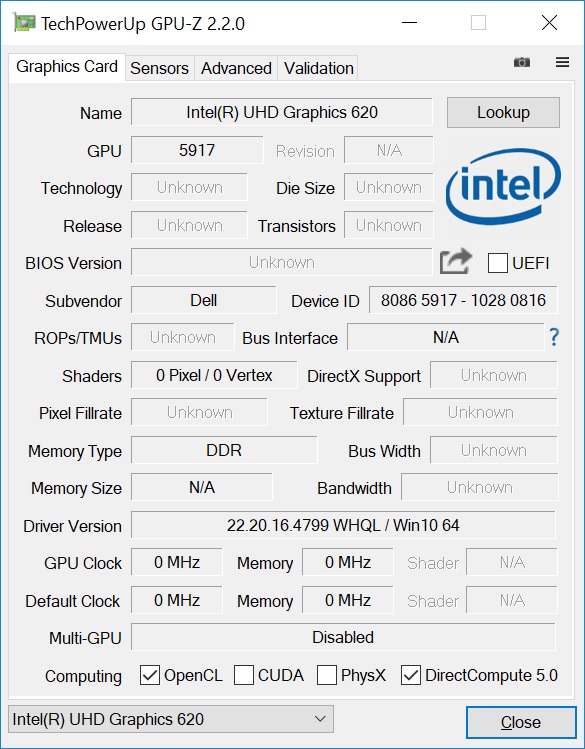

Grafikus adapter

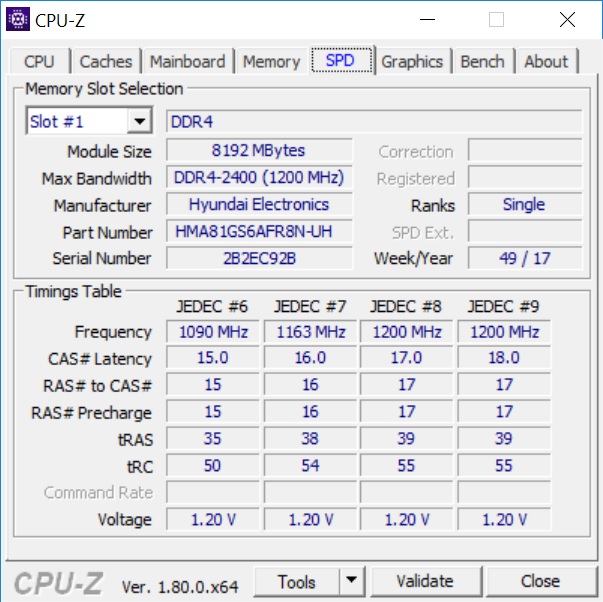

Memória
8192 MB
, 1x 8 GB, DDR4-2400, összesen 2 foglalat, max. 32 GB
Kijelző
14 hüvelyk 16:9, 1920 x 1080 pixel 157 PPI, opcionális, AU Optronics AUO263D, IPS, fényes: nem
Alaplap
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Háttértár
Toshiba KSG60ZMV512G, 512 GB
, 449 GB ingyenes
Hangkártya
Intel Kaby Lake-U/Y PCH - High Definition Audio
Csatlakozók
4 USB 3.0, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington zár, Audió csatlakozók: kombinált audio jack, Kártyaolvasó: teljes méretű SD, Szenzorok: gyorsulásmérő
Hálózat
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter (a/b/g/n/ac), Bluetooth 4.2, üres bővítőhely
Méret
magasság x szélesség x mélység (mm-ben) 21 x 333 x 229
Akkumulátor
68 Wh Lítium-Polimer
Operációs rendszer
Microsoft Windows 10 Pro 64 Bit
Camera
Webkamera: 720p
Primary Camera: 1 MPix
További jellegzetességek
Hangszórók: sztereo, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: nem, 12 Hónap Garancia
Súly
1.694 kg, Tápegység: 315 g
Ár
1599 Euro



Größenvergleich

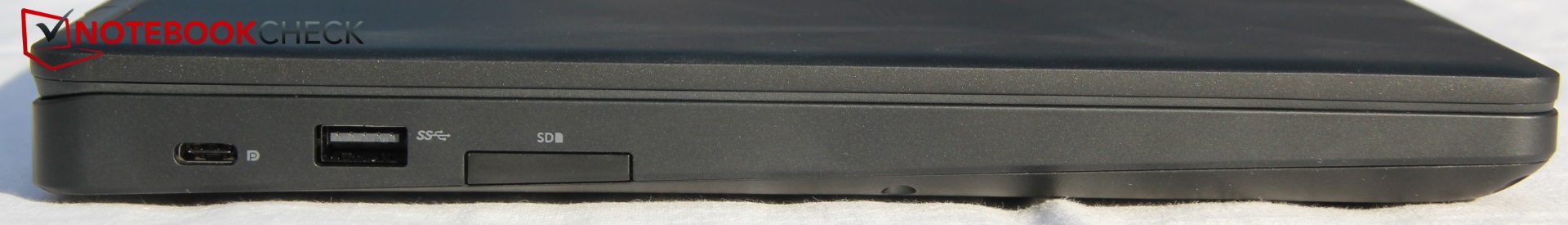

Left side: USB Type-C inkl. Displayport, USB Type-A 3.1, SD card reader
Left side: USB Type-C inkl. Displayport, USB Type-A 3.1, SD card reader

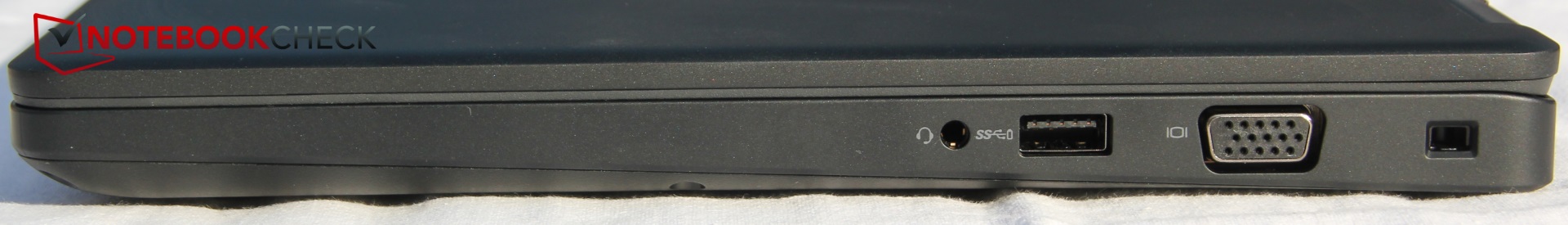

Right side: headphone combo-jack, USB Type-A 3.1, VGA, Noble Wedge Lock Slot
Right side: headphone combo-jack, USB Type-A 3.1, VGA, Noble Wedge Lock Slot

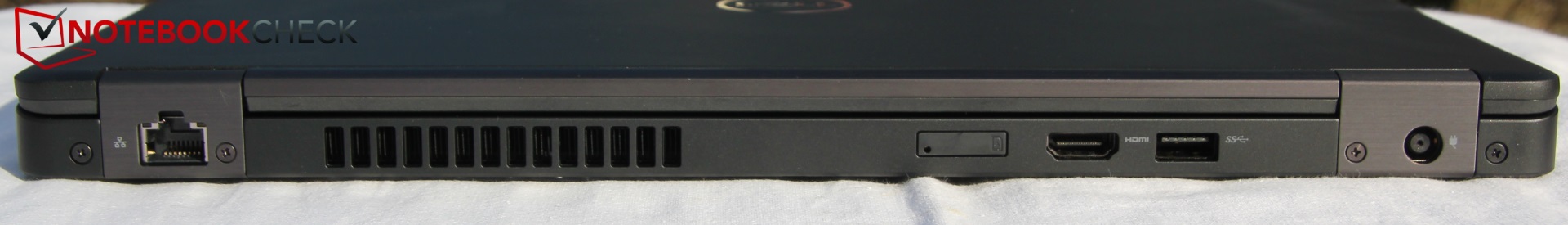

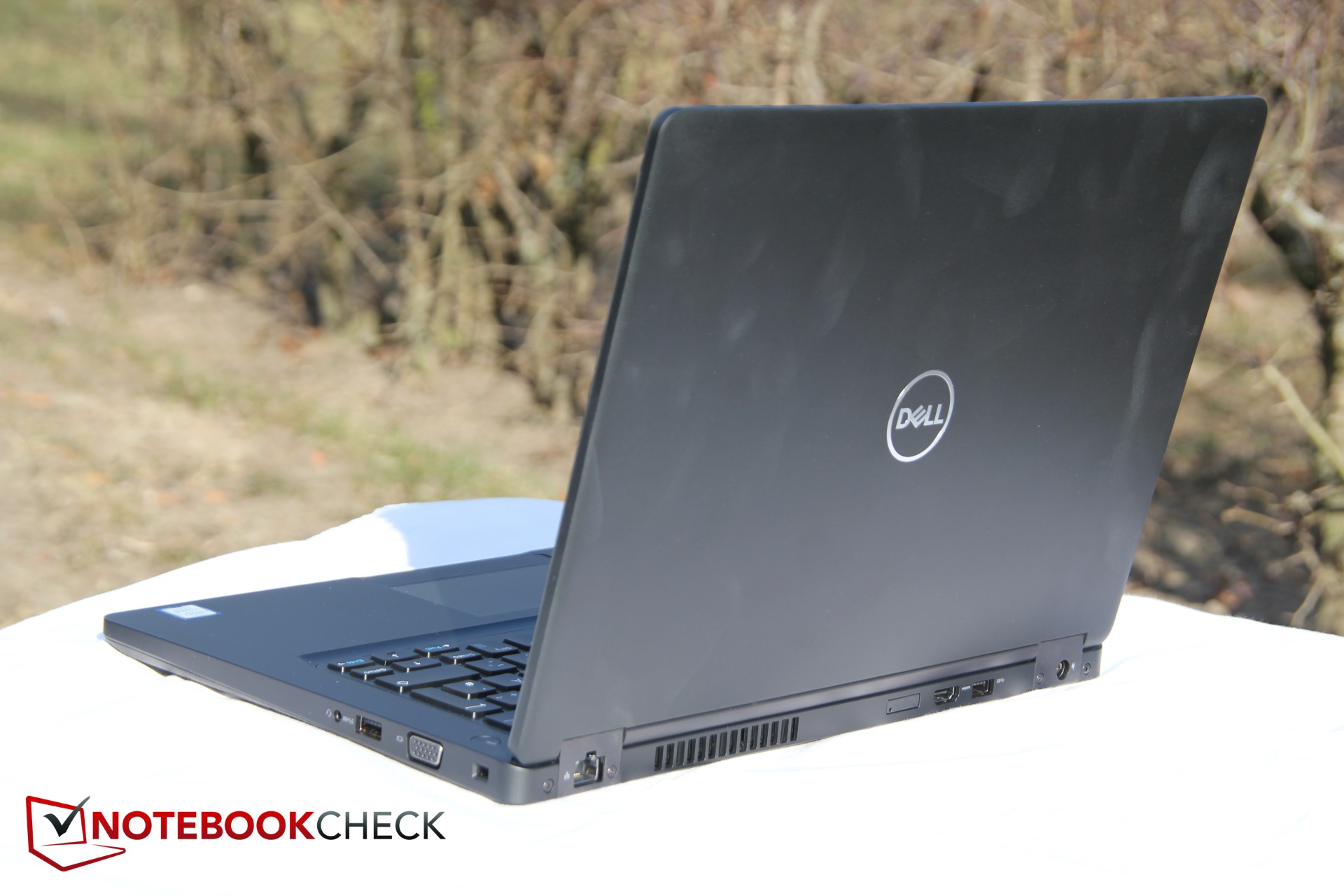

Back: RJ45, SIM card slot, HDMI 1.4, USB Type-A 3.1 inkl. PowerShare, power
Back: RJ45, SIM card slot, HDMI 1.4, USB Type-A 3.1 inkl. PowerShare, power

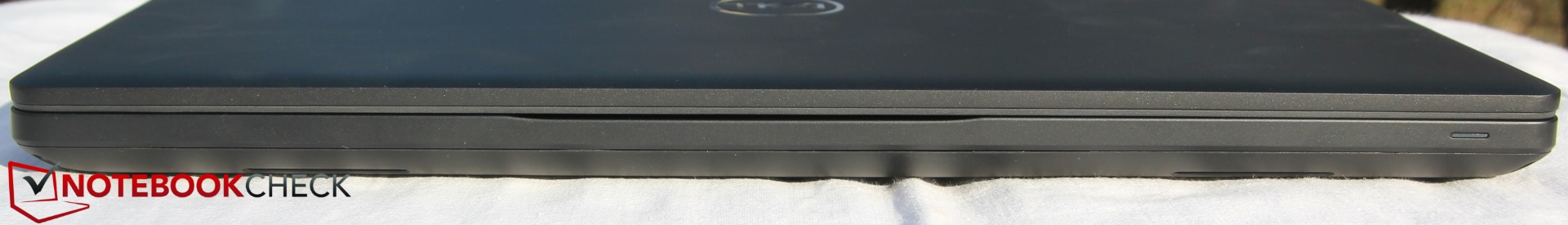

Front: no ports
Front: no ports
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
166.4 MB/s ∼100%
Dell Latitude 5480
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
131.3 MB/s ∼79% -21%
Acer TravelMate P648-G2-M-73T0
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.8 MB/s ∼47% -53%
Lenovo ThinkPad T470-20HD002HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.6 MB/s ∼46% -54%
HP EliteBook 840 G4-Z2V49ET ABD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.9 MB/s ∼45% -55%
Fujitsu LifeBook U747
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
72.6 MB/s ∼44% -56%
Average of class Office
  (of 193, min: 16.5, max: 191)
60.7 MB/s ∼36% -64%
maximum AS SSD Seq Read Test (1GB)
Dell Latitude 5480
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
251.9 MB/s ∼100% +21%
Dell Latitude 5490-TD70X
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
208.2 MB/s ∼83%
Lenovo ThinkPad T470-20HD002HGE
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
88.74 MB/s ∼35% -57%
Acer TravelMate P648-G2-M-73T0
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
87.3 MB/s ∼35% -58%
HP EliteBook 840 G4-Z2V49ET ABD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.7 MB/s ∼33% -60%
Fujitsu LifeBook U747
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.3 MB/s ∼33% -60%
Average of class Office
  (of 173, min: 9.5, max: 255)
78.4 MB/s ∼31% -62%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Acer TravelMate P648-G2-M-73T0
Intel Dual Band Wireless-AC 7265
688 MBit/s ∼100% +13%
Lenovo ThinkPad T470-20HD002HGE
Intel Dual Band Wireless-AC 8265
657 MBit/s ∼95% +8%
Fujitsu LifeBook U747
Intel Dual Band Wireless-AC 8265
655 MBit/s ∼95% +8%
Dell Latitude 5480
Qualcomm QCA6174
645 MBit/s ∼94% +6%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
607 MBit/s ∼88%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Dual Band Wireless-AC 8265 (jseb)
579 MBit/s ∼84% -5%
Average of class Office
  (of 127, min: 5, max: 688)
469 MBit/s ∼68% -23%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo ThinkPad T470-20HD002HGE
Intel Dual Band Wireless-AC 8265
512 MBit/s ∼100% 0%
Dell Latitude 5490-TD70X
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
511 MBit/s ∼100%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Dual Band Wireless-AC 8265 (jseb)
509 MBit/s ∼99% 0%
Fujitsu LifeBook U747
Intel Dual Band Wireless-AC 8265
509 MBit/s ∼99% 0%
Acer TravelMate P648-G2-M-73T0
Intel Dual Band Wireless-AC 7265
509 MBit/s ∼99% 0%
Average of class Office
  (of 127, min: 34, max: 688)
430 MBit/s ∼84% -16%
Dell Latitude 5480
Qualcomm QCA6174
314 MBit/s ∼61% -39%
216
cd/m²
213
cd/m²
216
cd/m²
200
cd/m²
227
cd/m²
201
cd/m²
209
cd/m²
207
cd/m²
210
cd/m²
Fényerő megoszlás
X-Rite i1Pro 2
Maximum: 227 cd/m² Átlag: 211 cd/m² Minimum: 14.5 cd/m²
Fényerő megoszlás: 88 %
Centrumban: 223 cd/m²
Kontraszt: 1195:1 (Fekete: 0.19 cd/m²)
ΔE Color 5.6 | 0.8-29.43 Ø6.4
ΔE Greyscale 2.4 | 0.64-98 Ø6.6
54.4% sRGB (Argyll) 34.5% AdobeRGB 1998 (Argyll)
Gamma: 2.44
Dell Latitude 5490-TD70X
AU Optronics AUO263D, , 1920x1080, 14
Dell Latitude 5480
LG Philips LGD0553, , 1920x1080, 14
HP EliteBook 840 G4-Z2V49ET ABD
AUO123D, , 1920x1080, 14
Acer TravelMate P648-G2-M-73T0
1920x1080, 14
Lenovo ThinkPad T470-20HD002HGE
N140HCA-EAB, , 1920x1080, 14
Fujitsu LifeBook U747
LG LP140WF3, , 1920x1080, 14
Response Times
23%
22%
20%
1%
25%
Response Time Grey 50% / Grey 80% *
46.9 (23.6, 23.3)
32.8 (14, 18.8)
30%
39 (20, 19, Plateau)
17%
38 (20, 18)
19%
41.6 (20.4, 21.2)
11%
36 (16.4, 19.6)
23%
Response Time Black / White *
31.2 (18, 13.2)
26.4 (5.2, 21.2)
15%
23 (6, 17, Plateau)
26%
25 (14, 11)
20%
34 (9.6, 24.4)
-9%
23.2 (12.4, 10.8)
26%
PWM Frequency
Screen
-3%
-60%
14%
-9%
10%
Brightness middle
227
215.9
-5%
346
52%
275
21%
306
35%
291
28%
Brightness
211
205
-3%
317
50%
253
20%
287
36%
296
40%
Brightness Distribution
88
90
2%
86
-2%
85
-3%
88
0%
84
-5%
Black Level *
0.19
0.22
-16%
0.86
-353%
0.25
-32%
0.3
-58%
0.32
-68%
Contrast
1195
981
-18%
402
-66%
1100
-8%
1020
-15%
909
-24%
Colorchecker DeltaE2000 *
5.6
5.1
9%
8.64
-54%
3.49
38%
6.2
-11%
4.3
23%
Colorchecker DeltaE2000 max. *
22.4
15.6
30%
13.58
39%
6.77
70%
13.6
39%
7.5
67%
Greyscale DeltaE2000 *
2.4
4
-67%
11.24
-368%
4.91
-105%
5.8
-142%
4.3
-79%
Gamma
2.44 98%
2.41 100%
2.62 92%
2.39 100%
2.04 118%
2.31 104%
CCT
6506 100%
6856 95%
12530 52%
6271 104%
6277 104%
6529 100%

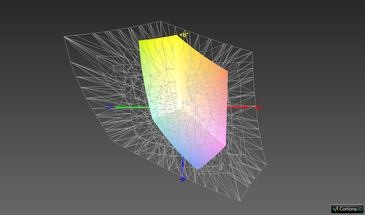

Color Space (Percent of AdobeRGB 1998)
34.5
41.96
22%
52
51%
59
71%
39.62
15%
55.46
61%

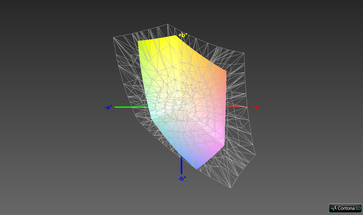

Color Space (Percent of sRGB)
54.4
61.15
12%
80
47%
91
67%
61.44
13%
84.77
56%
Total Average (Program / Settings)
10% / 1%
-19% / -47%
17% / 15%
-4% / -7%
18% / 12%

* ... smaller is better

sRGB
sRGB
AdobeRGB
AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

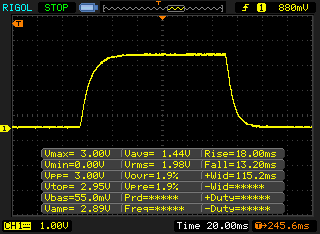

       Response Time Black to White
31.2 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 13.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 78 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.3 ms).

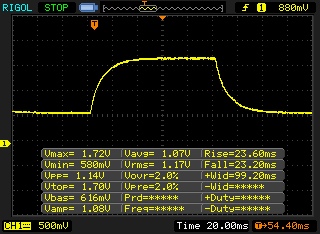

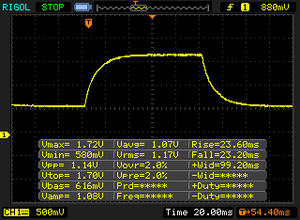

       Response Time 50% Grey to 80% Grey
46.9 ms ... rise ↗ and fall ↘ combined↗ 23.6 ms rise
↘ 23.3 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 74 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.1 ms).

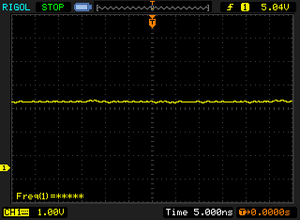

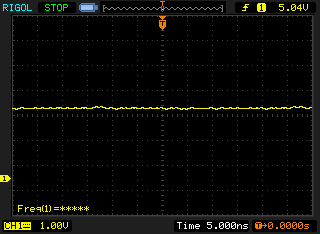

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9953 (minimum: 43 - maximum: 588200) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Cinebench R15 CPU Multi 64 Bit

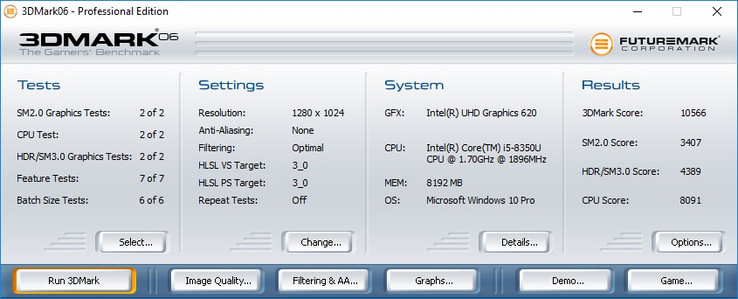

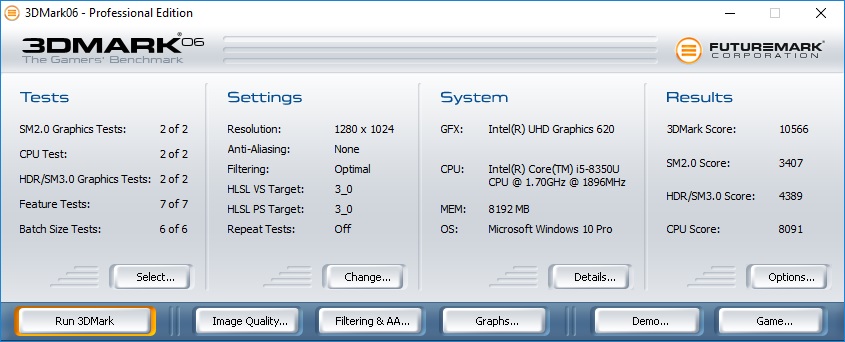

3DMark 2006
3DMark 2006
Cinebench R15
CPU Single 64Bit
Dell Latitude 5480
Intel Core i7-7600U
161 Points ∼100% +13%
Average Intel Core i5-8350U
  (of 4, min: 142, max: 152)
149 Points ∼93% +5%
Acer TravelMate P648-G2-M-73T0
Intel Core i7-7500U
142 Points ∼88% 0%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
142 Points ∼88%
Fujitsu LifeBook U747
Intel Core i5-7200U
130 Points ∼81% -8%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
126 Points ∼78% -11%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
119 Points ∼74% -16%
Average of class Office
  (of 425, min: 20, max: 176)
105 Points ∼65% -26%
CPU Multi 64Bit
Dell Latitude 5490-TD70X
Intel Core i5-8350U
599 Points ∼100%
Average Intel Core i5-8350U
  (of 4, min: 501, max: 625)
560 Points ∼93% -7%
Dell Latitude 5480
Intel Core i7-7600U
355 Points ∼59% -41%
Acer TravelMate P648-G2-M-73T0
Intel Core i7-7500U
341.43 Points ∼57% -43%
Fujitsu LifeBook U747
Intel Core i5-7200U
331 Points ∼55% -45%
HP EliteBook 840 G4-Z2V49ET ABD
Intel Core i5-7200U
329 Points ∼55% -45%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
326 Points ∼54% -46%
Average of class Office
  (of 429, min: 36, max: 736)
293 Points ∼49% -51%
Cinebench R11.5
CPU Single 64Bit
Dell Latitude 5480
Intel Core i7-7600U
1.87 Points ∼100% +15%
Average Intel Core i5-8350U
  (of 2, min: 1.62, max: 1.71)
1.665 Points ∼89% +3%
Dell Latitude 5490-TD70X
Intel Core i5-8350U
1.62 Points ∼87%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
1.46 Points ∼78% -10%
Average of class Office
  (of 403, min: 0.23, max: 2.01)
1.103 Points ∼59% -32%
CPU Multi 64Bit
Dell Latitude 5490-TD70X
Intel Core i5-8350U
7.33 Points ∼100%
Average Intel Core i5-8350U
  (of 2, min: 5.95, max: 7.33)
6.64 Points ∼91% -9%
Dell Latitude 5480
Intel Core i7-7600U
3.98 Points ∼54% -46%
Lenovo ThinkPad T470-20HD002HGE
Intel Core i5-7200U
3.67 Points ∼50% -50%
Average of class Office
  (of 575, min: 0.26, max: 8.16)
2.64 Points ∼36% -64%
Cinebench R10
Rendering Single CPUs 64Bit
Dell Latitude 5490-TD70X
Intel Core i5-8350U
7593 Points ∼100%
Average Intel Core i5-8350U
  (of 1, min: 7593, max: 7593)
7593 Points ∼100% 0%
Average of class Office
  (of 426, min: 0.4, max: 9027)
4198 Points ∼55% -45%
Rendering Multiple CPUs 64Bit
Dell Latitude 5490-TD70X
Intel Core i5-8350U
28684 Points ∼100%
Average Intel Core i5-8350U
  (of 1, min: 28684, max: 28684)
28684 Points ∼100% 0%
Average of class Office
  (of 423, min: 1.51, max: 29780)
9531 Points ∼33% -67%
Cinebench R10 Shading 64Bit
8441 Points
Cinebench R10 Rendering Multiple CPUs 32Bit
19640
Cinebench R10 Shading 32Bit
6232
Cinebench R10 Rendering Single 32Bit
5152
Cinebench R10 Rendering Single CPUs 64Bit
7593 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
28684 Points
Cinebench R11.5 OpenGL 64Bit
43.28 fps
Cinebench R11.5 CPU Multi 64Bit
7.33 Points
Cinebench R11.5 CPU Single 64Bit
1.62 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Multi 64Bit
599 Points
Cinebench R15 OpenGL 64Bit
43.16 fps
Cinebench R15 CPU Single 64Bit
142 Points
Segítség
PCMark 8
Work Score Accelerated v2
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
4992 Points ∼100% +5%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
4774 Points ∼96%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (of 3, min: 4764, max: 4774)
4769 Points ∼96% 0%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
4667 Points ∼93% -2%
Fujitsu LifeBook U747
HD Graphics 620, 7200U, Samsung MZYTY256HDHP
4653 Points ∼93% -3%
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
4639 Points ∼93% -3%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
4572 Points ∼92% -4%
Average of class Office
  (of 267, min: 1226, max: 5194)
3859 Points ∼77% -19%
Home Score Accelerated v2
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
3913 Points ∼100% +6%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
3695 Points ∼94%
Average Intel Core i5-8350U, Intel UHD Graphics 620
  (of 3, min: 3600, max: 3776)
3690 Points ∼94% 0%
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
3515 Points ∼90% -5%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
3507 Points ∼90% -5%
Fujitsu LifeBook U747
HD Graphics 620, 7200U, Samsung MZYTY256HDHP
3506 Points ∼90% -5%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
3486 Points ∼89% -6%
Average of class Office
  (of 304, min: 1169, max: 4273)
2939 Points ∼75% -20%
PCMark 8 Home Score Accelerated v2
3695 pontok
PCMark 8 Work Score Accelerated v2
4774 pontok
Segítség
Dell Latitude 5490-TD70X
Toshiba KSG60ZMV512G
Dell Latitude 5480
Toshiba SG5 256GB THNSNK256GVN8
HP EliteBook 840 G4-Z2V49ET ABD
Samsung PM961 MZVLW256HEHP
Acer TravelMate P648-G2-M-73T0
SK Hynix HFS256G39TND-N210A
Lenovo ThinkPad T470-20HD002HGE
Samsung PM961 NVMe MZVLW512HMJP
Fujitsu LifeBook U747
Samsung MZYTY256HDHP
CrystalDiskMark 3.0
-6%
131%
1%
100%
6%
Write 4k QD32
300.2
207.2
-31%
410.2
37%
265.2
-12%
425.4
42%
249.7
-17%
Read 4k QD32
295.6
380.3
29%
512.9
74%
351.3
19%
496.2
68%
399.1
35%
Write 4k
88.96
114.8
29%
157.1
77%
85.55
-4%
134.6
51%
87.8
-1%
Read 4k
27.34
24.66
-10%
61.38
125%
32.88
20%
55.46
103%
35.73
31%
Write 512
360.7
265.5
-26%
803.5
123%
263.5
-27%
861.6
139%
283.4
-21%
Read 512
410.1
408.1
0%
921.8
125%
562.4
37%
810.6
98%
396.7
-3%
Write Seq
425
264.8
-38%
1263
197%
267.2
-37%
1076
153%
497.8
17%
Read Seq
465.1
469.4
1%
1819
291%
517.6
11%
1155
148%
504
8%
Toshiba KSG60ZMV512G
Sequential Read: 465.1 MB/s
Sequential Write: 425 MB/s
512K Read: 410.1 MB/s
512K Write: 360.7 MB/s
4K Read: 27.34 MB/s
4K Write: 88.96 MB/s
4K QD32 Read: 295.6 MB/s
4K QD32 Write: 300.2 MB/s
3DMark 11 - 1280x720 Performance GPU
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
1685 Points ∼100% +4%
Average Intel UHD Graphics 620
  (of 48, min: 1497, max: 1901)
1666 Points ∼99% +3%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
1617 Points ∼96%
Acer TravelMate P648-G2-M-73T0
Intel HD Graphics 620, Intel Core i7-7500U
1462 Points ∼87% -10%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
1432 Points ∼85% -11%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, Intel Core i5-7200U
1413 Points ∼84% -13%
Fujitsu LifeBook U747
Intel HD Graphics 620, Intel Core i5-7200U
1409 Points ∼84% -13%
Average of class Office
  (of 549, min: 185, max: 4967)
1145 Points ∼68% -29%
3DMark
1920x1080 Fire Strike Graphics
Average Intel UHD Graphics 620
  (of 43, min: 862, max: 1288)
1068 Points ∼100% +9%
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
1027 Points ∼96% +5%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
981 Points ∼92%
Average of class Office
  (of 388, min: 138, max: 4109)
882 Points ∼83% -10%
Acer TravelMate P648-G2-M-73T0
Intel HD Graphics 620, Intel Core i7-7500U
821 Points ∼77% -16%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
818 Points ∼77% -17%
Fujitsu LifeBook U747
Intel HD Graphics 620, Intel Core i5-7200U
799 Points ∼75% -19%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, Intel Core i5-7200U
738 Points ∼69% -25%
1280x720 Cloud Gate Standard Graphics
Dell Latitude 5480
Intel HD Graphics 620, Intel Core i7-7600U
8740 Points ∼100% +6%
Average Intel UHD Graphics 620
  (of 45, min: 6910, max: 10493)
8740 Points ∼100% +6%
Dell Latitude 5490-TD70X
Intel UHD Graphics 620, Intel Core i5-8350U
8226 Points ∼94%
Acer TravelMate P648-G2-M-73T0
Intel HD Graphics 620, Intel Core i7-7500U
7264 Points ∼83% -12%
HP EliteBook 840 G4-Z2V49ET ABD
Intel HD Graphics 620, Intel Core i5-7200U
6864 Points ∼79% -17%
Lenovo ThinkPad T470-20HD002HGE
Intel HD Graphics 620, Intel Core i5-7200U
6824 Points ∼78% -17%
Fujitsu LifeBook U747
Intel HD Graphics 620, Intel Core i5-7200U
6803 Points ∼78% -17%
Average of class Office
  (of 432, min: 1208, max: 27117)
6208 Points ∼71% -25%
3DMark 11 Performance
1770 pontok
3DMark Cloud Gate Standard Score
7903 pontok
3DMark Fire Strike Score
918 pontok
Segítség
alacsony közepes magas ultra
The Witcher 3 (2015) 14.619.63fps
Rise of the Tomb Raider (2016) 18.6811.15.5fps
Rocket League (2017) 57.35421.4715.01fps
Rise of the Tomb Raider
1920x1080 High Preset AA:FX AF:4x
Average of class Office
  (of 36, min: 4.2, max: 32)
10.5 fps ∼100% +91%
Average Intel UHD Graphics 620
  (of 14, min: 4.9, max: 32)
8.35 fps ∼80% +52%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
5.5 fps ∼52%
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
5.216 fps ∼50% -5%
1366x768 Medium Preset AF:2x
Average of class Office
  (of 52, min: 4.1, max: 49.3)
15.4 fps ∼100% +39%
Average Intel UHD Graphics 620
  (of 21, min: 9.5, max: 49.3)
13.6 fps ∼88% +23%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
12.6 fps ∼82% +14%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
11.1 fps ∼72%
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
9.939 fps ∼65% -10%
1024x768 Lowest Preset
Average of class Office
  (of 71, min: 6.2, max: 111)
23.6 fps ∼100% +26%
Average Intel UHD Graphics 620
  (of 28, min: 15.5, max: 111)
23.2 fps ∼98% +24%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
18.68 fps ∼79%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
17.8 fps ∼75% -5%
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
17.095 fps ∼72% -8%
Fujitsu LifeBook U747
HD Graphics 620, 7200U, Samsung MZYTY256HDHP
14.45 fps ∼61% -23%
Rocket League
1920x1080 High Quality AA:High FX
Average Intel UHD Graphics 620
  (of 3, min: 15, max: 22.2)
19.1 fps ∼100% +27%
Average of class Office
  (of 7, min: 14, max: 29)
18.6 fps ∼97% +24%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
15.01 fps ∼79%
1920x1080 Quality AA:Medium FX
Average Intel UHD Graphics 620
  (of 4, min: 21.5, max: 33.8)
29.4 fps ∼100% +37%
Average of class Office
  (of 8, min: 21.5, max: 43.7)
27.9 fps ∼95% +30%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
21.47 fps ∼73%
1920x1080 Performance
Average of class Office
  (of 4, min: 39.6, max: 80.4)
52.6 fps ∼100% +28%
Average Intel UHD Graphics 620
  (of 2, min: 41.2, max: 49)
45.1 fps ∼86% +9%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
41.2 fps ∼78%
1280x720 Performance
Average Intel UHD Graphics 620
  (of 4, min: 50, max: 89.7)
68.3 fps ∼100% +19%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
57.354 fps ∼84%
Average of class Office
  (of 14, min: 12.6, max: 122)
52.4 fps ∼77% -9%
The Witcher 3
1366x768 Medium Graphics & Postprocessing
Average of class Office
  (of 38, min: 5.8, max: 34)
15.6 fps ∼100% +62%
Average Intel UHD Graphics 620
  (of 8, min: 9.4, max: 10.7)
9.83 fps ∼63% +2%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
9.63 fps ∼62%
1024x768 Low Graphics & Postprocessing
Average of class Office
  (of 60, min: 8.3, max: 59)
20.2 fps ∼100% +38%
Average Intel UHD Graphics 620
  (of 10, min: 10.3, max: 16.8)
14.8 fps ∼73% +1%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
14.61 fps ∼72%
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
13.3 fps ∼66% -9%
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
12.9 fps ∼64% -12%
Dell Latitude 5490-TD70X
UHD Graphics 620, 8350U, Toshiba KSG60ZMV512G
Dell Latitude 5480
HD Graphics 620, 7600U, Toshiba SG5 256GB THNSNK256GVN8
HP EliteBook 840 G4-Z2V49ET ABD
HD Graphics 620, 7200U, Samsung PM961 MZVLW256HEHP
Acer TravelMate P648-G2-M-73T0
HD Graphics 620, 7500U, SK Hynix HFS256G39TND-N210A
Lenovo ThinkPad T470-20HD002HGE
HD Graphics 620, 7200U, Samsung PM961 NVMe MZVLW512HMJP
Fujitsu LifeBook U747
HD Graphics 620, 7200U, Samsung MZYTY256HDHP
Noise
-7%
0%
1%
7%
8%
off / environment *
28.8
31
-8%
30.6
-6%
28
3%
28.2
2%
Idle Minimum *
28.8
29.6
-3%
31
-8%
30.6
-6%
28
3%
28.2
2%
Idle Average *
28.8
29.6
-3%
31
-8%
30.6
-6%
28
3%
28.2
2%
Idle Maximum *
30.9
29.6
4%
31
-0%
31
-0%
29.4
5%
28.2
9%
Load Average *
35.6
42
-18%
33.5
6%
34.5
3%
31.4
12%
31.2
12%
Load Maximum *
41.4
47.1
-14%
33.7
19%
32.4
22%
34.6
16%
33
20%

* ... smaller is better

Zajszint

Üresjárat
28.8 / 28.8 / 30.9 dB(A)
Terhelés
35.6 / 41.4 dB(A)



30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 28.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.229.333.429.331.334.22528.628.429.728.43228.63131.331.432.128.732.131.34029.329.429.929.427.429.35027.32625.427.625.827.36325.82626.125.524.725.88029.825.626.325.124.729.810025.425.325.923.624.225.412523.924.125.124.523.423.916025.524.625.223.323.325.520026.425.324.523.722.826.425025.323.422.521.72125.331527.223.423.219.819.827.240029.924.4232018.529.95003227.22419.117.83263028.124.42217.81728.180030.425.621.317.31730.4100030.726.321.416.616.130.7125029.323.920.216.415.929.3160029.423.919.815.815.629.4200028.823.119.316.115.628.8250028.424.118.11615.628.431503223.617.916.31632400031.62318.216.616.431.6500028.320.717.516.816.728.363002720.118.518.116.927800025.219.218.818.317.225.21000022.519.920.319.417.422.51250019.119.519.819.317.419.11600017.918.218.418.117.117.9SPL41.435.63229.528.841.4N3.92.41.71.31.23.9median 28.1Dell Latitude 5490-TD70Xmedian 23.9median 20.3median 18.1median 17.1median 28.1Delta2.31.62.22.41.82.336.735.938.33736.733.333.936.13433.332.133.333.130.732.136.934.637.736.936.930.432.133.531.130.430.534.736.430.830.53232.630.5303232.332.229.528.532.326.126.426.425.326.126.725.727.325.526.72627.22725.92624.524.624.323.724.52424.624.823.92422.722.522.622.122.722.622.722.721.422.621.621.721.720.521.621.922.121.12021.922.122.22019.322.121.922.119.518.721.922.722.919.218.222.723.523.6191823.52221.818.717.9222019.818.417.82019.919.818.317.819.918.718.518.117.918.718.217.918.117.818.218.11818.117.918.118.217.817.917.718.218.417.817.917.518.418.817.817.917.618.833.533.531.931.133.5221.71.62median 22HP EliteBook 840 G4-Z2V49ET ABDmedian 22.1median 19.5median 18.7median 222.12.62.92.22.1hearing rangehide median Fan Noise
Max. terhelés
 37.2 °C34.9 °C32.7 °C
 38.3 °C34.8 °C27.6 °C
 31.2 °C26.9 °C24 °C
Maximum: 38.3 °C
Átlag: 32 °C
27.1 °C43 °C43.3 °C
27.5 °C40.2 °C44.7 °C
22.2 °C25.4 °C25.5 °C
Maximum: 44.7 °C
Átlag: 33.2 °C
Tápegység (max.)  41.6 °C | Szobahőmérséklet 20.2 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.334.52532343132.136.34027.434.25025.834.36324.734.68024.737.710024.244.112523.447.916023.352.220022.859.12502158.631519.859.540018.565.250017.870.26301773.48001778.9100016.179.3125015.976.4160015.677.1200015.676.4250015.673.531501674.8400016.471.9500016.780.4630016.982.3800017.2811000017.476.71250017.4721600017.164.8SPL28.889.7N1.283.2median 17.1Dell Latitude 5490-TD70Xmedian 73.4Delta1.88.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6Apple MacBook 12 (Early 2016) 1.1 GHzmedian 17.84.62.4hearing rangehide median Pink Noise
Dell Latitude 5490-TD70X audio analysis

(+) | speakers can play relatively loud (89.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.8% lower than median
(+) | bass is linear (6.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.8% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 4% similar, 80% worse
» The best had a delta of 8%, average was 21%, worst was 51%
Compared to all devices tested
» 16% of all tested devices were better, 5% similar, 80% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 98% worse
» The best had a delta of 9%, average was 19%, worst was 47%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.34 / 0.96 Watt
Üresjáratdarkmidlight 3.3 / 5.54 / 6.59 Watt
Terhelés midlight 42.4 / 67.6 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, Toshiba KSG60ZMV512G, IPS, 1920x1080, 14
Dell Latitude 5480
7600U, HD Graphics 620, Toshiba SG5 256GB THNSNK256GVN8, IPS, 1920x1080, 14
HP EliteBook 840 G4-Z2V49ET ABD
7200U, HD Graphics 620, Samsung PM961 MZVLW256HEHP, TN, 1920x1080, 14
Acer TravelMate P648-G2-M-73T0
7500U, HD Graphics 620, SK Hynix HFS256G39TND-N210A, IPS, 1920x1080, 14
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 14
Fujitsu LifeBook U747
7200U, HD Graphics 620, Samsung MZYTY256HDHP, IPS LED, 1920x1080, 14
Power Consumption
-12%
14%
-16%
14%
-4%
Idle Minimum *
3.3
6.64
-101%
2.9
12%
4.8
-45%
3.21
3%
4.11
-25%
Idle Average *
5.54
6.67
-20%
5.6
-1%
7.9
-43%
6.15
-11%
7.87
-42%
Idle Maximum *
6.59
7.78
-18%
8.15
-24%
10.7
-62%
6.82
-3%
8.74
-33%
Load Average *
42.4
30.83
27%
30.6
28%
35
17%
28.5
33%
30.2
29%
Load Maximum *
67.6
31.7
53%
31
54%
31.6
53%
34.5
49%
32.4
52%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
25h 56min
NBC WiFi Websurfing Battery Test 1.3
14h 57min
Big Buck Bunny H.264 1080p
13h 11min
Terhelés (maximális fényerő)
1h 37min
Dell Latitude 5490-TD70X
8350U, UHD Graphics 620, 68 Wh
Dell Latitude 5480
7600U, HD Graphics 620, 68 Wh
HP EliteBook 840 G4-Z2V49ET ABD
7200U, HD Graphics 620, 51 Wh
Acer TravelMate P648-G2-M-73T0
7500U, HD Graphics 620, 54 Wh
Lenovo ThinkPad T470-20HD002HGE
7200U, HD Graphics 620, 48 Wh
Fujitsu LifeBook U747
7200U, HD Graphics 620, 50 Wh
Average of class Office

Battery Runtime
21%
1%
-12%
-20%
-30%
-42%
Reader / Idle
1556
1448
-7%
1155
-26%
1087
-30%
782
-50%
549 (of 747, min: 101, max: 1857)
-65%
H.264
791
591
-25%
623
-21%
490
-38%
407 (of 134, min: 139, max: 791)
-49%
WiFi v1.3
897
964
7%
571
-36%
672
-25%
438
-51%
430
-52%
397 (of 241, min: 105, max: 964)
-56%
Load
97
159
64%
184
90%
115
19%
110
13%
117
21%
100 (of 689, min: 37, max: 259)
3%

Pro

+ stabil ház
+ kosztól védő gumírozás a kijelző körül

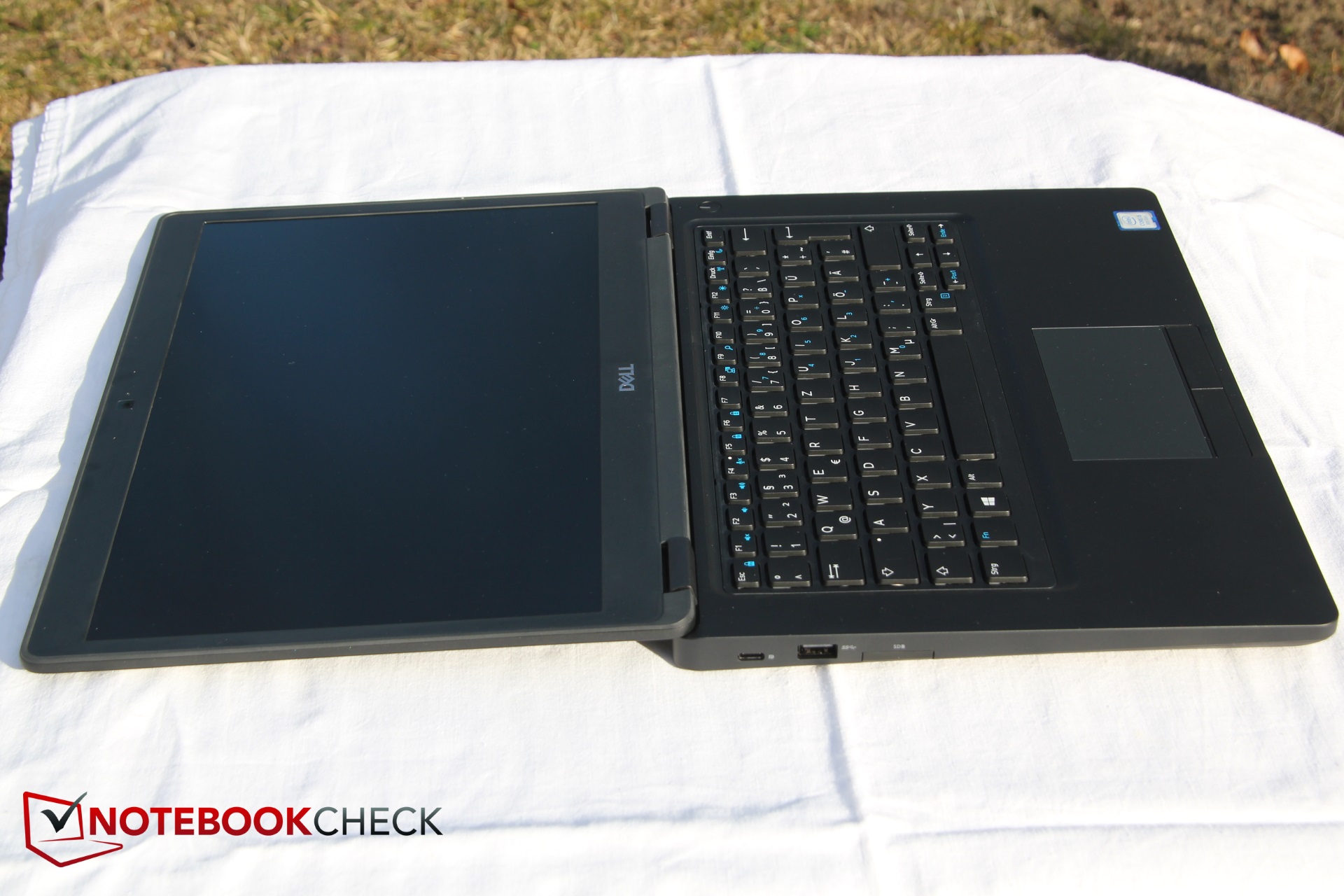

+ 180°-os zsanér
+ SIM foglalat
+ gyors SD olvasó
+ remek beviteli eszközök
+ alapjáraton csendes
+ hatékony alapjárat
+ kisebb terhelés mellett kitűnő üzemidő

Kontra

- elég nehéz
- nincs alapértelmezettként Thunderbolt 3
- a biztonsági funkciók majdnem mindegyike opcionális
- nincs billentyűzet háttérfény (opcionális)
- sötét kijelző
- driver gondok miatt nagy késések
- gyakran nem gyorsabb elődjénél
- átlagos SSD
- terhelés alatt zajos, és sokat fogyaszt
Dell Latitude 5490 test model provided by Cyberport
Dell Latitude 5490 test model provided by Cyberport

A Dell Latitude 5490-nek egy csomó előnye van, főleg cégek, és azok alkalmazottai számára: irodai feladatok esetén nagyon takarékos, és a majdnem teljesen ventilátormentes működésnek köszönhetően nagyon csendes is. A beviteli eszközök szintén kiváló minőségűek, de a notebook legnagyobb erőssége így is a hihetetlen üzemidő, amellyel kevésbé erőforrásigényes feladatok mellett egy hosszú munkanapot is kibír. A komoly - de opcionális - biztonsági funkciókészlet szintén jó érv lehet a megvásárlása mellett.

Éppen emiatt különösen elszomorító, hogy a Dell nem javított az előd modellben leginkább kritizált hiányosságon, a sötét kijelzőn. Ugyan jobb kontrasztot, és fekete szinteket kínál mint eddig, még mindig nem éppen világos. Emellett a válaszideje és színhűsége is szörnyű. A terhelés alatti ventilátorzajjal szintén lehetne mit kezdeni.

Az 5490-et egyértelműen főleg cégeknek, és azok alkalmazottainak szánták. Ugyanakkor, érdemes odafigyelni, hogy a számtalan konfigurációból a megfelelő funkciókkal rendelkezőt válasszuk ki. Kevésbé biztonságtudatos vásárlók hamar találhatnak könnyebb, kisebb, terhelés alatt csendesebb gépeket, amelyek gyakran olcsóbbak is. Azok, akik viszont ezt a terméket választják, egy biztonságos, erős, kitartó üzleti laptopot kapnak, még ha sajnos nagyon sötét kijelzővel is.

Az 5490 kicsivel karcsúbb elődjénél, de a Kaby Lake-R processzor csak ritkán eredményez teljesítménytöbbletet a gyakorlatban. Sőt, egy sor alkalmazásban az 5480 még gyorsabb is. Emiatt lehet, hogy megéri az elődre is vetni egy pillantást, bár meg kell jegyeznünk, hogy az 5480 még hangosabb terhelés alatt.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Dell Latitude 5490-TD70X - 03/04/2018 v6
Christian Hintze

Váz
81 / 98 → 82%
Billentyűzet
85%
Érintőpad
83%
Csatlakoztathatóság
65 / 80 → 81%
Súly
67 / 20-67 → 99%
Akkumulátor
96%
Kijelző
82%
Játékok alatti teljesítmény
51 / 68 → 76%
Alkalmazások alatti teljesítmény
88 / 92 → 96%
Hőmérséklet
93%
Zaj
93%
Audio
64%
Camera
46 / 85 → 54%
Átlag
76%
86%
Office - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Dell Latitude 5490 (i5-8350U, FHD) Laptop rövid értékelés
Christian Hintze, 2018-03-16 (Update: 2018-03-16)
