Asus ZenBook 14 UM431DA laptop rövid értékelés: Ryzen-nel is meggyőző.

Zen-tasztikus. Az Asus ZenBook 14 az AMD erősebb Ryzen 7-jével is meggyőző, de nem képes elérni a teljes potenciálját, a felpörgő ventilátorok ellenére. Lapos kialakításával a 14 hüvelykes laptop szokásos módon praktikus marad, és ötletesek az olyan kisebb funkciók, mint a beépített számbillentyűzet. Értékelésünk megmutatja, mi mást tartogat még a ZenBook 14.
Mike Wobker, 👁 Sebastian Jentsch, Andrea Grüblinger (fordította Zoltán Kiss),
Windows Laptop / Notebook AMD Ryzen (Zen)

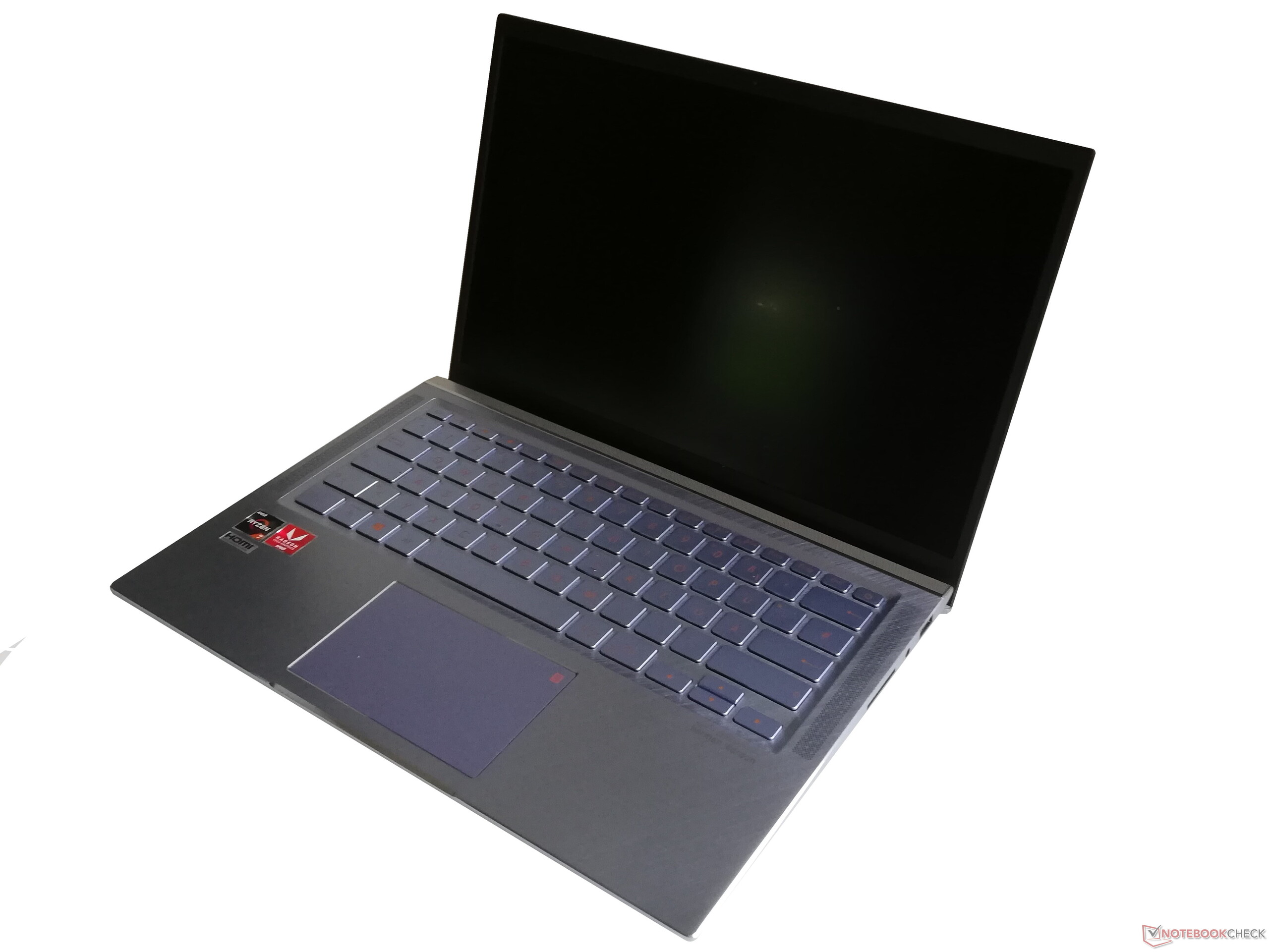

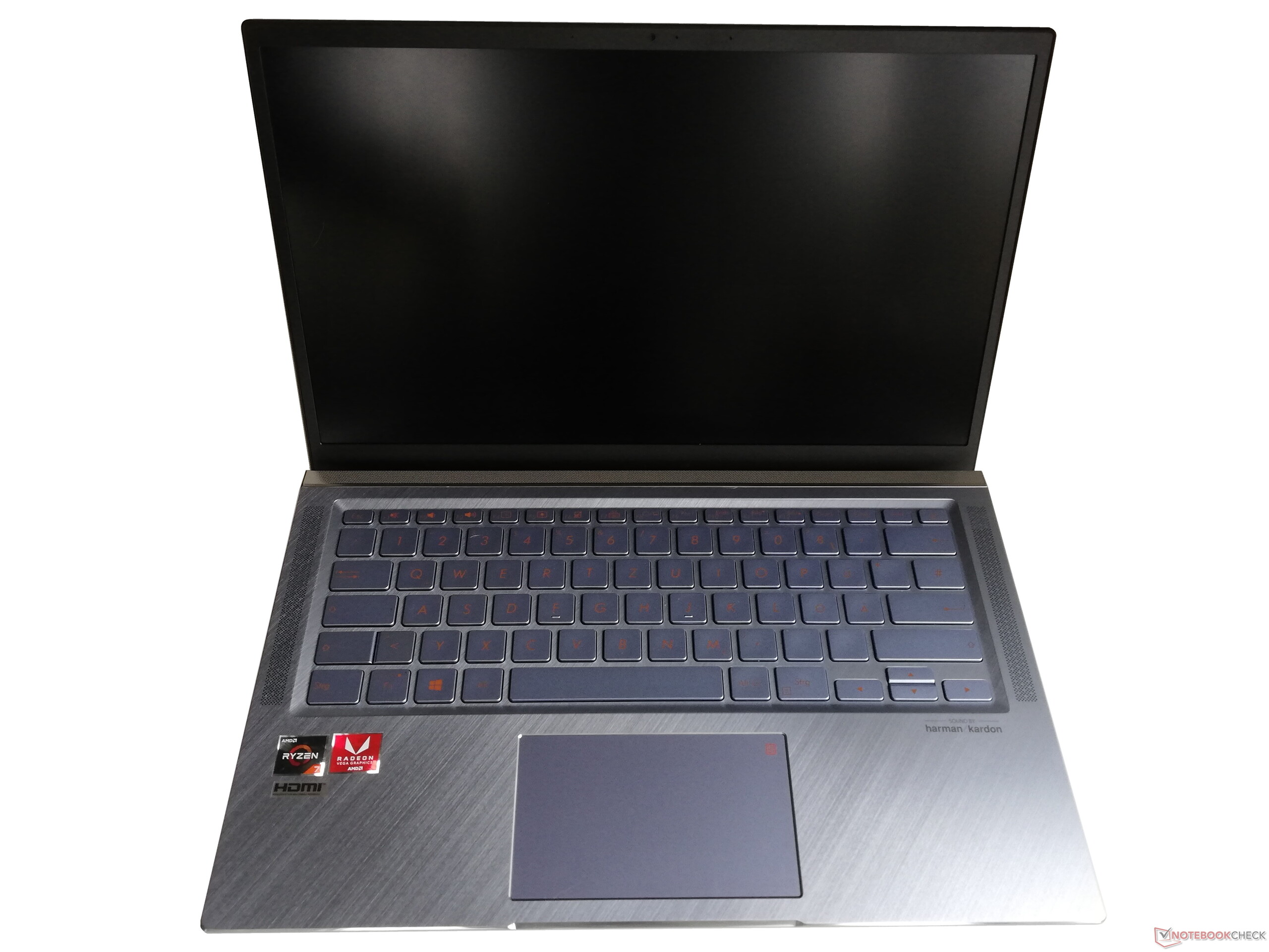

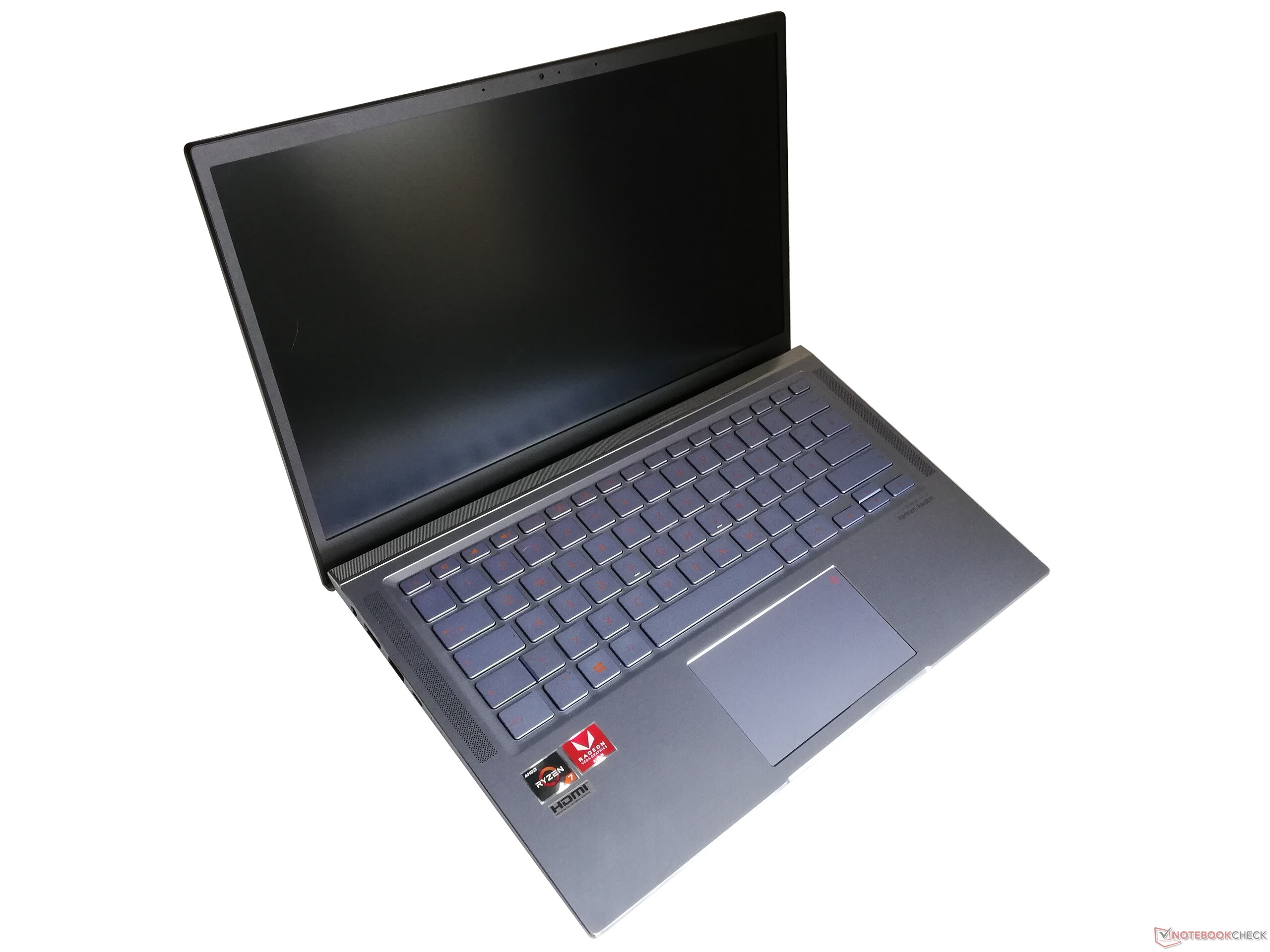

Asus ZenBook 14 UM431DA-AM020T (ZenBook 14 Széria)
Processzor
AMD Ryzen 7 3700U 4 x 2.3 - 4 GHz, Zen+
Grafikus adapter
AMD Radeon RX Vega 10
Memória
8192 MB
, DDR4 2400, dual-channel
Kijelző
14 hüvelyk 16:9, 1920 x 1080 pixel, CEC PA LM140LF-3L03, IPS, fényes: nem
Alaplap
AMD Promontory/Bixby FCH
Háttértár
SK hynix BC501 HFM512GDHTNG-8310A, 512 GB
, 430 GB ingyenes
Hangkártya
AMD Raven - Audio Processor - HD Audio Controller
Csatlakozók
1 USB 2.0, 2 USB 3.0, 1 HDMI, Audió csatlakozók: 3,5 mm-es audió jack, Kártyaolvasó: SD
Hálózat
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Méret
magasság x szélesség x mélység (mm-ben) 16 x 324 x 212
Akkumulátor
47 Wh, 6150 mAh Lítium-Polimer
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: 0.9 MP, 16:9 (1280x720)
További jellegzetességek
Hangszórók: sztereó, Harman/Kardon, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: igen, hordozó tok, McAfee, 24 Hónap Garancia
Súly
1.39 kg, Tápegység: 151 g
Ár
700 Euró
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
81 %
04/2020
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10
1.4 kg16 mm14"1920x1080
88 %
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10
1.9 kg19.9 mm15.6"1920x1080
80 %
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10
1.8 kg19.5 mm15.6"1920x1080
81 %
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250
1.2 kg16 mm14"1920x1080
78 %
04/2020
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250
1.6 kg18 mm14"1920x1080
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T
Asus ZenBook 14 UM431DA-AM020T

Size comparison

369 mm 252 mm 19.9 mm 1.9 kg359.1 mm 249 mm 19.5 mm 1.8 kg327 mm 226 mm 18 mm 1.6 kg324 mm 212 mm 16 mm 1.4 kg322 mm 222 mm 16 mm 1.2 kg
Left side: power supply, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Left side: power supply, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Right side: SD card reader, combined 3.5 mm audio jack, 1x USB 2.0 Type-A
Right side: SD card reader, combined 3.5 mm audio jack, 1x USB 2.0 Type-A
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad E595-20NF0000GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
77.1 MB/s ∼100% +192%
Average of class Subnotebook
  (8 - 186, n=142)
63.5 MB/s ∼82% +141%
Dell Inspiron 15 5000 5585
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.7 MB/s ∼49% +43%
HP Pavilion 14-ce3040ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
32 MB/s ∼42% +21%
MSI Modern 14 A10RB-459US
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
28 MB/s ∼36% +6%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.4 MB/s ∼34%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad E595-20NF0000GE
  (Toshiba Exceria Pro M501 64 GB UHS-II)
87.6 MB/s ∼100% +136%
Average of class Subnotebook
  (17.7 - 251, n=144)
79.6 MB/s ∼91% +115%
Dell Inspiron 15 5000 5585
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.6 MB/s ∼43% +1%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.1 MB/s ∼42%
HP Pavilion 14-ce3040ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
33 MB/s ∼38% -11%
MSI Modern 14 A10RB-459US
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
27.1 MB/s ∼31% -27%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Pavilion 14-ce3040ng
Intel Wi-Fi 6 AX201
1070 MBit/s ∼100% +157%
Lenovo ThinkPad E595-20NF0000GE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
640 MBit/s ∼60% +54%
Average of class Subnotebook
  (30.9 - 1658, n=168)
610 MBit/s ∼57% +47%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
416 (375min - 465max) MBit/s ∼39%
Dell Inspiron 15 5000 5585
Qualcomm Atheros QCA9377 Wireless Network Adapter
309 MBit/s ∼29% -26%
iperf3 Client (transmit) TCP 1 m 4M x10
HP Pavilion 14-ce3040ng
Intel Wi-Fi 6 AX201
928 MBit/s ∼100% +55%
Lenovo ThinkPad E595-20NF0000GE
Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter
613 MBit/s ∼66% +3%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
598 (519min - 628max) MBit/s ∼64%
Average of class Subnotebook
  (36 - 1416, n=168)
580 MBit/s ∼63% -3%
Dell Inspiron 15 5000 5585
Qualcomm Atheros QCA9377 Wireless Network Adapter
290 MBit/s ∼31% -52%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630Tooltip
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø415 (375-465)
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø598 (519-628)
275
cd/m²
266
cd/m²
255
cd/m²
245
cd/m²
253
cd/m²
215
cd/m²
239
cd/m²
240
cd/m²
221
cd/m²
Fényerő megoszlás
CEC PA LM140LF-3L03
X-Rite i1Pro 2
Maximum: 275 cd/m² Átlag: 245.4 cd/m² Minimum: 18 cd/m²
Fényerő megoszlás: 78 %
Centrumban: 263 cd/m²
Kontraszt: 1124:1 (Fekete: 0.225 cd/m²)
ΔE Color 8.89 | 0.6-29.43 Ø5.8, calibrated: 4.9
ΔE Greyscale 6.33 | 0.64-98 Ø6
91% sRGB (Argyll 3D) 60% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.52
Asus ZenBook 14 UM431DA-AM020T
CEC PA LM140LF-3L03, IPS, 1920x1080, 14
Lenovo ThinkPad E595-20NF0000GE
NV156FHM-N49, IPS, 1920x1080, 15.6
Dell Inspiron 15 5000 5585
LG Philips 156WFC, IPS, 1920x1080, 15.6
MSI Modern 14 A10RB-459US
Chi Mei N140HCE-EN2, IPS, 1920x1080, 14
HP Pavilion 14-ce3040ng
AUO543D, IPS, 1920x1080, 14
Response Times
878%
8%
18891%
-42%
Response Time Grey 50% / Grey 80% *
36 (19, 17)
41.2 (22, 19.2)
-14%
28.4 (10.4, 18)
21%
39.2 (20.8, 18.4)
-9%
60.8 (29.2, 31.6)
-69%
Response Time Black / White *
26 (15, 11)
32.8 (18, 14.8)
-26%
27.2 (16.4, 10.8)
-5%
35.6 (21.2, 14.4)
-37%
29.6 (13.2, 16.4)
-14%
PWM Frequency
44 (20)
1220 (99)
2673%
25000 (28)
56718%
Screen
-16%
-22%
30%
14%
Brightness middle
253
318
26%
253.6
0%
324.1
28%
395
56%
Brightness
245
297
21%
227
-7%
301
23%
375
53%
Brightness Distribution
78
89
14%
84
8%
87
12%
91
17%
Black Level *
0.225
0.17
24%
0.27
-20%
0.22
2%
0.26
-16%
Contrast
1124
1871
66%
939
-16%
1473
31%
1519
35%
Colorchecker DeltaE2000 *
8.89
5.5
38%
6.05
32%
1.63
82%
5.92
33%
Colorchecker DeltaE2000 max. *
4.56
21
-361%
14.03
-208%
4.25
7%
9.79
-115%
Colorchecker DeltaE2000 calibrated *
4.9
5.1
-4%
4.97
-1%
1.42
71%
0.91
81%
Greyscale DeltaE2000 *
6.33
1.8
72%
3.2
49%
2.2
65%
6.69
-6%
Gamma
2.52 87%
2.12 104%
2 110%
2.26 97%
2.78 79%
CCT
6745 96%
6257 104%
6820 95%
6887 94%
7596 86%
Color Space (Percent of AdobeRGB 1998)
60
37.6
-37%
35.5
-41%
60.2
0%
63
5%
Color Space (Percent of sRGB)
91
58.2
-36%
55.6
-39%
95
4%
98
8%
Total Average (Program / Settings)
431% / 175%
-7% / -17%
9461% / 4071%
-14% / 5%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

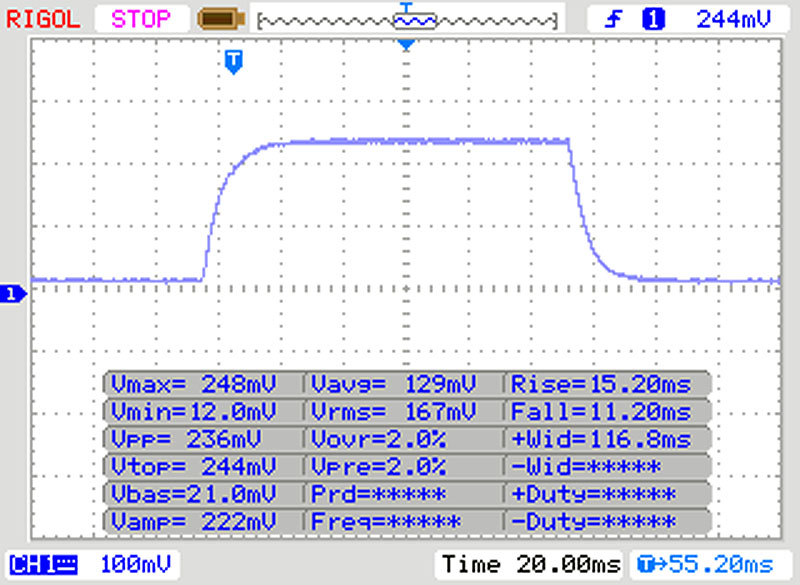

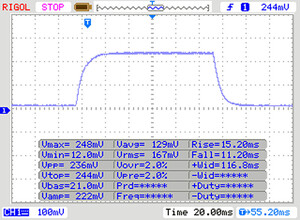

       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 48 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.4 ms).

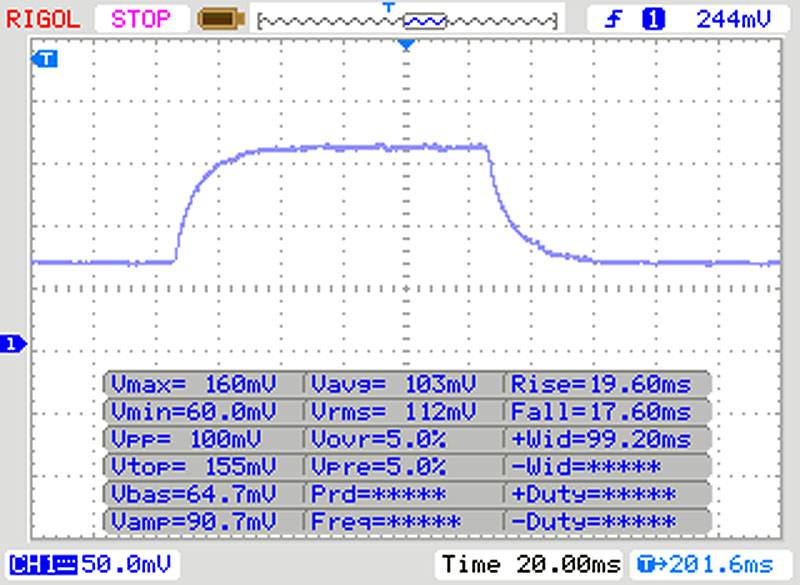

       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 17 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (38.8 ms).

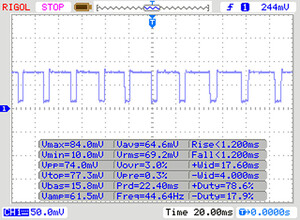

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 44 Hz ≤ 20 % brightness setting

The display backlight flickers at 44 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 44 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17612 (minimum: 5 - maximum: 2500000) Hz was measured.


0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700Tooltip
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø512 (499.03-642.87)
Lenovo ThinkPad E595-20NF0000GE AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø684 (680.39-687.17)
Dell Inspiron 15 5000 5585 AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø654 (639.01-676.19)
MSI Modern 14 A10RB-459US Intel Core i5-10210U, Intel Core i5-10210U: Ø565 (559.89-595.69)
HP Pavilion 14-ce3040ng Intel Core i7-1065G7, Intel Core i7-1065G7: Ø625 (592.25-691)
Cinebench R15
CPU Single 64Bit
HP Pavilion 14-ce3040ng
Intel Core i7-1065G7
190 Points ∼100% +43%
MSI Modern 14 A10RB-459US
Intel Core i5-10210U
170 Points ∼89% +28%
Lenovo ThinkPad E595-20NF0000GE
AMD Ryzen 7 3700U
144 Points ∼76% +8%
Average AMD Ryzen 7 3700U
  (127 - 146, n=7)
138 Points ∼73% +4%
Dell Inspiron 15 5000 5585
AMD Ryzen 7 3700U
135 Points ∼71% +2%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
133 Points ∼70%
Average of class Subnotebook
  (20 - 210, n=323)
121 Points ∼64% -9%
CPU Multi 64Bit
HP Pavilion 14-ce3040ng
Intel Core i7-1065G7
691 Points ∼100% +8%
Lenovo ThinkPad E595-20NF0000GE
AMD Ryzen 7 3700U
683 (680.39min - 687.17max) Points ∼99% +6%
Dell Inspiron 15 5000 5585
AMD Ryzen 7 3700U
672 Points ∼97% +5%
Average AMD Ryzen 7 3700U
  (537 - 683, n=7)
648 Points ∼94% +1%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
642 Points ∼93%
MSI Modern 14 A10RB-459US
Intel Core i5-10210U
596 Points ∼86% -7%
Average of class Subnotebook
  (32 - 1287, n=337)
381 Points ∼55% -41%
Cinebench R15 CPU Single 64Bit
133 Points
Cinebench R15 CPU Multi 64Bit
642 Points
Cinebench R15 OpenGL 64Bit
48.35 fps
Cinebench R15 Ref. Match 64Bit
98 %
Segítség
PCMark 10
Digital Content Creation
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4461 Points ∼100% +29%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3581 Points ∼80% +3%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3466 Points ∼78%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3082 - 3581, n=7)
3333 Points ∼75% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3258 Points ∼73% -6%
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
3233 Points ∼72% -7%
Average of class Subnotebook
  (405 - 4905, n=137)
2658 Points ∼60% -23%
Productivity
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
7433 Points ∼100% +28%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
7040 Points ∼95% +21%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
5859 Points ∼79% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
5823 Points ∼78%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (5459 - 5952, n=7)
5745 Points ∼77% -1%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
5637 Points ∼76% -3%
Average of class Subnotebook
  (1014 - 7676, n=137)
5379 Points ∼72% -8%
Essentials
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
8912 Points ∼100% +16%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
7861 Points ∼88% +2%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
7692 Points ∼86% 0%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
7685 Points ∼86%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (6927 - 7692, n=7)
7306 Points ∼82% -5%
Average of class Subnotebook
  (2062 - 10113, n=137)
7097 Points ∼80% -8%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
6927 Points ∼78% -10%
Score
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4497 Points ∼100% +17%
HP Pavilion 14-ce3040ng
GeForce MX250, i7-1065G7, Toshiba XG6 KXG60ZNV1T02
4289 Points ∼95% +11%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3903 Points ∼87% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3851 Points ∼86%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3522 - 3903, n=7)
3720 Points ∼83% -3%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3605 Points ∼80% -6%
Average of class Subnotebook
  (743 - 4972, n=140)
3309 Points ∼74% -14%
PCMark 8
Work Score Accelerated v2
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
4992 Points ∼100% +3%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
4842 Points ∼97%
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (4418 - 4869, n=6)
4665 Points ∼93% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
4593 Points ∼92% -5%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
4429 Points ∼89% -9%
Average of class Subnotebook
  (1283 - 5573, n=250)
4097 Points ∼82% -15%
Home Score Accelerated v2
Average AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
  (3325 - 3993, n=7)
3628 Points ∼100% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3604 Points ∼99%
Dell Inspiron 15 5000 5585
Vega 10, R7 3700U, WDC PC SN520 SDAPNUW-512G
3504 Points ∼97% -3%
MSI Modern 14 A10RB-459US
GeForce MX250, i5-10210U, Kingston RBUSNS8154P3512GJ
3464 Points ∼95% -4%
Lenovo ThinkPad E595-20NF0000GE
Vega 10, R7 3700U, SK Hynix BC501 HFM512GDJTNG
3342 Points ∼92% -7%
Average of class Subnotebook
  (1027 - 4349, n=279)
3097 Points ∼85% -14%
PCMark 8 Home Score Accelerated v2
3604 pontok
PCMark 8 Work Score Accelerated v2
4842 pontok
Segítség
Asus ZenBook 14 UM431DA-AM020T
SK hynix BC501 HFM512GDHTNG-8310A
Lenovo ThinkPad E595-20NF0000GE
SK Hynix BC501 HFM512GDJTNG
Dell Inspiron 15 5000 5585
WDC PC SN520 SDAPNUW-512G
MSI Modern 14 A10RB-459US
Kingston RBUSNS8154P3512GJ
HP Pavilion 14-ce3040ng
Toshiba XG6 KXG60ZNV1T02
Average SK hynix BC501 HFM512GDHTNG-8310A

CrystalDiskMark 5.2 / 6
11%
-3%
15%
108%
10%
Write 4K
118.8
129.5
9%
105.9
-11%
107.7
-9%
181.6
53%
110 (89.3 - 122, n=3)
-7%
Read 4K
41.62
41.23
-1%
36.56
-12%
39.73
-5%
57.41
38%
40.6 (37.4 - 42.7, n=3)
-2%
Write Seq
795.7
810.7
2%
1165
46%
926.3
16%
1982
149%
677 (608 - 796, n=3)
-15%
Read Seq
1101
1145
4%
423.2
-62%
1014
-8%
1899
72%
1104 (1019 - 1193, n=3)
0%
Write 4K Q32T1
234.7
314.1
34%
332.1
41%
343.6
46%
509.4
117%
438 (235 - 590, n=3)
87%
Read 4K Q32T1
313.8
356.2
14%
229.3
-27%
499.1
59%
544.7
74%
338 (285 - 415, n=3)
8%
Write Seq Q32T1
842.3
838.5
0%
1460
73%
1033
23%
3072
265%
860 (842 - 872, n=3)
2%
Read Seq Q32T1
1645
2042
24%
472.5
-71%
1604
-2%
3281
99%
1786 (1635 - 2078, n=3)
9%
AS SSD
5%
-9%
-25%
79%
6%
Score Total
2270
2261
0%
2279
0%
2294
1%
4568
101%
2315 (2234 - 2442, n=3)
2%
Score Write
906
831
-8%
1155
27%
916
1%
1853
105%
867 (843 - 906, n=3)
-4%
Score Read
918
973
6%
721
-21%
911
-1%
1801
96%
981 (918 - 1085, n=3)
7%
Access Time Write *
0.045
0.036
20%
0.047
-4%
0.136
-202%
0.03
33%
0.0353 (0.03 - 0.045, n=3)
22%
Access Time Read *
0.047
0.04
15%
0.072
-53%
0.084
-79%
0.094
-100%
0.046 (0.045 - 0.047, n=3)
2%
4K-64 Write
747.86
668.81
-11%
984.63
32%
733.32
-2%
1456.46
95%
763 (672 - 871, n=3)
2%
4K-64 Read
739.73
763.82
3%
646.86
-13%
769.2
4%
1473.01
99%
794 (740 - 869, n=3)
7%
4K Write
80.08
87.71
10%
82.07
2%
86.98
9%
147.5
84%
109 (80.1 - 127, n=3)
36%
4K Read
37.03
39.18
6%
34.54
-7%
35.59
-4%
52.09
41%
40.2 (37 - 43.2, n=3)
9%
Seq Write
781.17
740.1
-5%
884.4
13%
953
22%
2493.03
219%
612 (518 - 781, n=3)
-22%
Seq Read
1417.21
1697.5
20%
398.93
-72%
1060.87
-25%
2762.37
95%
1471 (1264 - 1731, n=3)
4%
Total Average (Program / Settings)
8% / 7%
-6% / -6%
-5% / -8%
94% / 91%
8% / 8%

* ... smaller is better

SK hynix BC501 HFM512GDHTNG-8310A
CDM 5/6 Read Seq Q32T1: 1645 MB/s
CDM 5/6 Write Seq Q32T1: 842.3 MB/s
CDM 5/6 Read 4K Q32T1: 313.8 MB/s
CDM 5/6 Write 4K Q32T1: 234.7 MB/s
CDM 5 Read Seq: 1101 MB/s
CDM 5 Write Seq: 795.7 MB/s
CDM 5/6 Read 4K: 41.62 MB/s
CDM 5/6 Write 4K: 118.8 MB/s

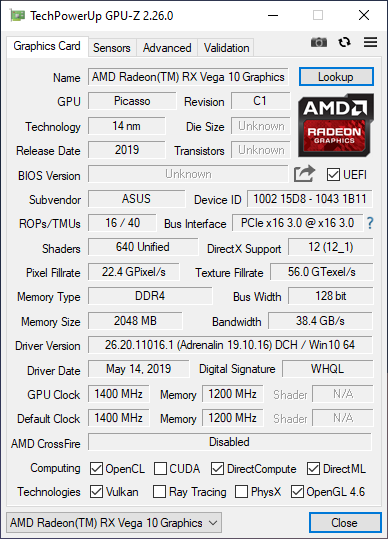

3DMark 11 - 1280x720 Performance GPU
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
4920 Points ∼100% +45%
HP Pavilion 14-ce3040ng
NVIDIA GeForce MX250, Intel Core i7-1065G7
4614 Points ∼94% +36%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
4165 Points ∼85% +23%
Average AMD Radeon RX Vega 10
  (2688 - 4165, n=15)
3455 Points ∼70% +2%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3389 Points ∼69%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3287 Points ∼67% -3%
Average of class Subnotebook
  (230 - 11501, n=409)
1511 Points ∼31% -55%
3DMark
1920x1080 Fire Strike Graphics
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
3845 Points ∼100% +69%
HP Pavilion 14-ce3040ng
NVIDIA GeForce MX250, Intel Core i7-1065G7
3580 Points ∼93% +58%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2999 Points ∼78% +32%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2272 Points ∼59%
Average AMD Radeon RX Vega 10
  (1567 - 2999, n=14)
2157 Points ∼56% -5%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2025 Points ∼53% -11%
Average of class Subnotebook
  (222 - 8093, n=288)
1213 Points ∼32% -47%
1280x720 Cloud Gate Standard Graphics
MSI Modern 14 A10RB-459US
NVIDIA GeForce MX250, Intel Core i5-10210U
23376 Points ∼100% +46%
Dell Inspiron 15 5000 5585
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
20784 Points ∼89% +30%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
16048 Points ∼69%
Average AMD Radeon RX Vega 10
  (9364 - 20784, n=14)
14465 Points ∼62% -10%
Lenovo ThinkPad E595-20NF0000GE
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
13891 Points ∼59% -13%
Average of class Subnotebook
  (1484 - 31380, n=306)
8471 Points ∼36% -47%
3DMark 11 Performance
3449 pontok
3DMark Cloud Gate Standard Score
11126 pontok
3DMark Fire Strike Score
2028 pontok
Segítség
alacsony közepes magas ultra
BioShock Infinite (2013) 93.78 60.7 49.72 17.4 fps
Dota 2 Reborn (2015) 68.7 58.6 36 30.2 fps
Final Fantasy XV Benchmark (2018) 16.1 8.1 fps

Zajszint

Üresjárat
28 / 28 / 28 dB(A)
Terhelés
36.8 / 39 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.428.230.933.731.425333134.734.133313131.332.430.9314030.531.731.22930.55030.829.328.72930.86328.128.627.627.228.18025.725.626.726.425.710025.625.924.524.225.612524.824.723.824.524.816023.624.123.724.523.620022.422.921.922.522.425021.922.421.521.721.931521.821.320.720.221.840021.920.819.719.221.950022.622.21918.522.663028.126.518.318.828.180028.72617.71828.7100030.628.517.317.430.6125030.127.317.117.330.1160028.325.816.71728.3200029.326.916.917.129.325002825.317.116.92831502523.117.217.225400026.824.517.517.426.850002421.317.617.62463002018.917.817.720800018.518.417.617.818.51000017.91817.617.717.91250017.61817.417.517.61600017.718.417.517.517.7SPL3936.829.829.939N2.92.51.31.32.9median 24median 23.1median 17.6median 17.7median 24Delta42.81.71.64hearing rangehide median Fan NoiseAsus ZenBook 14 UM431DA-AM020T
Max. terhelés
 37 °C36.9 °C34.3 °C
 35.3 °C34.8 °C24.4 °C
 29.4 °C26.9 °C26.2 °C
Maximum: 37 °C
Átlag: 31.7 °C
32.6 °C34.7 °C36.3 °C
27.5 °C32.2 °C35 °C
26.6 °C28.5 °C30.5 °C
Maximum: 36.3 °C
Átlag: 31.5 °C
Tápegység (max.)  45 °C | Szobahőmérséklet 21.7 °C | FIRT 550-Pocket / Fluke t3000 FC
(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 37 °C / 99 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 36.3 °C / 97 F, compared to the average of 39.6 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.4 °C / 74 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.4 °C / 84.9 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (-0.9 °C / -1.6 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.733.733.72535.534.135.53130.830.930.84030.82930.85028.72928.76328.427.228.48031.326.431.310041.524.241.512547.124.547.116048.324.548.320045.822.545.82505321.75331561.820.261.840065.619.265.650065.318.565.363063.318.863.380065.11865.1100066.417.466.4125066.917.366.9160069.51769.5200068.917.168.9250063.716.963.7315060.117.260.140006017.460500057.717.657.7630057.517.757.5800054.217.854.2100005117.7511250051.617.551.61600053.917.553.9SPL76.729.976.7N37.31.337.3median 60median 17.7median 60Delta71.6735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAsus ZenBook 14 UM431DA-AM020TApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook 14 UM431DA-AM020T audio analysis

(-) | not very loud speakers (69.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11% lower than median
(±) | linearity of bass is average (14% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.4% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.9% difference to median)
Compared to same class
» 29% of all tested devices in this class were better, 7% similar, 64% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 19% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.32 / 0.36 Watt
Üresjáratdarkmidlight 3.6 / 7.2 / 10.8 Watt
Terhelés midlight 38 / 45.2 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, SK hynix BC501 HFM512GDHTNG-8310A, IPS, 1920x1080, 14
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10, SK Hynix BC501 HFM512GDJTNG, IPS, 1920x1080, 15.6
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10, WDC PC SN520 SDAPNUW-512G, IPS, 1920x1080, 15.6
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250, Kingston RBUSNS8154P3512GJ, IPS, 1920x1080, 14
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250, Toshiba XG6 KXG60ZNV1T02, IPS, 1920x1080, 14
Average AMD Radeon RX Vega 10

Average of class Subnotebook

Power Consumption
6%
6%
-16%
-21%
-1%
-20%
Idle Minimum *
3.6
4.2
-17%
4.2
-17%
4.2
-17%
4
-11%
4.57 (3.2 - 5.9, n=15)
-27%
6.42 (1 - 36, n=647)
-78%
Idle Average *
7.2
7.92
-10%
6.8
6%
5.9
18%
7
3%
7.51 (2.8 - 10.6, n=15)
-4%
9.62 (2.06 - 39, n=647)
-34%
Idle Maximum *
10.8
8.16
24%
7
35%
7.2
33%
10
7%
9.63 (7 - 12.9, n=15)
11%
11.9 (3.9 - 55, n=647)
-10%
Load Average *
38
29
24%
36.5
4%
63.4
-67%
62
-63%
33.5 (24.2 - 40.6, n=15)
12%
33.4 (6.3 - 75, n=637)
12%
Load Maximum *
45.2
42.2
7%
44
3%
67.4
-49%
64
-42%
44.8 (38.5 - 55.5, n=15)
1%
40.7 (7.6 - 111, n=640)
10%
Witcher 3 ultra *
37.9
53.5
58

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
17h 48min
NBC WiFi Websurfing Battery Test 1.3
6h 44min
Terhelés (maximális fényerő)
2h 05min
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, 47 Wh
Lenovo ThinkPad E595-20NF0000GE
R7 3700U, Vega 10, 45 Wh
Dell Inspiron 15 5000 5585
R7 3700U, Vega 10, 42 Wh
MSI Modern 14 A10RB-459US
i5-10210U, GeForce MX250, 50 Wh
HP Pavilion 14-ce3040ng
i7-1065G7, GeForce MX250, 41 Wh
Average of class Subnotebook

Battery Runtime
-8%
-17%
1%
-30%
-6%
Reader / Idle
1068
941
-12%
856
-20%
986
-8%
694
-35%
638 (87 - 2735, n=564)
-40%
WiFi v1.3
404
460
14%
421
4%
515
27%
368
-9%
495 (206 - 991, n=268)
23%
Load
125
92
-26%
81
-35%
105
-16%
69
-45%
123 (40 - 369, n=584)
-2%

Pro

+ lapos és könnyű
+ vonzó dizájn

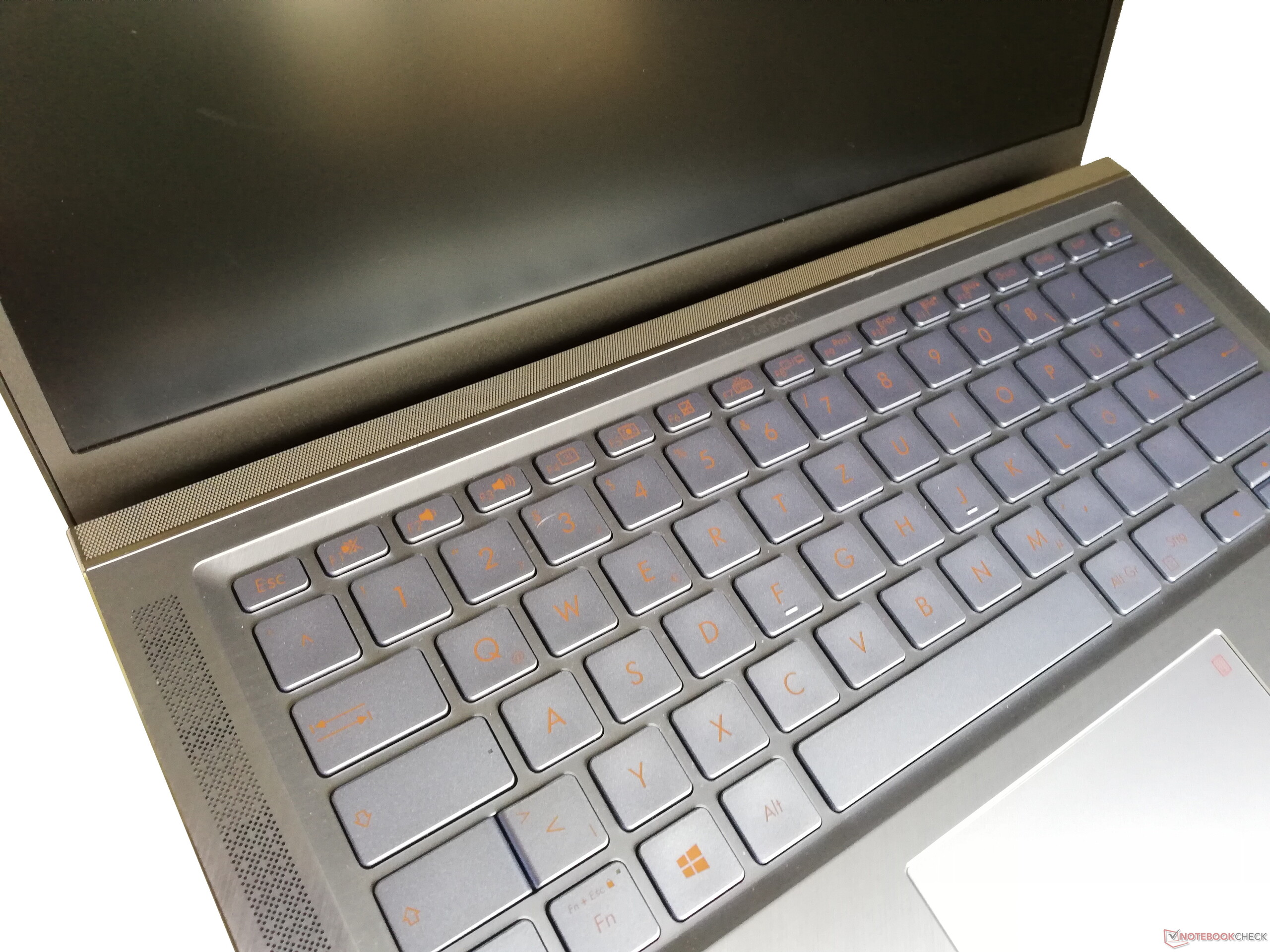

+ a számbillentyűzet a ClickPad-be épített

Kontra

- kevés karbantartási opció
- sima billentyű felszín
- mérsékelt CPU teljesítmény
- mérsékelt üzemidő

Összegzés - Tetszetős kialakítás lelassított CPU-val

Asus ZenBook 14 UM431DA laptop rövid értékelés. Test device provided by:
Asus ZenBook 14 UM431DA laptop rövid értékelés. Test device provided by:

Az Asus ZenBook 14 UM431DA-val a vásárló egy nagyszerű kialakítású, könnyen hordozható laptopot kap, aránylag alacsony áron. A ház nagyon jó minőségű, és különböző díszítő elemeknek köszönhetően még drágábbnak látszik. Mindemellett ott van a beépített számbillentyűzet funkciója, amely hasznos kiegészítésnek bizonyult a billentyűzet mellett. A port konfiguráció szolid, és bár a Wi-Fi 5 nem egy nagy előrelépés, a vezeték nélküli kapcsolatok mégis gyorsak és naprakészek.

A ZenBook 14 egy szolid laptop, tetszetős kivitelezéssel. Sajnos csak mérsékelten képes kihasználni a CPU-ját.

A leendő vásárlóknak viszont nem szükséges erre a Ryzen 7 3700U-val rendelkező modellre korlátozniuk magukat, hanem nyugodtan választhatják a következő gyengébb CPU-t. Mivel a hűtőrendszer csak rövid ideig képes fenntartani a maximális teljesítményt, a hosszú távú teljesítmény jóval az elvárásaink alatt marad. Mivel a memória nem bővíthető, a nagyságára is oda kell figyelni, amikor vásárláskor kiválasztunk egy megfelelő modellt. Akit elsősorban a dizájn és a puszta számok érdekelnek, és nem feltétlenül a valós teljesítmény, szintén nyugodt szívvel megveheti ezt a laptopot.

Asus ZenBook 14 UM431DA-AM020T - 02/11/2020 v7
Mike Wobker

Váz
80 / 98 → 82%
Billentyűzet
80%
Érintőpad
75%
Csatlakoztathatóság
41 / 75 → 55%
Súly
70 / 20-75 → 91%
Akkumulátor
73%
Kijelző
82%
Játékok alatti teljesítmény
57 / 78 → 73%
Alkalmazások alatti teljesítmény
76 / 85 → 89%
Hőmérséklet
95%
Zaj
96%
Audio
61 / 91 → 67%
Camera
40 / 85 → 47%
Átlag
71%
81%
Subnotebook - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Asus ZenBook 14 UM431DA laptop rövid értékelés: Ryzen-nel is meggyőző.
Mike Wobker, 2020-04-28 (Update: 2020-04-28)
