Lenovo Miix 510 Pro 80U10006GE Convertible Review

A Surface követője. Egy 2 az 1-ben notebookok, amely a MS Surface Pro 4-hez hasonlít, valószínűleg össze is fogják vele hasonlítani. A Lenovo átalakítható gépe jobb konnektivitást és SSD-t kínál, de a kijelző és a kamera gyengébben teljesít.
Sebastian Jentsch, Tanja Hinum (fordította Tamás Somogyi), 🇺🇸 🇩🇪 ...
Skylake Windows Touchscreen Convertible / 2-in-1
, , , , , ,
hasonló találatok
, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Lenovo Miix 510 Pro 80U10006GE (Miix 510 Széria)
Processzor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Grafikus adapter
Intel HD Graphics 520
Memória
8192 MB
, DDR4 Dual Channel
Kijelző
12.20 hüvelyk 16:10, 1920 x 1200 pixel 186 PPI, 10 ujjas multi-touch, native pen support, Unknown, IPS, fényes: igen
Alaplap
Intel Skylake-U Premium PCH
Háttértár
Samsung PM951 NVMe MZVLV256, 256 GB
, 185 GB ingyenes
Hangkártya
Intel Skylake-U/Y PCH - High Definition Audio
Csatlakozók
2 USB 3.0, Audió csatlakozók: kombinált audió ki- és bemenet, Brightness Sensor, Micro-SIM (LTE)
Hálózat
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
Méret
magasság x szélesség x mélység (mm-ben) 9.9 x 300 x 205
Akkumulátor
50 Wh Lítium-Polimer, Intel SR1 Real Battery, Akkumulátor üzemidő (gyártói adat): 8 h
Operációs rendszer
Microsoft Windows 10 Pro 64 Bit
Camera
Primary Camera: 2 MPix előoldali: fix fókusz
Secondary Camera: 5 MPix hátlapi: autófókusz
További jellegzetességek
Hangszórók: sztereó + Dolby Audio, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: nem, hálózati töltő 45W, Active Pen akkumulátorral, Active Pen tartó, védőtok, Lenovo ID, Always Online, App Explorer for FPC, CCSDK, WRITEit, PC Manager, Cloud Disk, Microsoft Office Desktop, Yandex, 12 Hónap Garancia
Súly
1.236 kg, Tápegység: 176 g
Ár
980 Euró
Hivatkozások
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

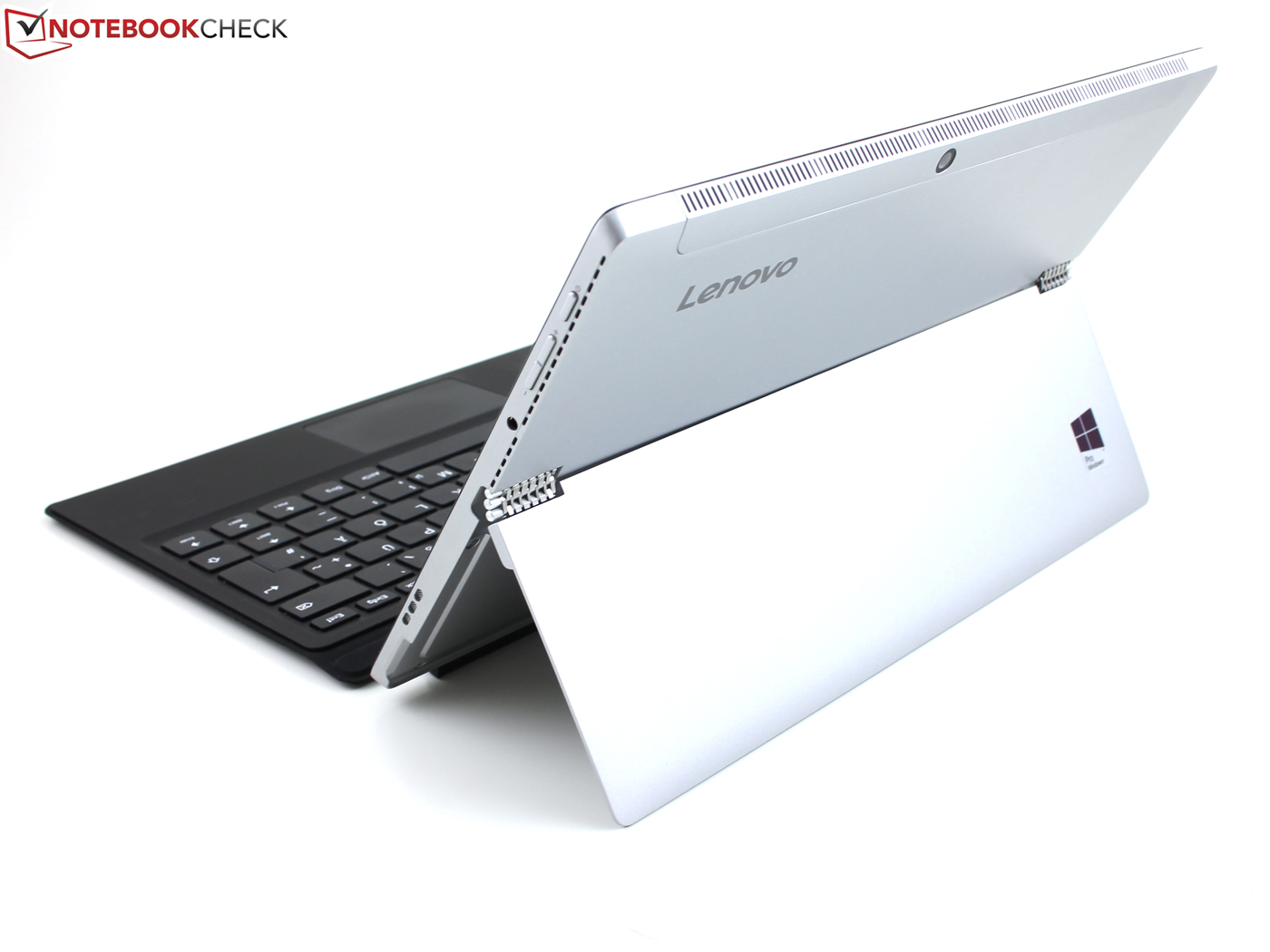

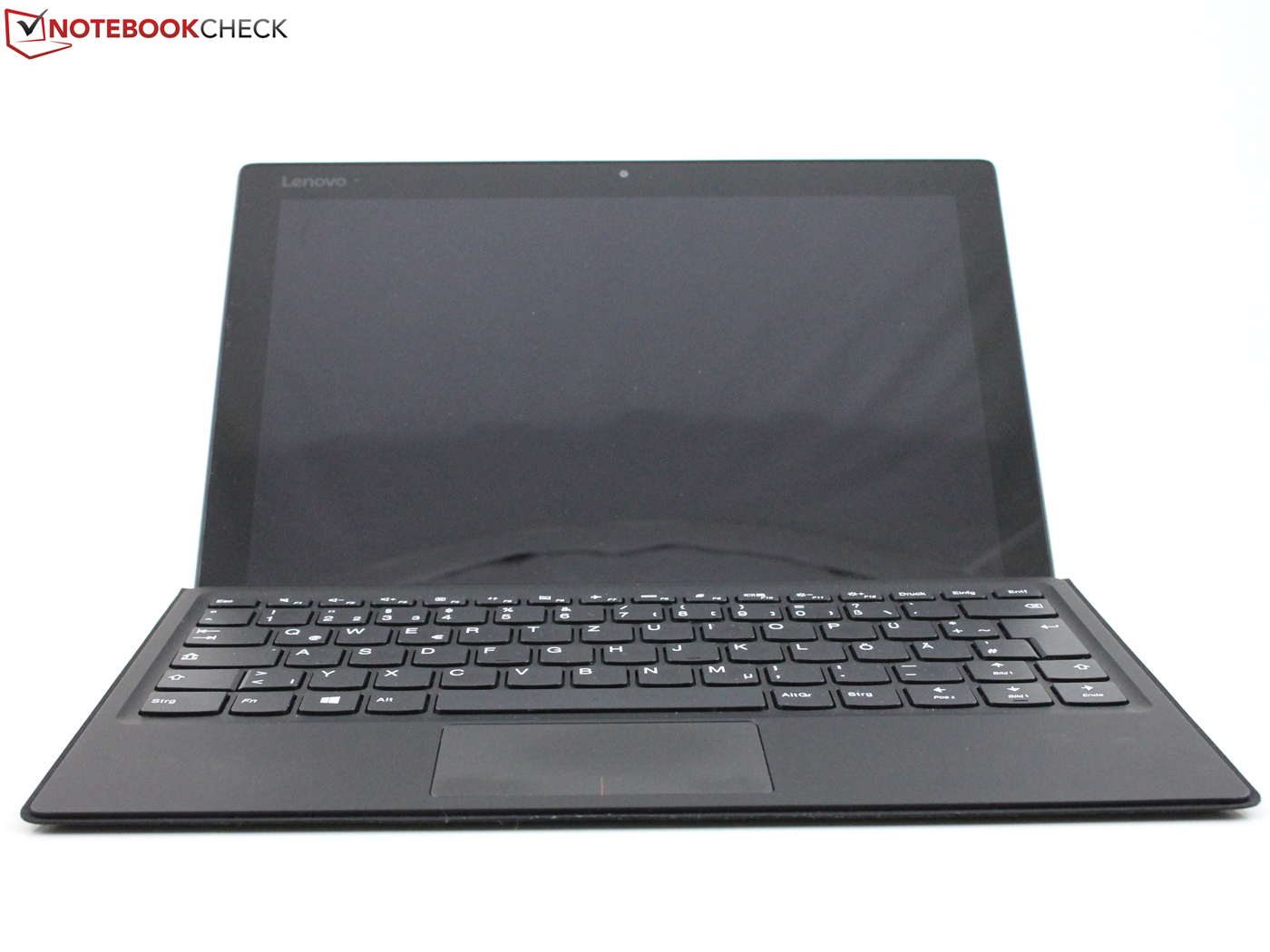

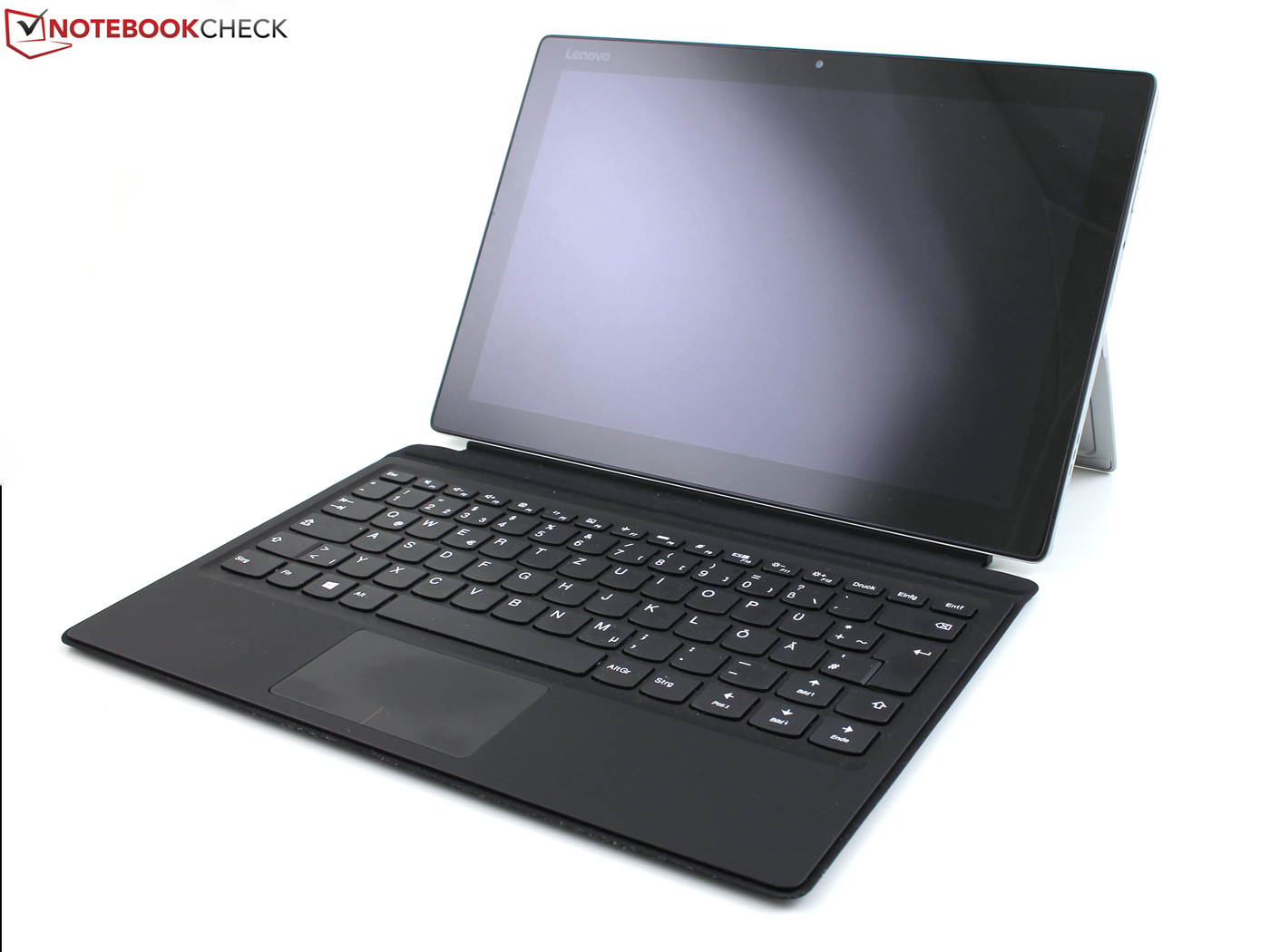

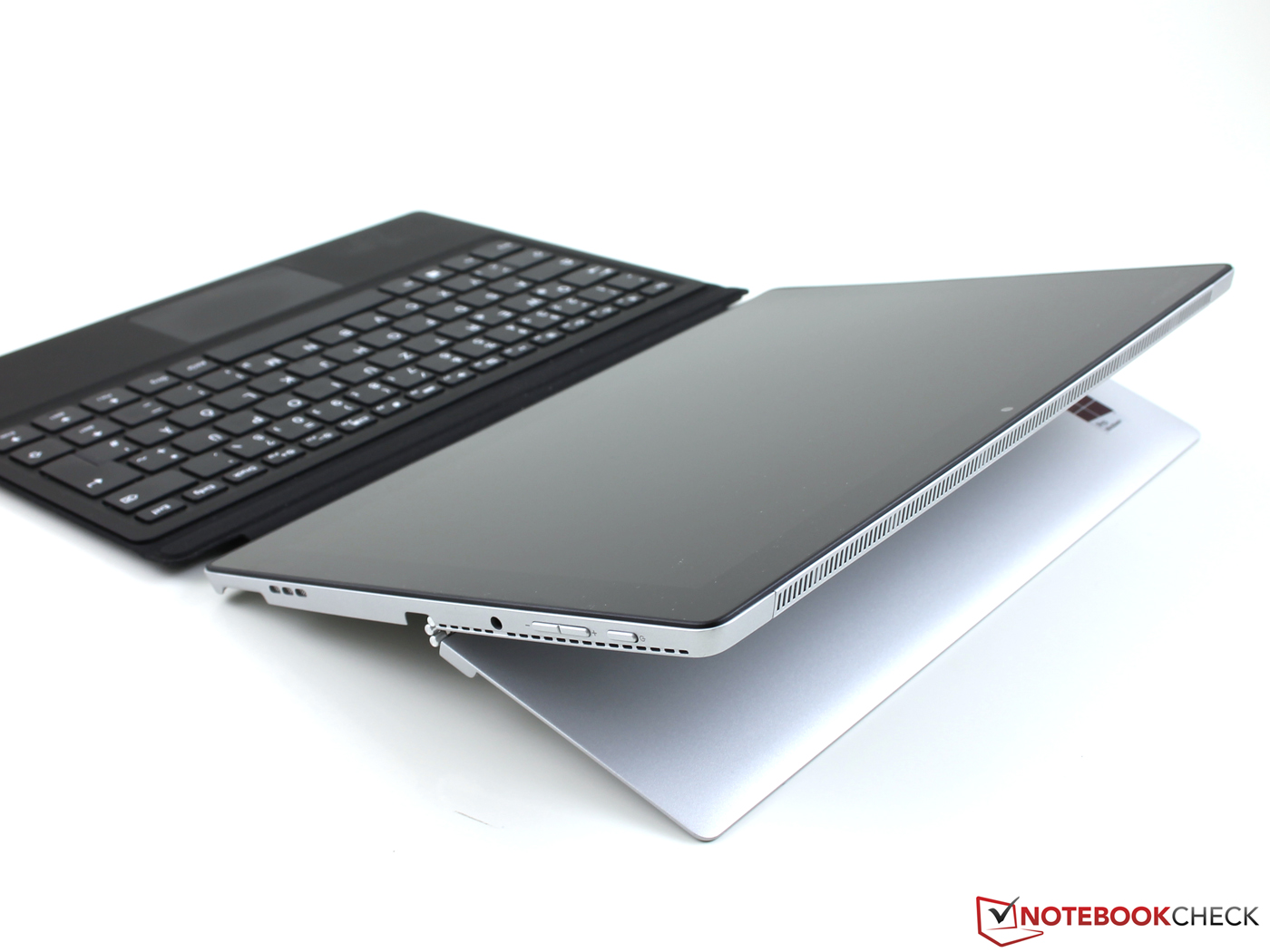

Lenovo IdeaPad Miix 510-12ISK sitting on the keyboard dock

Size Comparison

300 mm 205 mm 9.9 mm 1.2 kg300 mm 213.5 mm 8.05 mm 1.2 kg293 mm 224 mm 14.5 mm 1.1 kg291 mm 201 mm 11 mm 1.3 kg292.1 mm 201.4 mm 8.4 mm 1.1 kg278.8 mm 194.1 mm 6.9 mm 1.2 kg

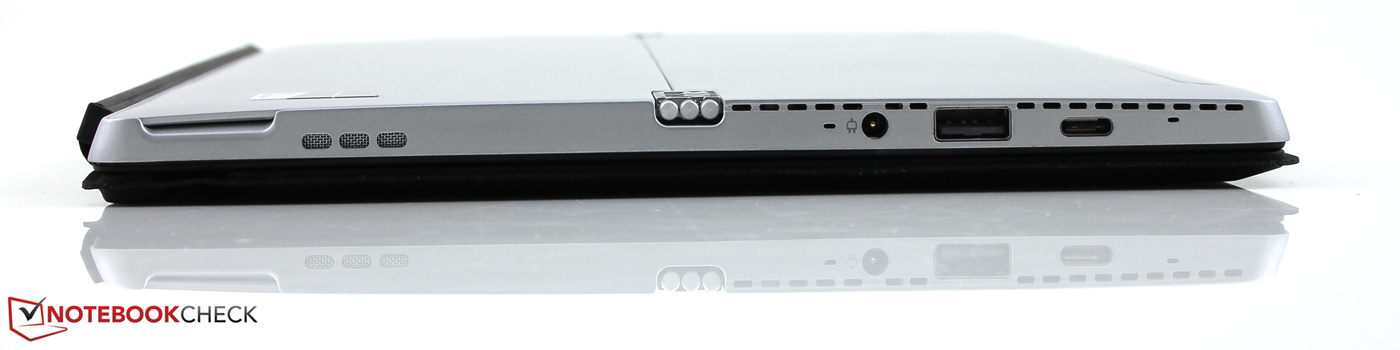

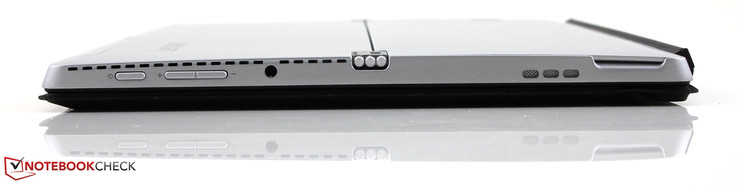

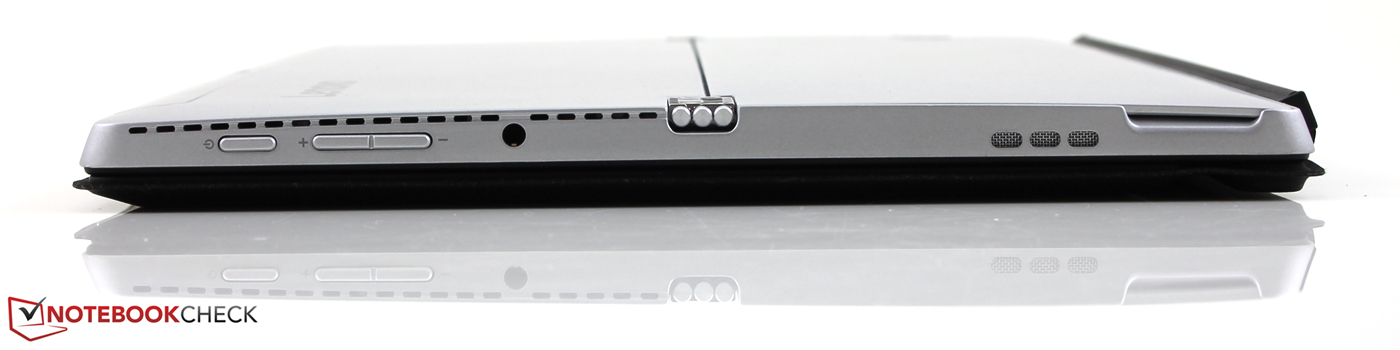

Power On/Off, volume, headphone jack
Power On/Off, volume, headphone jack
Power adapter, USB 3.0, USB 3.0 Type-C, right + left dual array microphone
Power adapter, USB 3.0, USB 3.0 Type-C, right + left dual array microphone
Networking
iperf Server (receive) TCP 1 m
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
638 MBit/s ∼100%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
579 MBit/s ∼91% -9%
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
534 MBit/s ∼84% -16%
Asus Zenbook UX360UA-C4159T
Intel Dual Band Wireless-AC 7265
505 MBit/s ∼79% -21%
iperf Client (transmit) TCP 1 m
Asus Zenbook UX360UA-C4159T
Intel Dual Band Wireless-AC 7265
526 MBit/s ∼100% +5%
Lenovo Miix 510 Pro 80U10006GE
Intel Dual Band Wireless-AC 8260 (jseb)
500 MBit/s ∼95%
Dell XPS 13 2016 9350 (FHD, i7-6560U)
Dell Wireless 1820A 802.11ac
461 MBit/s ∼88% -8%
Huawei MateBook m5-6Y54
Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)
453 MBit/s ∼86% -9%
331
cd/m²
343
cd/m²
333
cd/m²
323
cd/m²
327
cd/m²
319
cd/m²
315
cd/m²
323
cd/m²
303
cd/m²
Fényerő megoszlás
Unknown
X-Rite i1Pro 2
Maximum: 343 cd/m² Átlag: 324.1 cd/m² Minimum: 2.7 cd/m²
Fényerő megoszlás: 88 %
Centrumban: 327 cd/m²
Kontraszt: 934:1 (Fekete: 0.35 cd/m²)
ΔE Color 6.54 | 0.59-29.43 Ø5.6
ΔE Greyscale 9.52 | 0.64-98 Ø5.8
92% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
65.49% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.99% sRGB (Argyll 2.2.0 3D)
64.48% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
Lenovo Miix 510 Pro 80U10006GE
Unknown, , 1920x1200, 12.20
Microsoft Surface Pro 4, Core i5, 128GB
Samsung 123YL01-001 ID: SDC3853, , 2736x1824, 12.30
HP Elite x2 1012 G1
LG Philips, , 1920x1280, 12.10
Acer Aspire Switch Alpha 12 SA5-271-56HM
Panasonic VVX12T041N00, , 2160x1440, 12.00
Lenovo IdeaPad Miix 700
Samsung L_QLLTN120QL01L01, , 2160x1440, 12.00
Huawei MateBook m5-6Y54
TMA 1200 Unknown Vendor, , 2160x1440, 12.00
Display
3%
-18%
3%
6%
3%
Display P3 Coverage
64.48
65.03
1%
53.81
-17%
65.51
2%
68.1
6%
65.75
2%
sRGB Coverage
91.99
96.54
5%
73.71
-20%
96.05
4%
97.42
6%
96.15
5%
AdobeRGB 1998 Coverage
65.49
66.98
2%
53.76
-18%
66.9
2%
70.24
7%
66.82
2%
Response Times
-45%
0%
230%
33%
25%
Response Time Grey 50% / Grey 80% *
33 (21, 12)
46 (17.2, 28.8, plateau, spikes in between)
-39%
33.2 (15.2, 18)
-1%
20 (5, 15, detail 5 schraffiert)
39%
30 (11, 19)
9%
25 (9, 16)
24%
Response Time Black / White *
23 (10, 13)
31.2 (6, 25.2, Spikes in between)
-36%
22.8 (10.4, 12.4)
1%
34 (15, 19, [email protected]% mit/ohne PSU)
-48%
16 (4.4, 11.6)
30%
17 (4, 13)
26%
PWM Frequency
125 (90)
50 (50)
-60%
1000 (100)
700%
200 (18)
60%
Screen
21%
1%
6%
4%
4%
Brightness middle
327
413
26%
322
-2%
345
6%
341
4%
451
38%
Brightness
324
396
22%
319
-2%
328
1%
318
-2%
425
31%
Brightness Distribution
88
87
-1%
97
10%
91
3%
87
-1%
80
-9%
Black Level *
0.35
0.36
-3%
0.42
-20%
0.38
-9%
0.36
-3%
0.37
-6%
Contrast
934
1147
23%
767
-18%
908
-3%
947
1%
1219
31%
Colorchecker DeltaE2000 *
6.54
3.09
53%
6.02
8%
8.4
-28%
6
8%
11.04
-69%
Colorchecker DeltaE2000 max. *
15.59
10.06
35%
11.9
24%
14.92
4%
Greyscale DeltaE2000 *
9.52
3.92
59%
6.29
34%
4.3
55%
8.12
15%
10.45
-10%
Gamma
2.35 94%
2.3 96%
2.4 92%
2.63 84%
2.23 99%
2 110%
CCT
8802 74%
7333 89%
7712 84%
7368 88%
7011 93%
8849 73%
Color Space (Percent of AdobeRGB 1998)
59
61
3%
47.8
-19%
62
5%
63.4
7%
74
25%
Color Space (Percent of sRGB)
92
97
5%
73.2
-20%
97.4
6%
100
9%
Total Average (Program / Settings)
-7% / 4%
-6% / -3%
80% / 50%
14% / 10%
11% / 7%

* ... smaller is better

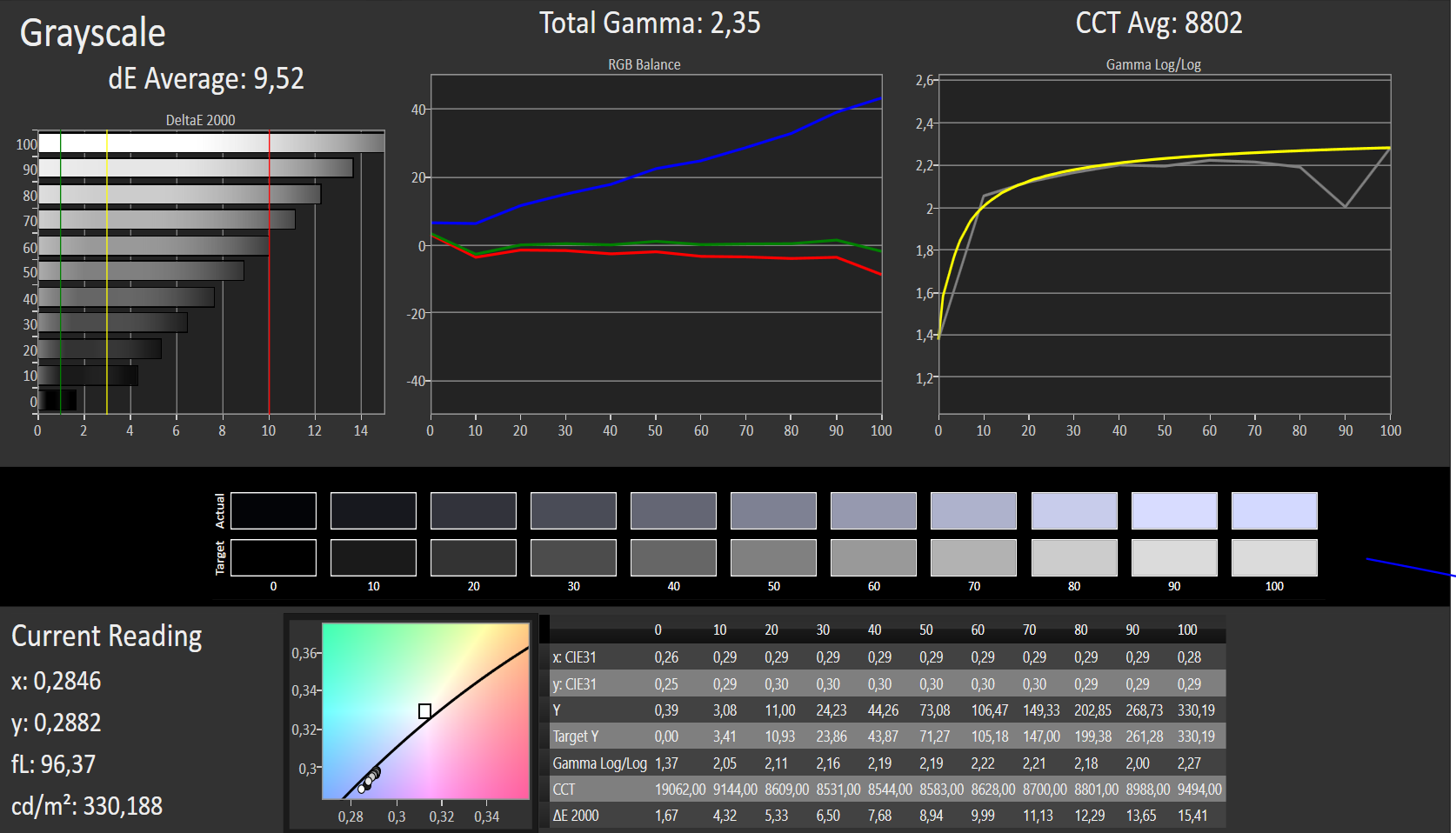

CalMAN Graylevels
CalMAN Graylevels

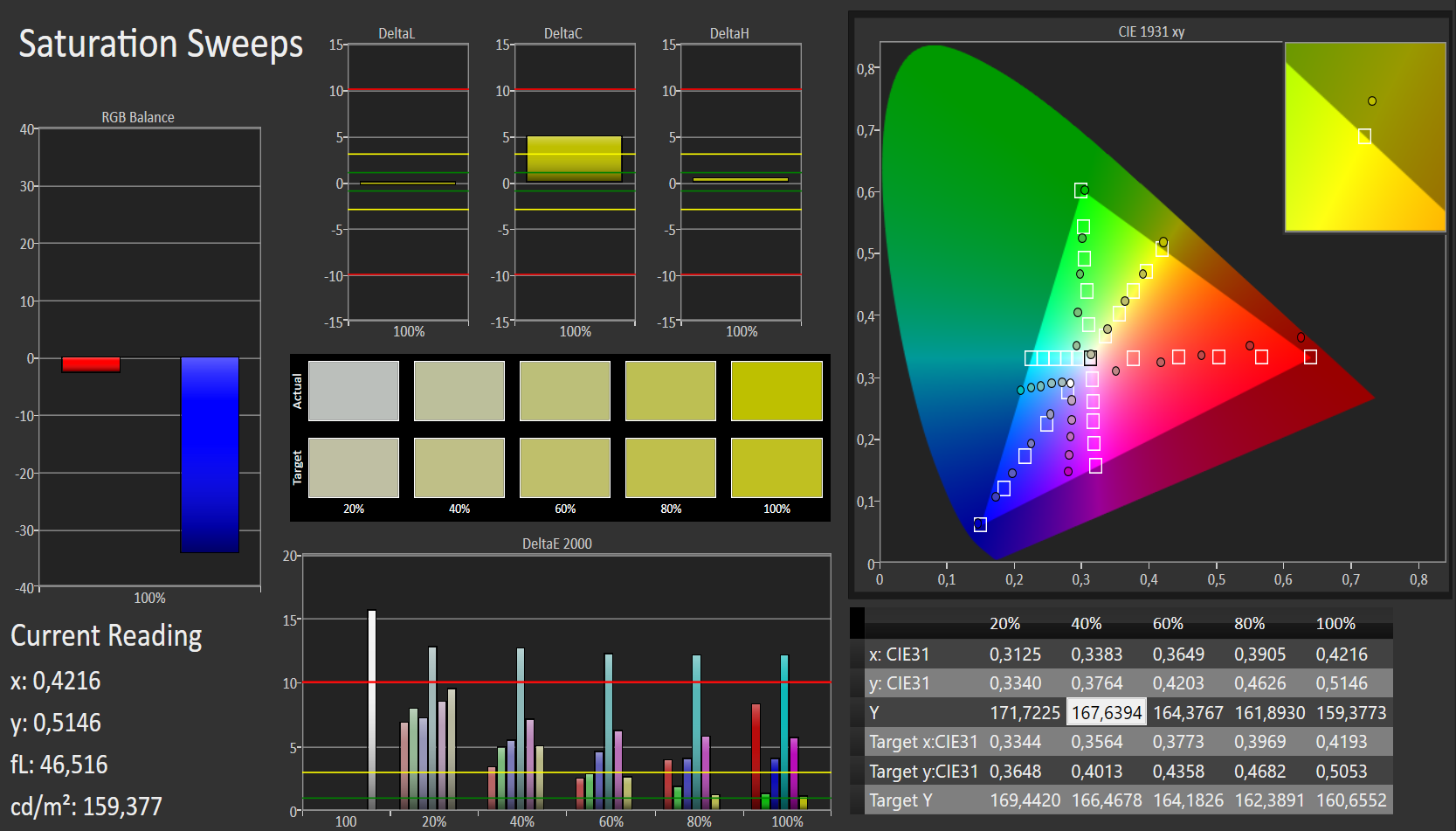

CalMAN Saturation
CalMAN Saturation

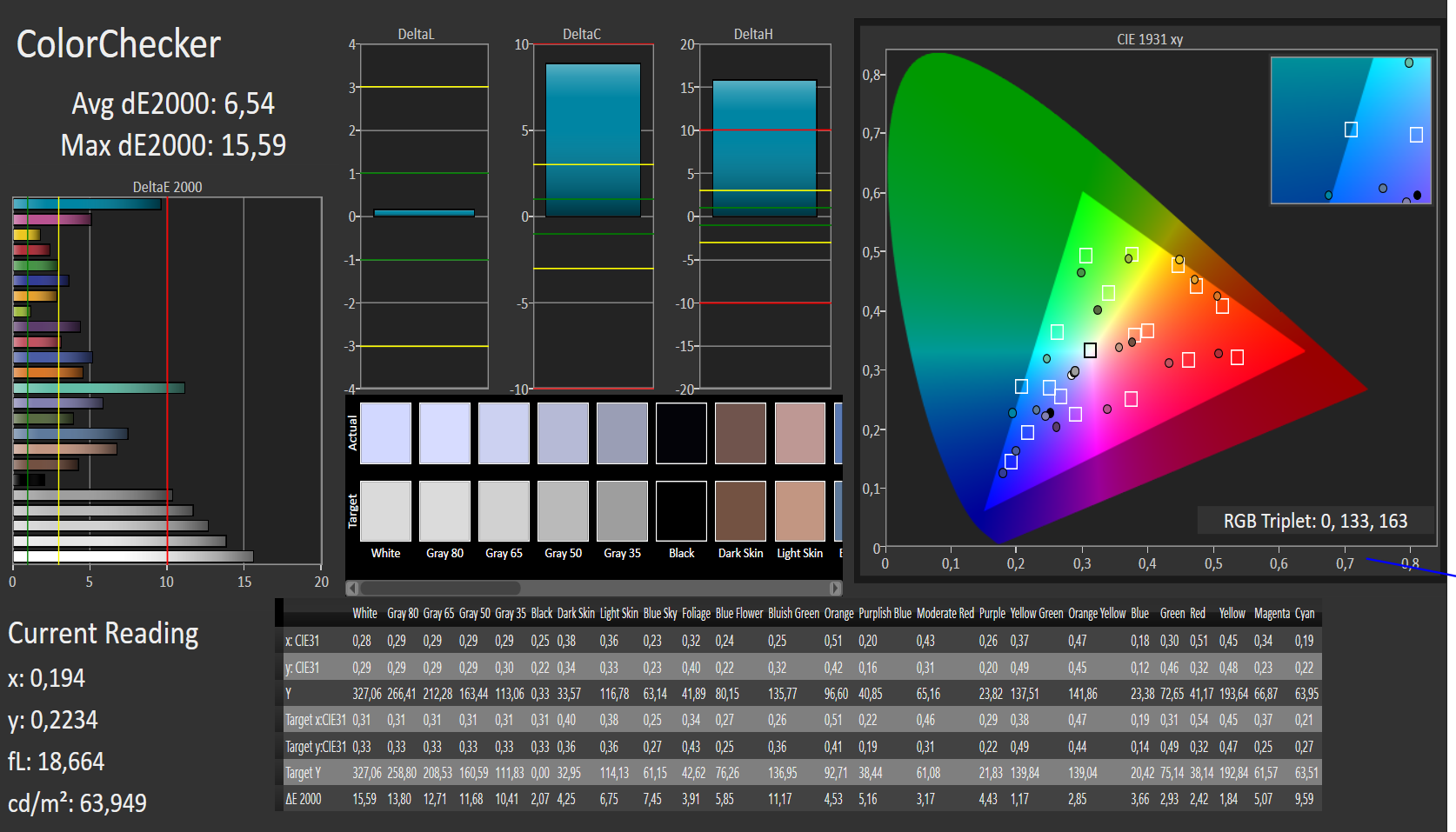

CalMAN ColorChecker
CalMAN ColorChecker

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

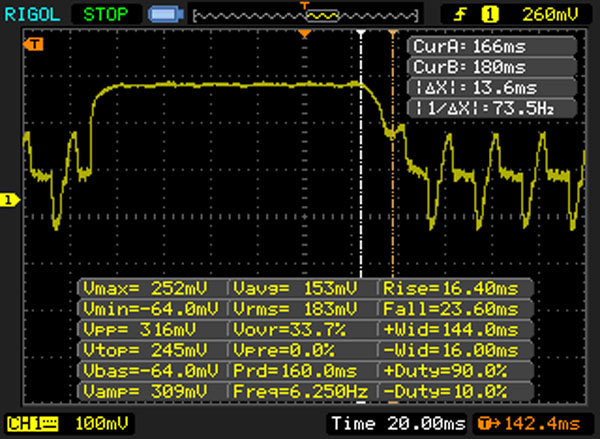

       Response Time Black to White
23 ms ... rise ↗ and fall ↘ combined↗ 10 ms rise
↘ 13 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.1 ms).
       Response Time 50% Grey to 80% Grey
33 ms ... rise ↗ and fall ↘ combined↗ 21 ms rise
↘ 12 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 27 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (38.3 ms).

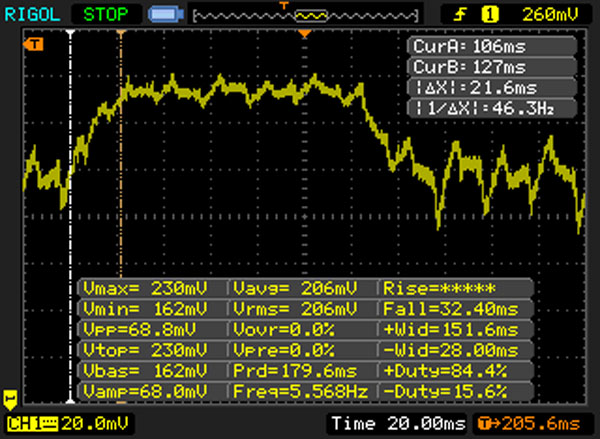

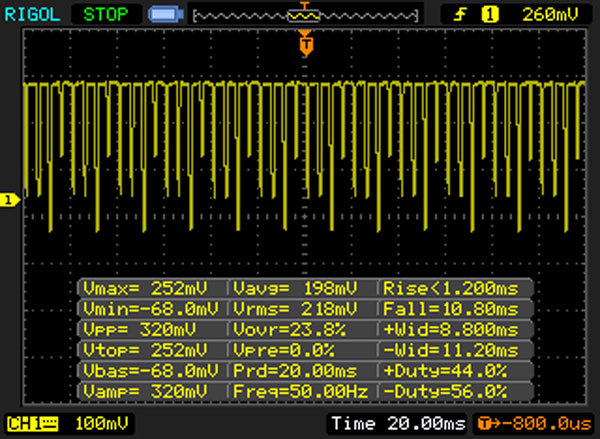

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 125 Hz ≤ 90 % brightness setting

The display backlight flickers at 125 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 125 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9689 (minimum: 5 - maximum: 151500) Hz was measured.

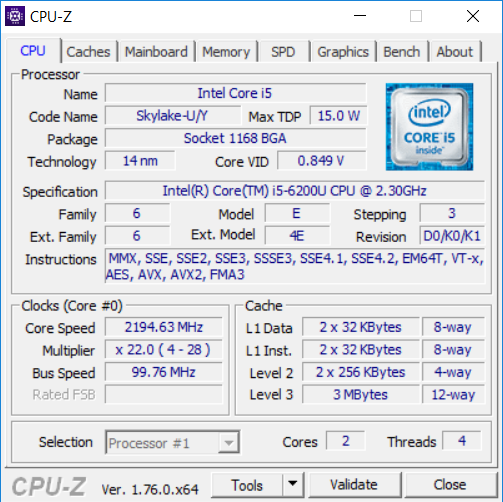

Systeminfo: CPU-Z CPU

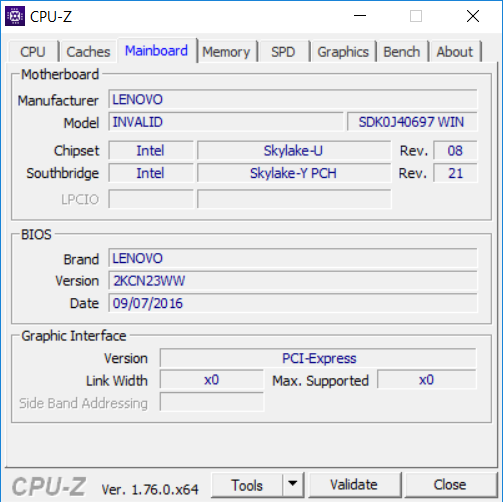

Systeminfo: CPU-Z Mainboard

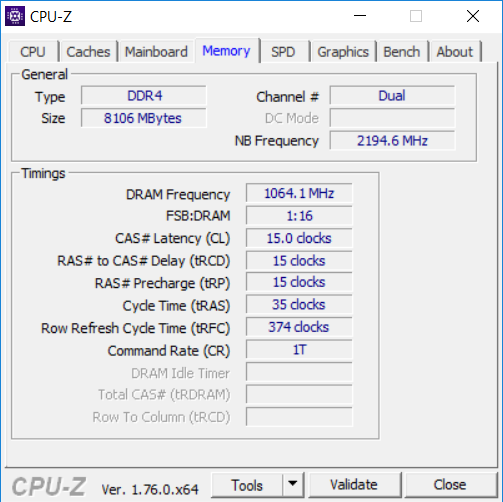

Systeminfo: CPU-Z Memory

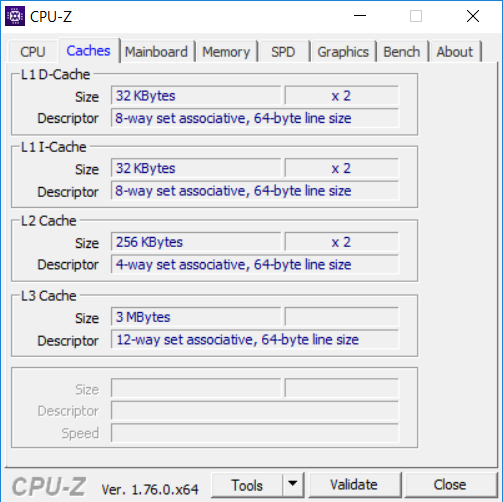

Systeminfo: CPU-Z Cache

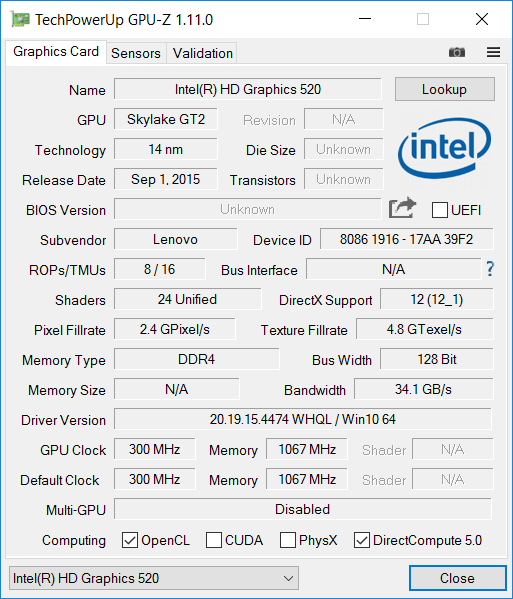

Systeminfo: GPU-Z HD 520

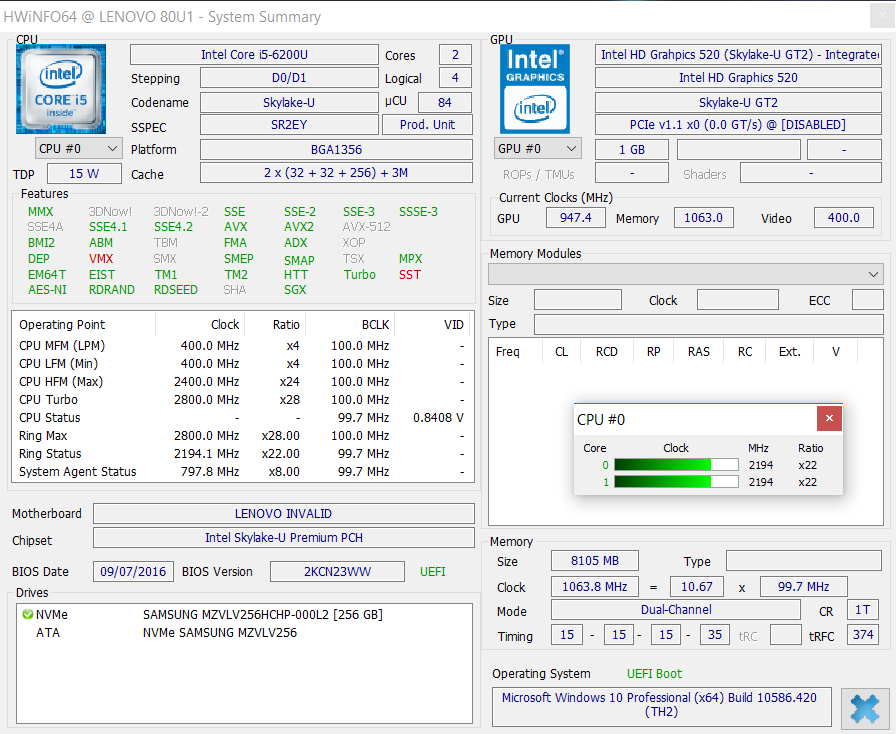

Systeminfo: HWinfo

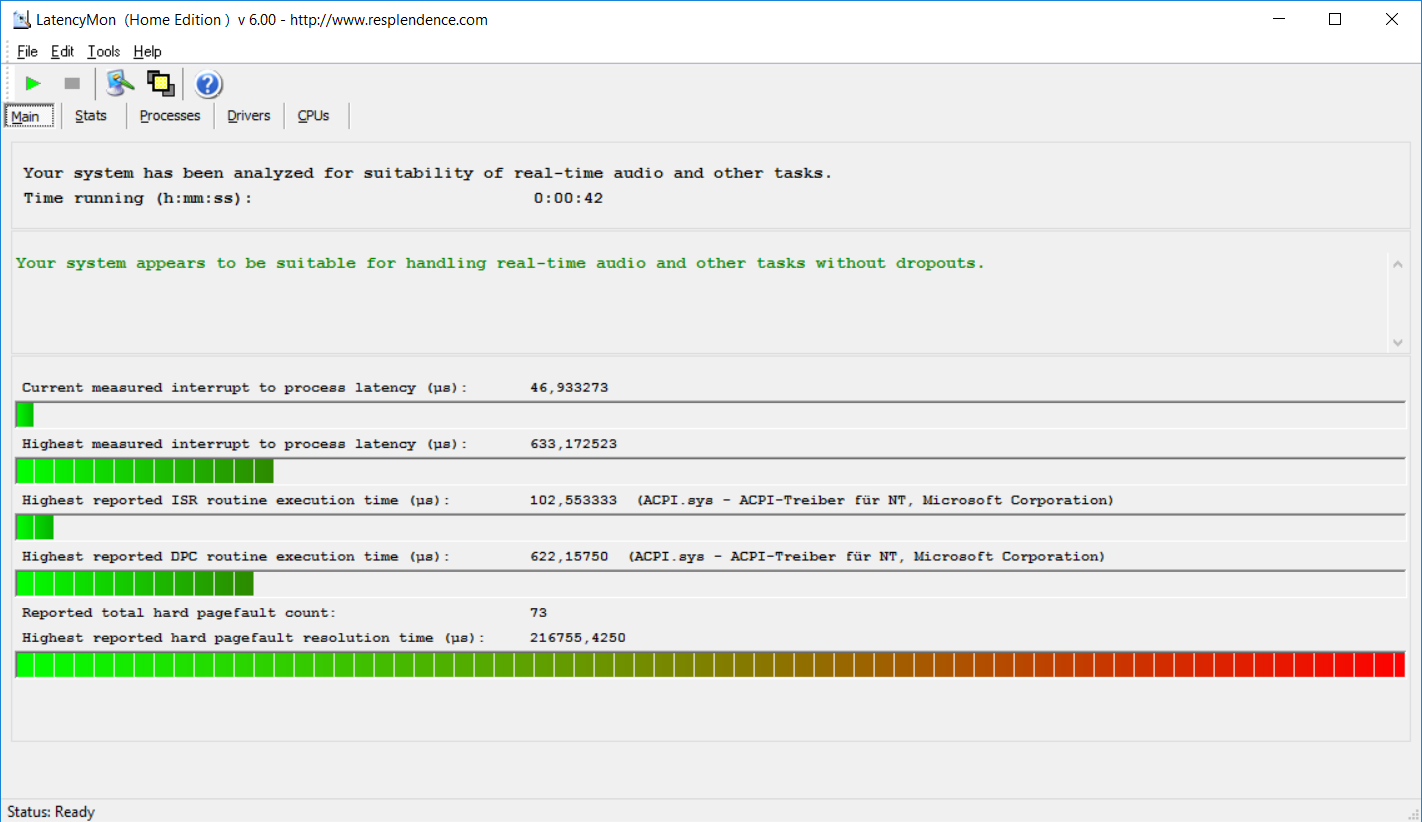

Latency Monitor
Cinebench R15
CPU Single 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
Intel Core i5-6300U
122 Points ∼45% +5%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
116 Points ∼43%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
114 Points ∼42% -2%
HP Elite x2 1012 G1
Intel Core m5-6Y54
111 Points ∼41% -4%
Acer Spin 7 SP714-51-M09D
Intel Core i5-7Y54
111 Points ∼41% -4%
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
107 Points ∼39% -8%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
99 Points ∼36% -15%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
88 Points ∼32% -24%
CPU Multi 64Bit
Microsoft Surface Pro 4, Core i5, 128GB
Intel Core i5-6300U
306 Points ∼7% +24%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel Core i5-6200U
289 Points ∼6% +17%
HP Elite x2 1012 G1
Intel Core m5-6Y54
255 Points ∼6% +4%
Lenovo Miix 510 Pro 80U10006GE
Intel Core i5-6200U
246 Points ∼5%
Huawei MateBook m5-6Y54
Intel Core m5-6Y54
232 Points ∼5% -6%
Microsoft Surface Pro 4, Core m3
Intel Core m3-6Y30
206 Points ∼5% -16%
Acer Spin 7 SP714-51-M09D
Intel Core i5-7Y54
205 Points ∼5% -17%
Lenovo IdeaPad Miix 700
Intel Core m5-6Y54
200 Points ∼4% -19%
Cinebench R15 CPU Single 64Bit
116 Points
Cinebench R15 CPU Multi 64Bit
246 Points
Cinebench R15 OpenGL 64Bit
39.88 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Segítség
PCMark 8
Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points ∼52% +1%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
3264 Points ∼52%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points ∼48% -9%
Acer Spin 7 SP714-51-M09D
HD Graphics 615, i5-7Y54, Kingston RBUSNS4180S3256GG
2979 Points ∼47% -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points ∼44% -15%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points ∼44% -16%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2717 Points ∼43% -17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼39% -26%
Work Score Accelerated v2
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
4197 Points ∼61%
Acer Spin 7 SP714-51-M09D
HD Graphics 615, i5-7Y54, Kingston RBUSNS4180S3256GG
4076 Points ∼60% -3%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3996 Points ∼59% -5%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3932 Points ∼58% -6%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3837 Points ∼56% -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points ∼54% -12%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points ∼47% -24%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
2721 Points ∼40% -35%
PCMark 8 Home Score Accelerated v2
3264 pontok
PCMark 8 Work Score Accelerated v2
4197 pontok
Segítség
Lenovo Miix 510 Pro 80U10006GE
Samsung PM951 NVMe MZVLV256
Microsoft Surface Pro 4, Core i5, 128GB
Samsung MZFLV128 NVMe
HP Elite x2 1012 G1
Liteon L8H-256V2G
Acer Aspire Switch Alpha 12 SA5-271-56HM
Kingston RBU-SNS8152S3256GG2
Lenovo IdeaPad Miix 700
Samsung MZNLN128HCGR-000L2
Huawei MateBook m5-6Y54
SanDisk SD8SN8U256G1027
CrystalDiskMark 3.0
-39%
-27%
-38%
-36%
-25%
Read Seq
1271
666
-48%
500.5
-61%
518.1
-59%
497.9
-61%
512.3
-60%
Write Seq
305.4
154.2
-50%
297.2
-3%
199.9
-35%
153.5
-50%
462.1
51%
Read 512
650.7
266.3
-59%
351.7
-46%
374.9
-42%
401.2
-38%
376
-42%
Write 512
305.2
154.2
-49%
295.7
-3%
201
-34%
154.5
-49%
295.2
-3%
Read 4k
41.07
28.51
-31%
28.31
-31%
29.3
-29%
36.2
-12%
31.83
-22%
Write 4k
122.7
101.5
-17%
90.27
-26%
76.83
-37%
95.48
-22%
64.47
-47%
Read 4k QD32
411.2
368.3
-10%
285
-31%
272
-34%
389.5
-5%
269.6
-34%
Write 4k QD32
305.1
153.6
-50%
268.4
-12%
197.1
-35%
154
-50%
178.2
-42%
Samsung PM951 NVMe MZVLV256
Sequential Read: 1271 MB/s
Sequential Write: 305.4 MB/s
512K Read: 650.7 MB/s
512K Write: 305.2 MB/s
4K Read: 41.07 MB/s
4K Write: 122.7 MB/s
4K QD32 Read: 411.2 MB/s
4K QD32 Write: 305.1 MB/s
3DMark 11 - 1280x720 Performance GPU
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
1428 Points ∼2% +9%
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
1402 Points ∼2% +7%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
1306 Points ∼2%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
1200 Points ∼2% -8%
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
1014 Points ∼2% -22%
Huawei MateBook m5-6Y54
Intel HD Graphics 515, Intel Core m5-6Y54
781 Points ∼1% -40%
3DMark
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
7455 Points ∼4% +19%
Acer Aspire Switch Alpha 12 SA5-271-56HM
Intel HD Graphics 520, Intel Core i5-6200U
7307 Points ∼4% +17%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
6308 Points ∼3% +1%
Lenovo Miix 510 Pro 80U10006GE
Intel HD Graphics 520, Intel Core i5-6200U
6271 Points ∼3%
Huawei MateBook m5-6Y54
Intel HD Graphics 515, Intel Core m5-6Y54
5638 Points ∼3% -10%
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
5259 Points ∼3% -16%
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 4, Core i5, 128GB
Intel HD Graphics 520, Intel Core i5-6300U
905 Points ∼2%
HP Elite x2 1012 G1
Intel HD Graphics 515, Intel Core m5-6Y54
797 Points ∼2%
Lenovo IdeaPad Miix 700
Intel HD Graphics 515, Intel Core m5-6Y54
697 Points ∼1%
3DMark 11 Performance
1428 pontok
3DMark Cloud Gate Standard Score
4755 pontok
Segítség
BioShock Infinite - 1280x720 Very Low Preset
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
58.1 fps ∼100% +25%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
54.4 fps ∼94% +17%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
52.42 fps ∼90% +13%
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
46.3 fps ∼80%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
44.1 fps ∼76% -5%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
33.1 fps ∼57% -29%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
26.5 fps ∼46% -43%
Thief - 1024x768 Very Low Preset
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
18.2 fps ∼100%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
13.9 fps ∼76% -24%
Rise of the Tomb Raider - 1024x768 Lowest Preset
Lenovo Miix 510 Pro 80U10006GE
HD Graphics 520, 6200U, Samsung PM951 NVMe MZVLV256
17.4 fps ∼100%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
17 fps ∼98% -2%
Huawei MateBook m5-6Y54
HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027
7.3 fps ∼42% -58%
alacsony közepes magas ultra
BioShock Infinite (2013) 46.3 24.9 fps
Thief (2014) 18.2 11.2 fps
Rise of the Tomb Raider (2016) 17.4 9.2 fps

Zajszint

Üresjárat
30.15 / 30.8 / 31 dB(A)
Terhelés
36.8 / 33.8 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 30.15 dB(A)
Üresjárat
 26.3 °C27.6 °C27.2 °C
 26.8 °C27.3 °C27.5 °C
 36.8 °C33.8 °C35.4 °C
Maximum: 36.8 °C
Átlag: 29.9 °C
25.1 °C26.1 °C25 °C
25.4 °C26.2 °C25.5 °C
25.1 °C25.7 °C25.5 °C
Maximum: 26.2 °C
Átlag: 25.5 °C
Tápegység (max.)  32.5 °C | Szobahőmérséklet 20.6 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 35.8 °C / 96 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.5 °C / 103 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.9 °C / 86 F, compared to the device average of 30.3 °C / 87 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 40.2 °C / 104.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.6 °C / 83.5 F (-11.6 °C / -20.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.332.831.32529.532.529.53130.136.930.14028.329.928.35026.631.226.66326.826.326.88026.726.326.710026.526.626.51252824.72816031.224.131.220032.622.232.62503021.53031537.120.737.140053.22053.250053.819.253.863056.618.556.6800541854100056.71856.7125059.517.559.5160060.317.260.3200053.917.553.9250055.917.455.9315063.217.663.2400060.617.860.650006117.861630050.117.950.1800050.117.950.11000055.917.855.91250053.417.753.41600040.722.140.7SPL70.430.270.4N25.31.425.3median 53.8median 18median 53.8Delta8.32.28.331.331.733.430.429.528.926.227.234.531.237.939.536.646.749.358.665.465.259.863.261.764.464.862.763.767.274.668.855.446.97868.73921.8median 59.810.837.536.637.239.838.639.136.936.639.536.941.746.752.756.261.666.366.164.862.46763.861.562.653.944.646.245.350.355.954.3median 54.38.633.532.233.53231.73235.131.835.131.631.431.632.430.432.430.326.830.328.526.828.529.526.129.533.52633.536253638.224.338.238.922.738.947.22247.25621.35652.520.652.561.419.661.46819.16865.118.865.158.918.658.963.718.863.762.618.362.663.418.663.466.218.666.265.118.765.158.318.858.355.918.955.956.719.156.750.81950.844.818.844.836.318.736.374.931.274.9331.633median 56median 19median 5610.41.310.4hearing rangehide median Pink NoiseLenovo Miix 510 Pro 80U10006GEAcer Aspire Switch Alpha 12 SA5-271-56HMLenovo IdeaPad Miix 700Huawei MateBook m5-6Y54
Lenovo Miix 510 Pro 80U10006GE audio analysis

(-) | not very loud speakers (62 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (12.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.8% difference to median)
Compared to same class
» 73% of all tested devices in this class were better, 6% similar, 21% worse
» The best had a delta of 9%, average was 21%, worst was 53%
Compared to all devices tested
» 74% of all tested devices were better, 6% similar, 20% worse
» The best had a delta of 3%, average was 21%, worst was 65%

<<
Huawei MateBook m5-6Y54 audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.8% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (14.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (7.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.5% difference to median)
Compared to same class
» 80% of all tested devices in this class were better, 4% similar, 17% worse
» The best had a delta of 9%, average was 21%, worst was 53%
Compared to all devices tested
» 81% of all tested devices were better, 4% similar, 14% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.33 / 0.6 Watt
Üresjáratdarkmidlight 4.2 / 11.5 / 11.7 Watt
Terhelés midlight 31 / 27.4 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, Samsung PM951 NVMe MZVLV256, IPS, 1920x1200, 12.20
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520, Samsung MZFLV128 NVMe, IPS, 2736x1824, 12.30
HP Elite x2 1012 G1
6Y54, HD Graphics 515, Liteon L8H-256V2G, IPS, 1920x1280, 12.10
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, Kingston RBU-SNS8152S3256GG2, IPS, 2160x1440, 12.00
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, SanDisk SD8SN8U256G1027, IPS, 2160x1440, 12.00
Power Consumption
18%
18%
-7%
0%
Idle Minimum *
4.2
4.4
-5%
3.7
12%
7.3
-74%
7.4
-76%
Idle Average *
11.5
9
22%
6.8
41%
10
13%
11.6
-1%
Idle Maximum *
11.7
10.7
9%
7.6
35%
10.15
13%
11.6
1%
Load Average *
31
19.6
37%
22.5
27%
25.2
19%
16.8
46%
Load Maximum *
27.4
19.9
27%
34.5
-26%
29.3
-7%
19.1
30%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
11h 36min
NBC WiFi Websurfing Battery Test 1.3
5h 22min
Terhelés (maximális fényerő)
1h 51min
Lenovo Miix 510 Pro 80U10006GE
6200U, HD Graphics 520, 50 Wh
Microsoft Surface Pro 4, Core i5, 128GB
6300U, HD Graphics 520, 38 Wh
HP Elite x2 1012 G1
6Y54, HD Graphics 515, 37 Wh
Acer Aspire Switch Alpha 12 SA5-271-56HM
6200U, HD Graphics 520, 37 Wh
Lenovo IdeaPad Miix 700
6Y54, HD Graphics 515, 41 Wh
Huawei MateBook m5-6Y54
6Y54, HD Graphics 515, 33 Wh
Battery Runtime
21%
20%
-2%
34%
-18%
Reader / Idle
696
899
29%
732
5%
640
-8%
861
24%
478
-31%
WiFi v1.3
322
427
33%
443
38%
321
0%
440
37%
263
-18%
Load
111
111
0%
130
17%
112
1%
157
41%
106
-5%
H.264
432
468
450

Pro

+ jó billentyűzet
+ Type-A és Type-C USB
+ szívós, jól összerakott
+ LTE lehetősége
+ használható fő kamera
+ jó mikrofon

Kontra

- nem túl élénk színű kijelző
- PWM 90%-os és az alatti fényerőn
- ventilátor mindig megy alapjáraton is / amikor hálózatról használjuk
- nincs monitor kivezetés
- közepes webkamera
- nem túl jó üzemidő
In review: Lenovo Miix 510 Pro 80U10006GE. Test model courtesy of campuspoint
In review: Lenovo Miix 510 Pro 80U10006GE. Test model courtesy of campuspoint

Méltó ellenfele-e a Lenovo Miix 510 Pro a Surface Pro 4-nek? Igen, néhány hiányossággal, ugyanis a 2-in-1 nem teljesít ugyanolyan jól, mint a Microsoft terméke. A Miixnek ugyanis hosszabb üzemidőre, jobb fő kamerára és élénkebb színű kijelzőre volna szüksége ahhoz, hogy jobb pontszámot kapjon.

Értékeljük a jó összeszerelést és a billentyűzetet, de kevésbé vagyunk lenyűgözve a kis méretű clickpadtól. Az alkalmazások futtatása remekül megy, még úgy is, hogy a CPU csak az alap frekvencián üzemelt a benchmark tesztek alatt. A billentyűzetnek, jó mikrofonnak és a fizikai portoknak ( USB-A és C) köszönhetően a Miix 510 majdnem ideális, és igen kényelmes társ kommunikációra és munkára. Örültünk volna egy monitor kivezetésnek az egységen, mert jelenleg a felhasználónak egy USB dokkolót kell vásárolnia.

A Lenovo több konfigurációban kínálja a Miix 510-et, így a felhasználók kiválaszthatják a nekik megfelelő belépő szintű, vagy akár csúcsmodell verziót. Az Acer hasonló megközelítéssel élt a Switch 12 Alpha-nál, amely 650 és 1200 euró (~$720 és ~$1330) közötti áron elérhető.

Az Aspire Switch Alpha 12 valós alternatíva - főleg, ha a magasabb felbontású kijelző fontos.Az LTE ugyan kimaradt, viszont az Acer egy 512 GB SSD-t kínál. Csak néhány modell mellé adnak tollat, erre célszerű odafigyelni. A billentyűzet dokkolója alap tartozék.

Microsoft Surface Pro 4, Type Cover-rel és 256 GB-tal 1300 euróba (~$1440) kerül. A Core i5 6300U hasonló teljesítményű (azaz nem sokkal gyorsabb). A Surface Pro magasabb felbontással, jobb színekkel, stylussal van felszerelve, de nem LTE-képes és nincs C-típusú USB portja. 980 eurós (~$1085) árával a the Miix 510 Pro jól pozicionálta magát. A tesztelt változat Intel Core i5 6200U-val, 8 GB DDR4 RAM-mal és egy 256 GB SSD-vel van felszerelve; a billentyűzet szintén tartozék.A Lenovo 2-in-1 kicsit drágább, mint a hasonló Switch 12 Alpha.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű értékelés itt olvasható.

Lenovo Miix 510 Pro 80U10006GE - 11/01/2016 v5.1(old)
Sebastian Jentsch

Váz
84 / 98 → 86%
Billentyűzet
84%
Érintőpad
80%
Csatlakoztathatóság
40 / 80 → 50%
Súly
72 / 35-78 → 86%
Akkumulátor
84%
Kijelző
81%
Játékok alatti teljesítmény
55 / 68 → 81%
Alkalmazások alatti teljesítmény
83 / 87 → 96%
Hőmérséklet
89%
Zaj
92%
Camera
40 / 85 → 47%
Átlag
74%
82%
Convertible - Súlyozott átlag

Pricecompare

Bernhard Pechlaner
Editor of the original article: Bernhard Pechlaner - Senior Tech Writer - 274 articles published on Notebookcheck since 2012
Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Lenovo Miix 510 Pro 80U10006GE Convertible Review
Sebastian Jentsch, 2016-11-14 (Update: 2016-11-25)
