HP ZBook 15u G5 (FHD, i7-8550U) Workstation rövid értékelés

Benjamin Herzig (fordította Tamás Somogyi), 06/12/2018
Workstation Windows Kaby Lake Laptop / Notebook Business

Túl sok iroda, túl kevés munkaállomás. A ZBook 1xu sorozat a HP munkaállomások alsó szegmensében található. Ezek a modellek takarékosságból az EliteBook-okra épülnek. A ZBook 15u G5 értékeléséből kiderül, hogy ez az elképzelés miért nem működik.

HP ZBook 15u G5 2ZC05EA
Grafikus adapter
AMD Radeon Pro WX 3100 Mobile - 2048 MB, Mag: 1046 MHz, Memória: 1500 MHz, 23.20.787.768, AMD Switchable Graphics
Memória
8192 MB
, DDR4 2400, 1/2 hely szabad, max. 32 GB
Kijelző
15.6 hüvelyk 16:9, 1920 x 1080 pixel 141 PPI, CMN15E7, IPS LED, fényes: nem
Alaplap
Intel Kaby Lake-U + iHDCP 2.2 Premium PCH
Háttértár
Toshiba XG5 KXG50ZNV256G, 256 GB
, M.2 2280 SSD, 162 GB ingyenes
Hangkártya
Intel Kaby Lake-U/Y PCH - High Definition Audio
Csatlakozók
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington zár, 1 Dokkoló állomás port, Audió csatlakozók: 3.5 mm-es kombinált audio jack, 1 SmartCard, 1 Ujjlenyomat olvasó, NFC, Brightness Sensor
Hálózat
Intel Ethernet Connection I219-V (10/100/1000MBit), Intel Dual Band Wireless-AC 8265 (a/b/g/n/ac), Bluetooth 4.2
Méret
magasság x szélesség x mélység (mm-ben) 19 x 371 x 251
Akkumulátor
56 Wh Lítium-Polimer
Operációs rendszer
Microsoft Windows 10 Pro 64 Bit
Camera
Webkamera: 720p
További jellegzetességek

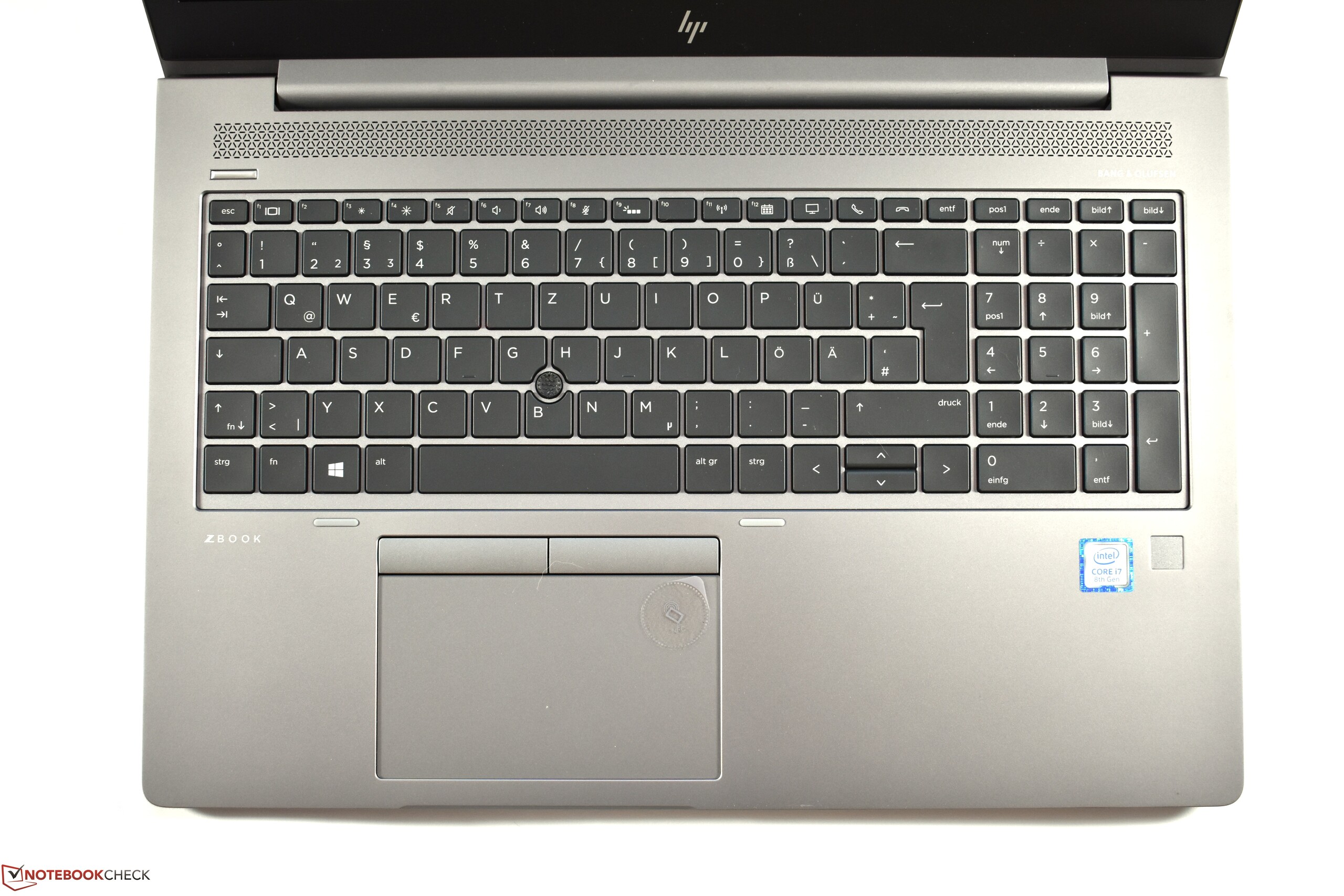

Hangszórók: Bang & Olufsen, sztereo, Billentyűzet: 6 soros, numpaddal, Billentyűzet háttérvilágítás: igen, HP Jumpstart, HP Client Security, HP Power Manager, HP WorkWise, HP Support Assistant, HP Sure Run, HP Velocity, Microsoft Office próba, 36 Hónap Garancia
Súly
1.914 kg, Tápegység: 352 g
Ár
1750 Euro
Hivatkozások



Size Comparison

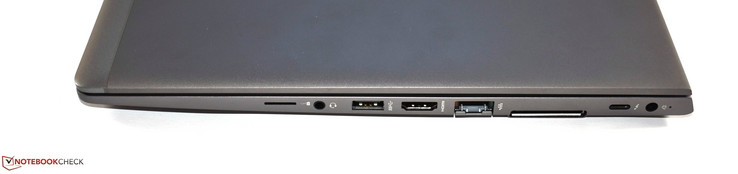

Right-hand side: SIM slot, 3.5 mm jack, USB 3.0 Type-A port, HDMI, RJ45 Ethernet, docking port, USB Type-C Thunderbolt 3 port, power connector
Right-hand side: SIM slot, 3.5 mm jack, USB 3.0 Type-A port, HDMI, RJ45 Ethernet, docking port, USB Type-C Thunderbolt 3 port, power connector

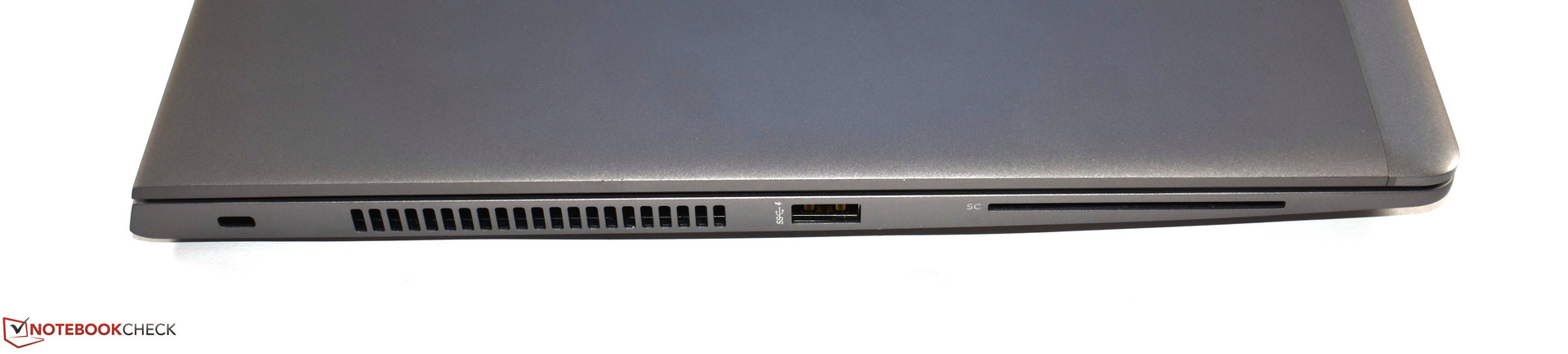

Left-hand side: Kensington lock, USB 3.0 Type-A port, Smart card reader
Left-hand side: Kensington lock, USB 3.0 Type-A port, Smart card reader
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
639 MBit/s ∼100%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
638 MBit/s ∼100% 0%
Average of class Workstation
  (292 - 705, n=25)
591 MBit/s ∼92% -8%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
559 MBit/s ∼87% -13%
HP EliteBook 850 G5 3JX58EA
Intel Dual Band Wireless-AC 8265
532 MBit/s ∼83% -17%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
515 MBit/s ∼81% -19%
iperf3 Client (transmit) TCP 1 m 4M x10
HP EliteBook 850 G5 3JX58EA
Intel Dual Band Wireless-AC 8265
667 MBit/s ∼100% +26%
HP ZBook 15u G5 2ZC05EA
Intel Dual Band Wireless-AC 8265
528 MBit/s ∼79%
HP ZBook 15u G4
Intel Dual Band Wireless-AC 8265
506 MBit/s ∼76% -4%
Average of class Workstation
  (158 - 690, n=25)
496 MBit/s ∼74% -6%
HP ZBook 15 G4-Y4E80AV
Intel Dual Band Wireless-AC 8265
475 MBit/s ∼71% -10%
Lenovo ThinkPad T580-20LAS01H00
Intel Dual Band Wireless-AC 8265
162 MBit/s ∼24% -69%
224
cd/m²
208
cd/m²
203
cd/m²
206
cd/m²
229
cd/m²
202
cd/m²
204
cd/m²
226
cd/m²
210
cd/m²
Fényerő megoszlás
X-Rite i1Pro 2
Maximum: 229 cd/m² Átlag: 212.4 cd/m² Minimum: 11.1 cd/m²
Fényerő megoszlás: 88 %
Centrumban: 229 cd/m²
Kontraszt: 996:1 (Fekete: 0.23 cd/m²)
ΔE Color 4.2 | 0.4-29.43 Ø6.3, calibrated: 4.2
ΔE Greyscale 2 | 0.64-98 Ø6.5
64.5% sRGB (Argyll 3D) 41% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.23
HP ZBook 15u G5 2ZC05EA
CMN15E7, , 1920x1080, 15.6
HP ZBook 15u G4
LP156WF6, , 1920x1080, 15.6
HP EliteBook 850 G5 3JX58EA
AUO24ED, , 1920x1080, 15.6
HP ZBook 15 G4-Y4E80AV
LG Philips LGD057E, , 1920x1080, 15.6
Lenovo ThinkPad P52s-20LB000HGE
NV156FHM-N47, , 1920x1080, 15.6
Response Times
3%
6%
-1%
-21%
Response Time Grey 50% / Grey 80% *
41.6 (22, 19.6)
39.6 (22.4, 17.2)
5%
42 (20, 22)
-1%
39.2 (20.4, 18.8)
6%
47.2 (25.2, 22)
-13%
Response Time Black / White *
28.8 (15.6, 13.2)
22 (12, 10)
24%
25 (14, 11)
13%
25.6 (14.8, 10.8)
11%
38.4 (22.8, 15.6)
-33%
PWM Frequency
25770 (40)
20830 (90)
-19%
20830 (80)
-19%
21550 (91)
-16%
Screen
-9%
5%
13%
6%
Brightness middle
229
320
40%
402
76%
321
40%
291
27%
Brightness
212
310
46%
383
81%
320
51%
284
34%
Brightness Distribution
88
92
5%
88
0%
89
1%
91
3%
Black Level *
0.23
0.45
-96%
0.41
-78%
0.29
-26%
0.11
52%
Contrast
996
711
-29%
980
-2%
1107
11%
2645
166%
Colorchecker DeltaE2000 *
4.2
5.5
-31%
5.25
-25%
4.5
-7%
6.7
-60%
Colorchecker DeltaE2000 max. *
18
9
50%
8.65
52%
9.5
47%
20.2
-12%
Colorchecker DeltaE2000 calibrated *
4.2
5.19
-24%
4.5
-7%
Greyscale DeltaE2000 *
2
4.8
-140%
4
-100%
2.9
-45%
4.5
-125%
Gamma
2.23 108%
2.28 105%
2.68 90%
2.27 106%
2.28 105%
CCT
6292 103%
6987 93%
6756 96%
6519 100%
7503 87%
Color Space (Percent of AdobeRGB 1998)
41
55
34%
58
41%
54.2
32%
39.6
-3%
Color Space (Percent of sRGB)
64.5
83.8
30%
89
38%
82.6
28%
61.7
-4%
Total Average (Program / Settings)
-3% / -6%
6% / 5%
6% / 10%
-8% / 1%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

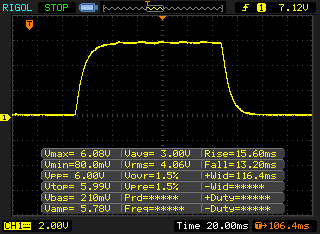

       Response Time Black to White
28.8 ms ... rise ↗ and fall ↘ combined↗ 15.6 ms rise
↘ 13.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 67 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (25.8 ms).

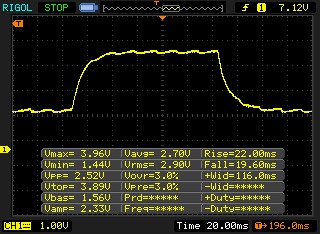

       Response Time 50% Grey to 80% Grey
41.6 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 19.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 52 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (41.3 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

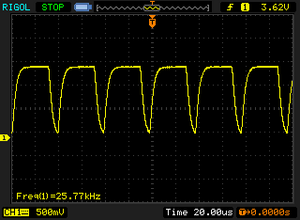

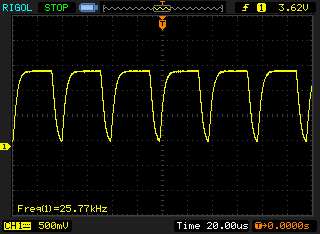

Screen flickering / PWM detected 25770 Hz ≤ 40 % brightness setting

The display backlight flickers at 25770 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25770 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8813 (minimum: 43 - maximum: 142900) Hz was measured.

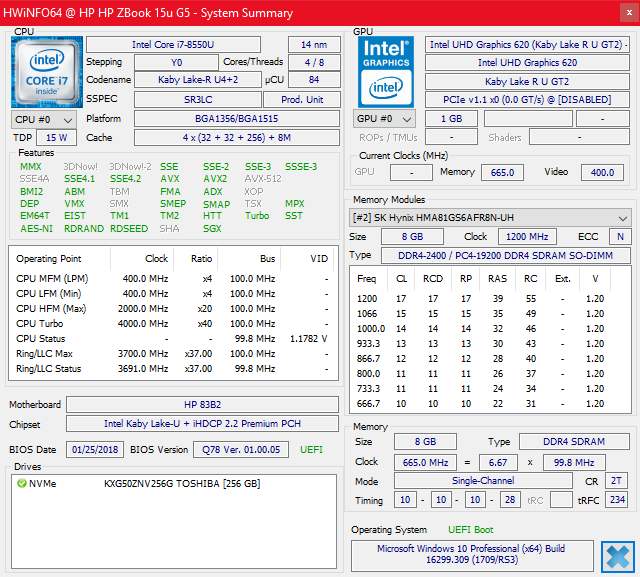

HWiNFO
HWiNFO
CPU-Z
CPU-Z

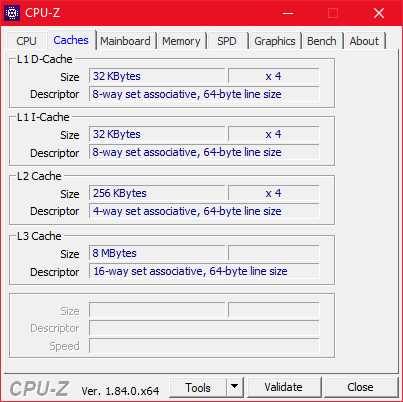

CPU-Z Caches
CPU-Z Caches

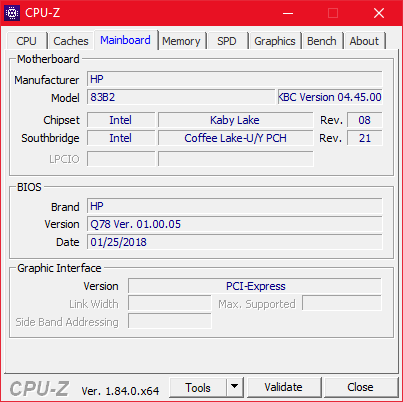

CPU-Z Mainboard
CPU-Z Mainboard

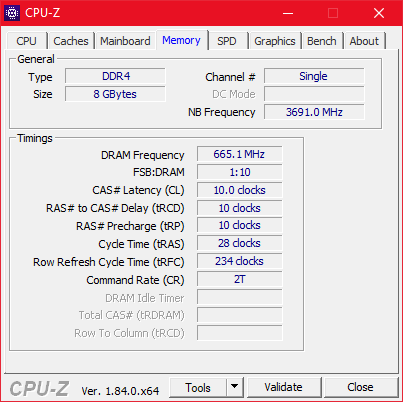

CPU-Z Memory
CPU-Z Memory

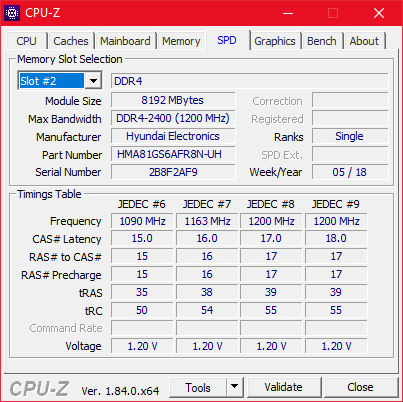

CPU-Z SPD
CPU-Z SPD

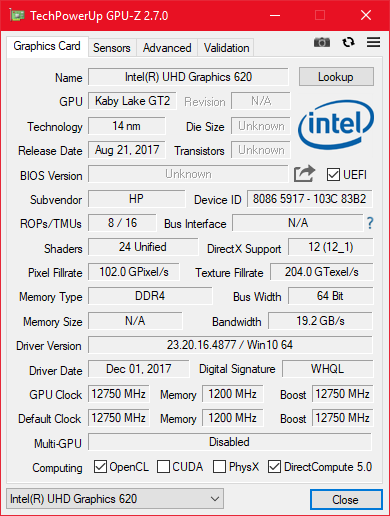

GPU-Z Intel UHD Graphics 620
GPU-Z Intel UHD Graphics 620

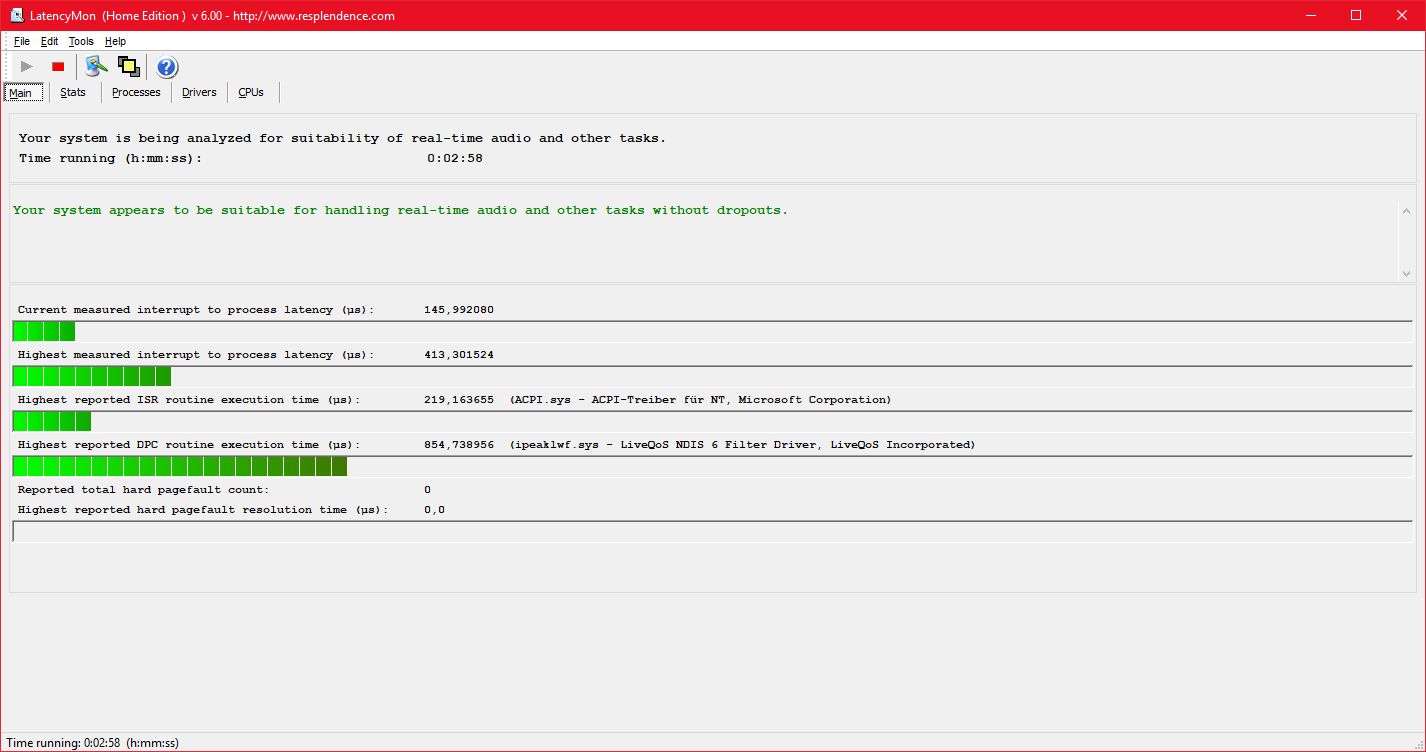

LatencyMon
LatencyMon
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
176 Points ∼100% +2%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
172 Points ∼98%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
171 Points ∼97% -1%
Average Intel Core i7-8550U
  (108 - 172, n=53)
160 Points ∼91% -7%
Average of class Workstation
  (117 - 189, n=72)
152 Points ∼86% -12%
HP ZBook 15u G4
Intel Core i7-7500U
147 Points ∼84% -15%
HP EliteBook 850 G5 3JX58EA
Intel Core i5-8250U
144 Points ∼82% -16%
CPU Multi 64Bit
HP ZBook 15 G4-Y4E80AV
Intel Xeon E3-1535M v6
806 Points ∼100% +46%
Lenovo ThinkPad P52s-20LB000HGE
Intel Core i7-8550U
719 Points ∼89% +30%
Average of class Workstation
  (260 - 1217, n=73)
662 Points ∼82% +20%
HP EliteBook 850 G5 3JX58EA
Intel Core i5-8250U
588 Points ∼73% +7%
Average Intel Core i7-8550U
  (301 - 761, n=55)
571 Points ∼71% +3%
HP ZBook 15u G5 2ZC05EA
Intel Core i7-8550U
552 Points ∼68%
HP ZBook 15u G4
Intel Core i7-7500U
357 Points ∼44% -35%
Cinebench R10 Rendering Multiple CPUs 32Bit
17505
Cinebench R10 Shading 32Bit
8307
Cinebench R10 Rendering Single 32Bit
6445
Cinebench R10 Shading 64Bit
5661 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
22346 Points
Cinebench R10 Rendering Single CPUs 64Bit
8430 Points
Cinebench R11.5 CPU Single 32Bit
1.72 Points
Cinebench R11.5 CPU Multi 32Bit
5.55 Points
Cinebench R11.5 OpenGL 32Bit
75.59 fps
Cinebench R11.5 CPU Single 64Bit
1.93 Points
Cinebench R11.5 CPU Multi 64Bit
5.86 Points
Cinebench R11.5 OpenGL 64Bit
75.3 fps
Cinebench R15 OpenGL 64Bit
74.18 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Multi 64Bit
552 Points
Cinebench R15 CPU Single 64Bit
172 Points
Segítség
PCMark 8
Work Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5423 Points ∼100% +6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (5137 - 5183, n=2)
5160 Points ∼95% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5137 Points ∼95%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5100 Points ∼94% -1%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4980 Points ∼92% -3%
Average of class Workstation
  (3311 - 5655, n=56)
4748 Points ∼88% -8%
Creative Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
5663 Points ∼100% +5%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (5369 - 5376, n=2)
5373 Points ∼95% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
5369 Points ∼95%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5127 Points ∼91% -5%
Average of class Workstation
  (2399 - 8015, n=45)
5068 Points ∼89% -6%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
4851 Points ∼86% -10%
Home Score Accelerated v2
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4375 Points ∼100% +18%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4169 Points ∼95% +12%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3721 - 4438, n=2)
4080 Points ∼93% +10%
Average of class Workstation
  (2320 - 5505, n=56)
3921 Points ∼90% +5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3728 Points ∼85% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3721 Points ∼85%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
3669 Points ∼84% -1%
PCMark 10
Digital Content Creation
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4633 Points ∼100% +36%
Average of class Workstation
  (2466 - 6889, n=17)
4555 Points ∼98% +34%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3397 - 3473, n=2)
3435 Points ∼74% +1%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
3397 Points ∼73%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
2807 Points ∼61% -17%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
2734 Points ∼59% -20%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
2609 Points ∼56% -23%
Productivity
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
7539 Points ∼100% +11%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7201 Points ∼96% +6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (6777 - 6944, n=2)
6861 Points ∼91% +1%
Average of class Workstation
  (4897 - 7944, n=17)
6807 Points ∼90% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
6777 Points ∼90%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
5795 Points ∼77% -14%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
5660 Points ∼75% -16%
Essentials
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
8774 Points ∼100% +12%
Average of class Workstation
  (7172 - 9366, n=17)
8199 Points ∼93% +5%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
7874 Points ∼90% +1%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (7810 - 7842, n=2)
7826 Points ∼89% 0%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
7810 Points ∼89%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
7673 Points ∼87% -2%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
7262 Points ∼83% -7%
Score
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
4834 Points ∼100% +19%
Average of class Workstation
  (3281 - 5606, n=17)
4455 Points ∼92% +10%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
4046 Points ∼84%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
3818 Points ∼79% -6%
Average Intel Core i7-8550U, AMD Radeon Pro WX 3100 Mobile
  (3464 - 4046, n=2)
3755 Points ∼78% -7%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
3517 Points ∼73% -13%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
3498 Points ∼72% -14%
PCMark 8 Home Score Accelerated v2
3721 pontok
PCMark 8 Creative Score Accelerated v2
5369 pontok
PCMark 8 Work Score Accelerated v2
5137 pontok
Segítség
HP ZBook 15u G5 2ZC05EA
Toshiba XG5 KXG50ZNV256G
HP ZBook 15u G4
Samsung SM961 MZVKW512HMJP m.2 PCI-e
HP EliteBook 850 G5 3JX58EA
Toshiba XG5 KXG50ZNV256G
HP ZBook 15 G4-Y4E80AV
Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
Lenovo ThinkPad P52s-20LB000HGE
Samsung PM961 MZVLW256HEHP
Average Toshiba XG5 KXG50ZNV256G

CrystalDiskMark 3.0
59%
-14%
71%
24%
-15%
Write 4k QD32
351.5
478.3
36%
338.5
-4%
618.5
76%
470.67
34%
320 (208 - 352, n=10)
-9%
Read 4k QD32
276.7
551.8
99%
282
2%
733.4
165%
562.94
103%
309 (245 - 396, n=10)
12%
Write 4k
99.1
152.7
54%
99.15
0%
187.6
89%
164.77
66%
106 (94.5 - 133, n=10)
7%
Read 4k
35.5
53.35
50%
31.76
-11%
57.52
62%
61.63
74%
28.1 (7.04 - 35.5, n=10)
-21%
Write 512
488.9
1535
214%
284.9
-42%
1175
140%
557.75
14%
331 (266 - 489, n=10)
-32%
Read 512
912.4
413.4
-55%
913.9
0%
411.6
-55%
557.38
-39%
832 (444 - 922, n=10)
-9%
Write Seq
916.7
1580
72%
393.4
-57%
1682
83%
862.2
-6%
394 (270 - 917, n=10)
-57%
Read Seq
2040
2042
0%
2069
1%
2166
6%
897.9
-56%
1843 (1046 - 2069, n=10)
-10%
Toshiba XG5 KXG50ZNV256G
Sequential Read: 2040 MB/s
Sequential Write: 916.7 MB/s
512K Read: 912.4 MB/s
512K Write: 488.9 MB/s
4K Read: 35.5 MB/s
4K Write: 99.1 MB/s
4K QD32 Read: 276.7 MB/s
4K QD32 Write: 351.5 MB/s
3DMark 11 - 1280x720 Performance GPU
Average of class Workstation
  (841 - 20623, n=87)
5038 Points ∼100% +39%
Average AMD Radeon Pro WX 3100 Mobile
  (3632 - 3749, n=2)
3691 Points ∼73% +2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3632 Points ∼72%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
3022 Points ∼60% -17%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
2379 Points ∼47% -34%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
1682 Points ∼33% -54%
3DMark
1920x1080 Fire Strike Graphics
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5786 Points ∼100% +119%
Average of class Workstation
  (752 - 14990, n=79)
4105 Points ∼71% +55%
Average AMD Radeon Pro WX 3100 Mobile
  (2644 - 2698, n=2)
2671 Points ∼46% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
2644 Points ∼46%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
2270 Points ∼39% -14%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
1806 Points ∼31% -32%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
1002 Points ∼17% -62%
1280x720 Cloud Gate Standard Graphics
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
37796 Points ∼100% +111%
Average of class Workstation
  (5836 - 102368, n=79)
26917 Points ∼71% +50%
Average AMD Radeon Pro WX 3100 Mobile
  (17922 - 19122, n=2)
18522 Points ∼49% +3%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17922 Points ∼47%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
12601 Points ∼33% -30%
HP EliteBook 850 G5 3JX58EA
Intel UHD Graphics 620, Intel Core i5-8250U
8065 Points ∼21% -55%
1280x720 Ice Storm Standard Score
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
144957 Points ∼100% +207%
Average of class Workstation
  (26525 - 161394, n=70)
76763 Points ∼53% +63%
Average AMD Radeon Pro WX 3100 Mobile
  (47152 - 48101, n=2)
47627 Points ∼33% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
47152 Points ∼33%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
27.9 fps ∼100% +158%
Average of class Workstation
  (6.1 - 74.8, n=29)
26.1 fps ∼94% +142%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
11.9 fps ∼43% +10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
10.8 fps ∼39%
Average AMD Radeon Pro WX 3100 Mobile
  (9.4 - 10.8, n=2)
10.1 fps ∼36% -6%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
6.2 fps ∼22% -43%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
23.2 fps ∼100% +268%
Average of class Workstation
  (5.6 - 60.8, n=28)
20.7 fps ∼89% +229%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
10.1 fps ∼44% +60%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.4 fps ∼36% +33%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
6.3 fps ∼27%
Average AMD Radeon Pro WX 3100 Mobile
  (5.6 - 6.3, n=2)
5.95 fps ∼26% -6%
Unigine Heaven 4.0
Extreme Preset OpenGL
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
30.6 fps ∼100% +314%
Average of class Workstation
  (6.8 - 88.2, n=16)
27.7 fps ∼91% +274%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
13.2 fps ∼43% +78%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
7.5 fps ∼25% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.4 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (6.8 - 7.4, n=2)
7.1 fps ∼23% -4%
Extreme Preset DX11
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
35 fps ∼100% +298%
Average of class Workstation
  (8.1 - 100, n=20)
29 fps ∼83% +230%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
14.3 fps ∼41% +63%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
8.8 fps ∼25% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
8.8 fps ∼25%
Average AMD Radeon Pro WX 3100 Mobile
  (8.1 - 8.8, n=2)
8.45 fps ∼24% -4%
Unigine Heaven 2.1 - 1280x1024 high, Tesselation (normal), DirectX11 AA:off AF:1x
Average of class Workstation
  (9.9 - 163, n=52)
47.8 fps ∼100% +30%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
36.8 fps ∼77%
Average AMD Radeon Pro WX 3100 Mobile

36.8 fps ∼77% 0%
SPECviewperf 11
1920x1080 Siemens NX
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
49.48 fps ∼100% +99%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
38.74 fps ∼78% +56%
Average of class Workstation
  (2.54 - 111, n=90)
33.4 fps ∼68% +34%
Average AMD Radeon Pro WX 3100 Mobile
  (24.9 - 25.3, n=2)
25.1 fps ∼51% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
24.88 fps ∼50%
1920x1080 Tcvis
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
52.86 fps ∼100% +163%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
41.41 fps ∼78% +106%
Average of class Workstation
  (3.52 - 58.1, n=90)
32.5 fps ∼61% +62%
Average AMD Radeon Pro WX 3100 Mobile
  (20.1 - 20.7, n=2)
20.4 fps ∼39% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
20.1 fps ∼38%
1920x1080 SolidWorks
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
56.8 fps ∼100% +21%
Average AMD Radeon Pro WX 3100 Mobile
  (46.8 - 47.8, n=2)
47.3 fps ∼83% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
46.79 fps ∼82%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
42.52 fps ∼75% -9%
Average of class Workstation
  (6.73 - 74, n=90)
41.8 fps ∼74% -11%
1920x1080 Pro/ENGINEER
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
22.18 fps ∼100% +190%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
16.57 fps ∼75% +116%
Average of class Workstation
  (2.62 - 24, n=90)
13.8 fps ∼62% +80%
Average AMD Radeon Pro WX 3100 Mobile
  (7.66 - 7.69, n=2)
7.68 fps ∼35% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.66 fps ∼35%
1920x1080 Maya
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
57.67 fps ∼100% +26%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
54.64 fps ∼95% +20%
Average of class Workstation
  (6.2 - 124, n=90)
51.5 fps ∼89% +13%
Average AMD Radeon Pro WX 3100 Mobile
  (45.6 - 46.8, n=2)
46.2 fps ∼80% +1%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
45.64 fps ∼79%
1920x1080 Lightwave
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
64.82 fps ∼100%
Average AMD Radeon Pro WX 3100 Mobile
  (64.7 - 64.8, n=2)
64.7 fps ∼100% 0%
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
57.49 fps ∼89% -11%
Average of class Workstation
  (7.99 - 84, n=90)
49.1 fps ∼76% -24%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
46.67 fps ∼72% -28%
1920x1080 Ensight
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
58.49 fps ∼100% +225%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
32.3 fps ∼55% +79%
Average of class Workstation
  (3.39 - 110, n=90)
32.1 fps ∼55% +78%
Average AMD Radeon Pro WX 3100 Mobile
  (18 - 18.6, n=2)
18.3 fps ∼31% +2%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.01 fps ∼31%
1920x1080 Catia
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
52.67 fps ∼100% +55%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
40.16 fps ∼76% +18%
Average of class Workstation
  (5.1 - 82.3, n=89)
37.7 fps ∼72% +11%
Average AMD Radeon Pro WX 3100 Mobile
  (34 - 38, n=2)
36 fps ∼68% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
33.99 fps ∼65%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
99.53 fps ∼100% +218%
Average of class Workstation
  (15.6 - 166, n=64)
67.8 fps ∼68% +117%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
53.48 fps ∼54% +71%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.31 fps ∼31%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
30.12 fps ∼30% -4%
Average AMD Radeon Pro WX 3100 Mobile
  (26.1 - 31.3, n=2)
28.7 fps ∼29% -8%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
59.02 fps ∼100% +215%
Average of class Workstation
  (4.87 - 184, n=64)
48.4 fps ∼82% +158%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
28.31 fps ∼48% +51%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
19.91 fps ∼34% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.74 fps ∼32%
Average AMD Radeon Pro WX 3100 Mobile
  (14.3 - 18.7, n=2)
16.5 fps ∼28% -12%
1900x1060 Showcase (showcase-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
31.14 fps ∼100% +328%
Average of class Workstation
  (3.93 - 68.8, n=63)
26.5 fps ∼85% +264%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
12.13 fps ∼39% +67%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
10.21 fps ∼33% +40%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
7.28 fps ∼23%
Average AMD Radeon Pro WX 3100 Mobile
  (5.19 - 7.28, n=2)
6.24 fps ∼20% -14%
1900x1060 Medical (medical-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
24.64 fps ∼100% +518%
Average of class Workstation
  (0.99 - 71.5, n=63)
18.3 fps ∼74% +359%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
9.33 fps ∼38% +134%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
4.51 fps ∼18% +13%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
3.99 fps ∼16%
Average AMD Radeon Pro WX 3100 Mobile
  (3.71 - 3.99, n=2)
3.85 fps ∼16% -4%
1900x1060 Maya (maya-04)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
48.34 fps ∼100% +311%
Average of class Workstation
  (5.4 - 102, n=64)
38.8 fps ∼80% +230%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
21.61 fps ∼45% +84%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
16.66 fps ∼34% +42%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
11.75 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (9.22 - 11.8, n=2)
10.5 fps ∼22% -11%
1900x1060 Energy (energy-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
5.15 fps ∼100% +1881%
Average of class Workstation
  (0.06 - 15, n=64)
3.52 fps ∼68% +1254%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
0.55 fps ∼11% +112%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
0.34 fps ∼7% +31%
Average AMD Radeon Pro WX 3100 Mobile
  (0.26 - 0.31, n=2)
0.285 fps ∼6% +10%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
0.26 fps ∼5%
1900x1060 Creo (creo-01)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.24 fps ∼100% +279%
Average of class Workstation
  (14 - 132, n=64)
46.4 fps ∼65% +147%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
35.91 fps ∼50% +91%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
18.82 fps ∼26%
Average AMD Radeon Pro WX 3100 Mobile
  (17.1 - 18.8, n=2)
18 fps ∼25% -4%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
16.87 fps ∼24% -10%
1900x1060 Catia (catia-04)
HP ZBook 15 G4-Y4E80AV
NVIDIA Quadro M2200, Intel Xeon E3-1535M v6
71.41 fps ∼100% +318%
Average of class Workstation
  (13.4 - 156, n=64)
52 fps ∼73% +204%
Lenovo ThinkPad P52s-20LB000HGE
NVIDIA Quadro P500, Intel Core i7-8550U
27.97 fps ∼39% +64%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
18.13 fps ∼25% +6%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
17.1 fps ∼24%
Average AMD Radeon Pro WX 3100 Mobile
  (15.1 - 17.1, n=2)
16.1 fps ∼23% -6%
1900x1060 3ds Max (3dsmax-05)
Average of class Workstation
  (11.4 - 93.6, n=9)
38.3 fps ∼100% +22%
Average AMD Radeon Pro WX 3100 Mobile

31.3 fps ∼82% 0%
HP ZBook 15u G5 2ZC05EA
AMD Radeon Pro WX 3100 Mobile, Intel Core i7-8550U
31.28 fps ∼82%
HP ZBook 15u G4
AMD FirePro W4190M, Intel Core i7-7500U
11.42 fps ∼30% -63%
3DMark 06 Standard
18186 pontok
3DMark Vantage P Result
11702 pontok
3DMark 11 Performance
3993 pontok
3DMark Ice Storm Standard Score
47152 pontok
3DMark Cloud Gate Standard Score
11601 pontok
3DMark Fire Strike Score
2448 pontok
Segítség
012345678910Tooltip
The Witcher 3 ultra
BioShock Infinite - 1366x768 High Preset
HP ZBook 15 G4-Y4E80AV
Quadro M2200, E3-1535M v6, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH
149.1 fps ∼100% +119%
Average of class Workstation
  (22.2 - 233, n=50)
102 fps ∼68% +50%
Lenovo ThinkPad T580-20LAS01H00
GeForce MX150, 8550U, Samsung SSD PM981 MZVLB512HAJQ-000L7
85.2 fps ∼57% +25%
HP ZBook 15u G5 2ZC05EA
Radeon Pro WX 3100 Mobile, 8550U, Toshiba XG5 KXG50ZNV256G
68.2 fps ∼46%
Lenovo ThinkPad P52s-20LB000HGE
Quadro P500, 8550U, Samsung PM961 MZVLW256HEHP
66.4 fps ∼45% -3%
Average AMD Radeon Pro WX 3100 Mobile
  (47 - 68.2, n=2)
57.6 fps ∼39% -16%
HP ZBook 15u G4
FirePro W4190M, 7500U, Samsung SM961 MZVKW512HMJP m.2 PCI-e
46.86 fps ∼31% -31%
HP EliteBook 850 G5 3JX58EA
UHD Graphics 620, 8250U, Toshiba XG5 KXG50ZNV256G
23.1 fps ∼15% -66%
alacsony közepes magas ultra
BioShock Infinite (2013) 154.876.668.223.4fps
The Witcher 3 (2015) 48.22915.46.65fps
Rise of the Tomb Raider (2016) 50.429.114.8fps
Doom (2016) 30.515.6fps
Civilization VI (2016) 7351.118.2fps
Warhammer 40.000: Dawn of War III (2017) 71.822.41fps
Call of Duty WWII (2017) 84.645.524.8fps
Star Wars Battlefront 2 (2017) 6523.1fps

Zajszint

Üresjárat
29.8 / 29.8 / 30.8 dB(A)
Terhelés
32.9 / 36.5 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 29.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.129.631.933.32529.526.52929.73132.730.430.634.74030.527.328.130.3502927.528.727.56326.827.426.327.78025.725.425.631.710026.626.225.827.212524.424.525251602423.623.224.220023.122.422.223.425021.420.921.621.931520.119.520.421.140019.418.71920.750019.118.218.521.563019.417.717.421.480018.517.517.222.5100019.117.217.422.3125020.116.716.924.1160020.716.516.826.2200020.716.717.427.7250022.617.417.427.9315019171727.4400018.217.117.322.9500017.917.417.220.7630017.818.417.520800018.919.217.918.51000018.719.417.917.9125002020.918.317.71600019.220.41817.5SPL31.93029.836.5N1.61.31.32.3median 19.4HP ZBook 15u G5 2ZC05EAmedian 18.4median 17.9median 22.3Delta1.21.81.72.328.531.433.831.132.528.330.330.729.330.431.334.932.131.129.528.630.529.631.12728.127.227.529.727.626.827.127.22627.825.524.926.626.62625.12627.425.727.424.125.225.323.923.824.625.426.623.824.322.922.524.822.623.522.522.32522.422.42120.821.820.420.620.619.620.218.920.720.319.419.218.121.521.219.519.317.722.621.419.619.516.723.522.321.519.116.723.22319.818.916.124.524.321.919.315.724.323.220.318.415.92525.221.519.615.927.127.522.919.915.931.32420.118.116.326.82118.317.416.623.720.418.317.416.922.818.818.217.617.219.218.818.417.717.218.318.918.517.717.31820.221.217.917.41835.332.531.22937.52.21.71.61.22.5median 22.3Lenovo ThinkPad P52s-20LB000HGEmedian 20.3median 19.3median 17.2median 23.51.71.51.91.71.5hearing rangehide median Fan Noise
Max. terhelés
 37.3 °C39.8 °C38.3 °C
 36.2 °C39.2 °C37.2 °C
 28.9 °C26.9 °C27 °C
Maximum: 39.8 °C
Átlag: 34.5 °C
42.7 °C43.1 °C39.4 °C
37 °C38.5 °C38.7 °C
30.5 °C32.8 °C33.6 °C
Maximum: 43.1 °C
Átlag: 37.4 °C
Tápegység (max.)  43.4 °C | Szobahőmérséklet 20.7 °C | Voltcraft IR-900
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.935.3252931.23130.634.44028.131.25028.729.16326.330.48025.627.710025.829.61252531.416023.240.220022.251.425021.654.331520.457.64001965.750018.568.963017.46980017.265.8100017.469.3125016.969.9160016.869.8200017.472.2250017.472.531501772.6400017.374.3500017.273.4630017.573.7800017.9711000017.972.61250018.367.6160001854.3SPL29.883.6N1.359.2median 17.9HP ZBook 15u G5 2ZC05EAmedian 69Delta1.78.731.130.729.330.131.131.831.130.429.730.62630.926.630.525.732.523.934.923.841.522.654.722.462.720.462.918.962.718.164.517.766.316.775.316.773.516.170.415.769.715.967.215.968.415.966.116.364.316.665.316.963.217.262.617.253.217.353.617.457.62980.61.248median 17.2Lenovo ThinkPad P52s-20LB000HGEmedian 63.21.76.2hearing rangehide median Pink Noise
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
HP ZBook 15u G5 2ZC05EA audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.9% lower than median
(±) | linearity of bass is average (9.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (2.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.4% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 14% similar, 45% worse
» The best had a delta of 13%, average was 19%, worst was 31%
Compared to all devices tested
» 28% of all tested devices were better, 6% similar, 66% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo ThinkPad P52s-20LB000HGE audio analysis

(±) | speaker loudness is average but good (80.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.6% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 9% similar, 64% worse
» The best had a delta of 13%, average was 19%, worst was 31%
Compared to all devices tested
» 22% of all tested devices were better, 6% similar, 72% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.39 / 0.52 Watt
Üresjáratdarkmidlight 3.2 / 6.1 / 9.7 Watt
Terhelés midlight 62 / 71 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
HP ZBook 15u G4
7500U, FirePro W4190M, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS LED, 1920x1080, 15.6
HP EliteBook 850 G5 3JX58EA
8250U, UHD Graphics 620, Toshiba XG5 KXG50ZNV256G, IPS LED, 1920x1080, 15.6
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, Samsung SSD SM961 1TB M.2 MZVKW1T0HMLH, IPS, 1920x1080, 15.6
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, Samsung PM961 MZVLW256HEHP, IPS LED, 1920x1080, 15.6
Average AMD Radeon Pro WX 3100 Mobile

Average of class Workstation

Power Consumption
-11%
13%
-69%
-4%
2%
-166%
Idle Minimum *
3.2
3.85
-20%
2.7
16%
5.9
-84%
4.1
-28%
3.3 (3.2 - 3.4, n=2)
-3%
14 (2.4 - 65.2, n=109)
-338%
Idle Average *
6.1
7.5
-23%
8.1
-33%
8.9
-46%
7.7
-26%
5.85 (5.6 - 6.1, n=2)
4%
20.1 (5.3 - 69, n=108)
-230%
Idle Maximum *
9.7
11.8
-22%
10.1
-4%
12.7
-31%
10.7
-10%
9.1 (8.5 - 9.7, n=2)
6%
23.5 (7.1 - 73.1, n=109)
-142%
Load Average *
62
47.7
23%
39
37%
95.2
-54%
52
16%
58.6 (55.2 - 62, n=2)
5%
87.8 (34.4 - 185, n=107)
-42%
Load Maximum *
71
90.2
-27%
37.2
48%
154
-117%
65
8%
71.2 (71 - 71.4, n=2)
-0%
127 (43.5 - 266, n=107)
-79%
Witcher 3 ultra *
48
46.7
3%
87.7
-83%
38.8
19%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
21h 41min
NBC WiFi Websurfing Battery Test 1.3 (IE 11)
8h 34min
Big Buck Bunny H.264 1080p
10h 23min
Terhelés (maximális fényerő)
3h 20min
HP ZBook 15u G5 2ZC05EA
8550U, Radeon Pro WX 3100 Mobile, 56 Wh
HP ZBook 15u G4
7500U, FirePro W4190M, 51 Wh
HP EliteBook 850 G5 3JX58EA
8250U, UHD Graphics 620, 56 Wh
HP ZBook 15 G4-Y4E80AV
E3-1535M v6, Quadro M2200, 90 Wh
Lenovo ThinkPad P52s-20LB000HGE
8550U, Quadro P500, 104 Wh
Average of class Workstation

Battery Runtime
-32%
-1%
-13%
66%
-45%
Reader / Idle
1301
966
-26%
1066
-18%
1096
-16%
2360
81%
562 (63 - 2360, n=106)
-57%
H.264
623
486
-22%
627
1%
629
1%
1131
82%
370 (123 - 1131, n=49)
-41%
WiFi v1.3
514
457
-11%
556
8%
547
6%
974
89%
383 (106 - 974, n=49)
-25%
Load
200
65
-67%
207
4%
115
-42%
221
11%
88.6 (22 - 323, n=99)
-56%

Pro

+ kiváló minőségű fém ház
+ elég jó konnektivitás
+ jó portválaszték és biztonsági funkciók
+ alig melegszik
+ három év jótállás
+ lenyűgöző üveg touchpad

Kontra

- a kijelző nem elég jó egy munkaállomásba
- átlag alatti CPU teljesítmény
- GPU lefojtás mindennapos feladatoknál is
- a PointStick rosszabb mint egy TrackPoint
- nincs SD olvasó
- idegesítő ventilátorvezérlés
- tekercszaj
- munkaállomáshoz képest gyenge bővíthetőség

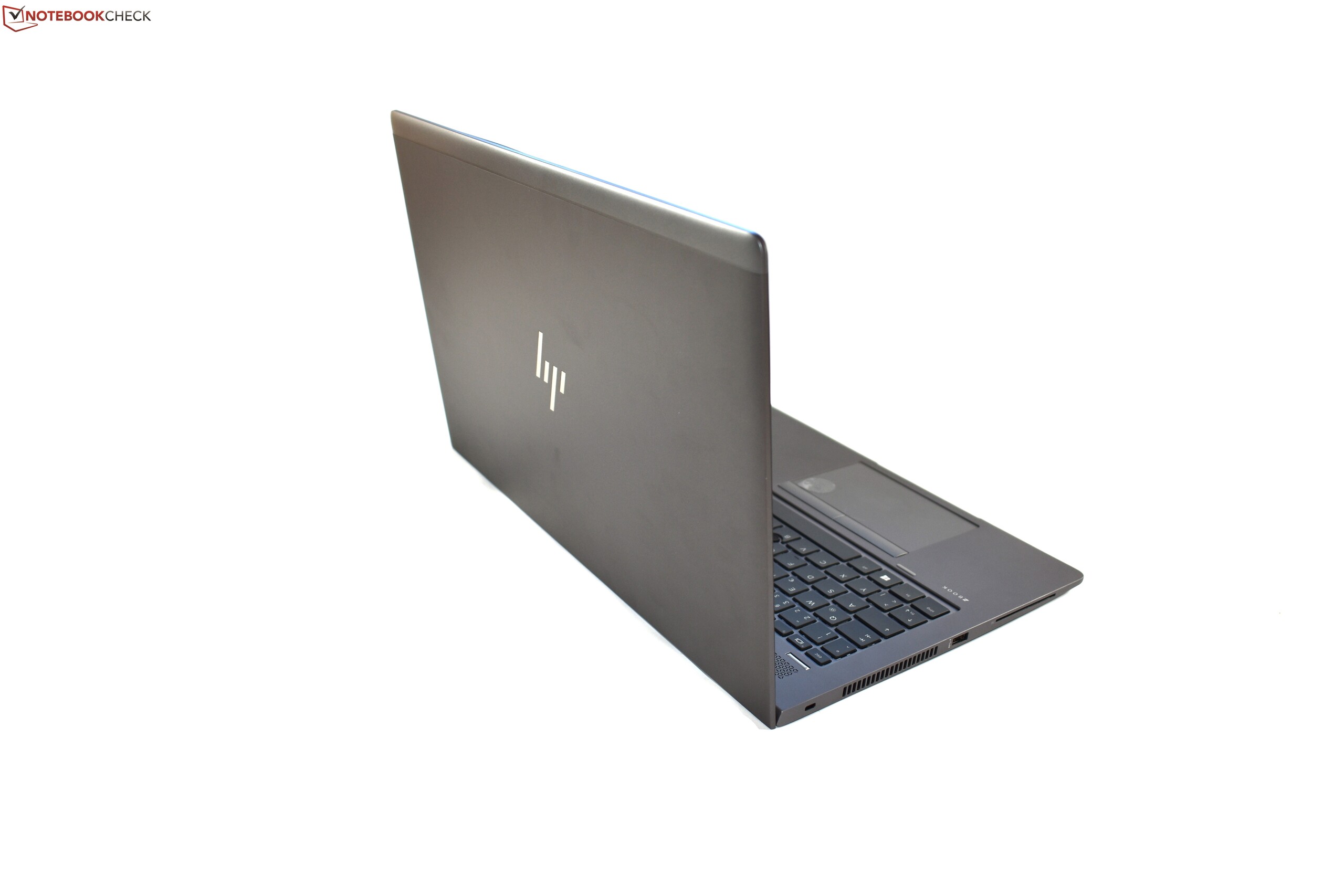

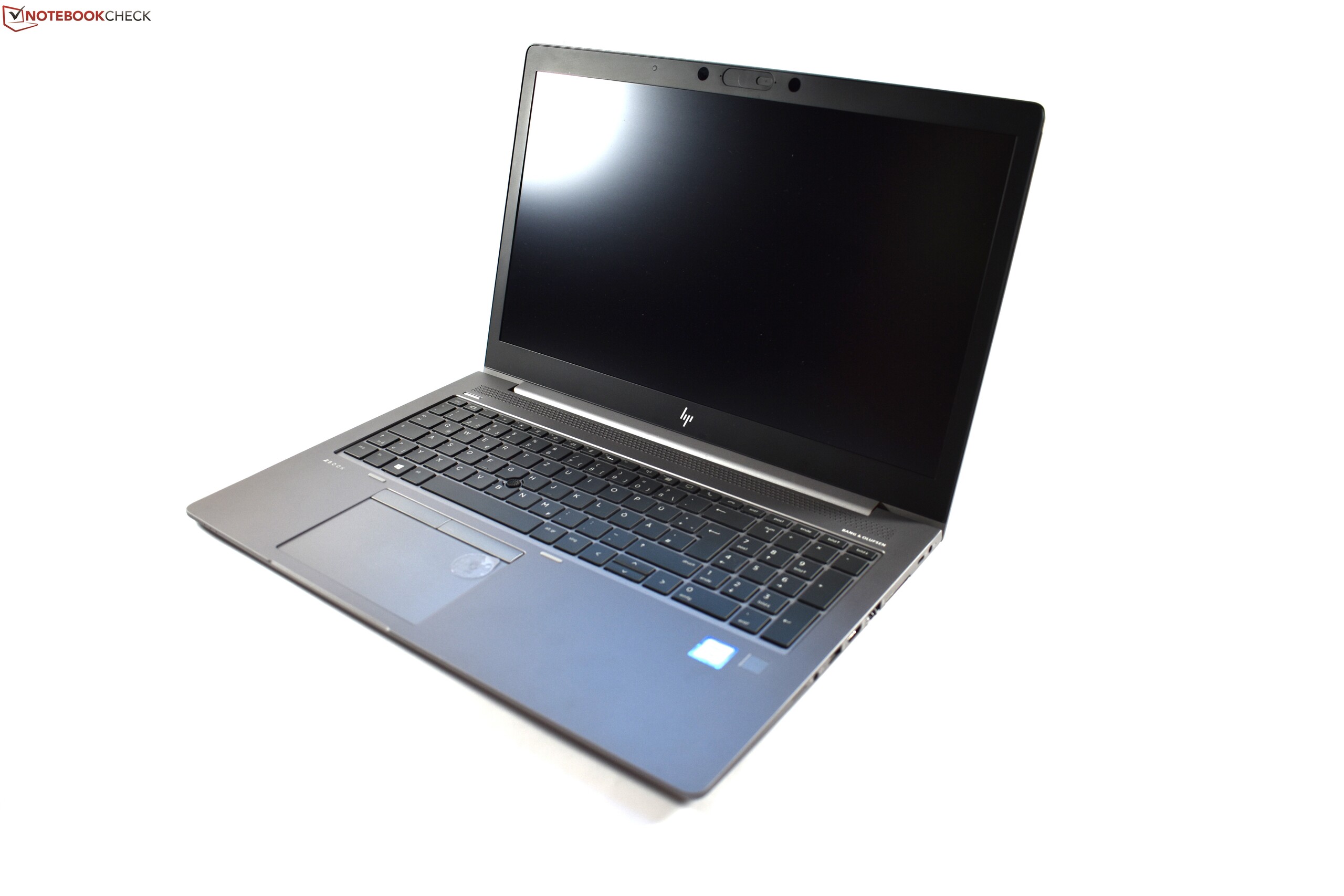

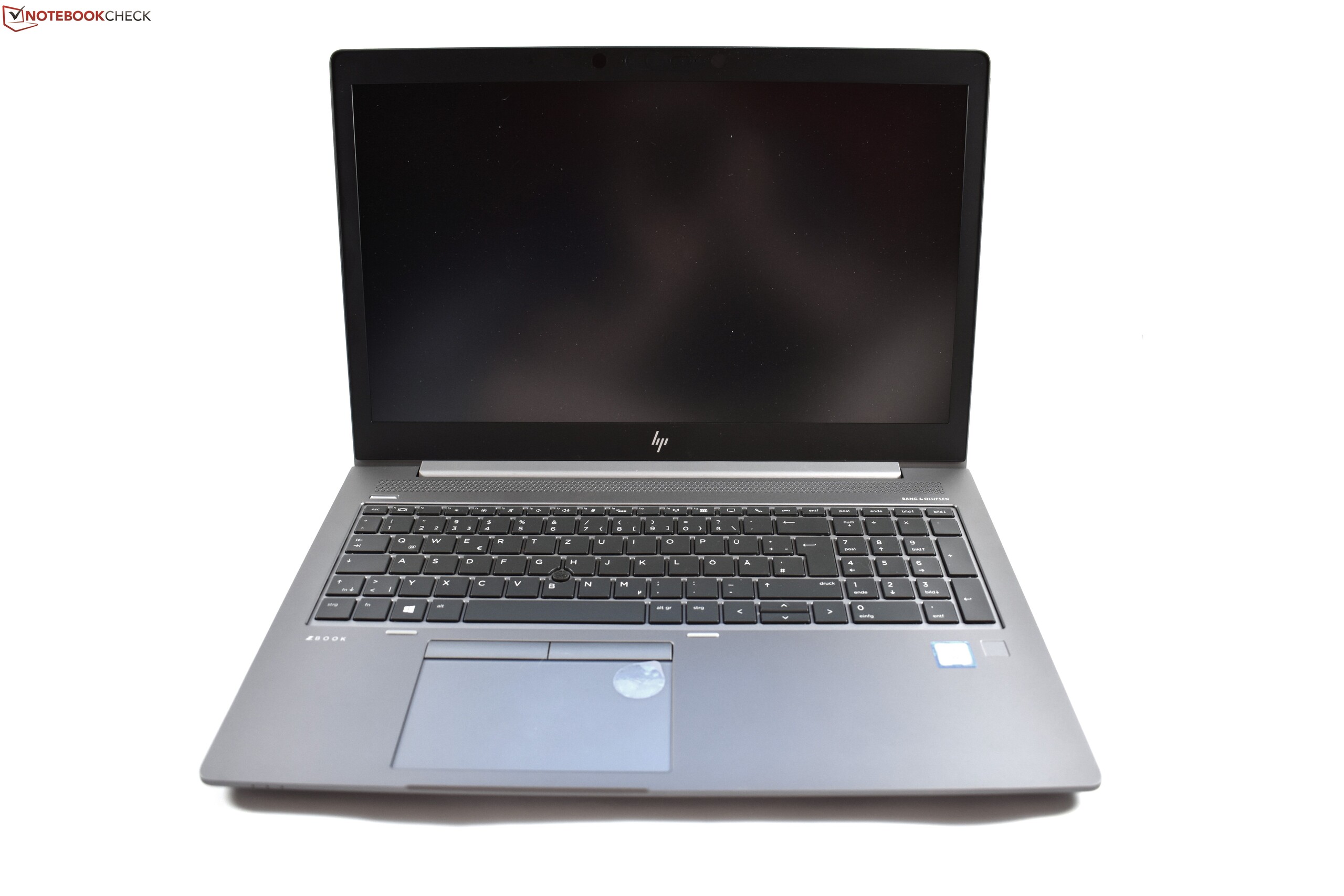

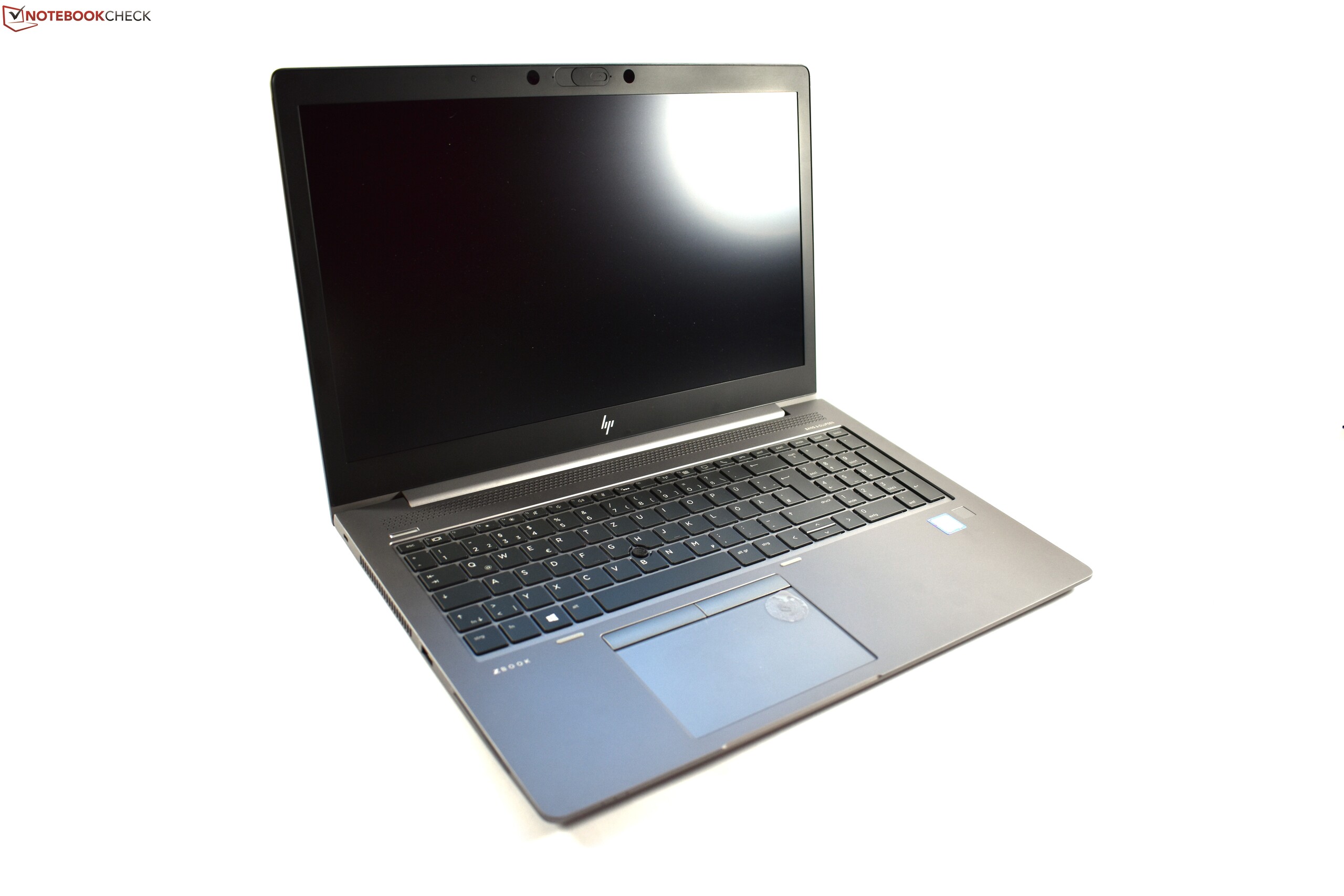

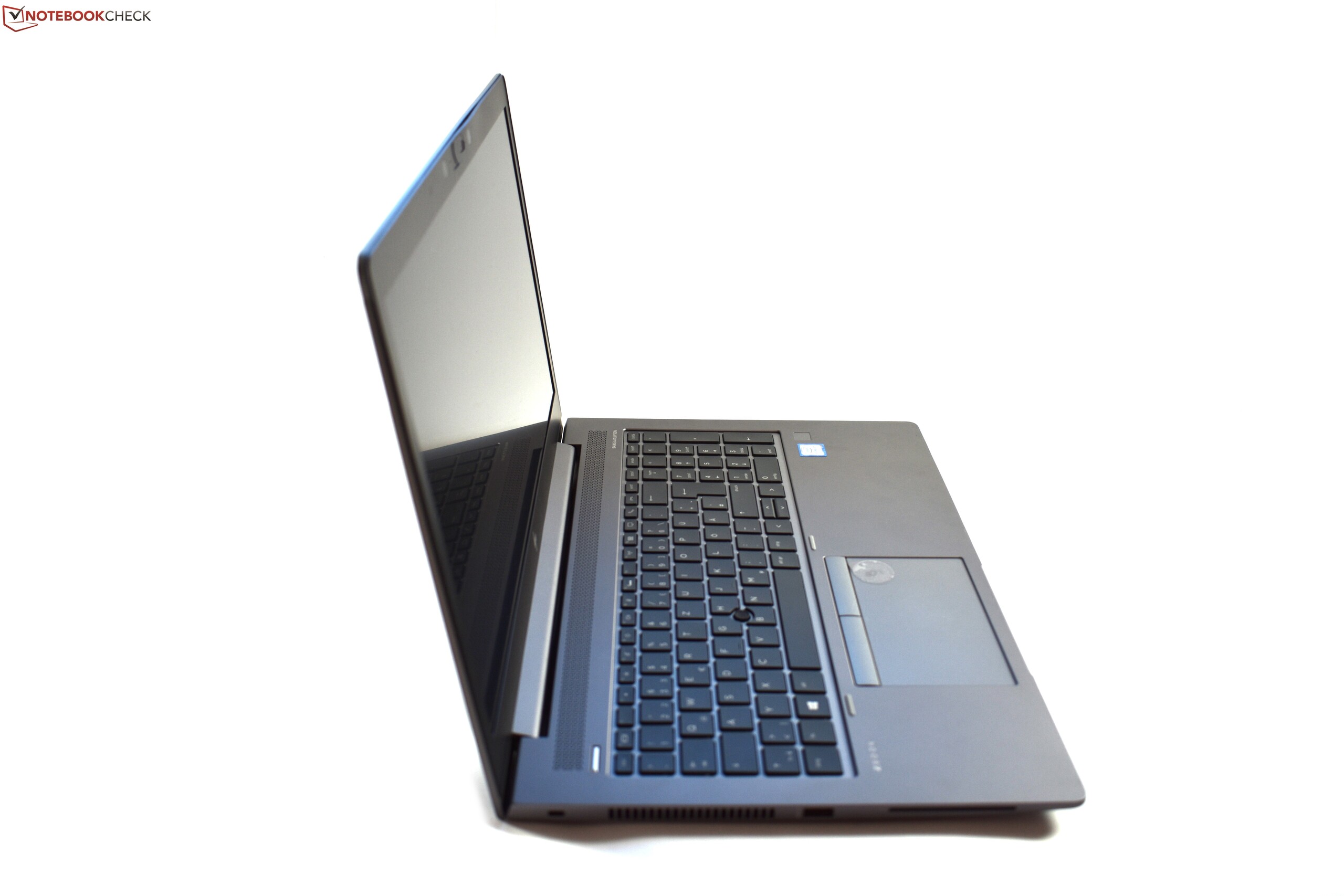

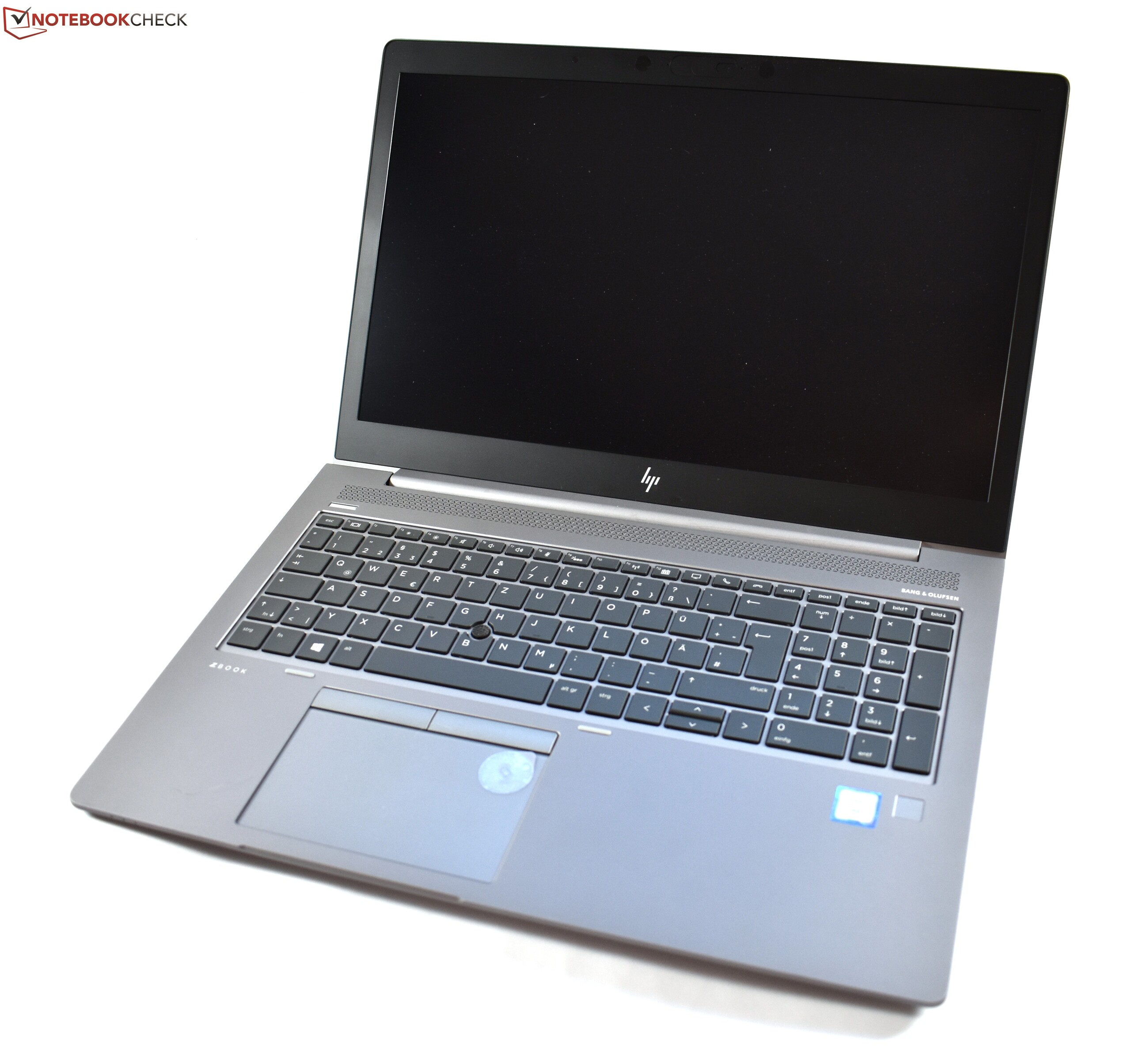

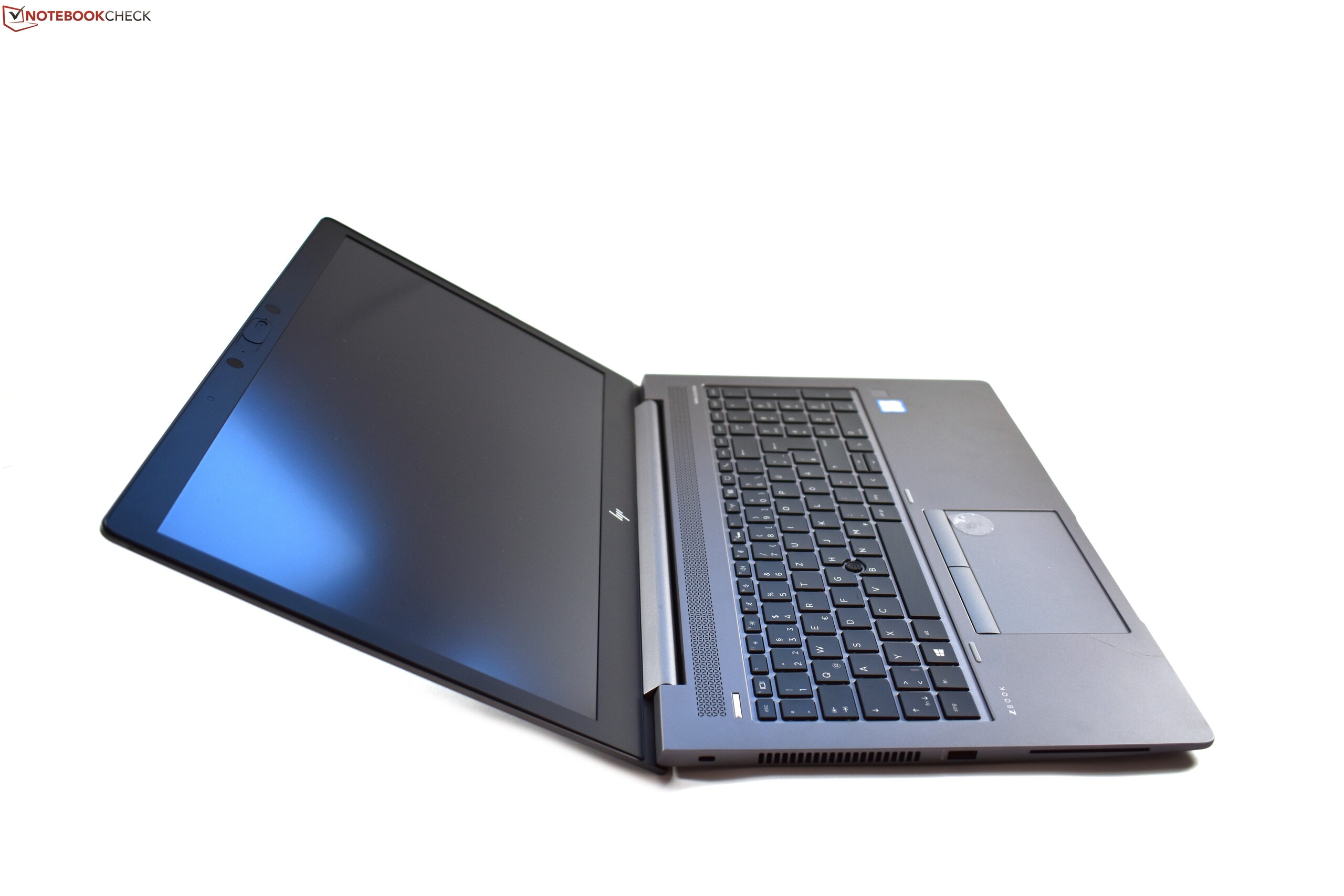

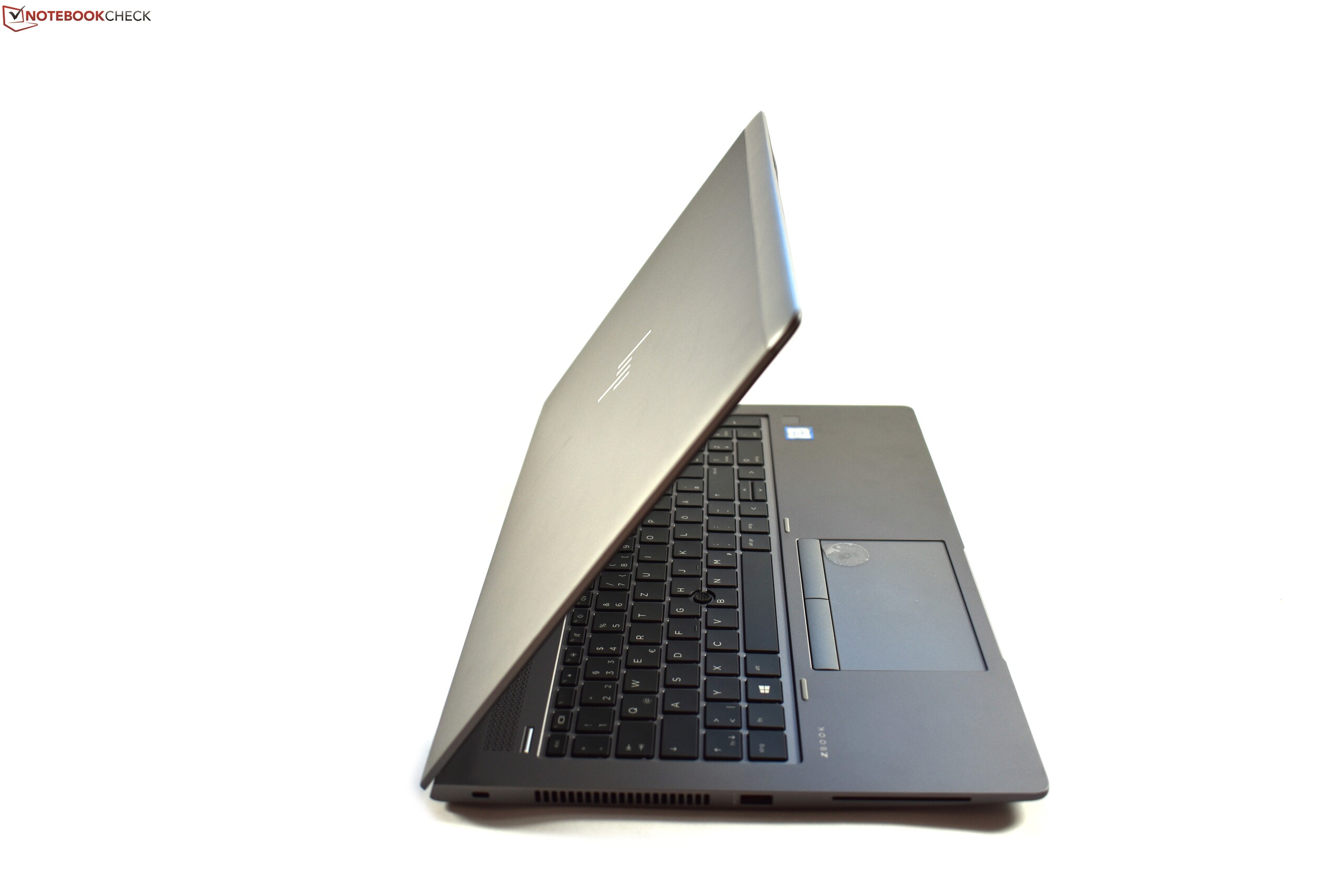

The HP ZBook 15u G5 in review. Test device courtesy of Cyberport and CUKUSA
The HP ZBook 15u G5 in review. Test device courtesy of Cyberport and CUKUSA

A HP ZBook 15u G5 látszólag megoldja a ZBook 15u G4-nél felemlített panaszainkat, mivel erősebb GPU-t, és négymagos CPU-t kapott.

A ZBook 15u G5 alapja a EliteBook 850 G5, amely önmagában határozottan nem gond. Az EliteBook 850 G5-nek van pár lenyűgöző tulajdonsága, például a kiváló minőségű fém ház és az elég jó touchpad. A HP még az EliteBook 850 G5 alacsony felületi hőmérsékletét és jó csatlakozó- és biztonsági funkció választékát is átörökítette. Ezen felül az EliteBook 850 G5 jótállási időtartamát is megkapjuk.

Gyakorlatban, a ZBook 15u G5 egy ISV-minősített GPU-val felszerelt irodai gép. Ez nem teszi valódi munkaállomássá. Alacsony felületi hőmérséklete is azért van, mert a hőlimitálása eléggé konzervatív. Ennek, és a gyenge hűtésnek köszönhetően a CPU és GPU olyan gyengén teljesít, hogy a Core i7-8550U-t még a gyengébb Core i5-8250U is lenyomja (utóbbi az EliteBook 850 G5-ben található). Ezen felül a GPU nem képes kiaknázni teljes potenciálját, mivel a rendszer előbb lefojtja, így a Radeon Pro WX 3100 egyes benchmarkokban alulmarad elődjével szemben. Ezt a frusztráló élményt az idegesítően visító ventilátor, és rémes tekercszaj rontja tovább. Röviden, a ZBook 15u G5 csak megerősíti azt a megállapítást, hogy egy munkaállomás nem alapozható egy irodai notebookra.

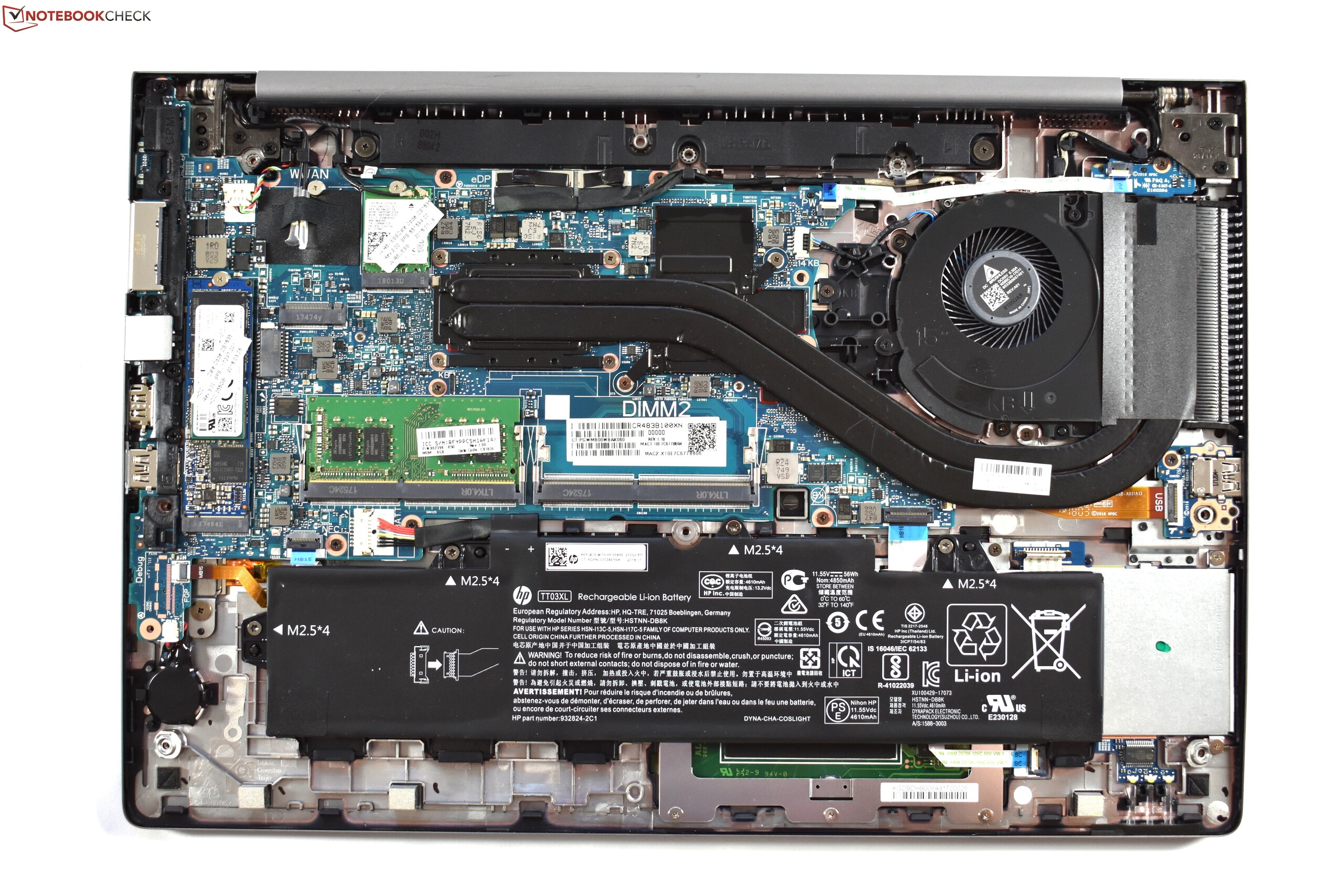

Ráadásul, nem csak ez a gond vele. A kijelző nem elég jó egy 1750 eurós (~$2059) gépbe. A színlefedettsége és fényereje is túl alacsony ahhoz, hogy egy munkaállomásba építsék. Egy SD olvasót, és az EliteBook 850 G5-be építettnél jobb PointStick-et is elvártunk volna; a PointStick nincs egy szinten a ThinkPad-ek TrackPoint-jával. Végül, legalább két M.2-2280 SSD foglalatot várnánk egy 15.6 colos munkaállomásban, nem csak egyet. Egy elég egy irodai gépbe, de nem egy munkaállomásba, főleg, mivel hely éppenséggel lenne neki.

A HP ZBook 15u G5 terhelés alatt erősen lefojt, ezt nem szívesen látjuk egy állítólagos munkaállomásban.

Összességében, nem világos, hogy a HP ZBook 15u G5-öt kiknek szánták. A kijelző munkaállomásként nem állja meg a helyét, mivel riválisaihoz képest kifejezetten gyenge, és a kijelzője nem alkalmas professzionális használatra. A ZBook 14u G5 jobb választás, ha a mobilitás fontos, és mégis egy ZBook-ot akarunk. Ha irodai notebookot keresünk, arra is vannak jobb készülékek, például az olcsóbb EliteBook 850 G5.

Összességében, nem ajánljuk a HP ZBook 15u G5-öt, mivel nem igazán alkalmas munkaállomásnak.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

HP ZBook 15u G5 2ZC05EA - 05/23/2018 v6
Benjamin Herzig

Váz
91 / 98 → 93%
Billentyűzet
86%
Érintőpad
88%
Csatlakoztathatóság
69 / 81 → 85%
Súly
64 / 10-66 → 96%
Akkumulátor
91%
Kijelző
85%
Játékok alatti teljesítmény
50%
Alkalmazások alatti teljesítmény
91%
Hőmérséklet
90 / 95 → 95%
Zaj
85 / 90 → 95%
Audio
47%
Camera
27 / 85 → 32%
Átlag
73%
80%
Workstation - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > HP ZBook 15u G5 (FHD, i7-8550U) Workstation rövid értékelés
Benjamin Herzig, 2018-06-12 (Update: 2018-06-12)
