Beelink U59 Mini-S mini PC rövid értékelés: A szuperolcsó Intel NUC HTPC alternatíva

Egyenes úton a megfizethetőség felé. A Beelink U59 Mini-S elég olcsó ahhoz, hogy tiszteletre méltó alternatívája legyen a tipikus okostévé dongle-nak vagy a Google, az Amazon, az Apple vagy a Roku médialejátszóinak, különösen azon felhasználók számára, akik a Windows sokoldalúságát szeretnék.
Desktop Mini PC

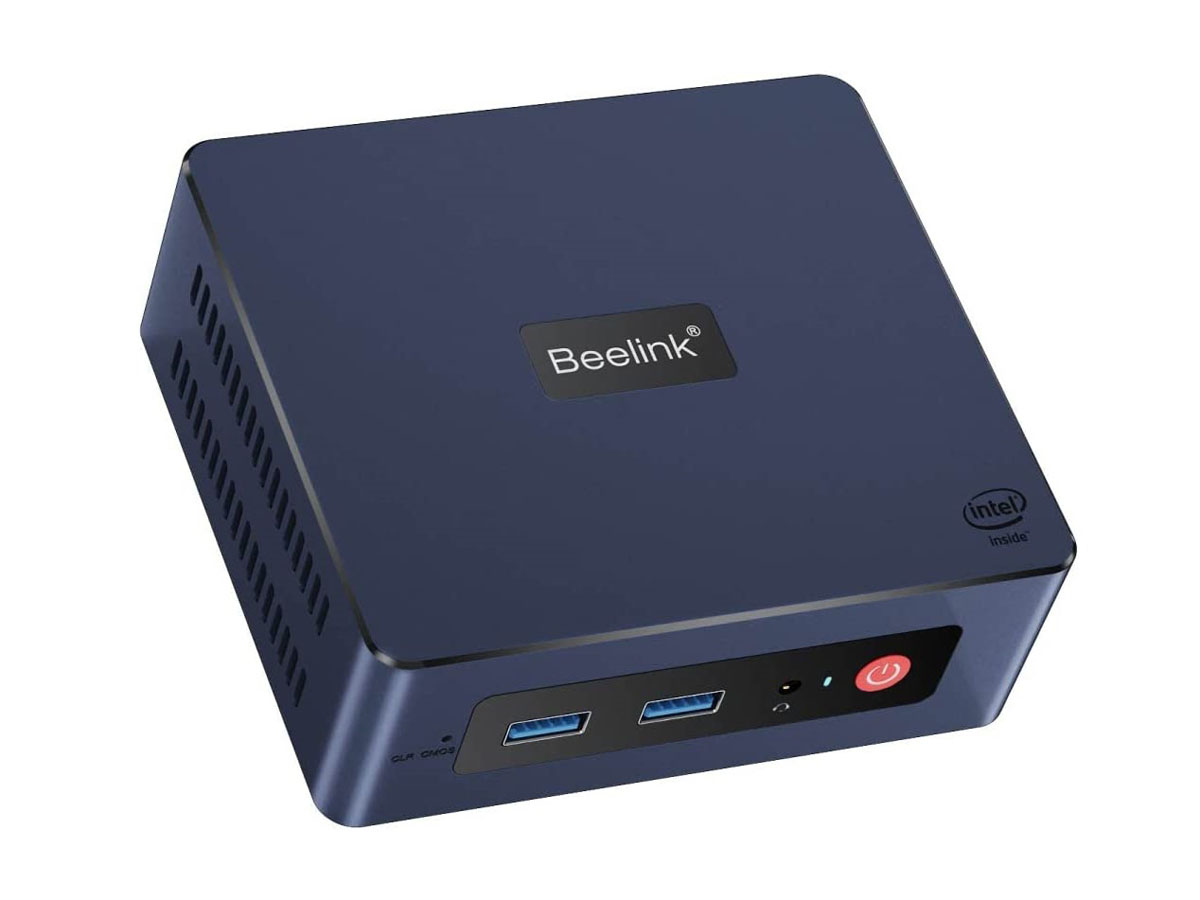

Beelink U59 Mini-S

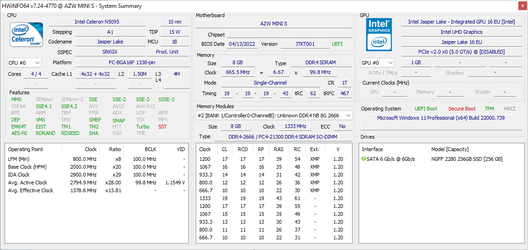

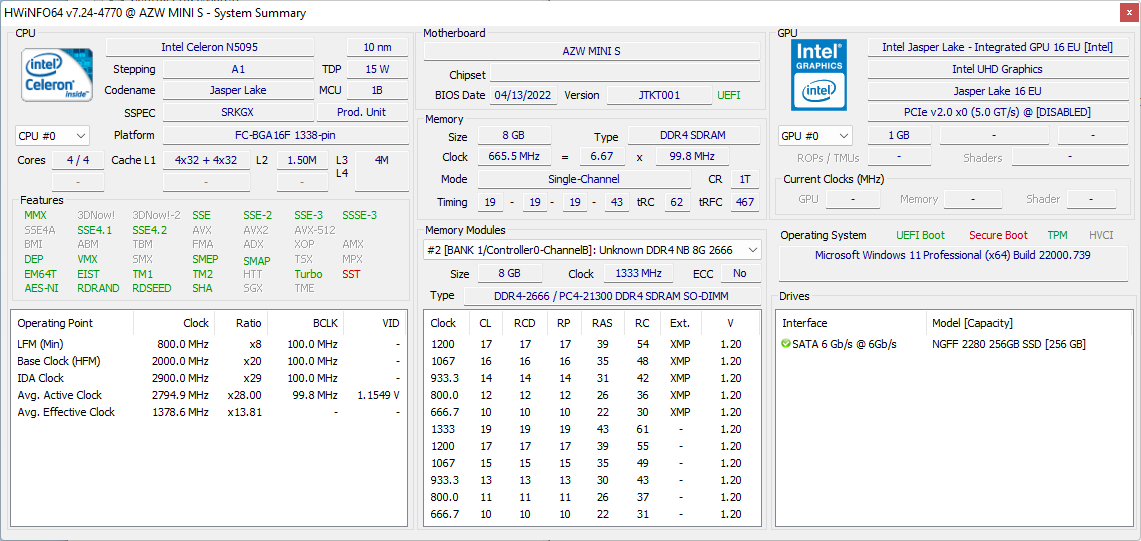

Processzor

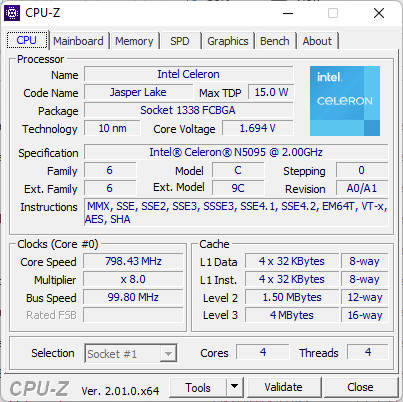

Intel Celeron N5095 4 x 2 - 2.9 GHz, 17 W PL2 / Short Burst, 14 W PL1 / Sustained, Jasper Lake
Grafikus adapter

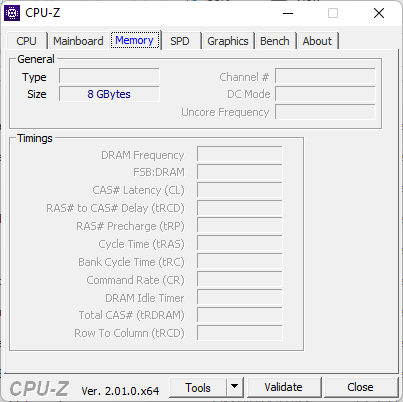

Memória
8 GB

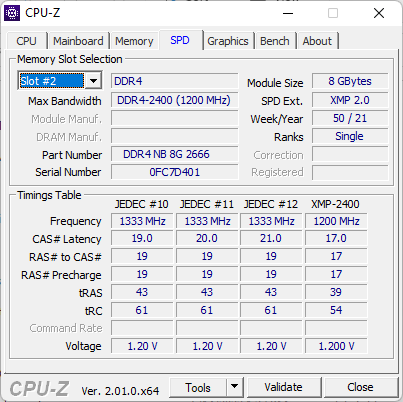

, Egycsatornás, DDR4-2666, 15-15-15-35, 2x SODIMM slots
Háttértár
Silicon Motion AZW 256G M.228 220426 C SATA 3, 256 GB
Hangkártya
Intel Jasper Lake PCH - cAVS Controller
Csatlakozók
4 USB 3.0, 2 HDMI, 1 Kensington zár, Audió csatlakozók: 3.5 mm
Hálózat
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Méret
magasság x szélesség x mélység (mm-ben) 41 x 124 x 113
Operációs rendszer
Microsoft Windows 11 Pro
További jellegzetességek
Útmutató, 2x HDMI kábel, levehető VESA-rögzítőadapter, kiegészítő csavarok, 12 Hónap Garancia

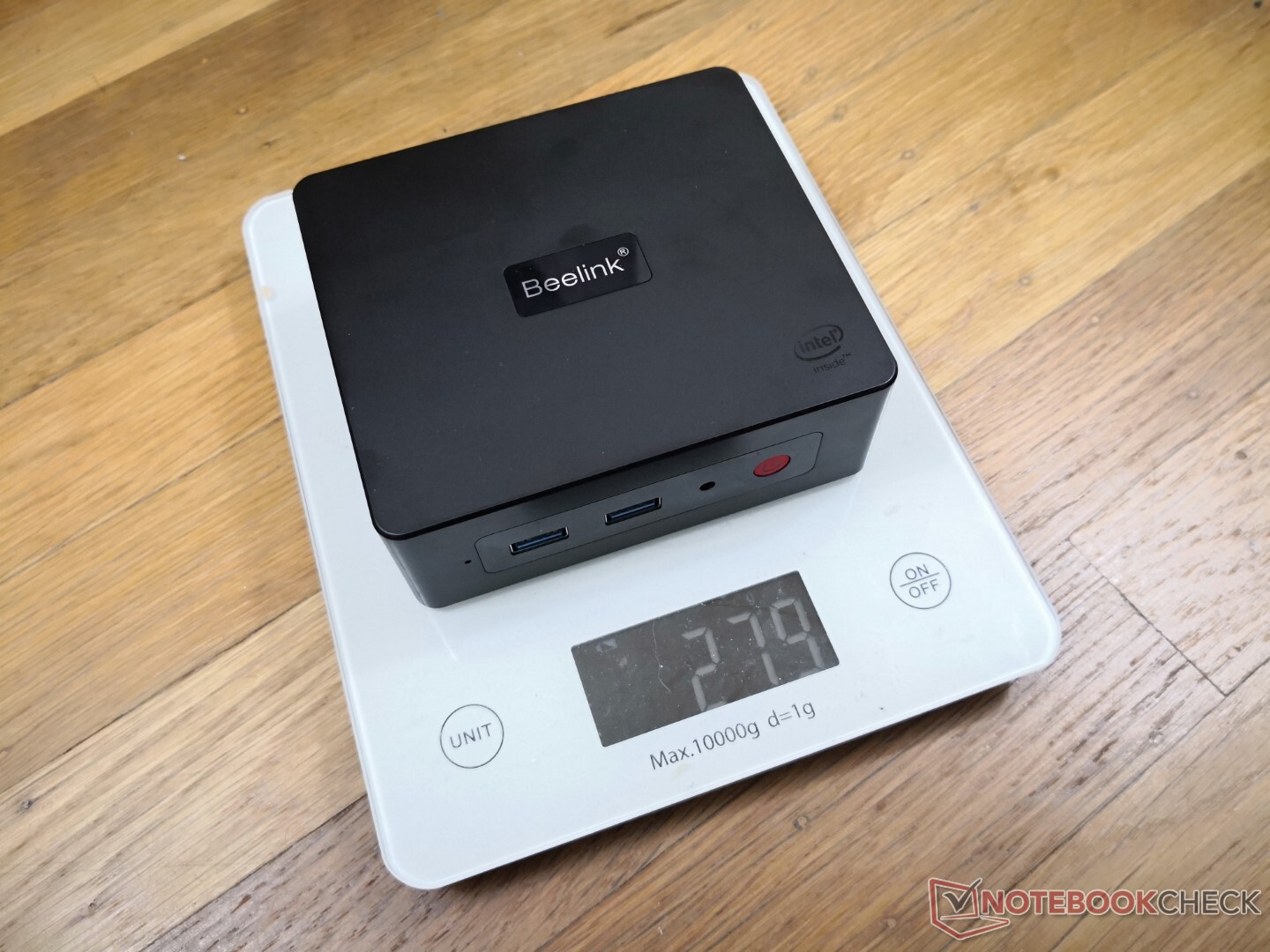

Súly
279 g, Tápegység: 150 g
Ár
220 USD
Hivatkozások
Megjegyzés: A gyártó különböző beszállítóktól származó alkatrészeket használhat, beleértve a hasonló specifikációjú kijelzőpaneleket, meghajtókat vagy memóriastickeket.



Potential Competitors in Comparison

Értékelés
Dátum
Model
Súly
Magasság
Méret
Felbontás
Legjobb ár
10/2022
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
279 g41 mmx
Beelink SEi8
i3-8109U, Iris Plus Graphics 655
346 g41 mmx
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx
04/2022
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 g42 mmx
GMK NucBox 3
Celeron J4125, UHD Graphics 600
410 g32.5 mmx
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620
472 g51 mmx

Size Comparison

128 mm 126 mm 51 mm 472 g124 mm 113 mm 42 mm 329 g124 mm 113 mm 41 mm 279 g124 mm 113 mm 41 mm 346 g128 mm 128 mm 32.5 mm 410 g117 mm 112 mm 37 mm 504 g

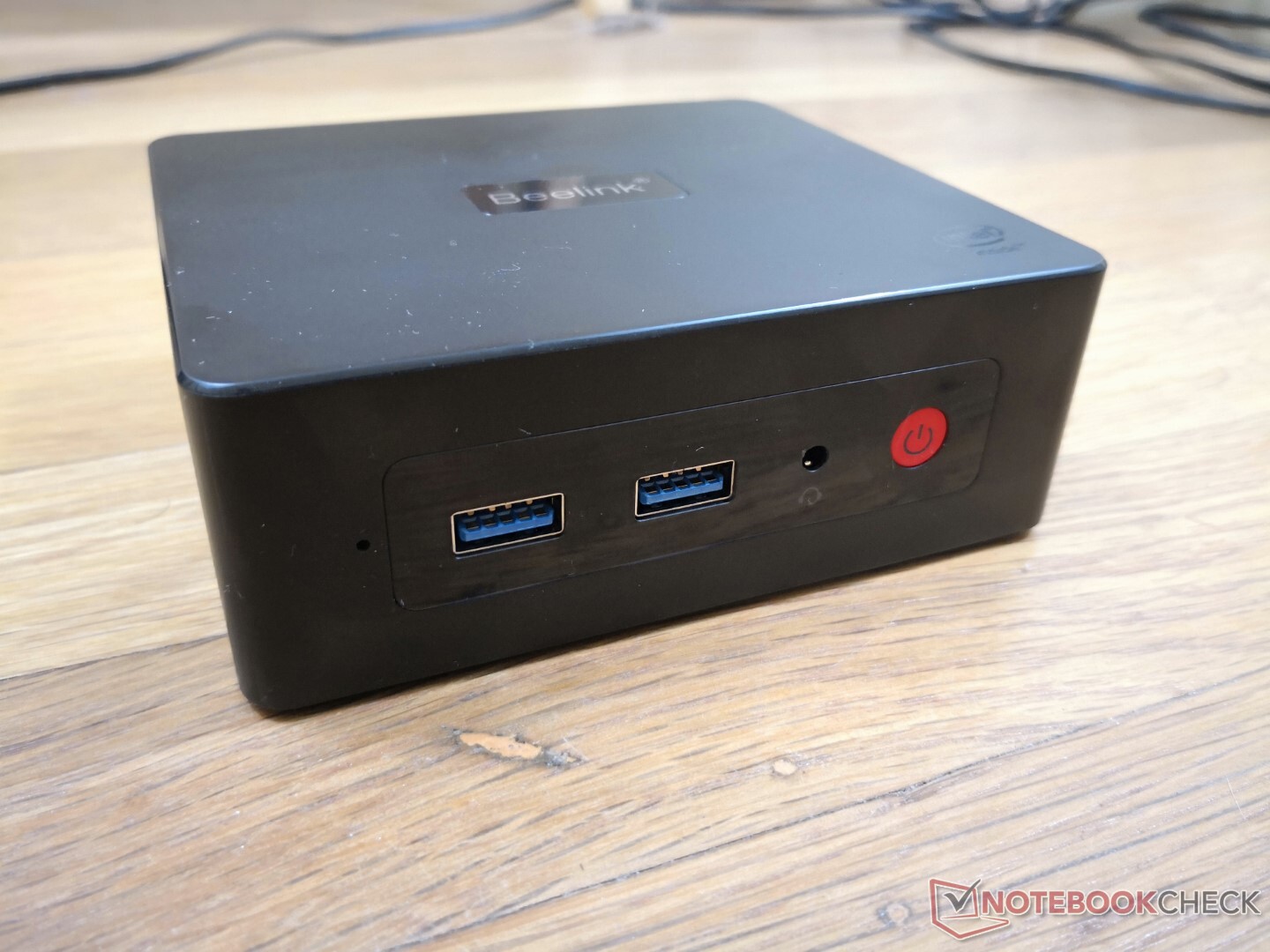

Front: 2x USB-A 3.0, 3.5 mm audio jack, Power button
Front: 2x USB-A 3.0, 3.5 mm audio jack, Power button

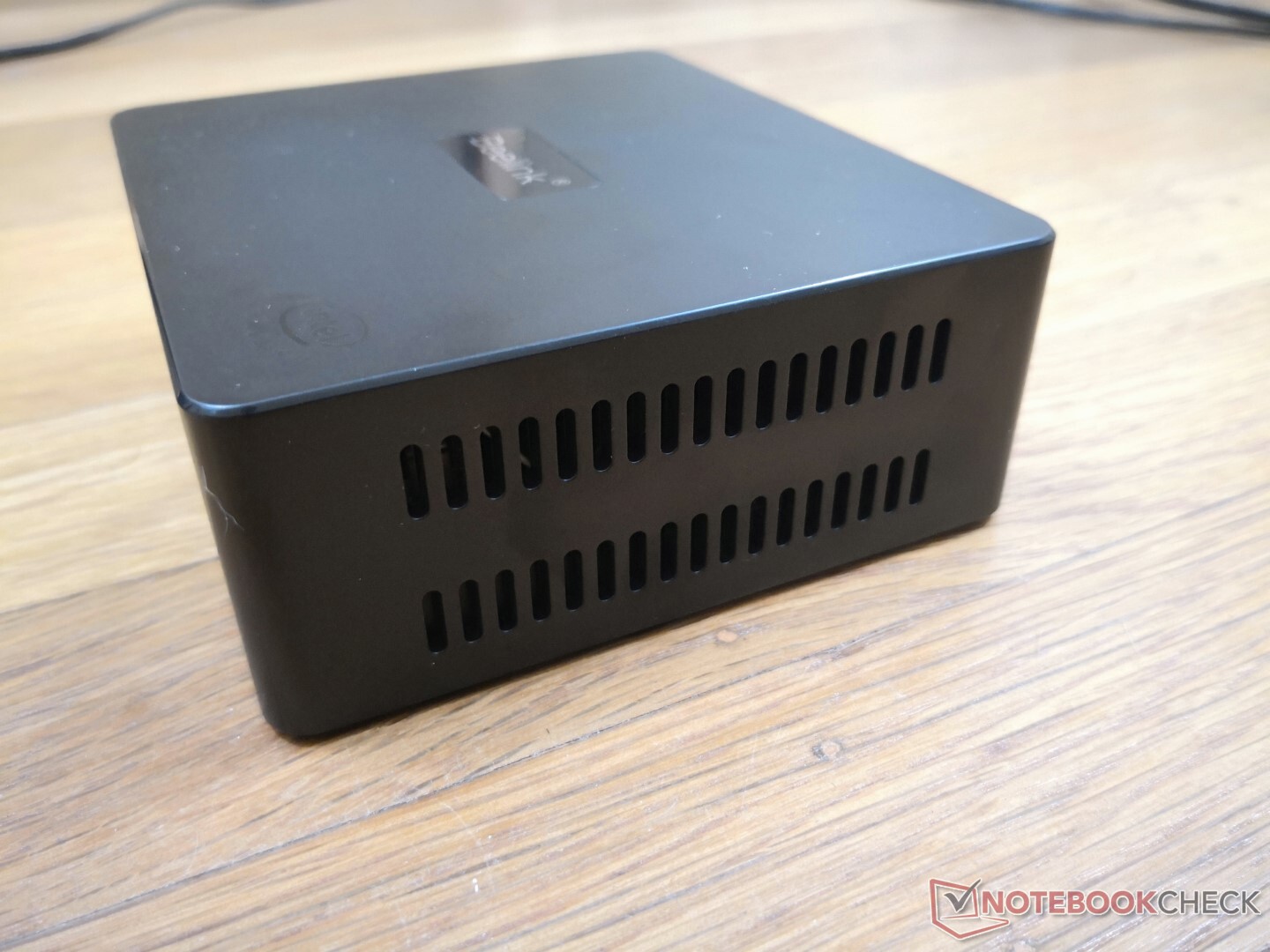

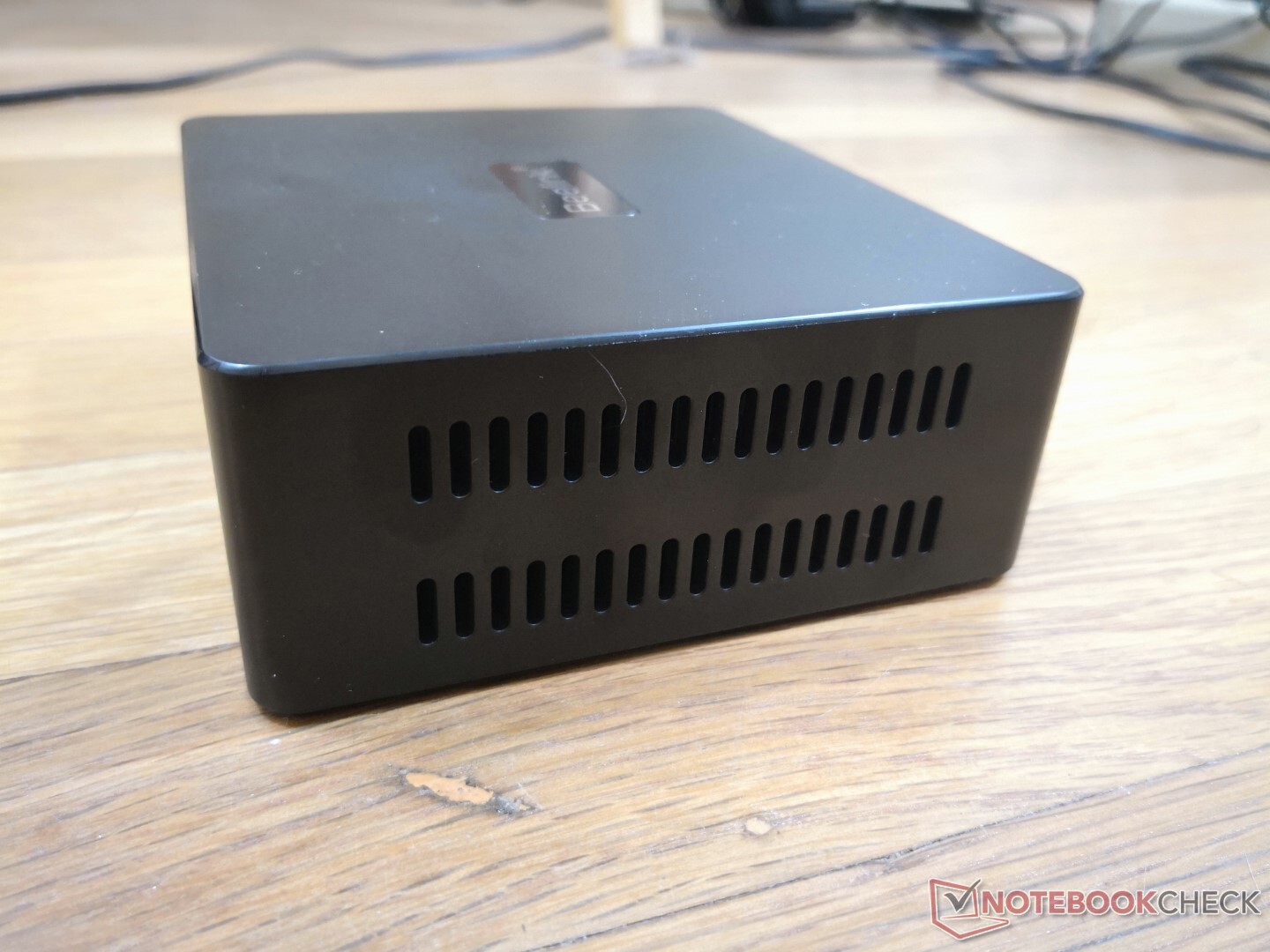

Right: No ports
Right: No ports
Left: No ports
Left: No ports

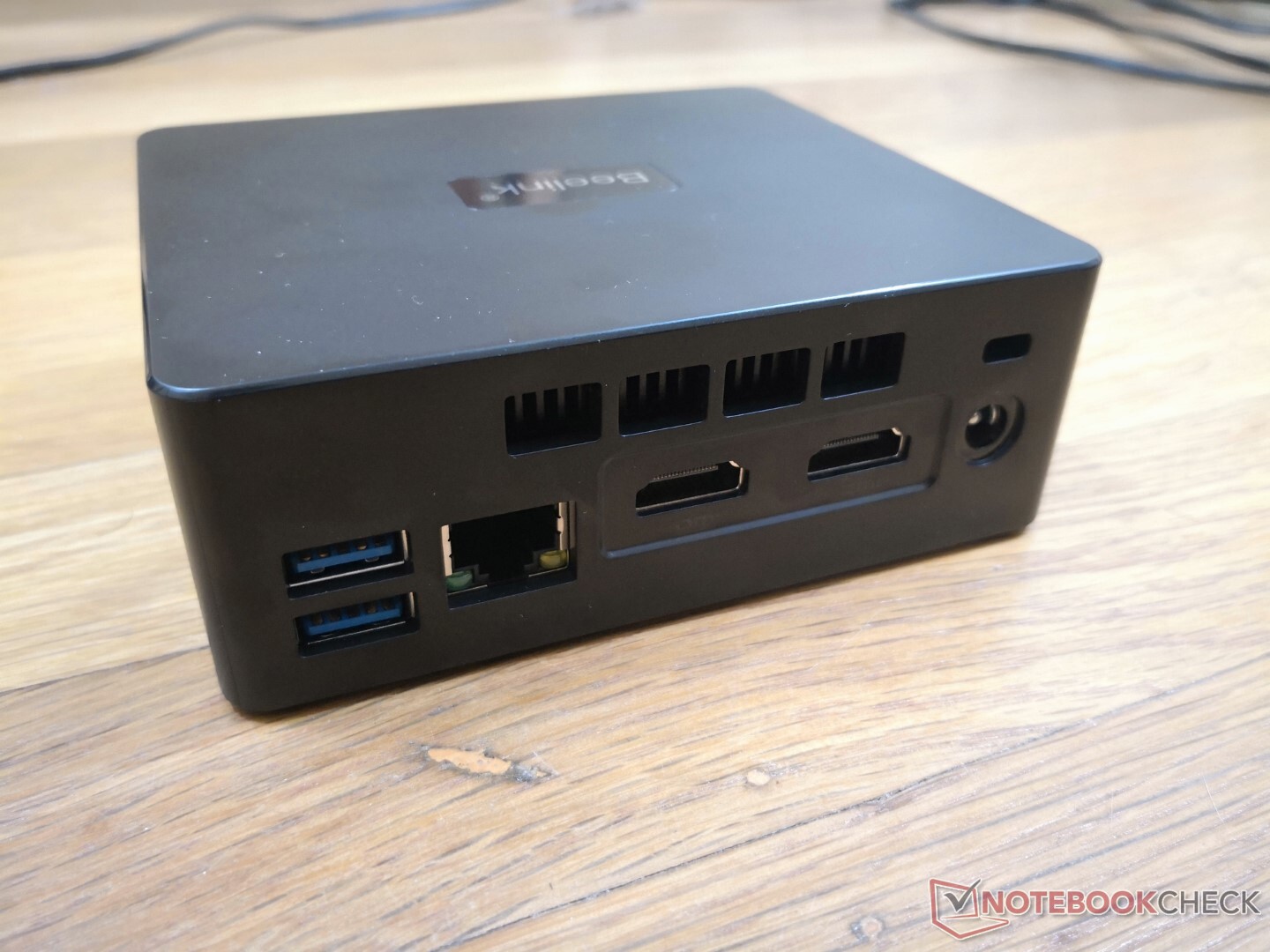

Rear: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington lock, AC adapter
Rear: 2x USB-A 3.0, Gigabit RJ-45, 2x HDMI 2.0, Kensington lock, AC adapter
Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s ∼100%
Beelink SEi8
Intel Dual Band Wireless-AC 3165
200 (156min - 261max) MBit/s ∼12%
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s ∼11%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
152 (106min - 184max) MBit/s ∼9%
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s ∼100%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
671 (648min - 684max) MBit/s ∼44%
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s ∼23%
Beelink SEi8
Intel Dual Band Wireless-AC 3165
338 (320min - 344max) MBit/s ∼22%
iperf3 transmit AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
188.4 (153min - 228max) MBit/s ∼100%
iperf3 receive AXE11000
Beelink U59 Mini-S
Intel Dual Band Wireless-AC 3165
322 (295min - 337max) MBit/s ∼100%
050100150200250300Tooltip
; iperf3 receive AXE11000; iperf 3.1.3: Ø321 (295-337)
; iperf3 transmit AXE11000; iperf 3.1.3: Ø188.4 (153-228)



Cinebench R15 Multi Loop

04080120160200240280320360400440480520560600640680720760Tooltip
Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)
Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Zotac ZBOX MI642 Nano Intel Core i5-10210U: Ø514 (504.41-521.83)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.4: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
3095 Points ∼100% +285%
Intel NUC11TNKi5
Intel Core i5-1135G7
1974 Points ∼64% +146%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1432 Points ∼46% +78%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1183 Points ∼38% +47%
Átlagos Intel Celeron N5095
  (804 - 844, n=4)
826 Points ∼27% +3%
Beelink U59 Mini-S
Intel Celeron N5095
804 Points ∼26%
Beelink SEi8
Intel Core i3-8109U
772 Points ∼25% -4%
GMK NucBox 3
Intel Celeron J4125
430 Points ∼14% -47%
Chuwi UBook CWI509
Intel Celeron N4100
386 Points ∼12% -52%
Blackview AceBook 1
Intel Celeron N4120
376 Points ∼12% -53%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points ∼9% -66%
Cinebench R20 / CPU (Single Core)
Intel NUC11TNKi5
Intel Core i5-1135G7
503 Points ∼100% +121%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
473 Points ∼94% +107%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
427 Points ∼85% +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
418 Points ∼83% +83%
Beelink SEi8
Intel Core i3-8109U
351 Points ∼70% +54%
Átlagos Intel Celeron N5095
  (228 - 239, n=4)
234 Points ∼47% +3%
Beelink U59 Mini-S
Intel Celeron N5095
228 Points ∼45%
GMK NucBox 3
Intel Celeron J4125
170 Points ∼34% -25%
Blackview AceBook 1
Intel Celeron N4120
159 Points ∼32% -30%
Chuwi UBook CWI509
Intel Celeron N4100
152 Points ∼30% -33%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points ∼18% -59%
Cinebench R23 / Multi Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
7719 Points ∼100% +258%
Intel NUC11TNKi5
Intel Core i5-1135G7
5098 (4930.91min - 5098.17max) Points ∼66% +136%
Átlagos Intel Celeron N5095
  (2159 - 2219, n=4)
2180 Points ∼28% +1%
Beelink U59 Mini-S
Intel Celeron N5095
2159 (2113.79min - 2158.74max) Points ∼28%
Beelink SEi8
Intel Core i3-8109U
2004 (1983.59min - 2004.09max) Points ∼26% -7%
GMK NucBox 3
Intel Celeron J4125
1186 (1172.17min - 1186.25max) Points ∼15% -45%
Blackview AceBook 1
Intel Celeron N4120
965 (915.042min - 964.764max) Points ∼13% -55%
Cinebench R23 / Single Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1369 Points ∼100% +123%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1217 Points ∼89% +98%
Beelink SEi8
Intel Core i3-8109U
906 Points ∼66% +47%
Beelink U59 Mini-S
Intel Celeron N5095
615 Points ∼45%
Átlagos Intel Celeron N5095
  (587 - 621, n=4)
609 Points ∼44% -1%
GMK NucBox 3
Intel Celeron J4125
438 Points ∼32% -29%
Blackview AceBook 1
Intel Celeron N4120
409 Points ∼30% -33%
Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1240 Points ∼100% +246%
Intel NUC11TNKi5
Intel Core i5-1135G7
794 (772.57min - 794.38max) Points ∼64% +122%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
580 Points ∼47% +62%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
522 (504.41min - 521.83max) Points ∼42% +46%
Beelink U59 Mini-S
Intel Celeron N5095
358 (350.25min - 357.53max) Points ∼29%
Átlagos Intel Celeron N5095
  (221 - 379, n=5)
340 Points ∼27% -5%
Beelink SEi8
Intel Core i3-8109U
324 (317.69min - 324.13max) Points ∼26% -9%
Blackview AceBook 1
Intel Celeron N4120
234 (225.47min - 233.66max) Points ∼19% -35%
GMK NucBox 3
Intel Celeron J4125
207 (171.15min - 207.16max) Points ∼17% -42%
Chuwi UBook CWI509
Intel Celeron N4100
175 Points ∼14% -51%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points ∼10% -65%
Cinebench R15 / CPU Single 64Bit
Intel NUC11TNKi5
Intel Core i5-1135G7
201 Points ∼100% +111%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
178 Points ∼89% +87%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
167 Points ∼83% +75%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
165 Points ∼82% +73%
Beelink SEi8
Intel Core i3-8109U
124.3 Points ∼62% +30%
Átlagos Intel Celeron N5095
  (95.4 - 109, n=4)
104.4 Points ∼52% +9%
Beelink U59 Mini-S
Intel Celeron N5095
95.4 Points ∼47%
Blackview AceBook 1
Intel Celeron N4120
74.5 Points ∼37% -22%
Chuwi UBook CWI509
Intel Celeron N4100
67 Points ∼33% -30%
GMK NucBox 3
Intel Celeron J4125
63.1 Points ∼31% -34%
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points ∼20% -57%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * ∼100% -181%
GMK NucBox 3
Intel Celeron J4125
3032 Seconds * ∼66% -87%
Blackview AceBook 1
Intel Celeron N4120
2583 Seconds * ∼57% -59%
Beelink U59 Mini-S
Intel Celeron N5095
1624 Seconds * ∼36%
Átlagos Intel Celeron N5095
  (1502 - 1624, n=4)
1548 Seconds * ∼34% +5%
Beelink SEi8
Intel Core i3-8109U
1328 Seconds * ∼29% +18%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
907 Seconds * ∼20% +44%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
892 Seconds * ∼20% +45%
Intel NUC11TNKi5
Intel Core i5-1135G7
600 Seconds * ∼13% +63%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
479 Seconds * ∼10% +71%
7-Zip 18.03 / 7z b 4
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
33282 MIPS ∼100% +202%
Intel NUC11TNKi5
Intel Core i5-1135G7
23280 MIPS ∼70% +111%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
16971 MIPS ∼51% +54%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
15043 MIPS ∼45% +37%
Átlagos Intel Celeron N5095
  (10994 - 11168, n=4)
11050 MIPS ∼33% 0%
Beelink U59 Mini-S
Intel Celeron N5095
11013 MIPS ∼33%
Beelink SEi8
Intel Core i3-8109U
9489 MIPS ∼29% -14%
Blackview AceBook 1
Intel Celeron N4120
7436 MIPS ∼22% -32%
GMK NucBox 3
Intel Celeron J4125
5694 MIPS ∼17% -48%
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS ∼14% -59%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11TNKi5
Intel Core i5-1135G7
4738 MIPS ∼100% +52%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
4362 MIPS ∼92% +40%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4303 MIPS ∼91% +38%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4014 MIPS ∼85% +28%
Beelink SEi8
Intel Core i3-8109U
3752 MIPS ∼79% +20%
Beelink U59 Mini-S
Intel Celeron N5095
3124 MIPS ∼66%
Átlagos Intel Celeron N5095
  (3098 - 3124, n=4)
3108 MIPS ∼66% -1%
Blackview AceBook 1
Intel Celeron N4120
2412 MIPS ∼51% -23%
GMK NucBox 3
Intel Celeron J4125
2237 MIPS ∼47% -28%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS ∼31% -53%
Geekbench 5.4 / Multi-Core
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
6243 Points ∼100% +223%
Intel NUC11TNKi5
Intel Core i5-1135G7
4593 Points ∼74% +138%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
3877 Points ∼62% +101%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
3330 Points ∼53% +72%
Átlagos Intel Celeron N5095
  (1933 - 2036, n=3)
1996 Points ∼32% +3%
Beelink U59 Mini-S
Intel Celeron N5095
1933 Points ∼31%
Beelink SEi8
Intel Core i3-8109U
1880 Points ∼30% -3%
GMK NucBox 3
Intel Celeron J4125
1198 Points ∼19% -38%
Geekbench 5.4 / Single-Core
Intel NUC11TNKi5
Intel Core i5-1135G7
1396 Points ∼100% +117%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
1121 Points ∼80% +74%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
1111 Points ∼80% +73%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1027 Points ∼74% +59%
Beelink SEi8
Intel Core i3-8109U
888 Points ∼64% +38%
Átlagos Intel Celeron N5095
  (644 - 659, n=3)
653 Points ∼47% +1%
Beelink U59 Mini-S
Intel Celeron N5095
644 Points ∼46%
GMK NucBox 3
Intel Celeron J4125
462 Points ∼33% -28%
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
9.18 fps ∼100% +359%
Intel NUC11TNKi5
Intel Core i5-1135G7
6.63 fps ∼72% +232%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4.37 fps ∼48% +119%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
4.15 fps ∼45% +108%
Beelink SEi8
Intel Core i3-8109U
2.85 fps ∼31% +43%
Beelink U59 Mini-S
Intel Celeron N5095
2 fps ∼22%
Átlagos Intel Celeron N5095
  (1.9 - 2.05, n=4)
1.993 fps ∼22% 0%
GMK NucBox 3
Intel Celeron J4125
1.26 fps ∼14% -37%
Blackview AceBook 1
Intel Celeron N4120
1.02 fps ∼11% -49%
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps ∼11% -51%
LibreOffice / 20 Documents To PDF
GMK NucBox 3
Intel Celeron J4125
159 s * ∼100% -49%
Blackview AceBook 1
Intel Celeron N4120
157 s * ∼99% -47%
Beelink U59 Mini-S
Intel Celeron N5095
106.5 s * ∼67%
Átlagos Intel Celeron N5095
  (97 - 107.9, n=4)
103.7 s * ∼65% +3%
Beelink SEi8
Intel Core i3-8109U
79 s * ∼50% +26%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
68.8 s * ∼43% +35%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
67.3 s * ∼42% +37%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
62.2 s * ∼39% +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
51.3 s * ∼32% +52%
R Benchmark 2.5 / Overall mean
Blackview AceBook 1
Intel Celeron N4120
1.649 sec * ∼100% -40%
GMK NucBox 3
Intel Celeron J4125
1.525 sec * ∼92% -29%
Beelink U59 Mini-S
Intel Celeron N5095
1.178 sec * ∼71%
Átlagos Intel Celeron N5095
  (1.16 - 1.178, n=4)
1.168 sec * ∼71% +1%
Beelink SEi8
Intel Core i3-8109U
0.861 sec * ∼52% +27%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U
0.695 sec * ∼42% +41%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
0.686 sec * ∼42% +42%
Intel NUC11TNKi5
Intel Core i5-1135G7
0.622 sec * ∼38% +47%
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Ryzen 7 4700U
0.616 sec * ∼37% +48%

* ... a kisebb jobb

Cinebench R15 CPU Multi 64Bit
358 Points
Cinebench R15 OpenGL 64Bit
25.2 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
95.4 Points
Segítség
Performance Rating
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
99.8 pt ∼100%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
67 pt ∼67%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
43.3 pt ∼43%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
31.9 pt ∼32%
Átlagos Intel Celeron N5095

31 pt ∼31%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30.4 pt ∼30%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
21 pt ∼21%
AIDA64 / FP32 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s ∼100% +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3775 KRay/s ∼56% +203%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2663 KRay/s ∼40% +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s ∼19% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1244 KRay/s ∼19%
Átlagos Intel Celeron N5095
  (1241 - 1245, n=4)
1244 KRay/s ∼19% 0%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
726 KRay/s ∼11% -42%
AIDA64 / FPU Julia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points ∼100% +284%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
20498 Points ∼74% +182%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
12985 Points ∼47% +79%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points ∼27% +3%
Átlagos Intel Celeron N5095
  (7264 - 7466, n=4)
7409 Points ∼27% +2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7264 Points ∼26%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
4191 Points ∼15% -42%
AIDA64 / CPU SHA3
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s ∼100% +265%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
919 MB/s ∼50% +81%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
629 MB/s ∼34% +24%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s ∼28% +1%
Átlagos Intel Celeron N5095
  (508 - 515, n=4)
513 MB/s ∼28% +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
508 MB/s ∼27%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
300 MB/s ∼16% -41%
AIDA64 / CPU Queen
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
47528 Points ∼100% +118%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points ∼98% +113%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
23893 Points ∼50% +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points ∼46% +1%
Átlagos Intel Celeron N5095
  (21458 - 22138, n=4)
21839 Points ∼46% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21801 Points ∼46%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
19745 Points ∼42% -9%
AIDA64 / FPU SinJulia
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points ∼100% +344%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
3766 Points ∼85% +276%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
2152 Points ∼48% +115%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
1107 Points ∼25% +10%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points ∼23% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points ∼23%
Átlagos Intel Celeron N5095
  (1000 - 1003, n=4)
1002 Points ∼23% 0%
AIDA64 / FPU Mandel
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points ∼100% +345%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
10030 Points ∼59% +164%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
6615 Points ∼39% +74%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points ∼23% +4%
Átlagos Intel Celeron N5095
  (3802 - 3967, n=4)
3921 Points ∼23% +3%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3802 Points ∼22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
2231 Points ∼13% -41%
AIDA64 / CPU AES
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s ∼100% +250%
Átlagos Intel Celeron N5095
  (19076 - 19354, n=4)
19154 MB/s ∼29% 0%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s ∼29% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19076 MB/s ∼29%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
14698 MB/s ∼22% -23%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
8288 MB/s ∼12% -57%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
8170 MB/s ∼12% -57%
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s ∼100% +99%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
258 MB/s ∼69% +37%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s ∼51% +1%
Átlagos Intel Celeron N5095
  (187.7 - 190, n=4)
188.9 MB/s ∼51% +1%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
187.7 MB/s ∼50%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
147.2 MB/s ∼39% -22%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
105 MB/s ∼28% -44%
AIDA64 / FP64 Ray-Trace
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s ∼100% +439%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
2058 KRay/s ∼57% +206%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
1440 KRay/s ∼40% +114%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s ∼19% 0%
Átlagos Intel Celeron N5095
  (673 - 676, n=4)
675 KRay/s ∼19% 0%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
673 KRay/s ∼19%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
404 KRay/s ∼11% -40%
AIDA64 / CPU PhotoWorxx
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s ∼100% +128%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
16602 MPixel/s ∼98% +125%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
14060 MPixel/s ∼83% +90%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s ∼55% +26%
Átlagos Intel Celeron N5095
  (7386 - 9294, n=4)
8010 MPixel/s ∼47% +8%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7386 MPixel/s ∼44%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
6210 MPixel/s ∼37% -16%
PCMark 10 / Score
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points ∼100% +89%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3791 Points ∼84% +59%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3645 Points ∼81% +53%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points ∼53% +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
2386 Points ∼53%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (2317 - 2410, n=4)
2366 Points ∼52% -1%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1707 Points ∼38% -28%
PCMark 10 / Essentials
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points ∼100% +56%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
7861 Points ∼87% +36%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
7787 Points ∼87% +35%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points ∼65% +2%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
5778 Points ∼64%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (5516 - 5874, n=4)
5712 Points ∼63% -1%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
4754 Points ∼53% -18%
PCMark 10 / Productivity
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
6333 Points ∼100% +76%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points ∼98% +72%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
6093 Points ∼96% +70%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points ∼57% +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
3591 Points ∼57%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (3454 - 3623, n=4)
3554 Points ∼56% -1%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
2958 Points ∼47% -18%
PCMark 10 / Digital Content Creation
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points ∼100% +151%
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
3000 Points ∼67% +69%
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
2746 Points ∼61% +54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points ∼40% 0%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1779 Points ∼40%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (1752 - 1787, n=4)
1773 Points ∼40% 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
960 Points ∼21% -46%
CrossMark / Overall
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
490 Points ∼100%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (473 - 490, n=2)
482 Points ∼98% -2%
CrossMark / Productivity
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
561 Points ∼100%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (535 - 561, n=2)
548 Points ∼98% -2%
CrossMark / Creativity
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (434 - 440, n=2)
437 Points ∼100% +1%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
434 Points ∼99%
CrossMark / Responsiveness
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
469 Points ∼100%
Átlagos Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
  (403 - 469, n=2)
436 Points ∼93% -7%
PCMark 10 Score
2386 pontok
Segítség
AIDA64 / Memory Copy
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
33609 MB/s ∼100% +98%
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
26641 MB/s ∼79% +57%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s ∼68% +36%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s ∼68% +35%
Átlagos Intel Celeron N5095
  (16422 - 23009, n=4)
18327 MB/s ∼55% +8%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16968 MB/s ∼50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
12738 MB/s ∼38% -25%
AIDA64 / Memory Read
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
30907 MB/s ∼100% +82%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
30757 MB/s ∼100% +82%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s ∼81% +47%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16942 MB/s ∼55%
Átlagos Intel Celeron N5095
  (16406 - 16959, n=4)
16731 MB/s ∼54% -1%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s ∼53% -3%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
9928 MB/s ∼32% -41%
AIDA64 / Memory Write
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
34480 MB/s ∼100% +78%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s ∼88% +58%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s ∼68% +21%
Átlagos Intel Celeron N5095
  (18612 - 30499, n=4)
21923 MB/s ∼64% +13%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19340 MB/s ∼56%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
17678 MB/s ∼51% -9%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
10380 MB/s ∼30% -46%
AIDA64 / Memory Latency
Zotac ZBOX MI642 Nano
Intel Core i5-10210U, UHD Graphics 620
94.4 ns * ∼100% -63%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * ∼92% -50%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
86.4 ns * ∼92% -49%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * ∼64% -4%
Átlagos Intel Celeron N5095
  (58 - 60.2, n=4)
59.3 ns * ∼63% -2%
Beelink U59 Mini-S
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
58 ns * ∼61%
Beelink SEi8
Intel Core i3-8109U, Iris Plus Graphics 655
56 ns * ∼59% +3%

* ... a kisebb jobb

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
3231 μs * ∼100% -87%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1913 μs * ∼59% -10%
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
1732.2 μs * ∼54%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * ∼24% +56%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * ∼16% +70%

* ... a kisebb jobb

Silicon Motion AZW 256G M.228 220426 C SATA 3
CDM 5/6 Read Seq Q32T1: 495.3 MB/s
CDM 5/6 Write Seq Q32T1: 423.4 MB/s
CDM 5/6 Read 4K Q32T1: 140 MB/s
CDM 5/6 Write 4K Q32T1: 166.1 MB/s
CDM 5 Read Seq: 445.2 MB/s
CDM 5 Write Seq: 417.6 MB/s
CDM 5/6 Read 4K: 15.02 MB/s
CDM 5/6 Write 4K: 48.42 MB/s
Drive Performance Rating - Percent
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
94.6 pt ∼95%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
70.3 pt ∼70%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
56.7 pt ∼57%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
45.6 pt ∼46%
Beelink U59
Silicon Motion AZW 512G NV428
41.1 pt ∼41%
GMK NucBox 3
Netac S535N8/256GYN
32 pt ∼32%
DiskSpd
seq read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
734 (717.65min - 733.79max) MB/s ∼100% +57%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s ∼69% +9%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
490 (487.59min - 489.62max) MB/s ∼67% +5%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
468 (410.62min - 468.2max) MB/s ∼64%
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s ∼55% -14%
GMK NucBox 3
Netac S535N8/256GYN
201 (166.09min - 201.1max) MB/s ∼27% -57%
seq write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700 (681.36min - 699.61max) MB/s ∼100% +61%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
470 (456.41min - 470.18max) MB/s ∼67% +8%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s ∼67% +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
435 (387.34min - 434.74max) MB/s ∼62%
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s ∼43% -30%
GMK NucBox 3
Netac S535N8/256GYN
241 (89.76min - 241.17max) MB/s ∼34% -45%
seq q8 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
798 (733.79min - 797.55max) MB/s ∼100% +63%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s ∼70% +14%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
544 (436.87min - 543.62max) MB/s ∼68% +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
490 (435.79min - 489.54max) MB/s ∼61%
GMK NucBox 3
Netac S535N8/256GYN
484 (173.85min - 484.23max) MB/s ∼61% -1%
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s ∼56% -9%
seq q8 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
775 (766.03min - 775.03max) MB/s ∼100% +59%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
515 (462.09min - 515.25max) MB/s ∼66% +6%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s ∼65% +3%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
488 (470.29min - 487.93max) MB/s ∼63%
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s ∼38% -40%
GMK NucBox 3
Netac S535N8/256GYN
235 (21.18min - 234.88max) MB/s ∼30% -52%
4k q1 t1 read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
57.1 (51.23min - 57.13max) MB/s ∼100% +257%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
40.1 (39.9min - 40.06max) MB/s ∼70% +151%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s ∼38% +35%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
16 (13.05min - 15.97max) MB/s ∼28%
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s ∼23% -19%
GMK NucBox 3
Netac S535N8/256GYN
7.53 (4.83min - 7.53max) MB/s ∼13% -53%
4k q1 t1 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
145.3 (143.17min - 145.33max) MB/s ∼100% +210%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
104 (103.95min - 104.38max) MB/s ∼72% +122%
GMK NucBox 3
Netac S535N8/256GYN
57.7 (45.42min - 57.74max) MB/s ∼40% +23%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
46.9 (43.93min - 46.94max) MB/s ∼32%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s ∼32% -1%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s ∼28% -12%
4k q32 t16 read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
394 (375.15min - 393.85max) MB/s ∼100% +141%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
347 (346.15min - 346.94max) MB/s ∼88% +113%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s ∼72% +75%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
163.2 (153.74min - 163.17max) MB/s ∼41%
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s ∼35% -17%
GMK NucBox 3
Netac S535N8/256GYN
88.1 (46.77min - 88.09max) MB/s ∼22% -46%
4k q32 t16 write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
517 (500.32min - 517.03max) MB/s ∼100% +147%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s ∼64% +58%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
307 (253.88min - 307.24max) MB/s ∼59% +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
209 (190.39min - 209.23max) MB/s ∼40%
GMK NucBox 3
Netac S535N8/256GYN
164 (0.14min - 163.91max) MB/s ∼32% -22%
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s ∼22% -46%
AS SSD
Score Total
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
1386 Points ∼100% +139%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
1023 Points ∼74% +76%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points ∼61% +45%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points ∼44% +6%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
580 Points ∼42%
GMK NucBox 3
Netac S535N8/256GYN
490 Points ∼35% -16%
Score Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
457 Points ∼100% +175%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
449 Points ∼98% +170%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points ∼67% +83%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points ∼43% +19%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
166 Points ∼36%
GMK NucBox 3
Netac S535N8/256GYN
151 Points ∼33% -9%
Score Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
687 Points ∼100% +112%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points ∼55% +16%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
324 Points ∼47% 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
324 Points ∼47%
Beelink U59
Silicon Motion AZW 512G NV428
321 Points ∼47% -1%
GMK NucBox 3
Netac S535N8/256GYN
256 Points ∼37% -21%
Seq Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
700.68 MB/s ∼100% +54%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s ∼75% +16%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s ∼73% +12%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
507 MB/s ∼72% +11%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
455.57 MB/s ∼65%
GMK NucBox 3
Netac S535N8/256GYN
391 MB/s ∼56% -14%
Seq Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
640.31 MB/s ∼100% +46%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s ∼73% +7%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
438.23 MB/s ∼68%
GMK NucBox 3
Netac S535N8/256GYN
423.2 MB/s ∼66% -3%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
413.8 MB/s ∼65% -6%
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s ∼57% -17%
4K Read
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
55.28 MB/s ∼100% +298%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
36.75 MB/s ∼66% +164%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s ∼37% +47%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
13.9 MB/s ∼25%
GMK NucBox 3
Netac S535N8/256GYN
11.78 MB/s ∼21% -15%
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s ∼19% -23%
4K Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
128.45 MB/s ∼100% +159%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
88.5 MB/s ∼69% +78%
GMK NucBox 3
Netac S535N8/256GYN
49.71 MB/s ∼39% 0%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
49.68 MB/s ∼39%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s ∼33% -14%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s ∼23% -39%
4K-64 Read
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
369.4 MB/s ∼100% +245%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
323.95 MB/s ∼88% +203%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s ∼63% +116%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s ∼37% +27%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
106.99 MB/s ∼29%
GMK NucBox 3
Netac S535N8/256GYN
100.4 MB/s ∼27% -6%
4K-64 Write
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
494.85 MB/s ∼100% +115%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s ∼58% +24%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s ∼51% +10%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
230.65 MB/s ∼47%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
193.7 MB/s ∼39% -16%
GMK NucBox 3
Netac S535N8/256GYN
163.7 MB/s ∼33% -29%
Access Time Read
GMK NucBox 3
Netac S535N8/256GYN
0.256 ms * ∼100% -33%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.193 ms * ∼75%
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * ∼68% +10%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * ∼48% +36%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.103 ms * ∼40% +47%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.102 ms * ∼40% +47%
Access Time Write
GMK NucBox 3
Netac S535N8/256GYN
0.374 ms * ∼100% -108%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * ∼72% -49%
Beelink U59 Mini-S
Silicon Motion AZW 256G M.228 220426 C SATA 3
0.18 ms * ∼48%
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * ∼47% +3%
Beelink SEi8
Intel SSD 660p SSDPEKNW512G8
0.136 ms * ∼36% +24%
Zotac ZBOX MI642 Nano
Western Digital WD Blue 3D WDBNCE5000PNC
0.095 ms * ∼25% +47%

* ... a kisebb jobb

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0255075100125150175200225250275300325350375400425450475Tooltip
: Ø485 (394.52-487.59)
3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
25431 Points ∼100% +423%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19330 Points ∼76% +297%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
18282 Points ∼72% +276%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
13022 Points ∼51% +168%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
10077 Points ∼40% +107%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
10057 Points ∼40% +107%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
4863 Points ∼19%
Átlagos Intel UHD Graphics (Jasper Lake 16 EU)
  (4210 - 5212, n=6)
4844 Points ∼19% 0%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points ∼16% -18%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
3441 Points ∼14% -29%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
3057 Points ∼12% -37%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
2453 Points ∼10% -50%
1920x1080 Fire Strike Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3579 Points ∼100% +492%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3152 Points ∼88% +421%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
2438 Points ∼68% +303%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
1715 Points ∼48% +183%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points ∼36% +112%
Zotac ZBOX MI642 Nano
Intel UHD Graphics 620, Intel Core i5-10210U
1232 Points ∼34% +104%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
605 Points ∼17%
Átlagos Intel UHD Graphics (Jasper Lake 16 EU)
  (392 - 679, n=6)
598 Points ∼17% -1%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
436 Points ∼12% -28%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
378 Points ∼11% -38%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
371 Points ∼10% -39%
2560x1440 Time Spy Graphics
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1076 Points ∼100% +522%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1031 Points ∼96% +496%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
733 Points ∼68% +324%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
569 Points ∼53% +229%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points ∼37% +133%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
173 Points ∼16%
Átlagos Intel UHD Graphics (Jasper Lake 16 EU)
  (129 - 182, n=4)
165.5 Points ∼15% -4%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points ∼13% -18%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
102 Points ∼9% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
99 Points ∼9% -43%
2560x1440 Time Spy Score
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
1221 Points ∼100% +514%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1161 Points ∼95% +483%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
825 Points ∼68% +315%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
636 Points ∼52% +220%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
462 Points ∼38% +132%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
199 Points ∼16%
Átlagos Intel UHD Graphics (Jasper Lake 16 EU)
  (145 - 210, n=4)
189.8 Points ∼16% -5%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
161 Points ∼13% -19%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
117 Points ∼10% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
113 Points ∼9% -43%
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga Slim 7 14ARE05 82A20008GE
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
5346 Points ∼100% +526%
Intel NUC11TNKi5
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5221 Points ∼98% +511%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
3535 Points ∼66% +314%
Beelink SEi8
Intel Iris Plus Graphics 655, Intel Core i3-8109U
2801 Points ∼52% +228%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points ∼35% +118%
Beelink U59 Mini-S
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
854 Points ∼16%
Átlagos Intel UHD Graphics (Jasper Lake 16 EU)
  (554 - 894, n=6)
807 Points ∼15% -6%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points ∼14% -10%
Blackview AceBook 1
Intel UHD Graphics 600, Intel Celeron N4120
583 Points ∼11% -32%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
508 Points ∼10% -41%
Chuwi UBook CWI509
Intel UHD Graphics 600, Intel Celeron N4100
429 Points ∼8% -50%
3DMark 11 Performance
982 pontok
3DMark Cloud Gate Standard Score
4577 pontok
3DMark Fire Strike Score
582 pontok
3DMark Time Spy Score
199 pontok
Segítség
alacsony közepes magas ultra
Dota 2 Reborn (2015) 58.3 20.7 11.6 10.8
Final Fantasy XV Benchmark (2018) 6.86
X-Plane 11.11 (2018) 13.3 7.54 7.07

Zajszint

Üresjárat
24.2 / 24.2 / 24.2 dB(A)
Terhelés
25.1 / 33.9 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm távolságról)   környezeti zaj: 23.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.340.636.439.22531.22929.9323124.623.52725.74022.322.52123.45023.324.823.324.16329.629.424.529.88024.223.826.323.210020.420.421.421.312519.918.615.618.616016.515.114.416.920016.815.915.527.925015.915.413.129.831518.41714.518.540017.416.216.118.550013.112.811.918.36301312.31217.780012.29.89.919.9100013.29.59.223.61250119.39.820.7160010.79.99.622200011.110.11023.2250011.610.310.226.4315011.110.710.725.1400011.2111117.8500011.511.211.312.7630011.711.511.512800012.712.511.512.7100001716.911.516.91250018.717.411.418.91600013.712.910.613.8SPL25.124.223.333.9N0.60.50.51.8median 13.1median 12.5median 11.5median 18.6Delta2.82.91.93.1hearing rangehide median Fan NoiseBeelink U59 Mini-S
Beelink U59 Mini-S
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3
Beelink SEi8
Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
Zotac ZBOX MI642 Nano
UHD Graphics 620, i5-10210U, Western Digital WD Blue 3D WDBNCE5000PNC
Noise
-19%
-39%
-9%
-36%
off / környezet *
23.3
24.5
-5%
24.8
-6%
24.5
-5%
27.8
-19%
Idle Minimum *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
27.8
-15%
Idle Average *
24.2
26.5
-10%
35.6
-47%
24.5
-1%
33.9
-40%
Idle Maximum *
24.2
31.1
-29%
35.6
-47%
28.6
-18%
33.9
-40%
Load Average *
25.1
37.7
-50%
36.2
-44%
29.7
-18%
43.7
-74%
Load Maximum *
33.9
37.5
-11%
47.6
-40%
37.6
-11%
43.7
-29%
Witcher 3 ultra *
38
30.4

* ... a kisebb jobb

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 1.3 / 0.66 Watt
Üresjáratdarkmidlight 7 / 7 / 7.6 Watt
Terhelés midlight 18.3 / 27.1 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Jelenleg a mérésekhez a Metrahit Energy-t, egy professzionális egyfázisú áramminőség- és energiamérő digitális multimétert használjuk. Tudjon meg többet róla here. All of our test methods can be found here.
Beelink U59 Mini-S
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 256G M.228 220426 C SATA 3, , x,
Beelink SEi8
i3-8109U, Iris Plus Graphics 655, Intel SSD 660p SSDPEKNW512G8, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
GMK NucBox 3
Celeron J4125, UHD Graphics 600, Netac S535N8/256GYN, , x,
Zotac ZBOX MI642 Nano
i5-10210U, UHD Graphics 620, Western Digital WD Blue 3D WDBNCE5000PNC, , x,
Power Consumption
-43%
-101%
6%
42%
-56%
Idle Minimum *
7
7.5
-7%
11.5
-64%
6.7
4%
3
57%
8.9
-27%
Idle Average *
7
7.6
-9%
12.4
-77%
6.7
4%
3.1
56%
9
-29%
Idle Maximum *
7.6
9.2
-21%
12.9
-70%
7.4
3%
3.6
53%
9.9
-30%
Load Average *
18.3
41.1
-125%
40.7
-122%
16
13%
11.1
39%
33
-80%
Load Maximum *
27.1
41.4
-53%
73.5
-171%
25.6
6%
25.4
6%
58
-114%
Witcher 3 ultra *
43.9
13.1

* ... a kisebb jobb

Power Consumption Witcher 3 / Stresstest

No graph data

Power Consumption external Monitor

0510152025Tooltip
; Prime95 V28,10 Stress (external Monitor): Ø24.2 (22.9-27.1)
; Cinebench R15 Multi (external Monitor): Ø23 (20.9-23.9)
; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø14.7 (14.2-17.2)

Pro

+ általában csendes
+ 2x belső tárolóhely
+ két videokimenet
+ olcsó

Kontra

- nincs SD kártyaolvasó vagy USB-C
- csak egycsatornás RAM
- rövid hálózati adapter kábel
- lassú Wi-Fi

Összegzés - Olcsó HTPC Rendszerekbe

In review: Beelink U59 Mini-S. Test unit provided by Beelink
In review: Beelink U59 Mini-S. Test unit provided by Beelink

Alig több mint 200 USD-ért a Beelink U59 Mini-S az egyik legolcsóbb mini PC, amely RAM-mal, tárolóval és Windows 11 operációs rendszerrel van teljesen felszerelve. Ilyen alacsony áron a Mini-S jó választás lehet azoknak a felhasználóknak, akik nem hajlandóak jóval többet költeni egy gyorsabb Core ix-alapú mini PC-re, és nem hajlandóak beérni olyan digitális média dongle-okkal, mint a Chromecast, a Roku vagy az Amazon Fire TV. A Celeron N5905 nem különösebben gyors, de még mindig gyorsabb, mint bármelyik Atom opció a piacon, ami viszonylag simább működést és kiváló 4K videó streaminget tesz lehetővé 60 FPS mellett.

A Mini-S kiemelkedő jellemzői közé tartozik a megfizethetőségén túl a kettős belső tároló lehetősége és a nagyon halk ventilátorzaj.

Számos spórolást kell szem előtt tartanunk, amelyek leginkább a funkciók hiányával kapcsolatosak. Nincs SD kártyaolvasó, USB-C, Wi-Fi 6 vagy kétcsatornás RAM. A hálózati adapter kábele is kissé rövid, mindössze 1 méter körüli. Szerencsére ezek a hátulütők nem rontják túlságosan az alapvető HTPC-élményt.

Price and Availability

A Beelink U59 Mini-S már elérhető az Amazonon 209 dollárért az aktuális kupon alkalmazása után, vagy 229 dollárért a official Beelink hivatalos weboldalán.

Pricecompare

Please share our article, every link counts!
.170
> Magyarország - Kezdőlap > Tesztek / áttekintők > Beelink U59 Mini-S mini PC rövid értékelés: A szuperolcsó Intel NUC HTPC alternatíva
Allen Ngo, 2022-10- 5 (Update: 2022-10- 5)
