ASUS ROG Zephyrus S GX502GW (Core i7-9750H, RTX 2070) Laptop rövid értékelés

Florian Glaser, 👁 Florian Glaser (fordította Zoltán Kiss), 06/30/2019
Coffee Lake Geforce Gaming Laptop / Notebook

Erős, mégis karcsú. Az ultravékony gamer notebookok ma divatban vannak, a Gigabyte, MSI és Razer mutatva az utat. Az ASUS ennek megfelelően most frissítette a GX502 sorozatát, de vajon ez a vékony váz tud-e boldogulni egy Core i7-9750H-val és egy GeForce RTX 2070-nel? Tovább olvasva kiderül.

Asus Zephyrus S GX502GW (Zephyrus S GX502 Széria)
Processzor
Intel Core i7-9750H
Grafikus adapter
NVIDIA GeForce RTX 2070 (Laptop) - 8192 MB, Mag: 1215 MHz, Memória: 7000 MHz, GDDR6, ForceWare 419.71, Optimus
Memória
32768 MB
, 16 GB forrasztott és 16 GB DDR4-2666 SO-DIMM. Minden SO-DIMM hely foglalt
Kijelző
15.6 hüvelyk 16:9, 1920 x 1080 pixel 141 PPI, AU Optronics B156HAN08.2 (AUO82ED), IPS, Full HD, 144 Hz, G-Sync, fényes: nem
Alaplap
Intel HM370
Háttértár
2x Intel SSD 660p SSDPEKNW512G8 (RAID 0), 1024 GB
, 2 x M.2 2280 drive bays
Hangkártya
Realtek ALC294 @ Intel Cannon Point PCH - cAVS (Audio, Voice, Speech)
Csatlakozók
2 USB 3.0, 2 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington zár, Audió csatlakozók: Dedikált fülhallgató és mikrofon portok
Hálózat
Realtek PCIe GBE Family Controller (10/100/1000MBit), Intel Wireless-AC 9560 (a/b/g/n/ac), Bluetooth 5.0
Méret
magasság x szélesség x mélység (mm-ben) 19 x 360 x 252
Akkumulátor
76 Wh Lítium-Ion, 4 cells
Operációs rendszer
Microsoft Windows 10 Pro 64 Bit
Camera
Webkamera: Külső, nincs beépített kamera
További jellegzetességek

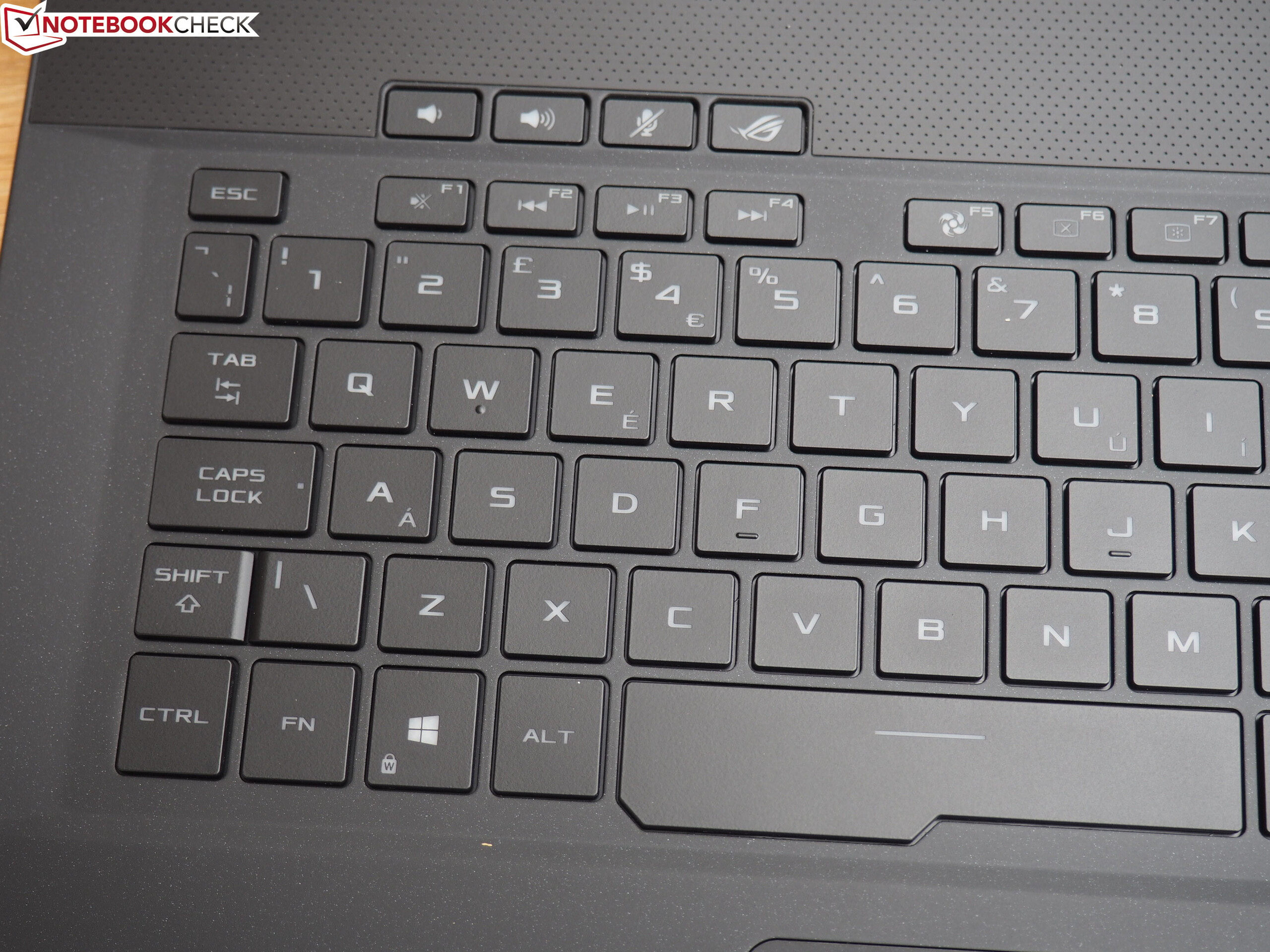

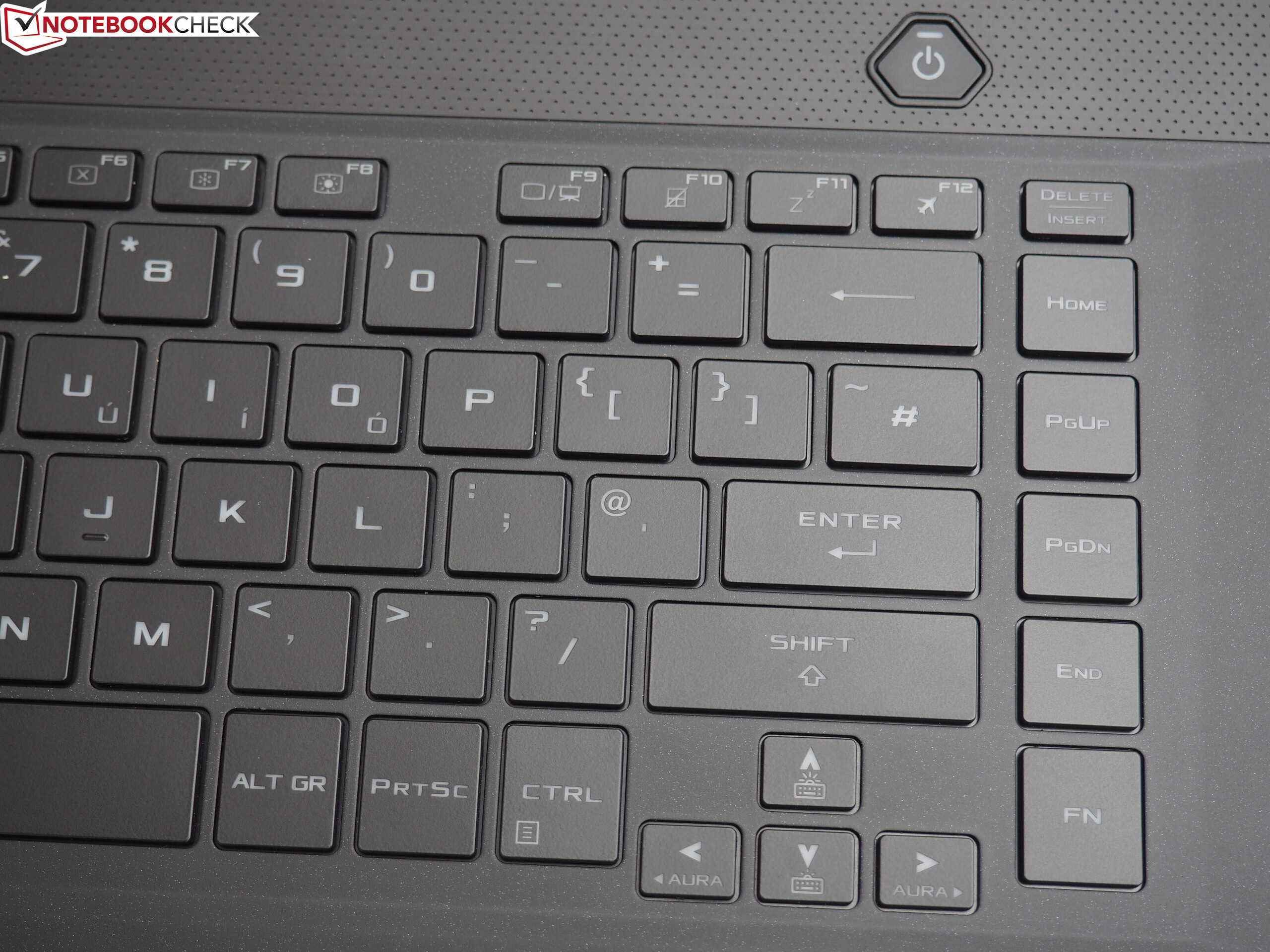

Hangszórók: 2.0, Billentyűzet: Chiclet RGB, Billentyűzet háttérvilágítás: igen, 230 W-os tápegység, 3D szobrászat, különféle gyártói eszközök, 24 Hónap Garancia
Súly

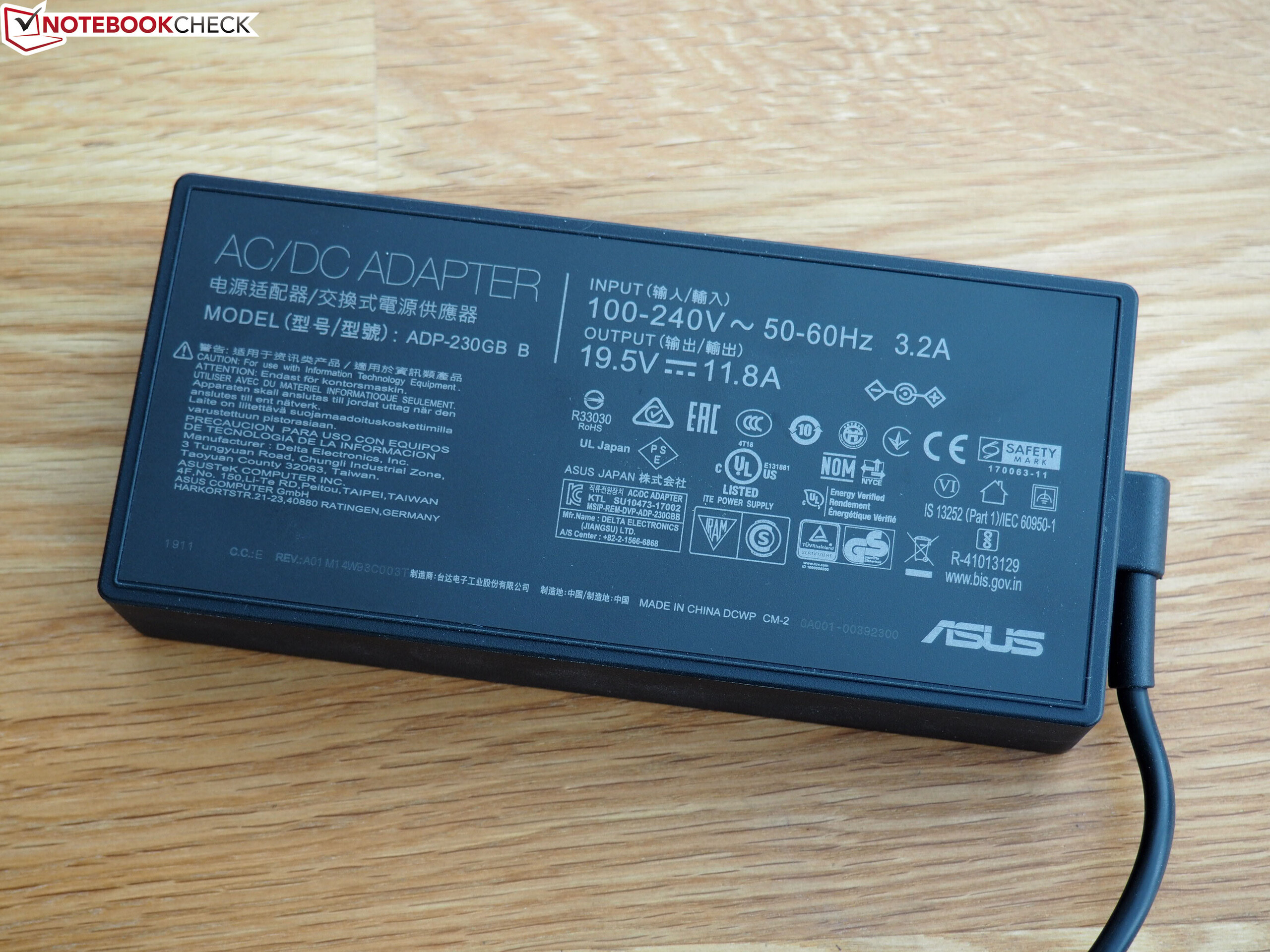

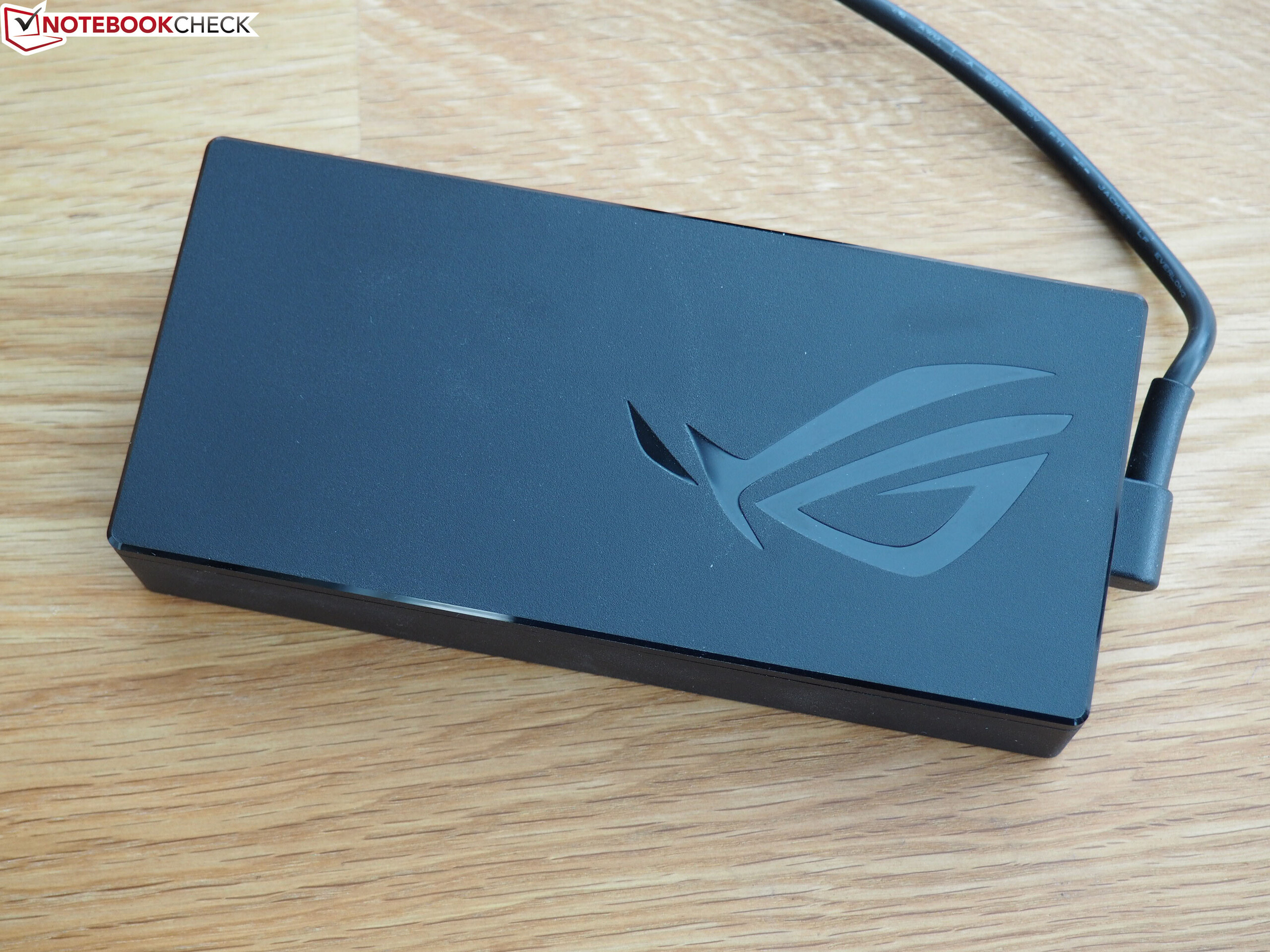

2.064 kg, Tápegység: 632 g
Ár
2600 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

360 mm 252 mm 19 mm 2.1 kg359 mm 255 mm 18 mm 2.1 kg360 mm 268 mm 15.75 mm 2.1 kg356 mm 250 mm 18.9 mm 2.1 kg355 mm 235 mm 17.8 mm 2.1 kg

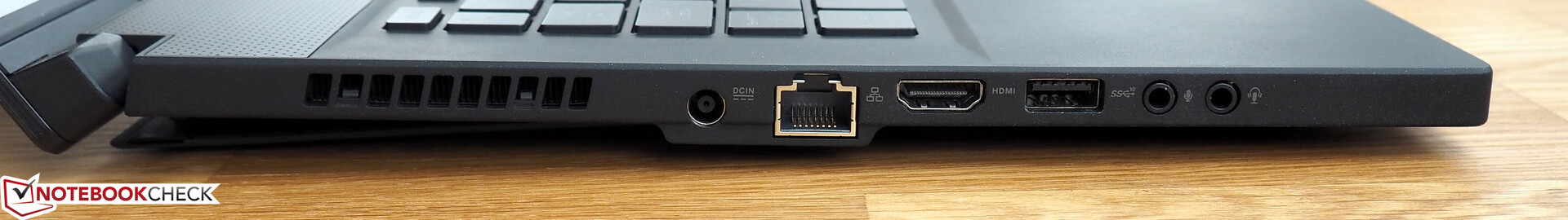

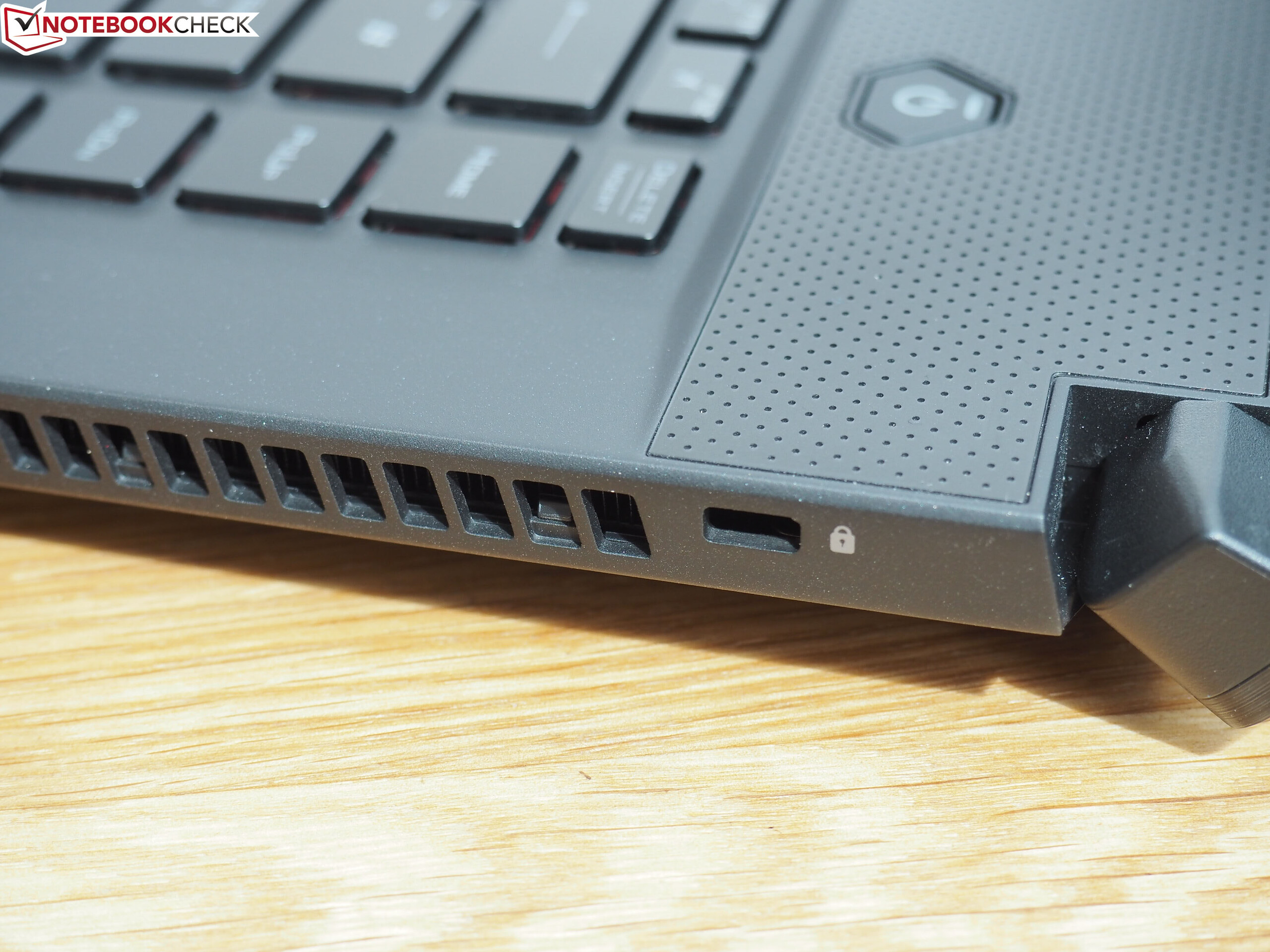

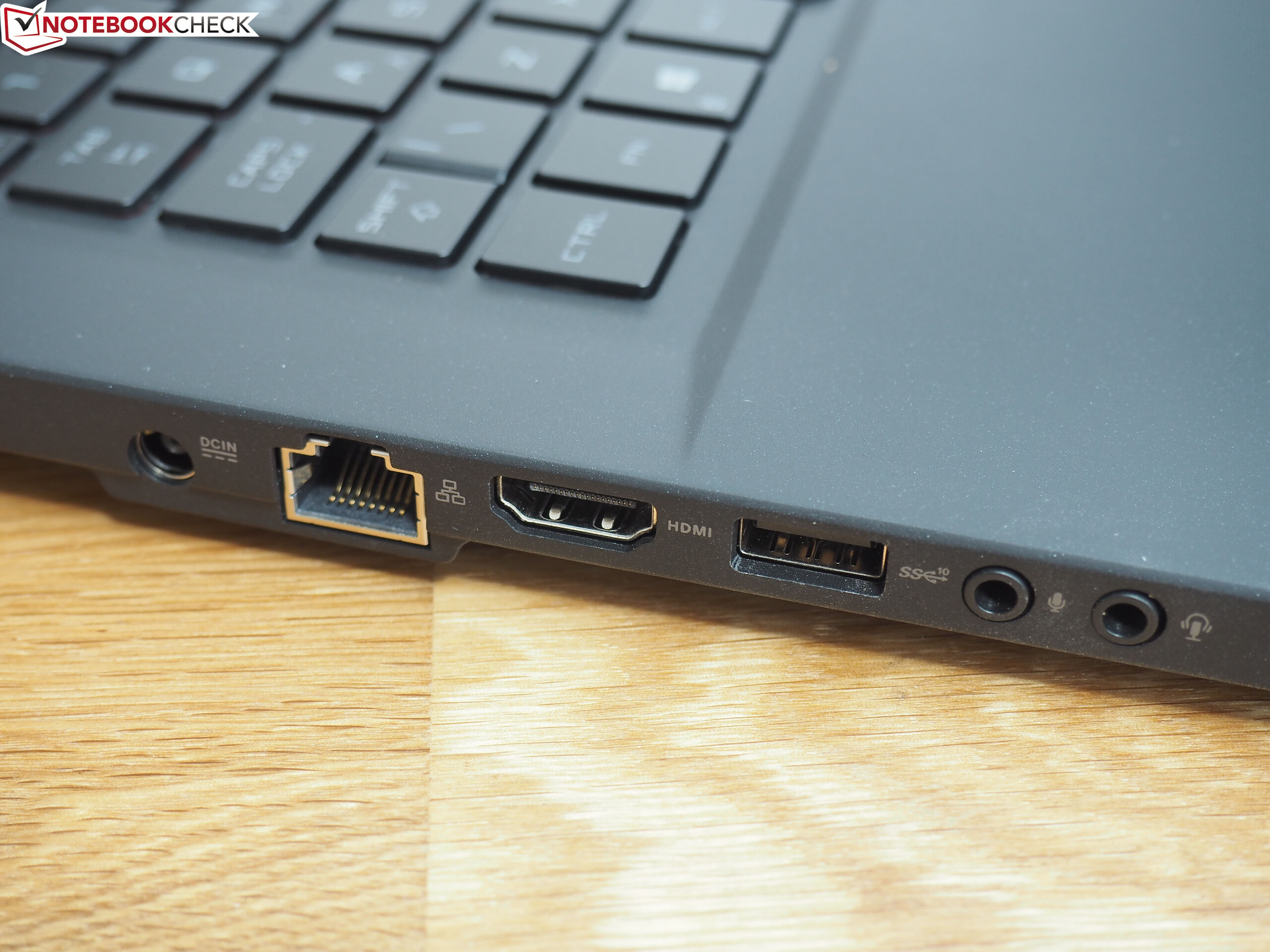

Left-hand side: ventilation grille, power connector, RJ45 LAN, HDMI 2.0, USB 3.1 Gen2 Type-A, microphone jack, headphone jack
Left-hand side: ventilation grille, power connector, RJ45 LAN, HDMI 2.0, USB 3.1 Gen2 Type-A, microphone jack, headphone jack

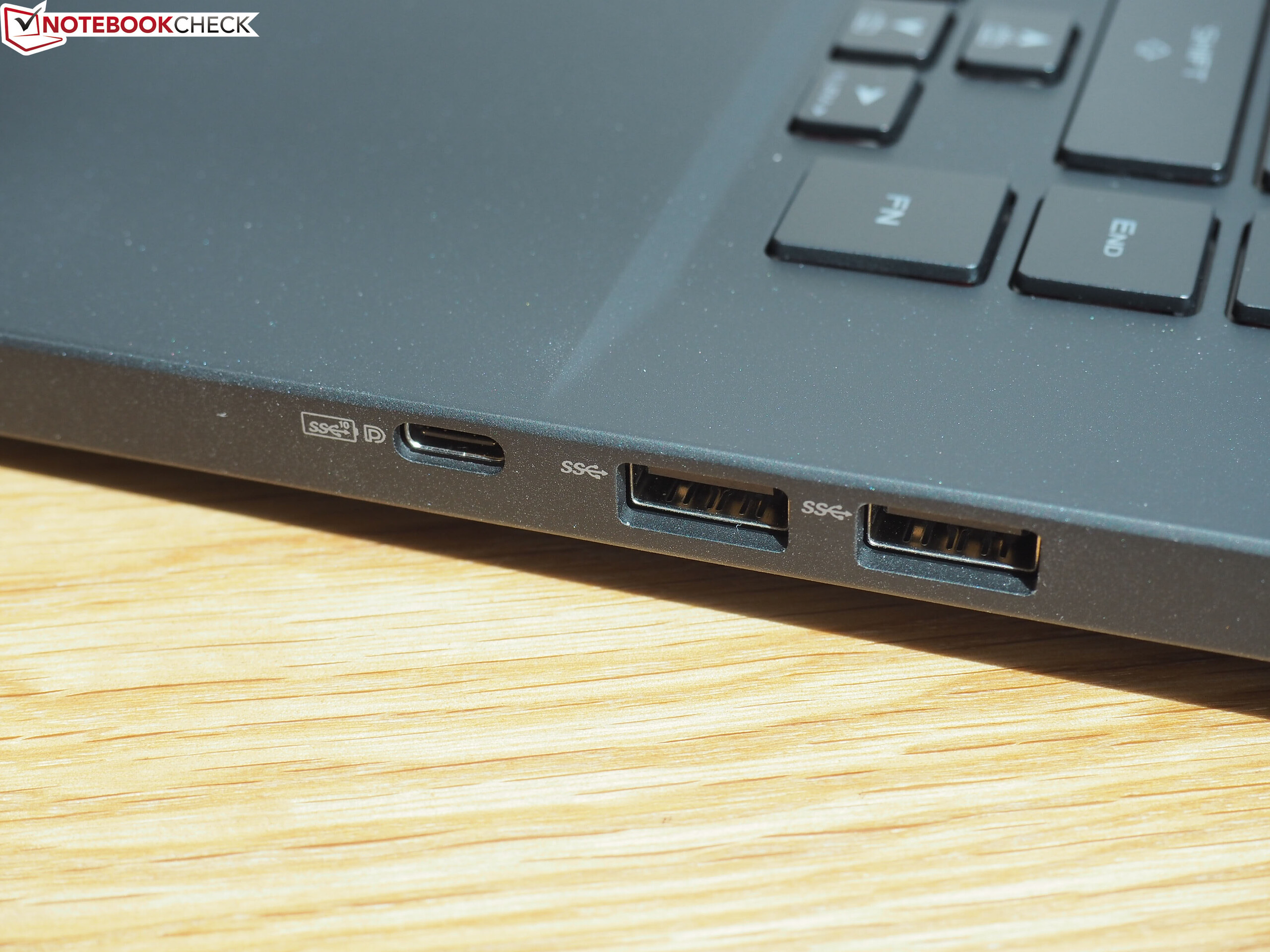

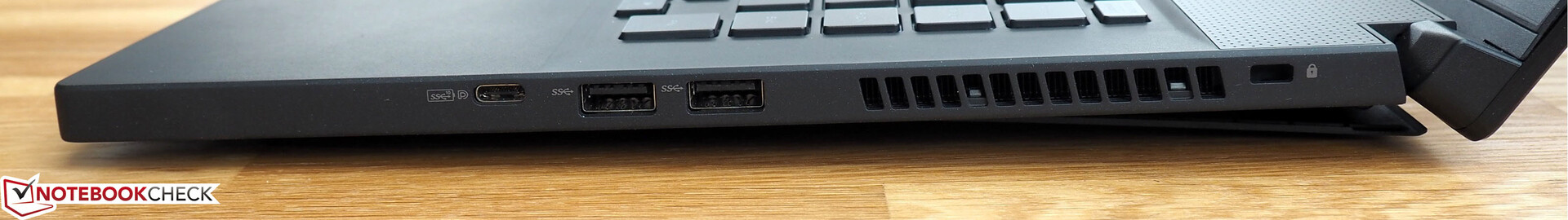

Right-hand side: USB 3.1 Gen2 Type-C, 2 x USB 3.0 Type-A, ventilation grille, Kensington lock slot
Right-hand side: USB 3.1 Gen2 Type-C, 2 x USB 3.0 Type-A, ventilation grille, Kensington lock slot
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Razer Blade 15 RTX 2070 Max-Q
Intel Wireless-AC 9560
684 MBit/s ∼100% +1%
Asus Zephyrus S GX502GW
Intel Wireless-AC 9560
680 MBit/s ∼99%
Gigabyte Aero 15-X9
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
678 MBit/s ∼99% 0%
Acer Predator Triton 500
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
671 MBit/s ∼98% -1%
Asus Zephyrus S GX531GX
Intel Wireless-AC 9560
661 MBit/s ∼97% -3%
Average of class Gaming
  (141 - 702, n=239)
603 MBit/s ∼88% -11%
iperf3 Client (transmit) TCP 1 m 4M x10
Acer Predator Triton 500
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
683 MBit/s ∼100% 0%
Asus Zephyrus S GX502GW
Intel Wireless-AC 9560
683 MBit/s ∼100%
Gigabyte Aero 15-X9
Killer Wireless-AC 1550i Wireless Network Adapter (9560NGW)
680 MBit/s ∼100% 0%
Razer Blade 15 RTX 2070 Max-Q
Intel Wireless-AC 9560
655 MBit/s ∼96% -4%
Asus Zephyrus S GX531GX
Intel Wireless-AC 9560
644 MBit/s ∼94% -6%
Average of class Gaming
  (144 - 730, n=239)
555 MBit/s ∼81% -19%
270
cd/m²
284
cd/m²
258
cd/m²
278
cd/m²
286
cd/m²
272
cd/m²
272
cd/m²
285
cd/m²
273
cd/m²
Fényerő megoszlás
X-Rite i1Pro 2
Maximum: 286 cd/m² Átlag: 275.3 cd/m² Minimum: 15 cd/m²
Fényerő megoszlás: 90 %
Centrumban: 286 cd/m²
Kontraszt: 773:1 (Fekete: 0.37 cd/m²)
ΔE Color 2.19 | 0.6-29.43 Ø6.1, calibrated: 2.27
ΔE Greyscale 2.2 | 0.64-98 Ø6.3
91% sRGB (Argyll 3D) 59% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.41
Asus Zephyrus S GX502GW
AU Optronics B156HAN08.2 (AUO82ED), IPS, 1920x1080
Asus Zephyrus S GX531GX
AU Optronics B156HAN08.2, IPS, 1920x1080
Acer Predator Triton 500
AU Optronics B156HAN08.2 (AUO82ED), IPS, 1920x1080
Razer Blade 15 RTX 2070 Max-Q
LG Philips LGD05C0, IPS, 1920x1080
Gigabyte Aero 15-X9
LGD05C0, IPS, 1920x1080
Response Times
-3%
-19%
-83%
-92%
Response Time Grey 50% / Grey 80% *
7.2 (3.8, 3.4)
7 (3.6, 3.4)
3%
8 (4, 4)
-11%
16.8 (9.2, 7.6)
-133%
16.4 (8.8, 7.6)
-128%
Response Time Black / White *
8.8 (4.4, 4.4)
9.6 (4.4, 5.2)
-9%
11.2 (6, 5.2)
-27%
11.6 (7.2, 4.4)
-32%
13.6 (8.4, 5.2)
-55%
PWM Frequency
Screen
-3%
-24%
-2%
12%
Brightness middle
286
323.6
13%
304
6%
314.7
10%
250
-13%
Brightness
275
315
15%
299
9%
312
13%
235
-15%
Brightness Distribution
90
91
1%
89
-1%
90
0%
85
-6%
Black Level *
0.37
0.29
22%
0.27
27%
0.38
-3%
0.29
22%
Contrast
773
1116
44%
1126
46%
828
7%
862
12%
Colorchecker DeltaE2000 *
2.19
3.31
-51%
4.66
-113%
2.56
-17%
1.46
33%
Colorchecker DeltaE2000 max. *
4.4
5.74
-30%
9.65
-119%
4.89
-11%
2.47
44%
Colorchecker DeltaE2000 calibrated *
2.27
2.73
-20%
1.72
24%
1.71
25%
Greyscale DeltaE2000 *
2.2
2.9
-32%
5.53
-151%
3.4
-55%
1.27
42%
Gamma
2.41 91%
2.29 96%
2.5 88%
2.3 96%
2.4 92%
CCT
6405 101%
6765 96%
8028 81%
6435 101%
6749 96%
Color Space (Percent of AdobeRGB 1998)
59
59.7
1%
60
2%
60.7
3%
60
2%
Color Space (Percent of sRGB)
91
91.8
1%
93
2%
94.6
4%
93
2%
Total Average (Program / Settings)
-3% / -3%
-22% / -24%
-43% / -15%
-40% / -5%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

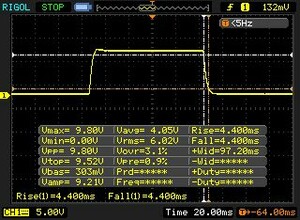

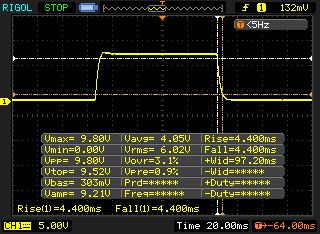

       Response Time Black to White
8.8 ms ... rise ↗ and fall ↘ combined↗ 4.4 ms rise
↘ 4.4 ms fall
The screen shows fast response rates in our tests and should be suited for gaming.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 7 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (25.1 ms).

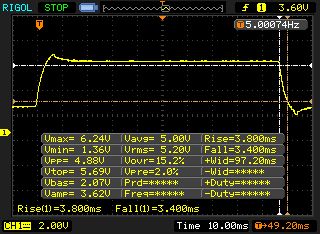

       Response Time 50% Grey to 80% Grey
7.2 ms ... rise ↗ and fall ↘ combined↗ 3.8 ms rise
↘ 3.4 ms fall
The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 4 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (40.1 ms).

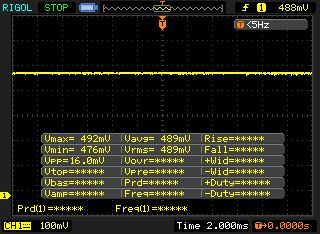

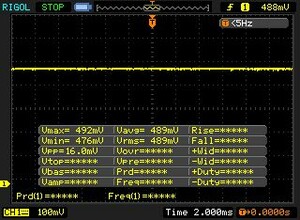

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9429 (minimum: 43 - maximum: 142900) Hz was measured.

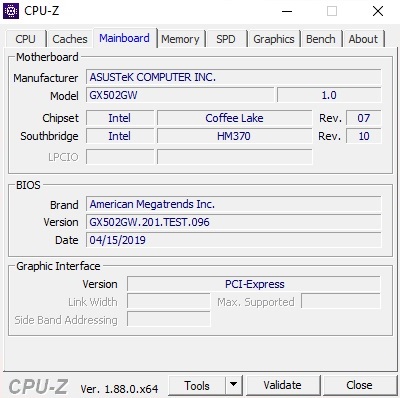

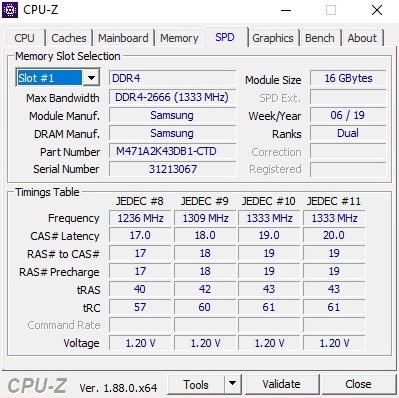

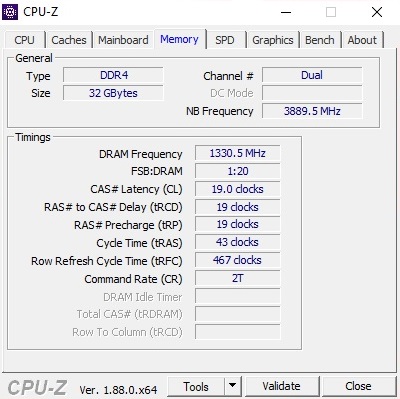

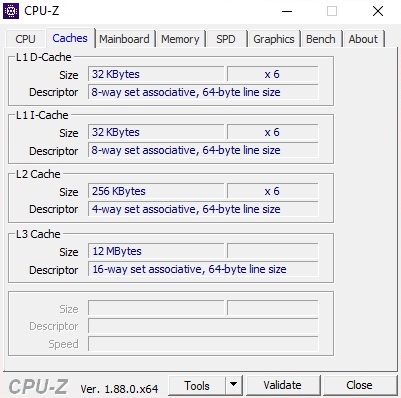

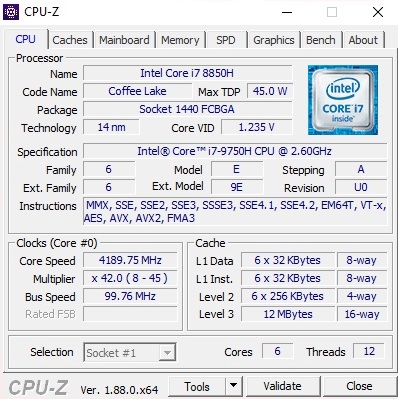

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

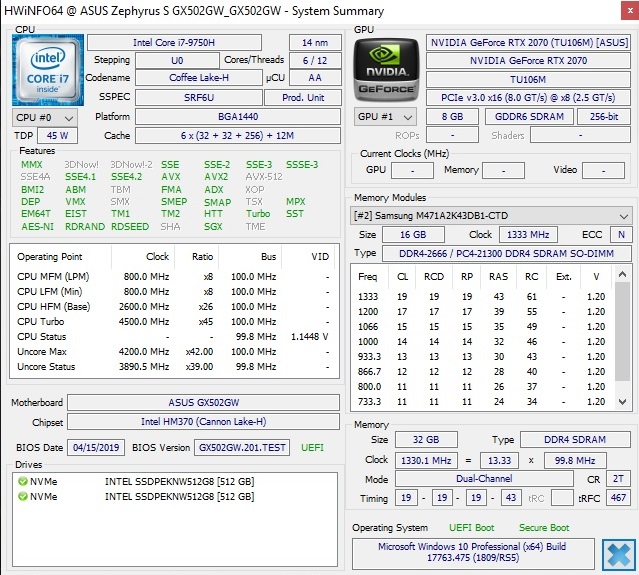

HWiNFO

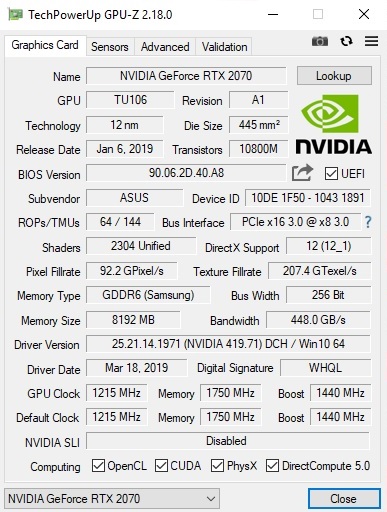

GPU-Z

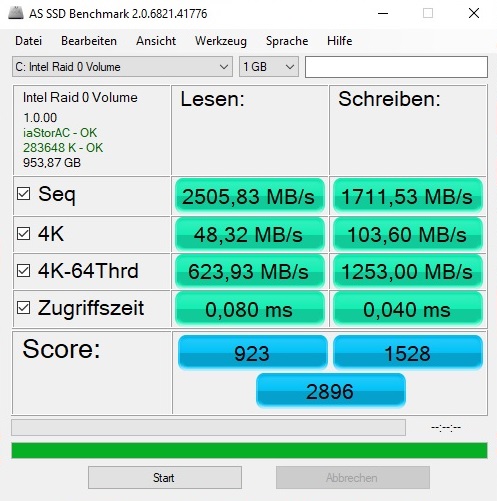

AS SSD Benchmark
CrystalDiskMark

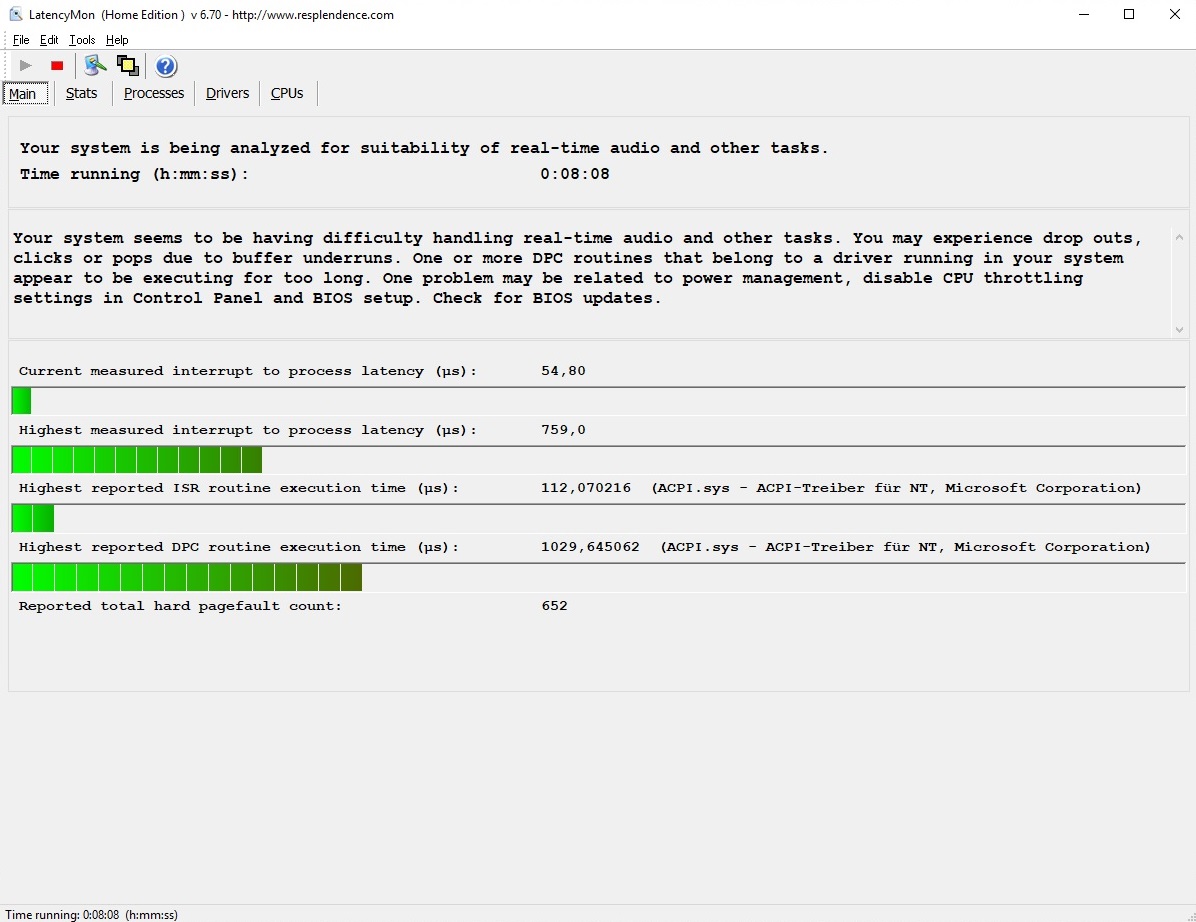

LatencyMon
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190Tooltip
Asus Zephyrus S GX502GW Intel Core i7-9750H, Intel Core i7-9750H: Ø1040 (1017.76-1182)
Asus Zephyrus S GX531GX Intel Core i7-8750H, Intel Core i7-8750H: Ø1072 (986.63-1110.9)
Acer Predator Triton 500 Intel Core i7-8750H, Intel Core i7-8750H: Ø980 (961.82-1019.05)
Cinebench R15
CPU Single 64Bit
Asus Zephyrus S GX502GW
Intel Core i7-9750H
177 Points ∼100%
Acer Predator Triton 500
Intel Core i7-8750H
176 Points ∼99% -1%
Razer Blade 15 RTX 2070 Max-Q
Intel Core i7-8750H
174 Points ∼98% -2%
Asus Zephyrus S GX531GX
Intel Core i7-8750H
168 Points ∼95% -5%
Gigabyte Aero 15-X9
Intel Core i7-8750H
166 Points ∼94% -6%
Average of class Gaming
  (77 - 212, n=482)
155 Points ∼88% -12%
CPU Multi 64Bit
Asus Zephyrus S GX502GW
Intel Core i7-9750H
1182 Points ∼100%
Gigabyte Aero 15-X9
Intel Core i7-8750H
1156 Points ∼98% -2%
Asus Zephyrus S GX531GX
Intel Core i7-8750H
1122 Points ∼95% -5%
Acer Predator Triton 500
Intel Core i7-8750H
1019 Points ∼86% -14%
Razer Blade 15 RTX 2070 Max-Q
Intel Core i7-8750H
999 Points ∼85% -15%
Average of class Gaming
  (196 - 2022, n=485)
804 Points ∼68% -32%
Cinebench R15 CPU Single 64Bit
177 Points
Cinebench R15 CPU Multi 64Bit
1182 Points
Segítség
PCMark 10 - Score
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H, 2x WDC PC SN720 SDAPNTW-256G-1014 (RAID 0)
5883 Points ∼100% +4%
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H, 2x Intel SSD 660p SSDPEKNW512G8 (RAID 0)
5654 Points ∼96%
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H, Intel SSD 660p SSDPEKNW512G8
5492 Points ∼93% -3%
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H, Samsung SSD PM981 MZVLB512HAJQ
5416 Points ∼92% -4%
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H, Intel SSD 760p SSDPEKKW010T8
5353 Points ∼91% -5%
Average of class Gaming
  (2603 - 7171, n=178)
5151 Points ∼88% -9%
Asus Zephyrus S GX502GW
2x Intel SSD 660p SSDPEKNW512G8 (RAID 0)
Asus Zephyrus S GX531GX
Intel SSD 660p SSDPEKNW512G8
Acer Predator Triton 500
2x WDC PC SN720 SDAPNTW-256G-1014 (RAID 0)
Razer Blade 15 RTX 2070 Max-Q
Samsung SSD PM981 MZVLB512HAJQ
Gigabyte Aero 15-X9
Intel SSD 760p SSDPEKKW010T8
CrystalDiskMark 5.2 / 6
-29%
7%
-10%
-11%
Write 4K
97.04
93.92
-3%
93.6
-4%
93.88
-3%
97.13
0%
Read 4K
49.58
46.29
-7%
38.82
-22%
40.56
-18%
53.66
8%
Write Seq
1838
974.3
-47%
2455
34%
1468
-20%
1526
-17%
Read Seq
2421
1425
-41%
2107
-13%
1540
-36%
2020
-17%
Write 4K Q32T1
326.9
259.4
-21%
298.7
-9%
293.5
-10%
285.6
-13%
Read 4K Q32T1
372.9
296.5
-20%
338.7
-9%
346
-7%
321.8
-14%
Write Seq Q32T1
1894
976.7
-48%
2902
53%
1941
2%
1533
-19%
Read Seq Q32T1
2828
1666
-41%
3536
25%
3266
15%
2351
-17%

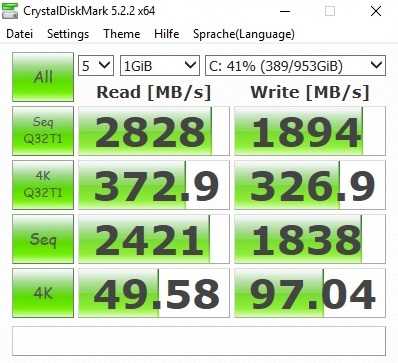

2x Intel SSD 660p SSDPEKNW512G8 (RAID 0)
CDM 5/6 Read Seq Q32T1: 2828 MB/s
CDM 5/6 Write Seq Q32T1: 1894 MB/s
CDM 5/6 Read 4K Q32T1: 372.9 MB/s
CDM 5/6 Write 4K Q32T1: 326.9 MB/s
CDM 5 Read Seq: 2421 MB/s
CDM 5 Write Seq: 1838 MB/s
CDM 5/6 Read 4K: 49.58 MB/s
CDM 5/6 Write 4K: 97.04 MB/s
3DMark 11 Performance
18686 pontok
3DMark Cloud Gate Standard Score
30754 pontok
3DMark Fire Strike Score
16290 pontok
3DMark Time Spy Score
6890 pontok
Segítség
051015202530354045505560657075808590Tooltip
Asus Zephyrus S GX502GW GeForce RTX 2070 (Laptop), 9750H, 2x Intel SSD 660p SSDPEKNW512G8 (RAID 0); The Witcher 3: Ø70 (63-76)
Acer Predator Triton 500 GeForce RTX 2080 Max-Q, 8750H, 2x WDC PC SN720 SDAPNTW-256G-1014 (RAID 0); The Witcher 3: Ø76.1 (70-81)
Gigabyte Aero 15-X9 GeForce RTX 2070 Max-Q, 8750H, Intel SSD 760p SSDPEKKW010T8; The Witcher 3: Ø51.3 (44-61)
3DMark
2560x1440 Time Spy Graphics
Asus Zephyrus S GX531GX
NVIDIA GeForce RTX 2080 Max-Q
8171 Points ∼100% +12%
Asus Zephyrus S GX502GW
NVIDIA GeForce RTX 2070 (Laptop)
7277 Points ∼89%
Razer Blade 15 RTX 2070 Max-Q
NVIDIA GeForce RTX 2070 Max-Q
6728 Points ∼82% -8%
Gigabyte Aero 15-X9
NVIDIA GeForce RTX 2070 Max-Q
6562 Points ∼80% -10%
Average of class Gaming
  (368 - 13013, n=126)
5550 Points ∼68% -24%
1920x1080 Fire Strike Graphics
Asus Zephyrus S GX531GX
NVIDIA GeForce RTX 2080 Max-Q
21237 Points ∼100% +11%
Asus Zephyrus S GX502GW
NVIDIA GeForce RTX 2070 (Laptop)
19123 Points ∼90%
Razer Blade 15 RTX 2070 Max-Q
NVIDIA GeForce RTX 2070 Max-Q
18153 Points ∼85% -5%
Gigabyte Aero 15-X9
NVIDIA GeForce RTX 2070 Max-Q
17598 Points ∼83% -8%
Average of class Gaming
  (385 - 40636, n=508)
11046 Points ∼52% -42%
3DMark 11 - 1280x720 Performance GPU
Asus Zephyrus S GX531GX
NVIDIA GeForce RTX 2080 Max-Q
28997 Points ∼100% +19%
Acer Predator Triton 500
NVIDIA GeForce RTX 2080 Max-Q
28083 Points ∼97% +16%
Asus Zephyrus S GX502GW
NVIDIA GeForce RTX 2070 (Laptop)
24267 Points ∼84%
Razer Blade 15 RTX 2070 Max-Q
NVIDIA GeForce RTX 2070 Max-Q
22723 Points ∼78% -6%
Gigabyte Aero 15-X9
NVIDIA GeForce RTX 2070 Max-Q
22089 Points ∼76% -9%
Average of class Gaming
  (513 - 50983, n=583)
12955 Points ∼45% -47%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H
80.3 fps ∼100% +14%
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H
76.5 (min: 63) fps ∼95% +9%
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H
70.2 (min: 58) fps ∼87%
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H
68.9 fps ∼86% -2%
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H
58.3 (min: 48) fps ∼73% -17%
Average of class Gaming
  (12.6 - 115, n=281)
48.5 fps ∼60% -31%
alacsony közepes magas ultra
The Witcher 3 (2015) 13070.2fps
Apex Legends (2019) 128126fps
Far Cry New Dawn (2019) 9183fps
Metro Exodus (2019) 65.152.9fps
Anthem (2019) 8479fps
Dirt Rally 2.0 (2019) 12175fps
The Division 2 (2019) 9879fps
Anno 1800 (2019) 76.839.5fps

Zajszint

Üresjárat
31 / 33 / 38 dB(A)
Terhelés
50 / 56 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 30 dB(A)
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H
Average of class Gaming

Noise
4%
9%
17%
7%
7%
off / environment *
30
28.7
4%
29
3%
28.8
4%
30
-0%
29.4 (27.7 - 32, n=286)
2%
Idle Minimum *
31
29.8
4%
30
3%
28.8
7%
32
-3%
31.5 (28 - 41.7, n=709)
-2%
Idle Average *
33
32.4
2%
32
3%
28.8
13%
34
-3%
32.7 (28 - 46.6, n=709)
1%
Idle Maximum *
38
38
-0%
34
11%
29.4
23%
36
5%
34.7 (28 - 51, n=709)
9%
Load Average *
50
38.2
24%
44
12%
35.7
29%
42
16%
40.6 (30.3 - 58, n=710)
19%
Witcher 3 ultra *
53
56.6
-7%
46
13%
42.5
20%
44
17%
Load Maximum *
56
56.6
-1%
47
16%
45
20%
48
14%
47.9 (38.9 - 66, n=710)
14%

* ... smaller is better

Max. terhelés
 52 °C54 °C50 °C
 48 °C50 °C43 °C
 38 °C36 °C33 °C
Maximum: 54 °C
Átlag: 44.9 °C
41 °C41 °C44 °C
42 °C44 °C47 °C
33 °C35 °C33 °C
Maximum: 47 °C
Átlag: 40 °C
Tápegység (max.)  44 °C | Szobahőmérséklet 20 °C | Voltcraft IR-900
(-) The average temperature for the upper side under maximal load is 44.9 °C / 113 F, compared to the average of 33.1 °C / 92 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 54 °C / 129 F, compared to the average of 39.5 °C / 103 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 47 °C / 117 F, compared to the average of 42 °C / 108 F
(+) In idle usage, the average temperature for the upper side is 31.2 °C / 88 F, compared to the device average of 33.1 °C / 92 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 44.1 °C / 111 F, compared to the device average of 33.1 °C / 92 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38 °C / 100.4 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-9.2 °C / -16.6 F).
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H
Average of class Gaming

Heat
6%
-3%
12%
-1%
6%
Maximum Upper Side *
54
47
13%
49
9%
49
9%
56
-4%
45.8 (28 - 68.8, n=674)
15%
Maximum Bottom *
47
48.6
-3%
58
-23%
49
-4%
66
-40%
49.4 (25.9 - 78, n=672)
-5%
Idle Upper Side *
33
28.8
13%
33
-0%
25.4
23%
27
18%
30.7 (21.6 - 46.8, n=625)
7%
Idle Bottom *
34
33.2
2%
33
3%
27.2
20%
27
21%
31.6 (21.1 - 50.3, n=623)
7%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2043.644.92539.640.43130.933.8403542.85028.335.9632635.88028.642.110028.757.412523.854.616022.957.420023.958.52502560.93152064.240019.16450017.965.163017.372.580016.975100017.177.8125018.576.7160017.874.9200017.474.1250017.467.7315017.676.8400017.583.3500017.484.2630017.279.8800017.271.61000017.266.5125001769.21600016.863.4SPL3090.2N1.481.4median 17.5median 69.2Delta1.8640.540.538.139.536.237.338.135.836.835.938.436.534.635.734.234.832.138.532.750.531.959.530.865.730.466.830.363.729.364.829.462.928.86629.165.228.468.528.469.428.368.228.47028.170.827.97327.969.12862.727.855.230.360.427.76727.565.540.780.5449.2median 28.8median 65.51.24hearing rangehide median Pink NoiseAsus Zephyrus S GX502GWAsus Zephyrus S GX531GX
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus Zephyrus S GX502GW audio analysis

(+) | speakers can play relatively loud (90 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.3% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.7% higher than median
(+) | mids are linear (4.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.7% higher than median
(±) | linearity of highs is average (11.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14% difference to median)
Compared to same class
» 31% of all tested devices in this class were better, 7% similar, 63% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Asus Zephyrus S GX531GX audio analysis

(±) | speaker loudness is average but good (73.03 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.4% lower than median
(±) | linearity of bass is average (14.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.9% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(±) | linearity of highs is average (10.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.2% difference to median)
Compared to same class
» 43% of all tested devices in this class were better, 8% similar, 49% worse
» The best had a delta of 6%, average was 17%, worst was 37%
Compared to all devices tested
» 20% of all tested devices were better, 4% similar, 75% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.5 / 1.2 Watt
Üresjáratdarkmidlight 24 / 27 / 33 Watt
Terhelés midlight 129 / 216 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H
Average of class Gaming

Power Consumption
18%
20%
36%
31%
15%
Idle Minimum *
24
16.1
33%
16
33%
10.4
57%
16
33%
19.7 (3.5 - 113, n=669)
18%
Idle Average *
27
20.9
23%
22
19%
14.6
46%
18
33%
25.1 (6.8 - 119, n=669)
7%
Idle Maximum *
33
27
18%
32
3%
16.3
51%
23
30%
30.3 (8.3 - 122, n=669)
8%
Load Average *
129
93.4
28%
89
31%
88.5
31%
88
32%
104 (14.1 - 319, n=660)
19%
Load Maximum *
216
215.3
-0%
173
20%
182.4
16%
167
23%
170 (21.9 - 590, n=659)
21%
Witcher 3 ultra *
176
168.2
4%
147
16%
155.4
12%
120
32%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
5h 53min
NBC WiFi Websurfing Battery Test 1.3
3h 40min
Terhelés (maximális fényerő)
1h 02min
Asus Zephyrus S GX502GW
GeForce RTX 2070 (Laptop), 9750H, 76 Wh
Asus Zephyrus S GX531GX
GeForce RTX 2080 Max-Q, 8750H, 50 Wh
Acer Predator Triton 500
GeForce RTX 2080 Max-Q, 8750H, 82 Wh
Razer Blade 15 RTX 2070 Max-Q
GeForce RTX 2070 Max-Q, 8750H, 80 Wh
Gigabyte Aero 15-X9
GeForce RTX 2070 Max-Q, 8750H, 94.24 Wh
Average of class Gaming

Battery Runtime
-18%
4%
70%
104%
13%
Reader / Idle
353
335
-5%
682
93%
549
56%
340 (39 - 1174, n=640)
-4%
WiFi v1.3
220
181
-18%
190
-14%
387
76%
382
74%
254 (78 - 622, n=328)
15%
Load
62
81
31%
88
42%
174
181%
79 (18 - 202, n=607)
27%
H.264
364
251 (88 - 506, n=139)

Pro

+ Nvidia Optimus vagy G-Sync
+ kompakt és stílusos dizájn
+ színhű kijelző
+ 144 Hz-es frissítési frekvencia
+ hasznos szoftver
+ megfelelő teljesítmény
+ könnyű ahhoz képest, hogy egy 15,6 hüvelykes gamer notebookhoz
+ RGB háttérvilágítású billentyűzet

Kontra

- terhelés alatt zajos
- nincs Thunderbolt 3
- nincs kártyaolvasó
- részben forrasztott RAM
- kiábrándító üzemidő
- nagy energiafogyasztás
- középszerű hangszórók
ASUS ROG Zephyrus S GX502GW Laptop rövid értékelés. Test device courtesy of ASUS Germany.
ASUS ROG Zephyrus S GX502GW Laptop rövid értékelés. Test device courtesy of ASUS Germany.

A felszínen az ASUS ROG Zephyrus S GX502GW jelenleg az egyik legjobb gamer notebook, ami kapható. Van azonban néhány idegesítő gyengesége, ami egyeseket elriaszthat.

A készülék kompakt és karcsú kialakítású, mégis hihetetlenül erős komponenseket hordoz magában. A csúcskategóriás CPU-nak és GPU-nak köszönhetően erőfeszítés nélkül képes futtatni minden, az utóbbi években megjelent tripla A-s játékot magas vagy maximális grafikai beállításokon. Alacsony válaszidejének, a G-sync támogatásnak és 144 Hz-es frissítési frekvenciának köszönhetően a játékok kinézete is tökéletes kéne legyen. Viszont el kell tűrni az alacsony kontrasztot és a szörnyű üzemidőt. Ha nem játszunk, ajánljuk az Optimus aktiválását, mivel a GPU nagyon gyorsan lemeríti az akkut, ha állandóan engedélyezett.

Az ASUS ROG Zephyrus S GX502GW sok mindenre képes. Stílusos, kompakt, és nagyszerű játékélményt ad. Viszont zajos, hiányzik néhány hasznos port, és szörnyű az üzemideje.

Nem tudjuk viszont megérteni az ASUS által hozott egyes döntéseket. A RAM fele az alaplapra forrasztott, ami meggondolatlanságnak tűnik, mint ahogy az a döntés is, hogy ne legyen kártyaolvasó, kamera vagy Thunderbolt 3 port. Végül pedig, a GX502GW túl zajos és forró ahhoz képest, hogy egy prémium, vékony és könnyű notebook.

Röviden, néhány érv a GX502 sorozat mellett szól az Aero 15-X9 vagy a Razer Blade 15 helyett. Az egyik lehet a Max-Q nélküli GPU, de egy teljesen RTX 20 szériás notebooknak megvannak a hátrányai. A GX502GW mégis egy jó választás azoknak, akik egy 15.6 hüvelykes gamer notebookot szeretnének, de nem éri el azt a mércét, amit a Gigabyte és a Razer felállítottak.

Asus Zephyrus S GX502GW - 05/15/2019 v6
Florian Glaser

Váz
83 / 98 → 85%
Billentyűzet
79%
Érintőpad
75%
Csatlakoztathatóság
60 / 81 → 74%
Súly
63 / 10-66 → 94%
Akkumulátor
73%
Kijelző
90%
Játékok alatti teljesítmény
98%
Alkalmazások alatti teljesítmény
100%
Hőmérséklet
80 / 95 → 84%
Zaj
61 / 90 → 68%
Audio
76%
Átlag
78%
86%
Gaming - Súlyozott átlag

Pricecompare

ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
ASUS ROG Zephyrus S GX502GW
Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > ASUS ROG Zephyrus S GX502GW (Core i7-9750H, RTX 2070) Laptop rövid értékelés
Florian Glaser, 2019-06-30 (Update: 2019-06-30)
