Lenovo Yoga Book Android YB1-X90F Convertible rövid értékelés

Florian Wimmer (fordította Tamás Somogyi), 11/15/2016
Android ARM Tablet Touchscreen Convertible / 2-in-1

Polihisztor. Szeretne egy tabletet, amely digitális rajztábla is? Billentyűzetre is szüksége van? A Lenovo Yoga Book Android ezt mind tudja, sőt többet is. Lássuk, hogy hogyan teljesít alapos tesztünkben.

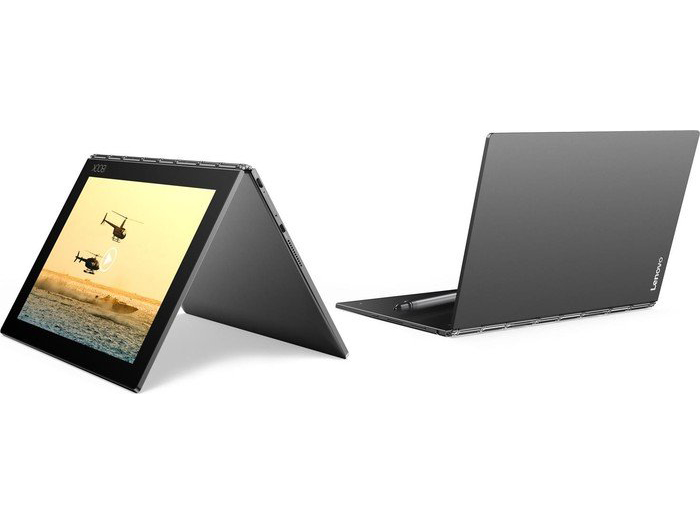

Lenovo Yoga Book Android YB1-X90F (Yoga Book Széria)
Processzor
Intel Atom x5-Z8550
Memória
4096 MB
, LPDDR3
Kijelző
10.1 hüvelyk 16:9, 1920 x 1080 pixel 218 PPI, Multi-Touch, native pen support, IPS, gamut: 70%, színmélység: 16.7 millió, fényerő: 400 nits, fényes: igen
Háttértár
64 GB eMMC Flash, 64 GB
, 52 GB ingyenes

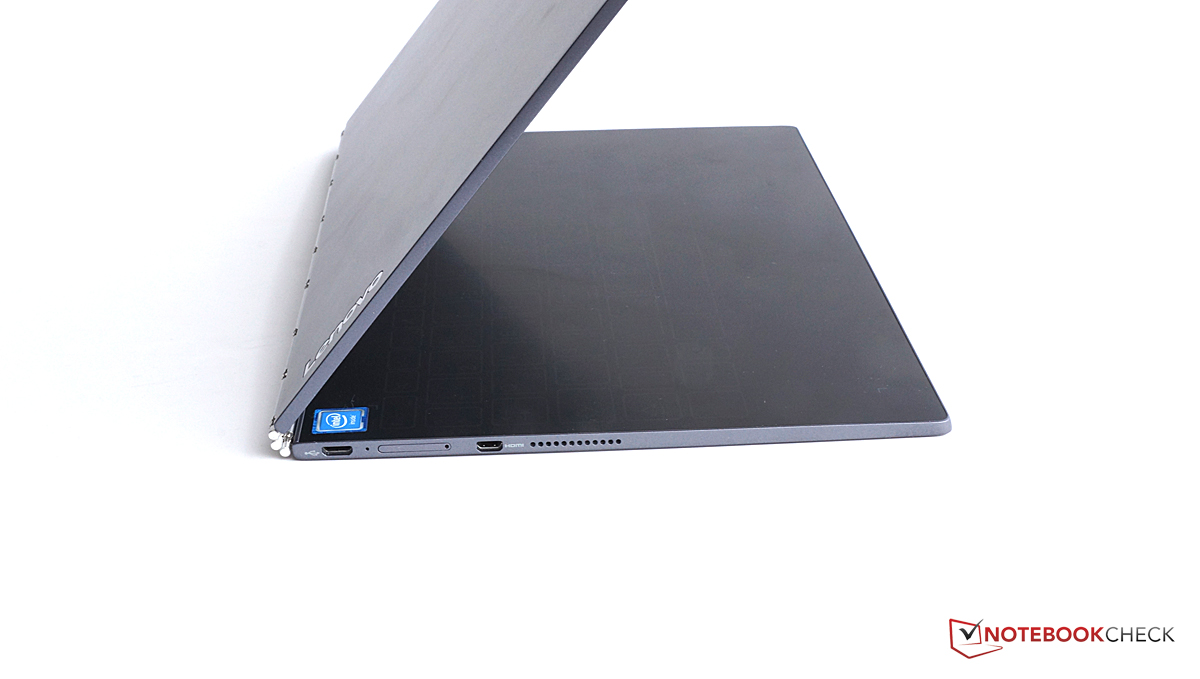

Csatlakozók
1 USB 2.0, 1 HDMI, Audió csatlakozók: 3.5 mm, Kártyaolvasó: microSD 128GB-ig, Brightness Sensor, Szenzorok: rezgésérzékelő, gyorsulásmérő, helyzetérzékelő, fényszenzor, Hall-szenzor
Hálózat
802.11 a/b/g/n/ac (a/b/g/n/ac), Bluetooth 4.0, GPS
Méret
magasság x szélesség x mélység (mm-ben) 9.6 x 256.6 x 170.8
Akkumulátor
32 Wh, 8500 mAh Lítium-Polimer, Akkumulátor üzemidő (gyártói adat): 15 h
Operációs rendszer
Android 6.0 Marshmallow
Camera
Primary Camera: 8 MPix autófókusz
Secondary Camera: 2 MPix
További jellegzetességek
Hangszórók: Dolby Atmos Stereo hangszórók, Billentyűzet: Halo billentyűzet a rajztáblán, Billentyűzet háttérvilágítás: igen, toll + cserélhető hegyek, töltő, USB-C kábel, Art Rage, McAfee Security, SHAREit, SYNCit, Note Saver, 12 Hónap Garancia, fanless
Súly
690 g, Tápegység: 75 g
Ár
500 Euró
Hivatkozások



Size Comparison

Networking
iperf Server (receive) TCP 1 m
Asus TransformerBook T302CA-FL010T
HD Graphics 515, 6Y30, Samsung CM871 MZNLF128HCHP
583 MBit/s ∼100% +29%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
452 MBit/s ∼78%
Lenovo Yoga 510-15IKB 80VC000XGE
Radeon R7 M460, 7200U, Samsung MZYTY256HDHP (jseb)
349 MBit/s ∼60% -23%
iperf Client (transmit) TCP 1 m
Asus TransformerBook T302CA-FL010T
HD Graphics 515, 6Y30, Samsung CM871 MZNLF128HCHP
480 MBit/s ∼100% +49%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
322 MBit/s ∼67%
Lenovo Yoga 510-15IKB 80VC000XGE
Radeon R7 M460, 7200U, Samsung MZYTY256HDHP (jseb)
307 MBit/s ∼64% -5%

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3

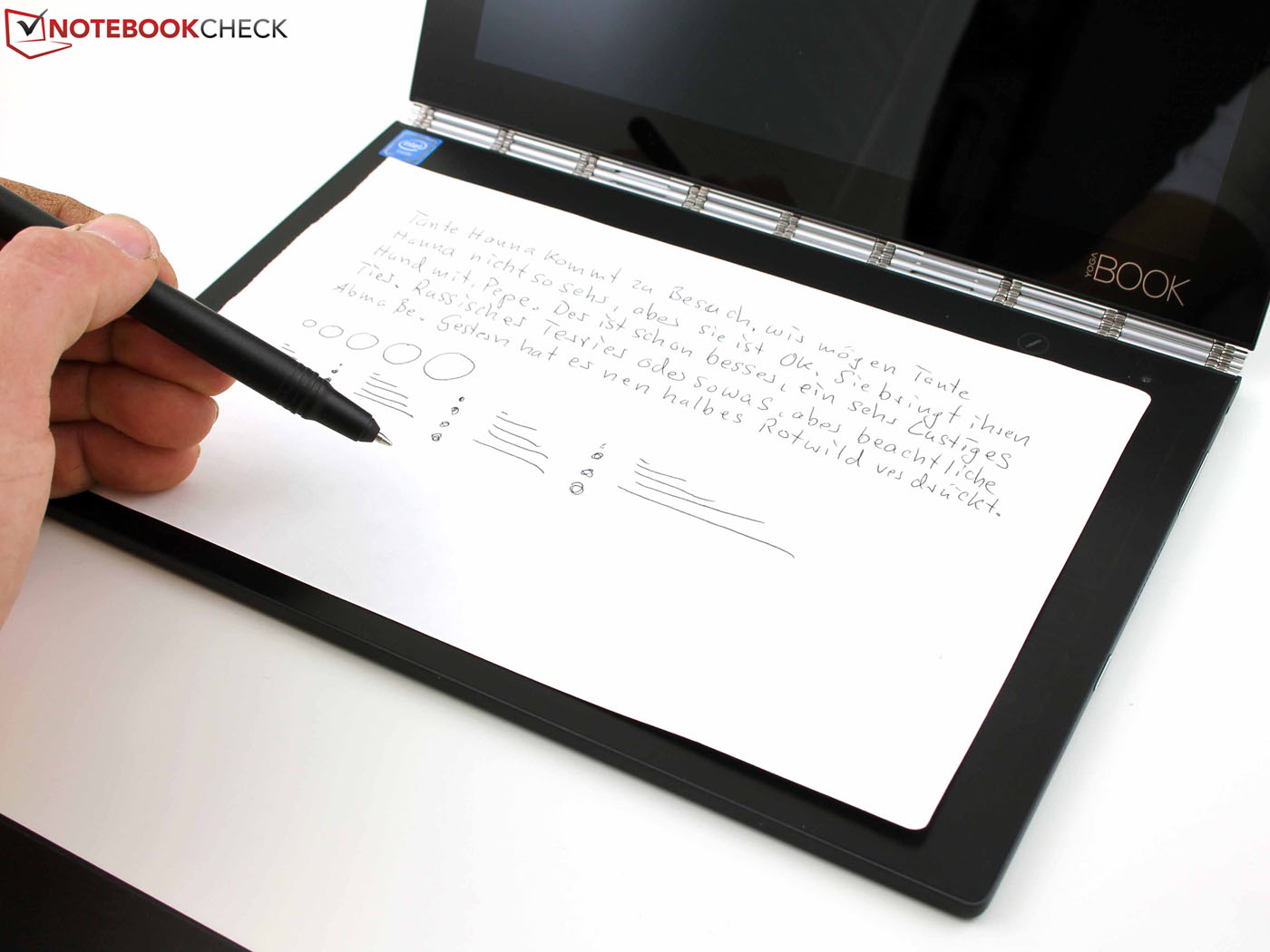

You can simply put a piece of paper on the graphics tablet.
You can simply put a piece of paper on the graphics tablet.

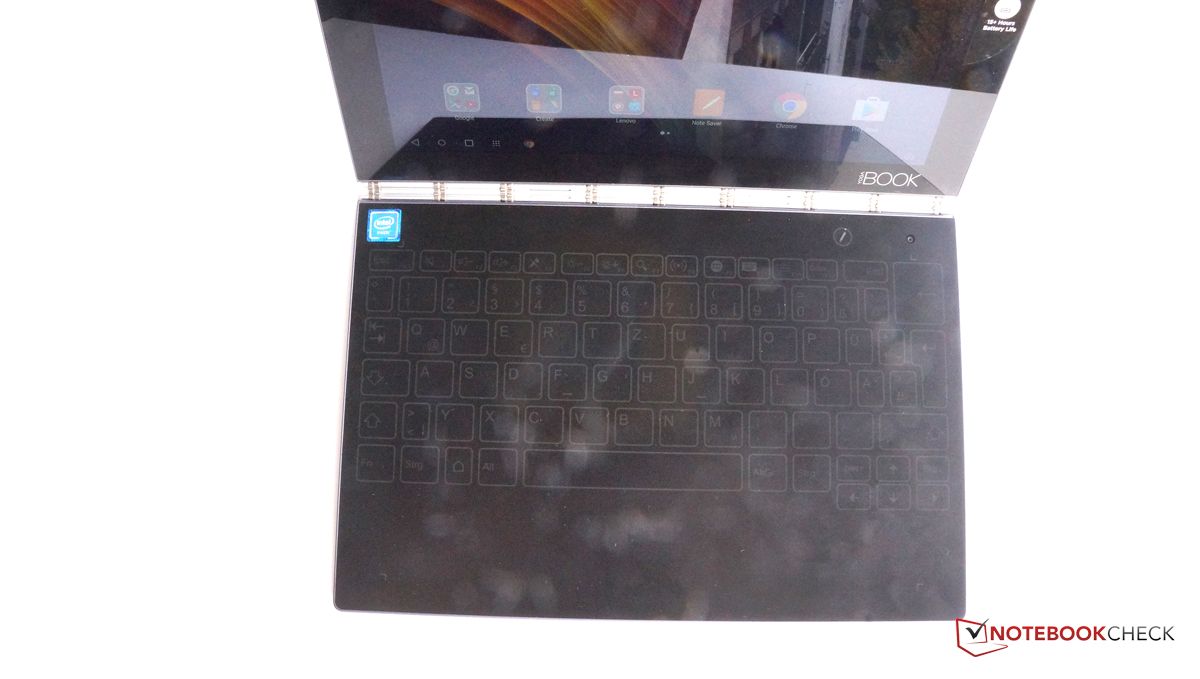

The keyboard can be hard to read in bright lighting conditions.
The keyboard can be hard to read in bright lighting conditions.

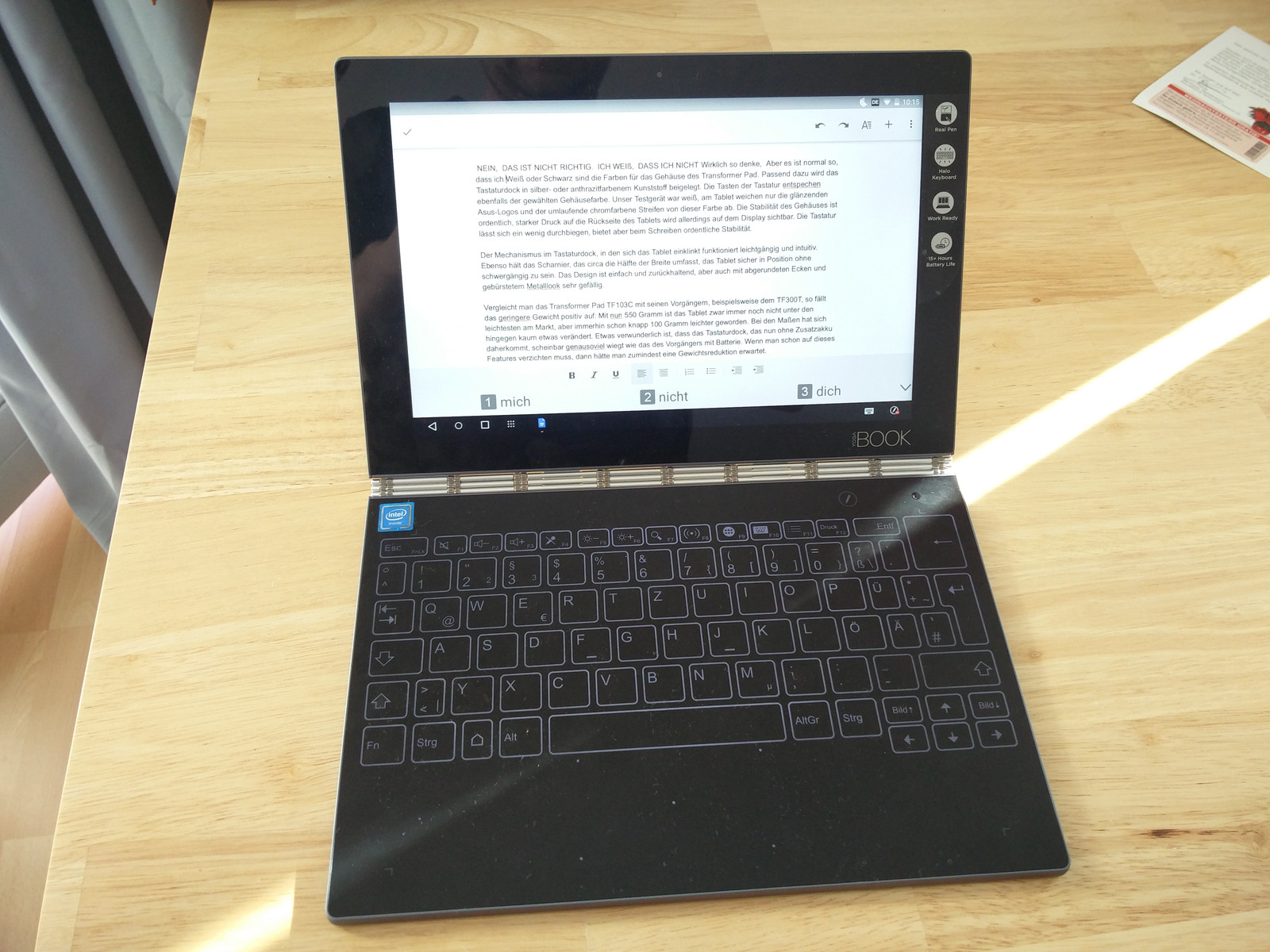

Overall, the keyboard works surprisingly well.
Overall, the keyboard works surprisingly well.
447
cd/m²
447
cd/m²
399
cd/m²
428
cd/m²
449
cd/m²
388
cd/m²
416
cd/m²
427
cd/m²
387
cd/m²
Fényerő megoszlás
X-Rite i1Pro 2
Maximum: 449 cd/m² Átlag: 420.9 cd/m² Minimum: 4.7 cd/m²
Fényerő megoszlás: 86 %
Centrumban: 449 cd/m²
Kontraszt: 1403:1 (Fekete: 0.32 cd/m²)
ΔE Color 4.7 | 0.8-29.43 Ø6.4
ΔE Greyscale 4.5 | 0.64-98 Ø6.6
94.3% sRGB (Calman)
Gamma: 2.22
Lenovo Yoga Book Android YB1-X90F
IPS, 1920x1080, 10.1
Google Pixel C
LTPS, 2560x1800, 10.2
Apple iPad Pro 9.7
IPS, 2048x1536, 9.7
Sony Xperia Z4 Tablet
Triluminos display with X-Reality, 2560x1600, 10.1
Lenovo Yoga Book 2016 Windows 64GB LTE
IPS , 1920x1080, 10.1
Screen
-12%
23%
-41%
-1%
Brightness middle
449
487
8%
523
16%
471
5%
382
-15%
Brightness
421
510
21%
500
19%
457
9%
363
-14%
Brightness Distribution
86
91
6%
93
8%
92
7%
83
-3%
Black Level *
0.32
0.39
-22%
0.52
-63%
0.46
-44%
0.37
-16%
Contrast
1403
1249
-11%
1006
-28%
1024
-27%
1032
-26%
Colorchecker DeltaE2000 *
4.7
5.24
-11%
1.1
77%
8.69
-85%
3.61
23%
Colorchecker DeltaE2000 max. *
11.1
1.9
83%
7.92
29%
Greyscale DeltaE2000 *
4.5
7.95
-77%
1.4
69%
11.24
-150%
3.77
16%
Gamma
2.22 108%
2.16 111%
2.11 114%
2.17 111%
2.43 99%
CCT
7122 91%
6565 99%
6662 98%
9508 68%
6760 96%
Color Space (Percent of AdobeRGB 1998)
62.97
Color Space (Percent of sRGB)
99.55
99

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

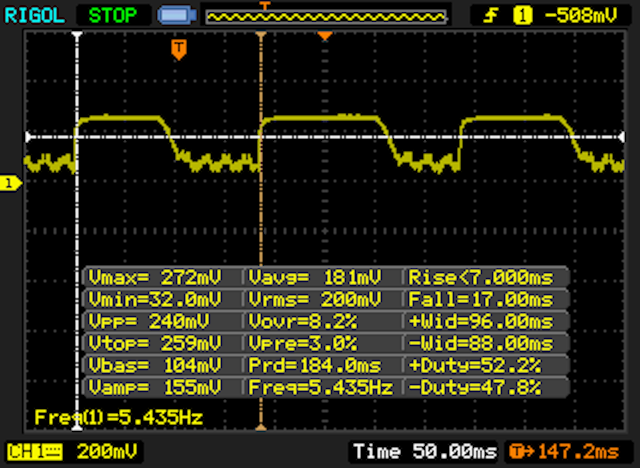

       Response Time Black to White
24 ms ... rise ↗ and fall ↘ combined↗ 7 ms rise
↘ 17 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 29 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (26.3 ms).

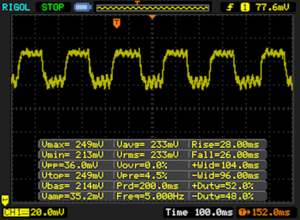

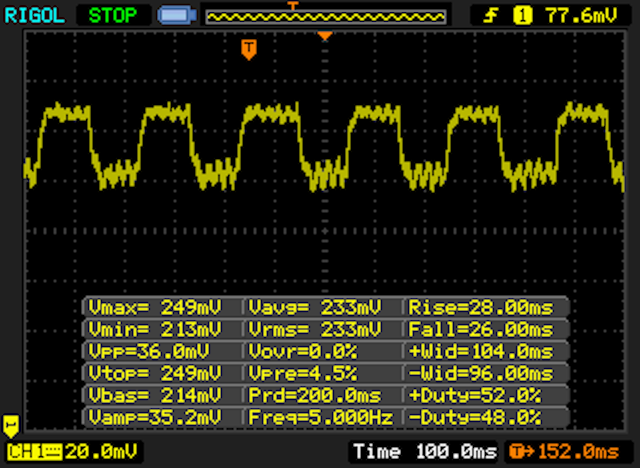

       Response Time 50% Grey to 80% Grey
54 ms ... rise ↗ and fall ↘ combined↗ 28 ms rise
↘ 26 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 88 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (42.1 ms).

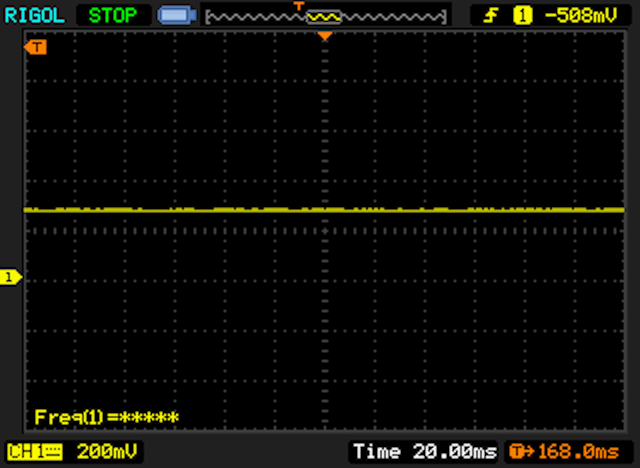

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9953 (minimum: 43 - maximum: 588200) Hz was measured.

AnTuTu v6 - Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
168840 Points ∼74% +90%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
90568 Points ∼40% +2%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
88989 Points ∼39%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
1807 Points ∼58% +10%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1643 Points ∼53%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1205 Points ∼39% -27%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6127 Points ∼79% +328%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
4293 Points ∼56% +200%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1431 Points ∼19%
2560x1440 Sling Shot OpenGL ES 3.0
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
4002 Points ∼80% +172%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2735 Points ∼54% +86%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1926 Points ∼38% +31%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1473 Points ∼29%
1280x720 offscreen Ice Storm Unlimited Physics
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22527 Points ∼29% +73%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
16023 Points ∼20% +23%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
13056 Points ∼17%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
11189 Points ∼14% -14%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
52816 Points ∼11% +189%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
50084 Points ∼11% +174%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37312 Points ∼8% +104%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
18258 Points ∼4%
1280x720 offscreen Ice Storm Unlimited Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40665 Points ∼19% +142%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
34015 Points ∼16% +103%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
24566 Points ∼12% +46%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
16773 Points ∼8%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
117.1 fps ∼9% +278%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
69 fps ∼5% +123%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
54 fps ∼4% +74%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
31 fps ∼2%
T-Rex HD Onscreen C24Z16
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
59.4 fps ∼13% +92%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
39 fps ∼9% +26%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
37 fps ∼8% +19%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
31 fps ∼7%
GFXBench 3.0
off screen Manhattan Offscreen OGL
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
51 fps ∼9% +264%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
40 fps ∼7% +186%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
26 fps ∼5% +86%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
14 fps ∼3%
on screen Manhattan Onscreen OGL
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
35.1 fps ∼10% +134%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
22 fps ∼6% +47%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
16 fps ∼4% +7%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
15 fps ∼4%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
39.5 fps ∼9% +449%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
31 fps ∼7% +331%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
18 fps ∼4% +150%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
7.2 fps ∼2%
on screen Manhattan ES 3.1 Onscreen
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
26.9 fps ∼15% +284%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
13 fps ∼7% +86%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
9.4 fps ∼5% +34%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
7 fps ∼4%
PCMark for Android - Work performance score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6858 Points ∼80% +52%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
4504 Points ∼53%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4441 Points ∼52% -1%
BaseMark OS II
Web
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
1185 Points ∼70% +22%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
973 Points ∼57%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
884 Points ∼52% -9%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
758 Points ∼45% -22%
Graphics
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6485 Points ∼70% +219%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
6355 Points ∼69% +212%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2683 Points ∼29% +32%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
2035 Points ∼22%
Memory
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
2185 Points ∼49% +72%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1270 Points ∼29%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
954 Points ∼22% -25%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
868 Points ∼20% -32%
System
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
6098 Points ∼59% +198%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
2724 Points ∼26% +33%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
2488 Points ∼24% +22%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
2047 Points ∼20%
Overall
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
3181 Points ∼84% +111%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
1909 Points ∼50% +27%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1506 Points ∼40%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
1482 Points ∼39% -2%
Geekbench 4.0
Compute RenderScript Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
4357 Points ∼34%
64 Bit Multi-Core Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
3118 Points ∼11%
64 Bit Single-Core Score
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
1025 Points ∼18%
JetStream 1.1 - 1.1 Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
143 Points ∼43% +219%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
47.4 Points ∼14% +6%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
44.84 Points ∼13%
Octane V2 - Total Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
19621 Points ∼40% +143%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
8060 Points ∼16%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
7790 Points ∼16% -3%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
7563 Points ∼15% -6%
Mozilla Kraken 1.1 - Total Score
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
5533.1 ms * ∼9% -25%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
4419 ms * ∼7%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4064 ms * ∼7% +8%
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
1546.3 ms * ∼3% +65%
WebXPRT 2015 - Overall Score
Apple iPad Pro 9.7
A9X / PowerVR GT7xxx, A9X, Apple 256 GB (iPad Pro 9.7 NVMe)
225 Points ∼28% +96%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
128 Points ∼16% +11%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
115 Points ∼14%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
93 Points ∼12% -19%

* ... smaller is better

AndroBench 3-5
Sequential Write 256KB SDCard
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
30.6 MB/s ∼35%
Sequential Read 256KB SDCard
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
48.9 MB/s ∼51%
Random Write 4KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
13.6 MB/s ∼8% +16%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
11.7 MB/s ∼7%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
10.08 MB/s ∼6% -14%
Random Read 4KB
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
23.5 MB/s ∼14%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
20 MB/s ∼12% -15%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
19.96 MB/s ∼12% -15%
Sequential Write 256KB
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
109.38 MB/s ∼51% +36%
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
81 MB/s ∼38% 0%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
80.6 MB/s ∼38%
Sequential Read 256KB
Sony Xperia Z4 Tablet
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
256 MB/s ∼31% +79%
Google Pixel C
Tegra X1 Maxwell GPU, X1, 64 GB eMMC Flash
154.29 MB/s ∼19% +8%
Lenovo Yoga Book Android YB1-X90F
HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash
143.4 MB/s ∼17%
Asphalt 8: Airborne
 BeállításokÉrték
 high30 fps
 very low30 fps
Dead Trigger 2
 BeállításokÉrték
 high30 fps

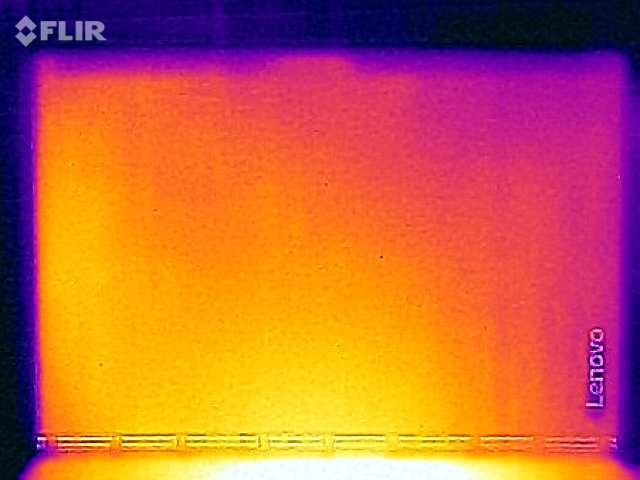

Heat-map Back
Heat-map Back

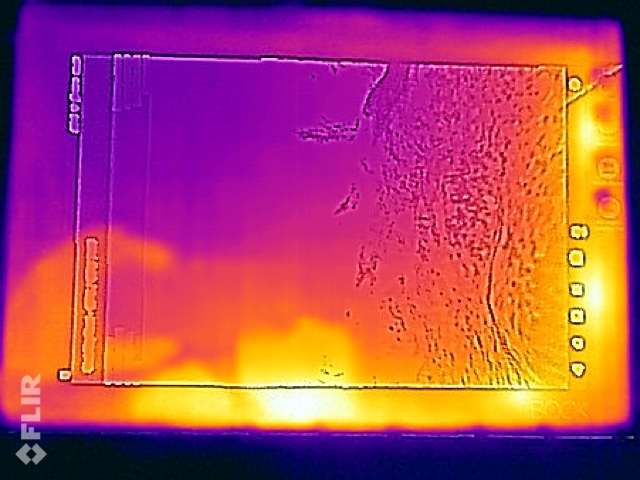

Heat-map Front
Heat-map Front
Max. terhelés
 26.1 °C26.4 °C27.6 °C
 26.5 °C27.3 °C27.5 °C
 27.2 °C28.5 °C29.2 °C
Maximum: 29.2 °C
Átlag: 27.4 °C
28.5 °C31.3 °C29.5 °C
27.3 °C28.3 °C29.3 °C
26.7 °C27.2 °C28 °C
Maximum: 31.3 °C
Átlag: 28.5 °C
Tápegység (max.)  35.8 °C | Szobahőmérséklet 21.4 °C | Voltcraft IR-350
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.330.929.32524.730.424.73124.331.124.34028.83228.85027.128.427.16325.724.925.7802725.8271003226.23212539.933.239.916037.123.437.120044.121.844.125047.421.947.431550.221.250.24005422.25450057.721.557.763060.118.960.180068.318.168.3100070.616.470.6125070.715.870.7160067.316.367.3200060.815.960.8250063.314.763.3315062.314.862.3400066.614.366.65000701470630071.313.771.3800064.713.764.7100006513.5651250061.413.561.41600057.313.457.3SPL79.328.979.3N441.244median 61.4Lenovo Yoga Book Android YB1-X90Fmedian 16.3median 61.4Delta8.63.88.63730.934.43725.629.328.925.628.931.523.728.929.331.830.929.33935.937.23933.535.130.533.52730.928.52722.432.722.322.423.534.522.923.530.438.92030.434.443.420.434.440.649.719.840.644.255.620.344.247.158.619.247.152.265.917.952.257.172.616.357.15770.417.65758.472.41858.46176.917.66163.779.21763.760.376.717.260.359.275.717.759.256.977.717.356.963.181.917.463.166.688.517.766.664.584.81864.553.975.617.753.947.569.518.247.542.164.217.942.133.357.317.833.373.392.829.873.329.588.31.329.5median 53.9Google Pixel Cmedian 70.4median 17.9median 53.99.411.71.39.439.631.432.735.235.439.635.230.636.927.629.735.227.530.127.224.829.527.527.828.428.227.129.727.834.845.632.435.439.734.831.934.833.53733.931.931.633.628.530.328.531.63437.733.527.828.2344345.529.434.126434650.636.736.520.64650.854.239.840.120.750.855.560.842.342.820.655.561.363.246.147.42161.359.266.746.447.118.459.26368.445.44618.76359.166.447.74817.959.164.770.950.752.918.664.768.173.853.254.817.568.173.178.65860.416.973.175.178.859.259.317.475.169.575.854.455.716.269.569.378.954.559.416.969.371.776.556.656.317.571.770.378.953.858.317.270.369.481.452.960.917.769.472.482.955.862.517.472.469.48253.160.317.669.461.678.345.15617.661.65875.239.851.617.85848.868.73145.717.948.882.490.666.970.529.882.453.28520.625.51.353.2median 63Apple iPad Pro 9.7median 73.8median 47.7median 52.9median 17.8median 638.49.37.27.31.68.431.332.831.329.532.529.530.136.930.128.329.928.326.631.226.626.826.326.826.726.326.726.526.626.52824.72831.224.131.232.622.232.63021.53037.120.737.153.22053.253.819.253.856.618.556.654185456.71856.759.517.559.560.317.260.353.917.553.955.917.455.963.217.663.260.617.860.66117.86150.117.950.150.117.950.155.917.855.953.417.753.440.722.140.770.430.270.425.31.425.3median 53.8Lenovo Yoga Book 2016 Windows 64GB LTEmedian 18median 53.88.32.28.3hearing rangehide median Pink Noise
Lenovo Yoga Book Android YB1-X90F audio analysis

(±) | speaker loudness is average but good (79.27 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.5% higher than median
(±) | linearity of mids is average (8.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 9% similar, 55% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 40% of all tested devices were better, 5% similar, 55% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Google Pixel C audio analysis

(+) | speakers can play relatively loud (92.79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(±) | linearity of mids is average (7.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.9% higher than median
(±) | linearity of highs is average (9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 13% similar, 21% worse
» The best had a delta of 7%, average was 21%, worst was 33%
Compared to all devices tested
» 66% of all tested devices were better, 8% similar, 26% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple iPad Pro 9.7 audio analysis

(+) | speakers can play relatively loud (90.59 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.8% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.3% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.1% higher than median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 11% similar, 74% worse
» The best had a delta of 7%, average was 21%, worst was 33%
Compared to all devices tested
» 24% of all tested devices were better, 7% similar, 69% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Lenovo Yoga Book 2016 Windows 64GB LTE audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (12.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.8% difference to median)
Compared to same class
» 67% of all tested devices in this class were better, 10% similar, 23% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 69% of all tested devices were better, 6% similar, 24% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.12 / 0.12 Watt
Üresjáratdarkmidlight 2.19 / 4.3 / 4.37 Watt
Terhelés midlight 8.62 / 11.26 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga Book Android YB1-X90F
8500 mAh
Google Pixel C
 mAh
Apple iPad Pro 9.7
7306 mAh
Sony Xperia Z4 Tablet
 mAh
Lenovo Yoga Book 2016 Windows 64GB LTE
8500 mAh
Power Consumption
-4%
-26%
-13%
Idle Minimum *
2.19
1.82
17%
1.71
22%
2
9%
Idle Average *
4.3
4.26
1%
7.55
-76%
4.6
-7%
Idle Maximum *
4.37
4.33
1%
7.62
-74%
5.7
-30%
Load Average *
8.62
9.82
-14%
8.39
3%
11.5
-33%
Load Maximum *
11.26
13.99
-24%
12.08
-7%
11.5
-2%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
33h 05min
NBC WiFi Websurfing Battery Test 1.3
10h 02min
Big Buck Bunny H.264 1080p
11h 42min
Terhelés (maximális fényerő)
3h 42min
Lenovo Yoga Book Android YB1-X90F
8500 mAh
Google Pixel C
 mAh
Apple iPad Pro 9.7
7306 mAh
Sony Xperia Z4 Tablet
 mAh
Lenovo Yoga Book 2016 Windows 64GB LTE
8500 mAh
Battery Runtime
12%
2%
-8%
-30%
Reader / Idle
1985
2090
5%
1850
-7%
2135
8%
1153
-42%
H.264
702
740
5%
708
1%
705
0%
WiFi v1.3
602
638
6%
779
29%
525
-13%
498
-17%
Load
222
294
32%
186
-16%
166
-25%

Pro

+ rajztábla
+ sok tartozék
+ innovatív beviteli koncepció
+ hasznos Halo billentyűzet

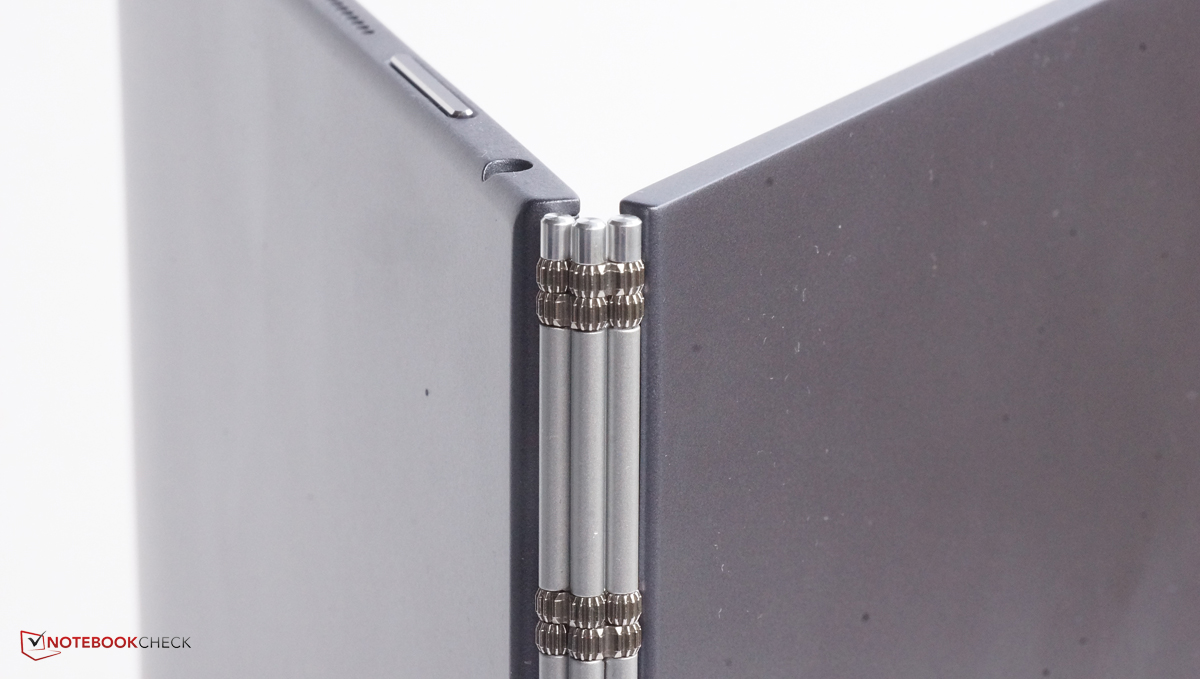

+ könnyen mozgatható, mégis masszív zsanérok
+ elég jó kijelző
+ alig melegszik
+ jó hangszórók

Kontra

- a Halo billentyűzet nehezen olvasható erős fényben
- a digitális rajztábla nem tökéletes
- halk nyikorgás
- néhány felesleges szoftver
- megbízhatatlan GPS
- csak 12 hónap garancia

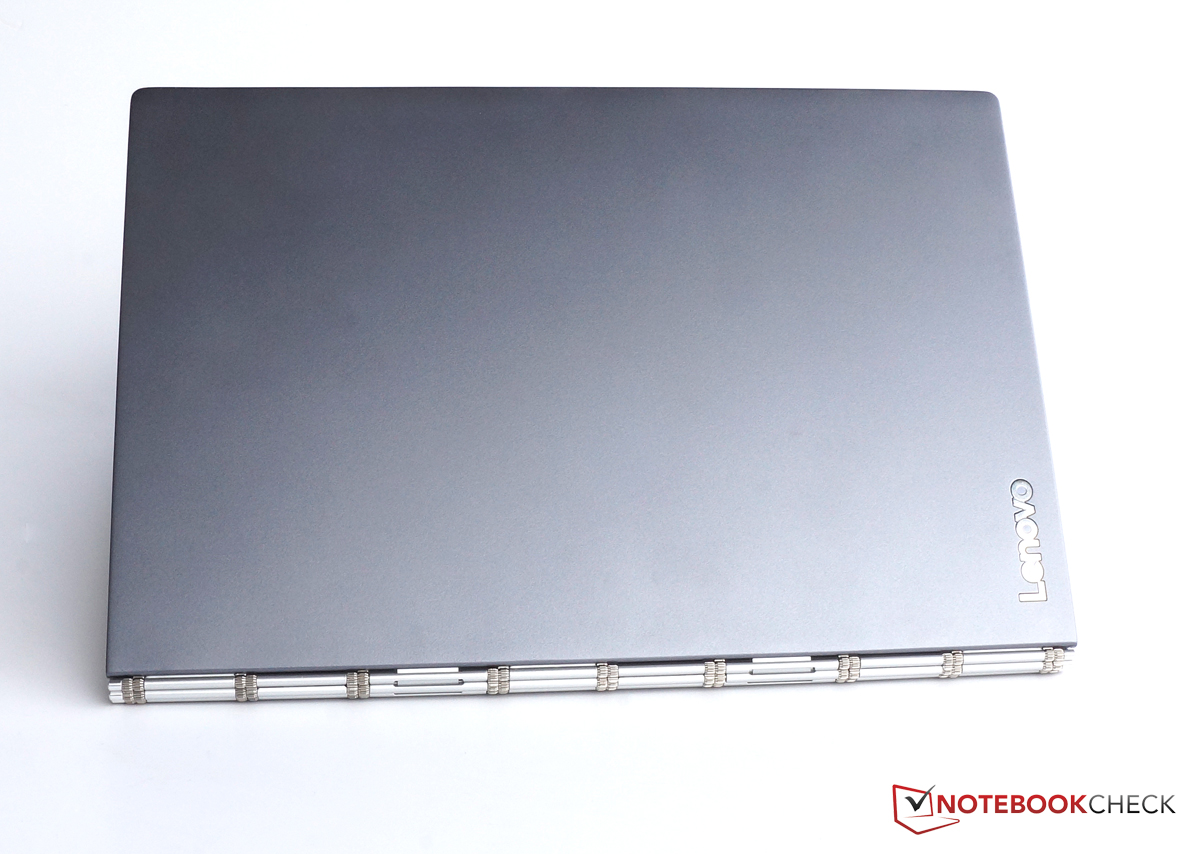

In review: Yoga Book Android. Test model provided by Lenovo Germany.
In review: Yoga Book Android. Test model provided by Lenovo Germany.

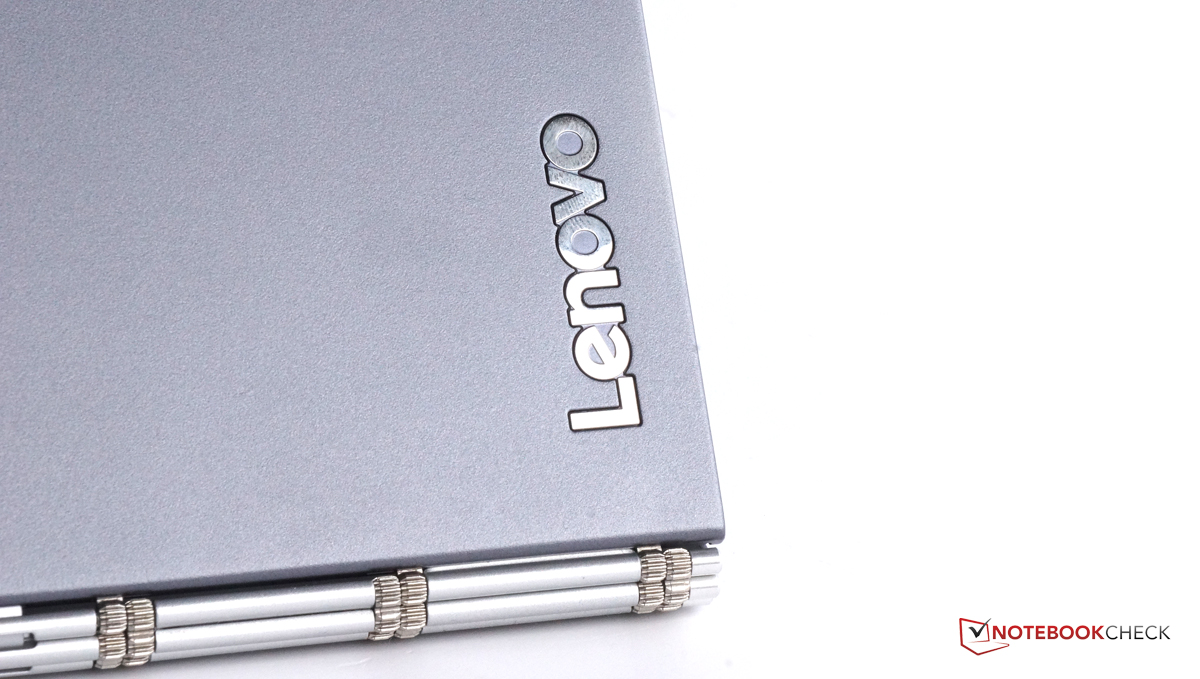

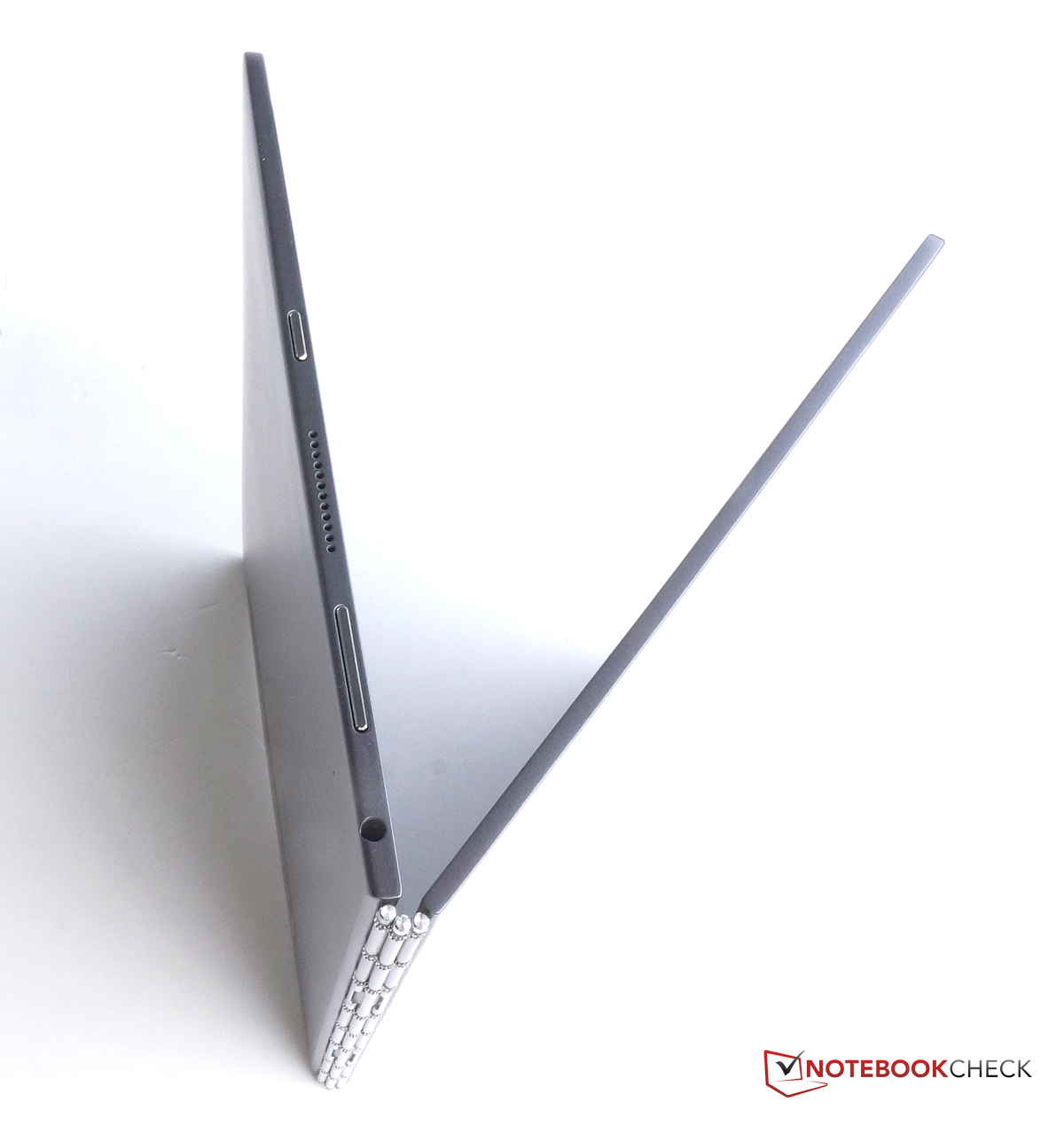

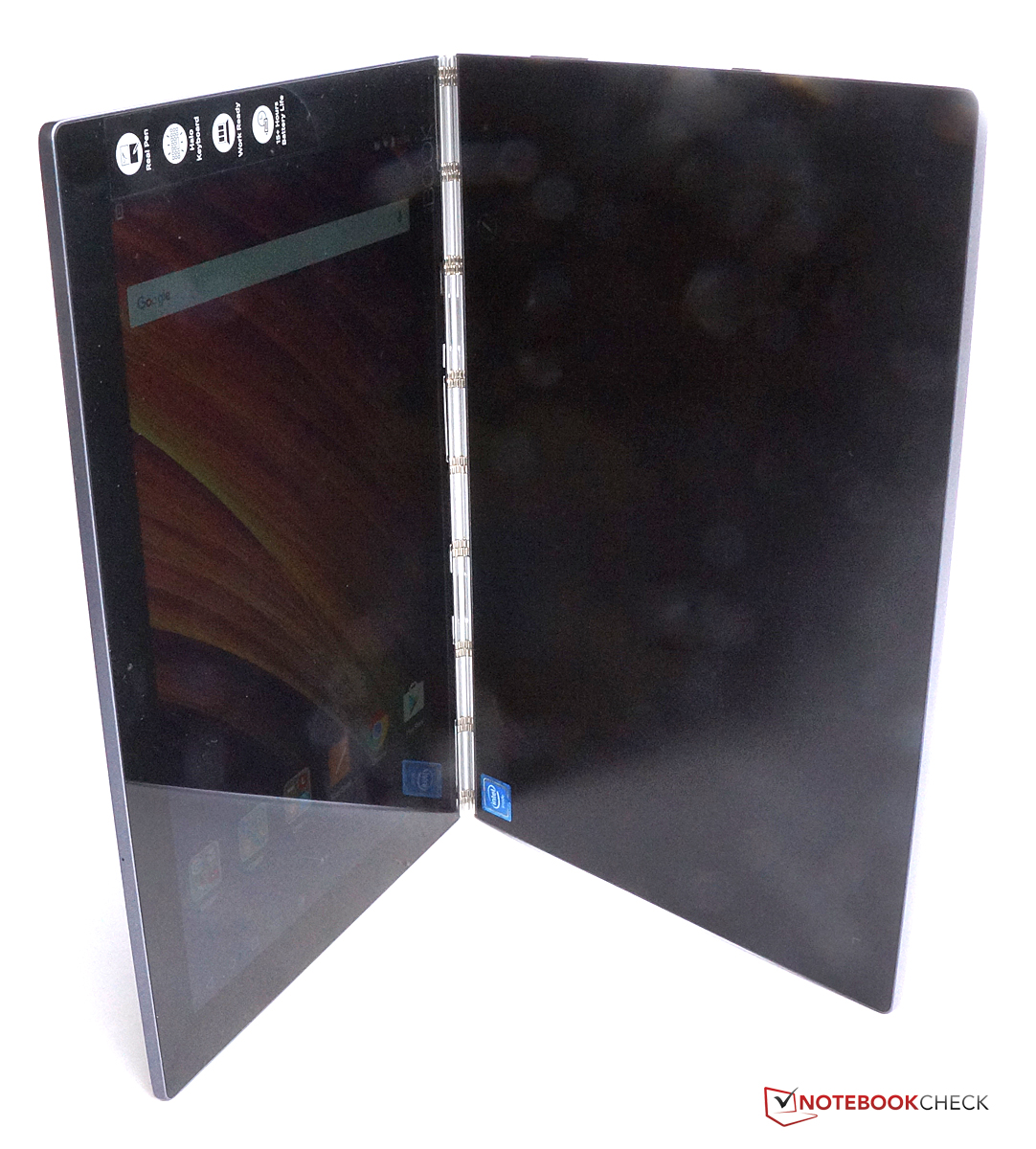

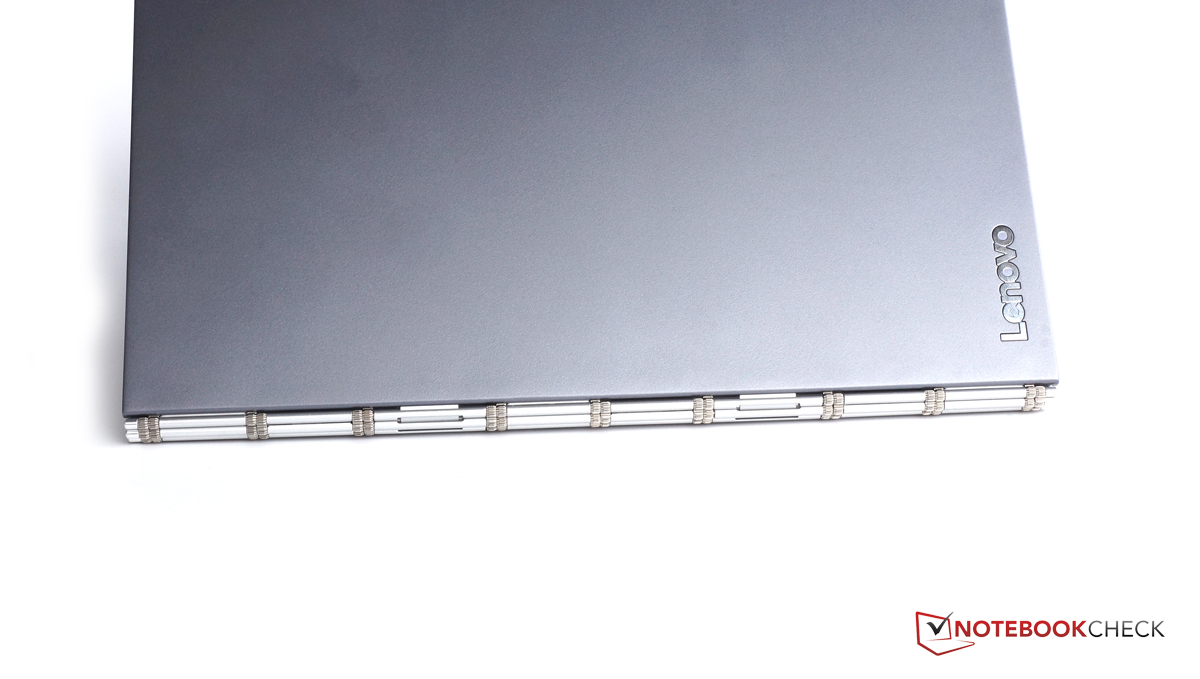

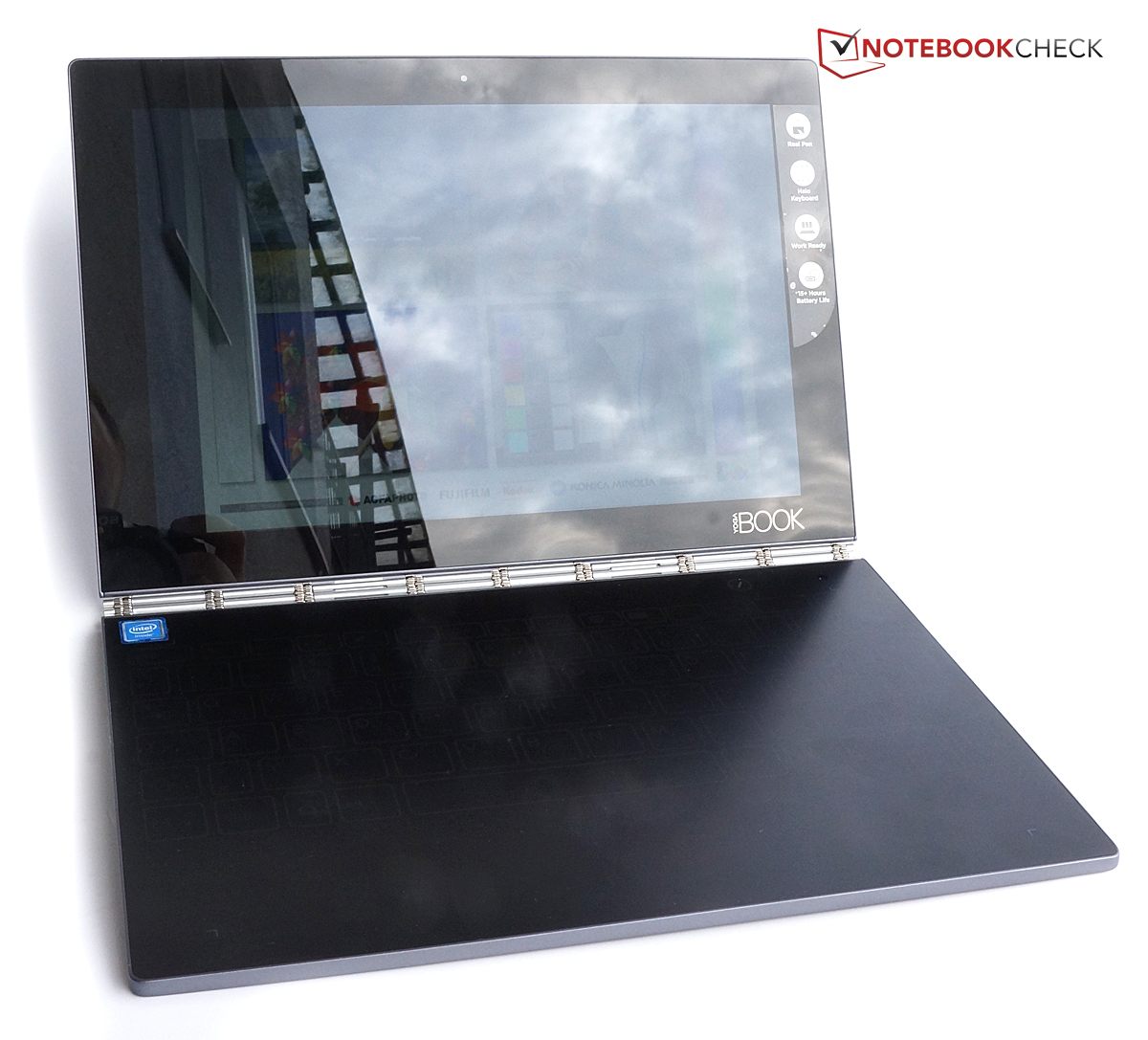

A Yoga Book a szívünk csücske lett, és Androiddal is jól működik. Sőt, néhány területen jobban is teljesít a Windowsos tabletnél. Az eszköz designja egyedi, és az "óraszíj" zsanérok nagyon jól néznek ki működés közben. A háttérfényes Halo billentyűzet szép, és jól használható a mindennapokban, de azért a napfényes területeket érdemes elkerülni vele. Különben hamar egy fizikai billentyűzetért fogunk sírni.

A Yoga Book kiváló jegyzetek digitalizálására. Ez egy komoly pozitívum azoknak a profiknak, akik sok jegyzetet írnak útközben, és egyszerre használnának érintőkijezőt és rajztáblát. Az iPad Pro 9.7 nem tudja ugyanezt. Néha azért a tesztpéldánynak kellett egy kis idő ahhoz, hogy felismerjen valamit, vagy végrehajtson egy feladatot. Profi felhasználóknak célszerű kipróbálni a készüléket (főleg a rajztáblát), mielőtt pénzt adnak érte.

A teljesítmény és a kijelző jó, de nem kiemelkedő. Mindennapi feladatokra megfelelnek. Profi felhasználásra esetleg nem elég pontosak a képernyő színei. Szerencsére a készülék alig melegszik, és mindig képes teljes teljesítményét hozni. A jó hangszórók, strapabíró ház és változatos beviteli lehetőségek teszik teljessé a Lenovo Yoga Book Android-ot.

Értékeljük a hosszú üzemidőt. Az Android menüjét átalakították, hogy praktikus és könnyen használható legyen.

Praktikus, funkcionális, sokoldalú, nagyobb hibák nélkül: a Yoga Book Android határozottan egy réteget céloz meg, de kifejezetten szórakoztató vele dolgozni.

Ha nem lényeges a Windows 10, akkor érdemes egy pillantást vetni az Androidos verzióra is, mivel üzemidő és kijelző terén lenyomja a Windowsos változatot.

Összefoglalva, a Lenovo egyedi eszközt kínál azoknak a grafikus dizájnereknek, akik hordozható rajztáblát szeretnének. A Yoga Book design és kinézet terén is nyertes lehet, köszönhetően remek házának és egyedi zsanérjainak. Az eszköz mindezt komolyabb hibák nélkül kínálja. A lehetséges vásárlók számára erősen ajánljuk, hogy vessenek egy pillantást a Yoga Book Android -ra.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű értékelés itt olvasható.

Lenovo Yoga Book Android YB1-X90F - 11/09/2016 v5.1
Florian Wimmer

Váz
91 / 98 → 93%
Billentyűzet
75%
Érintőpad
92%
Csatlakoztathatóság
43 / 80 → 54%
Súly
80 / 35-78 → 100%
Akkumulátor
93%
Kijelző
84%
Játékok alatti teljesítmény
43 / 68 → 64%
Alkalmazások alatti teljesítmény
51 / 87 → 59%
Hőmérséklet
95%
Zaj
100%
Audio
63 / 91 → 69%
Camera
63 / 85 → 74%
Átlag
75%
88%
Convertible - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Lenovo Yoga Book Android YB1-X90F Convertible rövid értékelés
Florian Wimmer, 2016-11-15 (Update: 2016-11-25)
