Dell XPS 13 9365 (7Y54, QHD+) Convertible rövid értékelés

Sascha Mölck, Stefanie Voigt (fordította Tamás Somogyi), 05/29/2017
Convertible / 2-in-1 Kaby Lake Touchscreen Windows

Kiváló kijelző. A Dell 13.3 inches XPS 13 ütőkártyája egy tűéles képű QHD+ kijelző, amelynek a színhűsége sem utolsó. Ugyanakkor a kijelző miatt az XPS 13 FHD változatához képest jelentősen rövidebb üzemidővel kell beérnünk. A passzív hűtésű CPU-nak hála a gép mindig csendes marad.

Dell XPS 13 9365-4537 2-in-1 (XPS 13 Széria)
Processzor
Intel Core i5-7Y54
Grafikus adapter
Intel HD Graphics 615, Mag: 300-950 MHz, Dual-Channel, 21.20.16.4664
Memória
8192 MB
, DDR3 1866, dual channel, beforrasztott memória
Kijelző
13.3 hüvelyk 16:9, 3200 x 1800 pixel 276 PPI, 10 pontos, kapacitív, Sharp LQ133Z1, IPS, fényes: igen
Alaplap
Intel Kaby Lake-Y Premium PCH
Háttértár
Toshiba NVMe THNSN5256GPUK, 256 GB
, 200 GB ingyenes
Csatlakozók
1 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 2 DisplayPort, 1 Kensington zár, Audió csatlakozók: kombinált audio, Kártyaolvasó: microSD, Szenzorok: mozgásérzékelő, TPM 2.0
Hálózat
Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Méret
magasság x szélesség x mélység (mm-ben) 15 x 304 x 200
Akkumulátor
46 Wh Lítium-Ion
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: HD
További jellegzetességek
Hangszórók: sztereo, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: igen, USB-C / USB-A adapter, 24 Hónap Garancia, fanless
Súly
1.2 kg, Tápegység: 255 g
Ár
1649 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

323 mm 224.5 mm 14.3 mm 1.4 kg306 mm 218 mm 13.8 mm 1.3 kg304 mm 200 mm 15 mm 1.2 kg304 mm 199 mm 13.7 mm 1.2 kg
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP Spectre x360 13-ac033dx
Intel Dual Band Wireless-AC 8265
619 MBit/s ∼100% +198%
Dell XPS 13-9365 2-in-1
Intel Dual Band Wireless-AC 8265
309 MBit/s ∼50% +49%
Dell XPS 13 9365-4537 2-in-1
Intel Dual Band Wireless-AC 8265
208 MBit/s ∼34%
iperf3 Client (transmit) TCP 1 m 4M x10
Dell XPS 13-9365 2-in-1
Intel Dual Band Wireless-AC 8265
471 MBit/s ∼100% +232%
HP Spectre x360 13-ac033dx
Intel Dual Band Wireless-AC 8265
462 MBit/s ∼98% +225%
Dell XPS 13 9365-4537 2-in-1
Intel Dual Band Wireless-AC 8265
142 MBit/s ∼30%
290
cd/m²
316
cd/m²
315
cd/m²
306
cd/m²
348
cd/m²
333
cd/m²
277
cd/m²
300
cd/m²
273
cd/m²
Fényerő megoszlás
Sharp LQ133Z1
X-Rite i1Pro 2
Maximum: 348 cd/m² Átlag: 306.4 cd/m² Minimum: 20 cd/m²
Fényerő megoszlás: 78 %
Centrumban: 348 cd/m²
Kontraszt: 1740:1 (Fekete: 0.2 cd/m²)
ΔE Color 2.79 | 0.6-29.43 Ø6
ΔE Greyscale 3.47 | 0.64-98 Ø6.2
93% sRGB (Argyll 3D) 60% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.54
Dell XPS 13 9365-4537 2-in-1
IPS, 3200x1800, 13.3
Dell XPS 13-9365 2-in-1
IPS, 1920x1080, 13.3
HP Spectre x360 13-ac033dx
IPS, 3840x2160, 13.3
Lenovo Yoga 910-13IKB-80VF004CGE
IPS, 3840x2160, 13.9
Response Times
-9%
-1%
9%
Response Time Grey 50% / Grey 80% *
48 (26, 22)
48 (16.4, 31.6)
-0%
42 (20.8, 21.2)
12%
46 (14, 32)
4%
Response Time Black / White *
28 (16, 12)
32.8 (7.6, 25.2)
-17%
32 (18, 14)
-14%
24 (6, 18)
14%
PWM Frequency
1042 (29)
Screen
-44%
-1%
-51%
Brightness middle
348
322.6
-7%
302.6
-13%
348
0%
Brightness
306
306
0%
282
-8%
310
1%
Brightness Distribution
78
91
17%
83
6%
80
3%
Black Level *
0.2
0.19
5%
0.25
-25%
0.25
-25%
Contrast
1740
1698
-2%
1210
-30%
1392
-20%
Colorchecker DeltaE2000 *
2.79
7.7
-176%
2.4
14%
7.86
-182%
Colorchecker DeltaE2000 max. *
5.53
11.1
-101%
4.9
11%
13.43
-143%
Greyscale DeltaE2000 *
3.47
7.9
-128%
2.8
19%
8.25
-138%
Gamma
2.54 87%
2.88 76%
2.2 100%
2.05 107%
CCT
6564 99%
7044 92%
6333 103%
6834 95%
Color Space (Percent of AdobeRGB 1998)
60
44.1
-26%
65.5
9%
58
-3%
Color Space (Percent of sRGB)
93
69.9
-25%
97.1
4%
90
-3%
Total Average (Program / Settings)
-27% / -38%
-1% / -1%
-21% / -41%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9370 (minimum: 43 - maximum: 142900) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

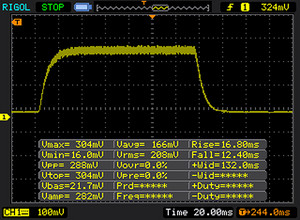

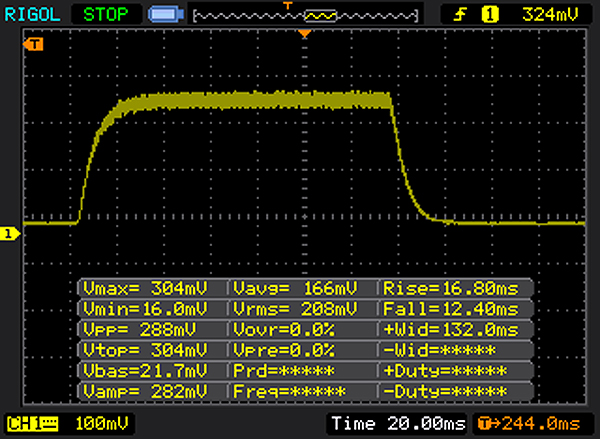

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 59 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.9 ms).

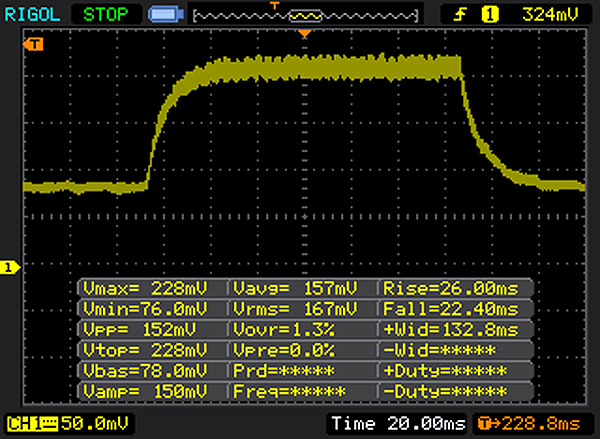

       Response Time 50% Grey to 80% Grey
48 ms ... rise ↗ and fall ↘ combined↗ 26 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 78 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.7 ms).
0102030405060708090100110120130140150160170180190200210220230240250Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R10 Rendering Single 32Bit
4838
Cinebench R10 Rendering Multiple CPUs 32Bit
8946
Cinebench R10 Shading 32Bit
6388
Cinebench R15 CPU Single 64Bit
119 Points
Cinebench R15 CPU Multi 64Bit
257 Points
Cinebench R15 OpenGL 64Bit
24.79 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Segítség
Cinebench R15
CPU Single 64Bit
Lenovo Yoga 910-13IKB-80VF004CGE
Intel Core i7-7500U
147 Points ∼67% +24%
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
143 Points ∼66% +20%
Dell XPS 13-9365 2-in-1
Intel Core i7-7Y75
130 Points ∼60% +9%
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
119 Points ∼55%
CPU Multi 64Bit
Lenovo Yoga 910-13IKB-80VF004CGE
Intel Core i7-7500U
354 Points ∼8% +38%
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
317 Points ∼7% +23%
Dell XPS 13-9365 2-in-1
Intel Core i7-7Y75
258 Points ∼6% 0%
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
257 Points ∼6%
Cinebench R10
Rendering Single 32Bit
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
5614 Points ∼52% +16%
Dell XPS 13-9365 2-in-1
Intel Core i7-7Y75
5496 Points ∼51% +14%
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
4838 Points ∼45%
Rendering Multiple CPUs 32Bit
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
11366 Points ∼17% +27%
Dell XPS 13-9365 2-in-1
Intel Core i7-7Y75
9392 Points ∼14% +5%
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
8946 Points ∼14%
Geekbench 3
32 Bit Multi-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
6178 Points ∼8%
32 Bit Single-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
3160 Points ∼65%
Geekbench 4.0
64 Bit Multi-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
6627 Points ∼22%
64 Bit Single-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
3733 Points ∼62%
Geekbench 4.4
64 Bit Multi-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
6921 Points ∼12%
64 Bit Single-Core Score
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
3745 Points ∼59%
JetStream 1.1 - Total Score
Lenovo Yoga 910-13IKB-80VF004CGE
Intel Core i7-7500U
241.79 Points ∼69% +22%
HP Spectre x360 13-ac033dx
Intel Core i7-7500U
235 Points ∼67% +18%
Dell XPS 13 9365-4537 2-in-1
Intel Core i5-7Y54
198.92 Points ∼57%
Dell XPS 13-9365 2-in-1
Intel Core i7-7Y75
193.76 Points ∼55% -3%
PCMark 8 Home Score Accelerated v2
2706 pontok
Segítség
PCMark 8 - Home Score Accelerated v2
Lenovo Yoga 910-13IKB-80VF004CGE
HD Graphics 620, 7500U, Samsung PM951 NVMe MZVLV512
3555 Points ∼58% +31%
Dell XPS 13-9365 2-in-1
HD Graphics 615, 7Y75, Toshiba NVMe THNSN5256GPUK
3134 Points ∼51% +16%
HP Spectre x360 13-ac033dx
HD Graphics 620, 7500U, Samsung PM961 NVMe MZVLW512HMJP
3023 Points ∼50% +12%
Dell XPS 13 9365-4537 2-in-1
HD Graphics 615, 7Y54, Toshiba NVMe THNSN5256GPUK
2706 Points ∼44%
Toshiba NVMe THNSN5256GPUK
Sequential Read: 1159 MB/s
Sequential Write: 324.1 MB/s
512K Read: 528.4 MB/s
512K Write: 373.7 MB/s
4K Read: 29.26 MB/s
4K Write: 108.3 MB/s
4K QD32 Read: 335.9 MB/s
4K QD32 Write: 234.1 MB/s
Dell XPS 13 9365-4537 2-in-1
Toshiba NVMe THNSN5256GPUK
Dell XPS 13-9365 2-in-1
Toshiba NVMe THNSN5256GPUK
HP Spectre x360 13-ac033dx
Samsung PM961 NVMe MZVLW512HMJP
Lenovo Yoga 910-13IKB-80VF004CGE
Samsung PM951 NVMe MZVLV512
CrystalDiskMark 3.0
31%
114%
58%
Write 4k QD32
234.1
250.2
7%
225.6
-4%
488.7
109%
Read 4k QD32
335.9
411
22%
518.3
54%
570.3
70%
Write 4k
108.3
121.2
12%
139.4
29%
159.7
47%
Read 4k
29.26
32.93
13%
54.66
87%
43.5
49%
Write 512
373.7
410.7
10%
1229
229%
579.6
55%
Read 512
528.4
966.3
83%
864.8
64%
701.1
33%
Write Seq
324.1
629.4
94%
1550
378%
578.4
78%
Read Seq
1159
1206
4%
2065
78%
1412
22%
3DMark 11 Performance
1272 pontok
Segítség
3DMark 11 - 1280x720 Performance GPU
Lenovo Yoga 910-13IKB-80VF004CGE
Intel HD Graphics 620, Intel Core i7-7500U
1623 Points ∼3% +38%
HP Spectre x360 13-ac033dx
Intel HD Graphics 620, Intel Core i7-7500U
1569 Points ∼3% +34%
Dell XPS 13-9365 2-in-1
Intel HD Graphics 615, Intel Core i7-7Y75
1370 Points ∼3% +17%
Dell XPS 13 9365-4537 2-in-1
Intel HD Graphics 615, Intel Core i5-7Y54
1175 Points ∼2%
alacsony közepes magas ultra
Diablo III (2012) 55.836.330.117.8fps
Counter-Strike: GO (2012) 99.957.339.521.9fps
BioShock Infinite (2013) 31.420.419.36.1fps
GRID: Autosport (2014) 74.924.6fps
F1 2014 (2014) 5534fps
GTA V (2015) 19.916.7fps
World of Warships (2015) 49.930.2fps
Anno 2205 (2015) 15.910.2fps
Rainbow Six Siege (2015) 24.616.2fps
Far Cry Primal (2016) 125fps
Mirror's Edge Catalyst (2016) 15.59fps
Civilization VI (2016) 20.69.2fps
Farming Simulator 17 (2016) 70.245.1fps
Titanfall 2 (2016) 19.915.9fps
Resident Evil 7 (2017) 22.29.5fps
For Honor (2017) 16.86.2fps
Ghost Recon Wildlands (2017) 9.84fps
Warhammer 40.000: Dawn of War III (2017) 11.64fps
Prey (2017) 14.36.6fps
Max. terhelés
 40.2 °C43.1 °C32 °C
 32.1 °C36.4 °C32 °C
 26.8 °C26.7 °C26.1 °C
Maximum: 43.1 °C
Átlag: 32.8 °C
32.4 °C41.7 °C37.7 °C
30.1 °C34.4 °C35.9 °C
26 °C28.8 °C30 °C
Maximum: 41.7 °C
Átlag: 33 °C
Tápegység (max.)  41.2 °C | Szobahőmérséklet 30.1 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 43.1 °C / 110 F, compared to the average of 35.4 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.7 °C / 107 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 22.7 °C / 73 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.8 °C / 80.2 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+2.1 °C / 3.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2041.736.241.72538.732.238.73140.331.740.34041.12941.15042.628.842.66344.530.844.5804428.34410045.728.945.71254724.54716048.22448.220049.924.649.925051.522.151.531556.52256.540059.720.859.750064.420.364.463065.619.365.68006918.669100072.717.972.7125073.517.773.5160071.61771.6200071.417.171.4250069.616.969.6315064.61764.6400067.416.967.4500066.616.966.6630069.91769.9800067.617.267.61000059.317.159.3125005717.2571600052.517.452.5SPL81.43081.4N50.81.450.8median 64.6median 17.7median 64.6Delta7.627.635.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseDell XPS 13 9365-4537 2-in-1Apple MacBook 12 (Early 2016) 1.1 GHz
Dell XPS 13 9365-4537 2-in-1 audio analysis

(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.8% lower than median
(+) | bass is linear (4.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 18% of all tested devices in this class were better, 6% similar, 76% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 20% of all tested devices were better, 4% similar, 76% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.5 / 1.3 Watt
Üresjáratdarkmidlight 8.2 / 10.8 / 12.7 Watt
Terhelés midlight 22.6 / 24.6 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Akkumulátor üzemidő
NBC WiFi Websurfing Battery Test 1.3 (Edge 40)
6h 50min
Battery Runtime - WiFi Websurfing 1.3
Dell XPS 13-9365 2-in-1
7Y75, HD Graphics 615, 46 Wh
686 min ∼100% +67%
Lenovo Yoga 910-13IKB-80VF004CGE
7500U, HD Graphics 620, 78 Wh
644 min ∼94% +57%
HP Spectre x360 13-ac033dx
7500U, HD Graphics 620, 57.8 Wh
537 min ∼78% +31%
Dell XPS 13 9365-4537 2-in-1
7Y54, HD Graphics 615, 46 Wh
410 min ∼60%

Pro

+ kompakt ház
+ stabil betekintésű kijelző
+ NVMe SSD
+ Thunderbolt 3
+ USB-C / USB-A adapter

Kontra

- átlagos üzemidő
- nincs USB-A port
- viszonylag alacsony WLAN adatátviteli sebesség

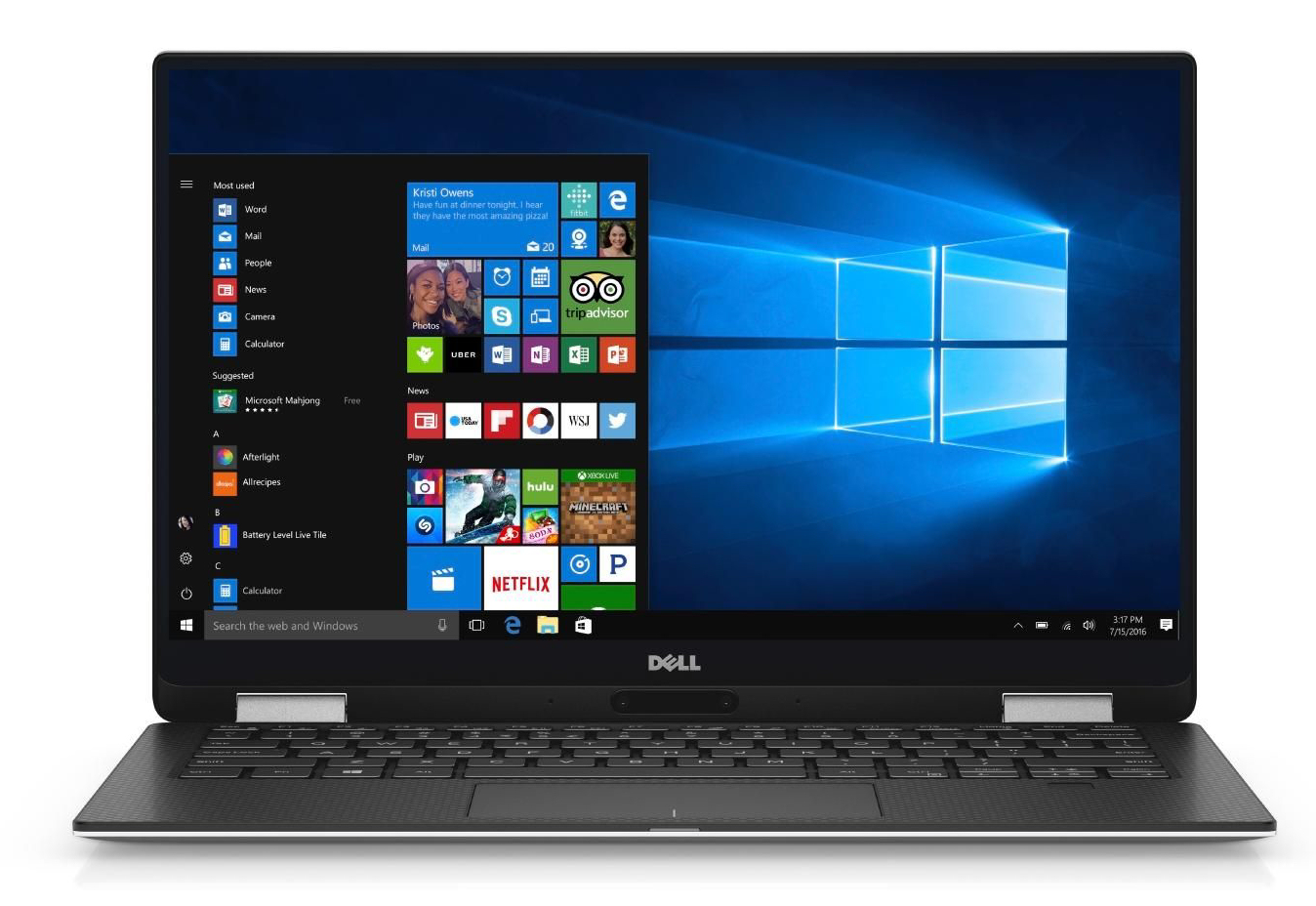

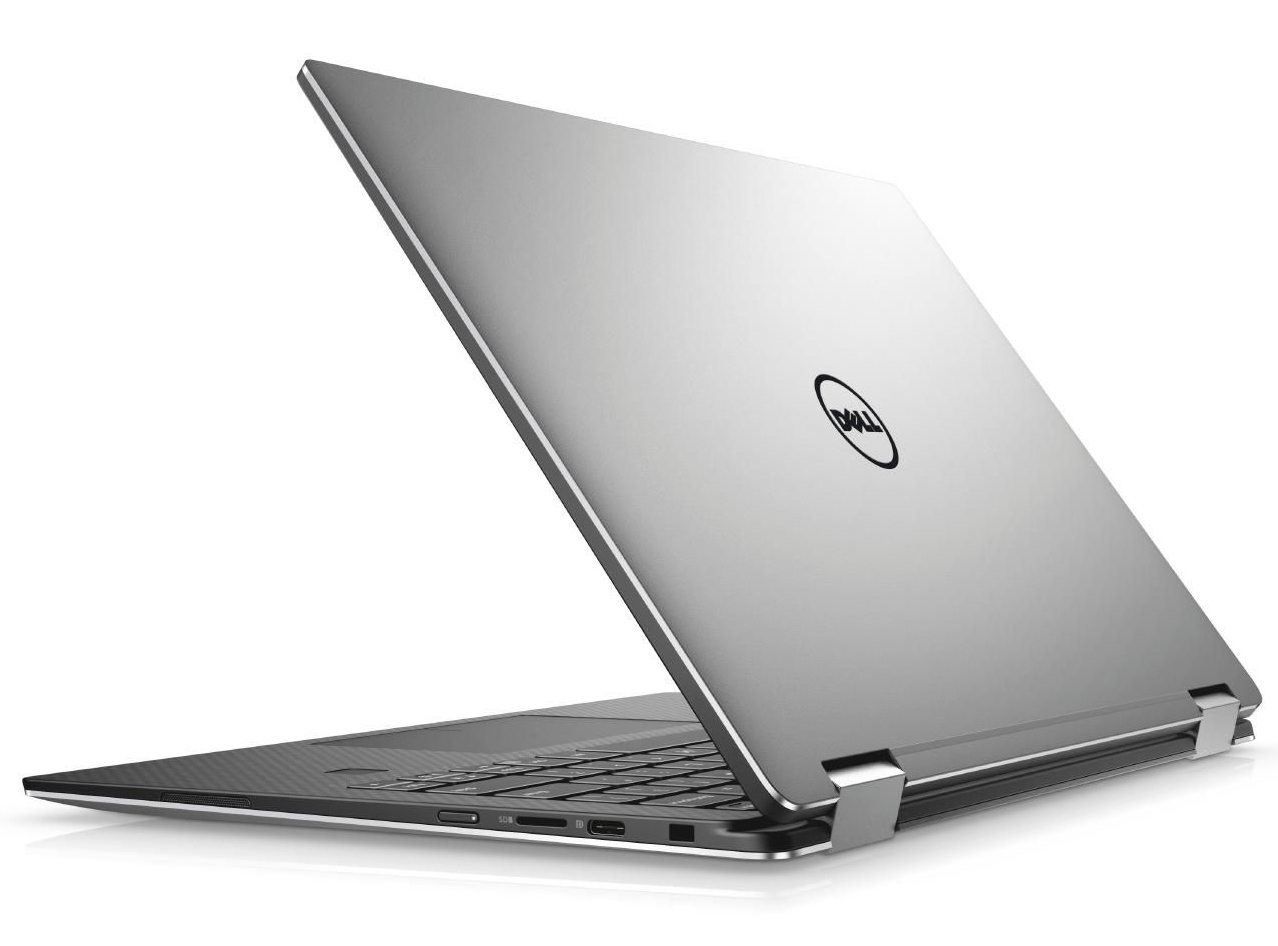

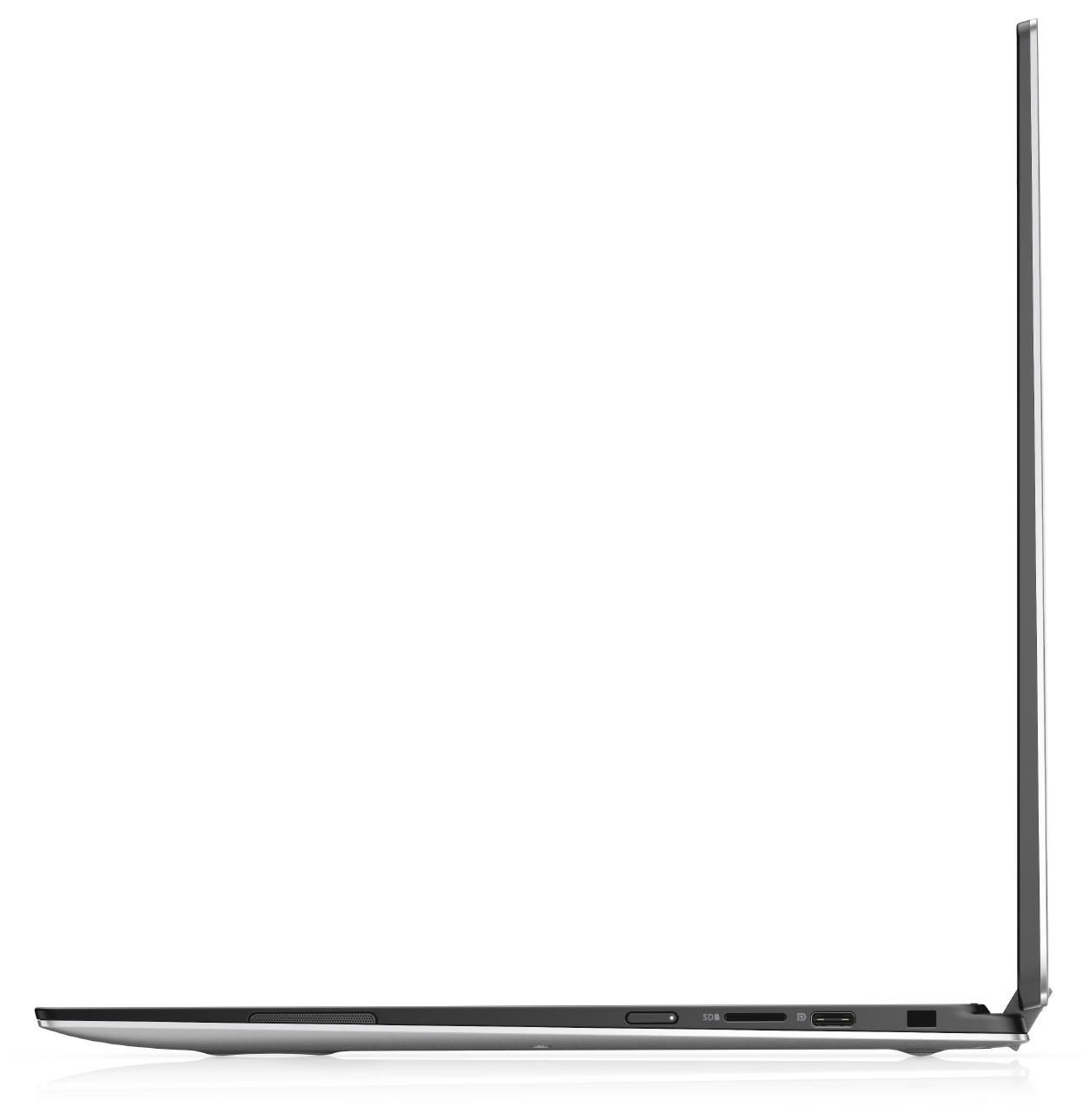

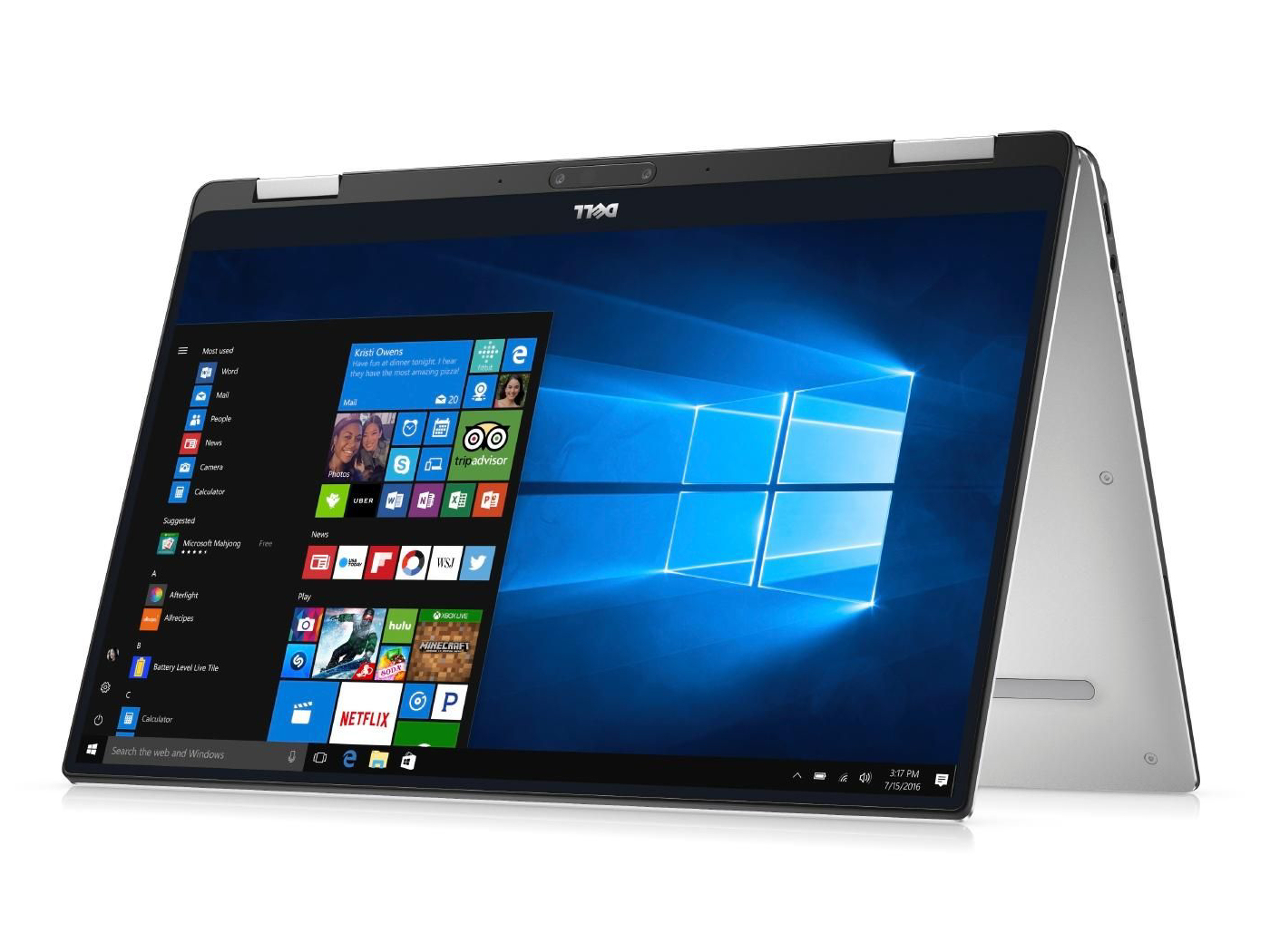

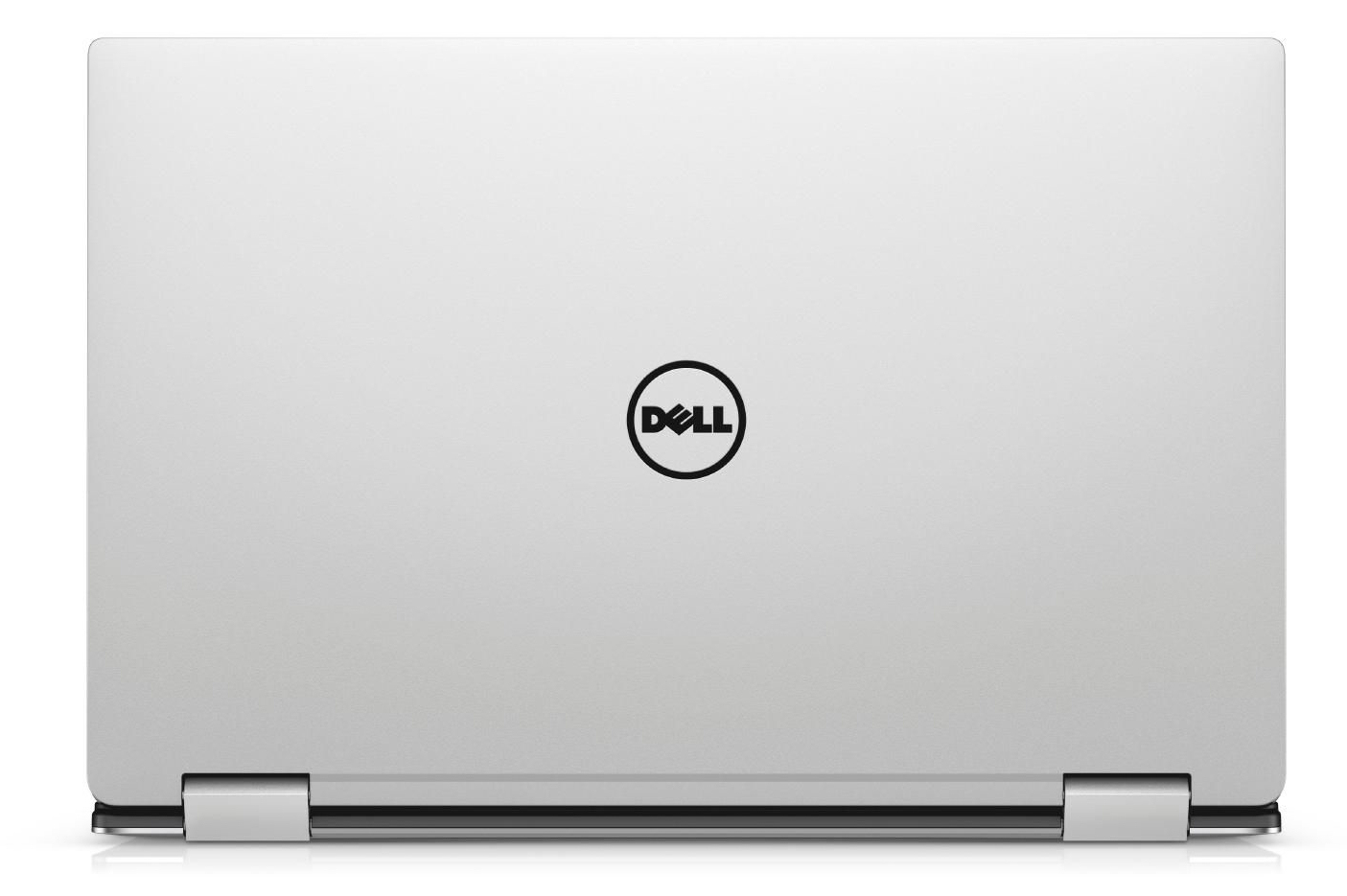

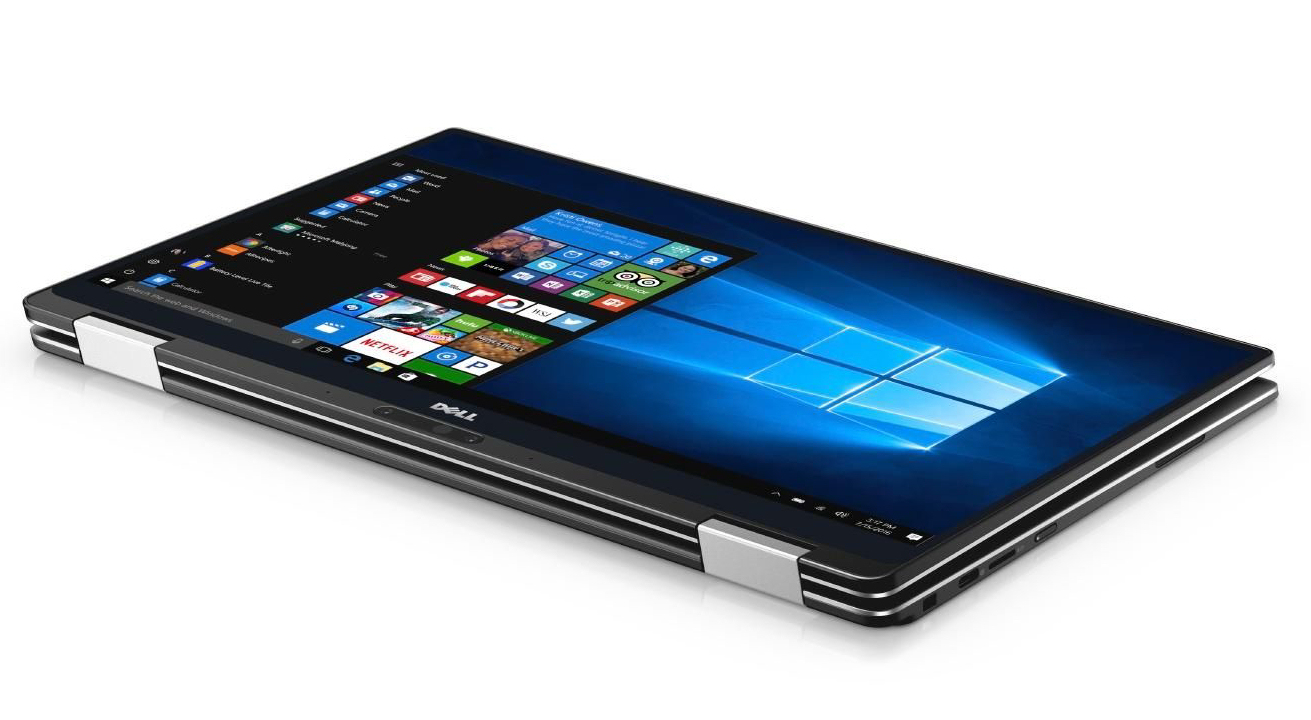

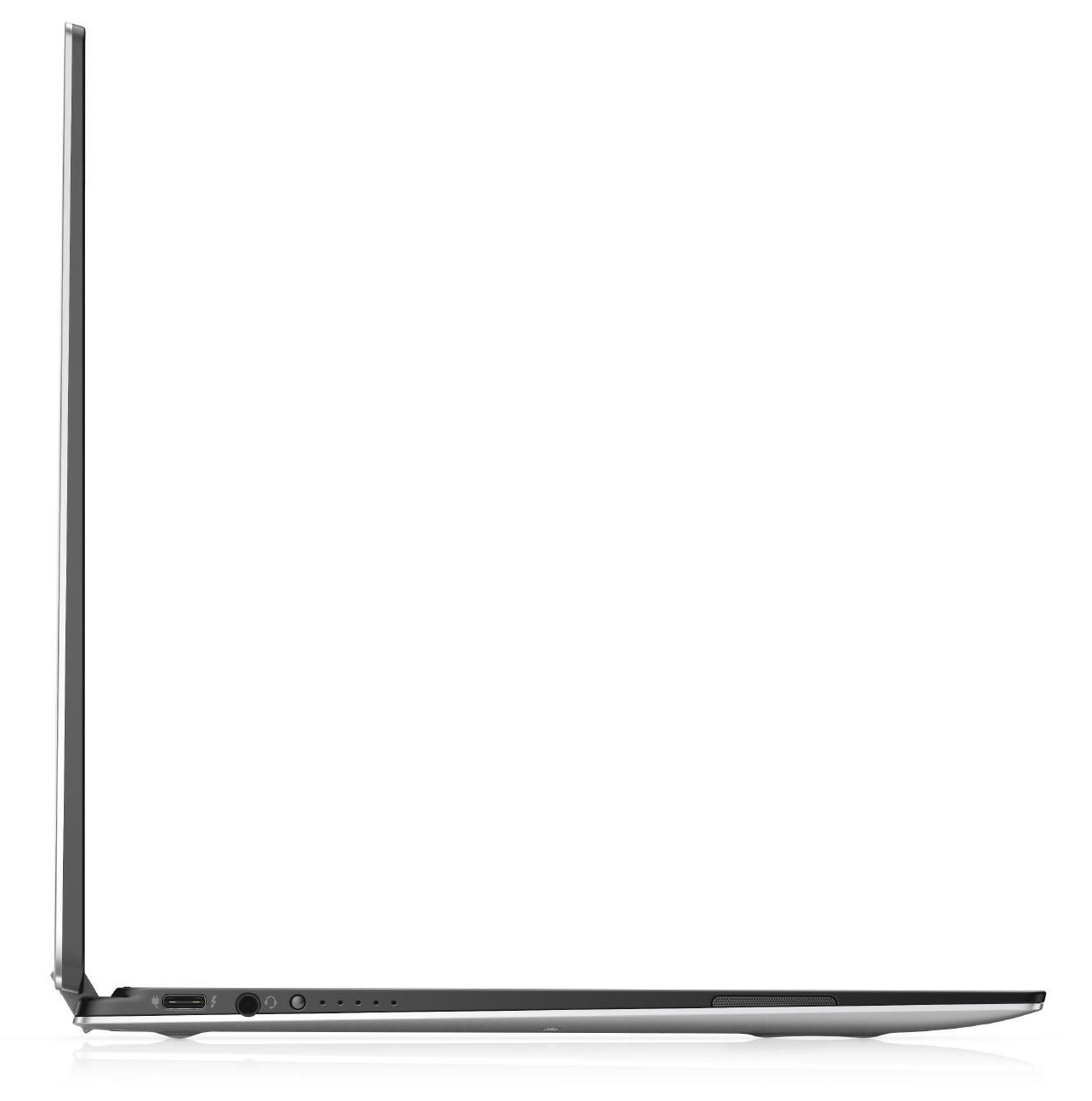

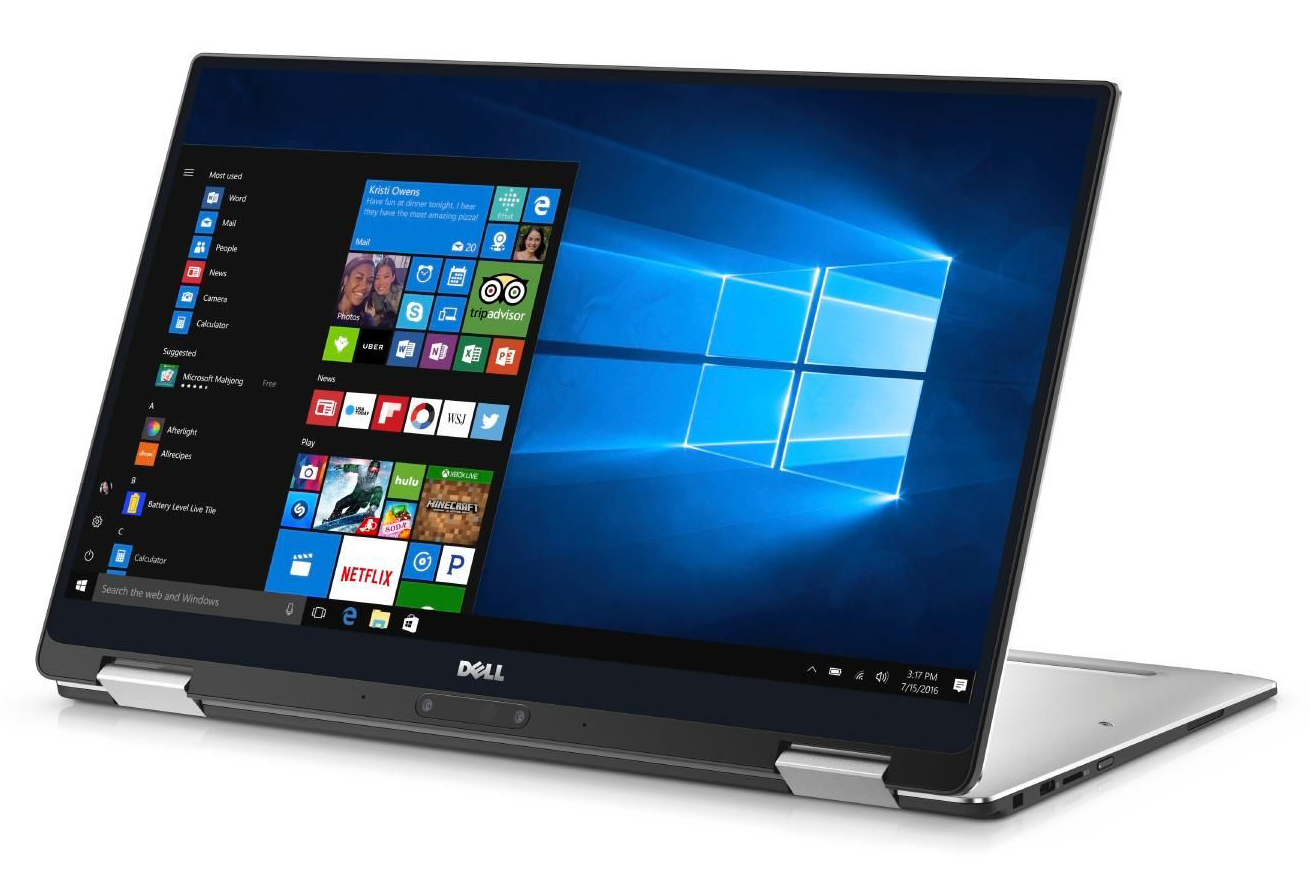

The Dell XPS 13 9365-4537, provided by notebooksbilliger.de
The Dell XPS 13 9365-4537, provided by notebooksbilliger.de

A tesztelt Dell XPS 13 modellben egy Core i5-7Y54 processzor ketyeg. Ez semmivel nem gyengébb a névleg izmosabb Core i7 processzorhoz képest, amelyik a testvér modellt  hajtja meg. Mivel egyik CPU sem éri el elméleti maximumát a passzív hűtés miatt, ezért a tényleges teljesítményük nem igazán tér el. Az éppen észrevehető különbség, amennyivel az i7 gyorsabb, nem éri meg a magasabb árat.

A ventilátor nélküli felépítésnek köszönhetően a gép mindig csendes marad, ennek ellenére nem is melegszik fel erősen. A rendszer gyorsaságáról egy NVMe SSD gondoskodik, amely cserélhető. Ehhez a laptop alsó burkolatát kell leszednünk. A billentyűzetről alkotott véleményünk szintén pozitív.

Az IPS kijelző betekintése és kontrasztja kiváló. A fényereje is jó, bár lehetne magasabb, mivel a gépet változó fényviszonyok között használhatónak szánták.

A hihetetlenül éles képű QHD+ kijelző negatívan befolyásolja az üzemidőt.

Gyakorlati WLAN tesztünk során az üzemidő jó 5 órával csökkent a Full HD-s XPS 13 változathoz képest. Azok tehát, akiknek a tartós akku az első, válasszák inkább a Full HD modellt.

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Dell XPS 13 9365-4537 2-in-1 - 05/26/2017 v6(old)
Sascha Mölck

Váz
91 / 98 → 93%
Billentyűzet
87%
Érintőpad
87%
Csatlakoztathatóság
58 / 80 → 73%
Súly
73 / 35-78 → 87%
Akkumulátor
89%
Kijelző
87%
Játékok alatti teljesítmény
53 / 68 → 78%
Alkalmazások alatti teljesítmény
73 / 87 → 84%
Hőmérséklet
94%
Zaj
100%
Audio
80 / 91 → 88%
Camera
44 / 85 → 52%
Átlag
78%
87%
Convertible - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Dell XPS 13 9365 (7Y54, QHD+) Convertible rövid értékelés
Sascha Mölck, 2017-05-29 (Update: 2017-05-29)
