Asus ZenBook Flip 14 UX463FA rövid értékelés: Stílusos átalakítható gép alacsony áron

Tükröm, tükröm... Miután sikerült benyomást szereznünk az Asus ZenBook Flip 15 UX563FD-ről, most a kisebbik testvérmodellt vizsgáljuk meg. Tesztkonfigurációnkban be kell érnünk a Full HD kijelzővel a 4K kijelző helyett, de a minőségi ház meggyőző. Értékelésünkben kiderítjük, hogy a 14 hüvelykes átalakítható gép mi mást is kínál a dizájnon kívül.
Mike Wobker, 👁 Sebastian Jentsch, Andrea Grüblinger (fordította Zoltán Kiss),
Touchscreen Windows Convertible / 2-in-1 Comet Lake

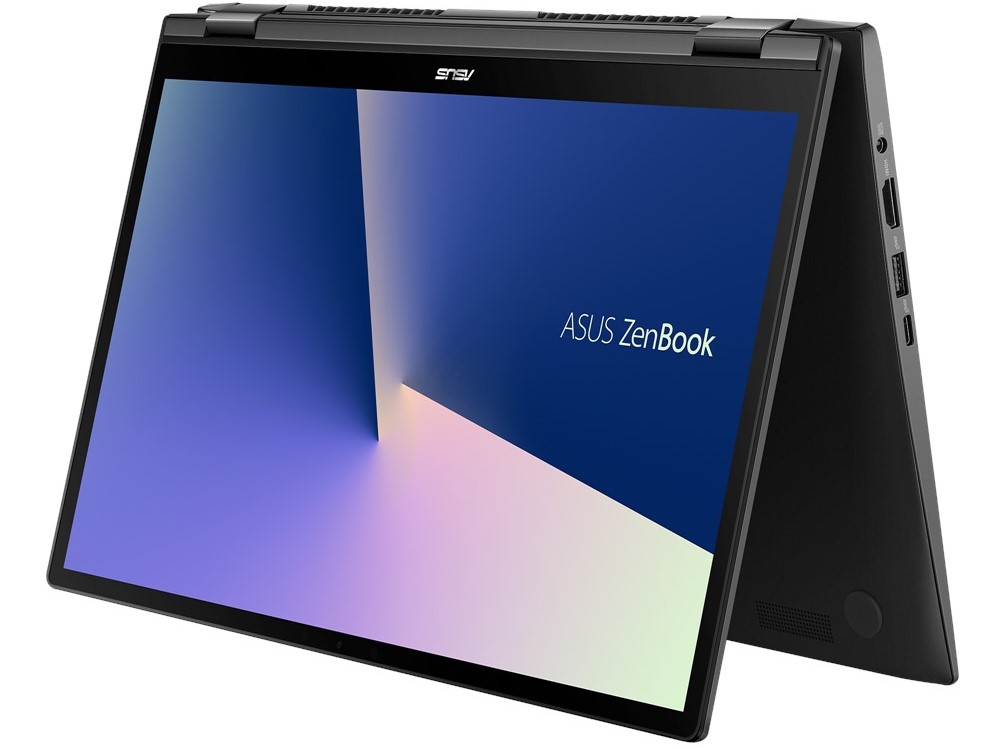

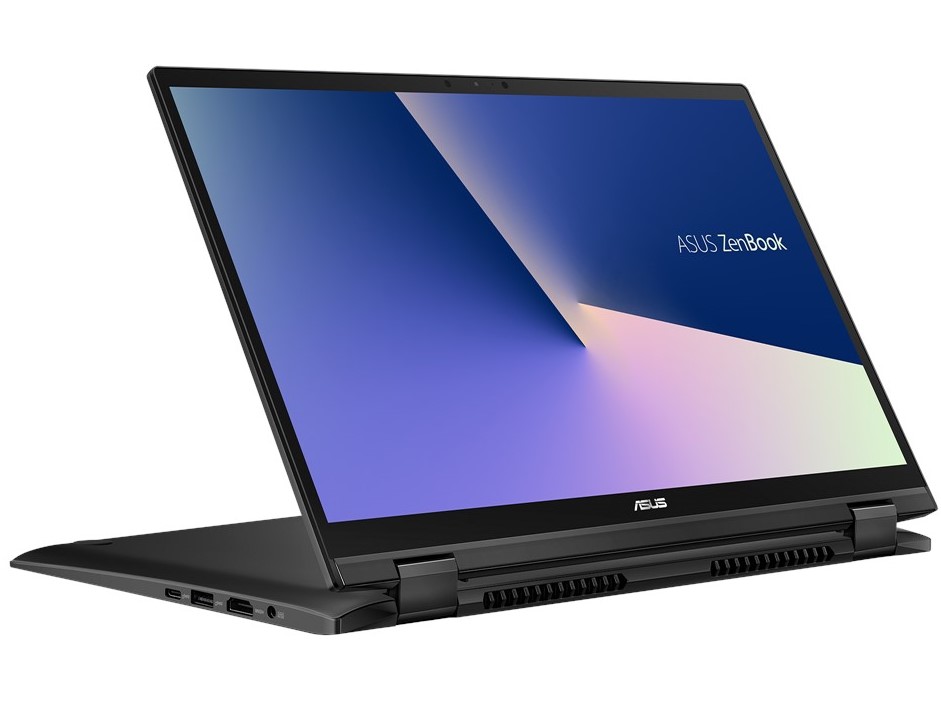

Asus ZenBook Flip 14 UX463FA-AI039T (ZenBook Flip 14 Széria)
Processzor
Intel Core i5-10210U 4 x 1.6 - 4.2 GHz, Comet Lake-U
Grafikus adapter
Memória
8192 MB
, Kétcsatornás
Kijelző
14 hüvelyk 16:9, 1920 x 1080 pixel 157 PPI, kapacitív, AU AUO323D, IPS, fényes: igen
Alaplap
Intel Comet Lake-U PCH-LP Premium
Háttértár
Kingston RBUSNS8154P3512GJ1, 512 GB
, 426 GB ingyenes
Csatlakozók
1 USB 2.0, 2 USB 3.0, 1 HDMI, Audió csatlakozók: kombinált 3,5 mm-es audió jack, Kártyaolvasó: microSD
Hálózat
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Méret
magasság x szélesség x mélység (mm-ben) 18 x 320 x 206
Akkumulátor
50 Wh Lítium-Polimer
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: 0.9 MP, 16:9 (1280x720)
További jellegzetességek
Hangszórók: 2x 1W sztereó, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: igen, Védőtok, USB->LAN adapter, McAfee, 24 Hónap Garancia
Súly
1.4 kg, Tápegység: 204 g
Ár
950 Euró
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85 %
07/2020
Asus ZenBook Flip 14 UX463FA-AI039T
i5-10210U, UHD Graphics 620
1.4 kg18 mm14"1920x1080
87 %
03/2020
Asus ZenBook Flip 15 UX563FD-A1027T
i7-10510U, GeForce GTX 1050 Max-Q
1.9 kg19.9 mm15.6"3840x2160
81 %
07/2020
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620
1.6 kg20.5 mm14"1920x1080
88 %
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620
1.4 kg17.6 mm13.3"1920x1080
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T
Asus ZenBook Flip 14 UX463FA-AI039T

Size comparison

356 mm 229 mm 19.9 mm 1.9 kg324 mm 222.9 mm 20.5 mm 1.6 kg320 mm 206 mm 18 mm 1.4 kg311.5 mm 219 mm 17.6 mm 1.4 kg

Port configuration

Left side: DC in, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Left side: DC in, HDMI, 1x USB 3.1 Gen 1 Type-A, 1x USB 3.1 Gen 1 Type-C
Right side: power button, combined 3.5 mm audio jack, 1x USB 2.0 Type-A, microSD card reader
Right side: power button, combined 3.5 mm audio jack, 1x USB 2.0 Type-A, microSD card reader
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
77.3 MB/s ∼100% +190%
Asus ZenBook Flip 15 UX563FD-A1027T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
76.6 MB/s ∼99% +187%
Lenovo ThinkPad L13 Yoga 20R6S00800

74.4 MB/s ∼96% +179%
Average of class Convertible
  (7.5 - 197, n=151)
64.1 MB/s ∼83% +140%
Asus ZenBook Flip 14 UX463FA-AI039T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
26.7 MB/s ∼35%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad L13 Yoga 20R6S00800
  (Toshiba Exceria Pro M501 64 GB UHS-II)
85.1 MB/s ∼100% +209%
HP Pavilion x360 14-dh1153ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
83.2 MB/s ∼98% +203%
Average of class Convertible
  (19.2 - 246, n=146)
79.6 MB/s ∼94% +189%
Asus ZenBook Flip 14 UX463FA-AI039T
  (Toshiba Exceria Pro M501 microSDXC 64GB)
27.5 MB/s ∼32%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Wi-Fi 6 AX201
1417 (min: 1353, max: 1440) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=63)
1161 MBit/s ∼82% -18%
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Wi-Fi 6 AX201
888 (min: 626, max: 939) MBit/s ∼63% -37%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
682 (min: 614, max: 703) MBit/s ∼48% -52%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
262 (min: 248, max: 281) MBit/s ∼18% -82%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Wi-Fi 6 AX201
1383 (min: 1321, max: 1649) MBit/s ∼100%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1666, n=63)
1021 MBit/s ∼74% -26%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Wireless-AC 9560
688 (min: 362, max: 697) MBit/s ∼50% -50%
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Wi-Fi 6 AX201
650 (min: 378, max: 680) MBit/s ∼47% -53%
HP Pavilion x360 14-dh1153ng
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
291 (min: 276, max: 329) MBit/s ∼21% -79%
01002003004005006007008009001000110012001300140015001600Tooltip
Asus ZenBook Flip 14 UX463FA-AI039T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1417 (1353-1440)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø888 (626-939)
HP Pavilion x360 14-dh1153ng Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø261 (248-281)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø681 (614-703)
Asus ZenBook Flip 14 UX463FA-AI039T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1383 (1321-1649)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø650 (378-680)
HP Pavilion x360 14-dh1153ng Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø291 (276-329)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø676 (362-697)
ColorChecker
11.4 ∆E
13.9 ∆E
21 ∆E
17.2 ∆E
22.5 ∆E
18.3 ∆E
10.4 ∆E
29.1 ∆E
18.8 ∆E
25.7 ∆E
15.1 ∆E
14.4 ∆E
27 ∆E
17.2 ∆E
24.3 ∆E
11.6 ∆E
24.2 ∆E
24.4 ∆E
2.3 ∆E
12 ∆E
16.8 ∆E
16.9 ∆E
16.8 ∆E
8 ∆E
ColorChecker Asus ZenBook Flip 14 UX463FA-AI039T: 17.48 ∆E min: 2.33 - max: 29.14 ∆E
294
cd/m²
320
cd/m²
290
cd/m²
272
cd/m²
280
cd/m²
251
cd/m²
305
cd/m²
279
cd/m²
282
cd/m²
Fényerő megoszlás
AU AUO323D
X-Rite i1Pro 2
Maximum: 320 cd/m² Átlag: 285.9 cd/m² Minimum: 16 cd/m²
Fényerő megoszlás: 78 %
Centrumban: 280 cd/m²
Kontraszt: 1346:1 (Fekete: 0.208 cd/m²)
ΔE Color 3.97 | 0.6-29.43 Ø5.8, calibrated: 3.42
ΔE Greyscale 2.83 | 0.64-98 Ø6
85% sRGB (Argyll 3D) 56% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.34
Asus ZenBook Flip 14 UX463FA-AI039T
AU AUO323D, IPS, 1920x1080, 14
Asus ZenBook Flip 15 UX563FD-A1027T
BOE HF NE156QUM-N64, IPS, 3840x2160, 15.6
HP Pavilion x360 14-dh1153ng
BOE NV140FHM-N4K, IPS, 1920x1080, 14
Lenovo ThinkPad L13 Yoga 20R6S00800
N133HCE-EP2, IPS, 1920x1080, 13.3
Response Times
-46%
-20%
-6%
Response Time Grey 50% / Grey 80% *
36 (18, 18)
60 (29, 31)
-67%
44 (24, 20)
-22%
40 (21.6, 18.4)
-11%
Response Time Black / White *
28 (16, 12)
35 (21, 14)
-25%
33 (19, 14)
-18%
28 (15.6, 12.4)
-0%
PWM Frequency
192 (90)
25000 (50)
Screen
16%
-33%
35%
Brightness middle
280
351
25%
248
-11%
340
21%
Brightness
286
335
17%
238
-17%
336
17%
Brightness Distribution
78
87
12%
74
-5%
90
15%
Black Level *
0.208
0.31
-49%
0.235
-13%
0.18
13%
Contrast
1346
1132
-16%
1055
-22%
1889
40%
Colorchecker DeltaE2000 *
3.97
1.74
56%
5.43
-37%
1.3
67%
Colorchecker DeltaE2000 max. *
8.29
2.76
67%
17.96
-117%
2.8
66%
Colorchecker DeltaE2000 calibrated *
3.42
5.7
-67%
0.7
80%
Greyscale DeltaE2000 *
2.83
2.22
22%
3.18
-12%
1.9
33%
Gamma
2.34 94%
2.35 94%
2.56 86%
2.15 102%
CCT
6556 99%
6667 97%
6642 98%
6735 97%
Color Space (Percent of AdobeRGB 1998)
56
62
11%
37.3
-33%
64.1
14%
Color Space (Percent of sRGB)
85
97
14%
58.4
-31%
99.6
17%
Total Average (Program / Settings)
-15% / 6%
-27% / -31%
15% / 29%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

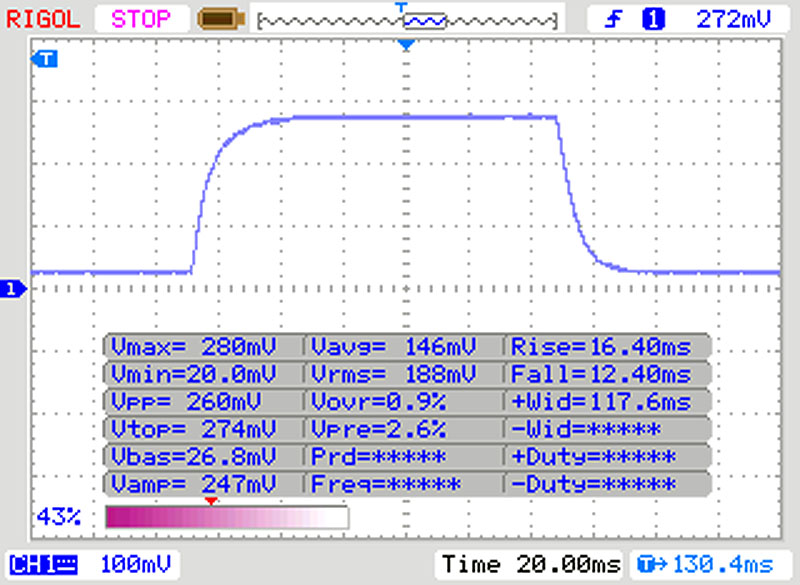

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.6 ms).

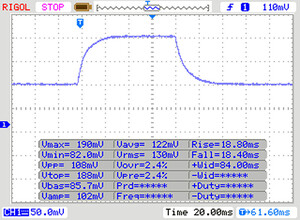

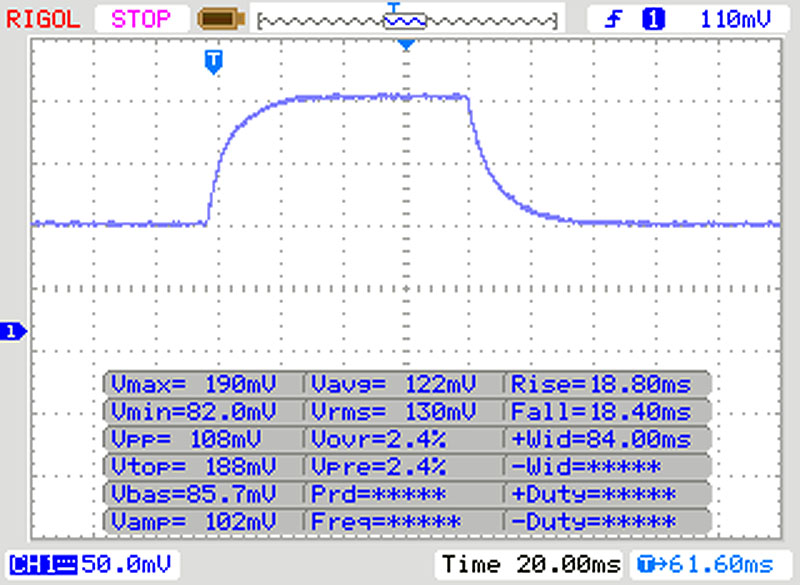

       Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 31 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (39.1 ms).

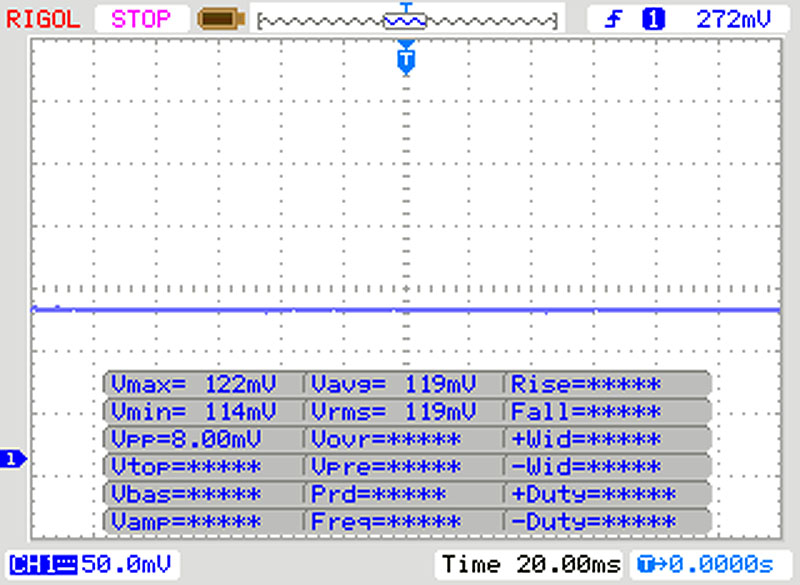

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17957 (minimum: 5 - maximum: 2500000) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840Tooltip
Asus ZenBook Flip 14 UX463FA-AI039T Intel Core i5-10210U, Intel Core i5-10210U: Ø694 (572.34-716.85)
Asus ZenBook Flip 15 UX563FD-A1027T Intel Core i7-10510U, Intel Core i7-10510U: Ø755 (699.58-835.95)
HP Pavilion x360 14-dh1153ng Intel Core i5-10210U, Intel Core i5-10210U: Ø501 (494.9-546.17)
Lenovo ThinkPad L13 Yoga 20R6S00800 Intel Core i5-10210U, Intel Core i5-10210U: Ø506 (500.98-533.71)
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Core i7-10510U
197 Points ∼100% +21%
Average Intel Core i5-10210U
  (154 - 174, n=25)
167 Points ∼85% +2%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
166 Points ∼84% +2%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
164 Points ∼83% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U
163 Points ∼83%
Average of class Convertible
  (19 - 197, n=332)
110 Points ∼56% -33%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Asus ZenBook Flip 15 UX563FD-A1027T
Intel Core i7-10510U
836 Points ∼100% +17%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U
715 Points ∼86%
Average Intel Core i5-10210U
  (479 - 790, n=25)
617 Points ∼74% -14%
HP Pavilion x360 14-dh1153ng
Intel Core i5-10210U
546 Points ∼65% -24%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U
515 Points ∼62% -28%
Average of class Convertible
  (33 - 938, n=341)
328 Points ∼39% -54%
Cinebench R15 CPU Single 64Bit
163 Points
Cinebench R15 CPU Multi 64Bit
715 Points
Cinebench R15 OpenGL 64Bit
55.04 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Segítség
PCMark 10
Digital Content Creation
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
3441 Points ∼27% +6%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3257 Points ∼25%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
3242 Points ∼25% 0%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (2487 - 4463, n=19)
3105 Points ∼24% -5%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
2692 Points ∼21% -17%
Average of class Convertible
  (605 - 4472, n=127)
2571 Points ∼20% -21%
Productivity
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
7151 Points ∼69% +8%
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
6972 Points ∼67% +5%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
6762 Points ∼65% +2%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (6099 - 7317, n=19)
6713 Points ∼64% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
6634 Points ∼64%
Average of class Convertible
  (1121 - 7752, n=129)
5422 Points ∼52% -18%
Essentials
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
9907 Points ∼86% +24%
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
8848 Points ∼77% +10%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (7172 - 10000, n=19)
8601 Points ∼75% +7%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
8131 Points ∼71% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
8011 Points ∼70%
Average of class Convertible
  (2489 - 10546, n=129)
7208 Points ∼63% -10%
Score
Lenovo ThinkPad L13 Yoga 20R6S00800
UHD Graphics 620, i5-10210U, Toshiba XG6 KXG6AZNV512G
4353 Points ∼54% +9%
Asus ZenBook Flip 15 UX563FD-A1027T
GeForce GTX 1050 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
4312 Points ∼53% +8%
Average Intel Core i5-10210U, Intel UHD Graphics 620
  (3752 - 4353, n=19)
4033 Points ∼50% +1%
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
3995 Points ∼49%
HP Pavilion x360 14-dh1153ng
UHD Graphics 620, i5-10210U, Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
3792 Points ∼47% -5%
Average of class Convertible
  (872 - 4884, n=130)
3290 Points ∼41% -18%

» No benchmarks for this notebook found!

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook Flip 14 UX463FA-AI039T
UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3512GJ1
466 μs * ∼100%

* ... smaller is better

Asus ZenBook Flip 14 UX463FA-AI039T
Kingston RBUSNS8154P3512GJ1
Asus ZenBook Flip 15 UX563FD-A1027T
Samsung SSD PM981 MZVLB1T0HALR
HP Pavilion x360 14-dh1153ng
Intel Optane Memory H10 with Solid State Storage 32GB + 512GB HBRPEKNX0202A(L/H)
Lenovo ThinkPad L13 Yoga 20R6S00800
Toshiba XG6 KXG6AZNV512G
Average Kingston RBUSNS8154P3512GJ1

Average of class Convertible

CrystalDiskMark 5.2 / 6
98%
107%
101%
23%
17%
Write 4K
54.61
137.8
152%
162.7
198%
172.3
216%
87.6 (54.6 - 108, n=3)
60%
100 (1.168 - 194, n=123)
83%
Read 4K
28.19
44.15
57%
190.5
576%
44.37
57%
40.3 (28.2 - 47.2, n=3)
43%
39.2 (0.536 - 191, n=122)
39%
Write Seq
839.9
2073
147%
450.1
-46%
1492
78%
941 (840 - 993, n=3)
12%
841 (27.9 - 2372, n=119)
0%
Read Seq
905
2165
139%
1624
79%
1471
63%
1070 (905 - 1176, n=3)
18%
1143 (74.7 - 2677, n=118)
26%
Write 4K Q32T1
409.5
431.9
5%
353.5
-14%
483.1
18%
418 (355 - 491, n=3)
2%
289 (1.212 - 747, n=123)
-29%
Read 4K Q32T1
292.4
427.7
46%
397.7
36%
550.6
88%
428 (292 - 518, n=3)
46%
297 (1.189 - 570, n=123)
2%
Write Seq Q32T1
1038
2253
117%
936.9
-10%
2950.5
184%
1035 (1033 - 1038, n=3)
0%
1063 (18.4 - 3019, n=123)
2%
Read Seq Q32T1
1607
3480
117%
2145
33%
3289.4
105%
1629 (1607 - 1644, n=3)
1%
1864 (68.9 - 3565, n=123)
16%
Write 4K Q8T8
1498.1
676 (122 - 1498, n=20)
Read 4K Q8T8
1530.6
769 (134 - 1531, n=20)
AS SSD
95%
15%
134%
36%
-467%
Score Total
1786
3582
101%
1567
-12%
4310
141%
2372 (1786 - 2695, n=3)
33%
1348 (25 - 5215, n=284)
-25%
Score Write
601
1628
171%
668
11%
1674
179%
821 (601 - 961, n=3)
37%
441 (4 - 2021, n=284)
-27%
Score Read
804
1335
66%
606
-25%
1749
118%
1037 (804 - 1154, n=3)
29%
609 (10 - 2545, n=284)
-24%
Access Time Write *
0.072
0.029
60%
0.045
37%
0.029
60%
0.0533 (0.044 - 0.072, n=3)
26%
1.807 (0.021 - 291, n=289)
-2410%
Access Time Read *
0.074
0.082
-11%
0.097
-31%
0.041
45%
0.0417 (0.051 - 0.074, n=3)
44%
1.988 (0.029 - 433, n=285)
-2586%
4K-64 Write
482.91
1370.88
184%
515.82
7%
1286.69
166%
654 (483 - 772, n=3)
35%
315 (0.044 - 1651, n=289)
-35%
4K-64 Read
643.83
1013.4
57%
416.86
-35%
1425.92
121%
852 (644 - 959, n=3)
32%
481 (0.096 - 2280, n=289)
-25%
4K Write
52.67
125.99
139%
114.83
118%
142.79
171%
82.2 (52.7 - 101, n=3)
56%
71.8 (0.2 - 175, n=289)
36%
4K Read
26.65
47.43
78%
65.41
145%
51.51
93%
45.1 (26.7 - 54.6, n=3)
69%
30.2 (0.39 - 76, n=289)
13%
Seq Write
652.81
1307.15
100%
372.52
-43%
2441
274%
848 (653 - 953, n=3)
30%
482 (18.5 - 2441, n=293)
-26%
Seq Read
1336.41
2739.08
105%
1240.77
-7%
2719
103%
1398 (1336 - 1454, n=3)
5%
931 (74.2 - 2888, n=292)
-30%
Total Average (Program / Settings)
97% / 96%
61% / 54%
118% / 120%
30% / 30%
-225% / -263%

* ... smaller is better

Kingston RBUSNS8154P3512GJ1
CDM 5/6 Read Seq Q32T1: 1607 MB/s
CDM 5/6 Write Seq Q32T1: 1038 MB/s
CDM 5/6 Read 4K Q32T1: 292.4 MB/s
CDM 5/6 Write 4K Q32T1: 409.5 MB/s
CDM 5 Read Seq: 905 MB/s
CDM 5 Write Seq: 839.9 MB/s
CDM 5/6 Read 4K: 28.19 MB/s
CDM 5/6 Write 4K: 54.61 MB/s
3DMark 11 - 1280x720 Performance GPU
Asus ZenBook Flip 15 UX563FD-A1027T
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-10510U
7291 Points ∼100% +293%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel UHD Graphics 620, Intel Core i5-10210U
1855 Points ∼25%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1849 Points ∼25% 0%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1744 Points ∼24% -6%
Average Intel UHD Graphics 620
  (1235 - 2006, n=215)
1737 Points ∼24% -6%
Average of class Convertible
  (173 - 17421, n=358)
1456 Points ∼20% -22%
3DMark - 1920x1080 Fire Strike Graphics
Asus ZenBook Flip 15 UX563FD-A1027T
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-10510U
5616 Points ∼100% +337%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel UHD Graphics 620, Intel Core i5-10210U
1333 Points ∼24% +4%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel UHD Graphics 620, Intel Core i5-10210U
1285 Points ∼23%
Average of class Convertible
  (132 - 13158, n=266)
1167 Points ∼21% -9%
Average Intel UHD Graphics 620
  (557 - 1418, n=183)
1146 Points ∼20% -11%
HP Pavilion x360 14-dh1153ng
Intel UHD Graphics 620, Intel Core i5-10210U
1083 Points ∼19% -16%
3DMark 11 Performance
2079 pontok
3DMark Fire Strike Score
1151 pontok
Segítség
Dota 2 Reborn
1920x1080 high (2/3)
Average of class Convertible
  (5.6 - 93.8, n=39)
22.5 fps ∼100% +6%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
21.2 (min: 19.6) fps ∼94%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
20.4 (min: 19) fps ∼91% -4%
Average Intel UHD Graphics 620
  (16.1 - 23.4, n=63)
19.9 fps ∼88% -6%
1366x768 med (1/3)
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
52.5 (min: 45) fps ∼100% +2%
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
51.6 (min: 44.1) fps ∼98%
Average Intel UHD Graphics 620
  (33.7 - 57.1, n=63)
44.6 fps ∼85% -14%
Average of class Convertible
  (11.9 - 102, n=43)
40.3 fps ∼77% -22%
1280x720 min (0/3) fastest
Asus ZenBook Flip 14 UX463FA-AI039T
Intel Core i5-10210U, Intel UHD Graphics 620
83.2 (min: 69.6) fps ∼100%
Lenovo ThinkPad L13 Yoga 20R6S00800
Intel Core i5-10210U, Intel UHD Graphics 620
82 (min: 71.2) fps ∼99% -1%
Average Intel UHD Graphics 620
  (45.1 - 90, n=63)
72.5 fps ∼87% -13%
Average of class Convertible
  (18.3 - 113, n=43)
63.3 fps ∼76% -24%
alacsony közepes magas ultra
Dota 2 Reborn (2015) 83.2 51.6 21.2 18.7 fps

Zajszint

Üresjárat
30.1 / 30.1 / 30.1 dB(A)
Terhelés
30.1 / 32.02 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm távolságról)   environment noise: 30.1 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203330.531.832332530.938.532.933.430.93130.631.130.53130.64029.330.829.22929.35032.831.63231.532.86327.726.528.229.627.78026.826.526.725.126.810028.426.325.525.428.412524.524.823.825.124.516023.323.422.923.523.32002321.922.322.22325021.921.722.422.621.931521.220.120.821.421.240020.720.220.320.420.750020.320.220.520.220.363019.418.618.818.619.480019.217.917.617.919.2100019.81717.417.519.8125020.117.117.416.820.1160020.317.117.21720.3200021.917.217.116.921.9250020.817.217.31720.8315019.417.617.817.419.4400019.517.717.817.419.5500018.51818.11818.5630018.518.318.218.218.5800018.618.518.518.518.61000018.818.718.618.618.812500191918.918.8191600019.219.319.319.119.2SPL3230.230.330.232N1.71.41.41.41.7median 20.1median 18.6median 18.6median 18.6median 20.1Delta1.61.31.51.61.6hearing rangehide median Fan NoiseAsus ZenBook Flip 14 UX463FA-AI039T
Max. terhelés
 41 °C39.1 °C33.9 °C
 38.5 °C36.1 °C28.1 °C
 32.9 °C29.7 °C28.8 °C
Maximum: 41 °C
Átlag: 34.2 °C
36 °C39.3 °C40.3 °C
31.7 °C36.4 °C37.2 °C
29.4 °C33.4 °C33.6 °C
Maximum: 40.3 °C
Átlag: 35.3 °C
Tápegység (max.)  42.1 °C | Szobahőmérséklet 24 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.2 °C / 94 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 35.3 °C / 96 F, ranging from 21.8 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.6 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.9 °C / 91.2 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4 °C / -7.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.13233.12532.133.432.13129.93129.94028.92928.95032.131.532.1632629.6268026.925.126.910029.625.429.612534.525.134.516034.823.534.820034.422.234.42504922.64931554.221.454.240061.920.461.95006720.26763061.518.661.580068.817.968.8100061.217.561.2125063.416.863.4160063176320006616.966250065.11765.131506217.462400067.417.467.4500065.71865.7630070.918.270.9800064.818.564.81000066.618.666.6125007118.8711600063.119.163.1SPL78.130.278.1N43.31.443.3median 63.1median 18.6median 63.1Delta71.6735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAsus ZenBook Flip 14 UX463FA-AI039TApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ZenBook Flip 14 UX463FA-AI039T audio analysis

(-) | not very loud speakers (70.97 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.7% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(±) | linearity of mids is average (10.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(±) | linearity of highs is average (7.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.6% difference to median)
Compared to same class
» 33% of all tested devices in this class were better, 9% similar, 57% worse
» The best had a delta of 11%, average was 22%, worst was 53%
Compared to all devices tested
» 34% of all tested devices were better, 7% similar, 60% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.35 / 0.52 Watt
Üresjáratdarkmidlight 3.6 / 7.5 / 9.4 Watt
Terhelés midlight 42 / 51 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime - WiFi Websurfing 1.3
Asus ZenBook Flip 15 UX563FD-A1027T
i7-10510U, GeForce GTX 1050 Max-Q, 71 Wh
566 min ∼21% +23%
Average of class Convertible
  (153 - 1010, n=282)
462 min ∼18% 0%
Asus ZenBook Flip 14 UX463FA-AI039T
i5-10210U, UHD Graphics 620, 50 Wh
461 min ∼17%
Lenovo ThinkPad L13 Yoga 20R6S00800
i5-10210U, UHD Graphics 620, 46 Wh
459 min ∼17% 0%
HP Pavilion x360 14-dh1153ng
i5-10210U, UHD Graphics 620, 41 Wh
377 min ∼14% -18%
Akkumulátor üzemidő
NBC WiFi Websurfing Battery Test 1.3
7h 41min

Pro

+ minőségi dizájn
+ nagyon jó WLAN teljesítmény
+ jó többmagos teljesítmény

Kontra

- szinte nincsenek karbantartási lehetőségek
- ventilátor kontroll enyhén túl „védekező”
- csak középszerű üzemidő

Összegzés - Elfogadható árú Asus Windows átalakítható gép

Asus ZenBook Flip 14 UX463FA rövid értékelés. Test device provided by:
Asus ZenBook Flip 14 UX463FA rövid értékelés. Test device provided by:

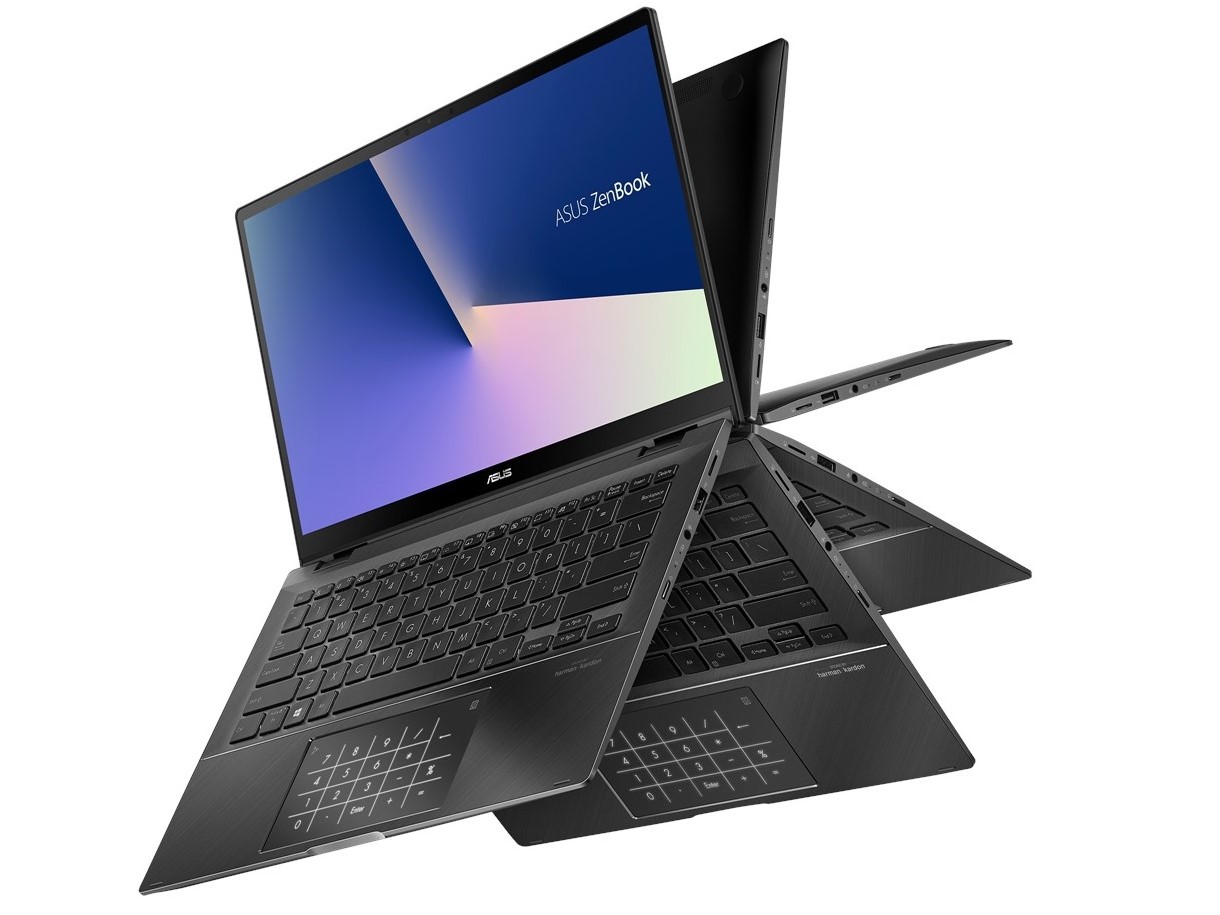

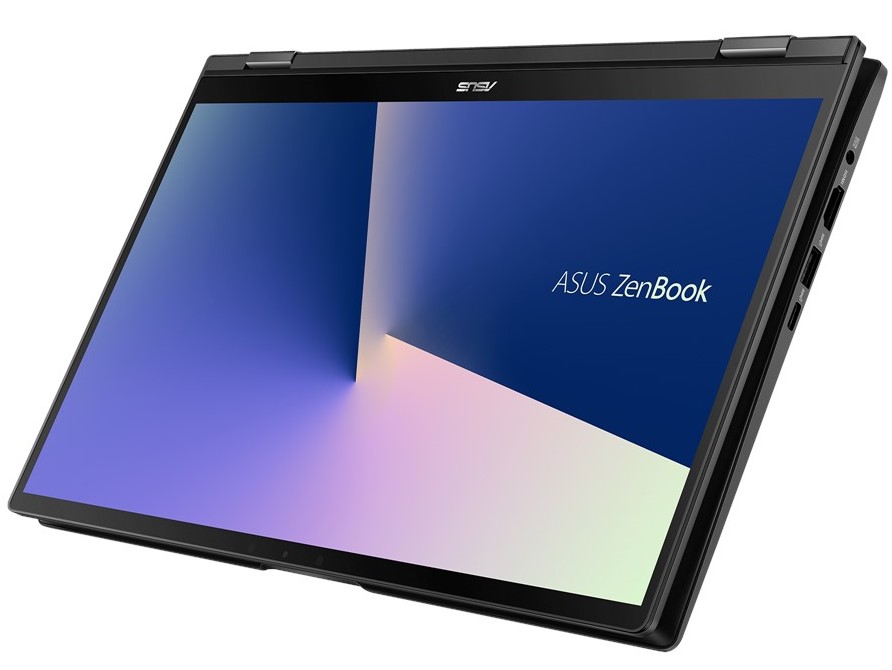

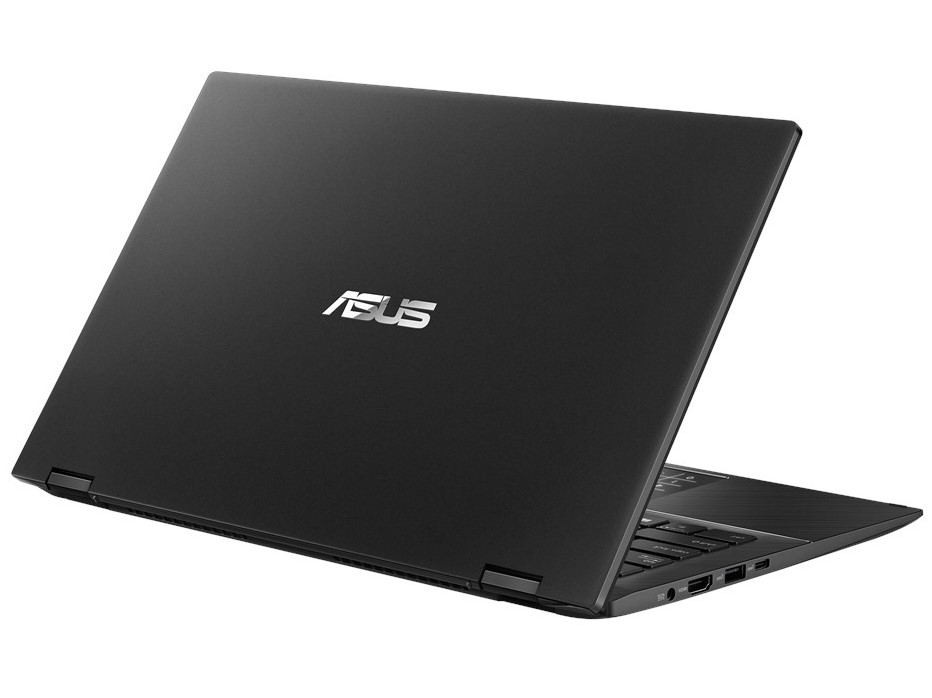

Az Asus ZenBook Flip 14 UX463FA csúcskategóriás házzal rendelkezik. Ez jó gyártási minőségű és vonzó megjelenésű, ugyanakkor viszont nagyon súlyos, ami elsősorban táblagép módban tűnik fel. A nagyon jó billentyűzet és a vibrálásmentes kijelző meggyőző a laptop módban, ahol a csatlakozási lehetőségek terén is gyakorlatilag minden adott.

Az Asus ZenBook Flip 14 inkább laptop mint táblagép, és meggyőz a jól ár-teljesítmény arányával.

Csak a valamelyest rövid üzemidőt és a fényes kijelzőt kritizálhatjuk a tesztünk után. Egy normál felhasználónak nem okozhat semmi gondot a mindennapi használaban a „védekező” ventilátor kontroll, és a némileg korlátozott karbantartási opciók is tűrhetőek. Akik ritkán használják tabletként az átalakítható gépüket, de színtiszta laptopot sem vennének, azok itt jó kezekben vannak.

Asus ZenBook Flip 14 UX463FA-AI039T - 05/19/2020 v7
Mike Wobker

Váz
86 / 98 → 88%
Billentyűzet
84%
Érintőpad
87%
Csatlakoztathatóság
52 / 75 → 69%
Súly
70 / 20-75 → 91%
Akkumulátor
78%
Kijelző
80%
Játékok alatti teljesítmény
51 / 78 → 66%
Alkalmazások alatti teljesítmény
84 / 85 → 98%
Hőmérséklet
92%
Zaj
99%
Audio
60 / 91 → 66%
Camera
32 / 85 → 38%
Átlag
73%
85%
Convertible - Súlyozott átlag

Pricecompare

Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Asus ZenBook Flip 14 UX463FA rövid értékelés: Stílusos átalakítható gép alacsony áron
Mike Wobker, 2020-07-17 (Update: 2020-07-17)
