Apple MacBook Pro 13 (Late 2016, 2.9 GHz i5, Touch Bar) Notebook rövid értékelés

Élő értékelés // A jobb 13 inches Pro? A MacBook Pro 13 Touch Bar az Apple új 13 inches csúcsmodellje. A nyilvánvalón, a billentyűzet feletti OLED kijelzőn kívül is van különbség közte, és a belépő szintű, funkciógombos modell között. Vajon megér e ez $300-ral többet?
Klaus Hinum, Andreas Osthoff (fordította Tamás Somogyi),
Apple MacBook Laptop / Notebook Skylake
Apple MacBook Pro 13 2016 (2.9 GHz)
Processzor
Intel Core i5-6267U
Grafikus adapter
Intel Iris Graphics 550, Mag: 1000 MHz, Memória: 1067 MHz, 4542
Memória
8192 MB
, LPDDR3-2133
Kijelző
13.3 hüvelyk 16:10, 2560 x 1600 pixel 227 PPI, APPA033, fényes: igen
Alaplap
Intel Skylake-U Premium PCH
Háttértár
Apple SSD AP0256, 256 GB
Hangkártya
Cirrus Logic CS8409
Csatlakozók

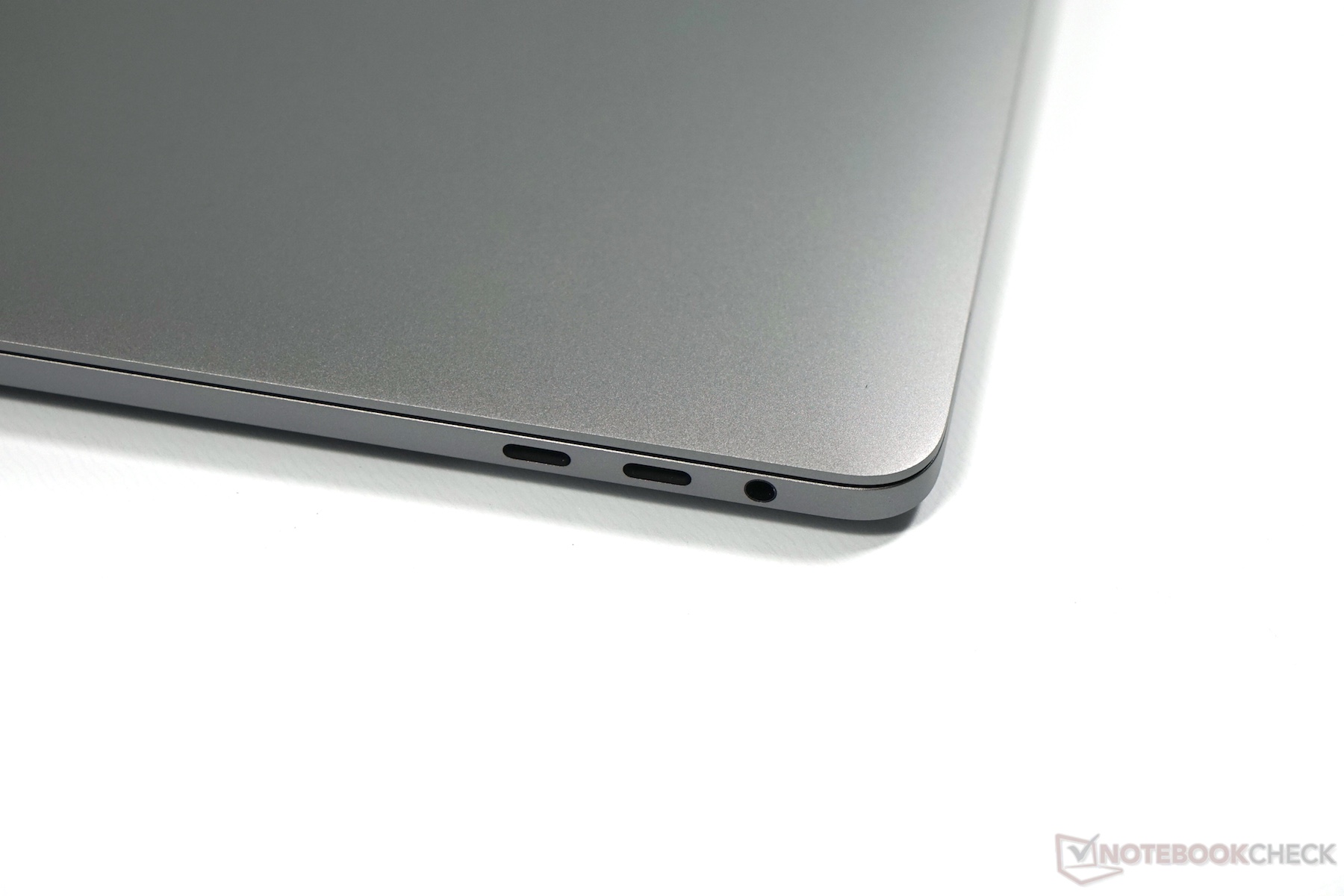

4 USB 3.1 Gen2, 4 Thunderbolt, Audió csatlakozók: 3.5 mm headset, 1 Ujjlenyomat olvasó
Hálózat
Broadcom BCM15700A2 802.11ac (ac = Wi-Fi 5), Bluetooth 4.2
Méret
magasság x szélesség x mélység (mm-ben) 15 x 304 x 212
Akkumulátor
49.2 Wh Lítium-Polimer
Operációs rendszer
Apple macOS 10.12 Sierra
Camera
Webkamera: 720p FaceTime HD
További jellegzetességek

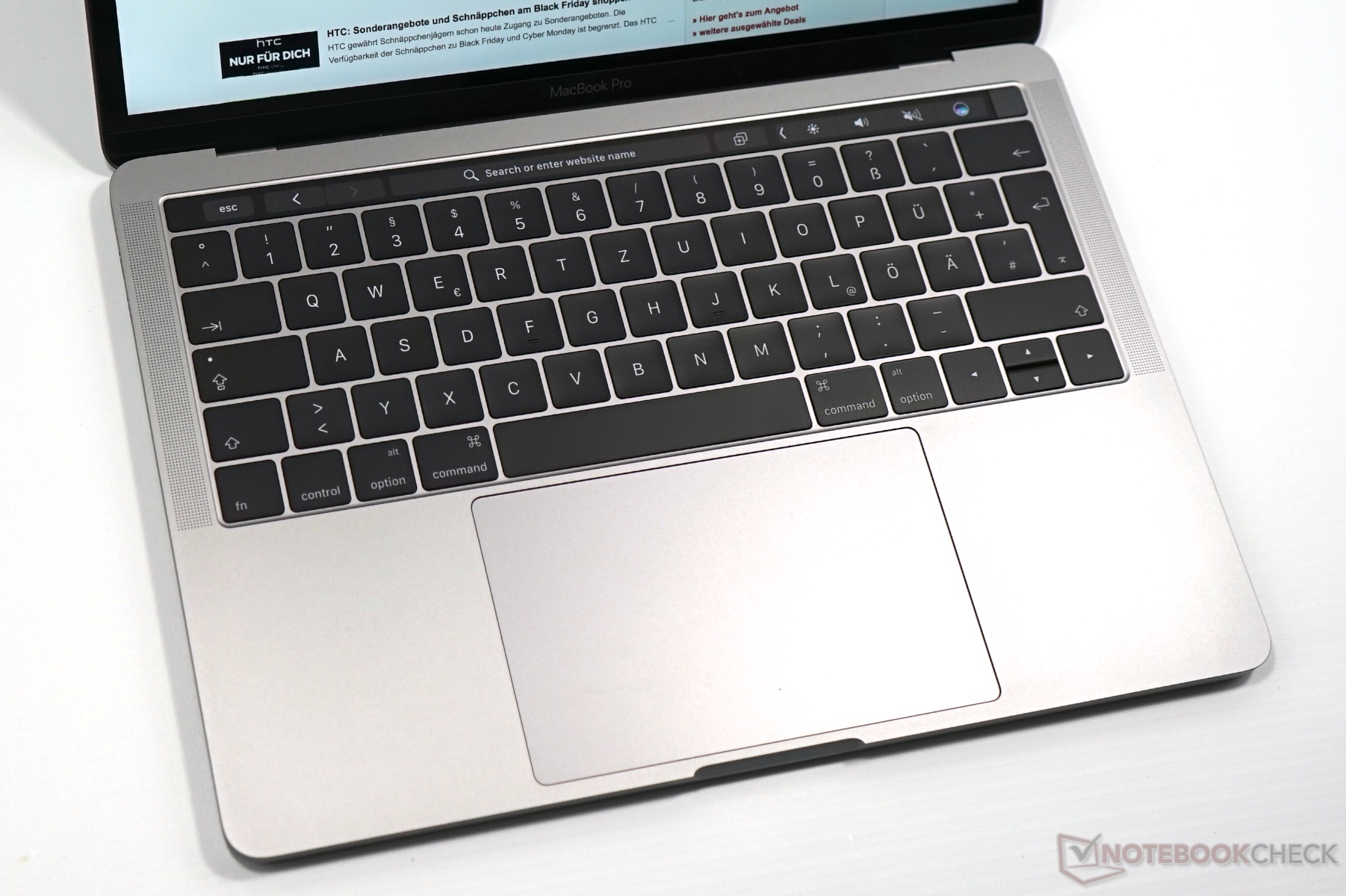

Hangszórók: sztereó hangszórók, Billentyűzet: chiclet (Butterfly v2), Billentyűzet háttérvilágítás: igen, 61-Watt USB-C töltő, USB-C kábel (2m), 12 Hónap Garancia
Released
11/25/2016
Súly
1.358 kg, Tápegység: 269 g
Ár
1999 Euro
Hivatkozások
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

349 mm 241 mm 16 mm 1.8 kg333 mm 229 mm 16.5 mm 1.2 kg325 mm 227 mm 17 mm 1.4 kg314 mm 219 mm 18 mm 1.6 kg304 mm 212 mm 15 mm 1.4 kg304 mm 201 mm 15 mm 1.3 kg280.5 mm 196.5 mm 13.1 mm 920 g
541
cd/m²
547
cd/m²
524
cd/m²
557
cd/m²
569
cd/m²
528
cd/m²
538
cd/m²
567
cd/m²
510
cd/m²
Fényerő megoszlás
APPA033
X-Rite i1Pro 2
Maximum: 569 cd/m² Átlag: 542.3 cd/m² Minimum: 6.1 cd/m²
Fényerő megoszlás: 90 %
Centrumban: 569 cd/m²
Kontraszt: 1016:1 (Fekete: 0.56 cd/m²)
ΔE Color 1.4 | 0.6-29.43 Ø5.9
ΔE Greyscale 1.8 | 0.64-98 Ø6.1
99.3% sRGB (Argyll 3D) 78.4% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.16
Apple MacBook Pro 13 2016 (2.9 GHz)
APPA033, , 2560x1600, 13.3
Apple MacBook Pro 13 2016
APPA034, , 2560x1600, 13.3
Apple MacBook Pro Retina 13 inch 2015-03
APPA02A, , 2560x1600, 13.3
Dell XPS 13 9360 QHD+ i7
Sharp SHP144A, , 3200x1800, 13.3
Lenovo ThinkPad X1 Carbon 20FB003RGE
VVX14T058J00, , 2560x1440, 14
Response Times
2%
27%
31%
Response Time Grey 50% / Grey 80% *
47.2 (19.6, 27.6)
47.2 (21.6, 25.6)
-0%
43.6 (13.6, 30)
8%
44 (17, 27)
7%
Response Time Black / White *
53 (10, 43)
51.6 (8.4, 43.2)
3%
29.2 (9.2, 20)
45%
24 (5.2, 18.8)
55%
PWM Frequency
220 (90)
Screen
-2%
-12%
-48%
-39%
Brightness middle
569
600
5%
361
-37%
396.2
-30%
272
-52%
Brightness
542
564
4%
342
-37%
357
-34%
268
-51%
Brightness Distribution
90
89
-1%
81
-10%
84
-7%
95
6%
Black Level *
0.56
0.57
-2%
0.361
36%
0.266
52%
0.32
43%
Contrast
1016
1053
4%
1000
-2%
1489
47%
850
-16%
Colorchecker DeltaE2000 *
1.4
1.5
-7%
1.82
-30%
3.9
-179%
2.61
-86%
Colorchecker DeltaE2000 max. *
2.9
2.9
-0%
3.26
-12%
7.58
-161%
6.43
-122%
Greyscale DeltaE2000 *
1.8
2
-11%
1.8
-0%
4.16
-131%
3.31
-84%
Gamma
2.16 102%
2.27 97%
2.49 88%
2.31 95%
2.35 94%
CCT
6877 95%
6855 95%
6417 101%
6514 100%
6360 102%
Color Space (Percent of AdobeRGB 1998)
78.4
77
-2%
61.9
-21%
57.5
-27%
63
-20%
Color Space (Percent of sRGB)
99.3
92
-7%
96.9
-2%
88.7
-11%
95
-4%
Total Average (Program / Settings)
0% / -1%
-12% / -12%
-11% / -36%
-4% / -27%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

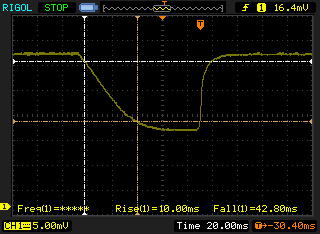

       Response Time Black to White
53 ms ... rise ↗ and fall ↘ combined↗ 10 ms rise
↘ 43 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 100 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.8 ms).

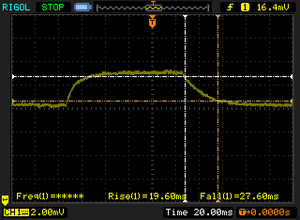

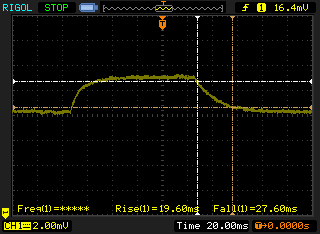

       Response Time 50% Grey to 80% Grey
47.2 ms ... rise ↗ and fall ↘ combined↗ 19.6 ms rise
↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 76 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.3 ms).

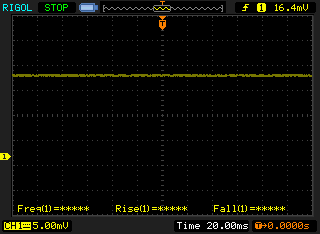

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18284 (minimum: 5 - maximum: 2500000) Hz was measured.

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
141 Points ∼100% +8%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Intel Core i7-6700HQ
141 Points ∼100% +8%
Razer Blade Stealth QHD i7-7500U
Intel Core i7-7500U
139 Points ∼99% +6%
Acer Aspire V3-372-57CW
Intel Core i5-6267U
138 Points ∼98% +5%
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
137 Points ∼97% +5%
Apple MacBook Pro 13 2016 (2.9 GHz)
Intel Core i5-6267U
131 Points ∼93%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
130 Points ∼92% -1%
Lenovo ThinkPad X1 Carbon 20FB003RGE
Intel Core i7-6500U
128 Points ∼91% -2%
Apple MacBook Pro Retina 13 inch 2015-03
Intel Core i5-5257U
126 Points ∼89% -4%
Apple MacBook Pro 13 2016
Intel Core i5-6360U
126 Points ∼89% -4%
Apple MacBook Pro 13 2016
Intel Core i5-6360U
124 Points ∼88% -5%
CPU Multi 64Bit
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Intel Core i7-6700HQ
666 Points ∼100% +96%
Razer Blade Stealth QHD i7-7500U
Intel Core i7-7500U
348 Points ∼52% +3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
347 Points ∼52% +2%
Acer Aspire V3-372-57CW
Intel Core i5-6267U
339 Points ∼51% 0%
Apple MacBook Pro 13 2016 (2.9 GHz)
Intel Core i5-6267U
339 Points ∼51%
Dell XPS 13 9360 QHD+ i7
Intel Core i7-7500U
334 Points ∼50% -1%
Asus Zenbook UX310UQ-GL011T
Intel Core i7-6500U
327 Points ∼49% -4%
Apple MacBook Pro Retina 13 inch 2015-03
Intel Core i5-5257U
321 Points ∼48% -5%
Lenovo ThinkPad X1 Carbon 20FB003RGE
Intel Core i7-6500U
310 Points ∼47% -9%
Apple MacBook Pro 13 2016
Intel Core i5-6360U
309 Points ∼46% -9%
Apple MacBook Pro 13 2016
Intel Core i5-6360U
309 Points ∼46% -9%
Cinebench R15 CPU Multi 64Bit
339 Points
Cinebench R15 CPU Single 64Bit
131 Points
Cinebench R15 OpenGL 64Bit
36.9 fps
Cinebench R15 Ref. Match 64Bit
99.3 %
Segítség
PCMark 8
Work Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points ∼100% +5%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
4426 Points ∼100% +5%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
4342 Points ∼98% +3%
Apple MacBook Pro 13 2016 (2.9 GHz)
Iris Graphics 550, 6267U, Apple SSD AP0256
4218 Points ∼95%
Dell XPS 13 9360 QHD+ i7
HD Graphics 620, 7500U, Toshiba NVMe THNSN5256GPUK
4176 Points ∼94% -1%
Apple MacBook Pro Retina 13 inch 2015-03
Iris Graphics 6100, 5257U, Apple SSD SM0128G
4105 Points ∼92% -3%
Apple MacBook Pro 13 2016
Iris Graphics 540, 6360U, Apple SSD AP0256
3853 Points ∼87% -9%
Home Score Accelerated v2
Apple MacBook Pro 13 2016 (2.9 GHz)
Iris Graphics 550, 6267U, Apple SSD AP0256
3738 Points ∼100%
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Radeon Pro 450, 6700HQ, Apple SSD SM0256L
3637 Points ∼97% -3%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points ∼95% -5%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
3385 Points ∼91% -9%
Apple MacBook Pro Retina 13 inch 2015-03
Iris Graphics 6100, 5257U, Apple SSD SM0128G
3363 Points ∼90% -10%
Razer Blade Stealth QHD i7-7500U
HD Graphics 620, 7500U, Samsung PM951 NVMe MZVLV256
3362 Points ∼90% -10%
Apple MacBook Pro 13 2016
Iris Graphics 540, 6360U, Apple SSD AP0256
3280 Points ∼88% -12%
Dell XPS 13 9360 QHD+ i7
HD Graphics 620, 7500U, Toshiba NVMe THNSN5256GPUK
2855 Points ∼76% -24%
PCMark 8 Home Score Accelerated v2
3738 pontok
PCMark 8 Work Score Accelerated v2
4218 pontok
Segítség
3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
4502 Points ∼100% +67%
Apple MacBook Pro 13 2016 (2.9 GHz)
Intel Iris Graphics 550, Intel Core i5-6267U
2696 Points ∼60%
Sony Vaio Z Flip
Intel Iris Graphics 550, Intel Core i7-6567U
2646 Points ∼59% -2%
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
2524 Points ∼56% -6%
Apple MacBook Pro 13 2016
Intel Iris Graphics 540, Intel Core i5-6360U
2401 Points ∼53% -11%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
2321 Points ∼52% -14%
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
2221 Points ∼49% -18%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1782 Points ∼40% -34%
Apple MacBook Pro Retina 13 inch 2015-03
Intel Iris Graphics 6100, Intel Core i5-5257U
1706 Points ∼38% -37%
Razer Blade Stealth QHD i7-7500U
Intel HD Graphics 620, Intel Core i7-7500U
1631 Points ∼36% -40%
Dell XPS 13 9360 QHD+ i7
Intel HD Graphics 620, Intel Core i7-7500U
1610 Points ∼36% -40%
Lenovo ThinkPad X1 Carbon 20FB003RGE
Intel HD Graphics 520, Intel Core i7-6500U
1386 Points ∼31% -49%
3DMark
1920x1080 Fire Strike Graphics
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
3252 Points ∼100% +96%
Apple MacBook Pro 13 2016 (2.9 GHz)
Intel Iris Graphics 550, Intel Core i5-6267U
1657 Points ∼51%
Sony Vaio Z Flip
Intel Iris Graphics 550, Intel Core i7-6567U
1638 Points ∼50% -1%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
1589 Points ∼49% -4%
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
1553 Points ∼48% -6%
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
1520 Points ∼47% -8%
Apple MacBook Pro 13 2016
Intel Iris Graphics 540, Intel Core i5-6360U
1448 Points ∼45% -13%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
1025 Points ∼32% -38%
Apple MacBook Pro Retina 13 inch 2015-03
Intel Iris Graphics 6100, Intel Core i5-5257U
1020 Points ∼31% -38%
Razer Blade Stealth QHD i7-7500U
Intel HD Graphics 620, Intel Core i7-7500U
991 Points ∼30% -40%
Lenovo ThinkPad X1 Carbon 20FB003RGE
Intel HD Graphics 520, Intel Core i7-6500U
959 Points ∼29% -42%
Dell XPS 13 9360 QHD+ i7
Intel HD Graphics 620, Intel Core i7-7500U
941 Points ∼29% -43%
1280x720 Cloud Gate Standard Graphics
Apple MacBook Pro 15 2016 (2.6 GHz, 450)
AMD Radeon Pro 450, Intel Core i7-6700HQ
21533 Points ∼100% +63%
Apple MacBook Pro 13 2016 (2.9 GHz)
Intel Iris Graphics 550, Intel Core i5-6267U
13172 Points ∼61%
Sony Vaio Z Flip
Intel Iris Graphics 550, Intel Core i7-6567U
12986 Points ∼60% -1%
Acer Aspire V3-372-57CW
Intel Iris Graphics 550, Intel Core i5-6267U
12812 Points ∼59% -3%
Apple MacBook Pro 13 2016
Intel Iris Graphics 540, Intel Core i5-6360U
11123 Points ∼52% -16%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
8885 Points ∼41% -33%
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
8552 Points ∼40% -35%
Asus Zenbook UX310UQ-GL011T
NVIDIA GeForce 940MX, Intel Core i7-6500U
8519 Points ∼40% -35%
Razer Blade Stealth QHD i7-7500U
Intel HD Graphics 620, Intel Core i7-7500U
8289 Points ∼38% -37%
Dell XPS 13 9360 QHD+ i7
Intel HD Graphics 620, Intel Core i7-7500U
7896 Points ∼37% -40%
Apple MacBook Pro Retina 13 inch 2015-03
Intel Iris Graphics 6100, Intel Core i5-5257U
7894 Points ∼37% -40%
Lenovo ThinkPad X1 Carbon 20FB003RGE
Intel HD Graphics 520, Intel Core i7-6500U
7516 Points ∼35% -43%
3DMark 06 Standard
15951 pontok
3DMark 11 Performance
2881 pontok
3DMark Cloud Gate Standard Score
8105 pontok
3DMark Fire Strike Score
1550 pontok
3DMark Time Spy Score
620 pontok
Segítség
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203735.12532.532.43131.832.34034.336.45032.339.66330.244.98027.745.210026.550.212524.759.516024.252.720023.363.925022.464.631521.662.640020.97150019.572.763019.178.980018.676.610001878.9125017.875160017.477.1200017.276.8250017.276.5315017.372.1400017.472.7500017.273.6630017.269.5800017.368.11000017.364.61250017.362.21600017.363.5SPL30.186.9N1.472.4median 17.8median 71Delta1.7645.140.533.833.233.232.735.136.73232.234.433.236.333.148.830.159.828.2512661.824.565.123.368.221.966.721.366.919.875.719.371.418.972.718.275.617.671.517.373.217.370.717.468.617.269.51766.717.167.217.36717.367.117.466.617.367.717.283.230.459.51.5median 67.2median 17.62.52.736.134.531.132.832.631.437.534.537.335.24730.447.928.75728.564.525.556.524.667.824.469.224.366.922.977.522.875.821.374.820.36719.671.519.377.918.579.418.473.117.873.718.170.317.470.817.470.517.67417.56717.667.317.561.117.565.117.586.130.971.41.5median 70.3median 18.53.72.5hearing rangehide median Pink NoiseApple MacBook Pro 13 2016 (2.9 GHz)Apple MacBook Pro 13 2016Apple MacBook Pro 15 2016 (2.6 GHz, 450)
Apple MacBook Pro 13 2016 (2.9 GHz) audio analysis

(+) | speakers can play relatively loud (86.9 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.1% lower than median
(±) | linearity of bass is average (10.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.9% away from median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.2% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 92% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook Pro 13 2016 audio analysis

(+) | speakers can play relatively loud (83.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.4% lower than median
(-) | bass is not linear (16.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (2.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.6% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 98% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 99% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook Pro 15 2016 (2.6 GHz, 450) audio analysis

(+) | speakers can play relatively loud (86 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.6% lower than median
(±) | linearity of bass is average (12.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(±) | linearity of mids is average (9.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.2% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 1% similar, 95% worse
» The best had a delta of 3%, average was 19%, worst was 41%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Akkumulátor üzemidő
NBC WiFi Websurfing Battery Test 1.3
9h 26min
Big Buck Bunny H.264 1080p
8h 03min
Terhelés (maximális fényerő)
1h 06min
Apple MacBook Pro 13 2016 (2.9 GHz)
6267U, Iris Graphics 550, 49.2 Wh
Apple MacBook Pro 13 2016
6360U, Iris Graphics 540, 54 Wh
Apple MacBook Pro Retina 13 inch 2015-03
5257U, Iris Graphics 6100, 75 Wh
Apple MacBook Air 13 inch 2015-03
5650U, HD Graphics 6000, 54 Wh
Dell XPS 13 9360 QHD+ i7
7500U, HD Graphics 620, 60 Wh
Lenovo ThinkPad X1 Carbon 20FB003RGE
6500U, HD Graphics 520, 52 Wh
Lenovo ThinkPad T460s-20FA003GGE
6600U, HD Graphics 520, 49 Wh
Battery Runtime
WiFi v1.3
566
686
21%
539
-5%
620
10%
516
-9%
429
-24%
340
-40%
Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Apple MacBook Pro 13 (Late 2016, 2.9 GHz i5, Touch Bar) Notebook rövid értékelés
Klaus Hinum, Andreas Osthoff, 2016-11-28 (Update: 2016-11-28)
Andreas Osthoff
Editor of the original article: Andreas Osthoff - Managing Editor Business Notebooks
