Aorus X3 Plus v7 (i7-7820HK, GTX 1060) Xotic PC Edition Laptop rövid értékelés

Gaming Kaby Lake Laptop / Notebook Windows

Kis sikoltó. Az Aorus X3 Plus v7 igen kis csomagba préselt igen nagy erőt. Míg az alkatrészei lenyűgözőek, a hő- és zajkibocsátása problémás. Ezt leszámítva az X3 Plus v7 életképes, és hordozható gaming notebook.

Aorus x3 Plus v7 (X3 Széria)
Processzor
Grafikus adapter
NVIDIA GeForce GTX 1060 Mobile - 6144 MB, Mag: 1582 MHz, túlhúzott, Nvidia GeForce GTX 1060 21.21.13.7654, Nvidia Optimus
Memória
16384 MB
, DDR4-2400, PC4-19200
Kijelző
13.9 hüvelyk 16:9, 3200 x 1800 pixel 264 PPI, nem, Sharp SHP1401, IGZO TFT, fényes: nem
Alaplap
Intel HM175
Háttértár
Toshiba NVMe THNSN5512GPU7, 512 GB
, 512 GB, PCIe NVMe, 463 GB ingyenes
Hangkártya
Intel Skylake PCH-H High Definition Audio Controller
Csatlakozók
3 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington zár, Audió csatlakozók: külön mikrofon és fejhallgató jack, Kártyaolvasó: teljes méretű SD/SDXC/SDHC olvasó, Brightness Sensor
Hálózat
Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5)
Méret
magasság x szélesség x mélység (mm-ben) 22.9 x 327 x 263.5
Akkumulátor
74 Wh Lítium-Polimer, Akkumulátor üzemidő (gyártói adat): 7.5 h
Operációs rendszer
Microsoft Windows 10 Home 64 Bit
Camera
Webkamera: 720p
További jellegzetességek
Hangszórók: 2x 2 wattos hangszóró, Billentyűzet: chiclet, Billentyűzet háttérvilágítás: igen, Aorus Command & Control, XSplit Broadcaster,, 24 Hónap Garancia
Súly
1.8 kg
Ár
2000 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



390 mm 266 mm 39.8 mm 3.1 kg390 mm 272 mm 23 mm 2.7 kg380 mm 249 mm 18 mm 1.9 kg356 mm 250 mm 19 mm 2.1 kg345 mm 236 mm 18 mm 1.8 kg335 mm 250 mm 20 mm 1.9 kg330 mm 269 mm 22 mm 2.5 kg327 mm 263.5 mm 22.9 mm 1.8 kg

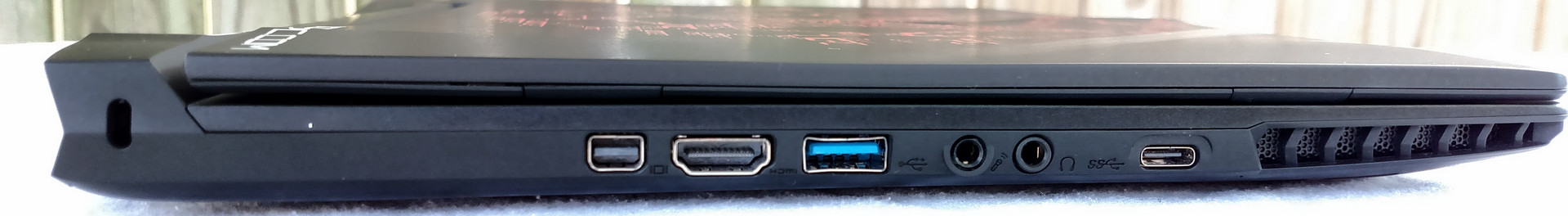

Left: Kensington lock, Mini DisplayPort, HDMI 2.0, USB 3.0 Type-A, mic jack, headphone jack, USB 3.1 Type-C (not Thunderbolt)
Left: Kensington lock, Mini DisplayPort, HDMI 2.0, USB 3.0 Type-A, mic jack, headphone jack, USB 3.1 Type-C (not Thunderbolt)

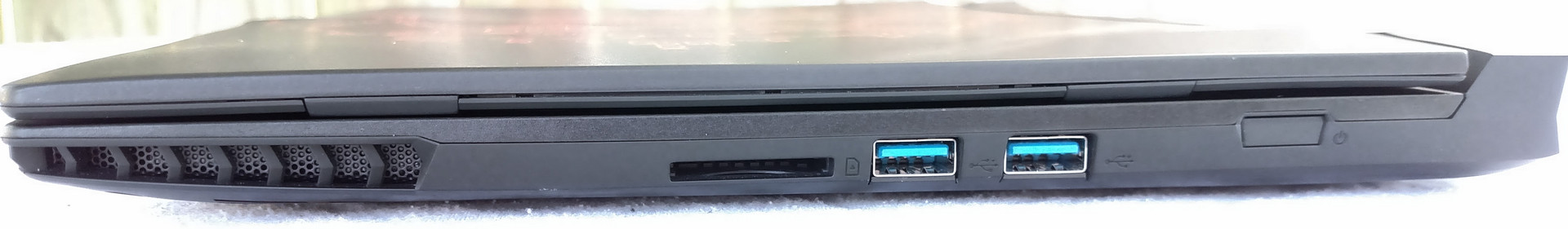

Right: SD card reader, 2x USB 3.0 Type-A, power button
Right: SD card reader, 2x USB 3.0 Type-A, power button

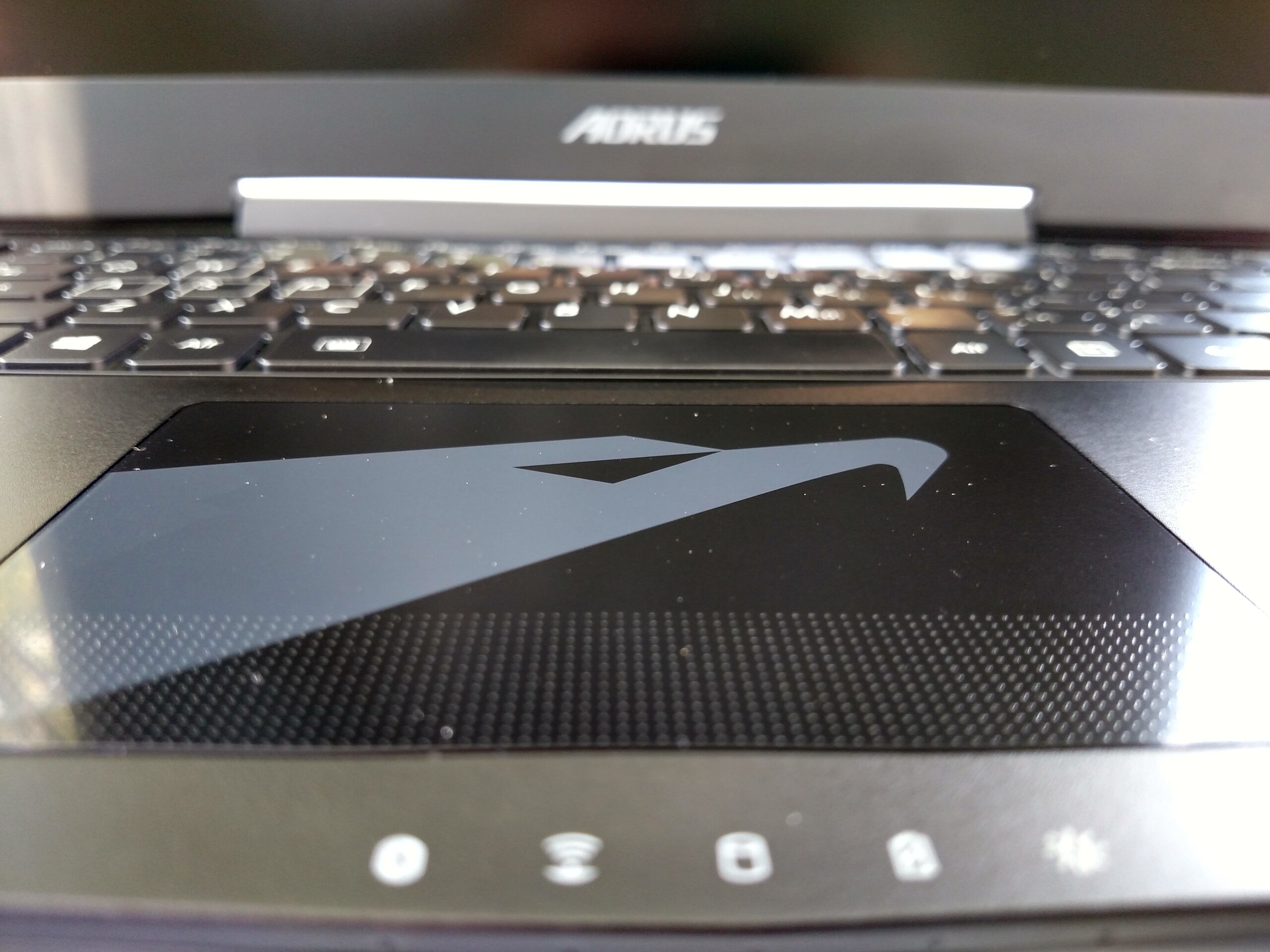

Front: Status LEDs (on left side)
Front: Status LEDs (on left side)

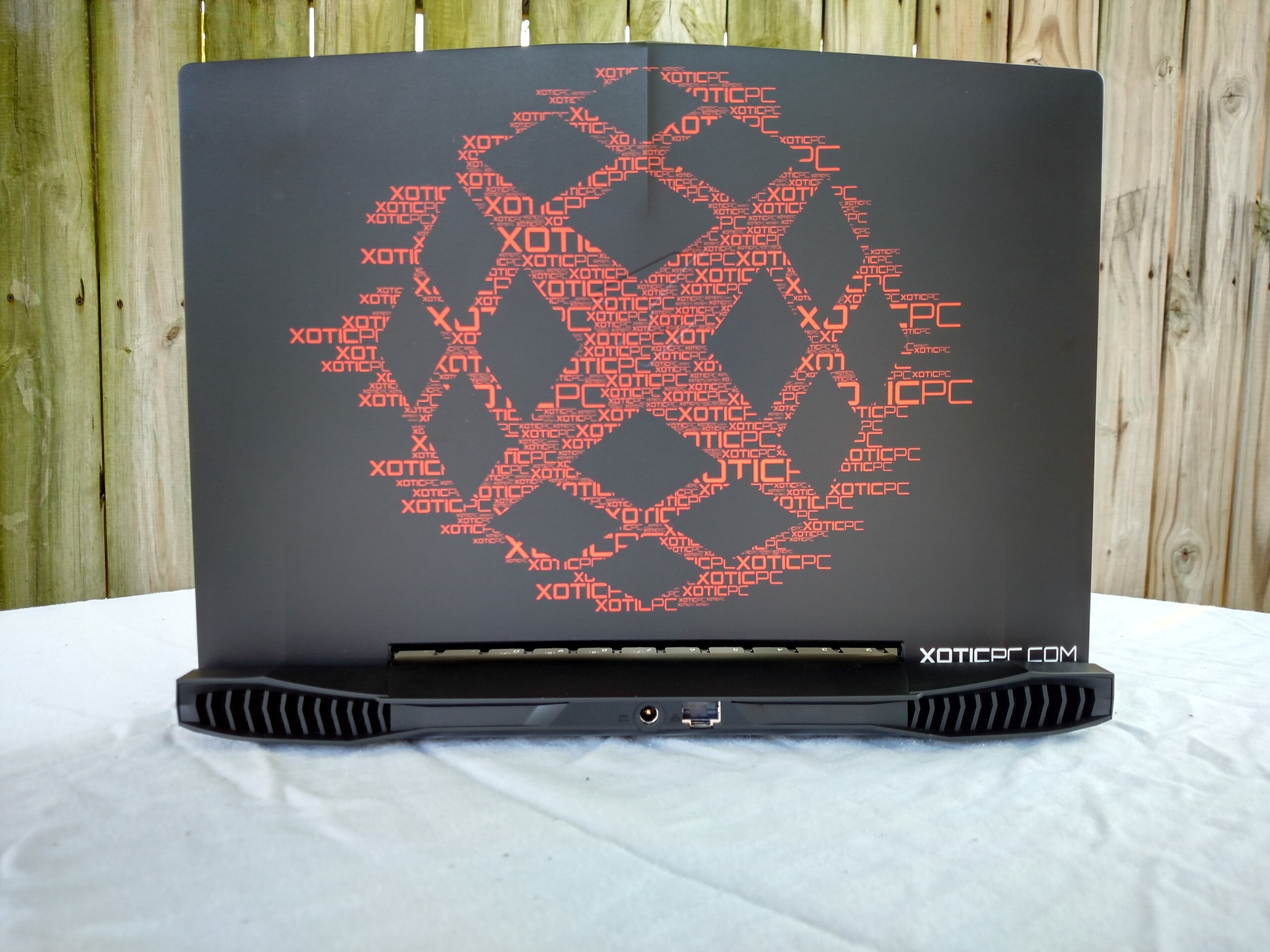

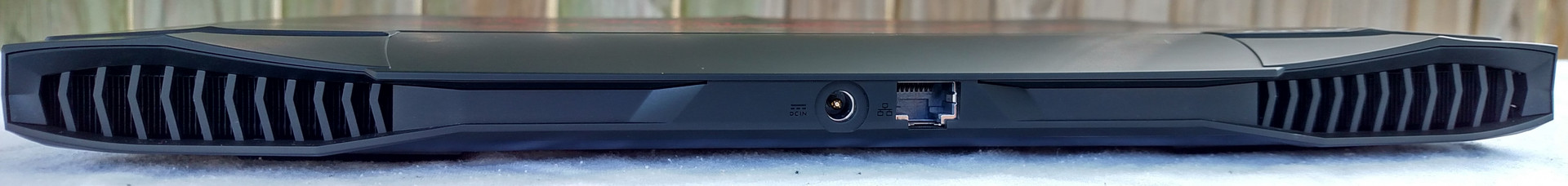

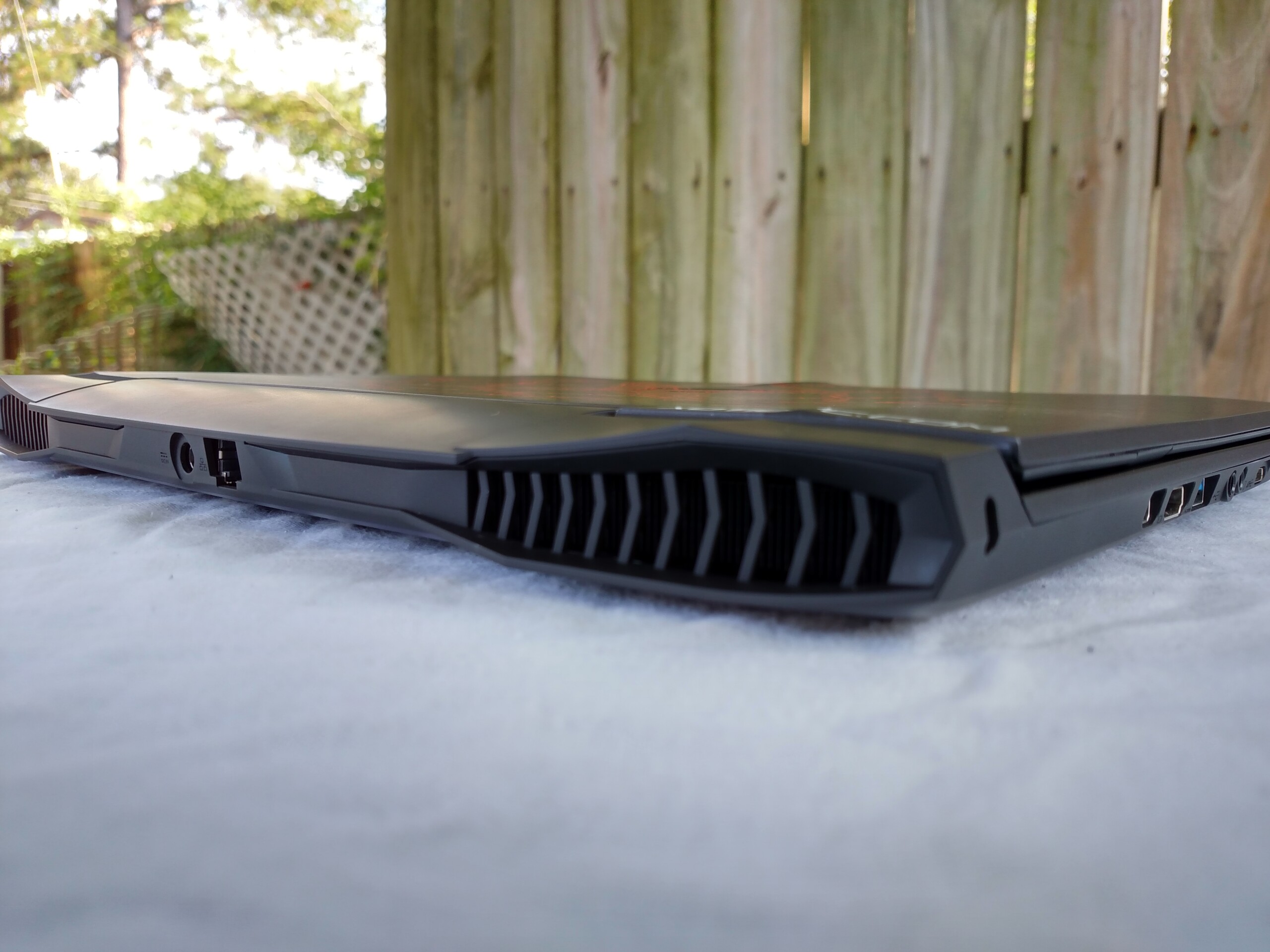

Rear: power in, Gigabit Ethernet
Rear: power in, Gigabit Ethernet
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Eurocom Tornado F5

159.5 MB/s ∼100% +101%
Aorus x3 Plus v7

79.4 MB/s ∼50%
Gigabyte Aero 15

78 MB/s ∼49% -2%
Gigabyte Aero 14

73 MB/s ∼46% -8%
MSI GS63VR 7RF-228US

23.59 MB/s ∼15% -70%
maximum AS SSD Seq Read Test (1GB)
Eurocom Tornado F5

191.9 MB/s ∼100% +110%
Aorus x3 Plus v7

91.4 MB/s ∼48%
Gigabyte Aero 15

89 MB/s ∼46% -3%
Gigabyte Aero 14

87 MB/s ∼45% -5%
MSI GS63VR 7RF-228US

20.96 MB/s ∼11% -77%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Gigabyte Aero 14
Intel Dual Band Wireless-AC 8260
684 MBit/s ∼100% +9%
Gigabyte Aero 15
Intel Dual Band Wireless-AC 8265
678 MBit/s ∼99% +8%
Alienware 13 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
667 MBit/s ∼98% +7%
MSI GS63VR 7RF-228US
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
662 MBit/s ∼97% +6%
Aorus x3 Plus v7
Intel Dual Band Wireless-AC 8260
626 MBit/s ∼92%
Eurocom Tornado F5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
558 MBit/s ∼82% -11%
iperf3 Client (transmit) TCP 1 m 4M x10
MSI GS63VR 7RF-228US
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
594 MBit/s ∼100% +18%
Alienware 13 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
571 MBit/s ∼96% +14%
Eurocom Tornado F5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
569 MBit/s ∼96% +13%
Gigabyte Aero 14
Intel Dual Band Wireless-AC 8260
503 MBit/s ∼85% 0%
Aorus x3 Plus v7
Intel Dual Band Wireless-AC 8260
502 MBit/s ∼85%
Gigabyte Aero 15
Intel Dual Band Wireless-AC 8265
346 MBit/s ∼58% -31%

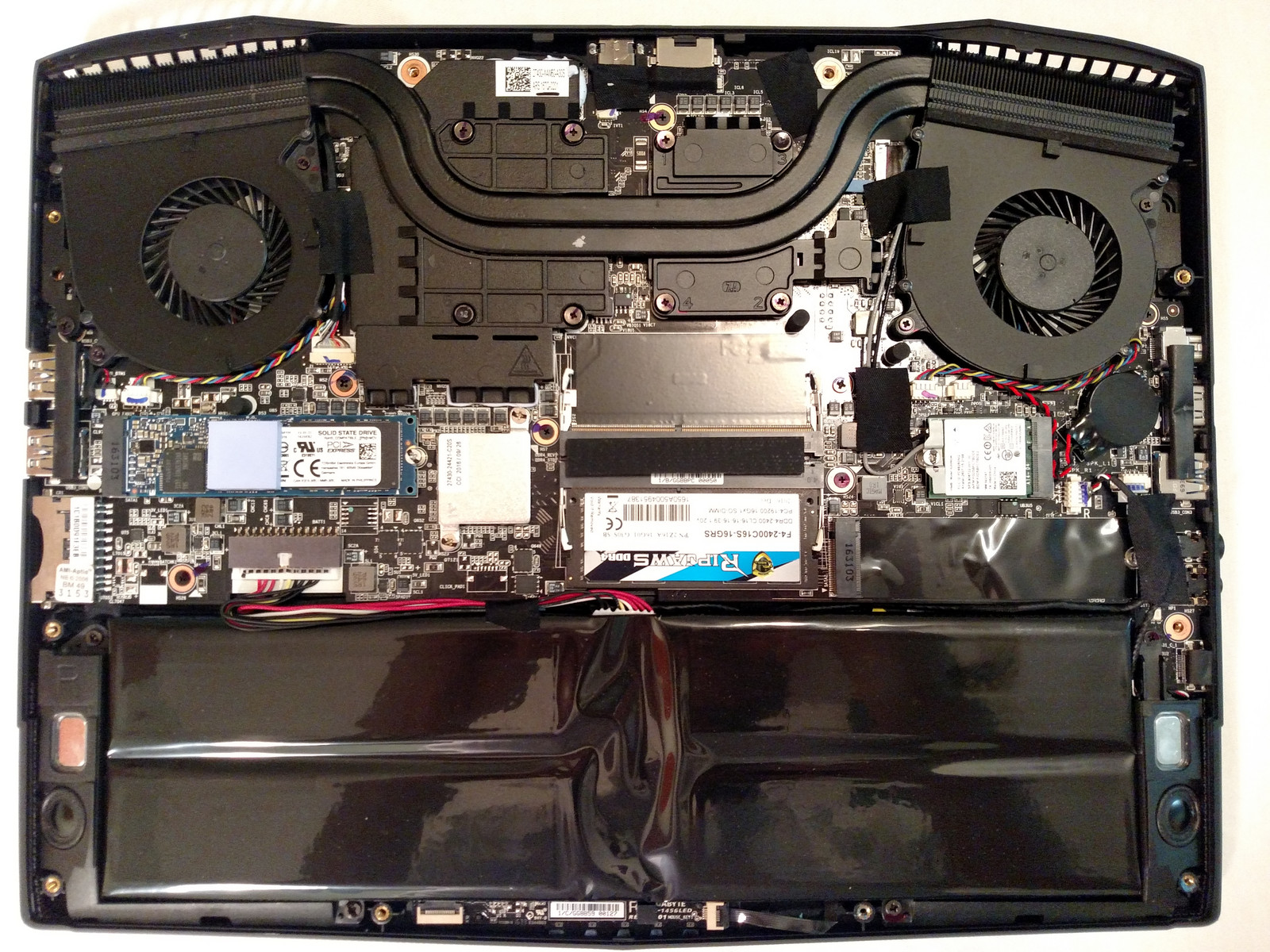

Every component is readily available.
Every component is readily available.

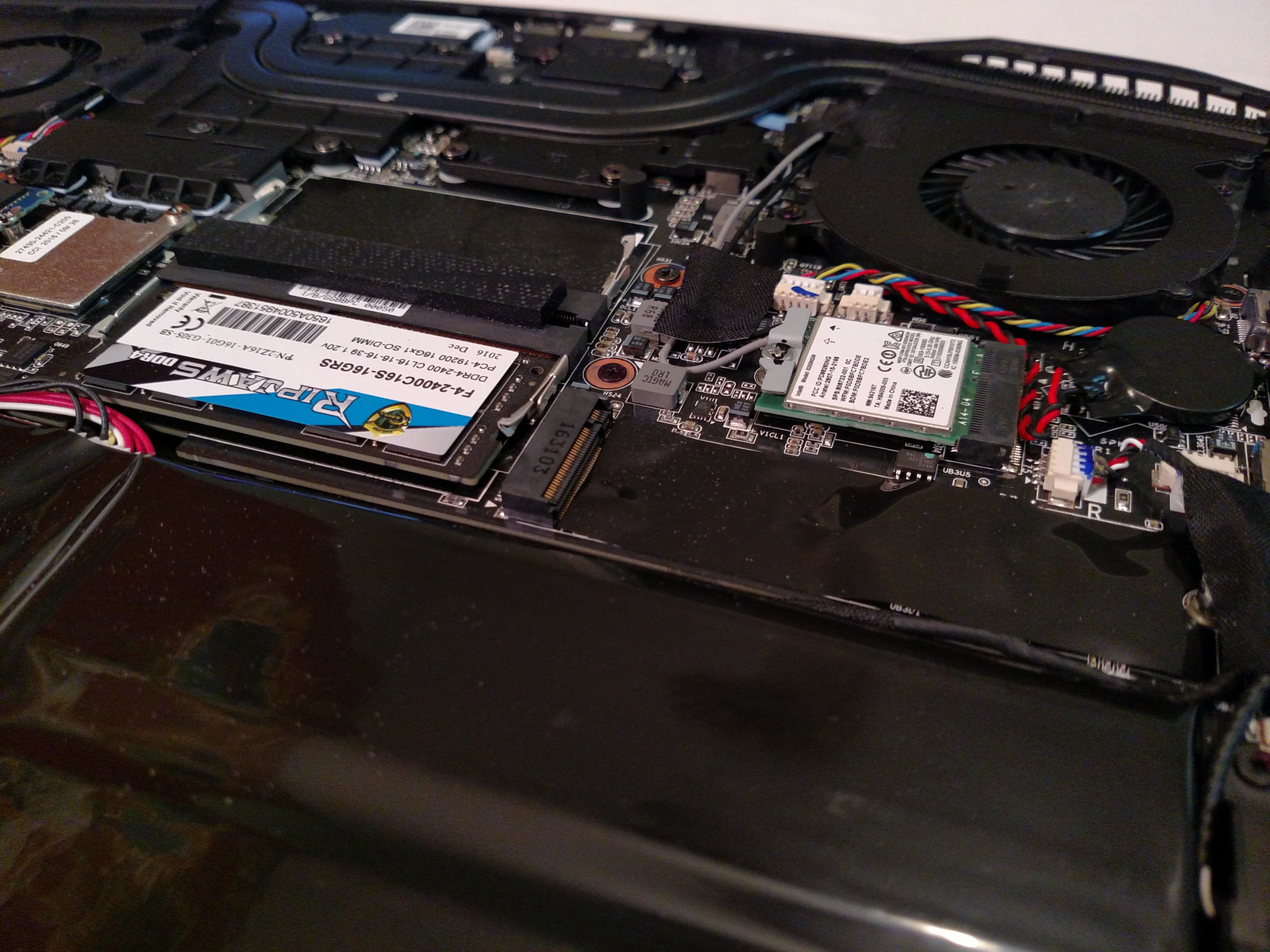

There is space for more RAM and another NVMe SSD.
There is space for more RAM and another NVMe SSD.

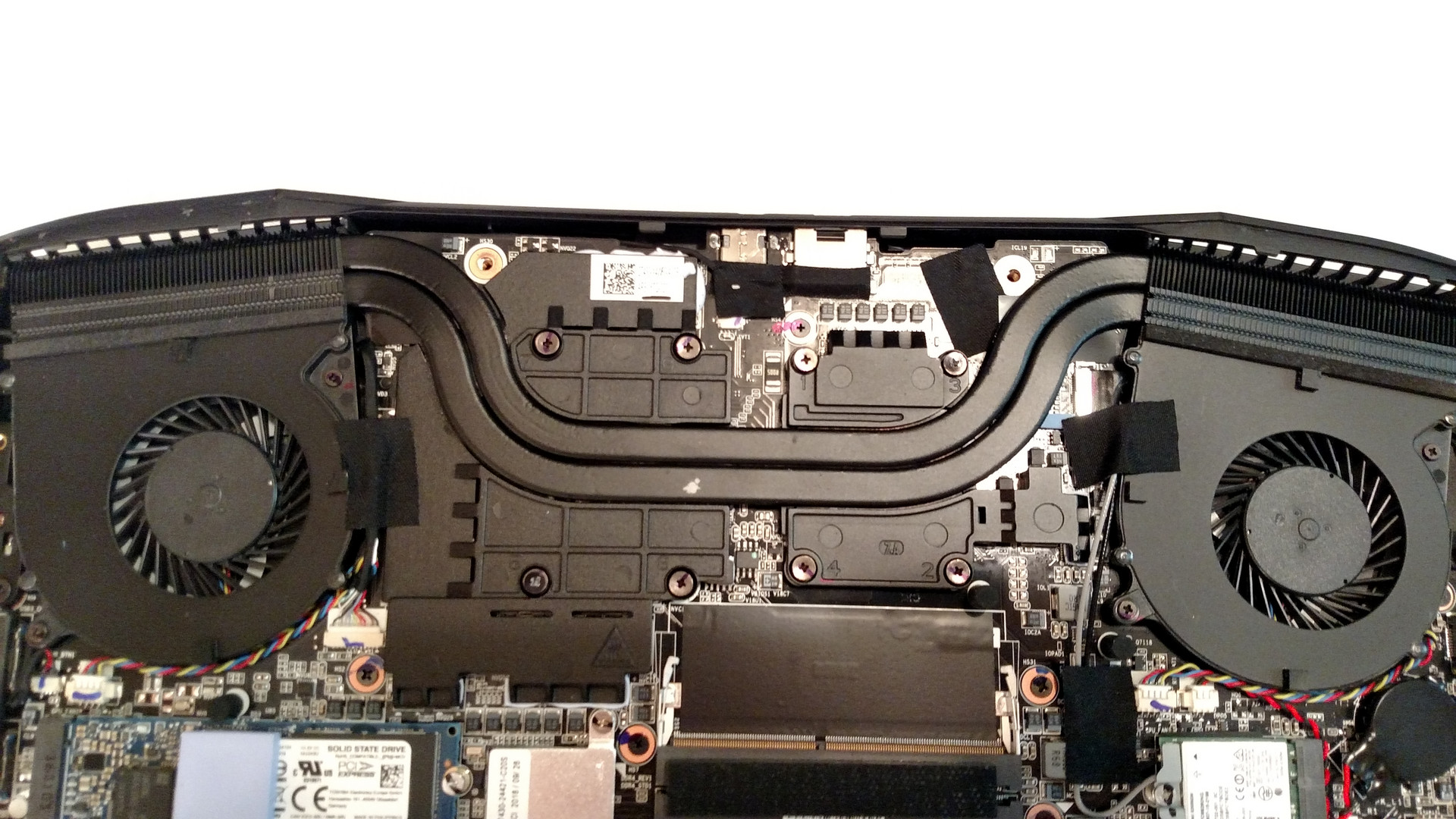

CPU and GPU fans and heat sink array.
CPU and GPU fans and heat sink array.
411.1
cd/m²
374.4
cd/m²
373.5
cd/m²
380.7
cd/m²
348
cd/m²
320
cd/m²
386.4
cd/m²
338
cd/m²
300
cd/m²
Fényerő megoszlás
Sharp SHP1401
X-Rite i1Pro 2
Maximum: 411.1 cd/m² Átlag: 359.1 cd/m² Minimum: 10.79 cd/m²
Fényerő megoszlás: 73 %
Centrumban: 348 cd/m²
Kontraszt: 1200:1 (Fekete: 0.29 cd/m²)
ΔE Color 2.4 | 0.6-29.43 Ø5.9
ΔE Greyscale 2.3 | 0.64-98 Ø6.1
96% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.21
Aorus x3 Plus v7
Sharp SHP1401, IGZO TFT, 13.9, 3200x1800
Alienware 13 R3
JJT6C_133KL05 (SDCA029), OLED, 13.3, 2560x1440
Gigabyte Aero 14
LG Philips LP140QH1-SPF1 (LGD049A), IPS, 14, 2560x1440
Razer Blade (2017)
LP140WF3-SPD1, IPS, 14, 1920x1080
Gigabyte Aero 15
N156HCA-EA1 (CMN15D7), IPS, 15.6, 1920x1080
Eurocom Tornado F5
IPS, 15.6, 1920x1080
MSI GS63VR 7RF-228US
IPS, 15.6, 3840x2160
Aorus X5 v6 AO-S107W516-PL-002
Panasonic MEI96A2 / VVX16T028J00, , 15.6, 2880x1620
Response Times
54%
-5%
3511%
4251%
-8%
200%
Response Time Grey 50% / Grey 80% *
38 (19.6, 18.4)
41 (17, 24)
-8%
25.2 (18, 17.2)
34%
42.8 (23.6, 19.2)
-13%
33.6 (8.4, 25.2)
12%
28 (15.6, 12.4)
26%
Response Time Black / White *
24.4 (11.2, 13.2)
2.8 (1.2, 1.6)
89%
25 (4, 21)
-2%
24.8 (13.2, 11.6)
-2%
32 (18.8, 13.2)
-31%
31.2 (4.4, 26.8)
-28%
23.6 (15.2, 8.4)
3%
PWM Frequency
201.6 (50)
240 (100)
19%
21370
10500%
26000 (20)
12797%
1351 (39)
570%
Screen
10%
-32%
-30%
-40%
-35%
-89%
-15%
Brightness middle
348
313
-10%
290
-17%
272
-22%
320
-8%
315.8
-9%
274.2
-21%
350
1%
Brightness
359
310
-14%
257
-28%
277
-23%
316
-12%
310
-14%
263
-27%
296
-18%
Brightness Distribution
73
87
19%
79
8%
84
15%
90
23%
90
23%
92
26%
79
8%
Black Level *
0.29
0.3
-3%
0.26
10%
0.36
-24%
0.33
-14%
0.44
-52%
0.4
-38%
Contrast
1200
967
-19%
1046
-13%
889
-26%
957
-20%
623
-48%
875
-27%
Colorchecker DeltaE2000 *
2.4
2.54
-6%
4.59
-91%
4.59
-91%
4.62
-93%
5
-108%
8
-233%
Colorchecker DeltaE2000 max. *
5.1
3.94
23%
8.68
-70%
8.49
-66%
9.75
-91%
10.1
-98%
14.6
-186%
Greyscale DeltaE2000 *
2.3
1.43
38%
4.32
-88%
4.28
-86%
6
-161%
4.2
-83%
9.1
-296%
Gamma
2.21 100%
2.3 96%
2.25 98%
2.23 99%
2.46 89%
2.12 104%
2.24 98%
CCT
6206 105%
6337 103%
7320 89%
6848 95%
6761 96%
6107 106%
5020 129%
Color Space (Percent of AdobeRGB 1998)
62
78
26%
59
-5%
55
-11%
60
-3%
54.5
-12%
45.7
-26%
Color Space (Percent of sRGB)
96
97
1%
92
-4%
83
-14%
92
-4%
83
-14%
72.1
-25%
Total Average (Program / Settings)
32% / 19%
-19% / -27%
1741% / 787%
2106% / 950%
-22% / -30%
56% / -22%
-15% / -15%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

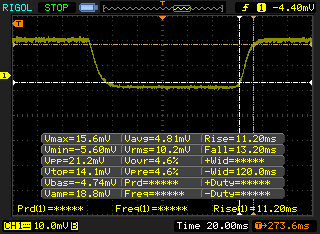

       Response Time Black to White
24.4 ms ... rise ↗ and fall ↘ combined↗ 11.2 ms rise
↘ 13.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (24.7 ms).

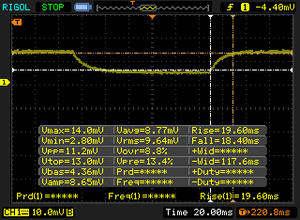

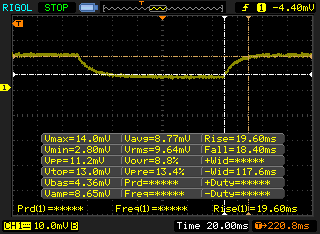

       Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined↗ 19.6 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 37 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (39.3 ms).

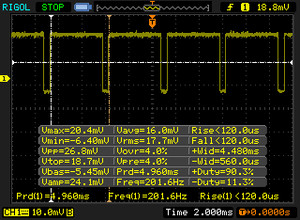

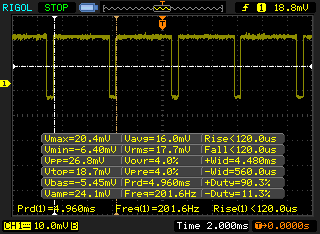

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 201.6 Hz ≤ 50 % brightness setting

The display backlight flickers at 201.6 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 201.6 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18300 (minimum: 5 - maximum: 2500000) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
190 Points ∼85% +5%
Aorus x3 Plus v7
Intel Core i7-7820HK
181 Points ∼81%
Aorus X5 v6 AO-S107W516-PL-002
Intel Core i7-6820HK
170 Points ∼76% -6%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
162 Points ∼72% -10%
Gigabyte Aero 15
Intel Core i7-7700HQ
161 Points ∼72% -11%
Alienware 13 R3
Intel Core i7-7700HQ
159 Points ∼71% -12%
Gigabyte Aero 14
Intel Core i7-7700HQ
159 Points ∼71% -12%
Razer Blade (2017)
Intel Core i7-7700HQ
154 Points ∼69% -15%
CPU Multi 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
897 Points ∼20% +10%
Aorus x3 Plus v7
Intel Core i7-7820HK
819 Points ∼19%
Aorus X5 v6 AO-S107W516-PL-002
Intel Core i7-6820HK
769 Points ∼18% -6%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
742 Points ∼17% -9%
Gigabyte Aero 15
Intel Core i7-7700HQ
742 Points ∼17% -9%
Alienware 13 R3
Intel Core i7-7700HQ
737 Points ∼17% -10%
Gigabyte Aero 14
Intel Core i7-7700HQ
730 Points ∼17% -11%
Razer Blade (2017)
Intel Core i7-7700HQ
729 Points ∼17% -11%
Cinebench R11.5
CPU Single 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
2.19 Points ∼86% +5%
Aorus x3 Plus v7
Intel Core i7-7820HK
2.08 Points ∼81%
Gigabyte Aero 15
Intel Core i7-7700HQ
1.84 Points ∼72% -12%
Alienware 13 R3
Intel Core i7-7700HQ
1.81 Points ∼71% -13%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
1.77 Points ∼69% -15%
CPU Multi 64Bit
Eurocom Tornado F5
Intel Core i7-7700K
9.78 Points ∼22% +10%
Aorus x3 Plus v7
Intel Core i7-7820HK
8.86 Points ∼20%
Gigabyte Aero 15
Intel Core i7-7700HQ
8.23 Points ∼19% -7%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
8.18 Points ∼19% -8%
Alienware 13 R3
Intel Core i7-7700HQ
8.1 Points ∼18% -9%
Cinebench R10
Rendering Single 32Bit
Aorus x3 Plus v7
Intel Core i7-7820HK
8872 Points ∼82%
Eurocom Tornado F5
Intel Core i7-7700K
7222 Points ∼67% -19%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
5747 Points ∼53% -35%
Rendering Multiple CPUs 32Bit
Aorus x3 Plus v7
Intel Core i7-7820HK
32510 Points ∼50%
Eurocom Tornado F5
Intel Core i7-7700K
28189 Points ∼43% -13%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
22217 Points ∼34% -32%
wPrime 2.0x - 1024m
Aorus x3 Plus v7
Intel Core i7-7820HK
327.1 s * ∼4%
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
236 s * ∼3% +28%
Aorus X5 v6 AO-S107W516-PL-002
Intel Core i7-6820HK
229.953 s * ∼3% +30%
Eurocom Tornado F5
Intel Core i7-7700K
176.329 s * ∼2% +46%
Super Pi Mod 1.5 XS 32M - ---
MSI GS63VR 7RF-228US
Intel Core i7-7700HQ
579.909 Seconds * ∼3% -11%
Aorus x3 Plus v7
Intel Core i7-7820HK
521.8 Seconds * ∼2%
Aorus X5 v6 AO-S107W516-PL-002
Intel Core i7-6820HK
487.544 Seconds * ∼2% +7%
Eurocom Tornado F5
Intel Core i7-7700K
440.036 Seconds * ∼2% +16%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
8872
Cinebench R10 Rendering Multiple CPUs 32Bit
32510
Cinebench R10 Shading 32Bit
6830
Cinebench R11.5 CPU Single 64Bit
2.08 Points
Cinebench R11.5 CPU Multi 64Bit
8.86 Points
Cinebench R15 CPU Single 64Bit
181 Points
Cinebench R15 CPU Multi 64Bit
819 Points
Segítség
PCMark 8
Work Score Accelerated v2
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
6515 Points ∼99% +41%
Gigabyte Aero 15
GeForce GTX 1060 Mobile, 7700HQ, Lite-on CX2-8B512-Q11 NVMe SSD
5290 Points ∼80% +15%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5268 Points ∼80% +14%
Razer Blade (2017)
GeForce GTX 1060 Mobile, 7700HQ, Samsung PM951 NVMe MZVLV256
5008 Points ∼76% +9%
Alienware 13 R3
GeForce GTX 1060 Mobile, 7700HQ, Toshiba NVMe THNSN5256GPUK
4799 Points ∼73% +4%
Gigabyte Aero 14
GeForce GTX 1060 Mobile, 7700HQ, LiteOn CX2-8B256
4702 Points ∼71% +2%
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
4605 Points ∼70%
Creative Score Accelerated v2
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
8593 Points ∼79% +101%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
5318 Points ∼49% +24%
Alienware 13 R3
GeForce GTX 1060 Mobile, 7700HQ, Toshiba NVMe THNSN5256GPUK
5200 Points ∼48% +22%
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
4278 Points ∼39%
Home Score Accelerated v2
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
5476 Points ∼90% +68%
Gigabyte Aero 15
GeForce GTX 1060 Mobile, 7700HQ, Lite-on CX2-8B512-Q11 NVMe SSD
4248 Points ∼70% +30%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
4141 Points ∼68% +27%
Razer Blade (2017)
GeForce GTX 1060 Mobile, 7700HQ, Samsung PM951 NVMe MZVLV256
3958 Points ∼65% +21%
Alienware 13 R3
GeForce GTX 1060 Mobile, 7700HQ, Toshiba NVMe THNSN5256GPUK
3894 Points ∼64% +19%
Gigabyte Aero 14
GeForce GTX 1060 Mobile, 7700HQ, LiteOn CX2-8B256
3717 Points ∼61% +14%
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
3266 Points ∼54%
PCMark 7 Score
5966 pontok
PCMark 8 Home Score Accelerated v2
3266 pontok
PCMark 8 Creative Score Accelerated v2
4278 pontok
PCMark 8 Work Score Accelerated v2
4605 pontok
Segítség
Aorus x3 Plus v7
Toshiba NVMe THNSN5512GPU7
Alienware 13 R3
Toshiba NVMe THNSN5256GPUK
Gigabyte Aero 14
LiteOn CX2-8B256
Razer Blade (2017)
Samsung PM951 NVMe MZVLV256
Gigabyte Aero 15
Lite-on CX2-8B512-Q11 NVMe SSD
Eurocom Tornado F5
Samsung SSD 960 Pro 512 GB m.2
MSI GS63VR 7RF-228US
Samsung SM961 MZVKW512HMJP m.2 PCI-e
Aorus X5 v6 AO-S107W516-PL-002
LiteOn CX2-8B256
CrystalDiskMark 3.0
-23%
-14%
-38%
-6%
12%
7%
-12%
Write 4k QD32
516.7
311.2
-40%
441
-15%
308
-40%
490.5
-5%
634
23%
526.9
2%
486.2
-6%
Read 4k QD32
699.8
593.1
-15%
601.6
-14%
565
-19%
644.8
-8%
744.4
6%
631.7
-10%
644.3
-8%
Write 4k
156
140.2
-10%
131.2
-16%
134.3
-14%
123.3
-21%
180.6
16%
158.2
1%
143.2
-8%
Read 4k
44.8
37.65
-16%
44.93
0%
34.8
-22%
44.7
0%
55.94
25%
54.2
21%
46.13
3%
Write 512
1221
405.6
-67%
814.2
-33%
310
-75%
1069
-12%
966.7
-21%
1531
25%
723.7
-41%
Read 512
966.3
1070
11%
984.7
2%
682
-29%
890.7
-8%
715.3
-26%
499.7
-48%
952.1
-1%
Write Seq
1324
789.4
-40%
794.6
-40%
311
-77%
1133
-14%
1724
30%
1621
22%
767.4
-42%
Read Seq
1498
1373
-8%
1584
6%
1122
-25%
1769
18%
2145
43%
2141
43%
1605
7%
Toshiba NVMe THNSN5512GPU7
Minimum átviteli sebesség: 292.3 MB/s
Maximum átviteli sebesség: 1311.4 MB/s
Átlagos átviteli sebesség: 630.7 MB/s
Hozzáférési idő: 0.07 ms
Burst Rate: 602.9 MB/s
CPU kihasználtság: 2.2 %
3DMark
1920x1080 Fire Strike Graphics
Aorus X5 v6 AO-S107W516-PL-002
NVIDIA GeForce GTX 1070 Mobile, 6820HK
17393 Points ∼43% +41%
Eurocom Tornado F5
NVIDIA GeForce GTX 1070 Mobile, 7700K
17321 Points ∼43% +41%
Aorus x3 Plus v7
NVIDIA GeForce GTX 1060 Mobile, 7820HK
12298 Points ∼30%
Gigabyte Aero 14
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
11625 Points ∼29% -5%
Alienware 13 R3
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
11323 Points ∼28% -8%
MSI GS63VR 7RF-228US
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
11261 Points ∼28% -8%
Gigabyte Aero 15
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
11173 Points ∼27% -9%
Razer Blade (2017)
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
10853 Points ∼27% -12%
1280x720 Cloud Gate Standard Graphics
Eurocom Tornado F5
NVIDIA GeForce GTX 1070 Mobile, 7700K
114095 Points ∼58% +163%
Aorus X5 v6 AO-S107W516-PL-002
NVIDIA GeForce GTX 1070 Mobile, 6820HK
102589 Points ∼53% +136%
Gigabyte Aero 15
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
77755 Points ∼40% +79%
Alienware 13 R3
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
54974 Points ∼28% +27%
Aorus x3 Plus v7
NVIDIA GeForce GTX 1060 Mobile, 7820HK
43388 Points ∼22%
Gigabyte Aero 14
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
41631 Points ∼21% -4%
MSI GS63VR 7RF-228US
NVIDIA GeForce GTX 1060 Mobile, 7700HQ
32344 Points ∼17% -25%
3DMark Ice Storm Standard Score
33625 pontok
3DMark Cloud Gate Standard Score
20785 pontok
3DMark Fire Strike Score
10361 pontok
3DMark Fire Strike Extreme Score
5532 pontok
Segítség
0123456789101112131415161718192021222324252627282930313233343536373839404142434445Tooltip
The Witcher 3 ultra
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
109 fps ∼41%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
149.6 fps ∼56% +37%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
100.6 fps ∼38% -8%
Aorus X5 v6 AO-S107W516-PL-002
GeForce GTX 1070 Mobile, 6820HK, LiteOn CX2-8B256
135.5 fps ∼51% +24%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
82 fps ∼48%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
117.6 fps ∼68% +43%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
78.1 fps ∼45% -5%
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
42 fps ∼30%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
74.9 fps ∼53% +78%
Aorus X5 v6 AO-S107W516-PL-002
GeForce GTX 1070 Mobile, 6820HK, LiteOn CX2-8B256
108.2 fps ∼76% +158%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
40 fps ∼29%
Gigabyte Aero 14
GeForce GTX 1060 Mobile, 7700HQ, LiteOn CX2-8B256
38.3 fps ∼27% -4%
Razer Blade (2017)
GeForce GTX 1060 Mobile, 7700HQ, Samsung PM951 NVMe MZVLV256
37 fps ∼26% -7%
Gigabyte Aero 15
GeForce GTX 1060 Mobile, 7700HQ, Lite-on CX2-8B512-Q11 NVMe SSD
37.7 fps ∼27% -6%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
39.4 fps ∼28% -1%
Aorus X5 v6 AO-S107W516-PL-002
GeForce GTX 1070 Mobile, 6820HK, LiteOn CX2-8B256
60.6 fps ∼43% +52%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
65 fps ∼32%
Razer Blade (2017)
GeForce GTX 1060 Mobile, 7700HQ, Samsung PM951 NVMe MZVLV256
57 fps ∼28% -12%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
98 fps ∼49% +51%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
64.1 fps ∼32% -1%
Ashes of the Singularity - 1920x1080 high (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
50 fps ∼50%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
78.2 fps ∼78% +56%
Doom - 1920x1080 Ultra Preset AA:SM (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
97 fps ∼49%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
136.5 fps ∼68% +41%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
92.3 fps ∼46% -5%
Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
77 fps ∼46%
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
107.6 fps ∼64% +40%
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
64 fps ∼38% -17%
alacsony közepes magas ultra
BioShock Infinite (2013) 109 fps
Metro: Last Light (2013) 82 fps
Thief (2014) 42 fps
The Witcher 3 (2015) 40 fps
Fallout 4 (2015) 77 fps
Rise of the Tomb Raider (2016) 65 fps
Ashes of the Singularity (2016) 50 fps
Doom (2016) 97 fps
Mafia 3 (2016) 45 fps

Zajszint

Üresjárat
31.4 / 37 / 40.8 dB(A)
Terhelés
50 / 53.6 dB(A)
  red to green bar


30 dB
csendes
40 dB(A)
hallható
50 dB(A)
hangos

min: dark, med: mid, max: light   BK Precision 732A (15 cm távolságról)   environment noise: 29.1 dB(A)
Aorus x3 Plus v7
GeForce GTX 1060 Mobile, 7820HK, Toshiba NVMe THNSN5512GPU7
Alienware 13 R3
GeForce GTX 1060 Mobile, 7700HQ, Toshiba NVMe THNSN5256GPUK
Gigabyte Aero 14
GeForce GTX 1060 Mobile, 7700HQ, LiteOn CX2-8B256
Razer Blade (2017)
GeForce GTX 1060 Mobile, 7700HQ, Samsung PM951 NVMe MZVLV256
Gigabyte Aero 15
GeForce GTX 1060 Mobile, 7700HQ, Lite-on CX2-8B512-Q11 NVMe SSD
Eurocom Tornado F5
GeForce GTX 1070 Mobile, 7700K, Samsung SSD 960 Pro 512 GB m.2
MSI GS63VR 7RF-228US
GeForce GTX 1060 Mobile, 7700HQ, Samsung SM961 MZVKW512HMJP m.2 PCI-e
Aorus X5 v6 AO-S107W516-PL-002
GeForce GTX 1070 Mobile, 6820HK, LiteOn CX2-8B256
Noise
15%
9%
10%
10%
6%
11%
1%
off / environment *
29.1
29
-0%
31
-7%
31
-7%
29.4
-1%
28.8
1%
Idle Minimum *
31.4
29
8%
31
1%
30
4%
32
-2%
33.3
-6%
33.1
-5%
33.4
-6%
Idle Average *
37
30
19%
32
14%
30
19%
33
11%
33.5
9%
33.1
11%
34.2
8%
Idle Maximum *
40.8
31
24%
33
19%
30
26%
34
17%
33.5
18%
34
17%
35
14%
Load Average *
50
36
28%
42
16%
51
-2%
39
22%
44.2
12%
37.2
26%
53.3
-7%
Witcher 3 ultra *
53.6
45
16%
43
20%
46.1
14%
Load Maximum *
53.6
49
9%
53
1%
51
5%
50
7%
52.5
2%
47.1
12%
57
-6%

* ... smaller is better

Max. terhelés
 33 °C42 °C40.2 °C
 29.6 °C46.8 °C35 °C
 25.4 °C25 °C27 °C
Maximum: 46.8 °C
Átlag: 33.8 °C
42.6 °C55.2 °C38.6 °C
37.2 °C43.4 °C31.6 °C
29 °C29.8 °C27.2 °C
Maximum: 55.2 °C
Átlag: 37.2 °C
Tápegység (max.)  53 °C | Szobahőmérséklet 21 °C | Fluke 62 Mini IR Therometer
(±) The average temperature for the upper side under maximal load is 33.8 °C / 93 F, compared to the average of 33.2 °C / 92 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 46.8 °C / 116 F, compared to the average of 39.7 °C / 103 F, ranging from 21.6 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 55.2 °C / 131 F, compared to the average of 42.4 °C / 108 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 33.2 °C / 92 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.6 °C / 91 F, compared to the device average of 33.2 °C / 92 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (+1.8 °C / 3.2 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs203938.22535.135.63134.634.1403334.65034.435.36333.735.68031.831.210031.131.312530.231.516028.931.820028.1362502847.931527.255.740027.15750026.458.363026.154.680025.160.910002562125025.458.3160024.357.4200023.957.3250023.462315023.259.3400023.357.4500023.160.5630023.161.8800023.2631000023.366.11250023.463.61600023.250SPL36.572.5N2.731median 25median 57.4Delta1.86.539.337.838.636.22827.73332.529.230.127.727.631.232.627.736.423.739.222.144.521.85321.358.520.260.320.163.619.866.21868.517.272.417.368.817.16617.264.717.367.817.368.417.467.417.566.417.459.617.555.117.662.117.663.517.652.117.542.829.978.71.344.5median 17.6median 63.51.67.2hearing rangehide median Pink NoiseAorus x3 Plus v7Alienware 13 R3
Aorus x3 Plus v7 audio analysis

(±) | speaker loudness is average but good (72.49 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.4% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.6% away from median
(±) | linearity of mids is average (7.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4% away from median
(±) | linearity of highs is average (8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.1% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 5% similar, 17% worse
» The best had a delta of 6%, average was 18%, worst was 37%
Compared to all devices tested
» 56% of all tested devices were better, 8% similar, 36% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Alienware 13 R3 audio analysis

(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.8% lower than median
(±) | linearity of bass is average (10% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (6.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 43% of all tested devices in this class were better, 12% similar, 45% worse
» The best had a delta of 6%, average was 18%, worst was 37%
Compared to all devices tested
» 21% of all tested devices were better, 7% similar, 72% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Energiafogyasztás
Kikapcsolt állapot / Készenlétdarklight 0.4 / 12.7 Watt
Üresjáratdarkmidlight 15.1 / 15.8 / 16.7 Watt
Terhelés midlight 110.9 / 170.4 Watt
 color bar
Kulcs: min: dark, med: mid, max: light        Metrahit Energy
Aorus x3 Plus v7
7820HK, GeForce GTX 1060 Mobile, Toshiba NVMe THNSN5512GPU7, IGZO TFT, 3200x1800, 13.9
Alienware 13 R3
7700HQ, GeForce GTX 1060 Mobile, Toshiba NVMe THNSN5256GPUK, OLED, 2560x1440, 13.3
Gigabyte Aero 14
7700HQ, GeForce GTX 1060 Mobile, LiteOn CX2-8B256, IPS, 2560x1440, 14
Razer Blade (2017)
7700HQ, GeForce GTX 1060 Mobile, Samsung PM951 NVMe MZVLV256, IPS, 1920x1080, 14
Gigabyte Aero 15
7700HQ, GeForce GTX 1060 Mobile, Lite-on CX2-8B512-Q11 NVMe SSD, IPS, 1920x1080, 15.6
Eurocom Tornado F5
7700K, GeForce GTX 1070 Mobile, Samsung SSD 960 Pro 512 GB m.2, IPS, 1920x1080, 15.6
MSI GS63VR 7RF-228US
7700HQ, GeForce GTX 1060 Mobile, Samsung SM961 MZVKW512HMJP m.2 PCI-e, IPS, 3840x2160, 15.6
Aorus X5 v6 AO-S107W516-PL-002
6820HK, GeForce GTX 1070 Mobile, LiteOn CX2-8B256, , 2880x1620, 15.6
Power Consumption
21%
18%
29%
9%
-46%
2%
-70%
Idle Minimum *
15.1
7
54%
8
47%
7.5
50%
12
21%
21.2
-40%
14.5
4%
23.3
-54%
Idle Average *
15.8
12
24%
13
18%
12.1
23%
15
5%
25.1
-59%
17.3
-9%
30.1
-91%
Idle Maximum *
16.7
18
-8%
20
-20%
14.3
14%
20
-20%
26.3
-57%
17.4
-4%
31
-86%
Load Average *
110.9
76
31%
78
30%
73.5
34%
82
26%
169.4
-53%
93
16%
195.8
-77%
Load Maximum *
170.4
161
6%
146
14%
110.2
35%
161
6%
202.4
-19%
242
-42%
Witcher 3 ultra *
135
110
19%
108
20%
111
18%
128.8
5%

* ... smaller is better

Akkumulátor üzemidő
Üresjárat (WLAN nélkül, minimális fényerő)
7h 57min
NBC WiFi Websurfing Battery Test 1.3
4h 53min
Terhelés (maximális fényerő)
1h 40min
Aorus x3 Plus v7
7820HK, GeForce GTX 1060 Mobile, 74 Wh
Alienware 13 R3
7700HQ, GeForce GTX 1060 Mobile, 76 Wh
Gigabyte Aero 14
7700HQ, GeForce GTX 1060 Mobile, 94 Wh
Razer Blade (2017)
7700HQ, GeForce GTX 1060 Mobile, 70 Wh
Gigabyte Aero 15
7700HQ, GeForce GTX 1060 Mobile, 94.24 Wh
Eurocom Tornado F5
7700K, GeForce GTX 1070 Mobile, 75.24 Wh
MSI GS63VR 7RF-228US
7700HQ, GeForce GTX 1060 Mobile, 65 Wh
Aorus X5 v6 AO-S107W516-PL-002
6820HK, GeForce GTX 1070 Mobile, 94.2 Wh
Battery Runtime
3%
66%
86%
30%
-33%
-22%
-49%
Reader / Idle
477
524
10%
909
91%
638
34%
291
-39%
386
-19%
242
-49%
WiFi v1.3
293
320
9%
524
79%
545
86%
422
44%
216
-26%
232
-21%
Load
100
90
-10%
129
29%
112
12%
67
-33%
75
-25%
WiFi
182

Pro

+ kiváló design
+ prémium anyagok
+ nagy teljesítmény
+ kicsi és könnyű
+ kitűnő kijelző
+ szabad CPU és GPU

Kontra

- hangos és idegesítő ventilátorok
- melegszik
- a CPU terhelés alatt lefojt
- terhelés alatt a fogyasztását nem bírja a táp
- frusztráló touchpad
In review: Aorus X3 PLus v7. Review unit courtesy of Xotic PC.
In review: Aorus X3 PLus v7. Review unit courtesy of Xotic PC.

Az X3 Plus v7 ambiciózus gép. Az Aorus "ami belefér" elvét követve erős hardvert présel kompakt házba. Sajnos az X3 esetében sokat akar a szarka... így egy kompromisszumokkal teli noteszgép lett az eredmény. Ugyan vannak határozott erényei, de nem biztos, hogy a teljesítmény érdekében abból faragtak le, amiből kellett volna.

Az X3 dizájnja kitűnő. A szimpatikus külső, és a finom részletek nagyon vonzóvá teszik a házat, és az alapban felhasznált fém minőséginek tűnik. A QHD+ kijelző is lenyűgöző. A képek és szöveg tűélesen jelennek meg, a színek pontosak és élénkek, és a kijelző tartalma olvasható marad közvetlen napfényben is. A játékos teljesítmény szintén igen meggyőző. Csodaszámba megy, hogy asztali (vagy jobb!) teljesítményt kaphatunk egy kompakt notebooktól. A CPU és GPU túlhúzhatósága pedig még sokoldalúbbá teszik a készüléket, ami szintén jó pont.

Sajnos ennek a teljesítménynek ára van. A ház túl kicsi, hogy az izmos hardver által termelt hőt megfelelően elvezesse, így a ventilátorok gyakran, és agresszíven pörögnek fel, hogy elég hőt tudjon leadni a működőképesség megőrzéséhez. Az eredmény egy hangos és meleg notebook, amely nagyobb terhelés esetén még vissza is fojtja magát. A hatalmas energiaigényt pedig a táp sem mindig bírja kezelni. A fentiek miatt érdemes meggondolni, hogy csúcsra járassuk-e ezt a noteszgépet.

Összességében, tetszett az Aorus X3 Plus v7. Kiváló teljesítményt nyújt, de a keményebb kompetítorokkal, mint a Gigabyte Aero 14-gyel és az Alienware 13-mal összevetve más területeken az X3 lemaradt. Az átlagos billentyűzet, idegesítő touchpad, a hő és zaj miatt az X3 nem kerülhetett a vékony és könnyű gaming gépek élmezőnyébe.

Ugyan az Aorus X3 Plus v7 lenyűgöző teljesítményt kínál kis formátumban, mégis túl sok kompromisszumot kellett kötni ahhoz, hogy ajánlani tudjuk. Sokkal kiegyensúlyozottabb gépeket is találnak a piacon azok a gamerek, akik hordozható eszközt szeretnének..

Ez az eredeti értékelés rövidített változata. A teljes, angol nyelvű cikk itt olvasható.

Aorus x3 Plus v7 - 05/16/2017 v6(old)
Sam Medley

Váz
84 / 98 → 85%
Billentyűzet
74%
Érintőpad
69%
Csatlakoztathatóság
57 / 81 → 71%
Súly
65 / 10-66 → 99%
Akkumulátor
82%
Kijelző
89%
Játékok alatti teljesítmény
93%
Alkalmazások alatti teljesítmény
91%
Hőmérséklet
86 / 95 → 91%
Zaj
58 / 90 → 64%
Audio
50%
Átlag
75%
82%
Gaming - Súlyozott átlag
Please share our article, every link counts!
> Magyarország - Kezdőlap > Tesztek / áttekintők > Aorus X3 Plus v7 (i7-7820HK, GTX 1060) Xotic PC Edition Laptop rövid értékelés
Sam Medley, 2017-05-18 (Update: 2017-05-18)
Sam Medley
Editor of the original article: Sam Medley - Review Editor - @samuel_medley
